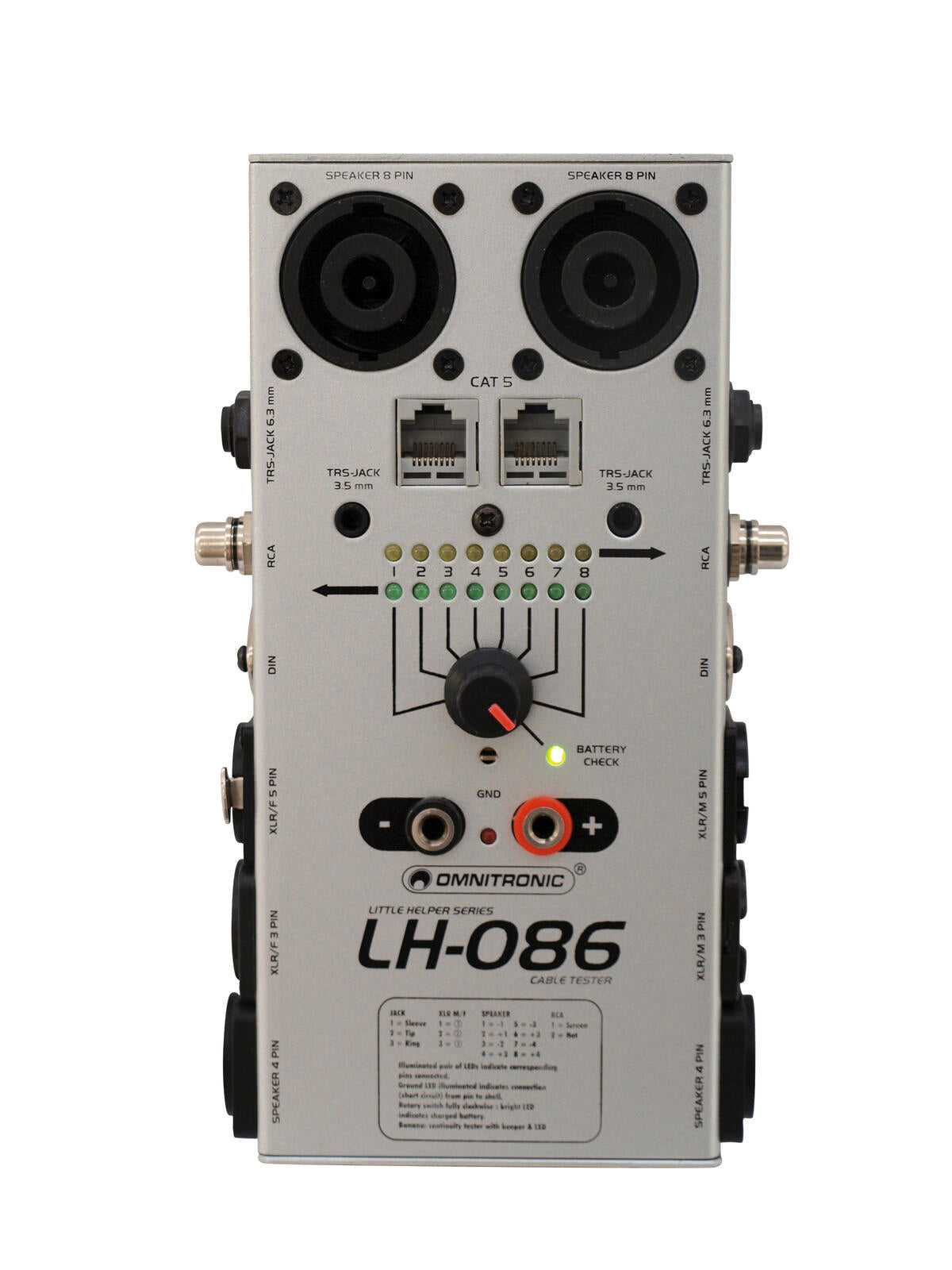

OMNITRONIC LH-086 Cable Tester

The OMNITRONIC LH-086 controls the function of 3 and 5-pin XLR-, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4 and 8-pin speaker cables and connections. A polarity and short-circuit display enables an easy control. Testing the continuity via two banana sockets is possible as well.

Cable tester for XLR, jack, CAT5, DIN, RCA, Speaker

• Ideal cable test for all cable connections in the studio and for live applications
• Tests 3+5-pin XLR, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4+8-pin Speaker cables and connections
• Polarity and short-circuit display
• Comfortable selection via rotary switch
• Continuity tester via two banana sockets for connecting the measuring pins. LED and beeper indicate continuity
• Indispensable helper for musicians, sound and stage technicians
• For application areas such as: Mobile use; mobile djs / entertainer

Scope of delivery

• 1 x device
• 2 x measuring cable
• 1 x user manual
• 1 x battery

Power connection:	Battery/battery pack
Cable length:	1 m
Battery:	1 x 9.0 V E block 6F22 zinc carbon included
Connections:	RJ-45 (F) mounting version 3.5 mm jack (stereo) mounting version RCA (F) mounting version 3-pin XLR 5-pin XLR Speaker built-in socket (F) 6.3 mm jack socket (stereo) mounting version 5-pin DIN (F) mounting version
Color:	Silver
Dimensions:	Width: 11.2 cm Depth: 19 cm Height: 6 cm
Weight:	0.90 kg
