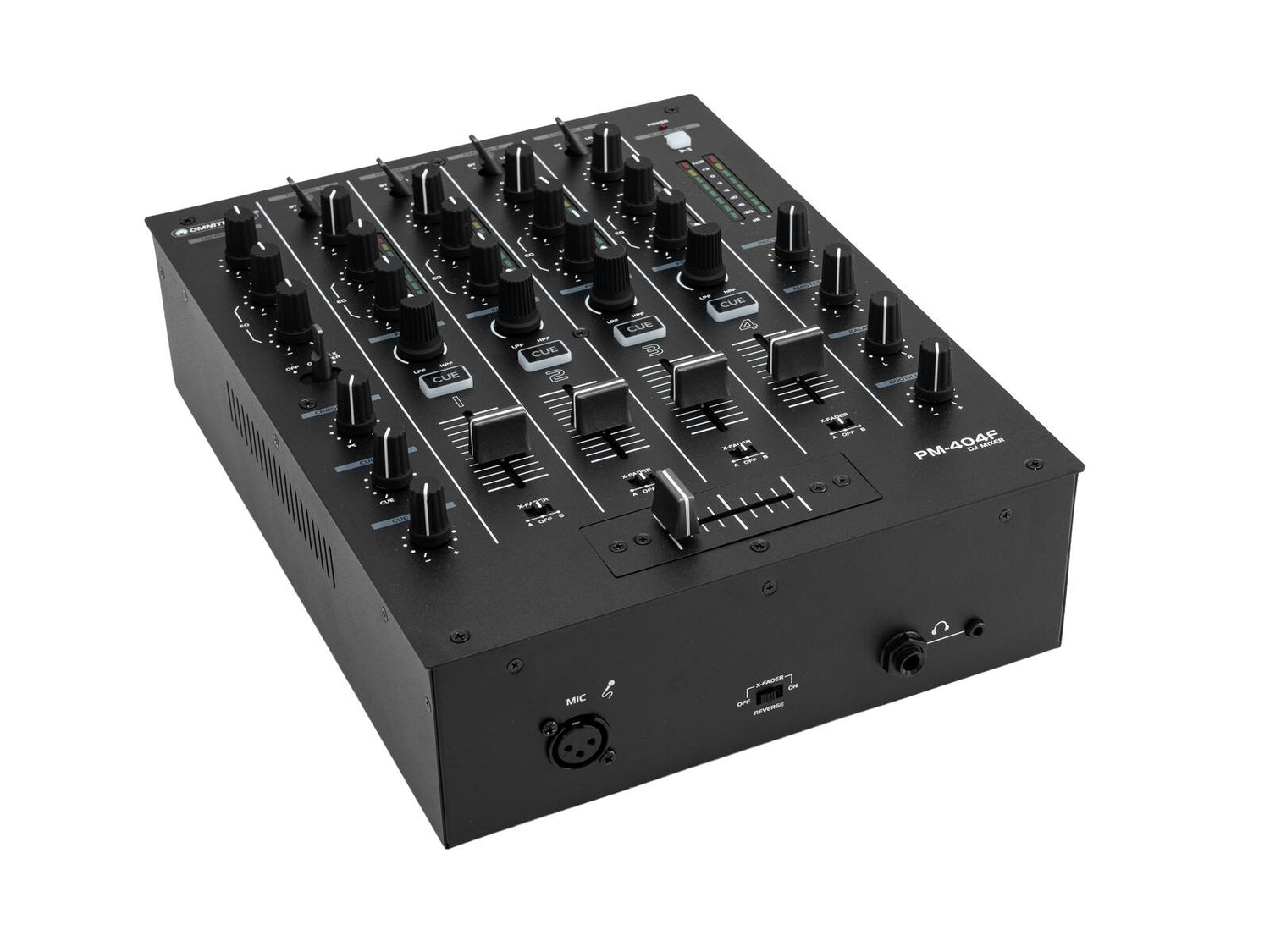

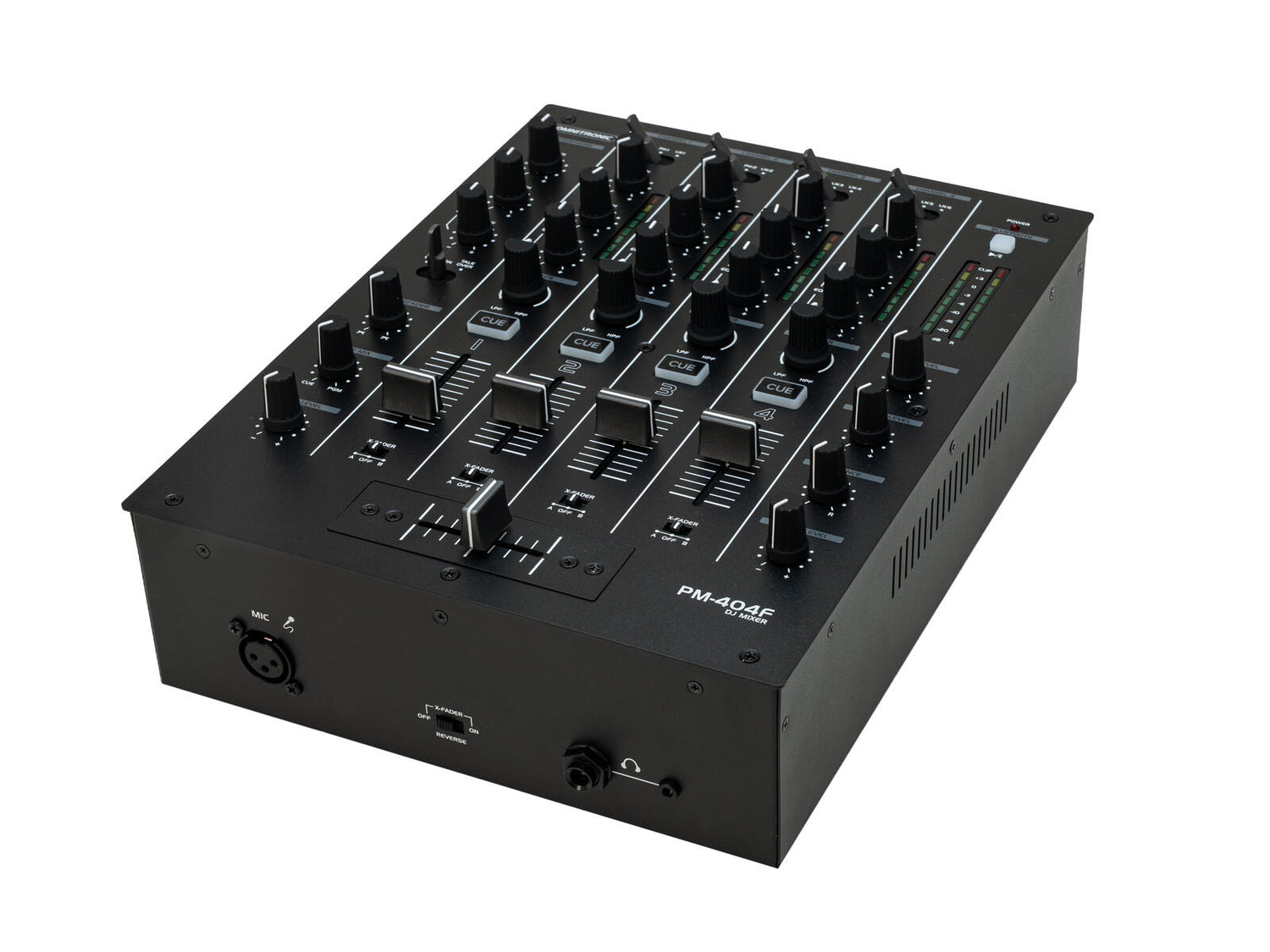

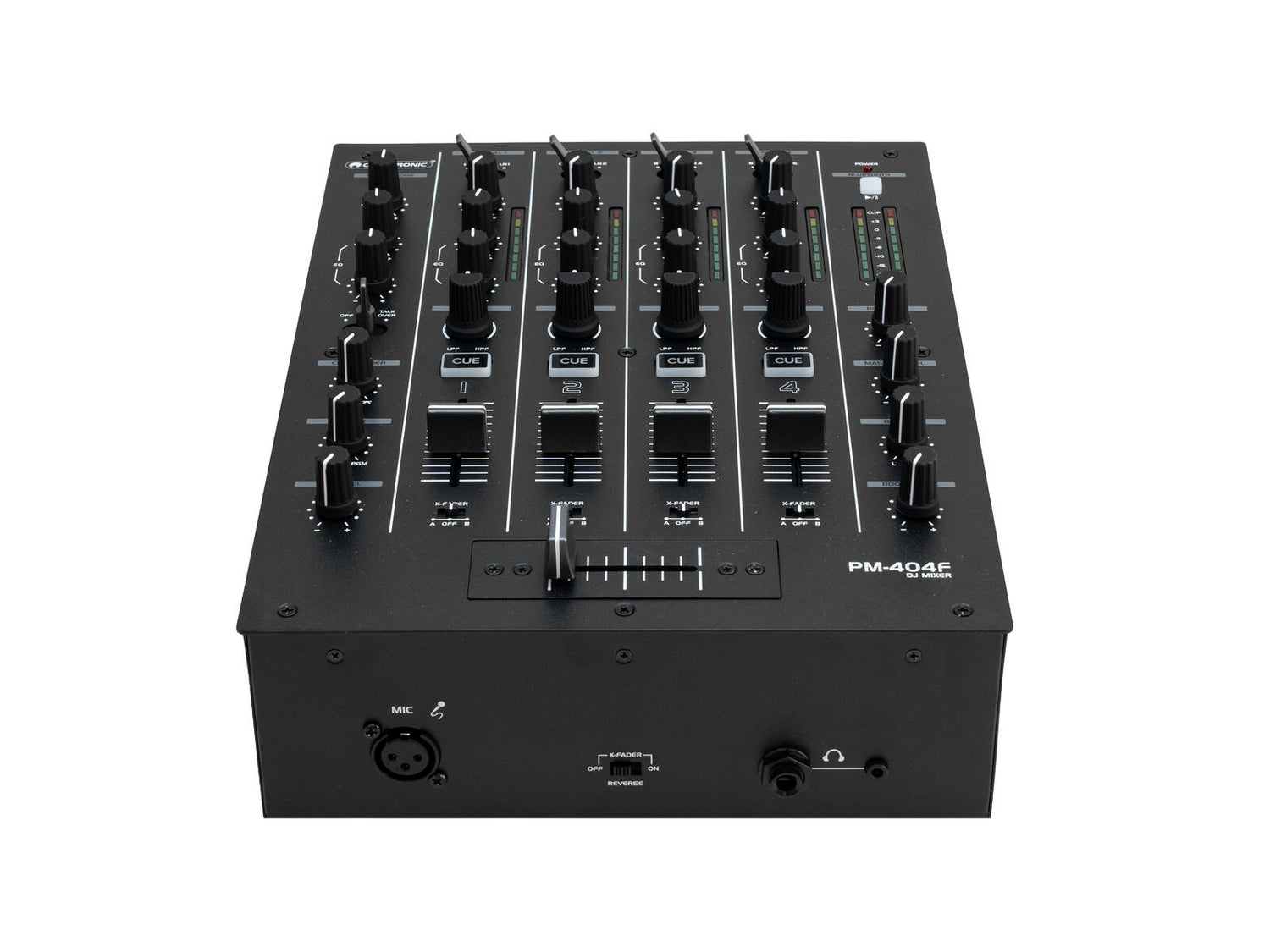

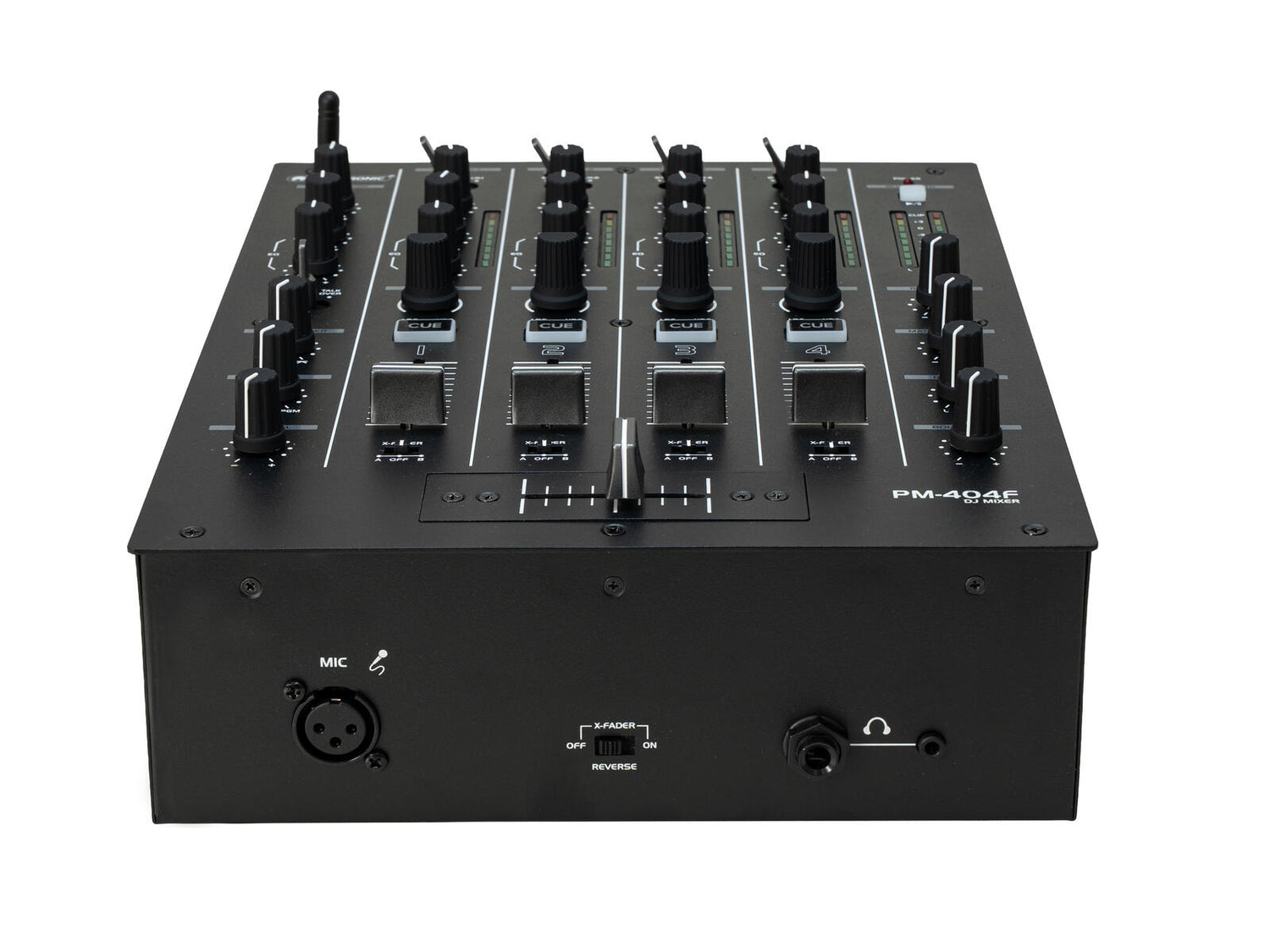

OMNITRONIC PM-404F 4-channel DJ Mixer with Filter and Bluetooth
1
of
5
Loading...
€283,95
Unit price
/
Not available
Secure checkout
Description
Description
DJ mixer with Bluetooth connectivity and sound filter
- Bluetooth signal routable to channel 1 to 4
- DJ filter LPF/HPF bipolar per channal
- DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
- Crossfader with adjustable curve and reverse function
- Master channel with level and balance control
- 6 line and 2 phono inputs via RCA jacks
- Additional recording output
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Control via Bluetooth
- Bluetooth: operating range up to 20m
- Desktop console housing
Scope of delivery
- 1 x mixer
- 1 x power cord
- 1 x antenna
- 1 x RCA cable
- 1 x user manual
- 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Power connection: | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >75 dB |
| THD: | <0.1 % at 1 kHz |
| DJ filter: | Per channal: LPF/HPF bipolar, |
| Control: | Bluetooth |
| Bluetooth device name: | PM-404F |
| Range: | Bluetooth: range up to 20m |
| Carrier frequency: | 2.4 GHz |
| Housing color: | Black matte |
| Crosstalk: | >60 dB |
| Control elements: | Power switch, Master control, level control per channel, Input sensitivity switch, source selector; tone control, talkover, crossfader selector switch, crossfader, connect; cue mix function, Crossfade curve control, crossfade reverse switch, balancecontrol |
| Status LED: | Power, master level meter, channel level meter, CUE, pairing |

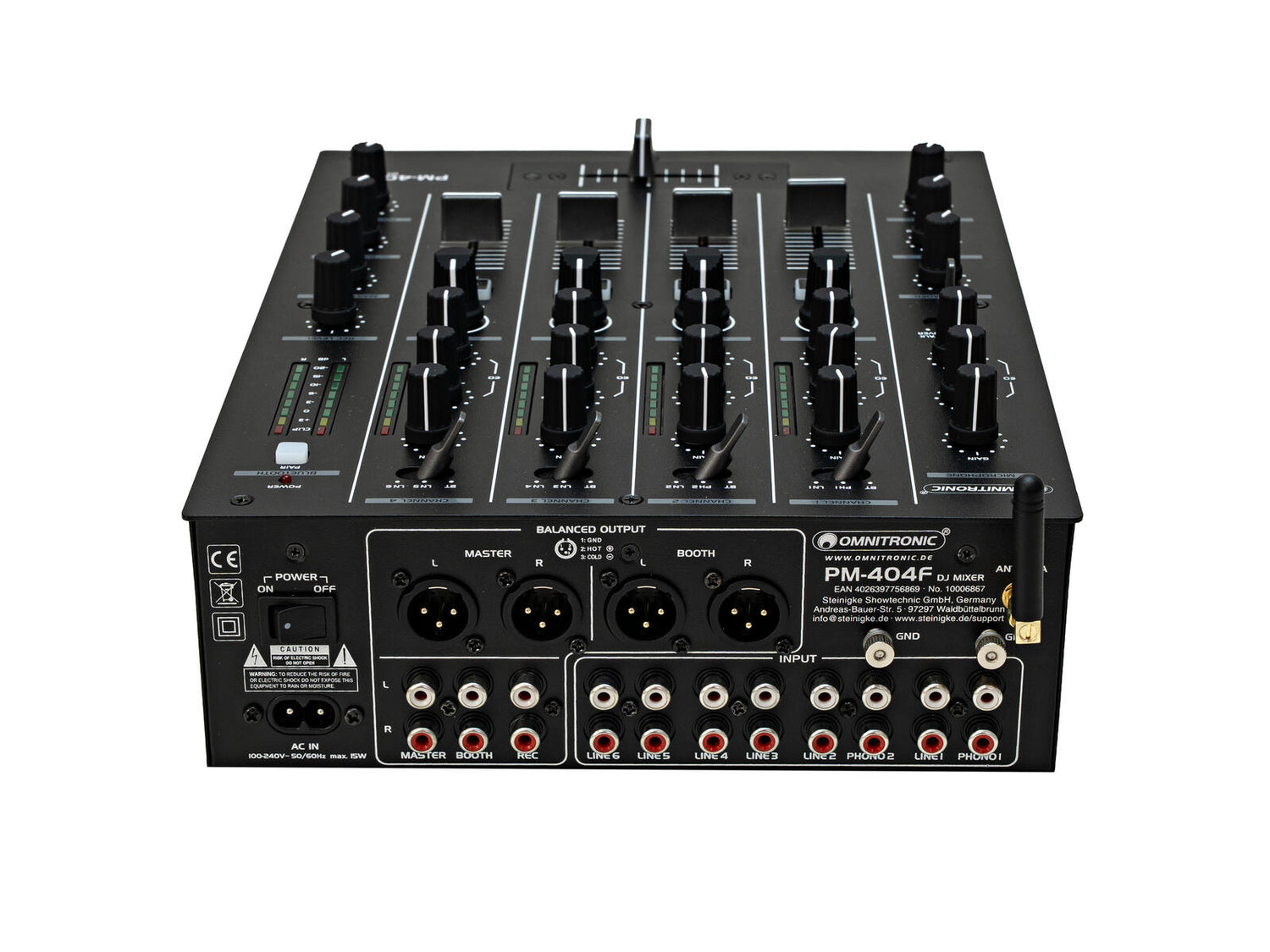

| Connections: | Input: line via 6 x stereo RCA Input: phono via 2 x stereo RCA Input: microphone via 1 x 3-pin XLR (F) mounting version Input: antenna via 1 x SMA (F) mounting version Input: Earthing connection via 2 x screw terminal Output: master via 2 x 3-pin XLR (M) mounting version Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: booth via 1 x stereo RCA Output: booth via 2 x 3-pin XLR (M) mounting version Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: | Input channel: 2 x stereo with Line-Phono-Bluetooth switch via RCA or Bluetooth, channel control via 60mm fader, 2-band tone control EQ, source selector, gain control, CUE switch, crossfader selector switch, LPF/HPF bipolar Input channel: 2 x stereo with Line-Line-Bluetooth switch via RCA or Bluetooth, channel control via 60mm fader, 2-band tone control EQ, source selector, gain control, CUE switch, crossfader selector switch, LPF/HPF bipolar Microphone channel: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ, talkover switch, gain control Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial Rec. output: 1 x stereo via RCA, channel control via rotary dial Headphones output: 2 x stereo via jack, channel control via rotary dial |
| Material: | Metal |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 24 cm Depth: 33.8 cm Height: 11 cm |
| Weight: | 2.85 kg |
