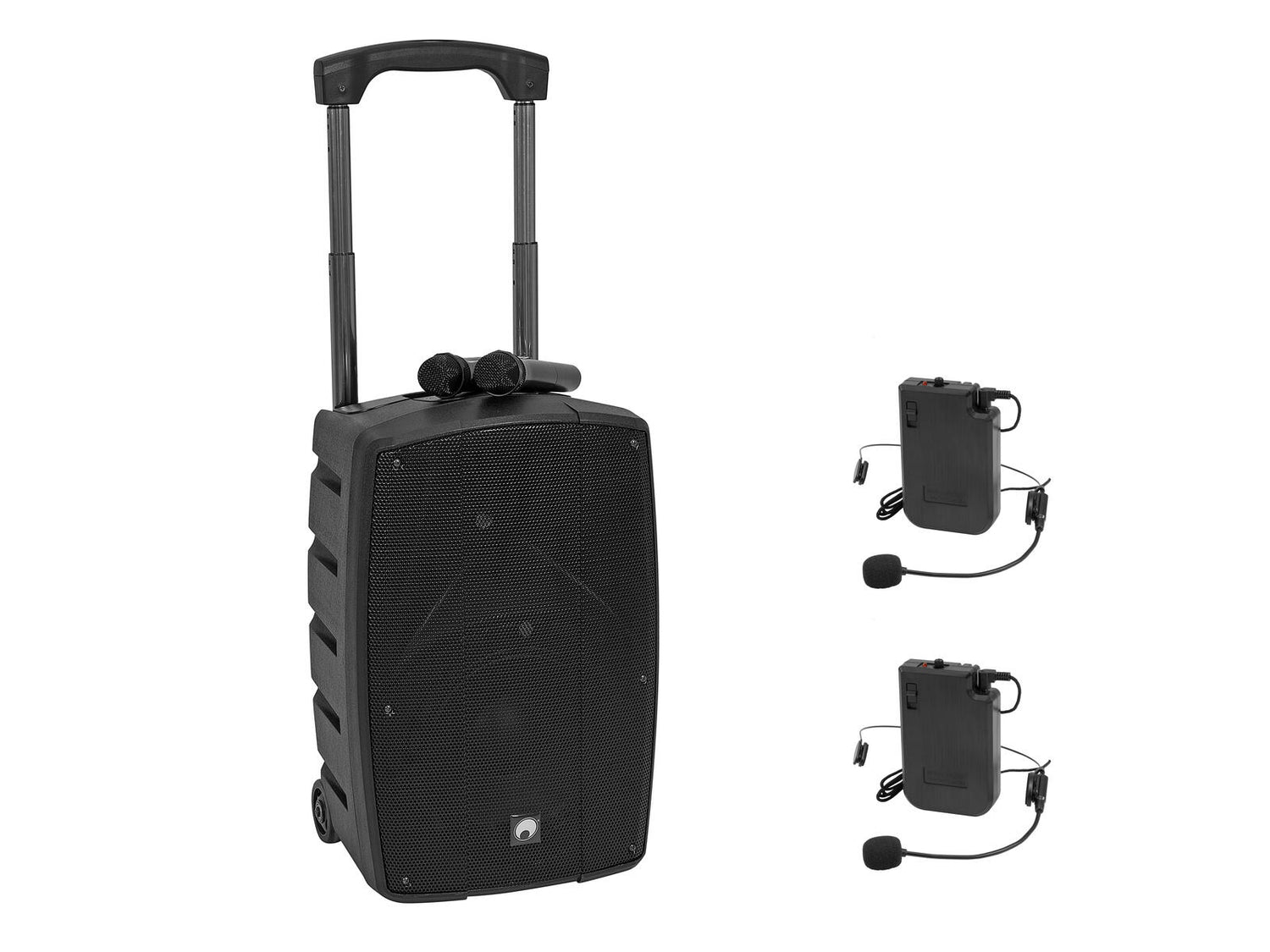

OMNITRONIC Set WAMS-10BT2 MK2 + 2x Bodypack Transmitter + 2x Headset
1
of
4
Loading...
€471,95
Unit price
/
Not available
Secure checkout
Description
Description

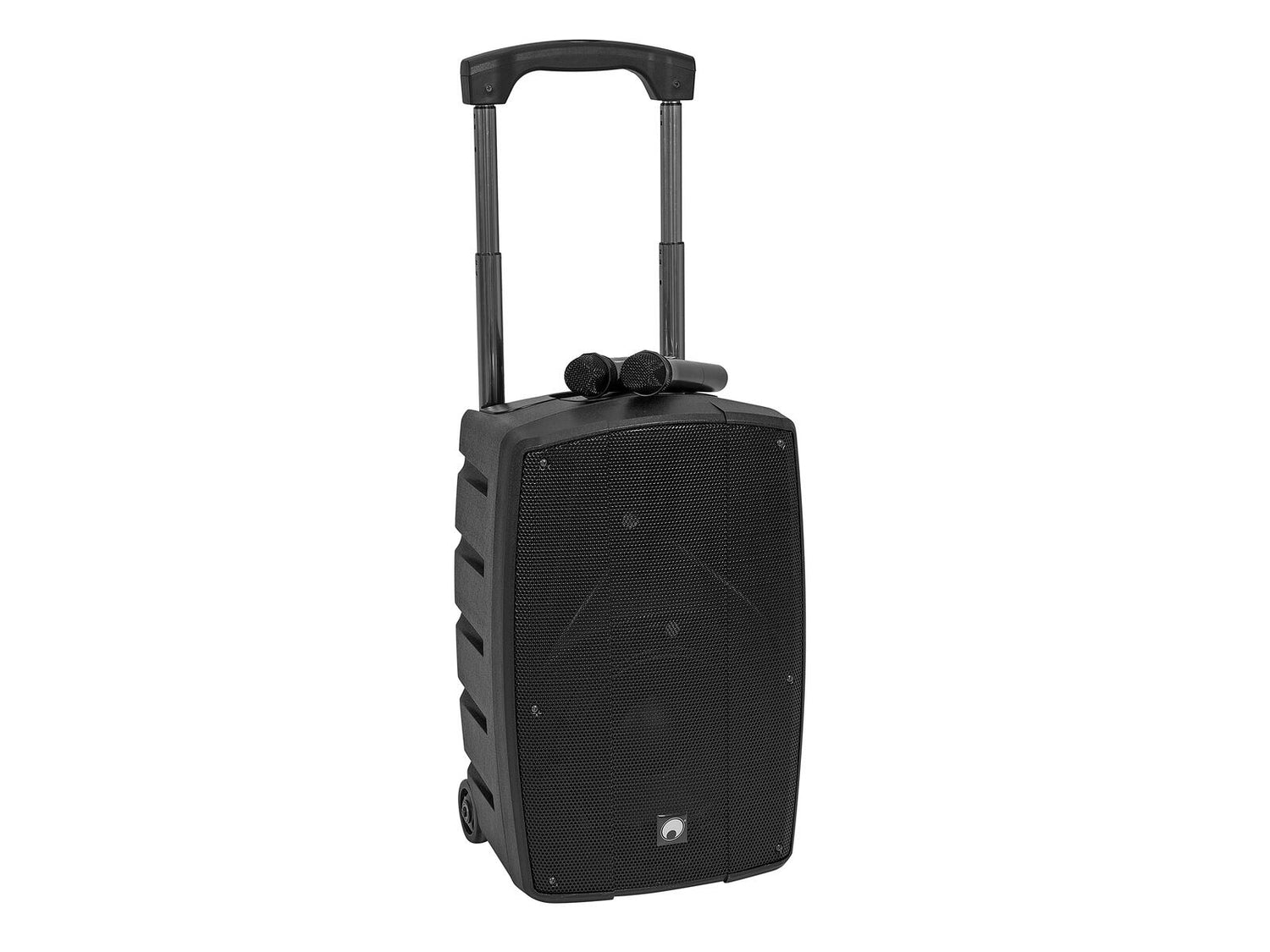

OMNITRONIC WAMS-10BT2 MK2 Wireless PA System
Mobile 10" PA system with battery operation, audio player, Bluetooth and 2 wireless microphones
- Portable all-in-one PA system with 80 watts output power
- 3-channel power mixer
- Power-efficient and battery-saving biamp amplifier with DSP control
- 2-way bass-reflex enclosure with 25 cm woofer (10")
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- 2 mono input channels mic/line and hi-Z instrument (CH 2) with echo effect and feedback suppression
- 1 stereo input channel for internal audio player and external line signal sources with talkover switch
- UHF receiver units and 2 matching wireless microphones
- 1 additional battery can be retrofitted for up to 8 hours operating time
- Signal limiter and crossover, DSP-controlled
- Common 2-band EQ for highs and lows
- Cordless, flexible and versatile
- Battery operation up to 4h depending on program used
- Integrated automatic charging of the battery and status indicator
- Control via Bluetooth; IR remote control
- Bluetooth: operating range up to 20m
- UHF 863 - 865 MHz License-free and approved in Europe
- Black metal grille
- With accessory compartment
- Rugged carrying handle
- Trolley
- For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
- Application possibility: Standing; monitoring; on stand
audio player
- 2.4 GHz license-free worldwide
microphone
- Polar pattern: Cardioid
- Operating range up to 30m

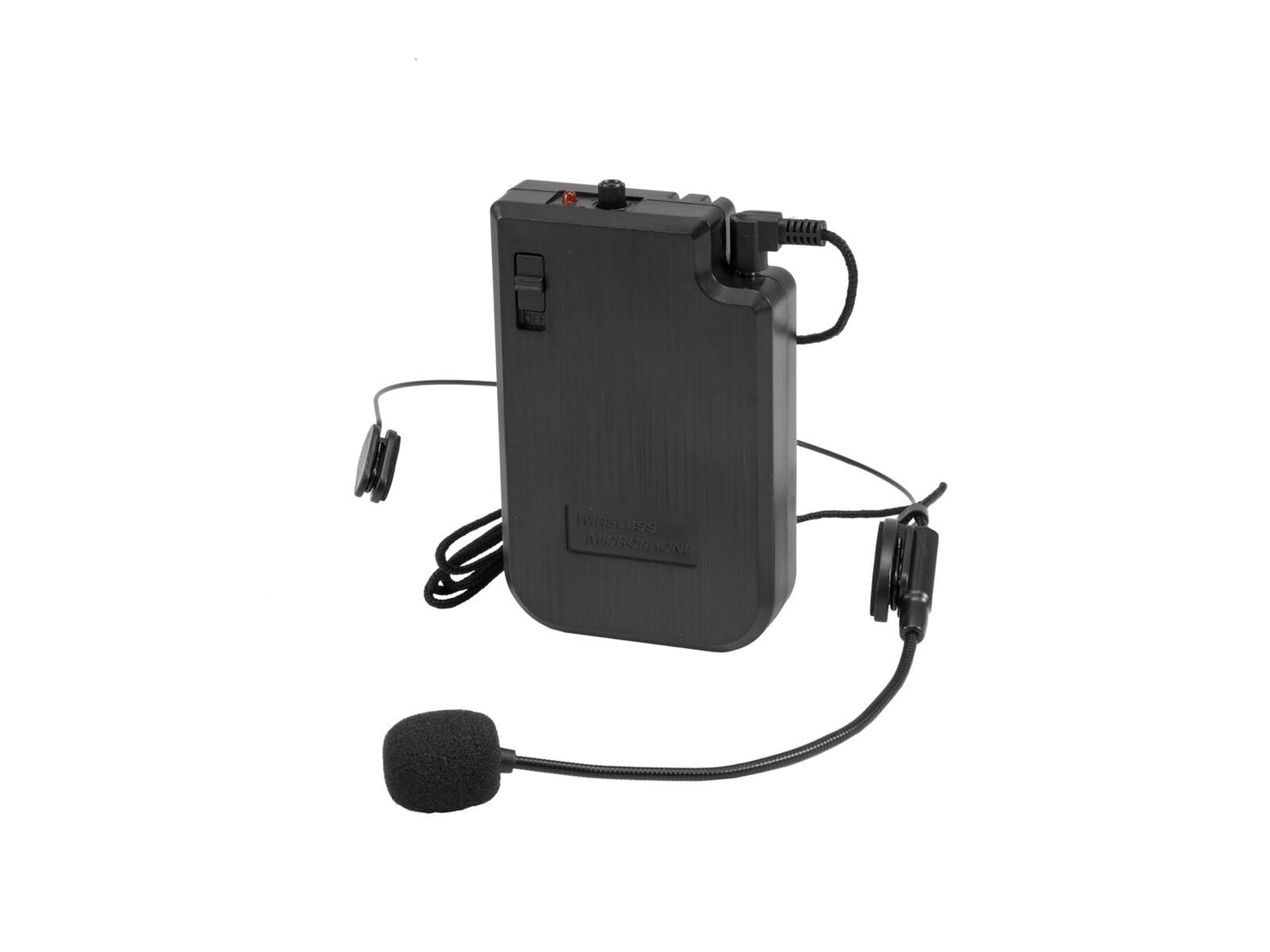

OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 863MHz
Bodypack transmitter with headset microphone
- LED indicator for battery capacity
- Operating range up to 60m with line-of-sight
OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 865MHz
Bodypack transmitter with headset microphone
- LED indicator for battery capacity
- Operating range up to 60m with line-of-sight
Scope of delivery
1 x OMNITRONIC WAMS-10BT2 MK2 Wireless PA System
- 2 x microphone
- 2 x user manual
- 1 x power cord
- 1 x battery
- 1 x compact cabinet speaker
- 1 x declaration of conformity
- 1 x battery pack
- 1 x remote control
- 2 x antenna
1 x OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 863MHz
- 1 x transmitter
- 1 x microphone
- 1 x user manual
1 x OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 865MHz
- 1 x user manual
- 1 x microphone
- 1 x transmitter
| Weight: | 13.08 kg |
| OMNITRONIC WAMS-10BT2 MK2 Wireless PA System | |
| Power supply: | 100-240 V AC, 50/60 Hz Or 12V DC |
| Protection class: | Protection class I |
| Output power: | 80 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) Battery/battery pack |
| Device fuse: | 5 x 20 mm, T 1.6 A fuse replaceable |
| Battery pack type: | 1 x lithium ion 12.8 V, 8000 mAh, 102.4 Wh |
| Battery pack: | Battery operation up to 4h depending on program used Recharging time 4h |
| Frequency range: | 50 - 20000 Hz |
| THD: | <0.1 % at 1 kHz |
| Sensitivity: | 96 dB (1W/1m) |
| Max. SPL: | 115 dB |
| Control: | Bluetooth; IR remote control |
| Bluetooth: | Version: 5 with stereo link (TWS) |
| Bluetooth device name: | OMNITRONIC |
| Range: | Bluetooth: range up to 20m |
| Frequency band: | UHF 863 - 865 MHz |
| Attachment system: | Flange: Ø 35mm |
| Control elements: | Level control per channel, echo effect control, talkover |
| Status LED: | Power, limit, charge status indicator |
| Connections: | Input: line via 1 x 3.5 mm jack (stereo) mounting version Input: line via 1 x stereo RCA Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: 3-pin XLR |
| Channels: | Input channel: 1 x mono with mic-line switch via XLR or jack, channel control via rotary dial, 2-band tone control EQ |
| Input channels: | 1 x mono with Mic-Line-Hi.Z. switch via XLR or jack, channel control via rotary dial 1 x stereo with line-player switch via RCA or jack plug or player, channel control via rotary dial |
| Speaker: | 1 x woofer 10" 1 x tweeter 1" |
| Type of speaker: | Wireless PA system |
| Carrying handle: | 1 pc/pcs |
| Transport aid: | Trolley |
| Switch: | On/off switch |
| Material: | ABS Acrylonitrile butadiene styrene |
| Color: | Black |
| Dimensions: | Length: 31 cm Width: 36 cm Height: 56 cm |
| Weight: | 12.90 kg |
| Microphone | |
| Power supply: | 3V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | Range up to 30m |
| Dimensions: | Length: 26 cm Diameter: Ø 4 cm |
| Audio player | |
| Audio player: | USB + SD + Bluetooth |
| Frequency band: | 2.4 GHz |
| Music format: | MP3, WMA |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 863MHz | |
| Type: | Bodypack with microphone |
| Battery: | 2 x Mignon (AA) (not included) |
| THD: | <0.1 % at 1 kHz |
| Range: | Range up to 60m with line-of-sight |
| Carrier frequency: | 863 MHz |
| RF power output: | 10 mW |
| Frequency selection: | Fixed frequencies |
| Connections: | 1 x 3.5 mm jack (mono) mounting version |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.6 cm Depth: 2.5 cm Height: 10.5 cm |
| Weight: | 0.09 kg |
| Microphone | |
| Capsule type: | Condenser |
| OMNITRONIC WAMS-10BT2 MK2 Bodypack incl. Headset 865MHz | |
| Type: | Bodypack with microphone |
| Battery: | 2 x Mignon (AA) (not included) |
| THD: | <0.1 % at 1 kHz |
| Range: | Range up to 60m with line-of-sight |
| Carrier frequency: | 865 MHz |
| RF power output: | 10 mW |
| Frequency selection: | Fixed frequencies |
| Connections: | 1 x 3.5 mm jack (mono) mounting version |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.6 cm Depth: 2.5 cm Height: 10.5 cm |
| Weight: | 0.09 kg |
| Microphone | |
| Capsule type: | Condenser |
Technical specifications
Technical specifications
