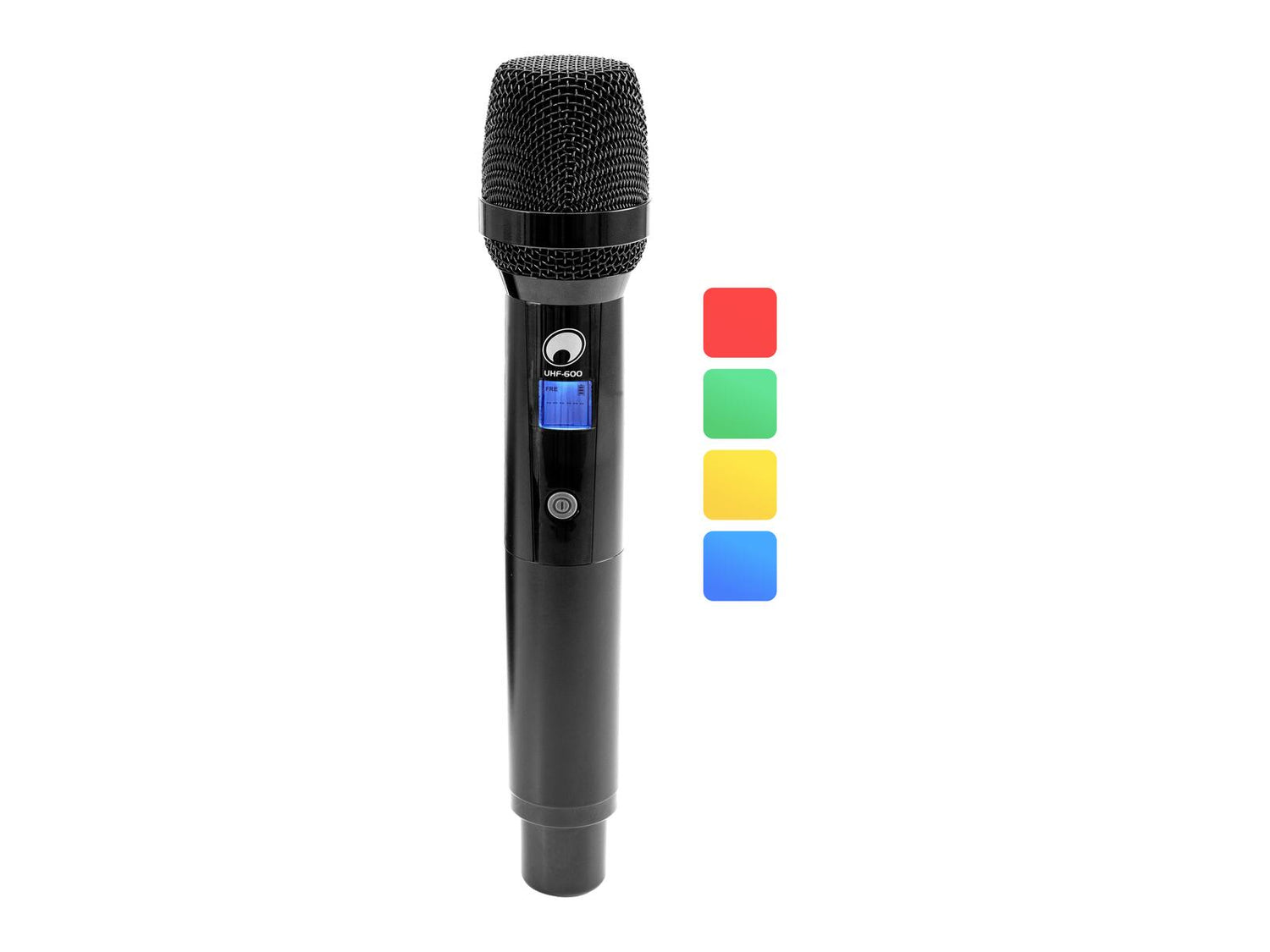

OMNITRONIC UHF-600 Handheld Microphone 823-832/863-865 MHz
Loading...
€50,95
Unit price
/
Not available
Secure checkout
Description
Description
Hand-held microphone for UHF-600 receivers
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Polar pattern: Cardioid
- Operating range up to 60m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Up to 12 transmitters can be operated in parallel without interference
- Ultra-low latency
- Multicolor LCD display
- Charge status indicator
Scope of delivery
- 1 x microphone
- 1 x user manual
- 1 x declaration of conformity
| Type: | Hand-held transmitter |
| Power supply: | 3V DC 130 mA |
| Capsule type: | Dynamic Size: Ø 2.54 mm |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 16000 Hz |
| Sensitivity: | -54 dB |
| Range: | Range up to 60m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching bandwidth: | 11 MHz |
| Parallel mode: | Max. 12 transmitter |
| RF power output: | 5 mW (LO); 10 mW (HI) |
| Latency: | < 3 ms |
| Modulation: | FM |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Display: | Frequency , charge status indicator , Mute , RF signal level |
| Material: | Metal |
| Dimensions: | Length: 25.9 cm Diameter: Ø 4.95 cm |
| Weight: | 0.35 kg |
