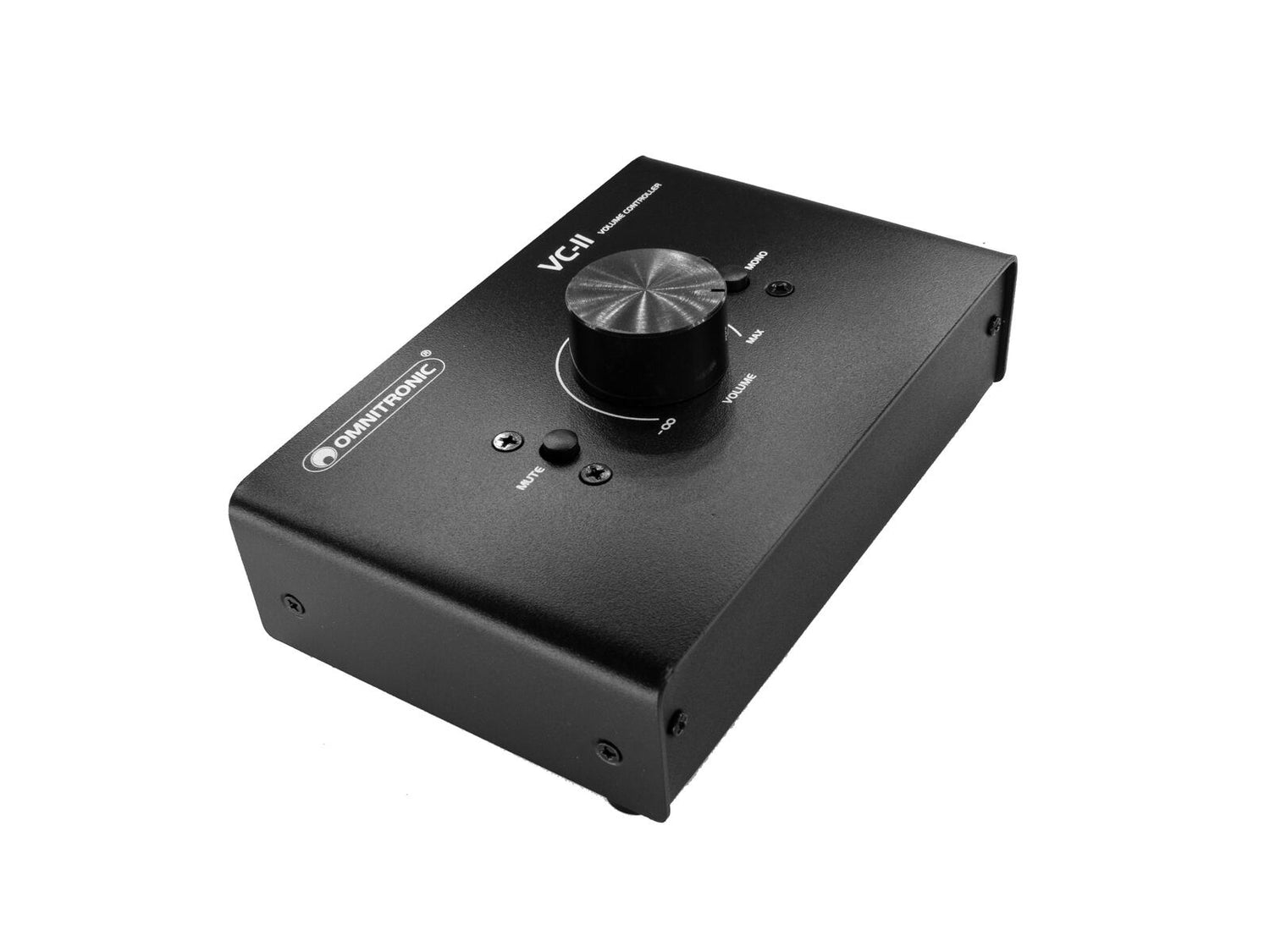

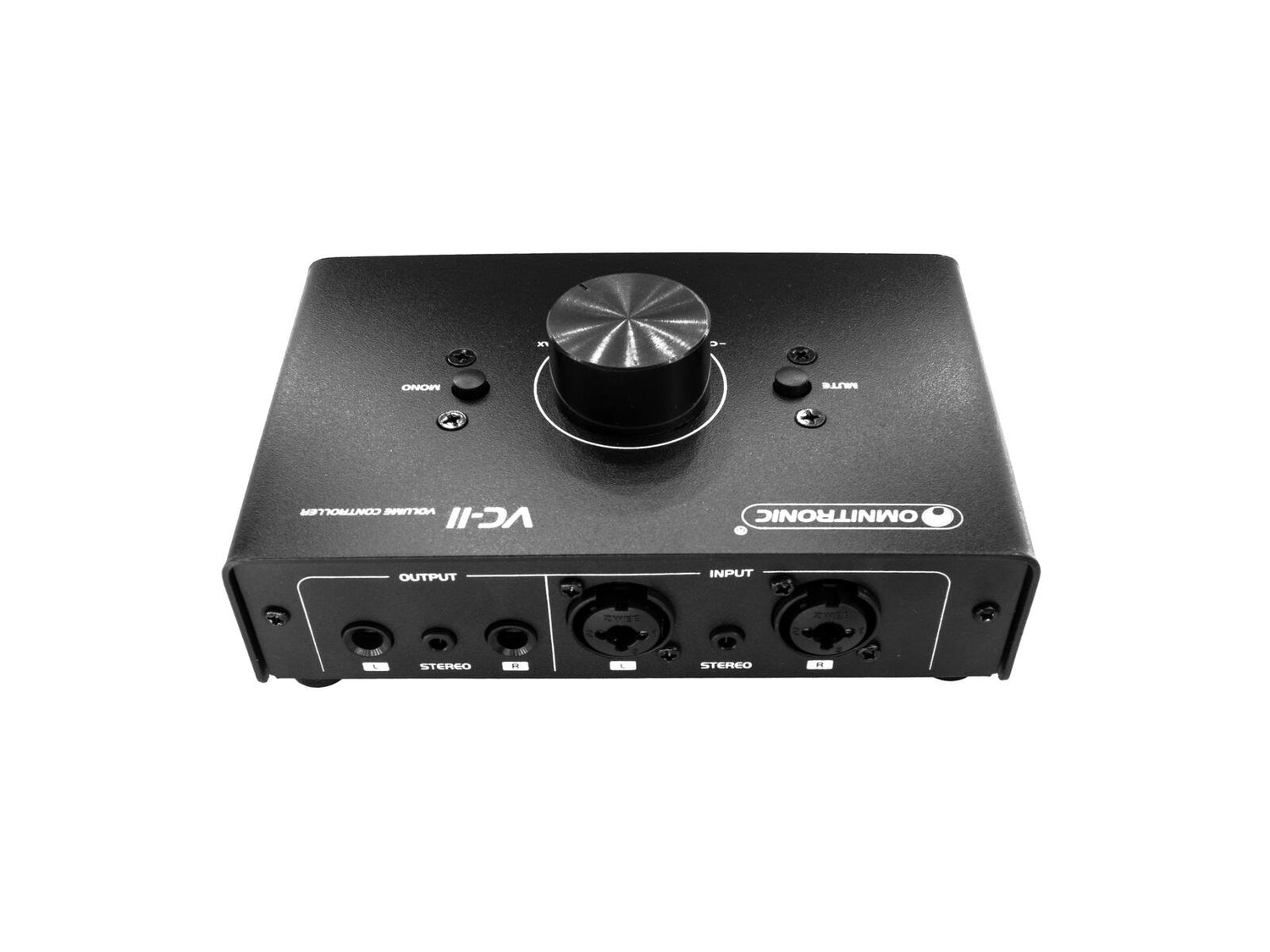

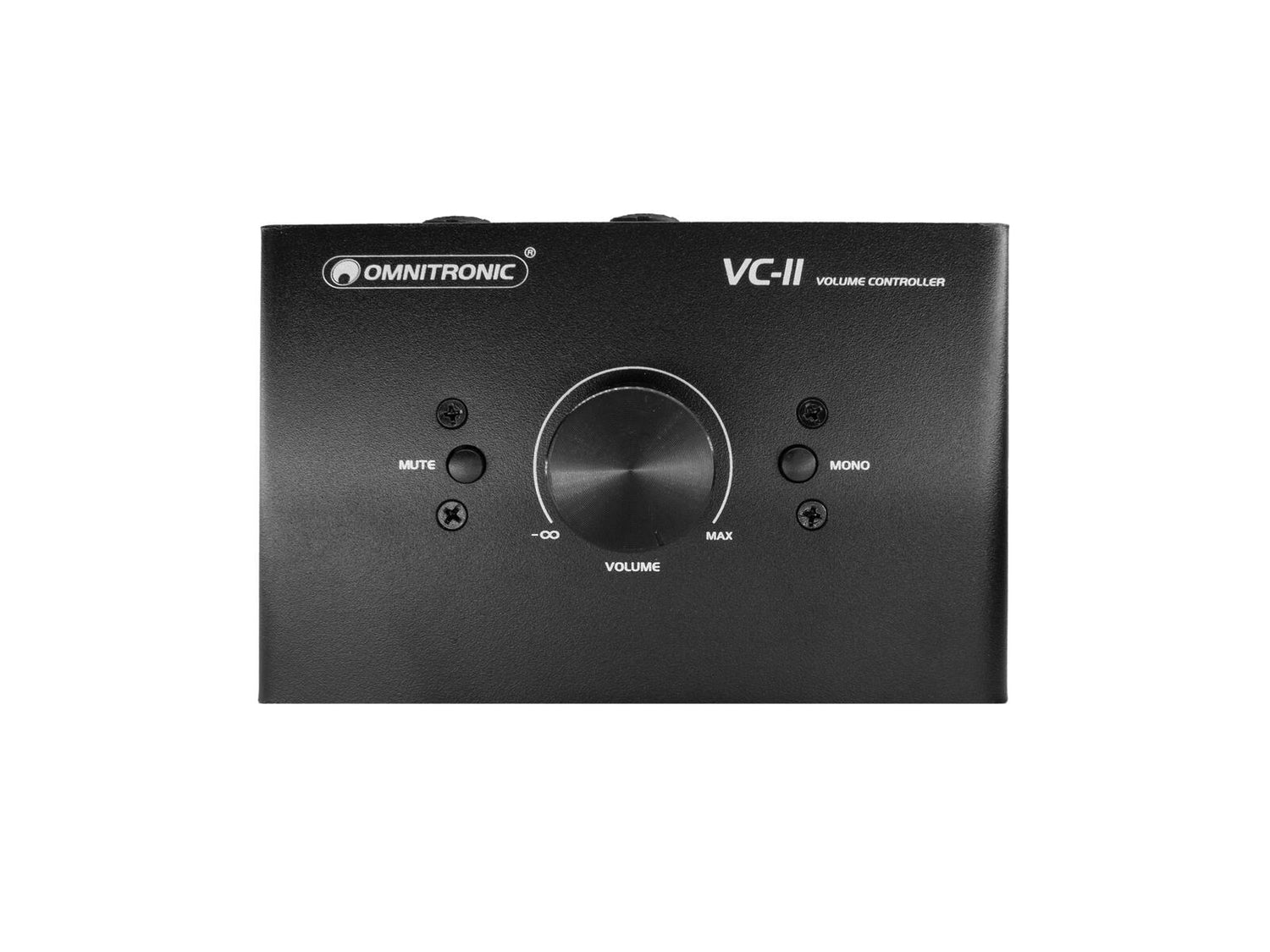

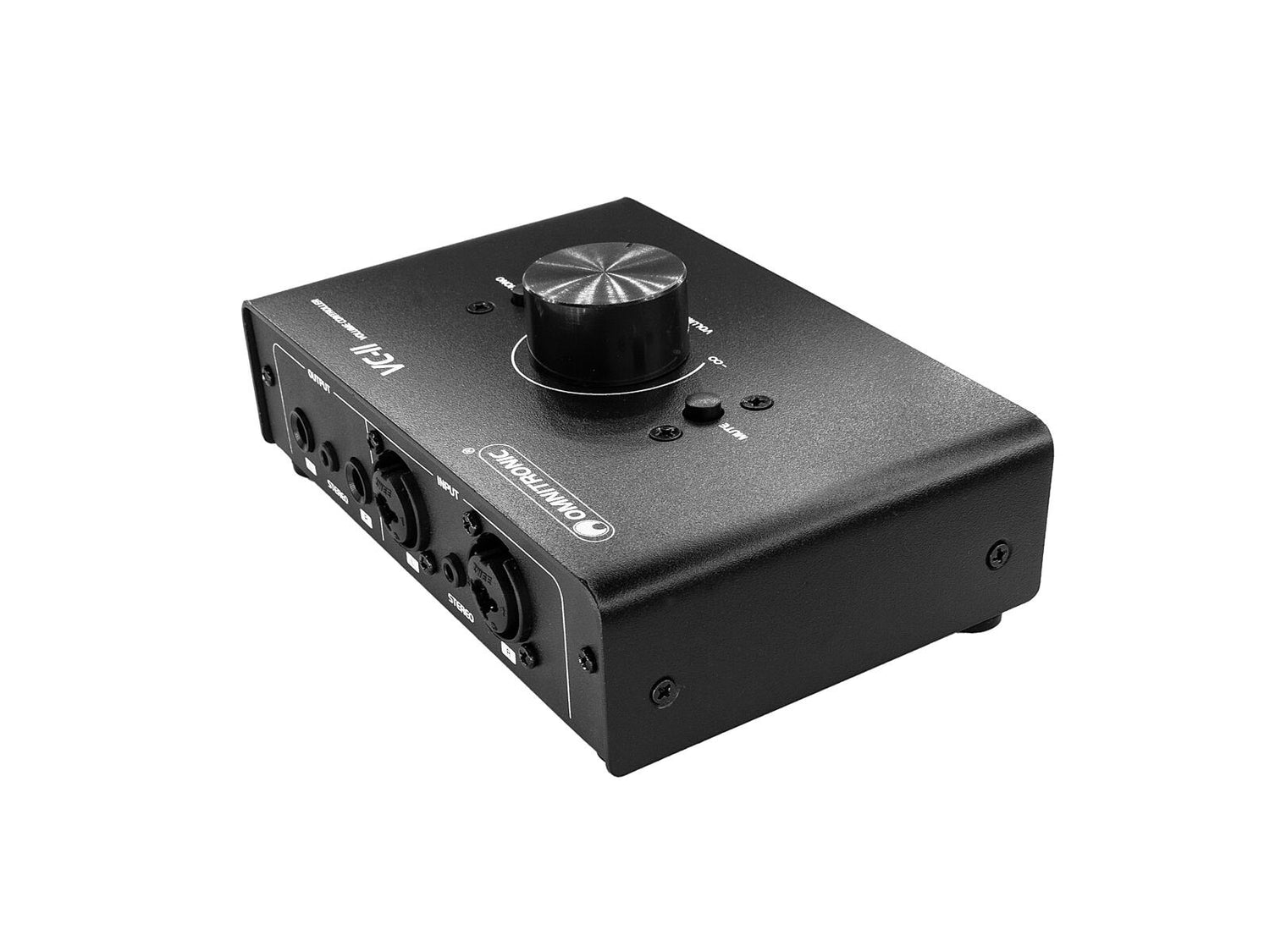

OMNITRONIC VC-11 Volume Controller, passive
1
of
5
Loading...
€32,95
Unit price
/
Not available
Secure checkout
Description
Description
Passive monitor controller with mute and mono summation
- Precise volume control of analog audio signals
- Suitable e.g. between PC sound card and active speakers or amplifiers
- Large rotary level control
- Passive, requires no power supply
- Desktop console housing
Scope of delivery
- 1 x device
| Frequency range: | 20 - 20000 Hz |
| Housing color: | Black matte |

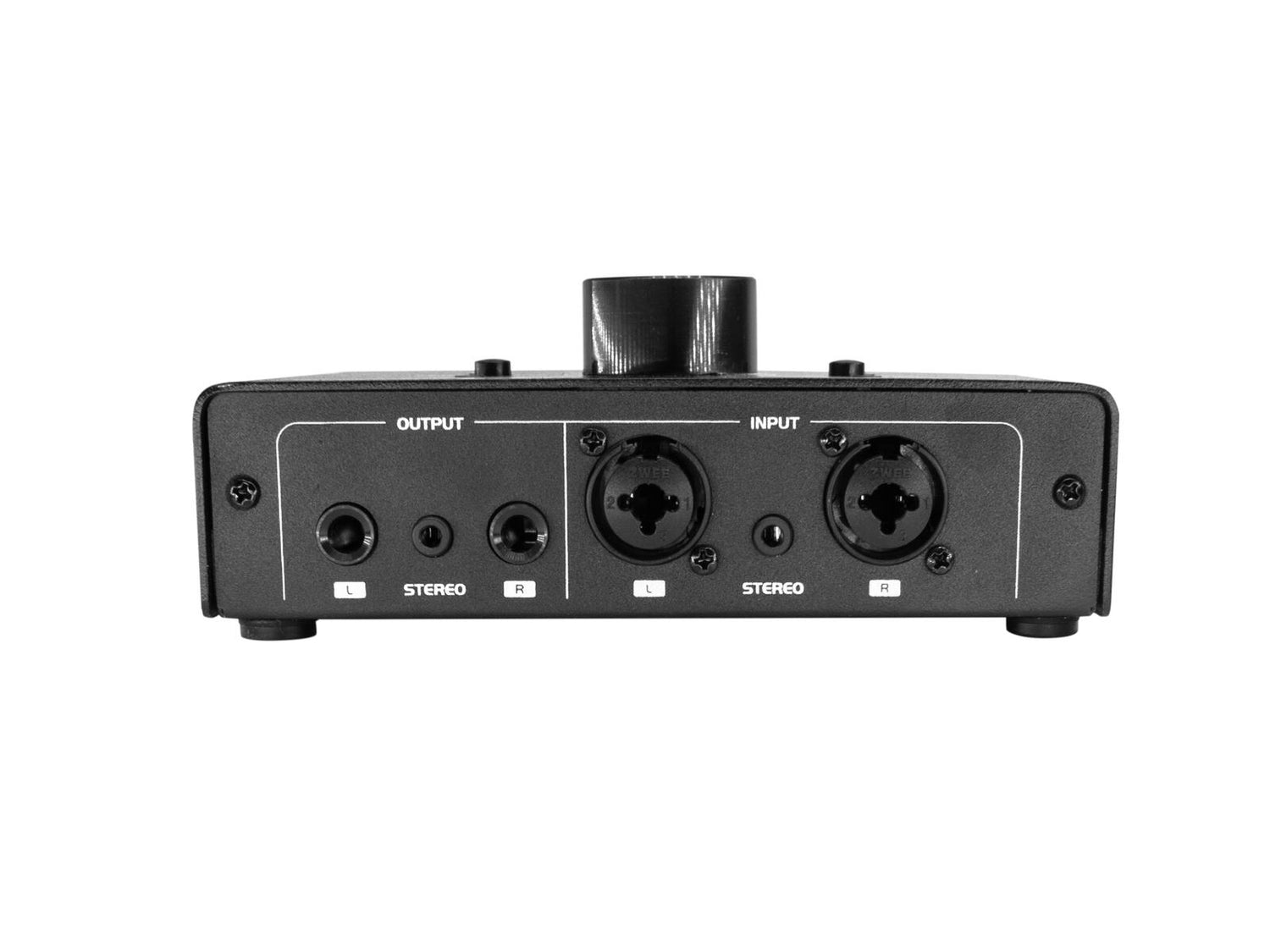

| Connections: | Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 1 x 3.5 mm jack (stereo) mounting version Output: line via 2 x 6.3 mm jack socket (mono) mounting version Output: line via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: | Input channel: 1 x mono + stereo via XLR or jack, stereo/mono switch, mute control Master output: 1 x mono + stereo via jack, channel control via rotary dial |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 16 cm Depth: 10.8 cm Height: 6.3 cm |
| Weight: | 0.510 kg |
