Palmer ABI - Balanced line input switcher

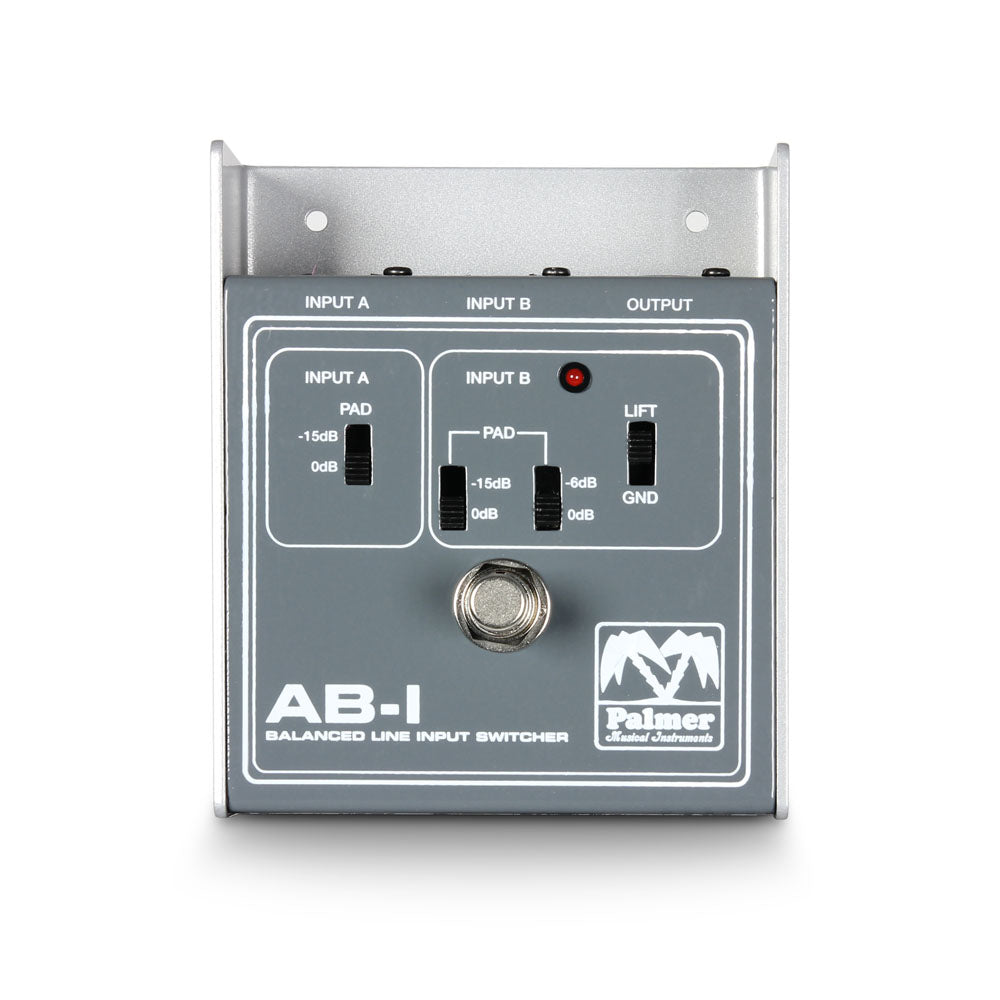

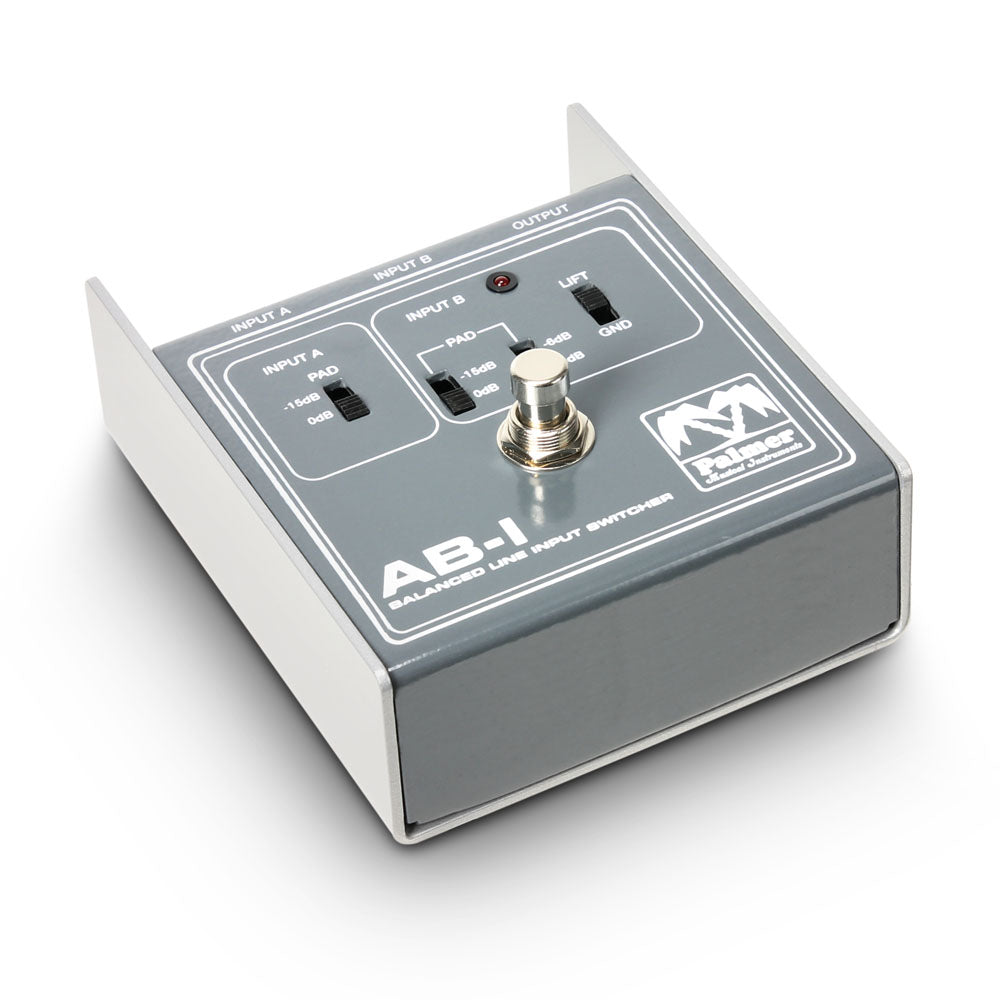

Palmer PEABI is more than just a simple switcher for two sources; it also offers level adjustment for microphone or line signals. Whether it’s a microphone or line signal, the PEABI switches silently between the two inputs, allowing quick and easy signal comparison and connection of two sources to one input. Three slide switches select 15 dB attenuation for input A and 6, 15 or 21 dB for input B. A ground lift switch eliminates hum from ground loops. The PEABI is housed in a sturdy metal enclosure with extended edges for optimal protection of the inputs and output. A red LED clearly indicates which input is active.
Pre-drilled holes allow easy and secure mounting in a rack or on a pedalboard.
The PEABI’s circuitry is completely passive. A 9 V block battery is required to power the LED.
| Product type | Switches |
| Switching function | input switcher |
| Channels | 2 |
| Number of inputs | 2 |

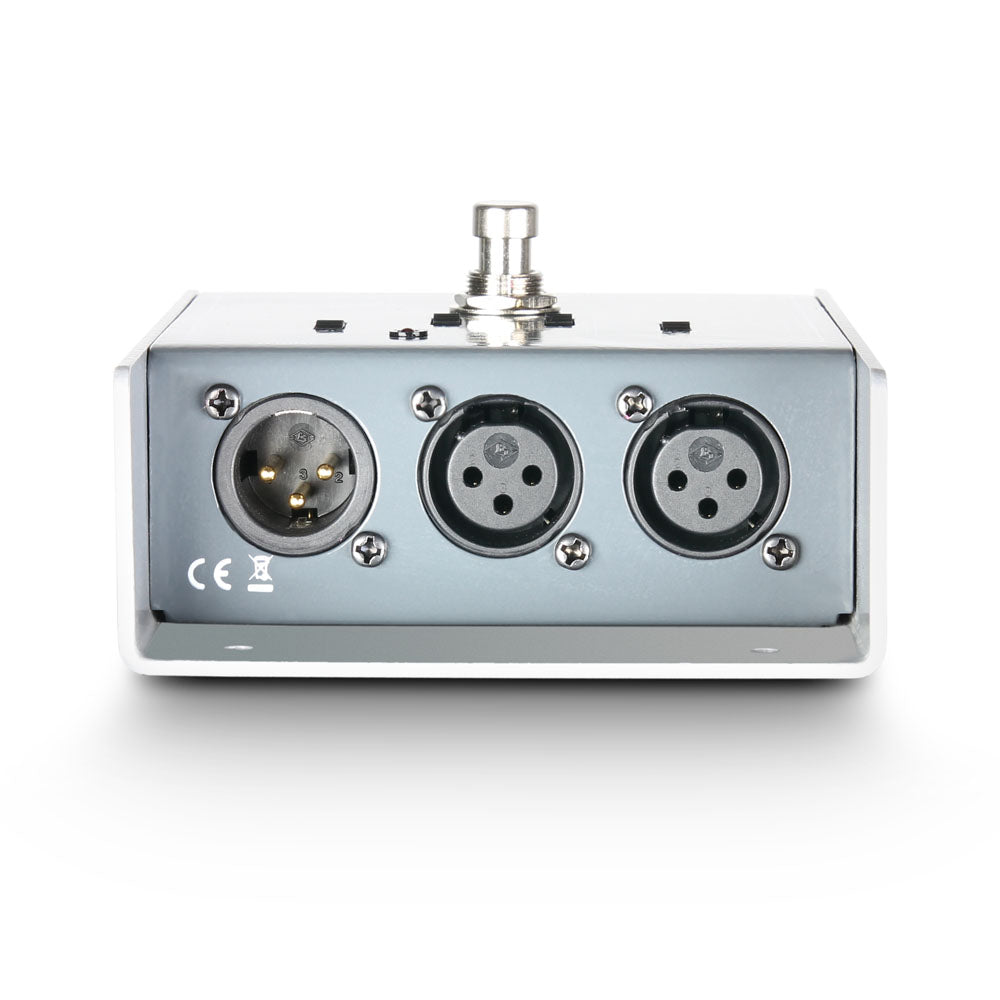

| Input connectors | XLR |
| Number of outputs | 1 |
| Output connectors | XLR |
| Transformer isolated outputs | No |
| Controls | ground lift |
| Controls | input pad |
| Indicators | channel number |
| Power supply | 9 V block |
| Max. Current | n.a. |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 100 mm |
| Depth | 120 mm |
| Height | 60 mm |
| Weight | 0,69 kg |
