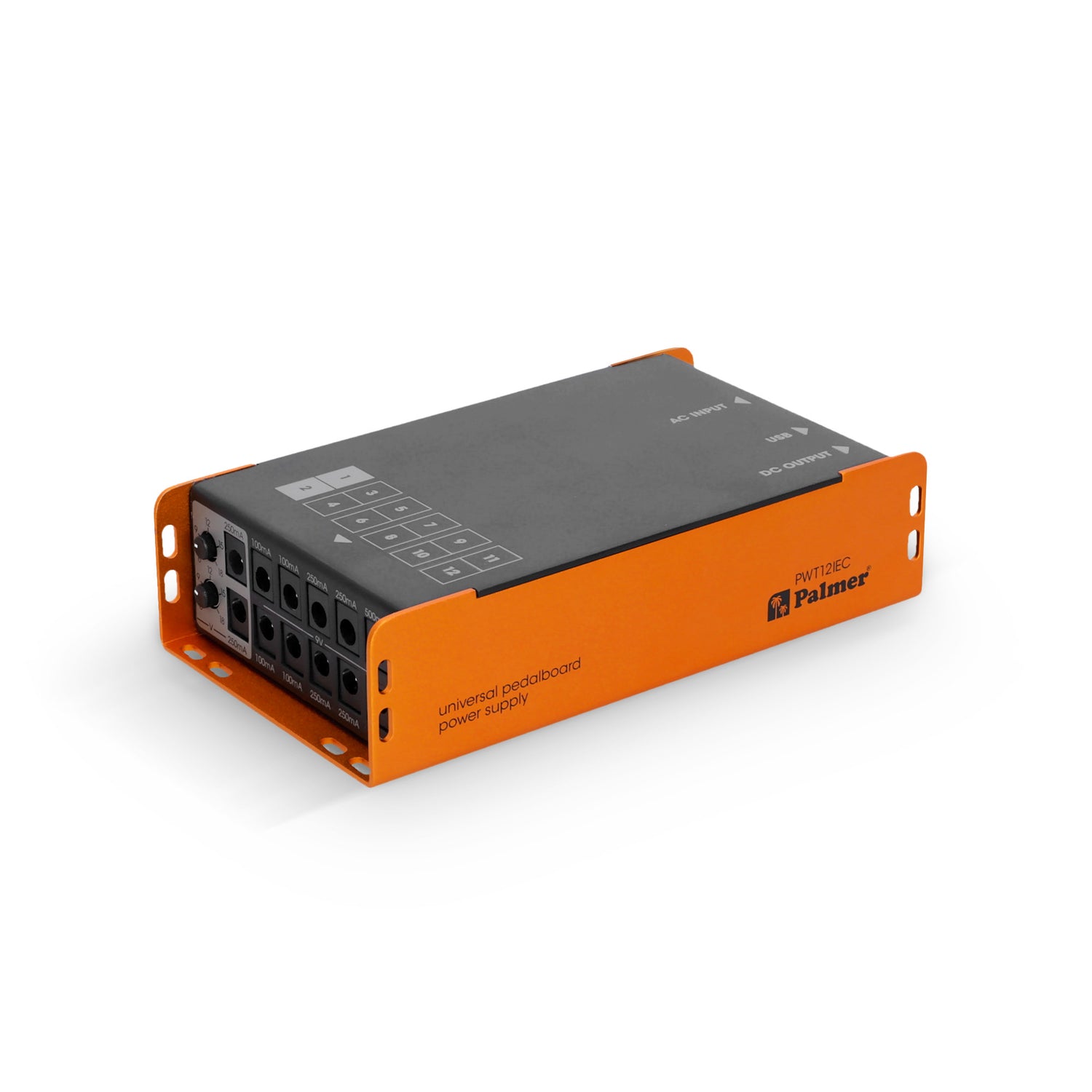

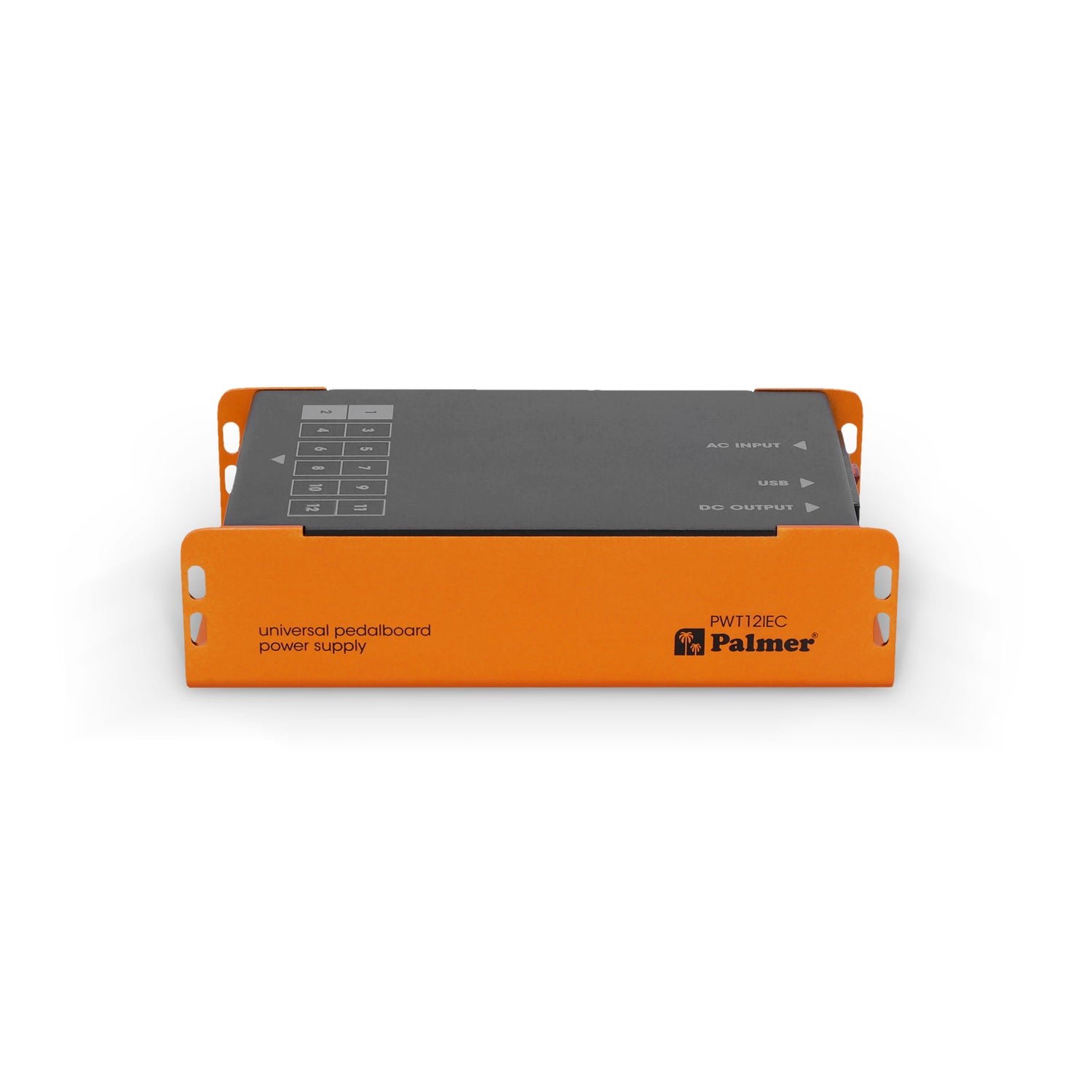

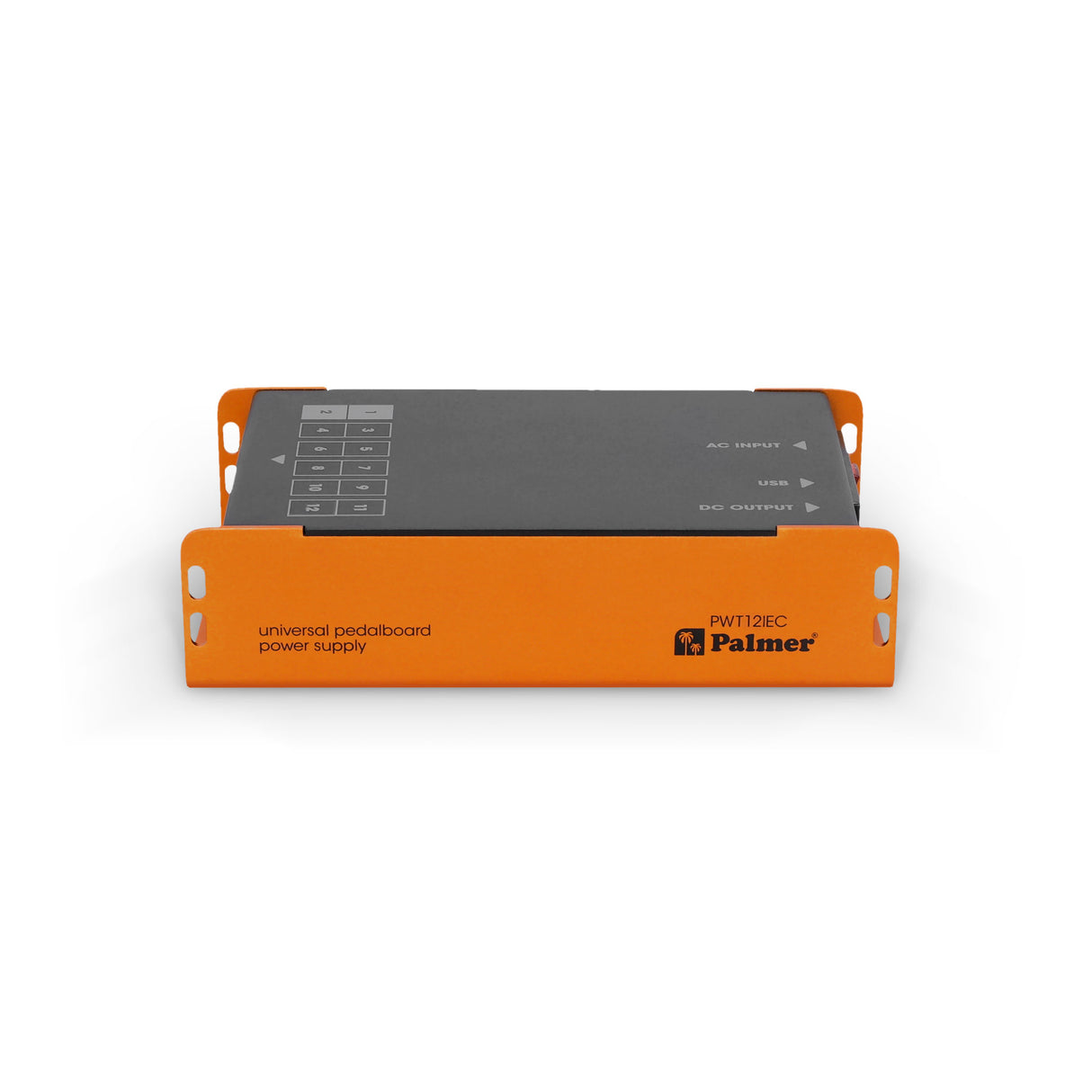

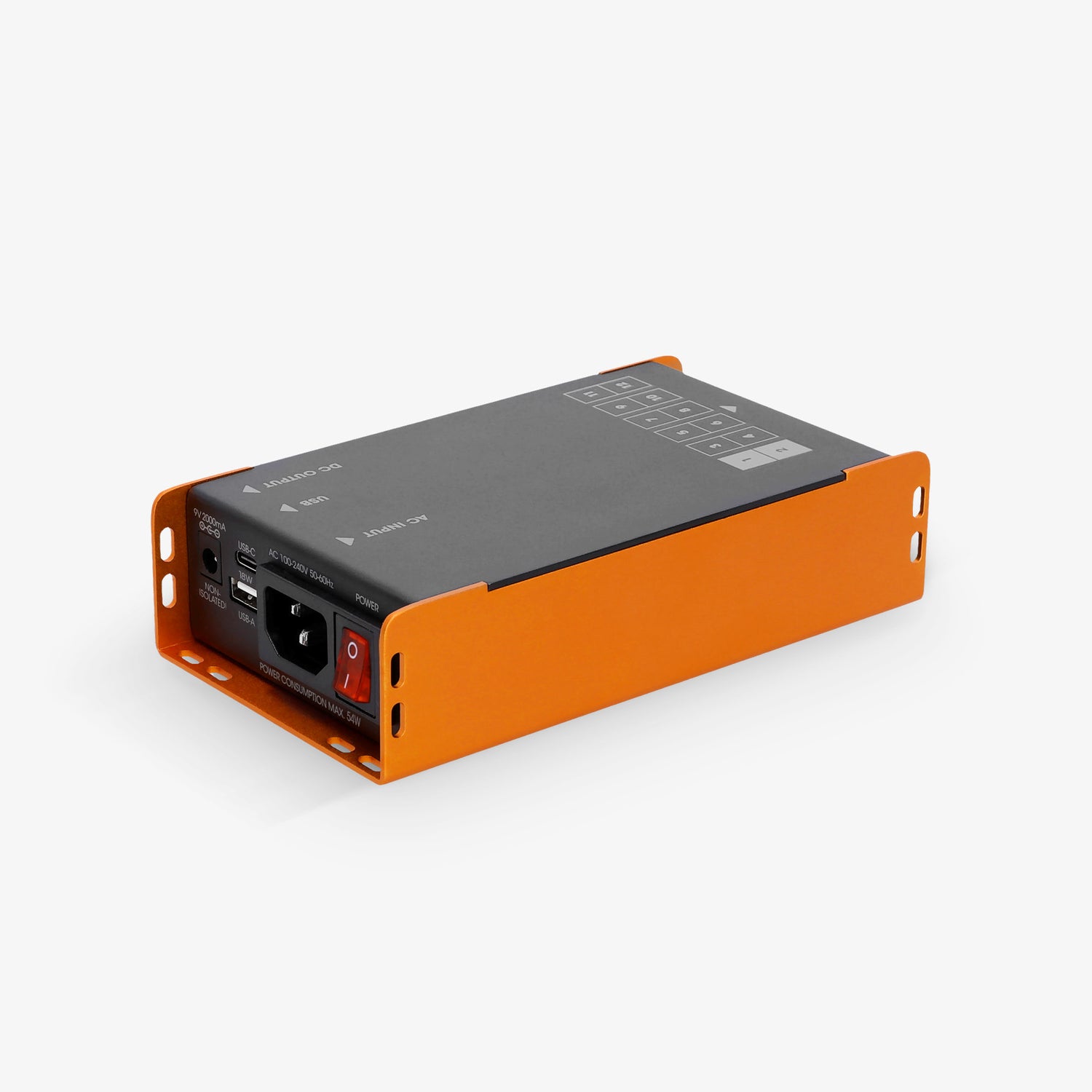

Palmer PWT 12 IEC - Universal pedalboard power supply with USB
Leave the noise behind
A pedalboard can be a noisy place, and choosing the right power supply can make a big difference to noise levels and the clarity of your guitar tone. That’s where the PWT 12 IEC comes in. With 12 high-current, individually isolated outputs with ultra-low noise – each with its own dedicated regulator and custom-made, isolated transformer – the PWT 12 IEC represents the next generation of Palmer® isolated pedal power supplies. With two variable-voltage outputs, the PWT 12 IEC lets you adjust the voltage between 6 and 18 volts, giving you even more headroom to power your overdrive pedals, as well as the “dying battery” sound many guitarists love. In addition, the Palmer PWT 12 IEC has a USB C and USB A output at 18W, so you can charge your mobile devices or even power your MIDI keyboards. We designed the PWT 12 IEC to address guitarists’ key challenges when it comes to powering their precious effect pedals, so you can perform with complete peace of mind, knowing your pedals and your rig will sound as good as they possibly can.

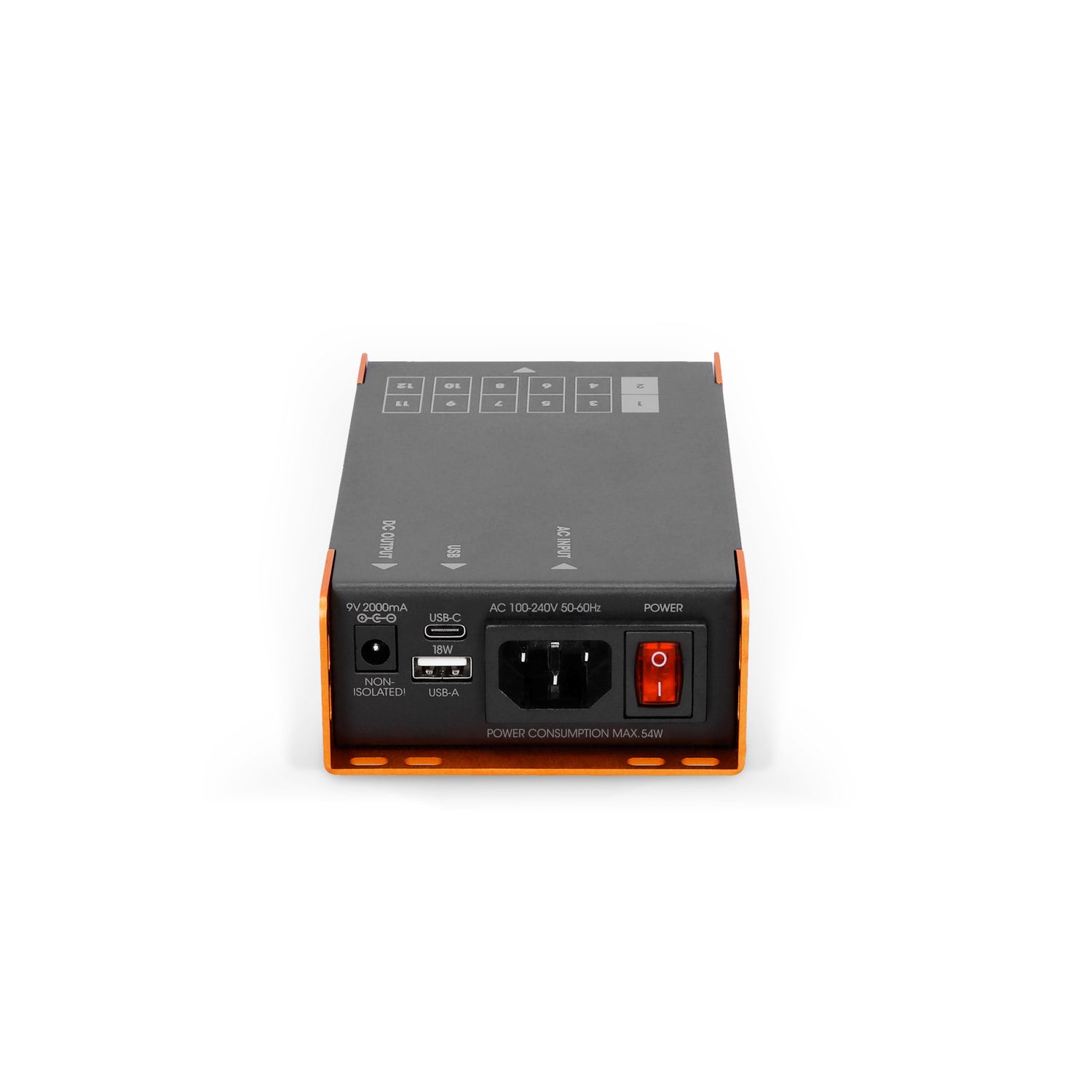

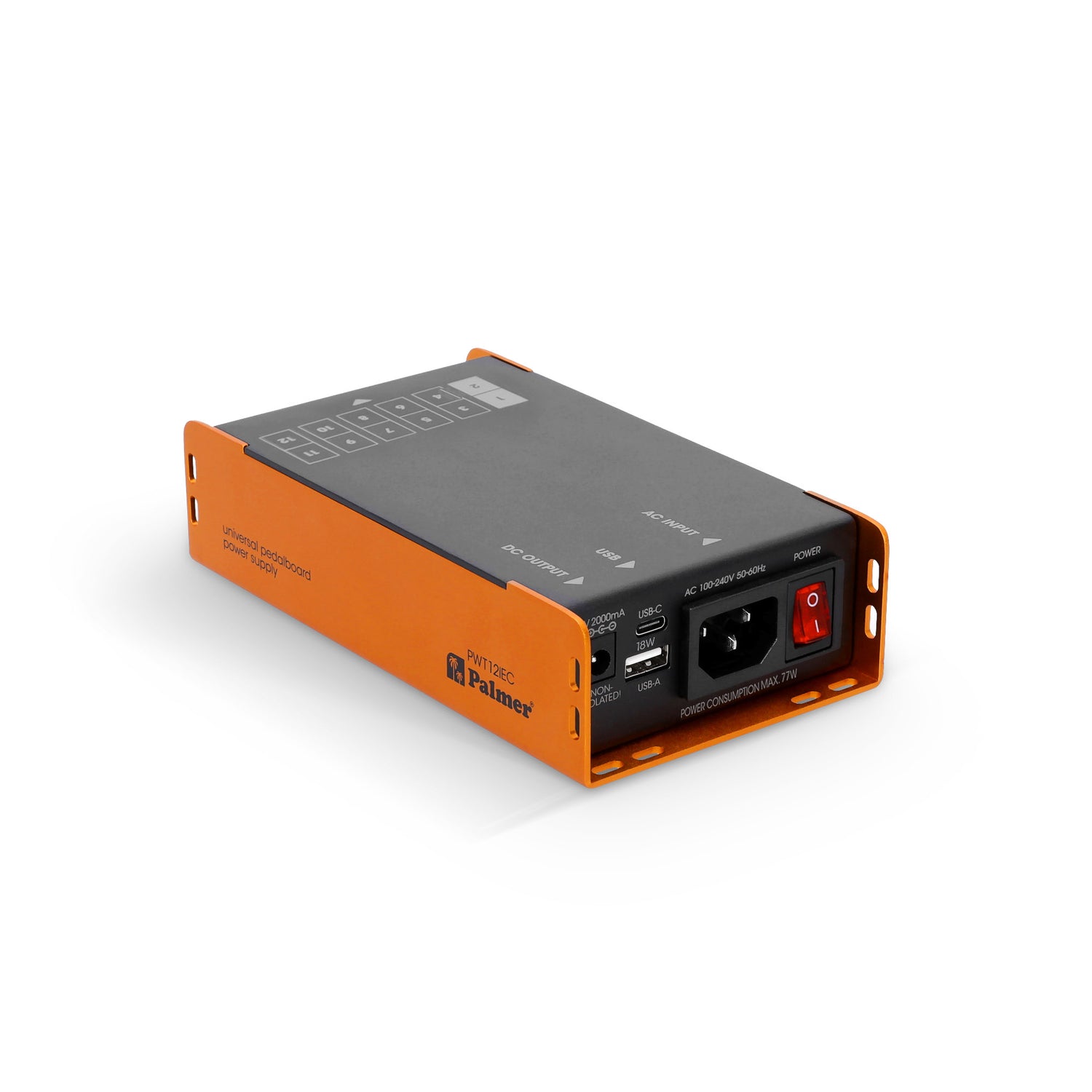

- universal powersupply with IEC mains socket
- 12 single isolated, centre negative 9V DC outlets
- USB C and USB A power outlets with 18W
- 9V DC 2000mA non isolated power outlet for e.g. a PWT04
- 2 variable voltage outlets 6 - 18 V
- Short circuit and overload protection for each outlet
- DC cable and mains cable included

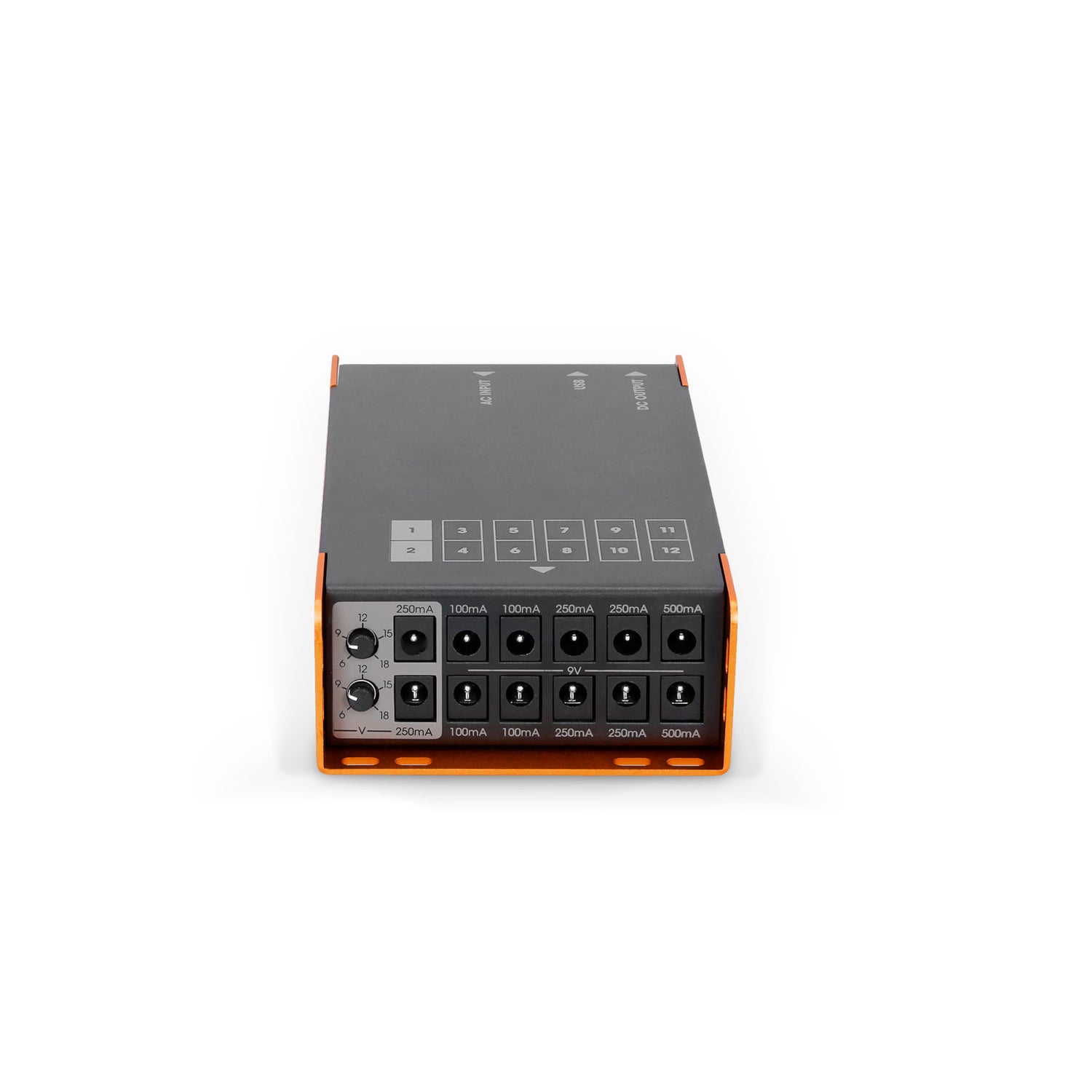

| Product type | Power Supplies |
| Input voltage | AC 100 - 240 V |
| single isolated DC outputs | 12 |
| Output 1-2 | 6 - 18 V (250 mA max) |
| Output 3-6 | 9 V (100 mA max) |
| Output 7-10 | 9 V (250 mA max) |
| Output 11-12 | 9 V (500 mA max) |
| non-isolated DC output | 9 V (2000 mA max) |
| Output connectors | 2.1 x 5.5 mm |
| Output voltage | 6 V - 18 V |
| Max. Output power | 36 W |
| Max. Power consumption | 54 W |
| Individually isolated outputs | Yes |
| Polarity | Center negative |
| USB-C / USB-A output power | 18 W max. |
| Indicators | Power |
| Controls | Mains switch, output voltage selector and switch |
| Depth | 93 mm |
| Width | 168 mm |
| Height | 42 mm |
| Weight | 0,55 kg |
| Accessories | Mains cable, 15x DC cable (30 / 60 / 90 cm), 4x rubber feet |
| Noise | < 40 µV (output 1 - 12) |
| Ambient temperature (in operation) | 0 - 40 °C |
| Relative Humidity | < 80 % ( non-condensing ) |
