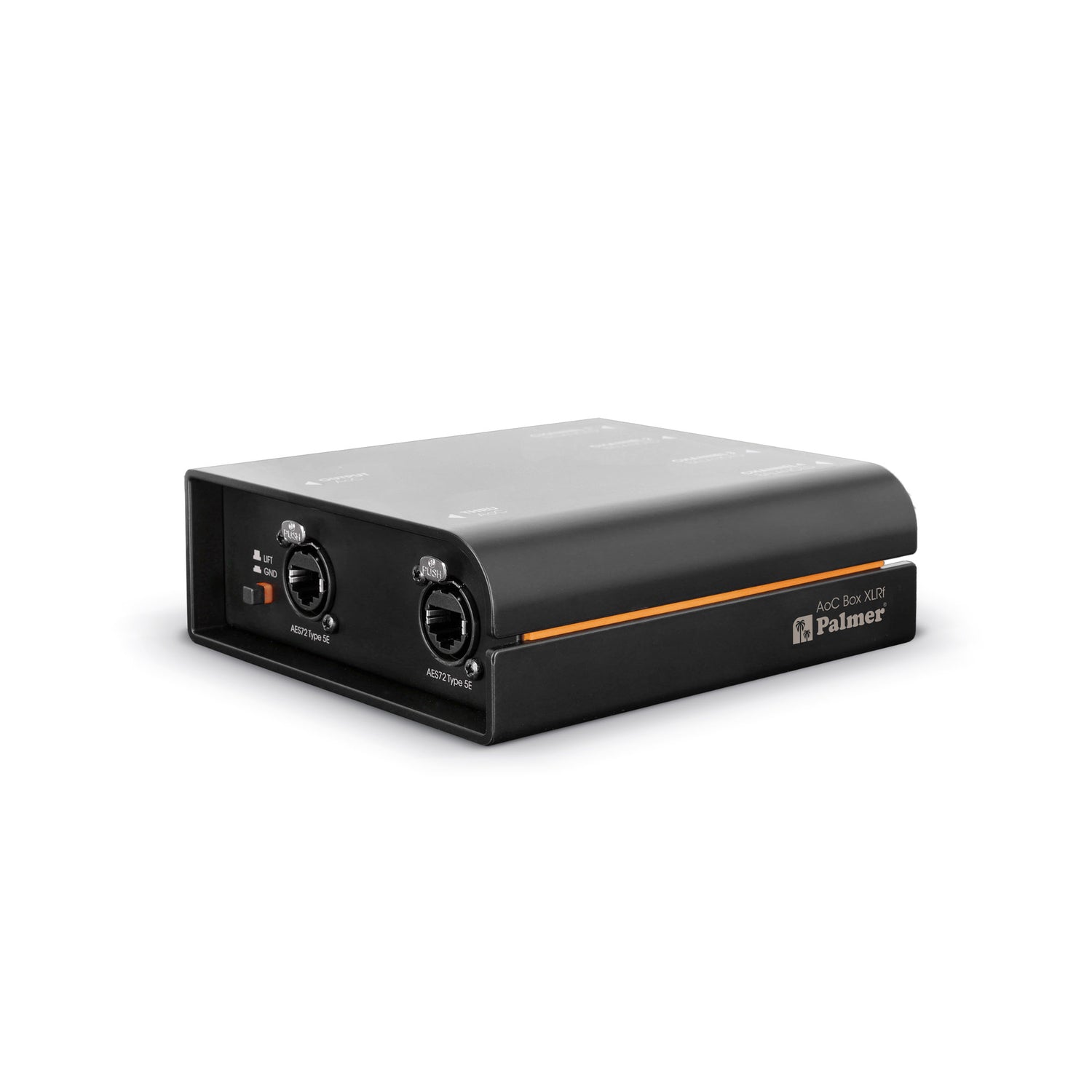

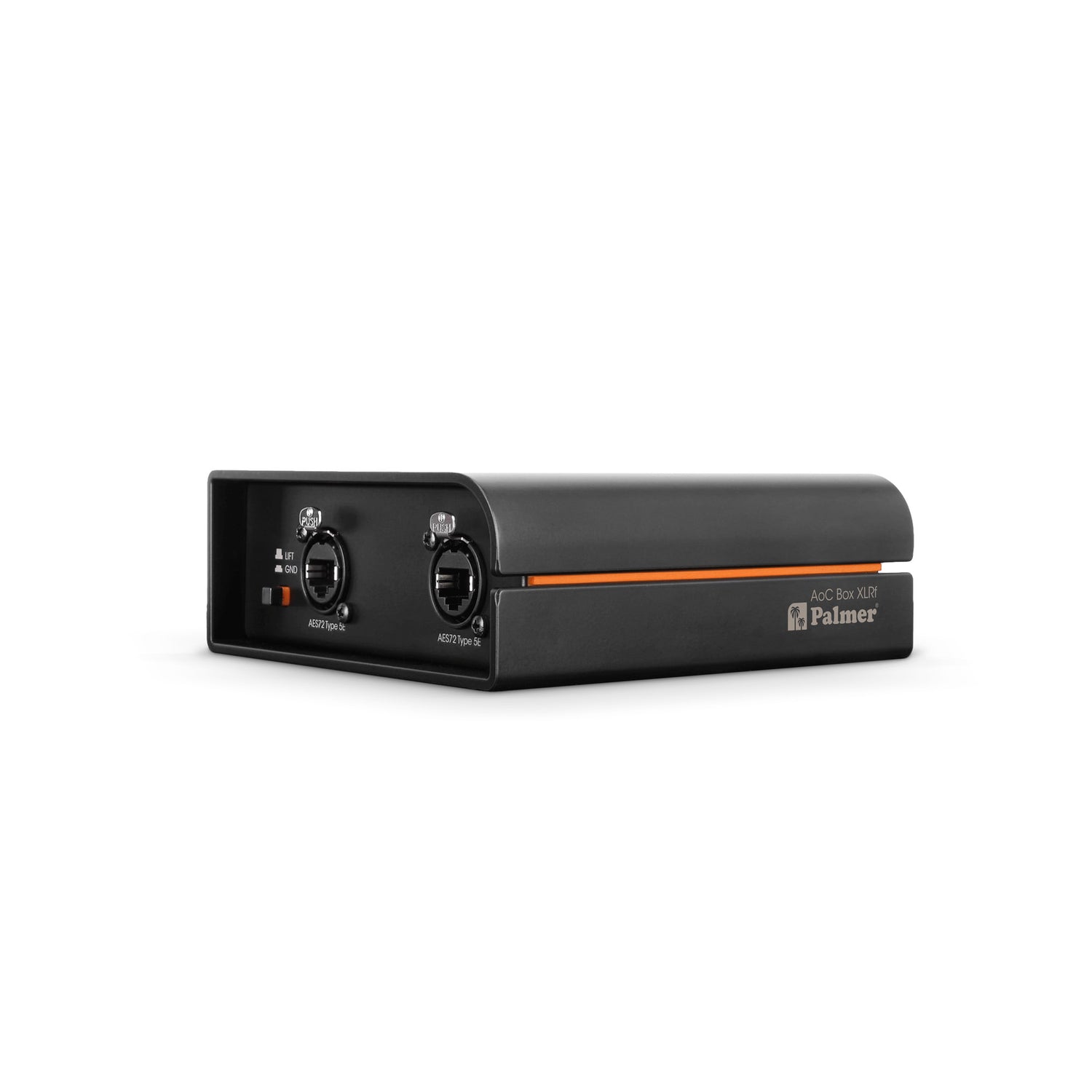

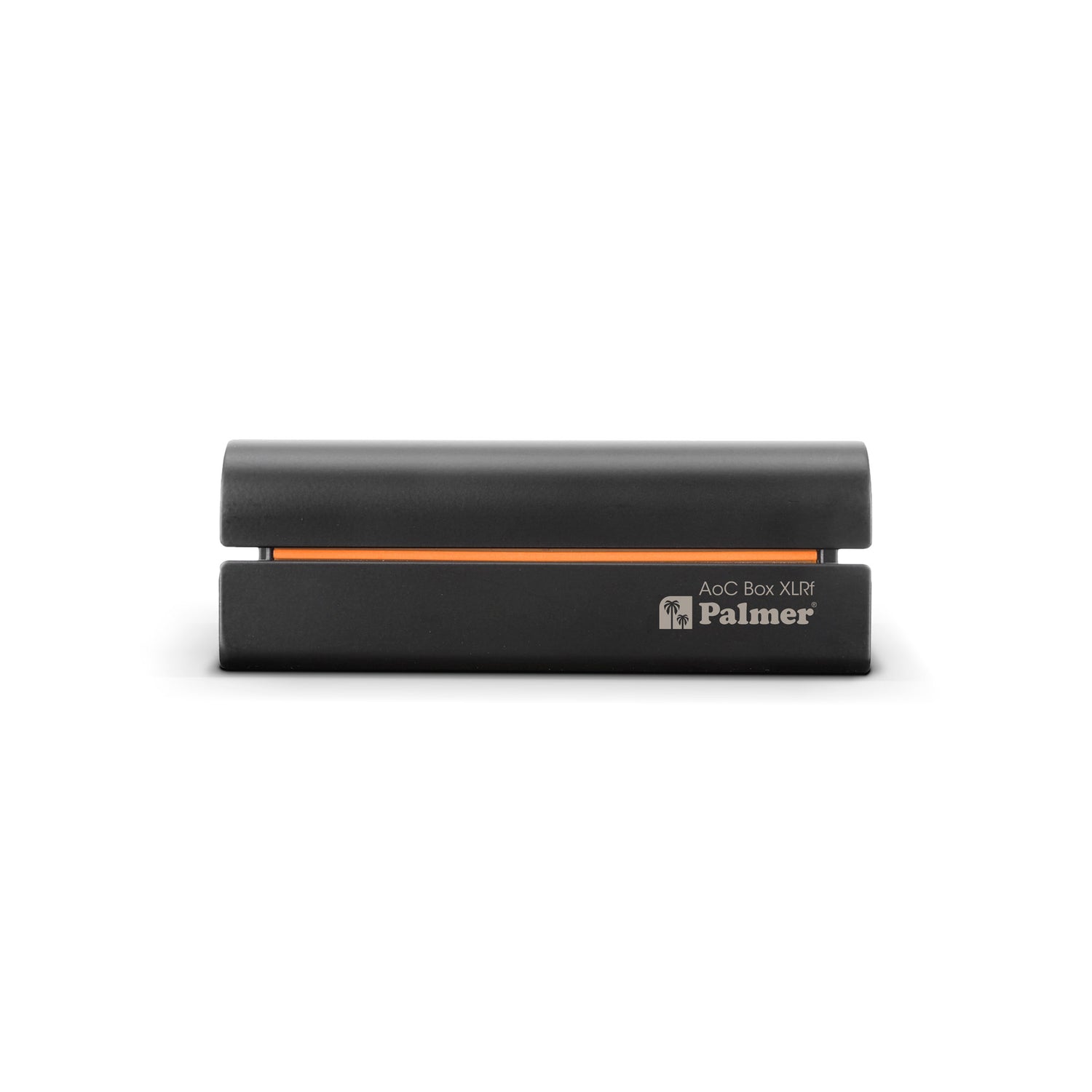

Palmer AoC Box XLRf - Audio over Cat box from etherCON to 4 x XLR female
1
of
11
Loading...
€165,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Palmer Passive Monitor Controller
€86,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer Pro Cable tester
€77,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer MONICON XL active studio monitor controller
€397,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer STUDIMON 5 Studio Monitor
€233,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer PBC400 drawer
€31,95
External warehouse – Estimated delivery in 9–12 business days.
Palmer AoC Box XLRf - Audio over Cat box from etherCON to 4 x XLR f...
€165,95
Unit price
/
Not available
Description
Description
AOC B XLR F is a multicore box that enables stable transmission of 4 separate analogue, balanced audio signals or 8 digital AES3 signals via a network cable (not included). To reduce the risk of ground loops, the etherCON connection is equipped with a ground lift switch. In addition, a secondary, parallel-wired etherCON THRU connection allows signals to be forwarded to external devices. Both etherCON connections are secured against being unlocked to prevent accidental cable disconnection.
In addition to audio signals, AOC B XLR F also makes it possible to transmit DMX or MIDI control signals as well as 48-volt phantom power via a single standard Ethernet cable. This versatility makes it flexible for a wide range of applications, whether for live concerts, studio sessions, press conferences or other productions.
With high-quality Neutrik components and a rugged aluminium-steel enclosure, AOC B XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appearance of any setup.
All these factors make AOC B XLR F a reliable and durable tool that offers an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality – just as you have always been used to from Palmer.
Technical specifications
Technical specifications
- 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)

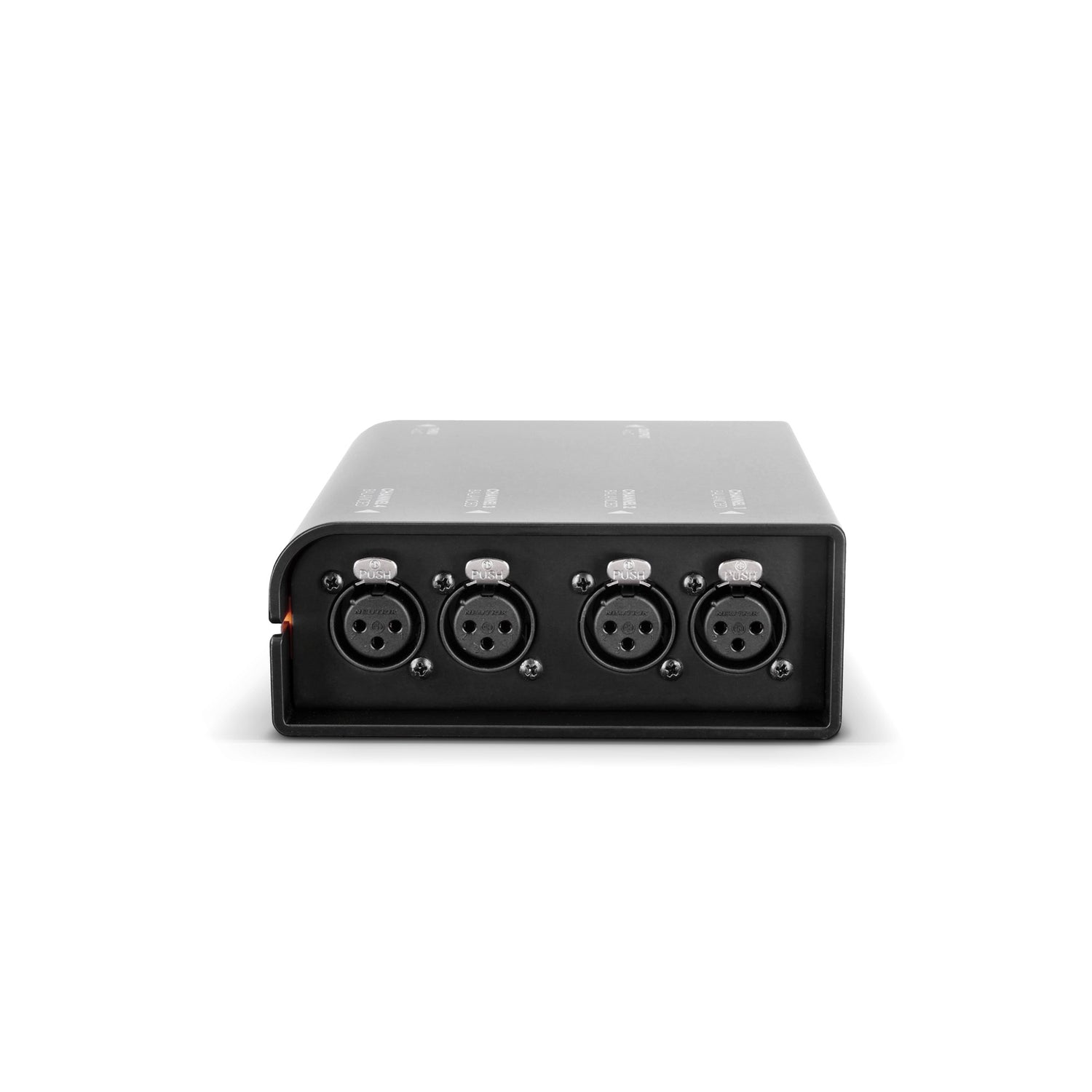

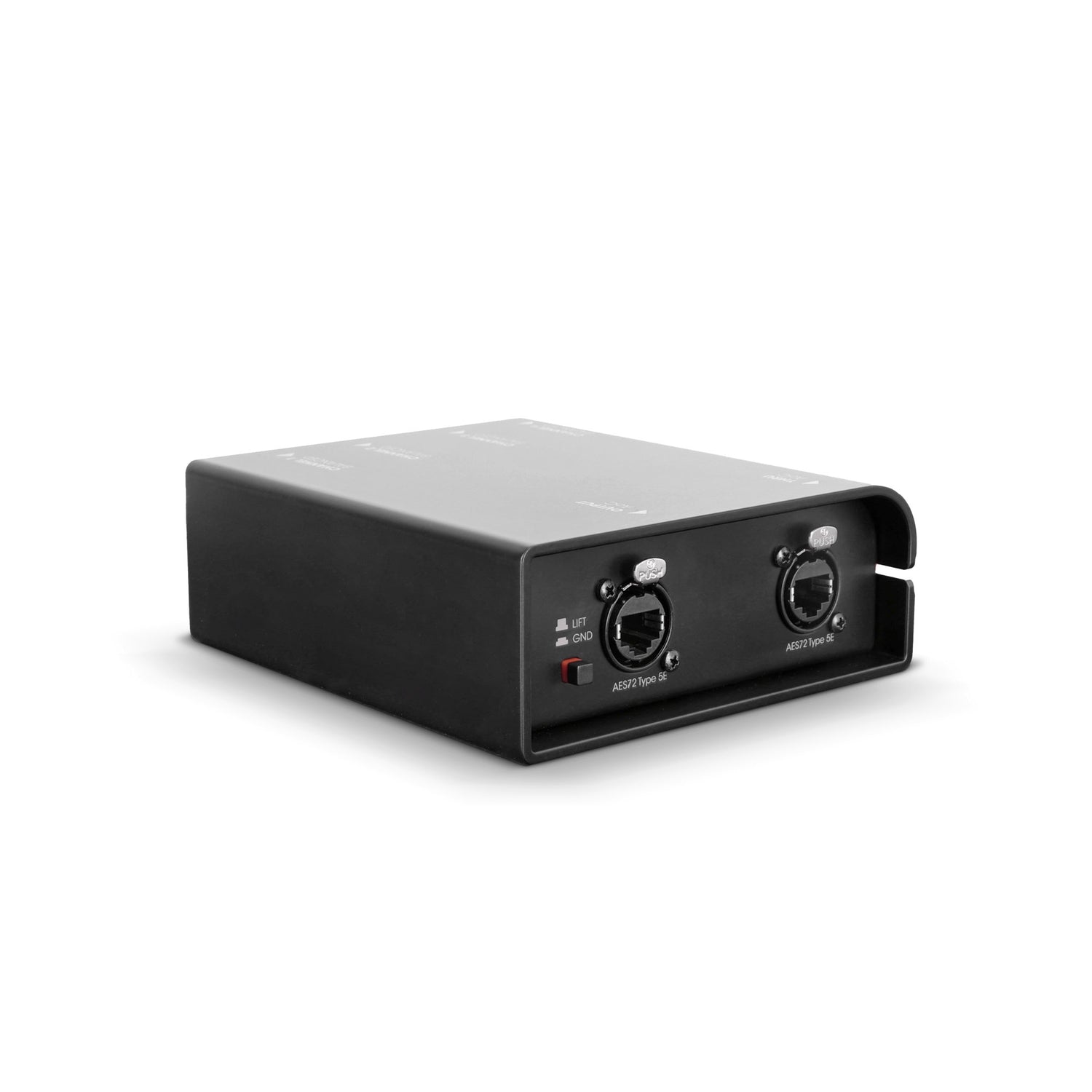

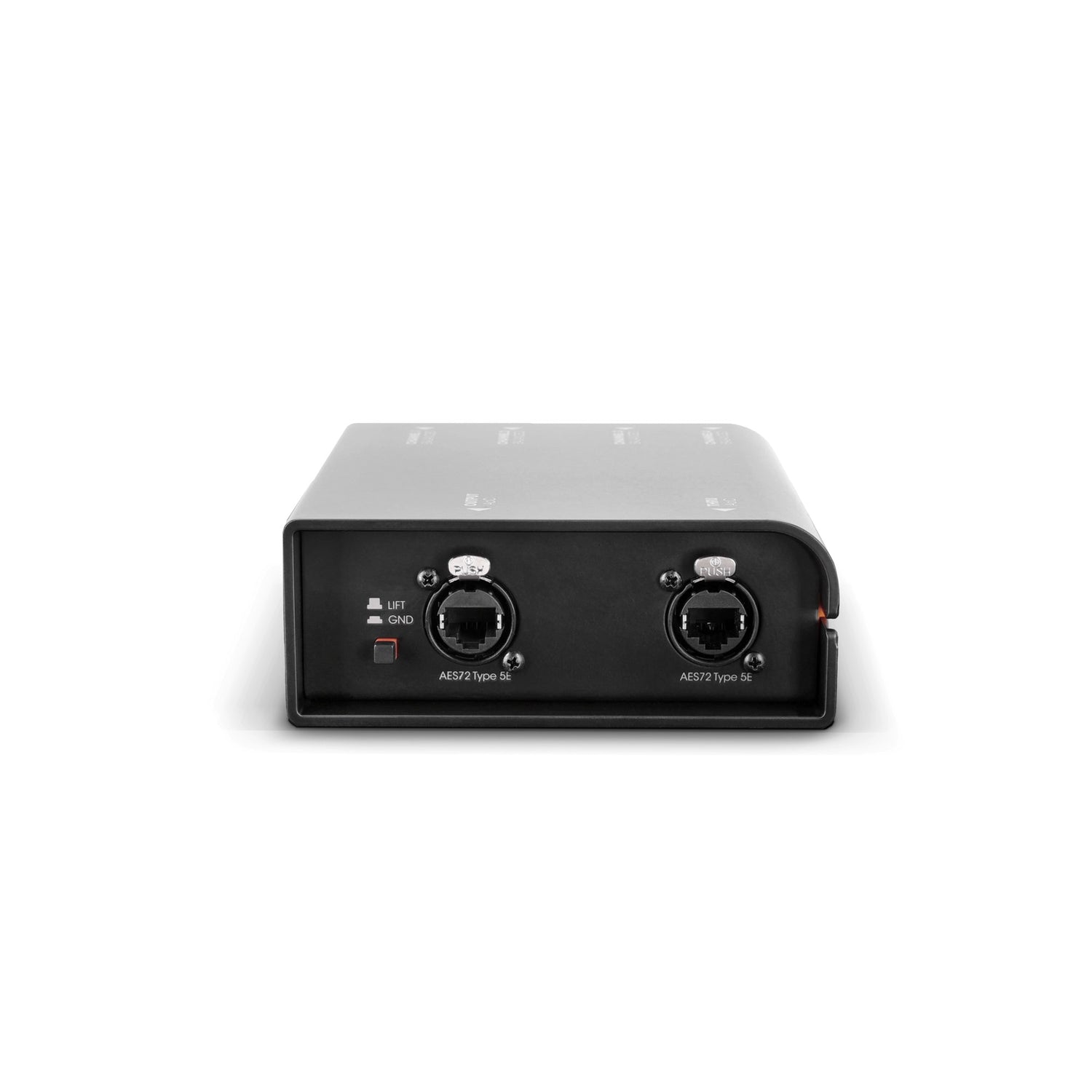

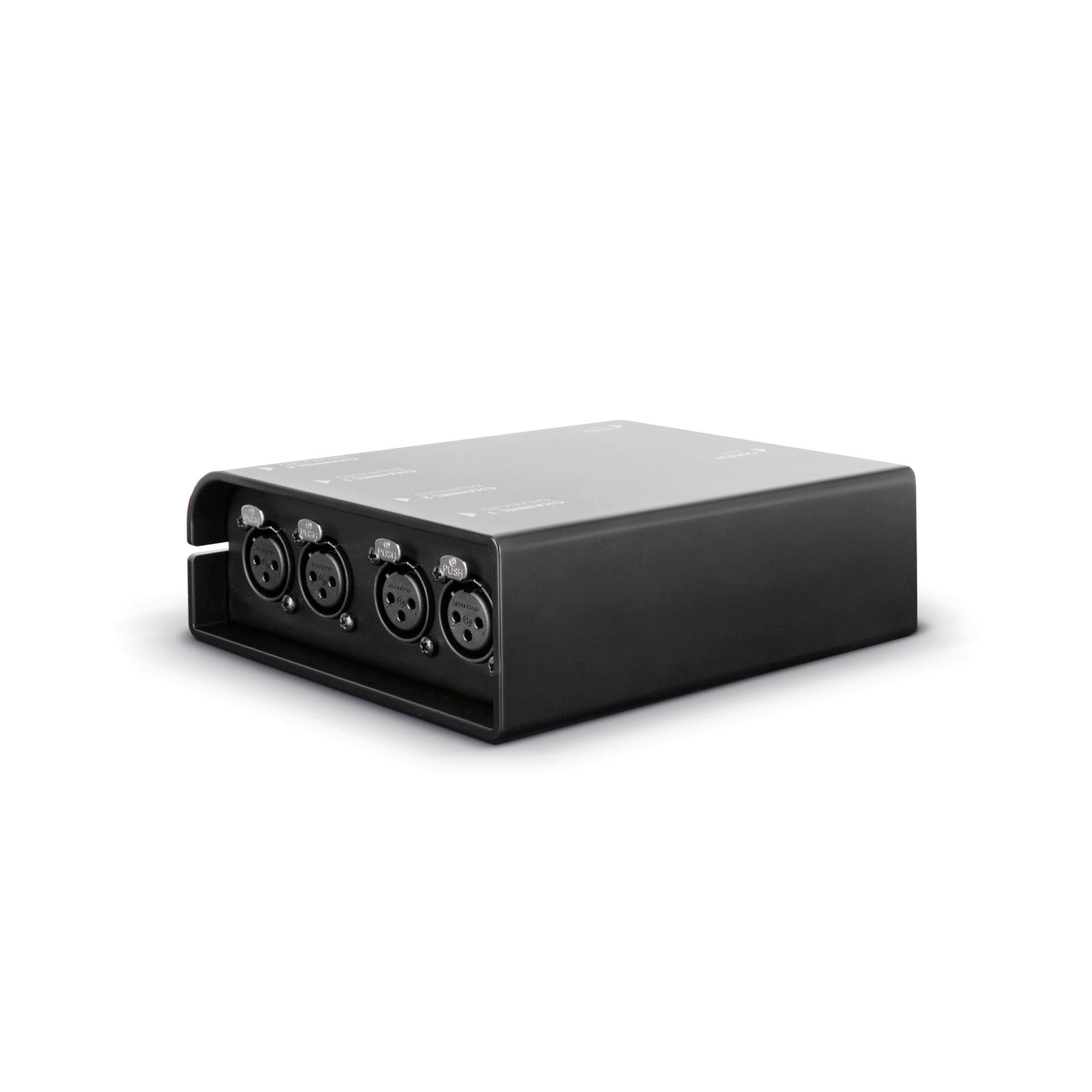

- etherCON with ground lift switch to 4 x XLR female
- Additional etherCON THRU
- AES72 Type 5E
- Compatible with 48-volt phantom power
- Premium Neutrik components
- Solid casing made of aluminium and steel
- Engineered in Germany, assembled in Europe
| Product type | Aluminium |
| Product type | Audio over Cat adapter |
| Product type | Steel |
| Number of inputs | 4 |
| Input type | Balanced |
| Input Connector | RJ45 |
| Number of outputs | 4 |
| Output type | Balanced |
| Output connector | XLR 3-pin female |
| Number of LINK outputs | 4 (via RJ45 THRU) |
| Ground lift switch | yes (for RJ45 THRU) |
| Material | Aluminium |
| Material | Steel |
| Width | 140 mm |
| Depth | 128 mm |
| Height | 50 mm |
| Weight | 0,5 kg |
| Operating Temperature | - 20 - 70 °C |
| Air humidity | < 80 % ( non-condensing ) |
Audio
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu dBu |
| Frequency range | 0 Hz - 20 kHz |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,0005 % |
RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
| Pin 1 | Channel 3 - |
| Pin 2 | Channel 3 + |
| Pin 3 | Channel 4 - |
| Pin 4 | Channel 1 + |
| Pin 5 | Channel 1 - |
| Pin 6 | Channel 4 + |
| Pin 7 | Channel 2 - |
| Pin 8 | Channel 2 + |
