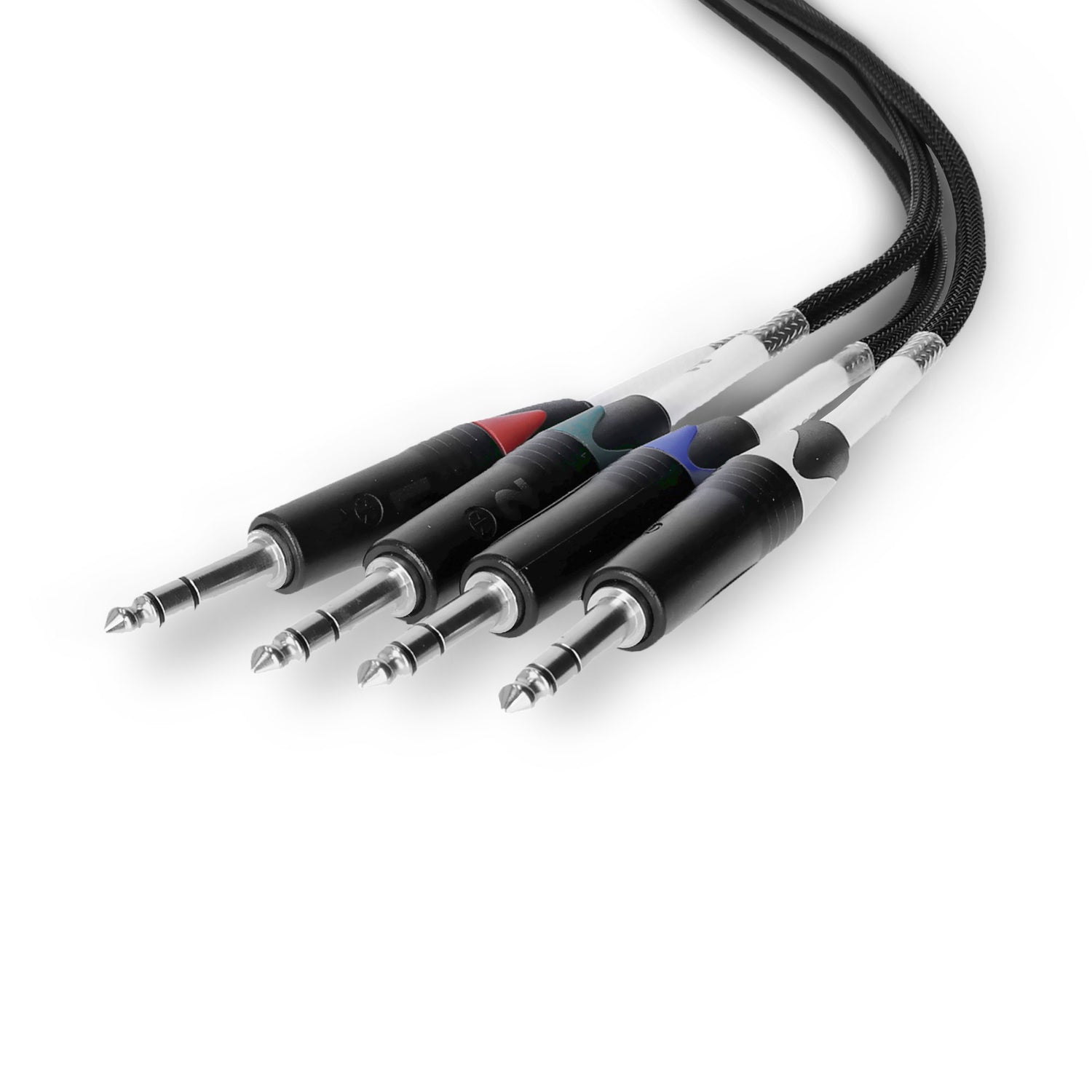

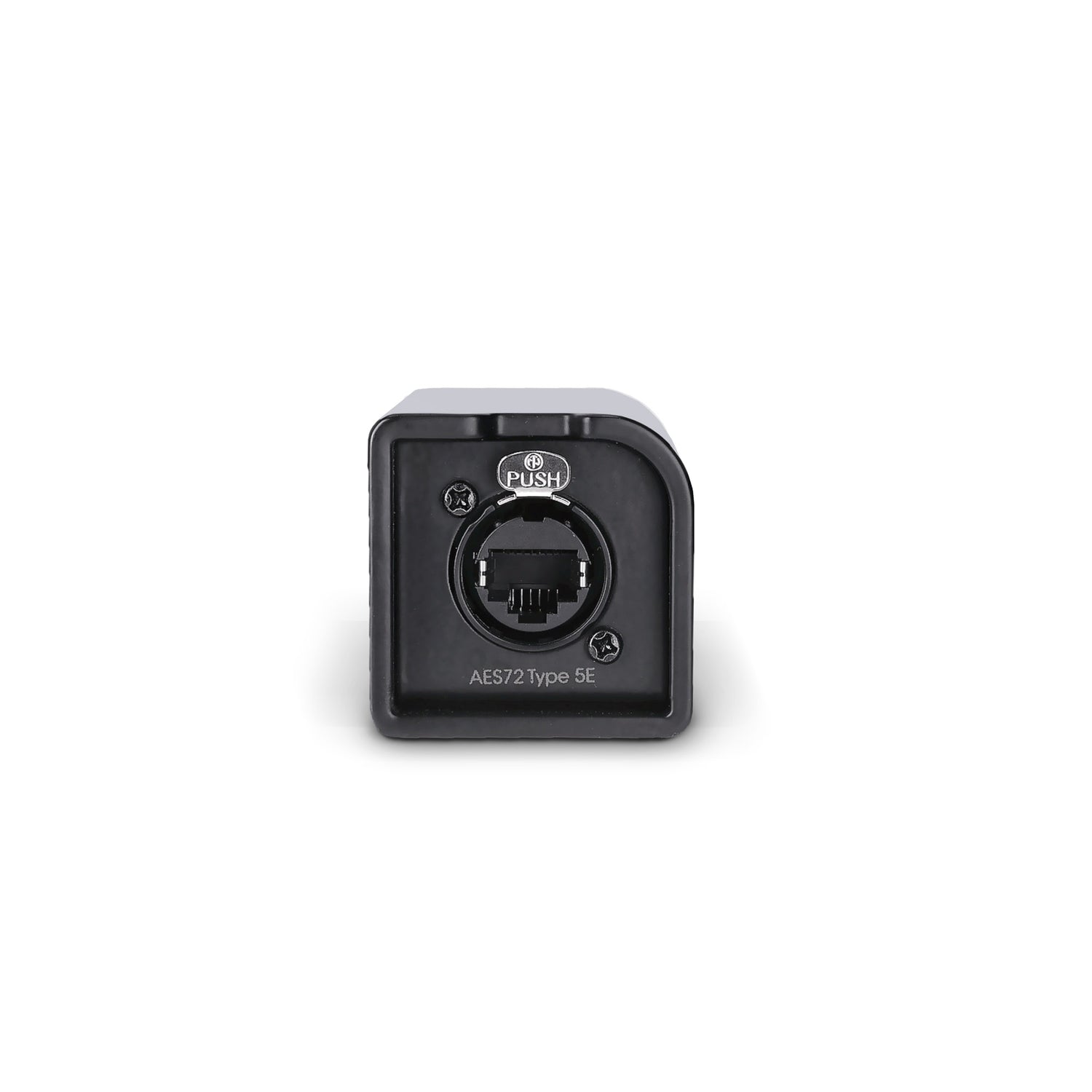

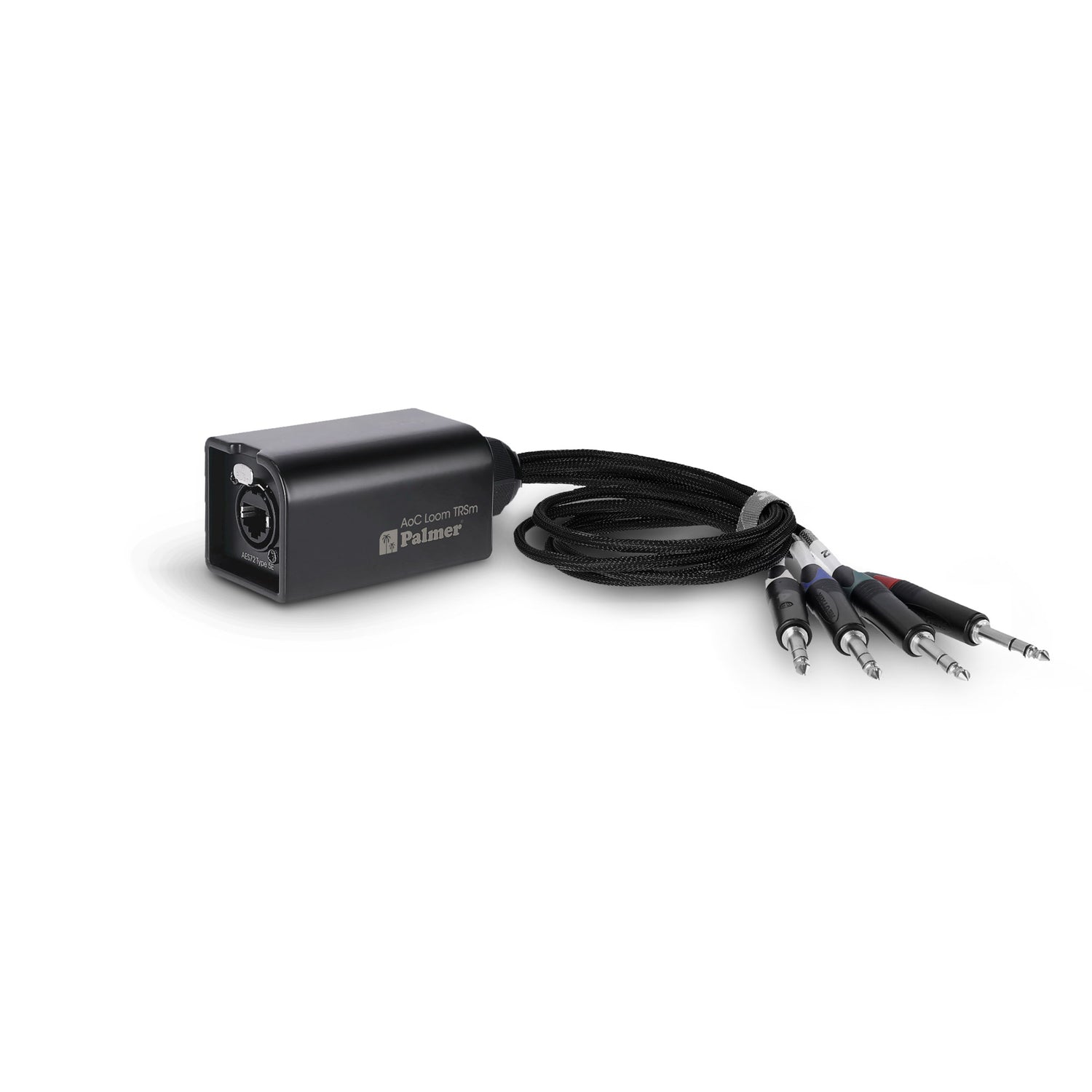

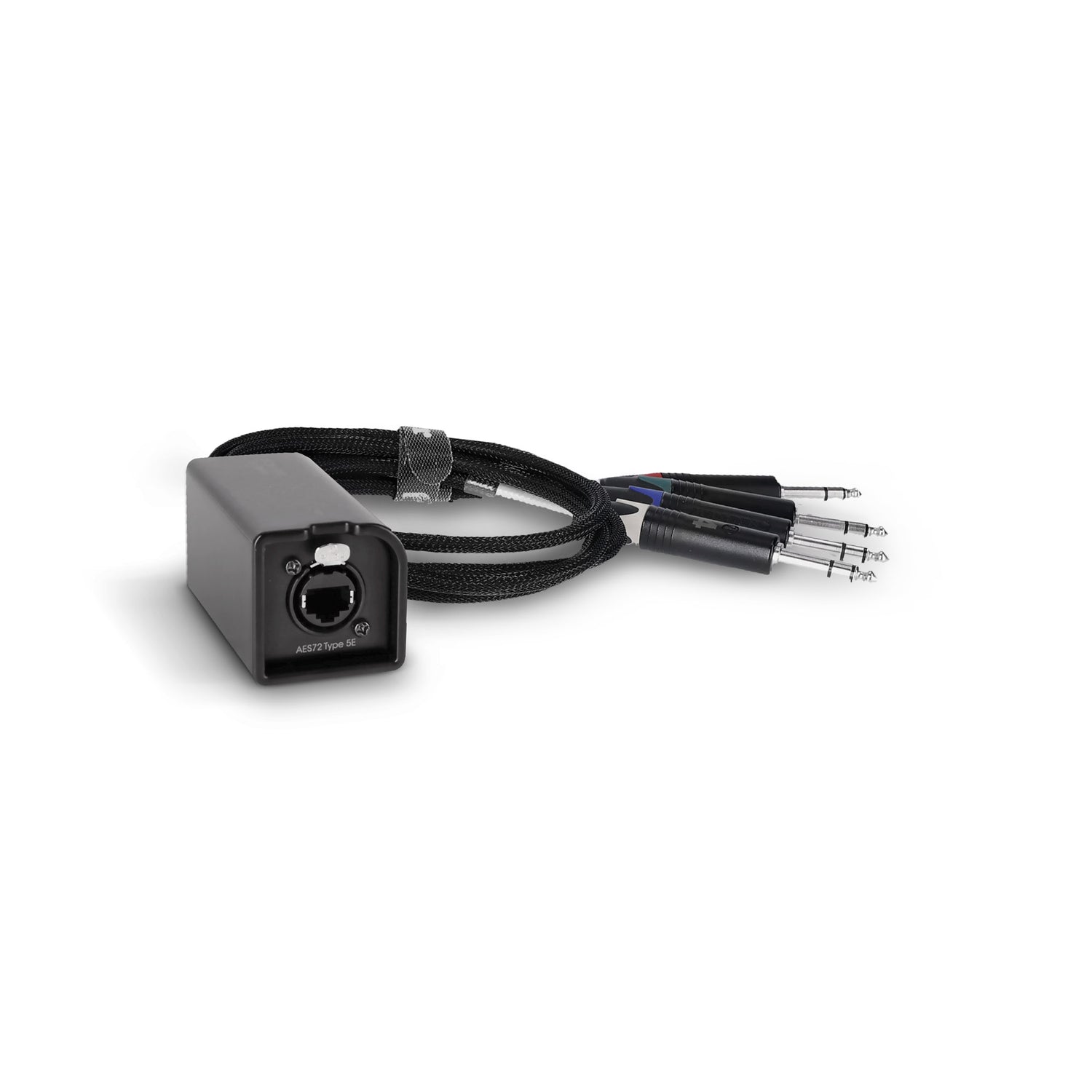

P AOC L TRS M is a multi-core adapter cable that enables stable transmission of 4 separate analogue and balanced audio signals via a network cable (not included). The 6.3 mm TRS jack plugs are numbered and colour-coded for easy identification. The Ethercon connection is secured against accidental unlocking to prevent the cable from being unplugged by mistake.

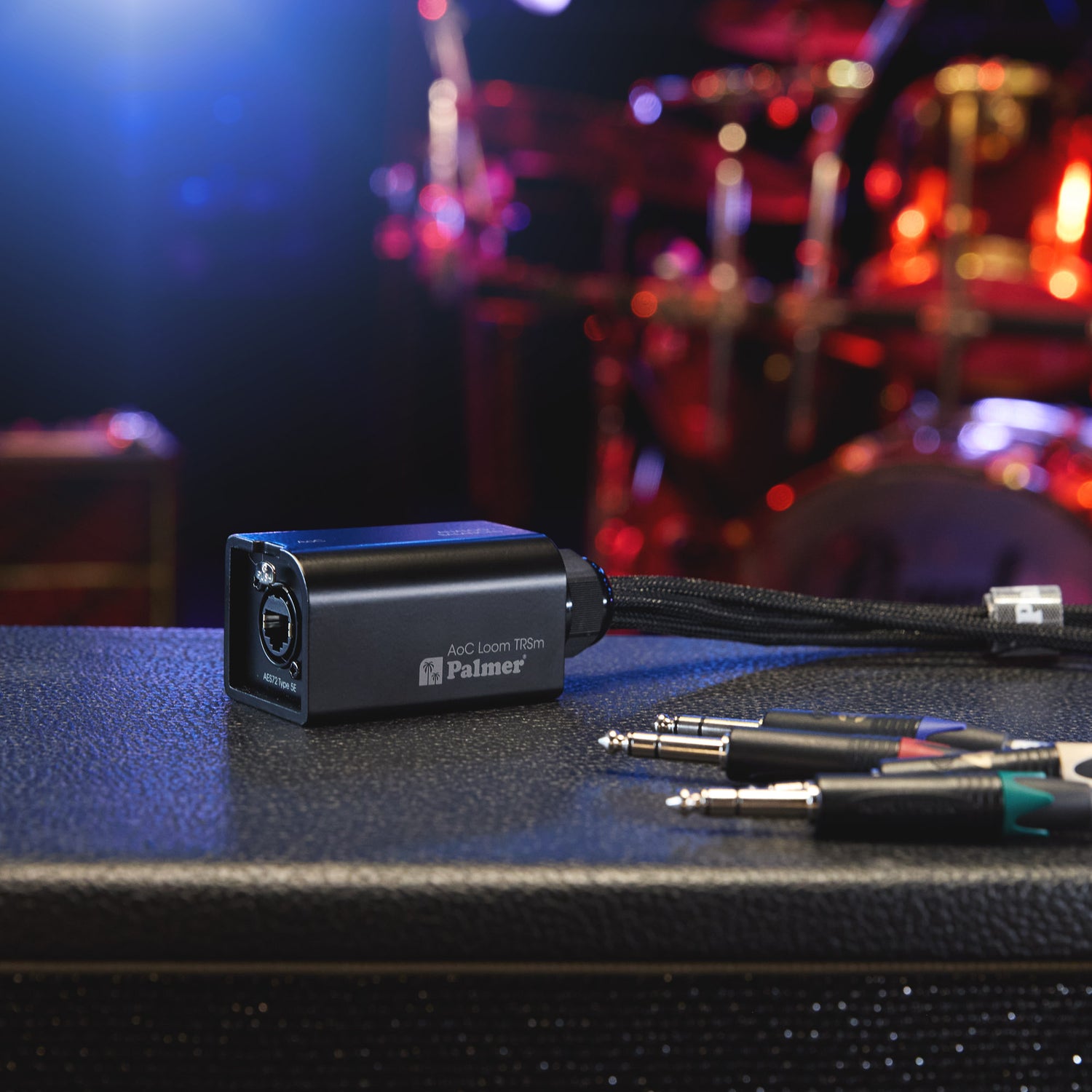

The audio is transmitted via a single, standard Ethernet cable, making P AOC L TRS M flexible for use in many different contexts, whether for live concerts, studio recordings, press conferences or other productions.
With high-quality Neutrik components, a solid aluminium-steel housing and robust braided cables with a 50 cm fanout, P AOC L TRS M guarantees reliable signal transmission and durability in professional environments. The simple, high-quality design also enhances the visual appearance of any setup.
All of this makes P AOC L TRS M a reliable and durable tool that offers a cost-effective and flexible alternative to conventional 4-channel multicore cables without compromising on audio quality – as you have always been able to expect from Palmer.
- 4 balanced analogue audio channels over Cat5e or higher (Ethernet cable not included)
- etherCON to 4 x 6.3 mm TRS jack
- AES72 Type 5E
- Premium Neutrik components
- Robust mesh cable, 0.5 m

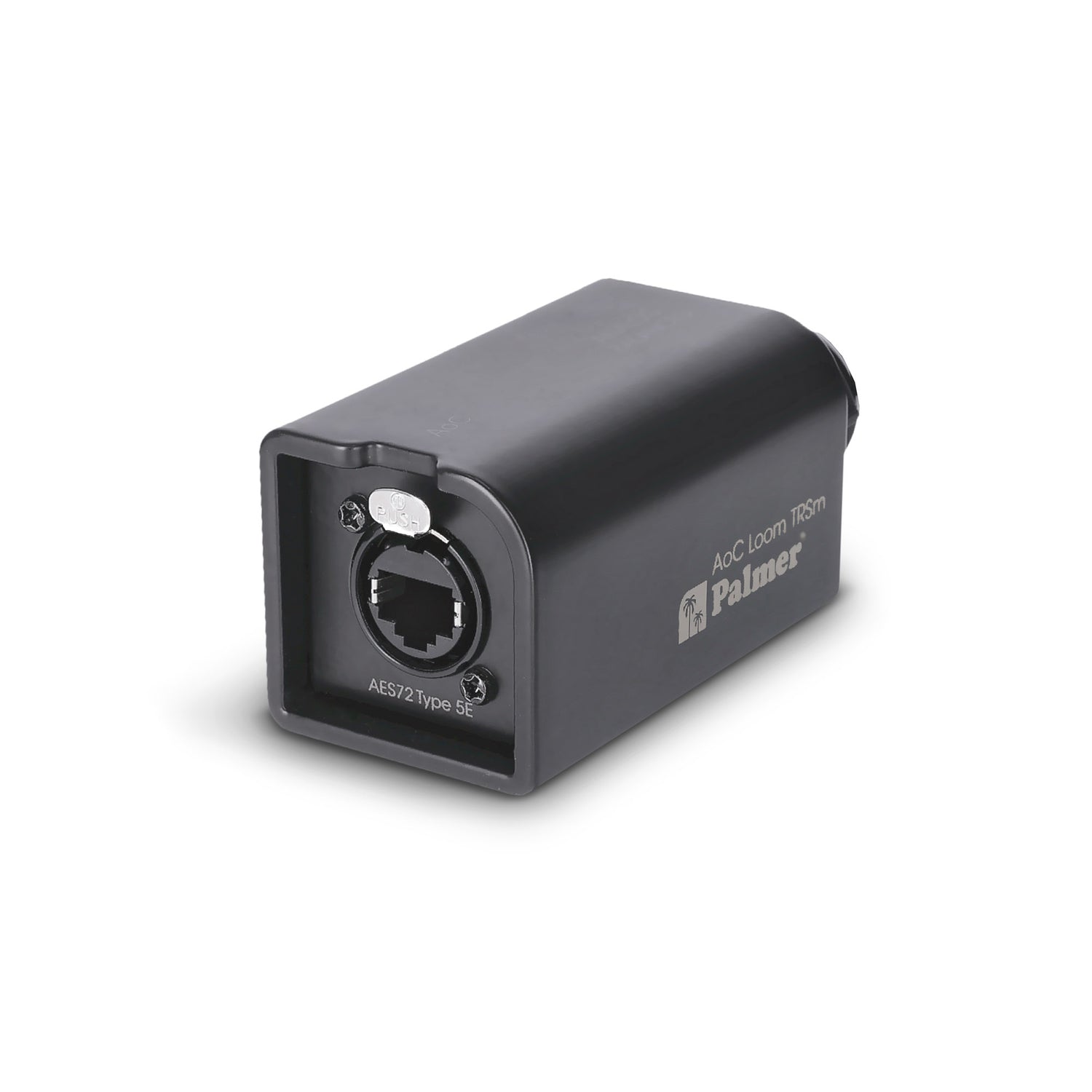

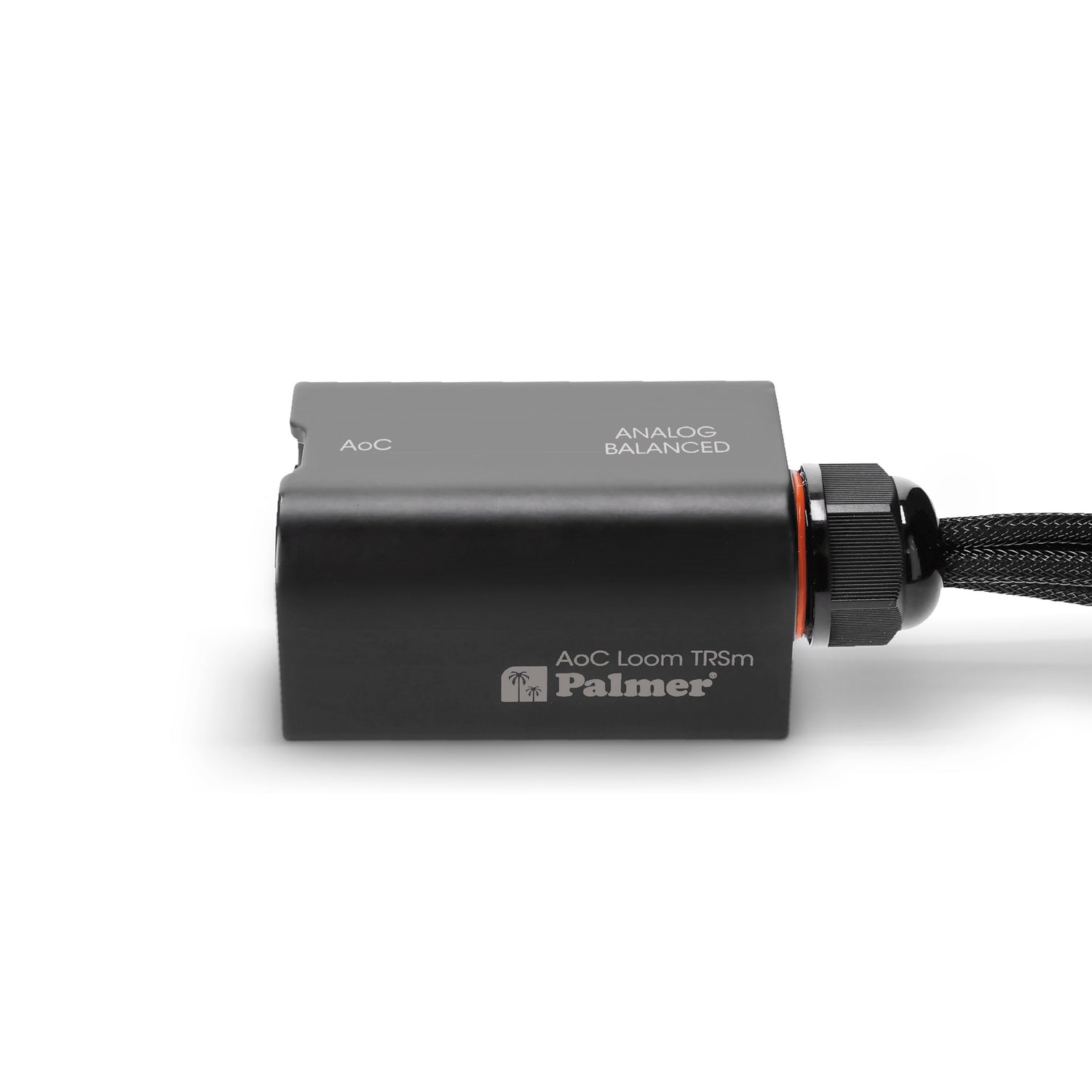

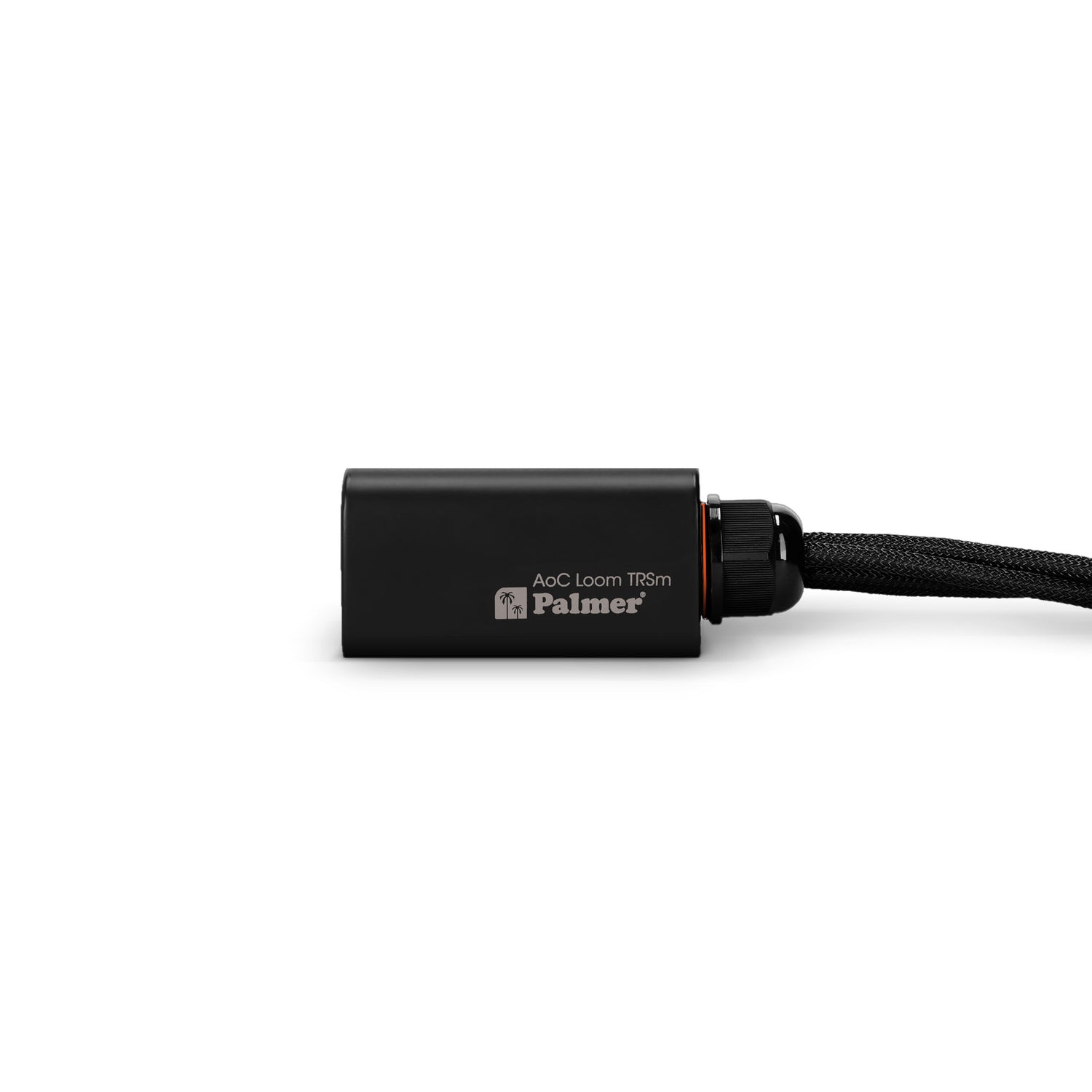

- Solid casing made of aluminium and steel
- Engineered in Germany
| Product type | Audio over Cat adapter |
| Number of inputs | 4 |
| Input type | Balanced |
| Input Connector | RJ45 |
| Number of outputs | 4 |
| Output type | Balanced |
| Output connector | 6.35 mm TRS stereo jack |
| Material | Aluminium |
| Material | Steel |
| Cable Length | 0.5 m |
| Width | 80 mm |
| Depth | 45 mm |
| Height | 45 mm |
| Weight | 0,35 kg |
| Operating Temperature | - 20 - 70 °C |
| Air humidity | > 80 % (non-condensing) |
Audio
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu dBu |
| Frequency range | 0 Hz - 20 kHz |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,0005 % |
RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
| Pin 1 | Channel 3 - |
| Pin 2 | Channel 3 + |
| Pin 3 | Channel 4 - |
| Pin 4 | Channel 1 + |
| Pin 5 | Channel 1 - |
| Pin 6 | Channel 4 + |
| Pin 7 | Channel 2 - |
| Pin 8 | Channel 2 + |
Channel color code
| Channel 1 | Red |
| Channel 2 | Green |
| Channel 3 | Blue |
| Channel 4 | White |
