Description
Description

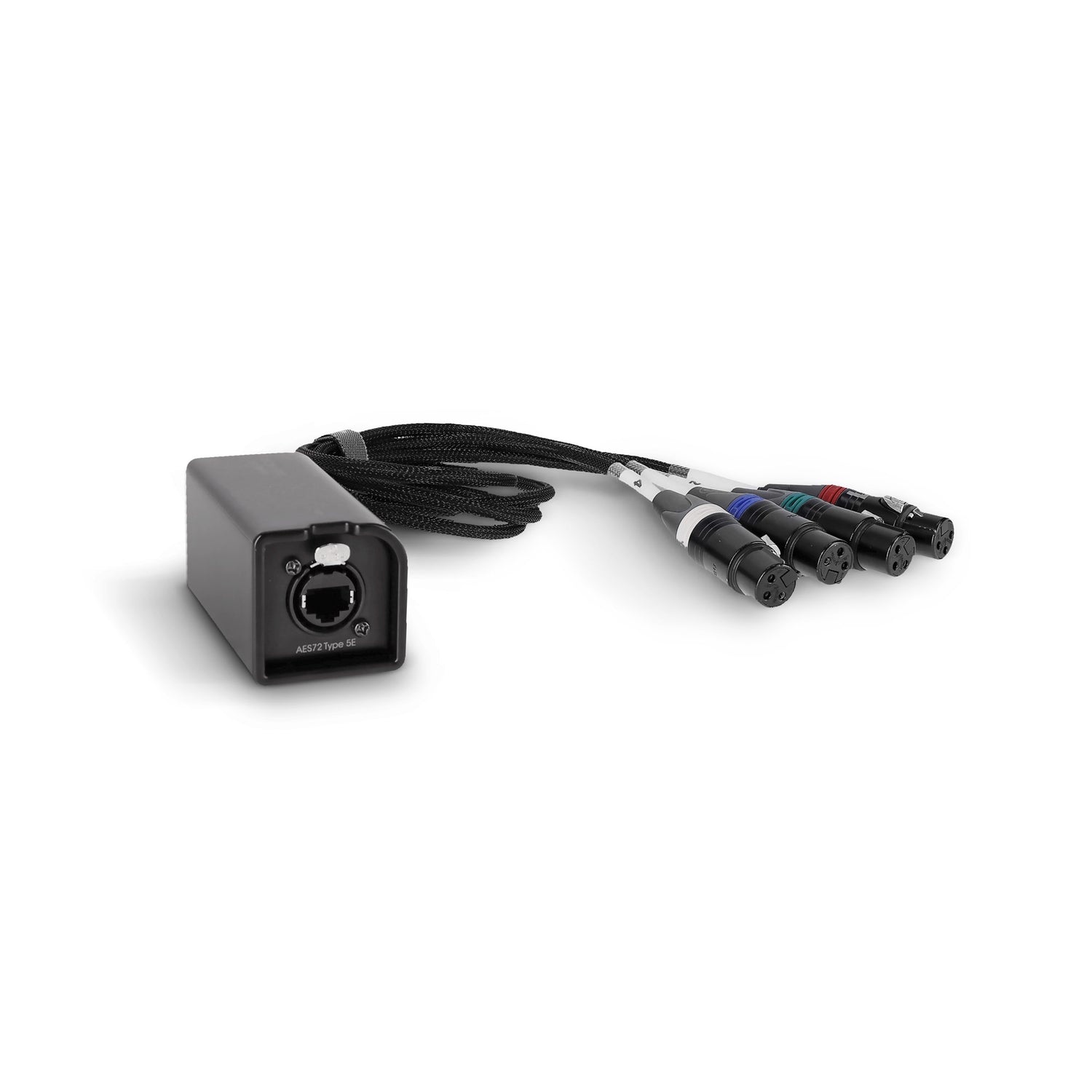

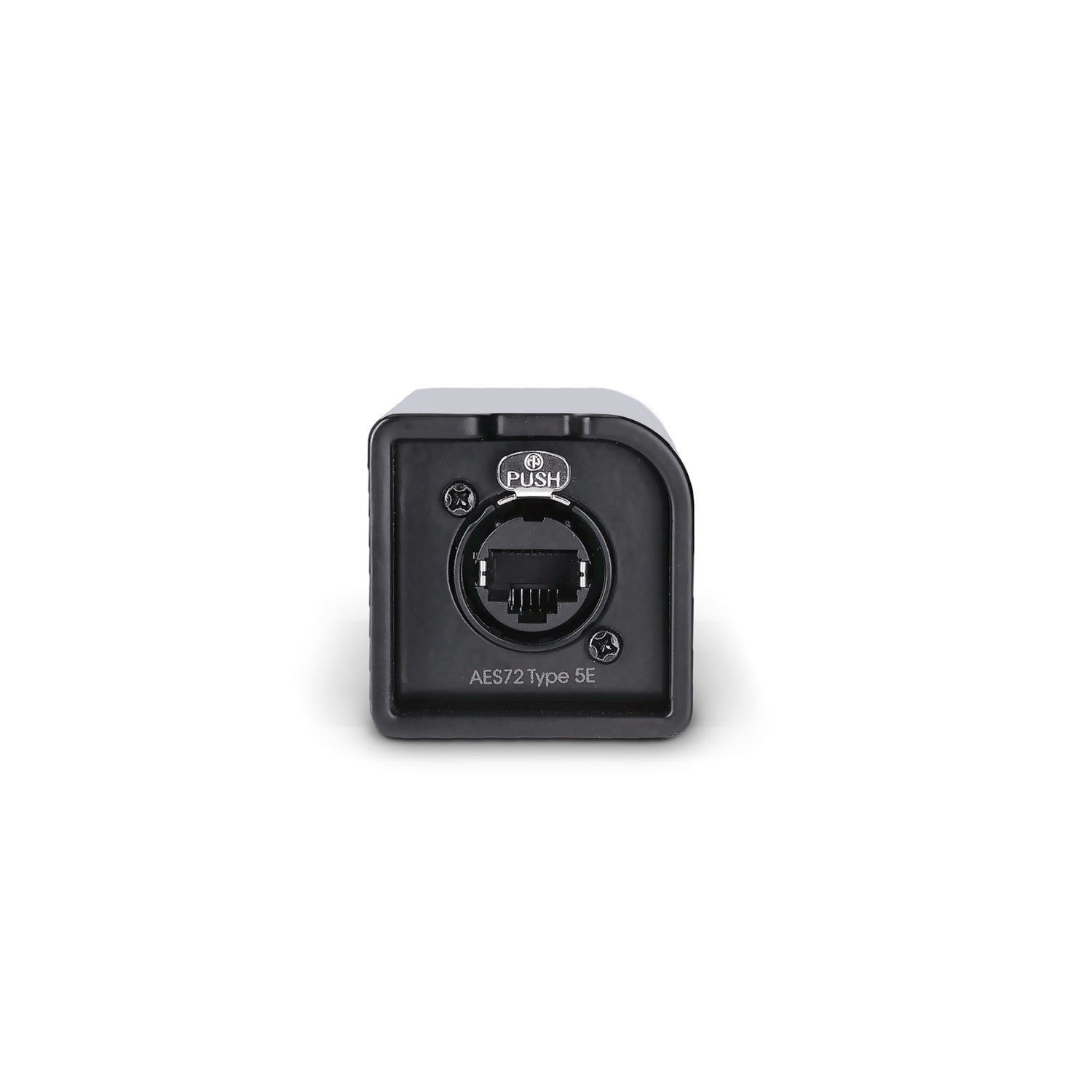

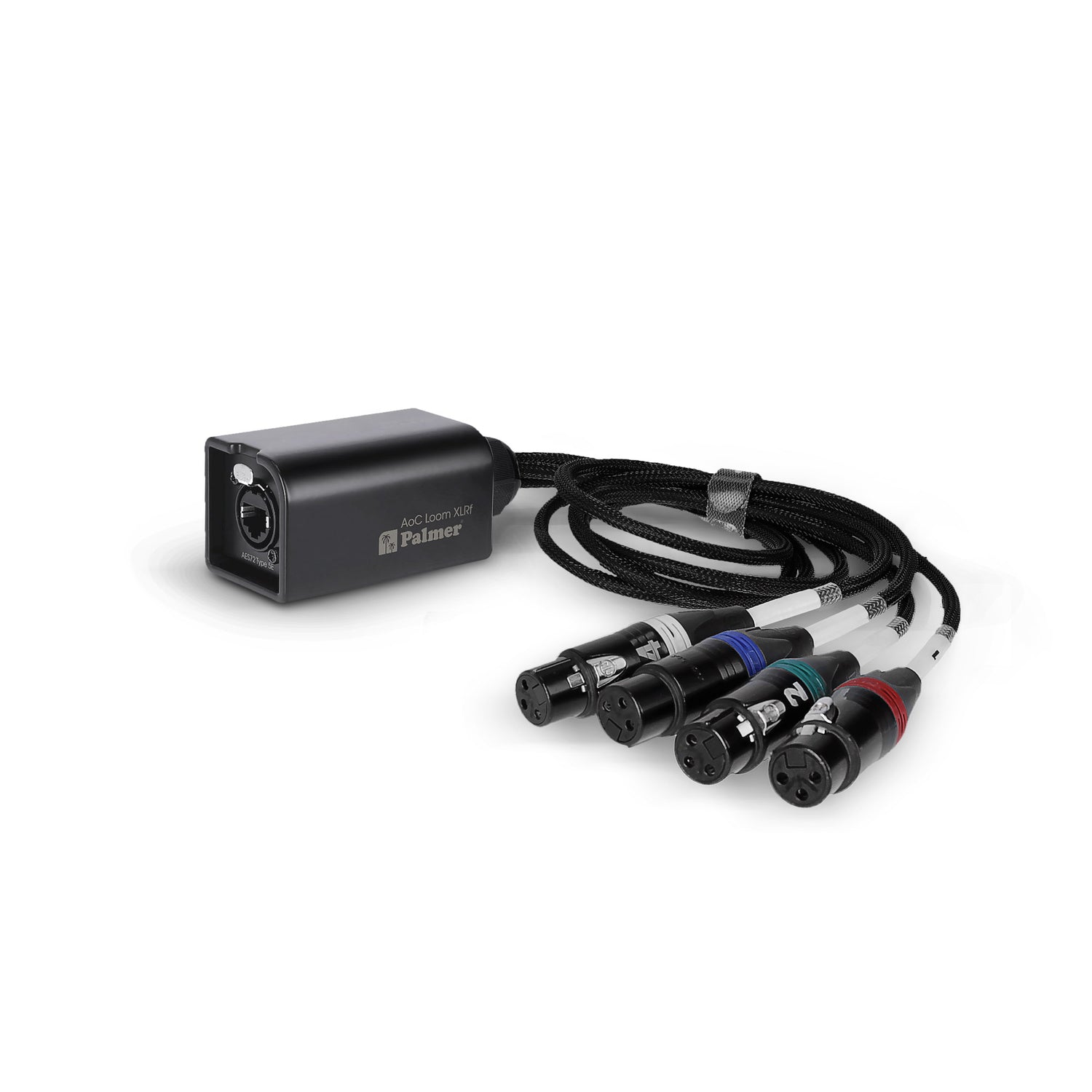

P AOC L XLR F is a multicore adapter cable that enables stable transmission of 4 separate analogue, balanced audio signals or 8 digital AES3 signals via a network cable (not included). The female XLR connectors are numbered and colour-coded for easy identification. The Ethercon connection is secured against unlocking to prevent accidental disconnection of the cable.

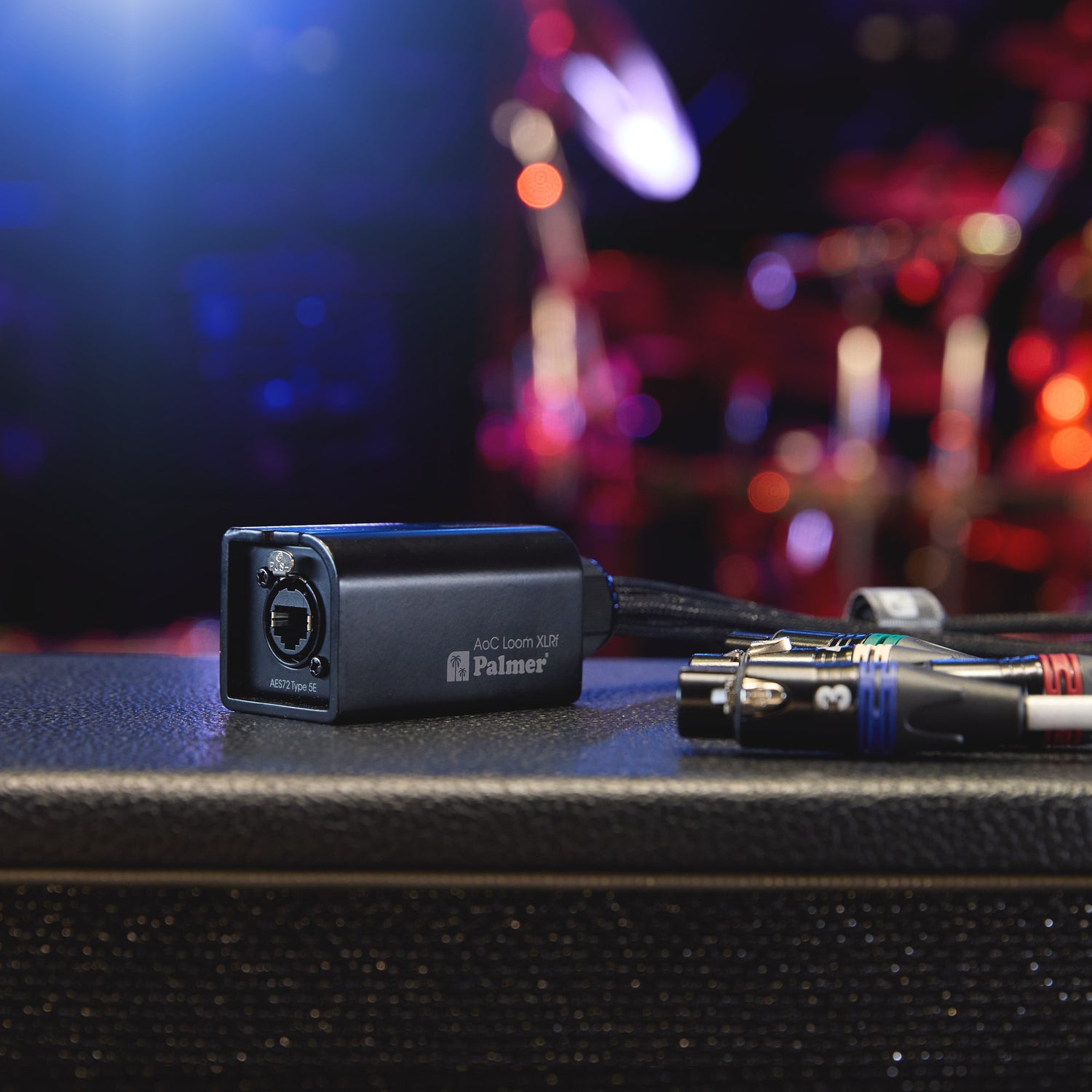

In addition to audio signals, P AOC L XLR F also enables transmission of DMX or MIDI control signals as well as 48-volt phantom power via a single standard Ethernet cable. This versatility allows it to be used flexibly across a wide range of applications, whether for live concerts, studio sessions, press conferences or other productions.
With high-quality components from Neutrik, a sturdy aluminium and steel housing, and rugged braided cables with a 50 cm breakout, P AOC L XLR F guarantees reliable signal transmission and durability in professional environments. Its simple, premium design also enhances the visual appearance of any setup.
All these factors make P AOC L XLR F a reliable and durable tool that offers an affordable and flexible alternative to conventional 4-channel multicore cables without compromising on sound quality – exactly what you have always been able to expect from Palmer.
Technical specifications
Technical specifications
- 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)
- etherCON to 4 x XLR female
- AES72 Type 5E
- Compatible with 48-volt phantom power
- Premium Neutrik components
- Robust mesh cable, 0.5 m

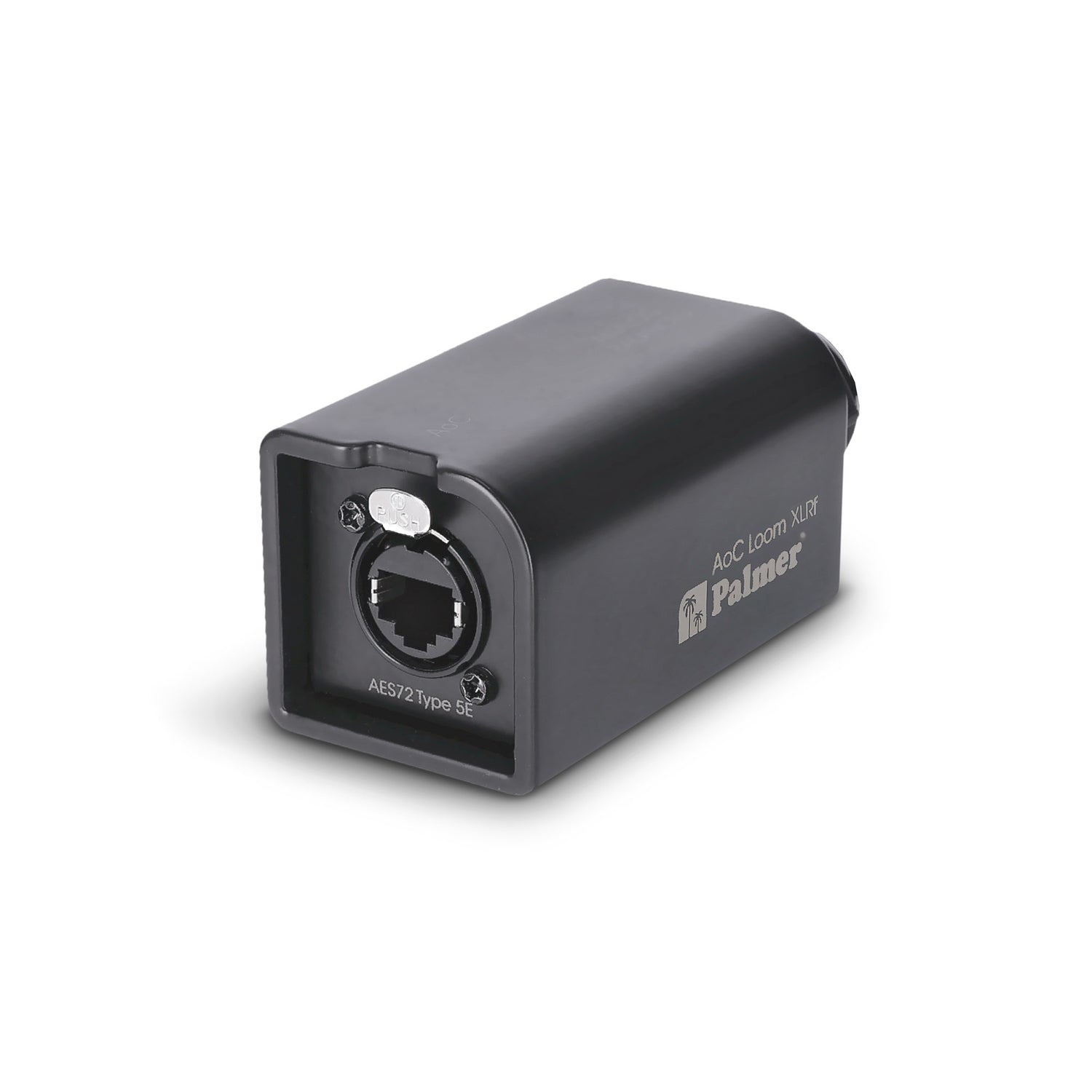

- Solid casing made of aluminium and steel
- Engineered in Germany
| Product type | Audio over Cat adapter |
| Number of inputs | 4 |
| Input type | Balanced |
| Input Connector | RJ45 |
| Number of outputs | 4 |
| Output type | Balanced |
| Output connector | XLR female |
| Material | Aluminium |
| Material | Steel |
| Cable Length | 0.5 m |
| Width | 80 mm |
| Depth | 45 mm |
| Height | 45 mm |
| Weight | 0,39 kg |
| Operating Temperature | - 20 - 70 °C |
| Air humidity | < 80 % ( non-condensing ) |
Audio
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu dBu |
| Frequency range | 0 Hz - 20 kHz |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,0005 % |
RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
| Pin 1 | Channel 3 - |
| Pin 2 | Channel 3 + |
| Pin 3 | Channel 4 - |
| Pin 4 | Channel 1 + |
| Pin 5 | Channel 1 - |
| Pin 6 | Channel 4 + |
| Pin 7 | Channel 2 - |
| Pin 8 | Channel 2 + |

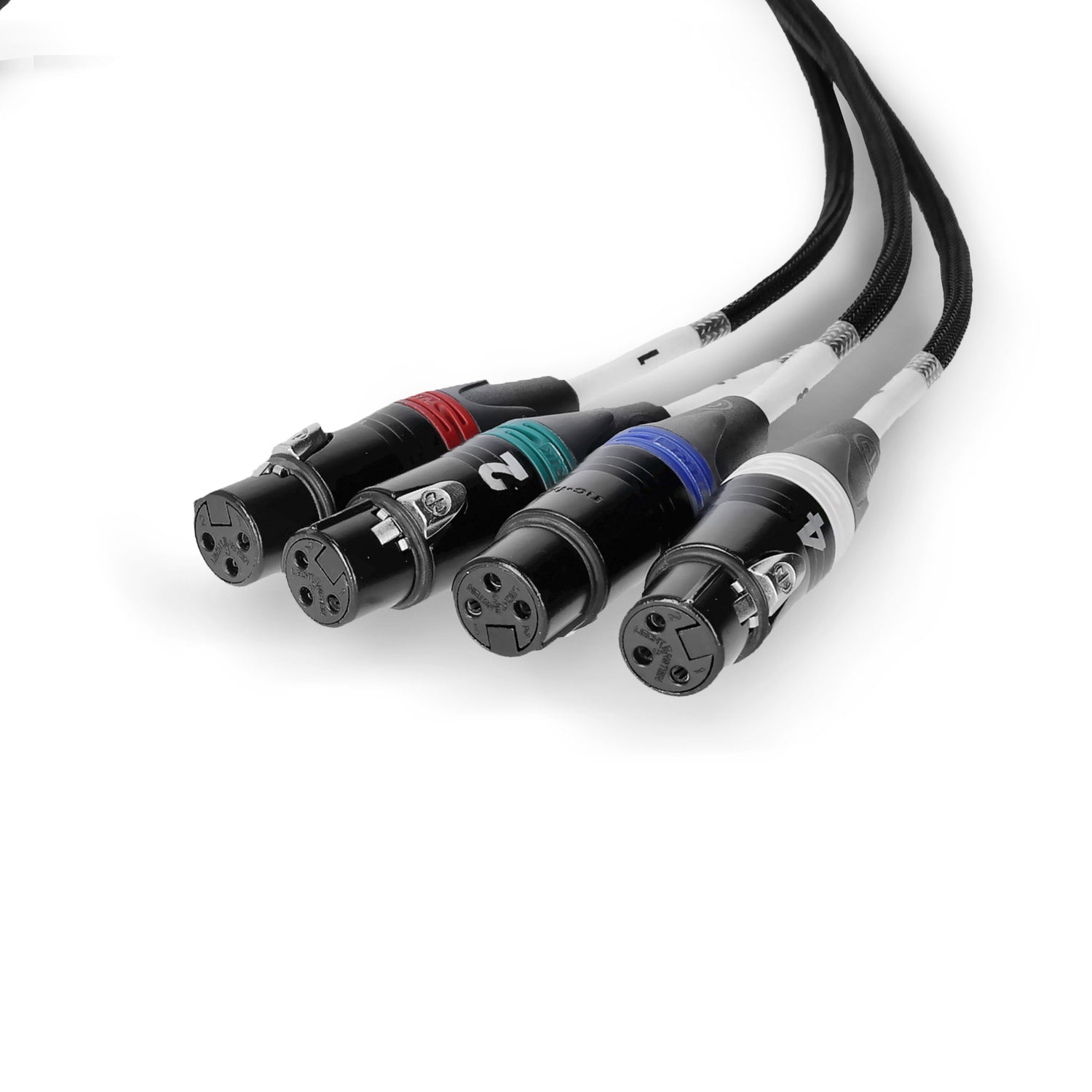

Channel color code
| Channel 1 | Red |
| Channel 2 | Green |
| Channel 3 | Blue |
| Channel 4 | White |
