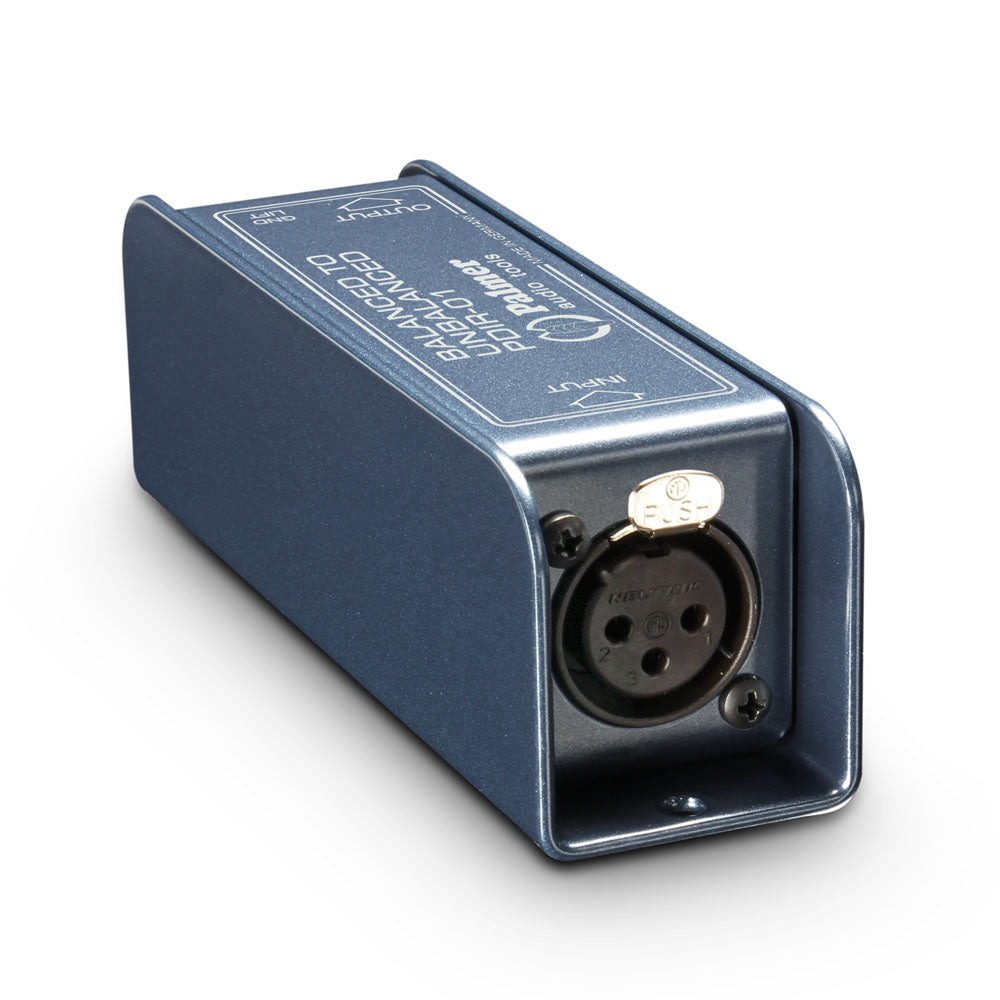

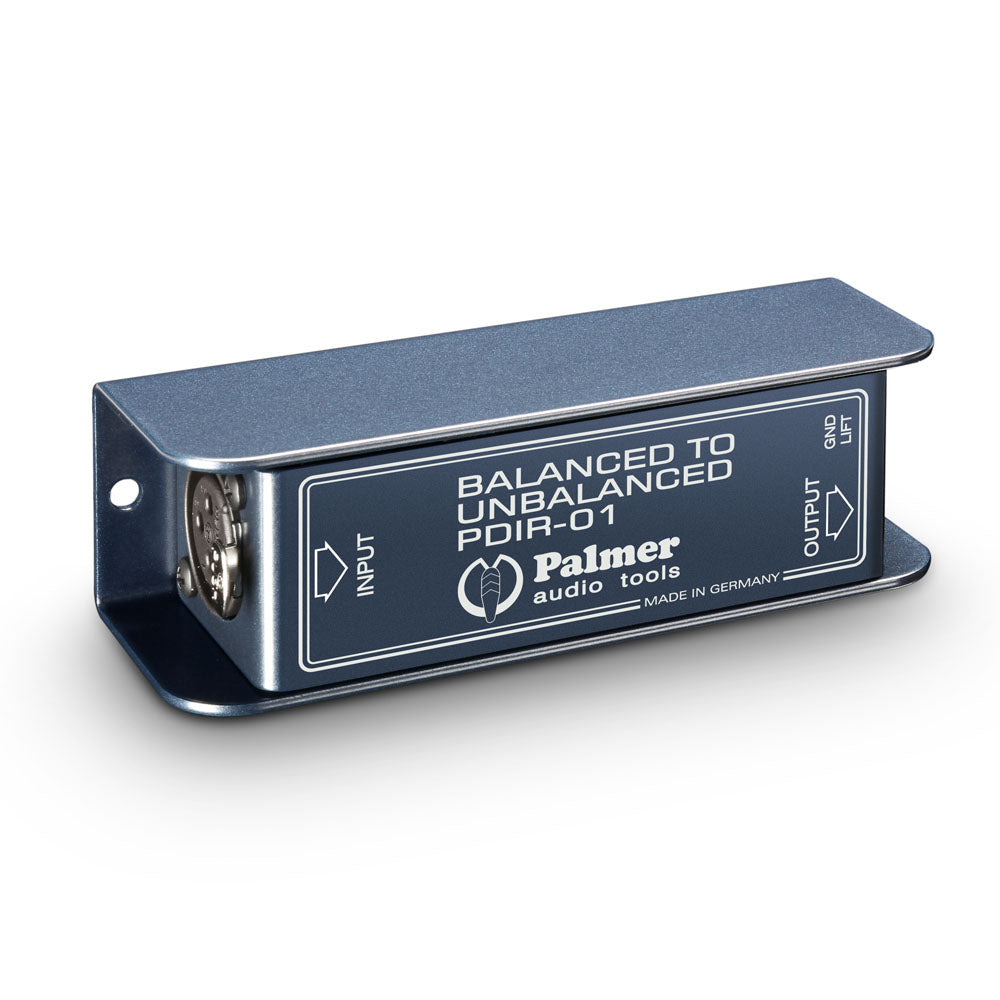

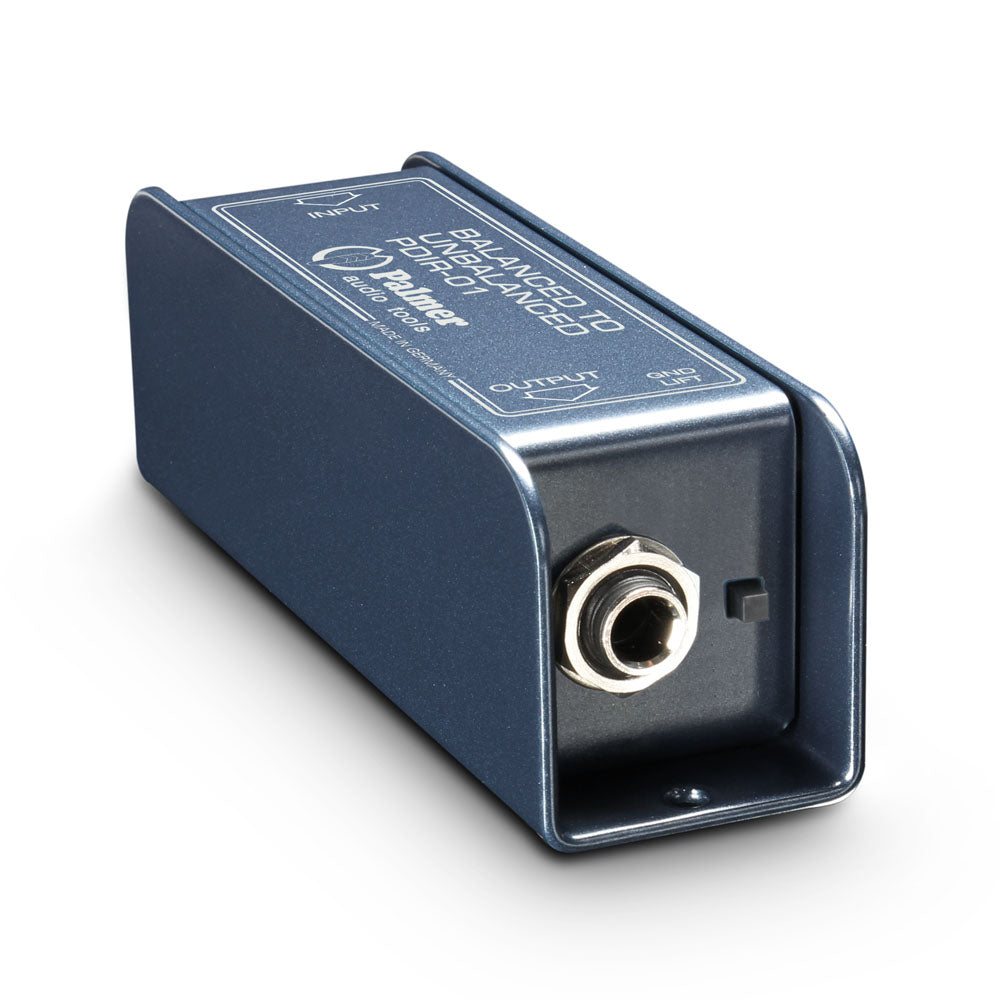

Palmer DI-REVERSE - Reverse DI box
1
of
3
Loading...
€151,95
Unit price
/
Not available
Secure checkout
Description
Description
People often try to connect a DI box in reverse to send a balanced signal into an unbalanced input. However, this approach often delivers suboptimal results due to impedance mismatch. This is where the PDIR01 (DI-REVERSE) comes in – a solution designed to handle this issue seamlessly, eliminating the need for adapters and ensuring optimum performance.
Technical specifications
Technical specifications
| Product type | DI boxes |
| Channels | 1 |
| Inputs | 1 |
| Input connectors | XLR |
| Max. input level | +6 dBu |
| Input impedance | 2 k Ohm(s) |
| Number of outputs | 1 |
| Output connectors | 6.3 mm jack |
| Max. output level | +6 dBu |
| Output impedance | 2 k Ohm(s) |
| Frequency response | 20 - 20000 |
| Transformer balanced | Yes |
| Ratio | 1:1 |
| Controls | ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 35 mm |
| Height | 39 mm |
| Weight | 0,17 kg |
