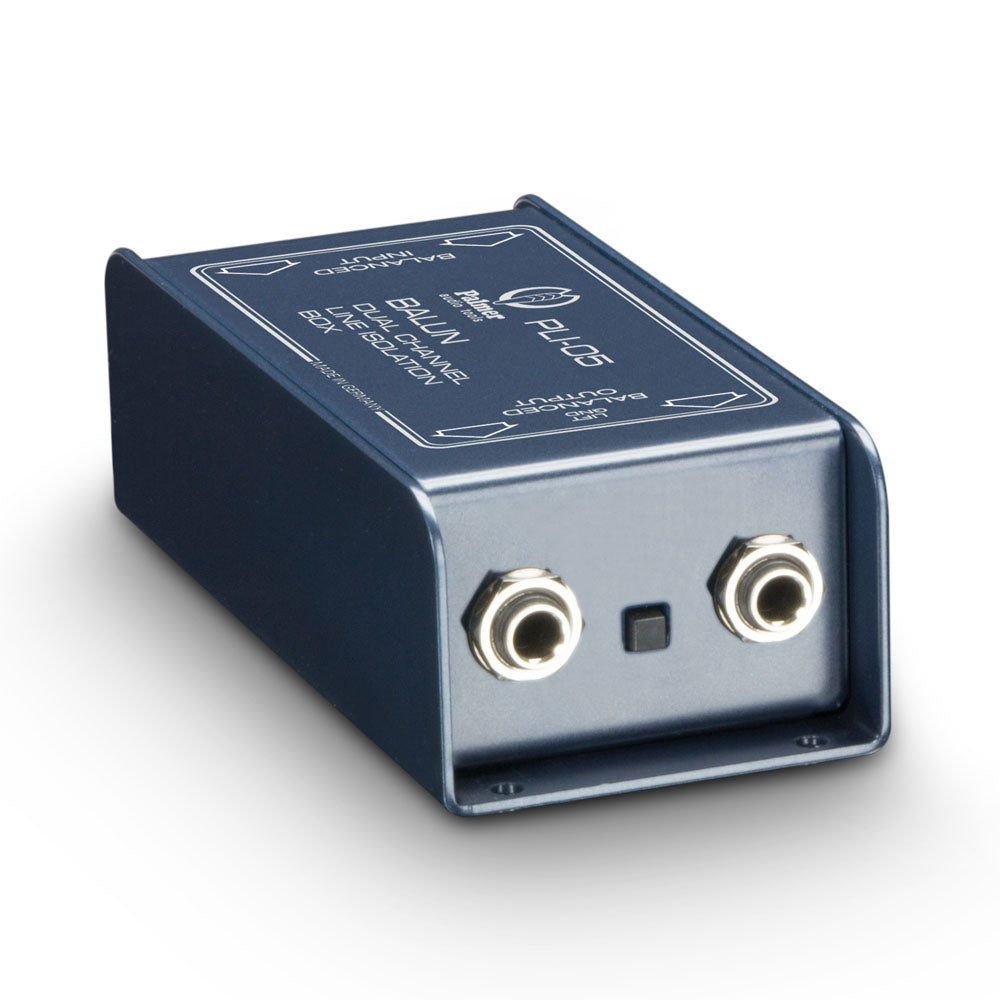

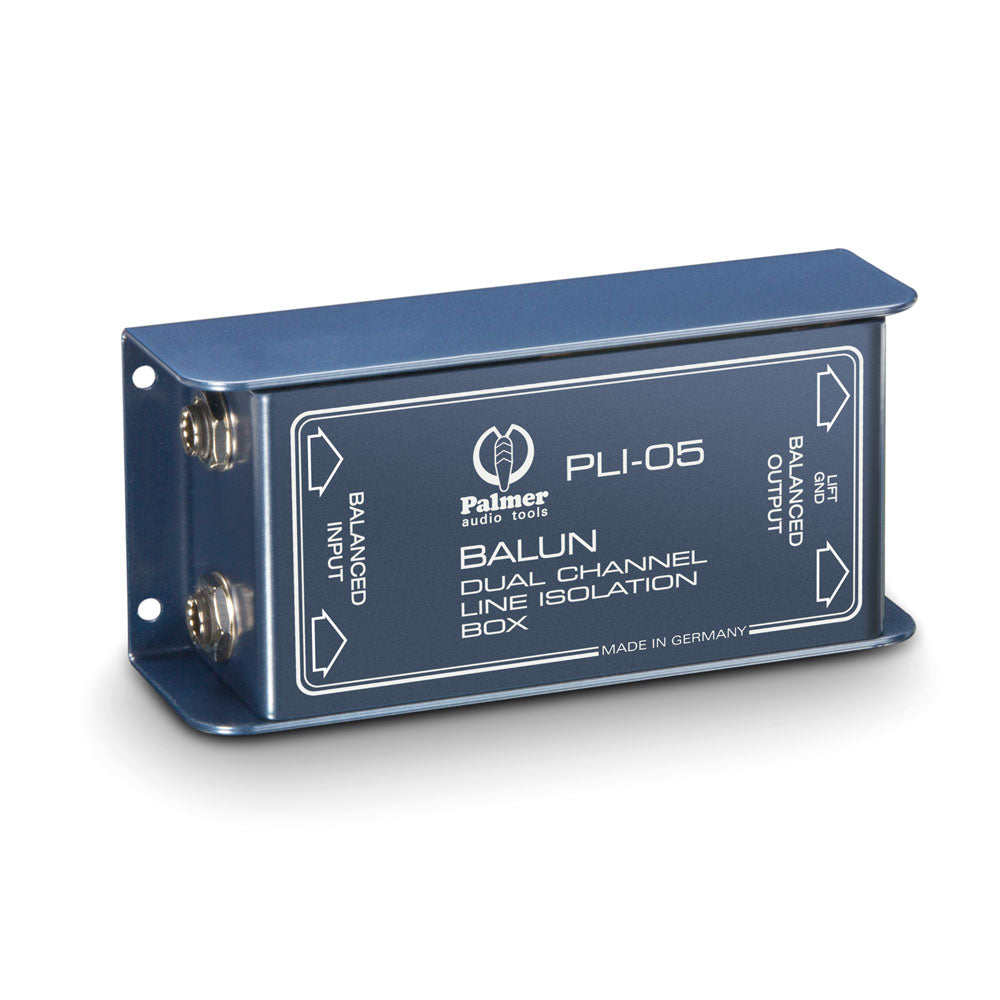

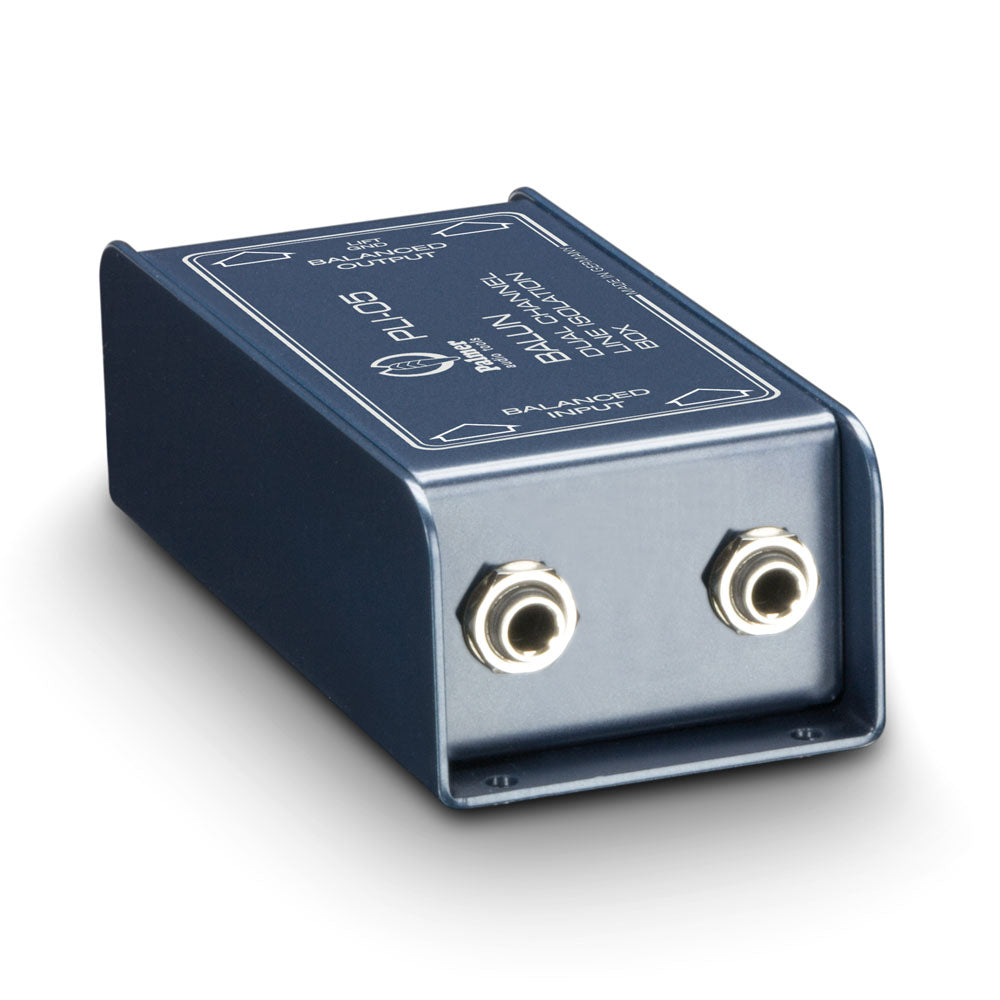

Palmer LI 05 - 2-channel line isolation box
€217,95
Unit price
/
Not available
Description
Description

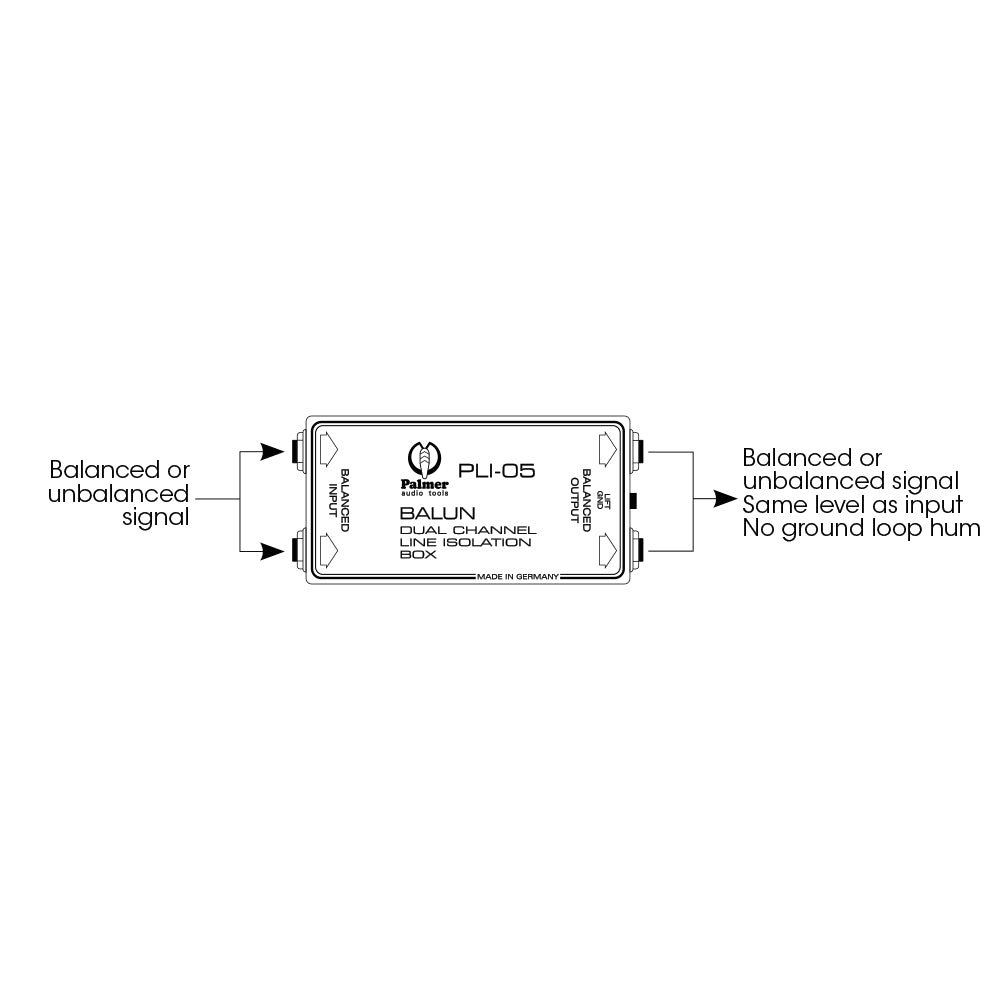

Balanced or unbalanced? It’s not a problem with BALUN/PLI05. BALUN stands for balanced-unbalanced. This means that because the PLI05 uses TRS (stereo) jack connectors, both the input and output can be used balanced or unbalanced. The PLI05 is the PLI02’s little sister. Both units can be used to convert from balanced to unbalanced. Both units contain line isolation transformers for galvanic isolation. They are connected between mains-powered audio devices to prevent hum from ground loops. The PLI02 is designed for use with XLR connectors and built for low impedances (600 ohm). In contrast, the use of jack connectors means the PLI05 is better suited to higher impedances. It can be used across the wide range from 600 ohm to over 10 kiloohm. However, to minimise level loss, the input impedance should not be lower than the output impedance.
Technical specifications
Technical specifications
| Product type | Line isolators |
| Channels | 2 |
| Inputs | 2 |
| Input connectors | 6.3 mm jack |
| Input type | balanced/unbalanced (depending on TS/TRS connection) |
| Input impedance | 10k Ohm(s) |
| Max. input level | + 6 dBu |
| Outputs | 2 |
| Output connectors | 6.3 mm jack |
| Output type | balanced/unbalanced (depending on TS/TRS connection) |
| Output impedance | 600 Ohm(s) |
| Max. output level | + 6 dBu |
| Transformer balanced | Yes |
| Ratio | 1:1 |
| Frequency response | 20 - 20.000 |
| Cabinet material | Die-cast aluminium |
| Cabinet surface | Powder coated |
| Width | 120 mm |
| Depth | 60 mm |
| Height | 35 mm |
| Weight | 0,28 kg |
