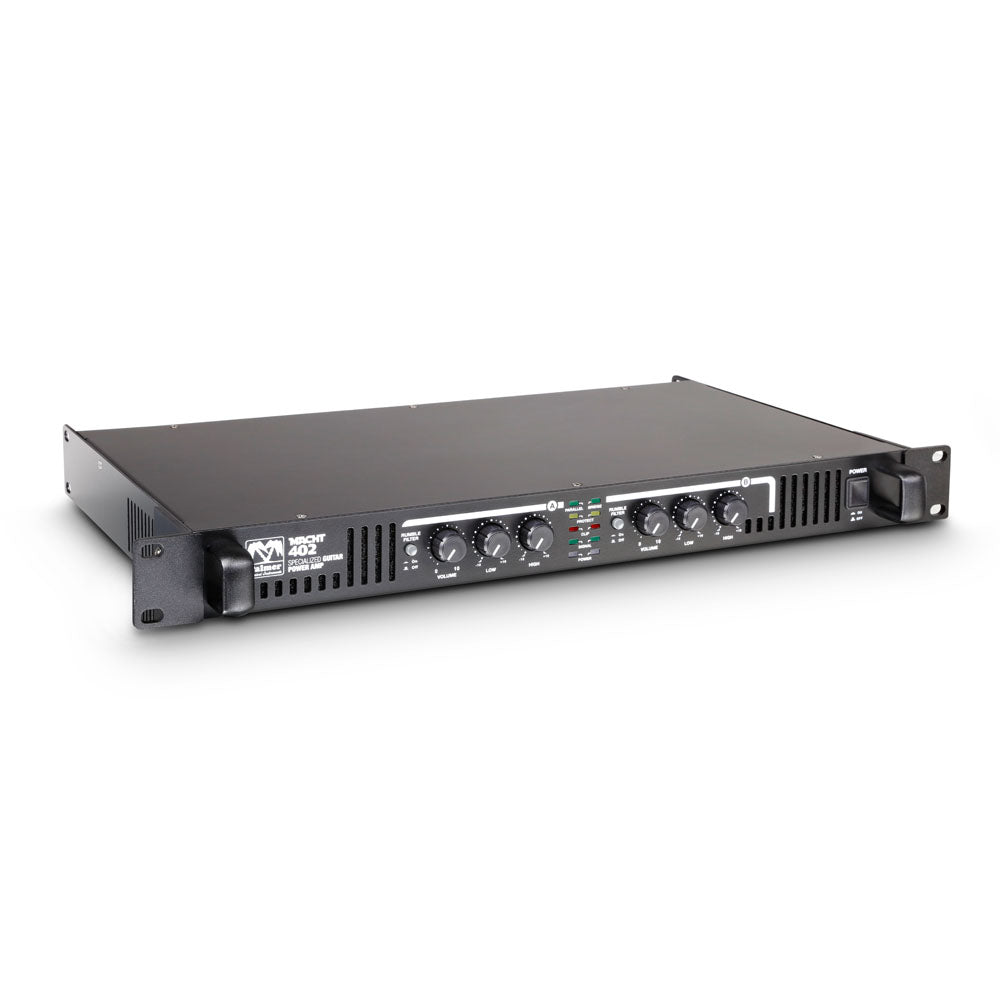

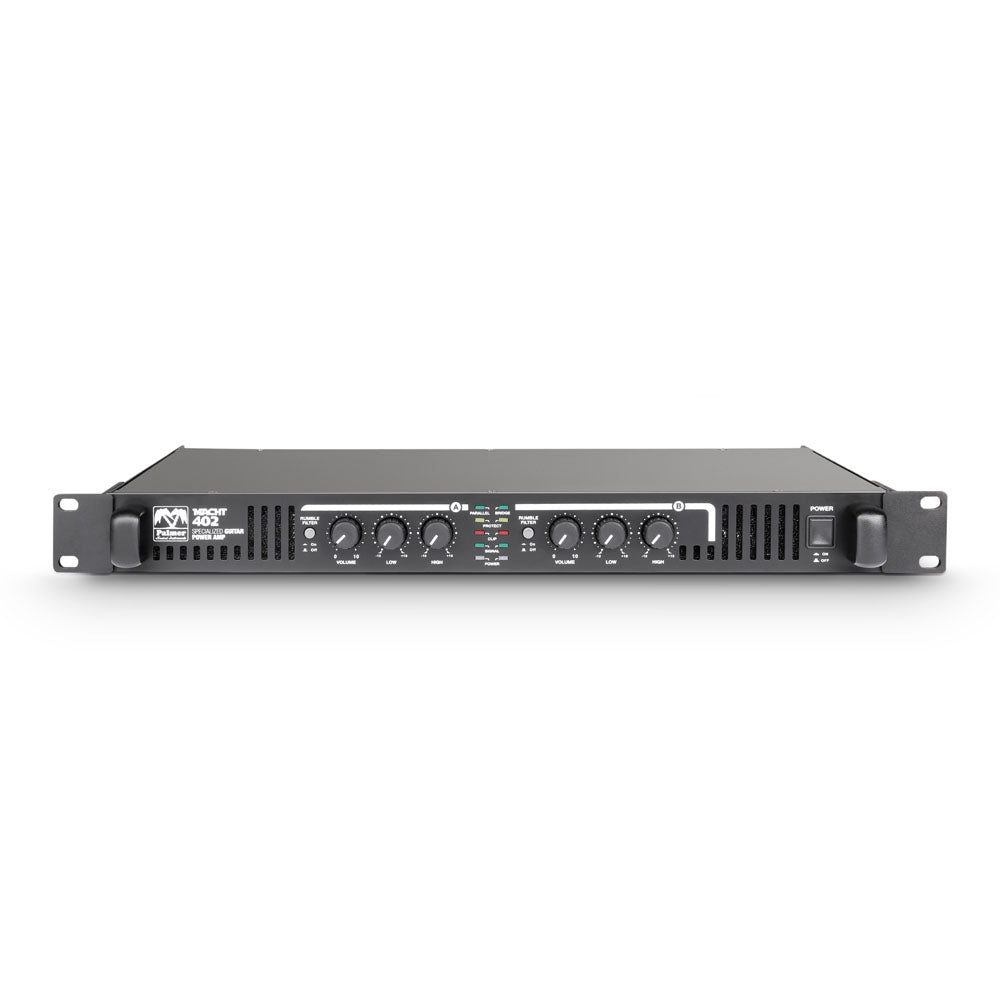

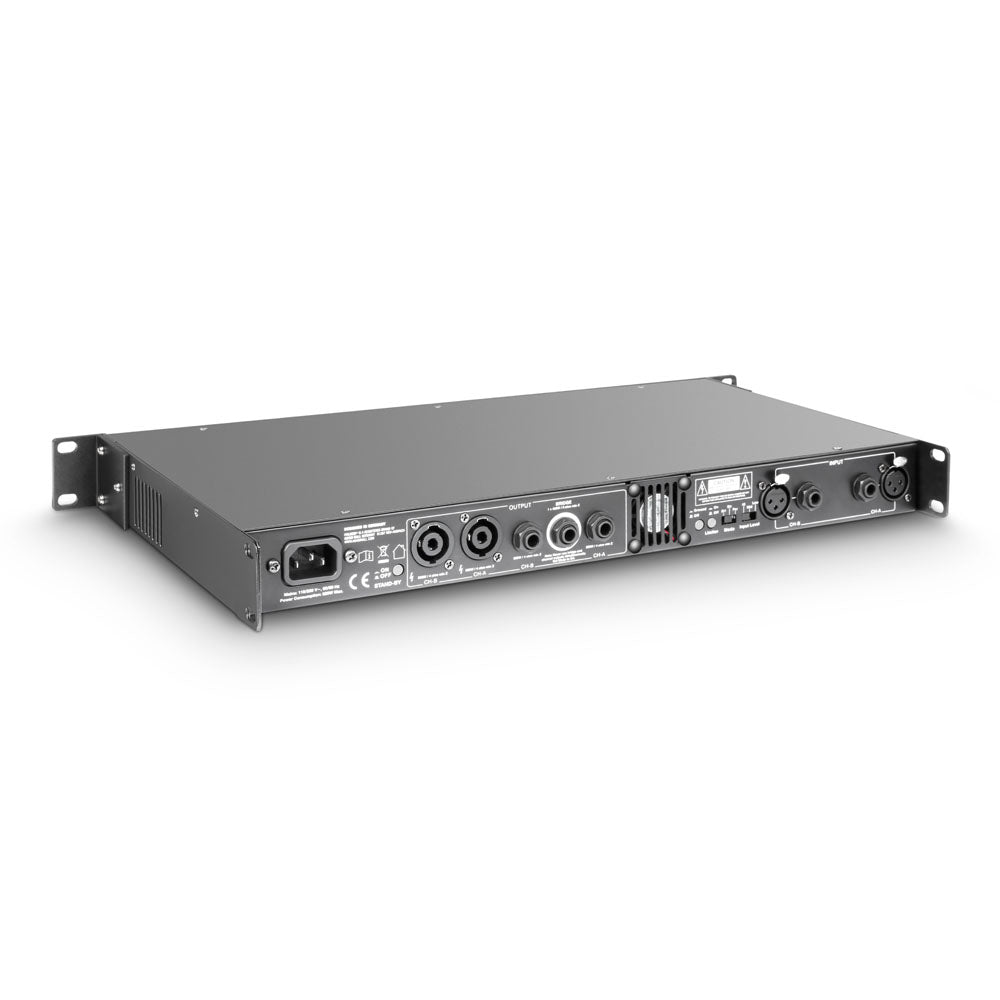

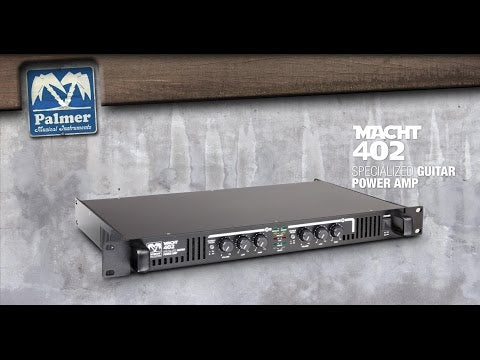

Palmer MACHT 402 - 19" stereo power amp for guitar
Palmer MACHT 402 is a 19" stereo power amp specially designed for guitar use. It delivers 200 watts per channel and 400 watts in bridged mode, so it can drive virtually any speaker cabinets. With a highly efficient switch-mode power supply and a low-noise fan, the soft-start Class D design is protected against overvoltage, DC, short circuit and overheating.

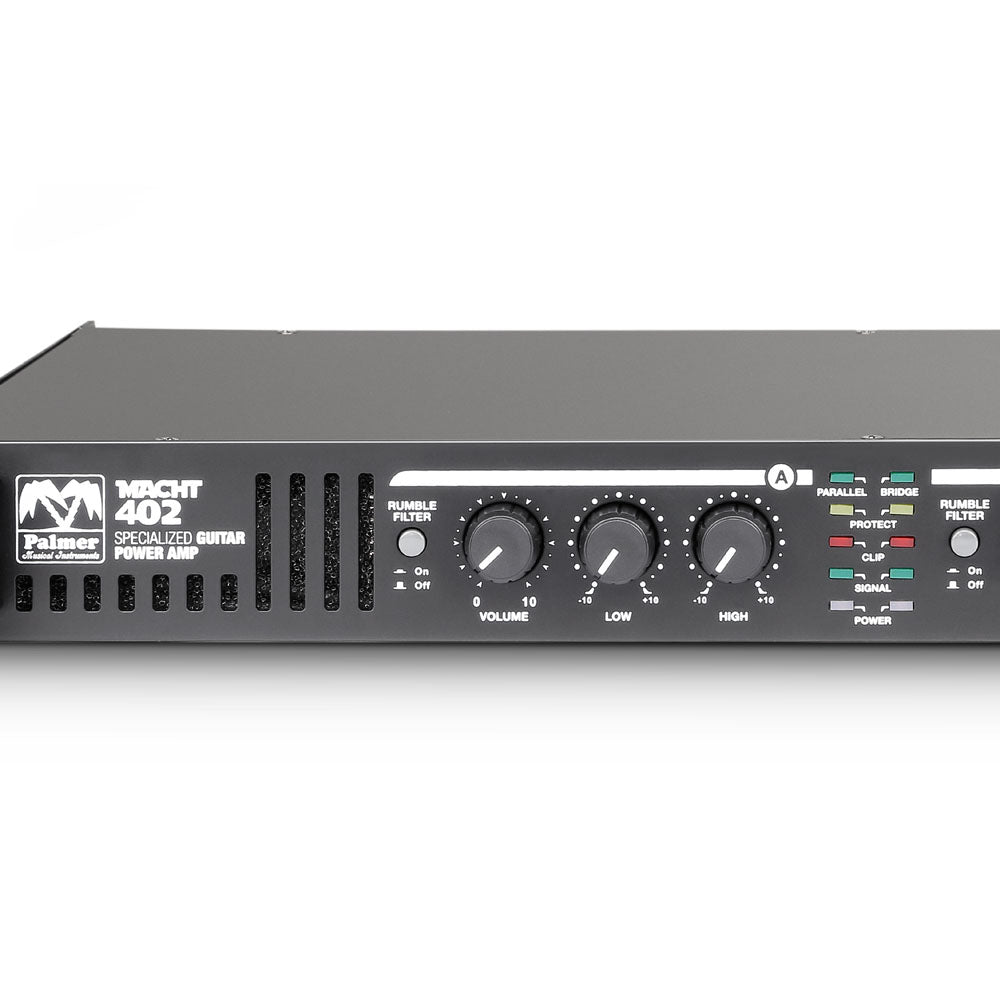

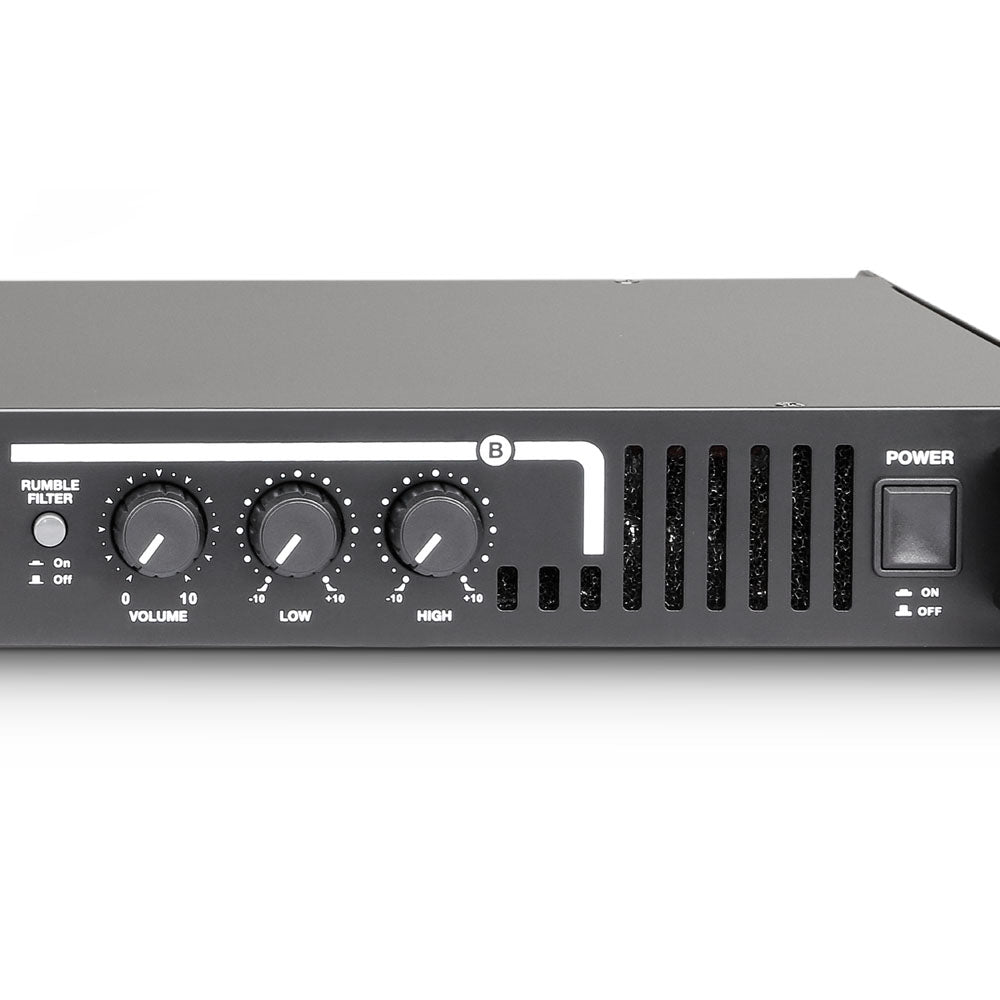

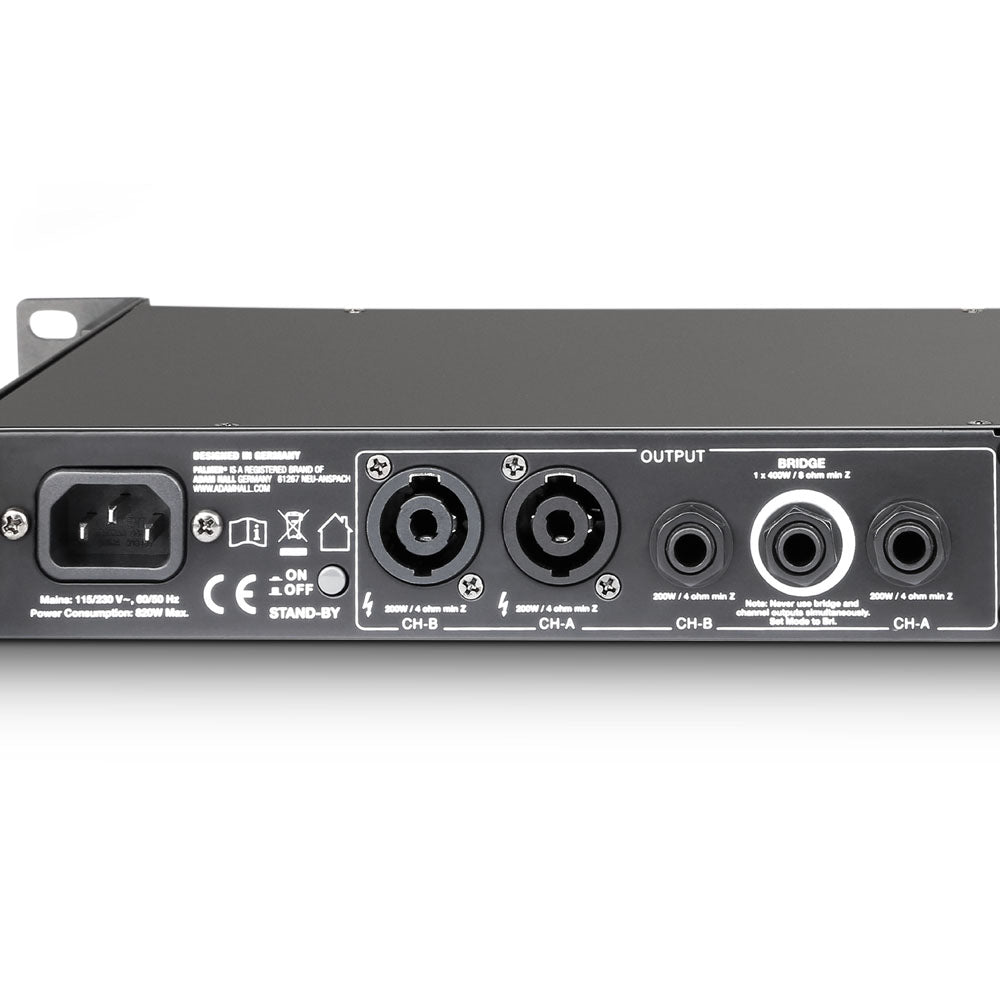

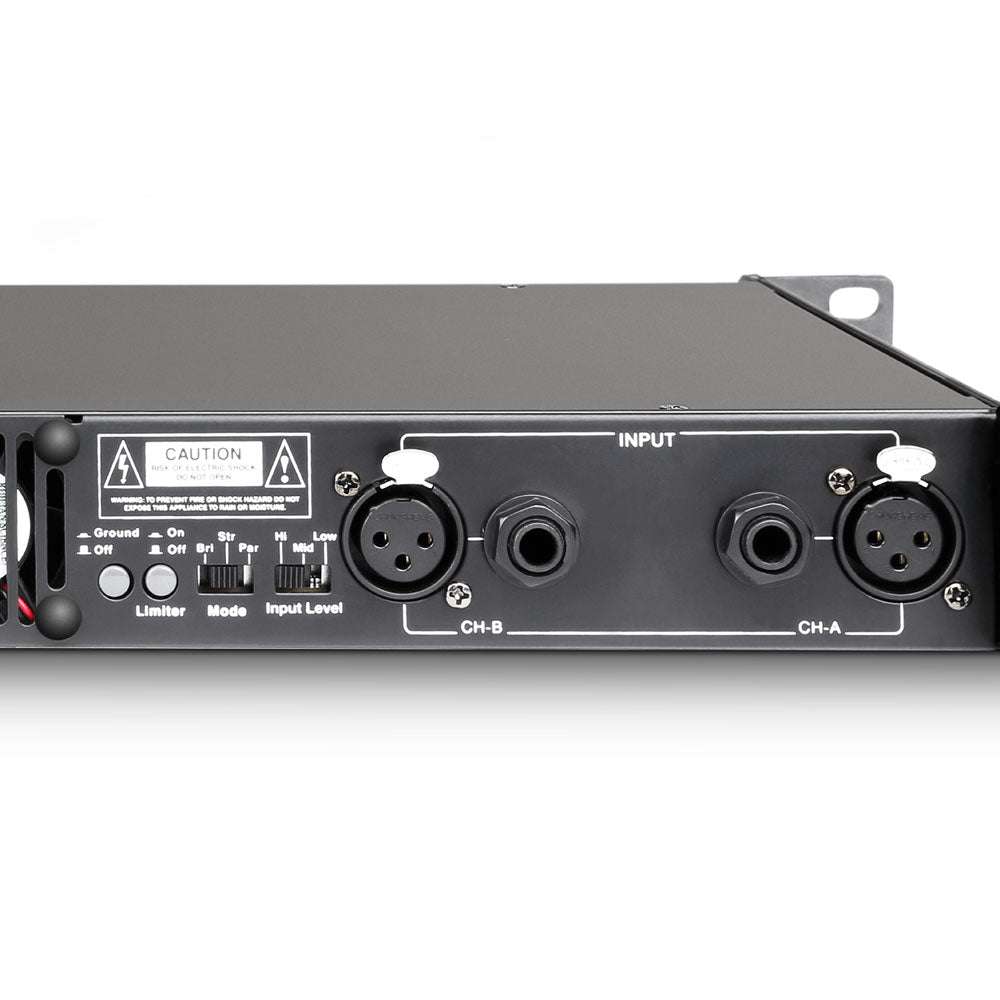

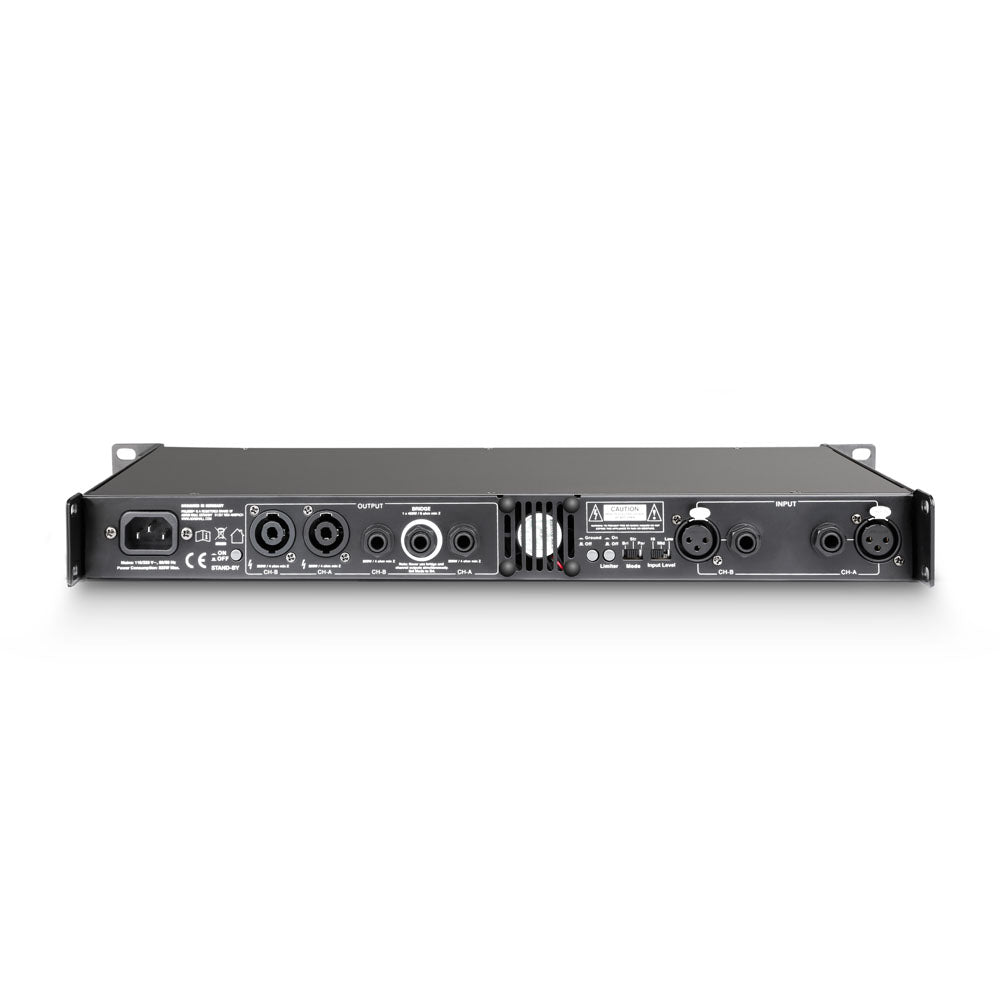

As traditionally named, the channels’ Hi and Low controls are carefully tailored to guitar signals to provide extensive EQ options, a wide range of tones and authentic characteristics of a valve-based power stage. In addition, the MACHT 402 features a rumble filter, LED indicators, a 3-way sensitivity selector, built-in limiter and ground lift switch. With XLR and 6.35 mm inputs as well as Speakon-compatible and 6.35 mm output jacks, the Palmer MACHT 402 is the ideal power station for guitar preamps, small amps, modellers and even effects pedals.

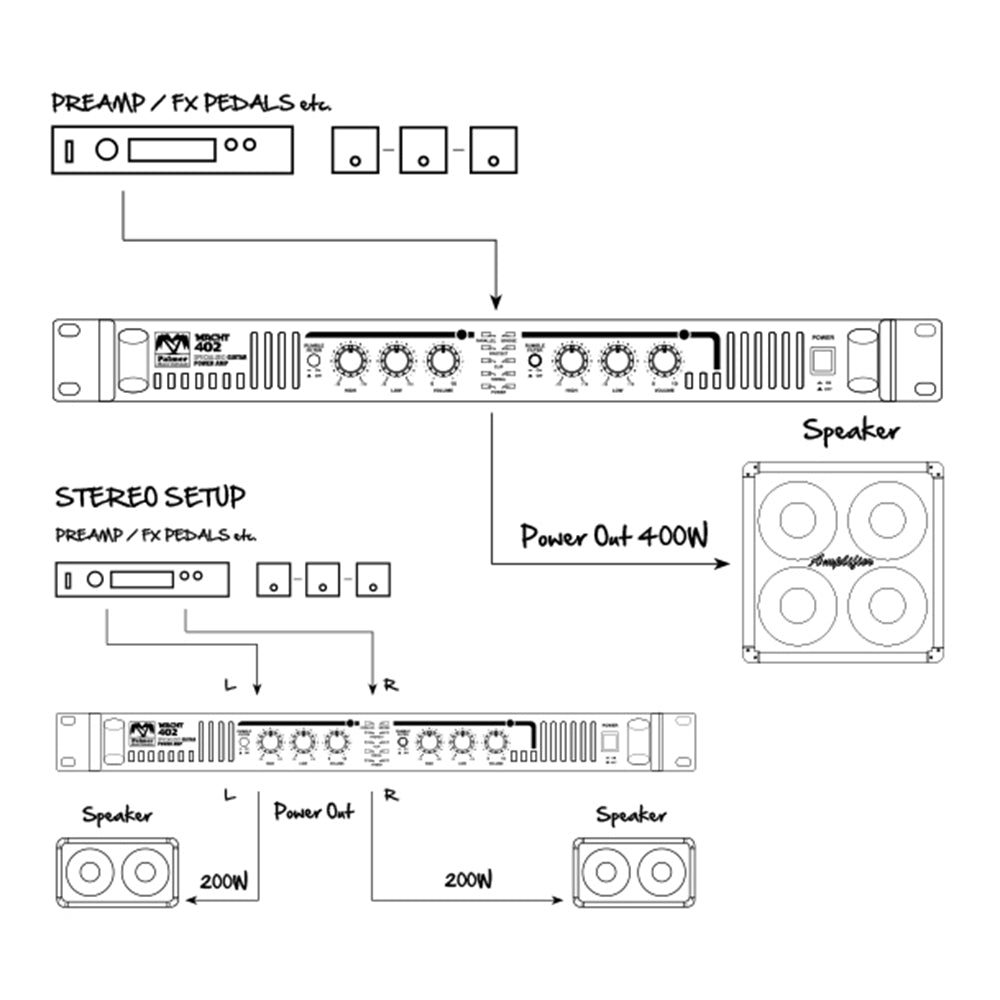

Note:The MACHT 402 is not suitable for direct connection to a guitar. Please insert a preamp, modeller or an effects pedal in between.
- Stereo guitar power amplifier
- 200 watts per channel into 4 ohms
- 400 watts bridged for mono use
- Carefully tailored, guitar-specific EQ
- Input sensitivity selector for use with preamps, pedals etc.
- Built-in limiter
- All major protections
- Works with virtually any cabinet(s)
| Product type | Guitar Amplifiers |
| Rated ouput power (1kHz @ 4 Ohms) | 2 x 200 W |
| Rated ouput power (1kHz @ 8 Ohms) | 2 x 100 W |
| Rated ouput power (1kHz @ 8 Ohms, bridged) | 400 W |
| Output circuitry | Class D |
| Frequency response | 20 - 20000 |
| Total Harmonic Distortion (THD) | < 0.1 % |
| Gain | 32 dB / 26 dB / 28 dB |
| Input sensitivity | 0,68 V / 1,4 V / 1,2 V |
| Protection circuits | DC |
| Protection circuits | Short circuit |
| Protection circuits | over-current |
| Protection circuits | soft start |
| Protection circuits | thermal overload |
| Controls | Mode |
| Controls | On / Off |
| Controls | Sensitivity |
| Controls | ground lift |
| Controls | high |
| Controls | limiter |
| Controls | low |
| Controls | volume |
| Indicators | Mode |
| Indicators | Power |
| Indicators | Protect (protection circuit engaged) |
| Indicators | Signal |
| Indicators | clip |
| Line inputs | 2 |
| Line input connectors | 6.3 mm jack |
| Line input connectors | RCA |
| Loudspeaker outputs | 2 |
| Speaker output connections | 6.3 mm jack |
| Speaker output connections | Speakon compatible |
| Cooling | low-noise fan |
| Power supply | Switching power supply |
| Power consumption @ full load | 470 W |
| Operating voltage | 115 V AC / 230 V AC (switchable) |
| Width | 482 mm |
| Height | 44 mm |
| Depth | 244 mm |
| Weight | 3,8 kg |
