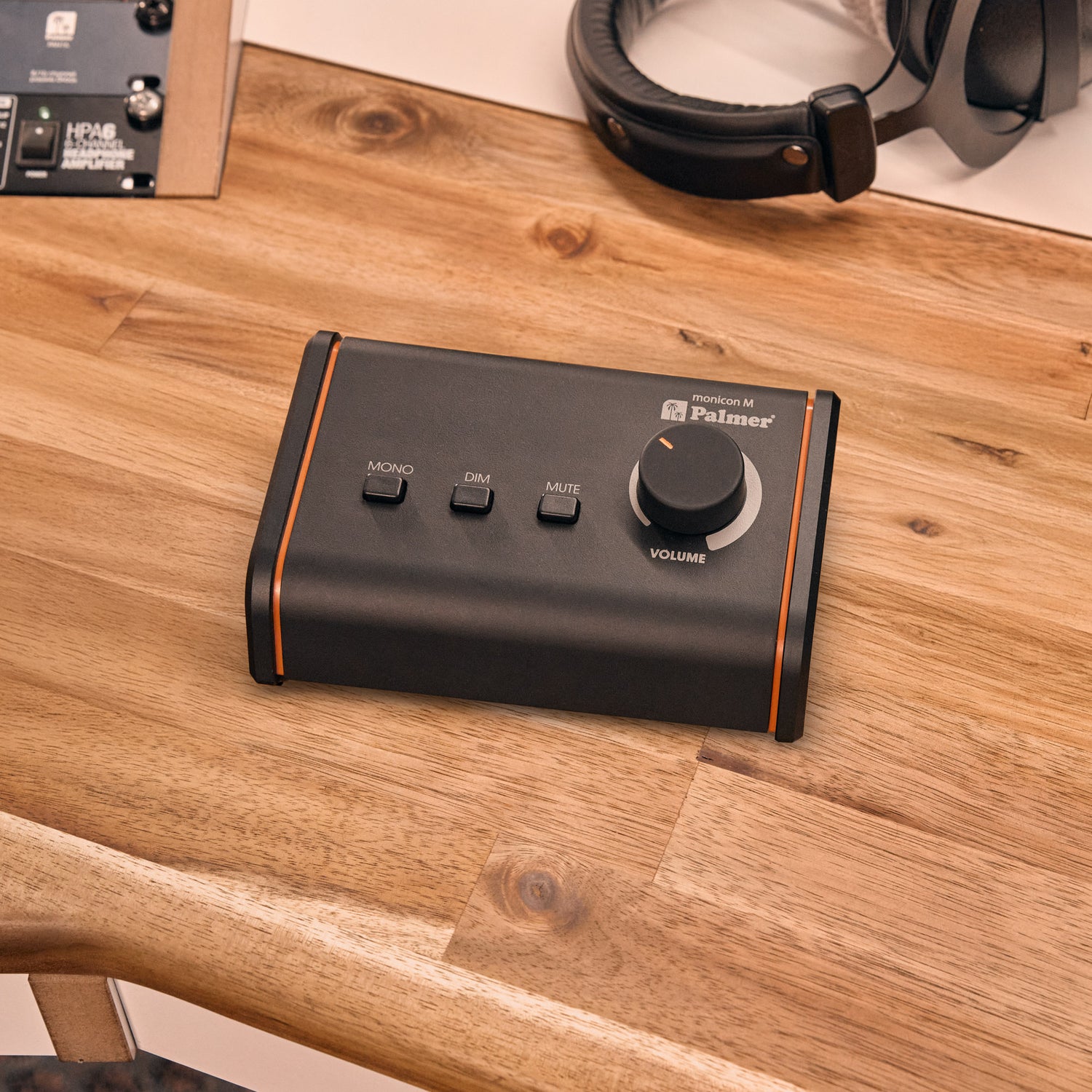

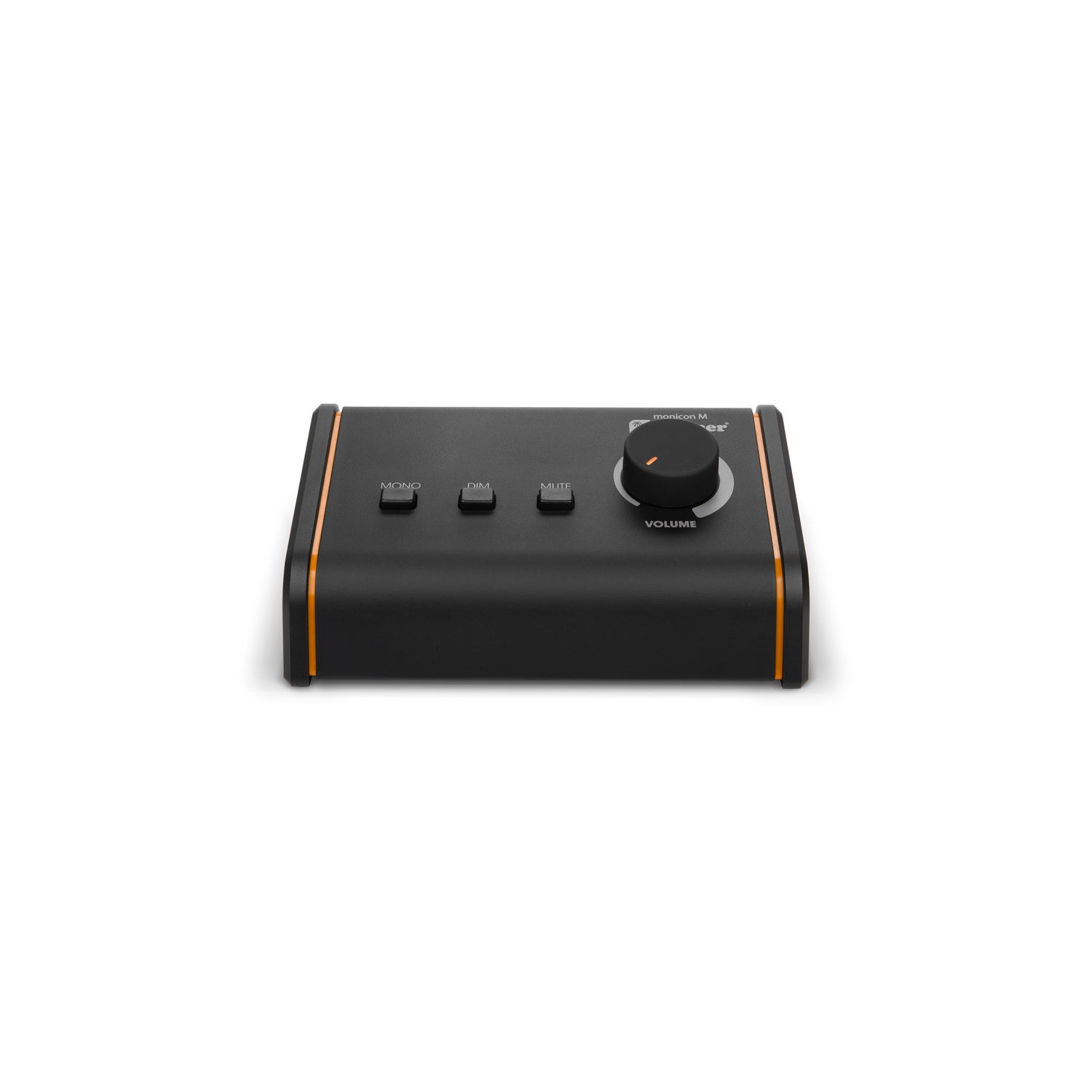

Palmer MONICON M G2 - Passive studio volume controller
MONICON M is a compact passive volume controller for flexible studio setups. It can be easily connected to audio interfaces, computers or mobile devices, either via balanced XLR/TRS combo jacks or a 3.5 mm jack input. The output, either balanced via XLR or 3.5 mm jack, supports both professional studio monitors and compact speaker systems.

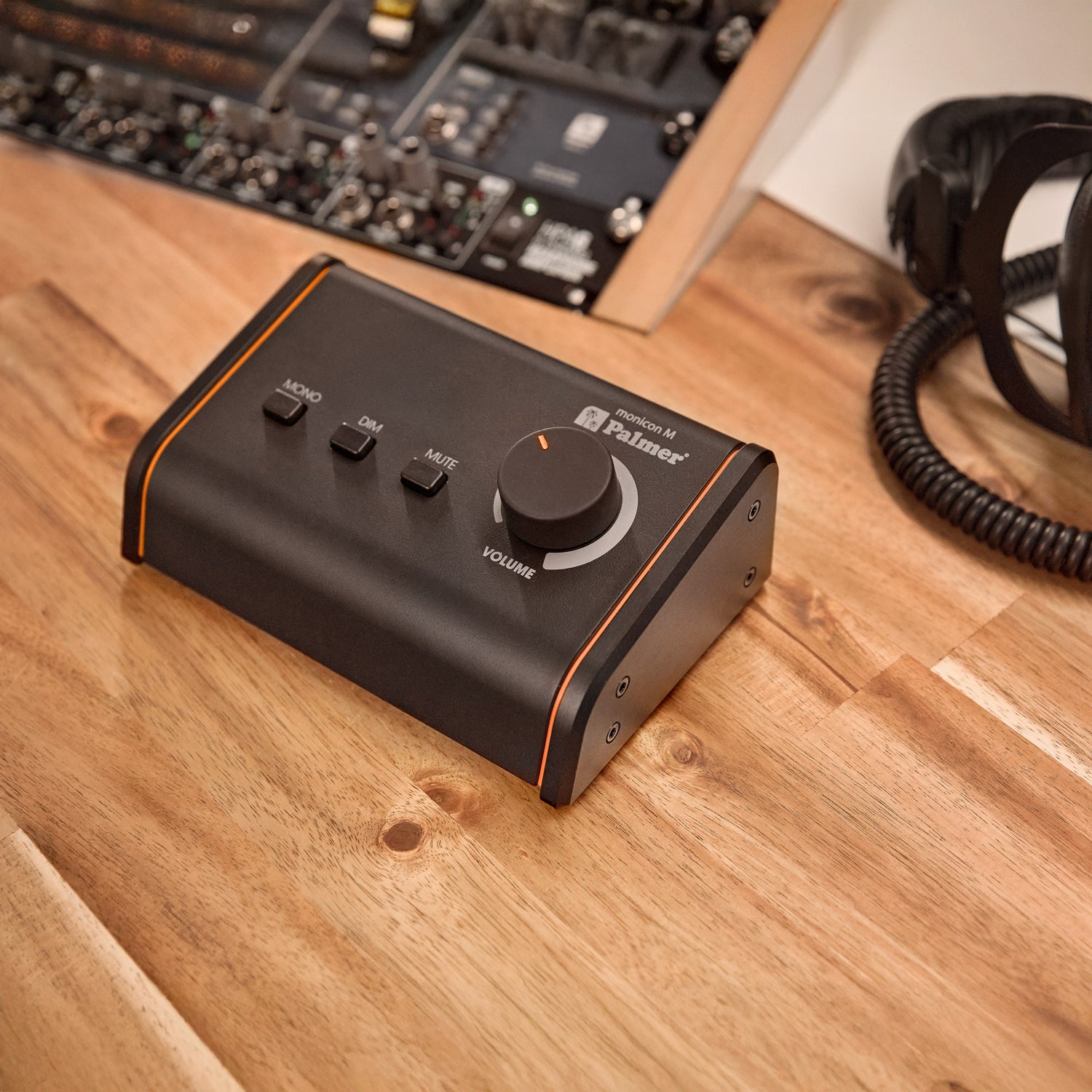

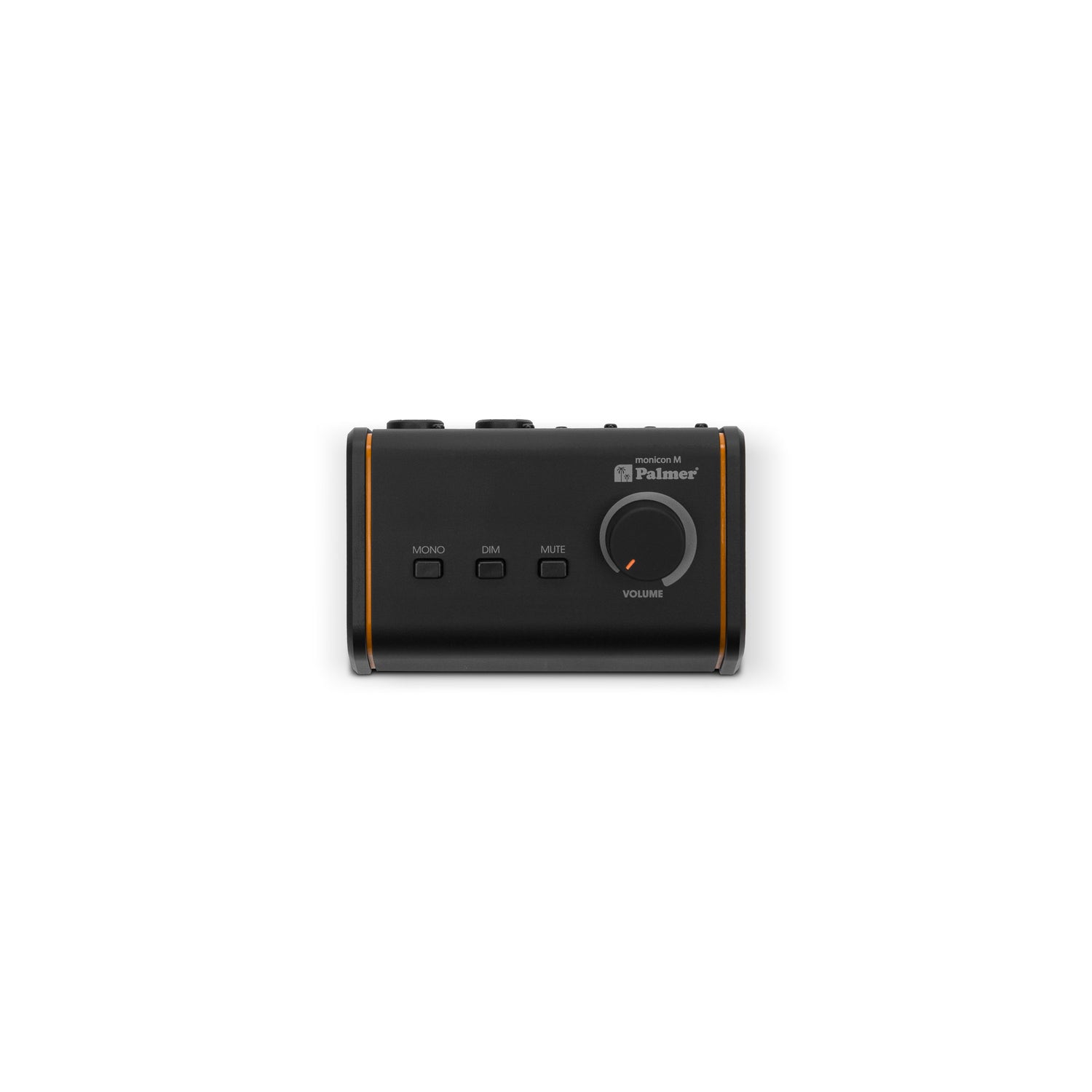

The large analogue volume knob allows precise level control with no loss of quality. The signal flow and monitoring situation can be adjusted quickly and intuitively using the “Mono”, “Dim” and “Mute” buttons.
Thanks to the fully analogue signal path, the sound remains unchanged and free from latency. MONICON M is the perfect control centre for project studios, editing rooms and multimedia workstations – where direct access and precise control are required.

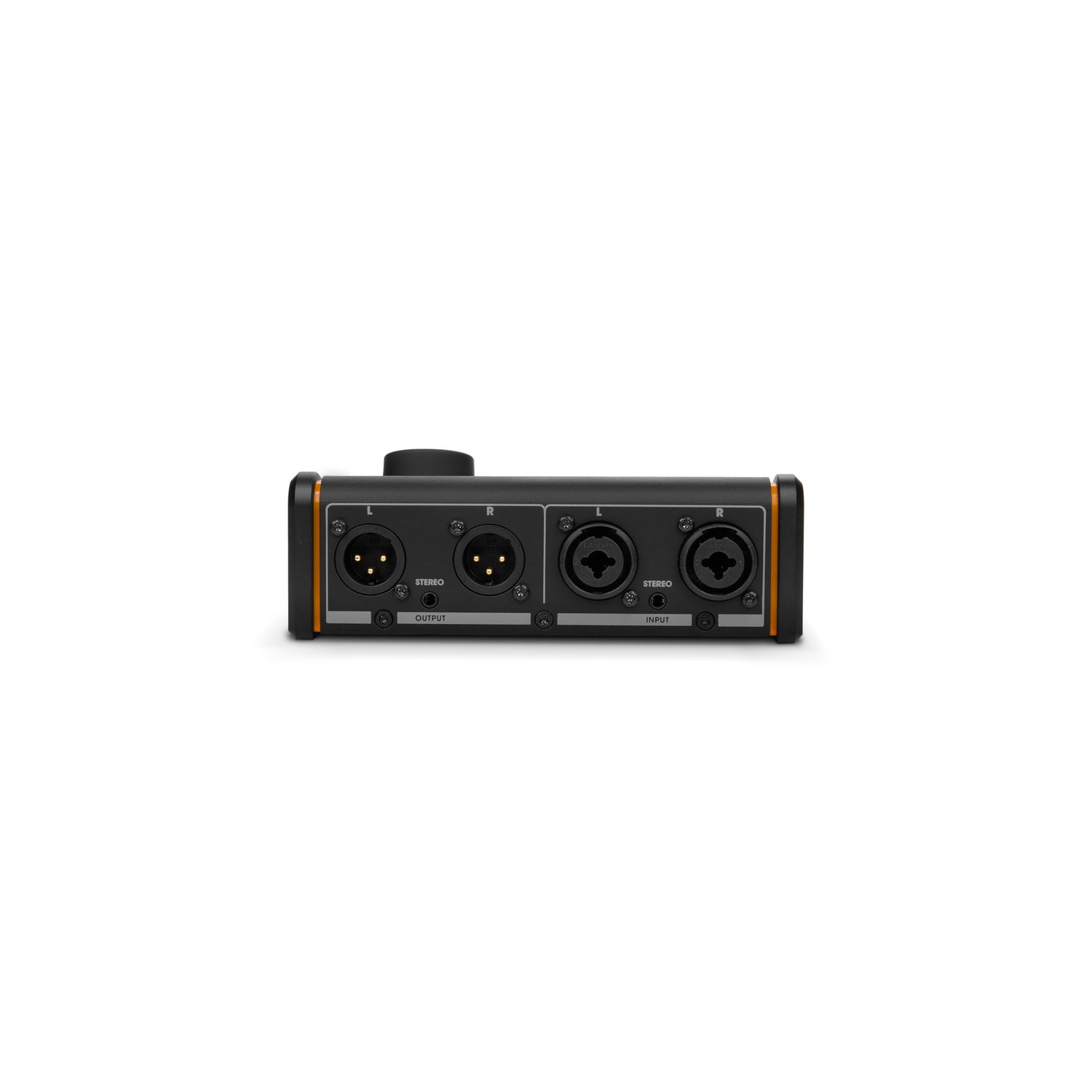

- Input: 1x Stereo (balanced XLR/TRS Combo and 3.5 mm jack)
- Output: 1x Stereo (balanced XLR and 3.5 mm jack)
- Large precision volume control
- Dedicated switches for MONO, DIM and MUTE
- Compact format for project studios and multimedia setups
- Latency-free analogue audio signal path
- Engineered in Germany
General
| Type | Passive |
| Material | Aluminium |
| Material | Steel sheet |
| Frequency response (±0.2 dB, rel. Avg) | 20 - 20,000 Hz |
| Colour | Black |
Inputs
| Number of balanced line inputs | 2 |
| Balanced Line-In connector type | XLR combo socket |
| Number of unbalanced line inputs | 1 |
| Unbalanced Line-In connector type | 3.5 mm Jack TRS |
Line input performance
| Input impedance (balanced) | 20 kΩ |
| Input impedance (unbalanced) | 10 kΩ |
| Min. SNR (< 1% THD, 1 kHz, unity, A-weighted) | 112 dB |
Outputs
| Number of unbalanced line outputs | 1 |
| Unbalanced line outputs connector type | 3.5 mm Jack TRS female |
| Number of balanced line outputs | 2 |
| Balanced line outputs connector type | XLR 3-pole male |
Line output performance
| Max. output level (<1 % THD, 20 Hz - 20 kHz) | 20 dBu |
| Dynamic range (AES17) | > 115 dB |
Environmental
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 160 mm |
| Height | 62 mm |
| Depth | 106 mm |
| Weight | 480 g |
| Crosstalk | -79 dB |
