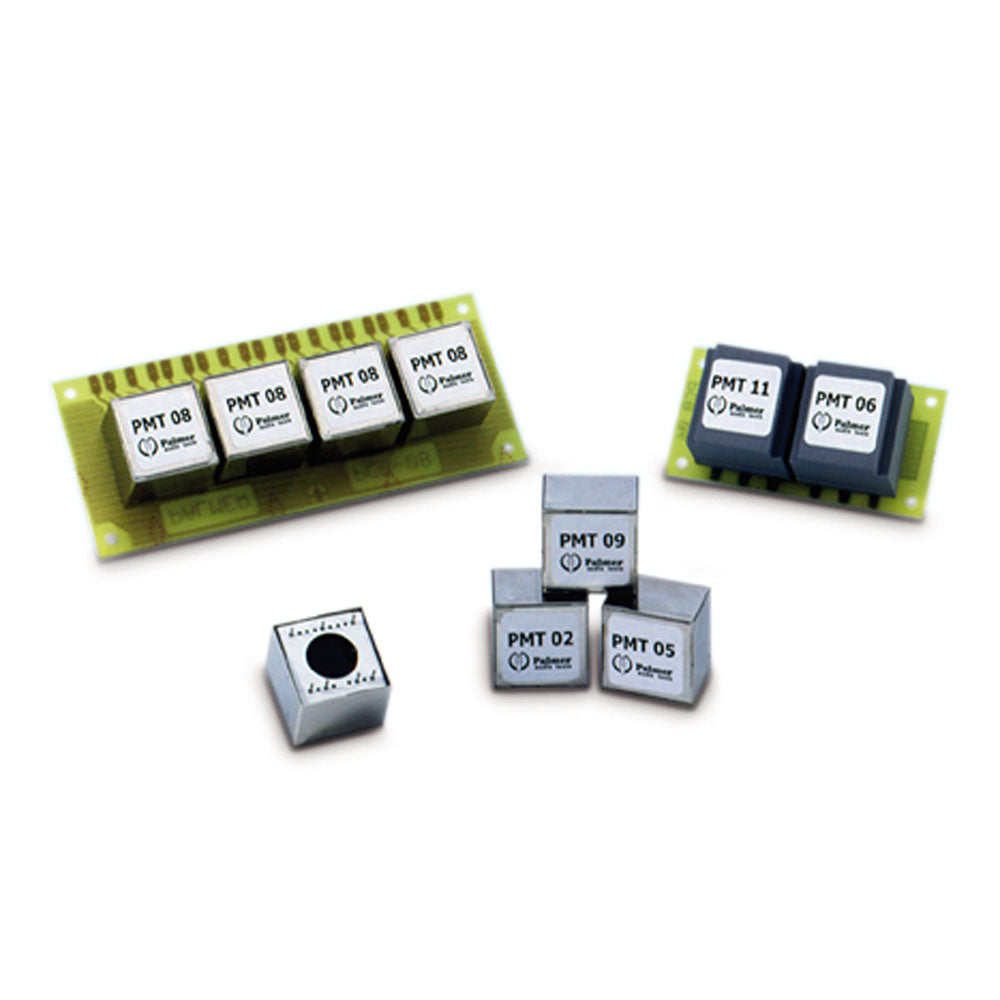

Palmer MT 05 - Split transformer 1-3 for microphone levels
Loading...
€104,95
Unit price
/
Not available
Secure checkout
Microphone split transformer with 3 secondary windings. Electrostatic and mu-metal shielding, PCB mounting. PCB for 4 x PMT-05 available (#PCB-05). Technical specifications: Turns ratio 1 : 1 + 1 + 1 Nominal impedance, input and outputs: 200 ohm Frequency range: 40 Hz - 20 kHz, +/- 0.5 dB Level: + 4 dB max. Dimensions: (without pins): 30 x 30 x 20 mm
| Product type | Audio Transformers |
| Ratio | 1:1 + 1:1 |
| Source impedance | 200 Ohm(s) |
| Load impedance | > 200 Ohm(s) |
| Max. level | + 4 dB |
| Frequency response | 40 - 20000 |
| PCB | PCB05 |
| Dimensions | EE25 mm |
| application | mic split |
| Weight | 0,08 kg |
