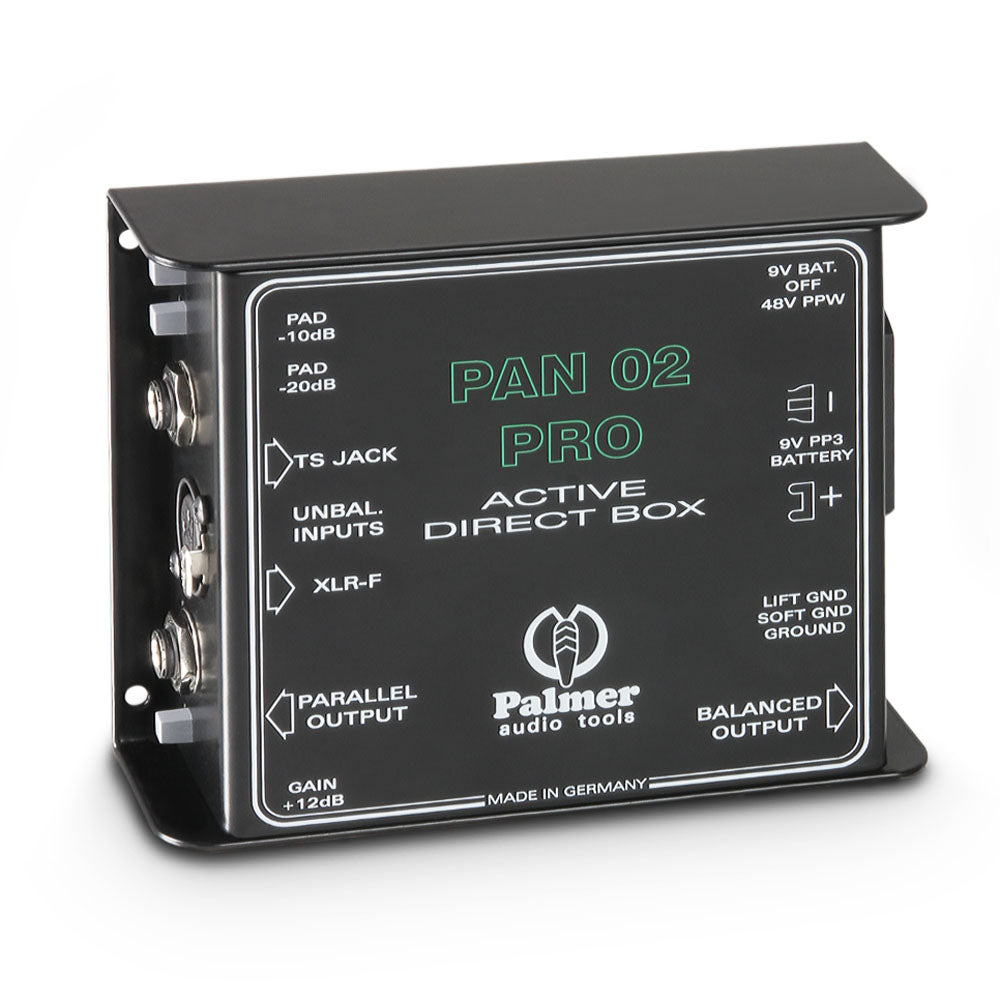

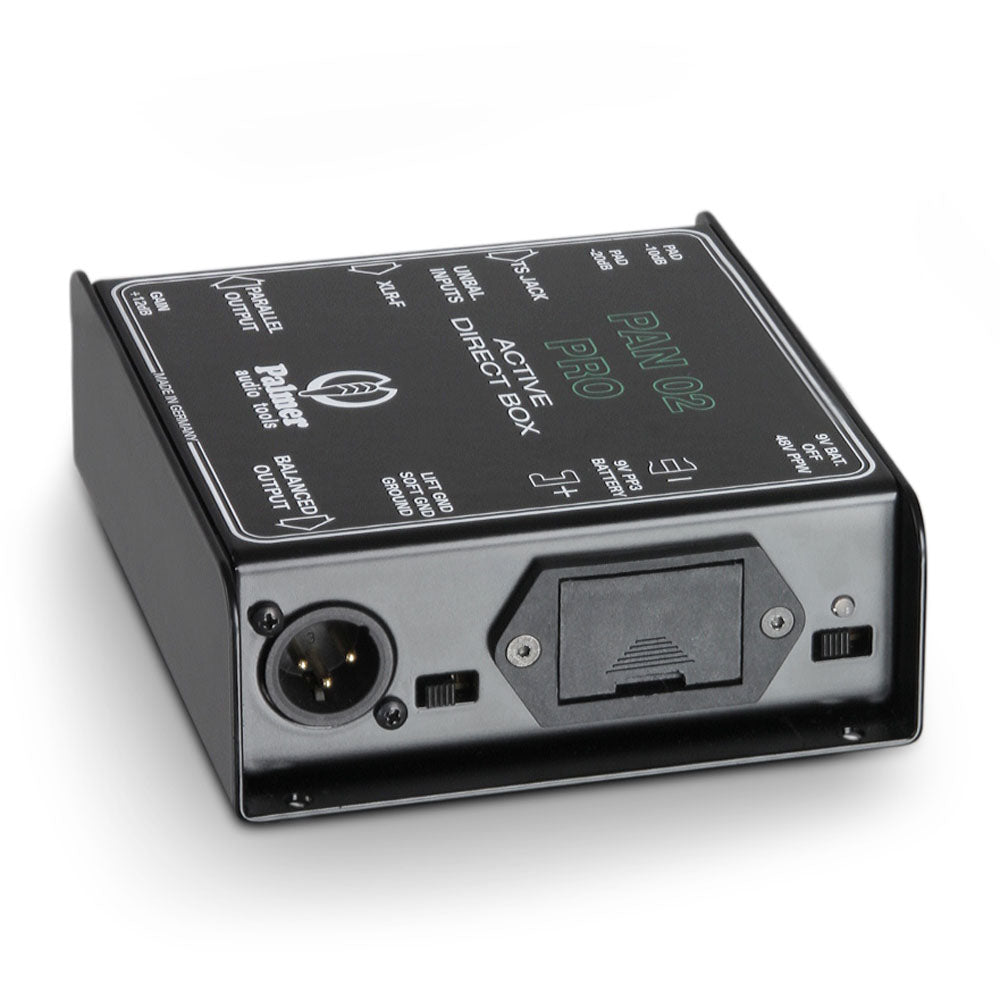

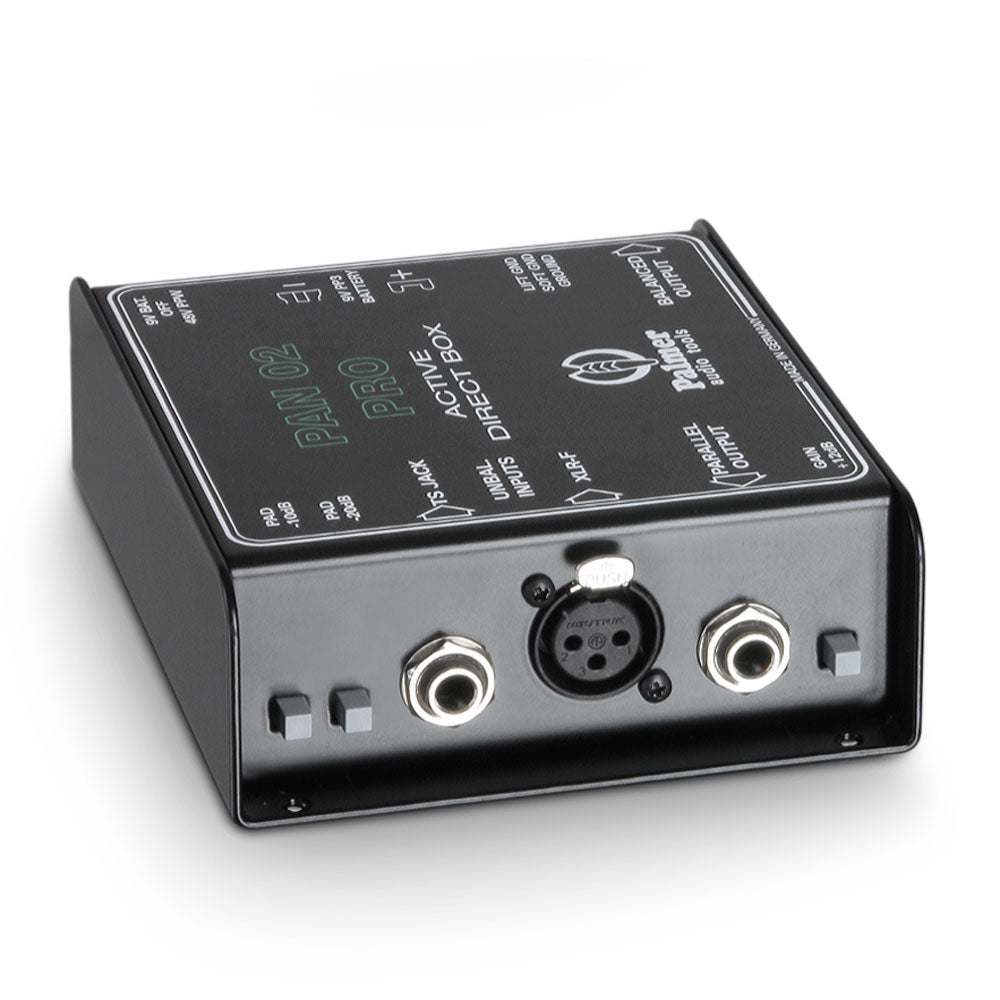

Palmer PAN 02 PRO - Professional active DI box
Palmer PAN02 PRO is an active DI box with excellent additional features. These include an unbalanced XLR input, in addition to the 3-step attenuator -10, -20, -30 dB and a switchable 12 dB gain, combined with a maximum output level of +20 dBu. The ground lift switch has a "lift" position that allows adjustments between "soft and hard grounding". The balanced output is achieved with a high-quality transformer in a Mu-metal housing, which has been specially developed for this purpose. PAN02 PRO can be powered either by a 9 V battery or 48 V phantom power. A two-colour LED indicates which source is supplying the power.
- First-class active DI box
- Unbalanced XLR input
- 3-way attenuator (-10, -20, -30dB)
- Switchable gain (12dB)
- Max. output voltage +20 dB
- Soft ground lift
| Product type | DI boxes |
| Type | active |
| Channels | 1 |
| Inputs | 2 |
| Input connectors | 6.3 mm jack |
| Input connectors | XLR |
| Max. input level | + 45 dBu |
| Input impedance | -10 & -20 dB: 70 k Ohm(s) |
| Input impedance | -30 dB: 40 k Ohm(s) |
| Input impedance | 0dB & 12 dB: 1 M Ohm(s) |
| Input pad | 0 dB, -10 dB, -20 dB, -30 dB |
| Number of outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Max. output level | + 20 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 20 - 20000 |
| Transformer balanced | Yes |
| Ratio | 3.16:1, 10:1, 31.6:1, 1:4 |
| Controls | Boost |
| Controls | attenuator |
| Controls | battery/+ 48 V Power |
| Controls | ground lift |
| Power supply | +48 V phantom power |
| Power supply | 9 V block |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 116 mm |
| Depth | 140 mm |
| Height | 43.5 mm |
| Weight | 0,85 kg |
