Palmer PAN 03 - 19" DI box with 4 channels, active
€589,95
Unit price
/
Not available
Description
Description

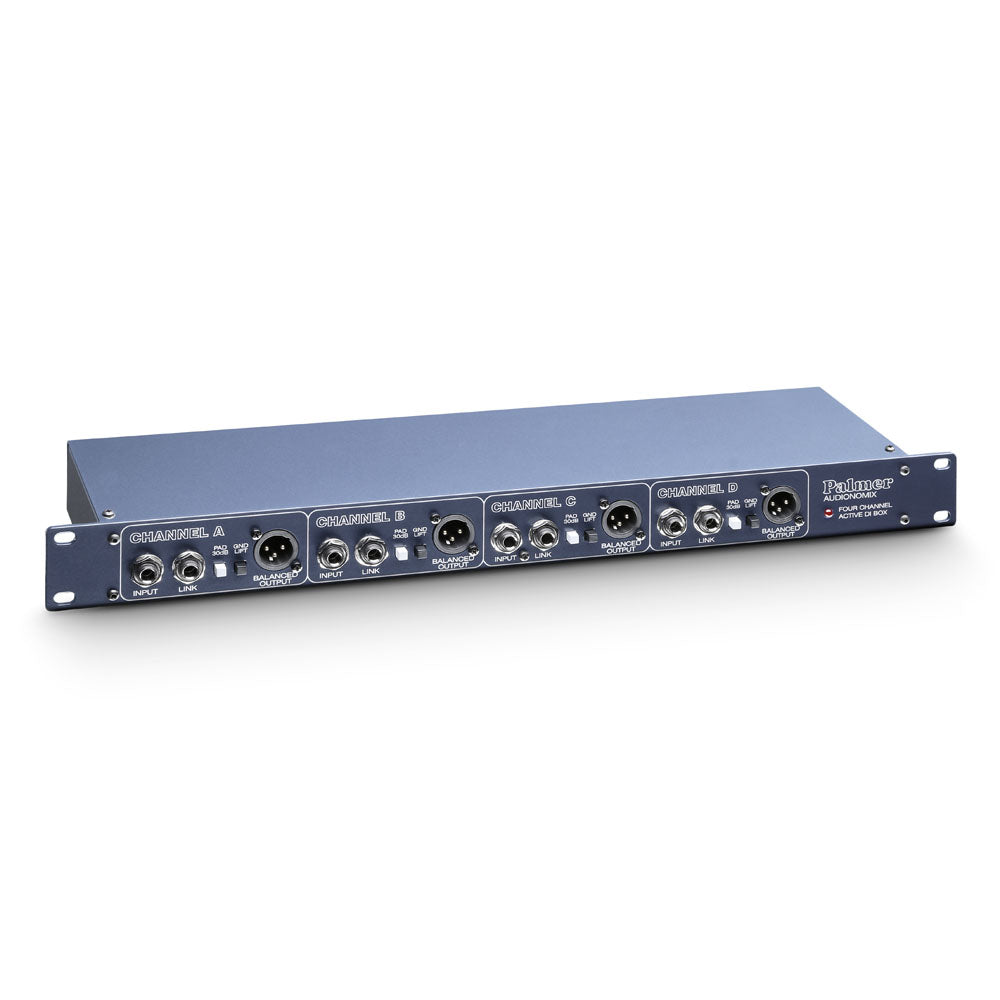

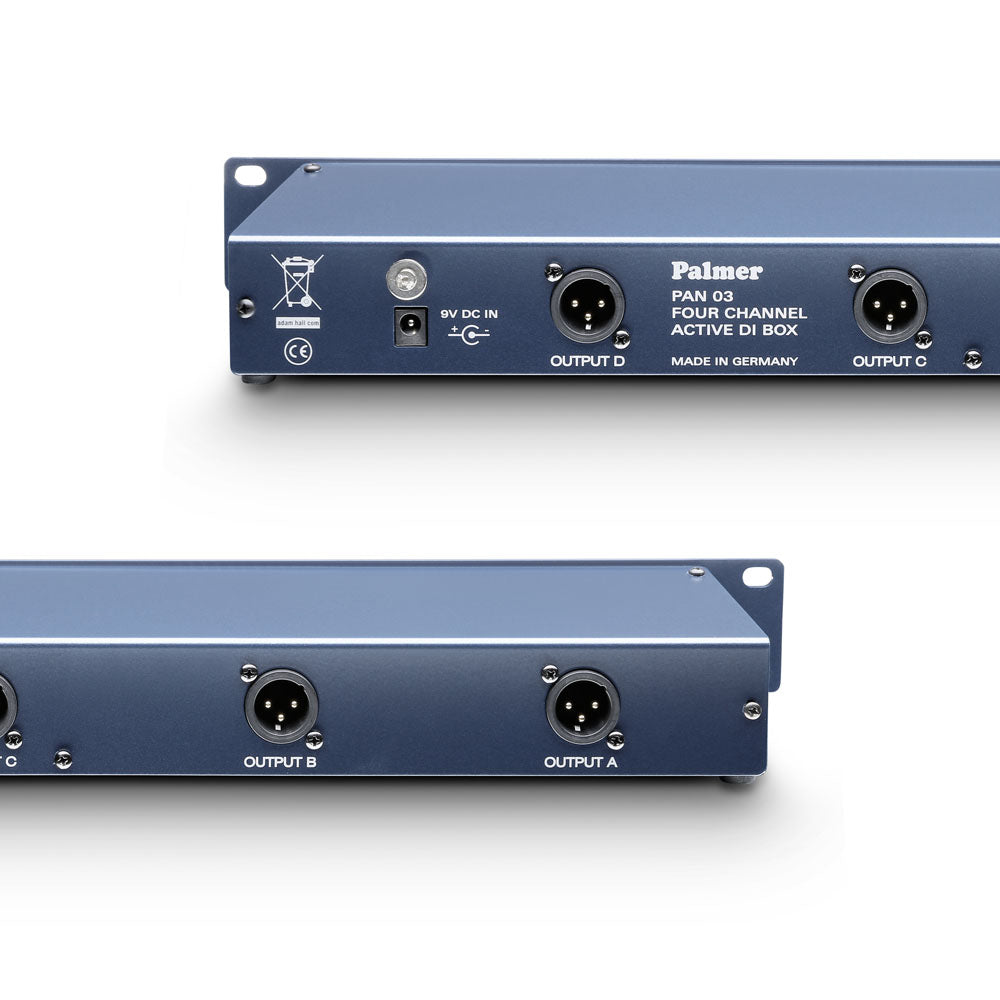

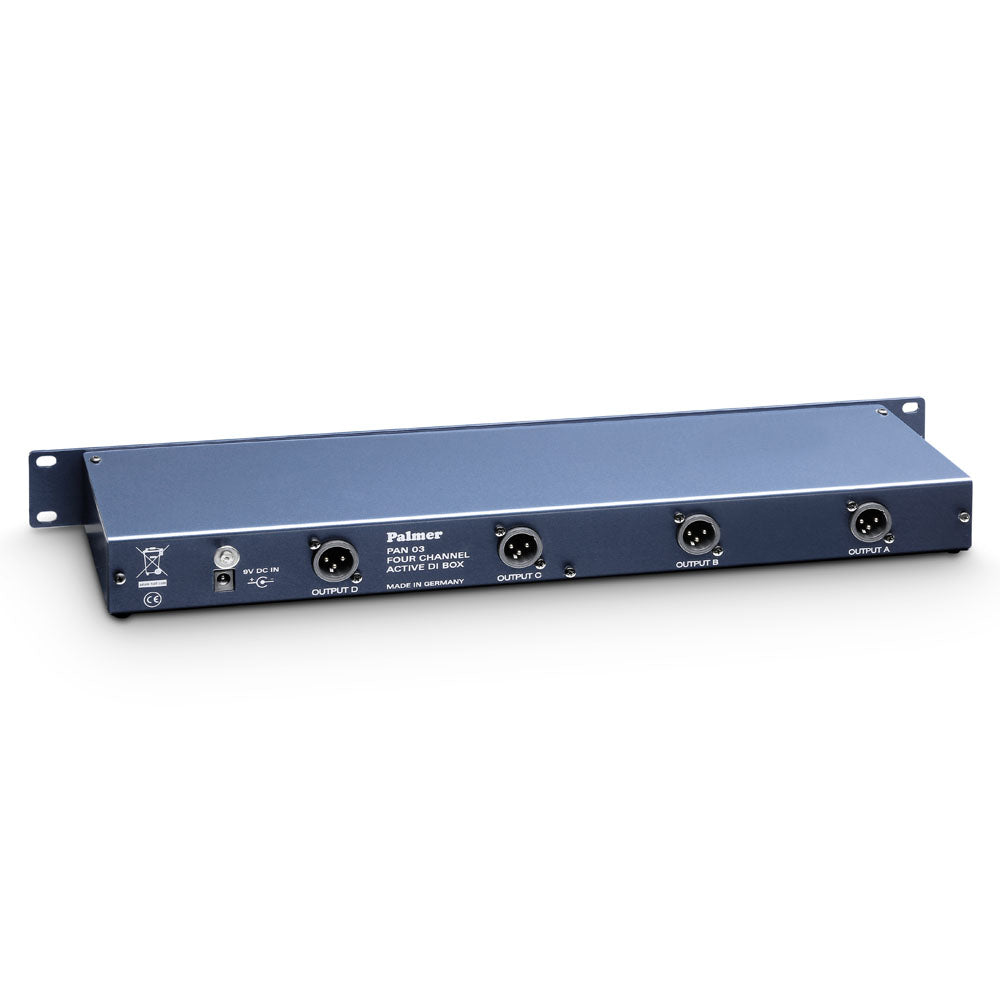

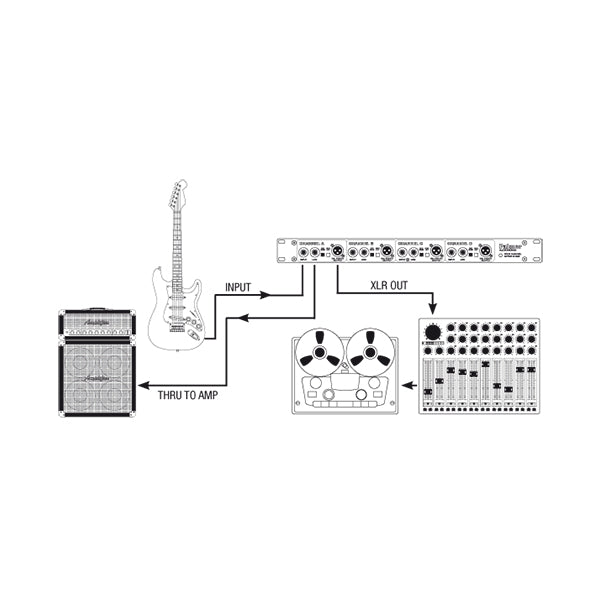

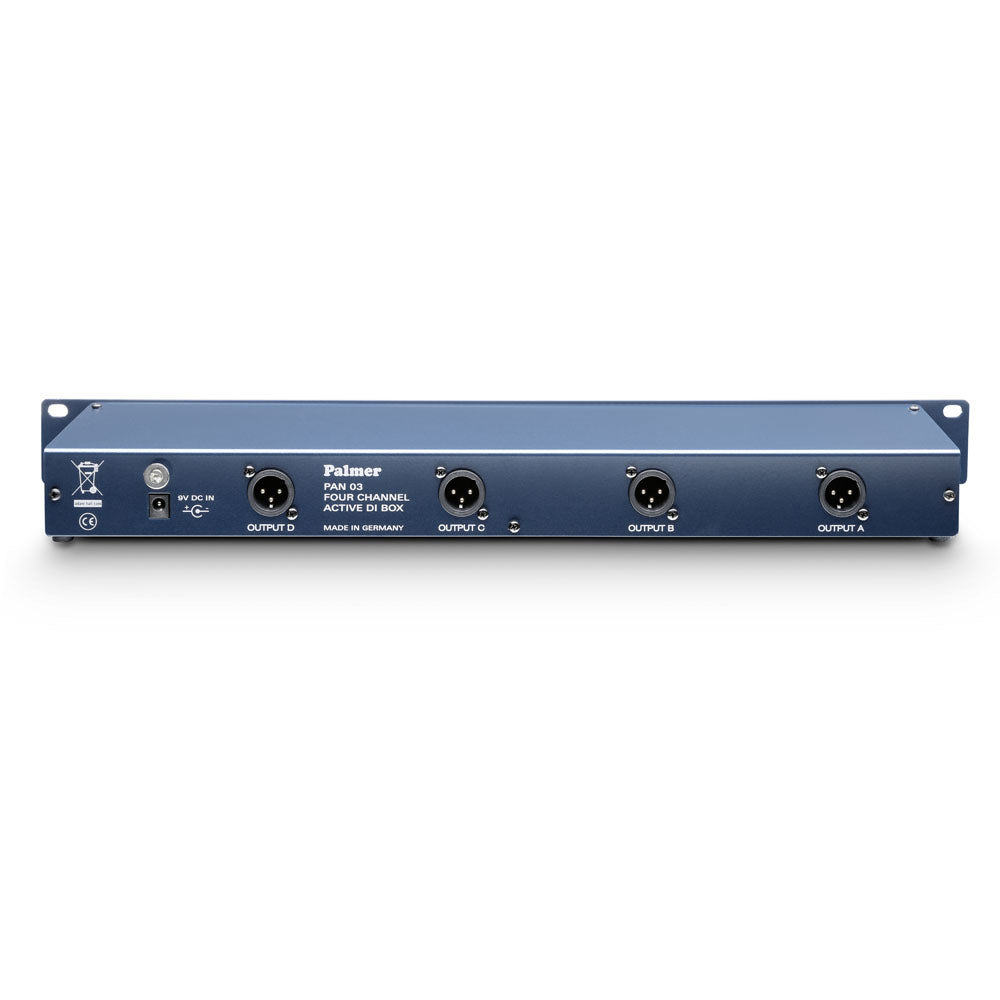

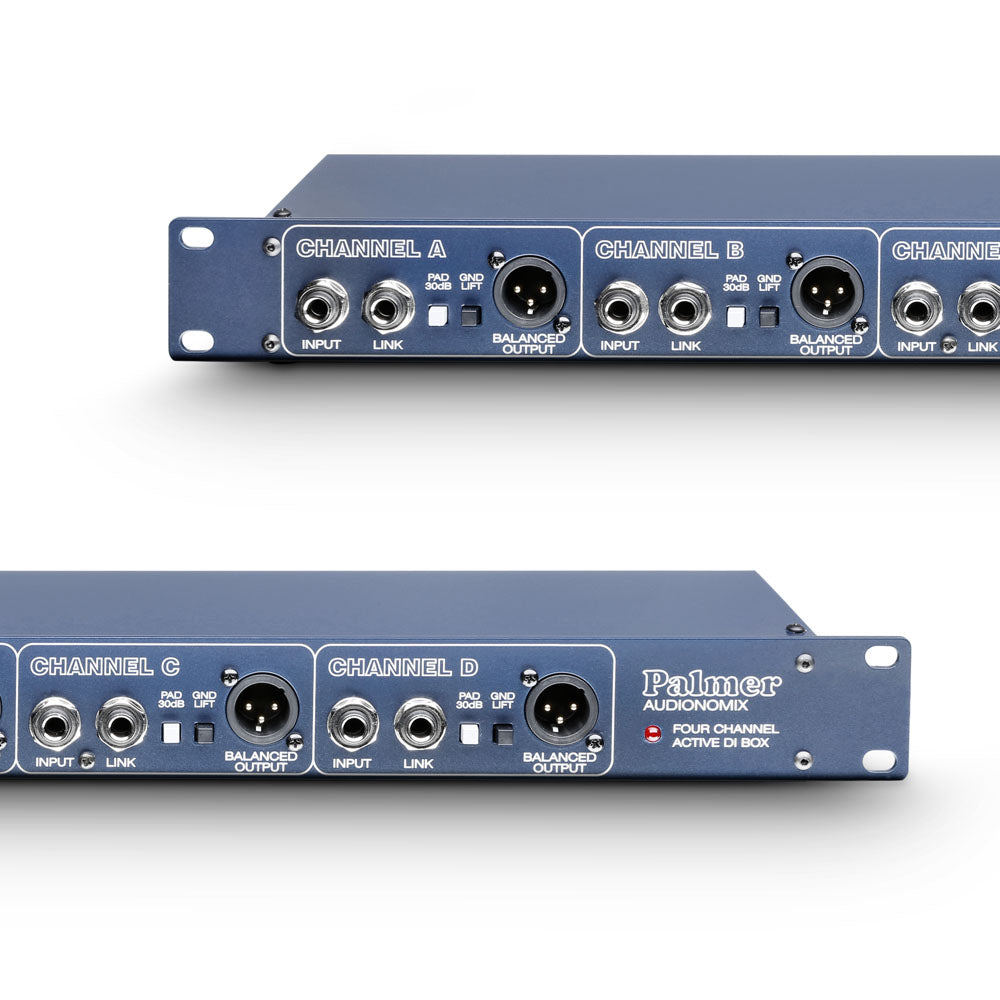

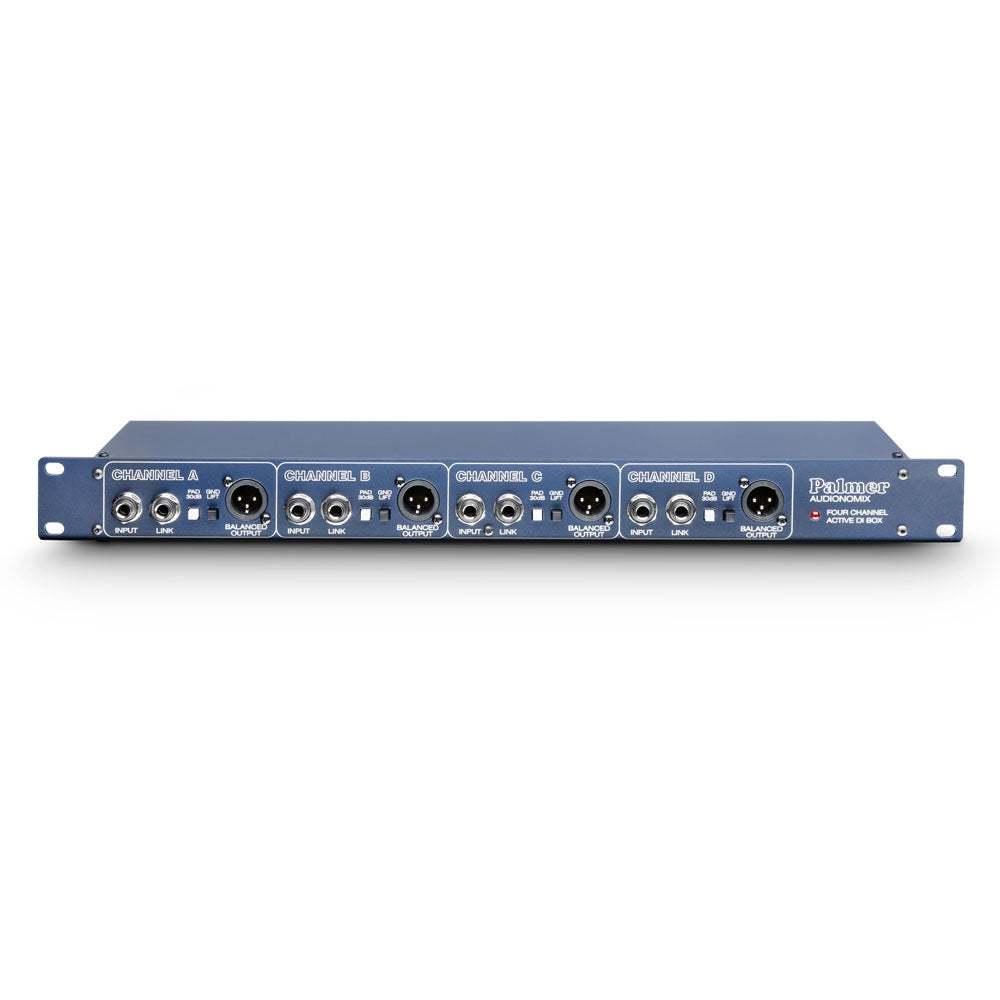

Active 4-channel DI box. Each channel features a jack input with a parallel output to pass the signal through. An attenuation switch (-30 dB) makes it possible to connect either a line or speaker signal. Active 4 x DI box in 19" format. Technical specifications identical to PAN-02, but PAN-03 is built for mains operation. All connections and switches are located on the front panel, and an additional parallel XLR output is located on the rear. 19-inch rack-mount format, 1 rack unit, 90 mm from front to back.
Technical specifications
Technical specifications
| Product type | DI boxes |
| Type | active |
| Channels | 4 |
| Inputs | 4 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 45 dBu |
| Input impedance | (@ 60 Hz) 1 M Ohm(s) |
| Input pad | 0 / -30 dB |
| Number of outputs | 4 (+ 4 parallel XLR outs) |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Max. output level | + 10 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 20000 |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Indicators | Power |
| Controls | attenuator |
| Controls | ground lift |
| Power supply | external |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 " |
| Depth | 90 mm |
| Height | 45 mm |
| Height | 1 U |
| Weight | 1,6 kg |
