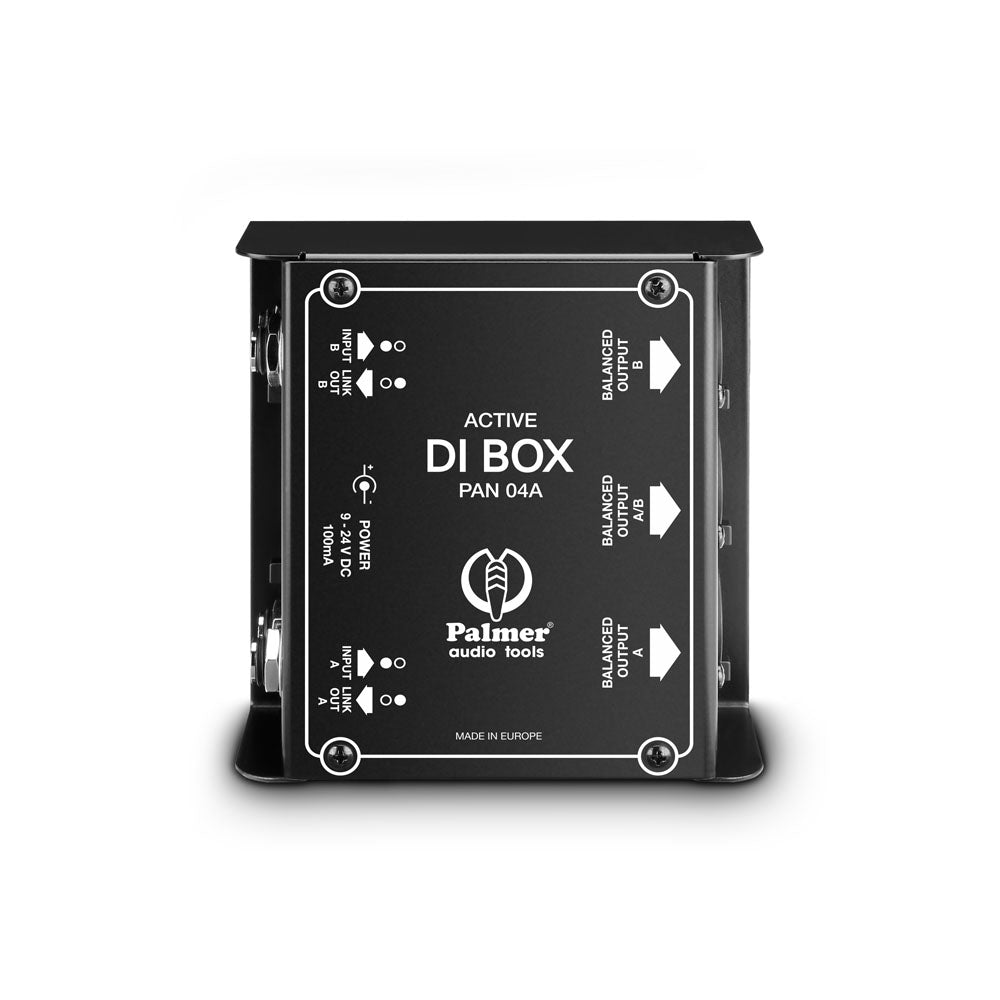

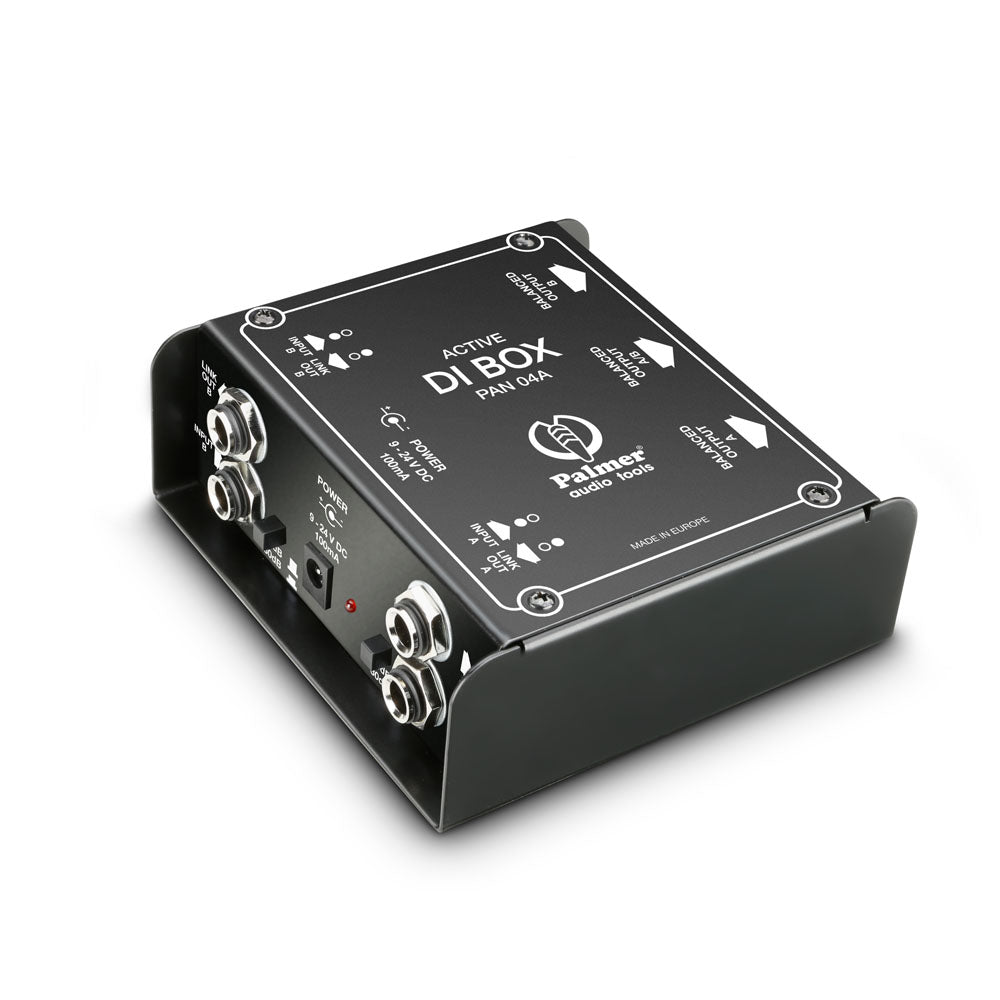

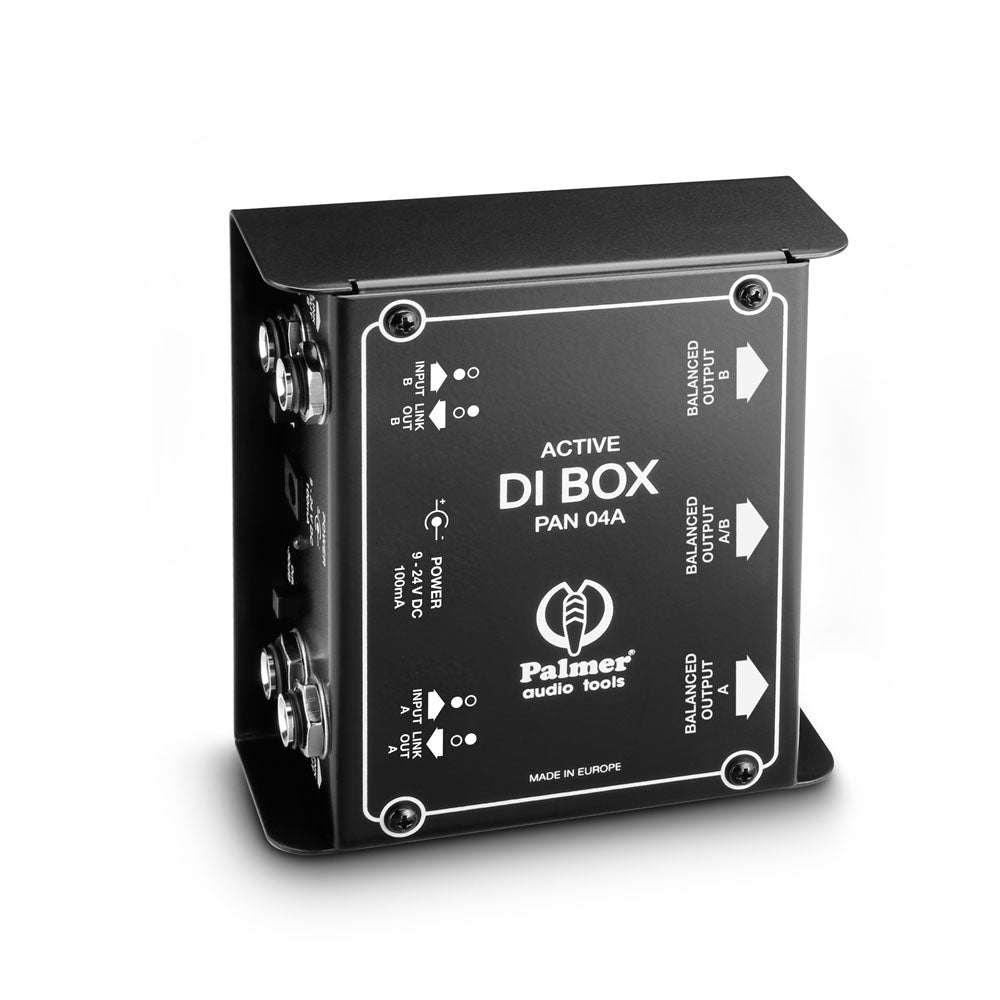

Palmer PAN 04 A - Active 2-channel DI box

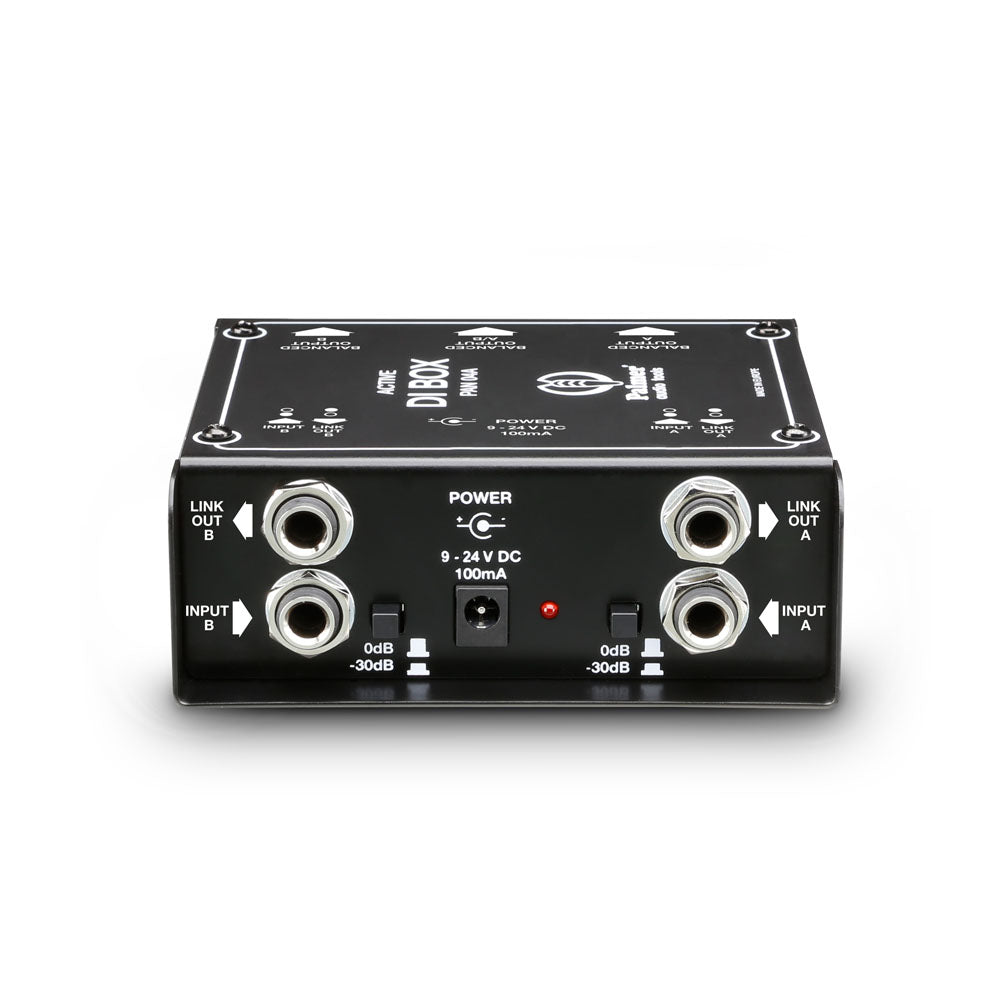

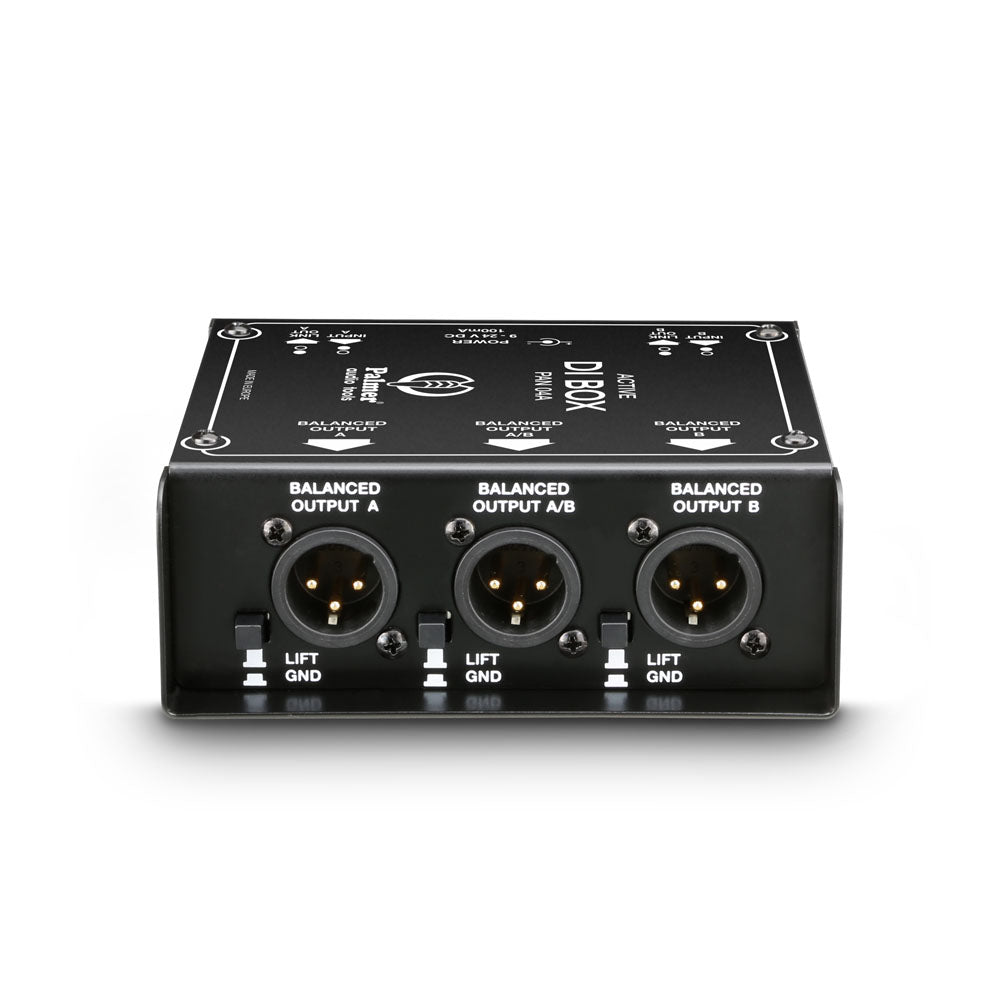

Palmer PAN04A is a 2-channel DI box for feeding unbalanced, high-impedance electric instrument signals into a mixing console’s mic inputs. It provides a transformer-balanced, low-impedance signal at the outputs and eliminates mains hum and interference caused by ground loops. The active switch does not affect the frequency response and achieves a high dynamic range. In addition to 6.35 mm direct outputs and switchable -30 dB input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally rugged and is suitable for both stage and studio use. It can be powered by 9 to 24 V DC power adapters or by phantom power when two outputs are connected to a mixer.
