Palmer PAN 16 - 19" DI box, 8 channels, passive

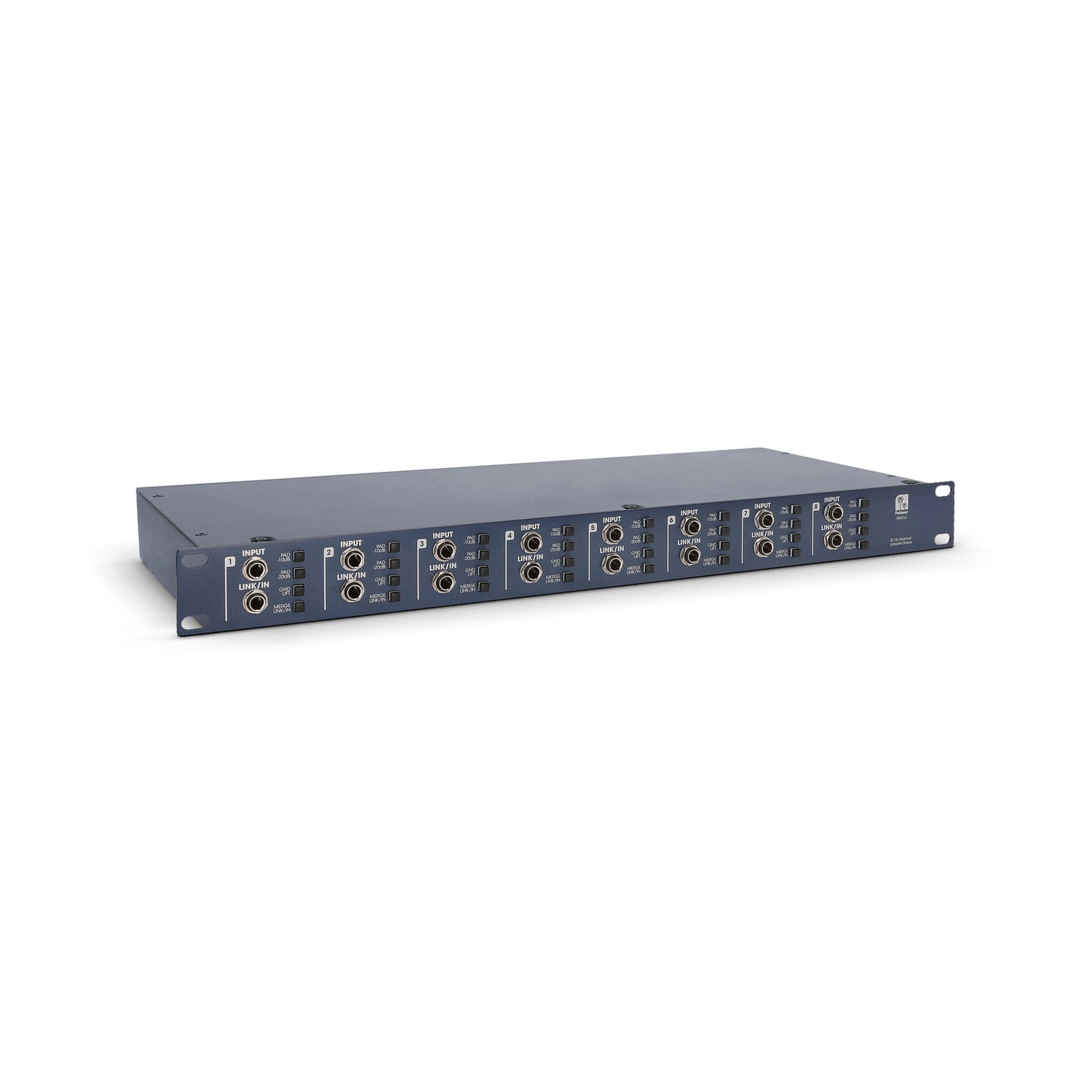

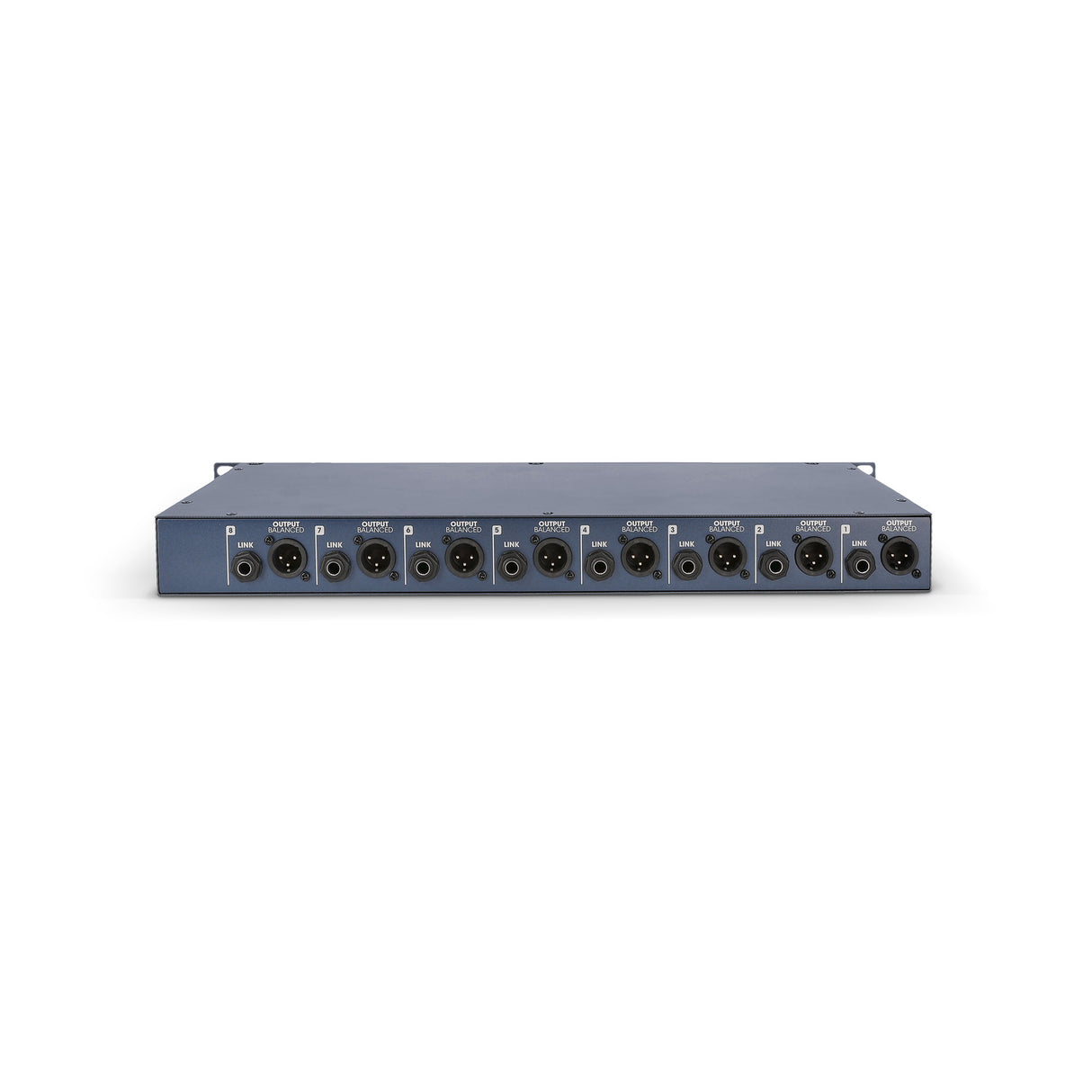

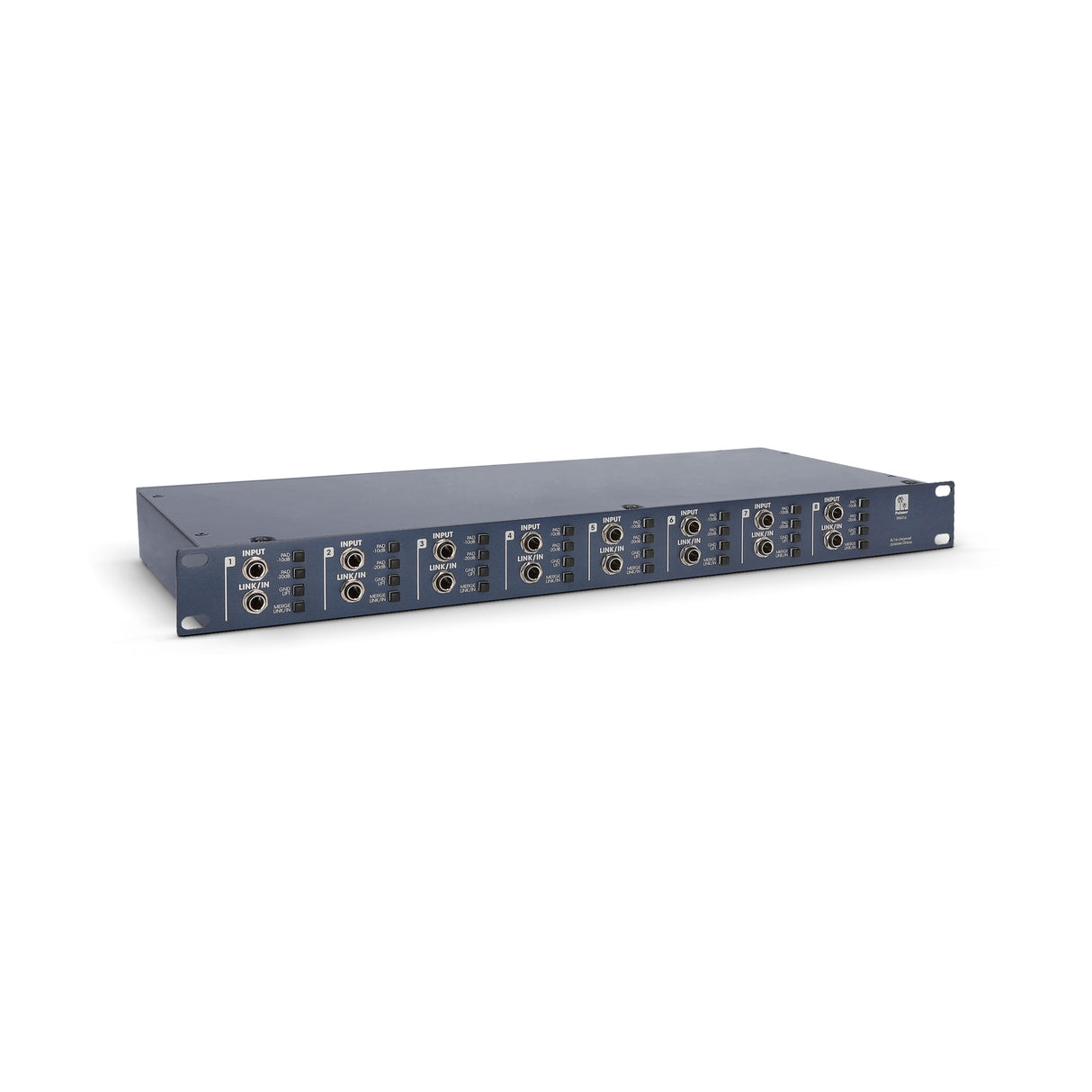

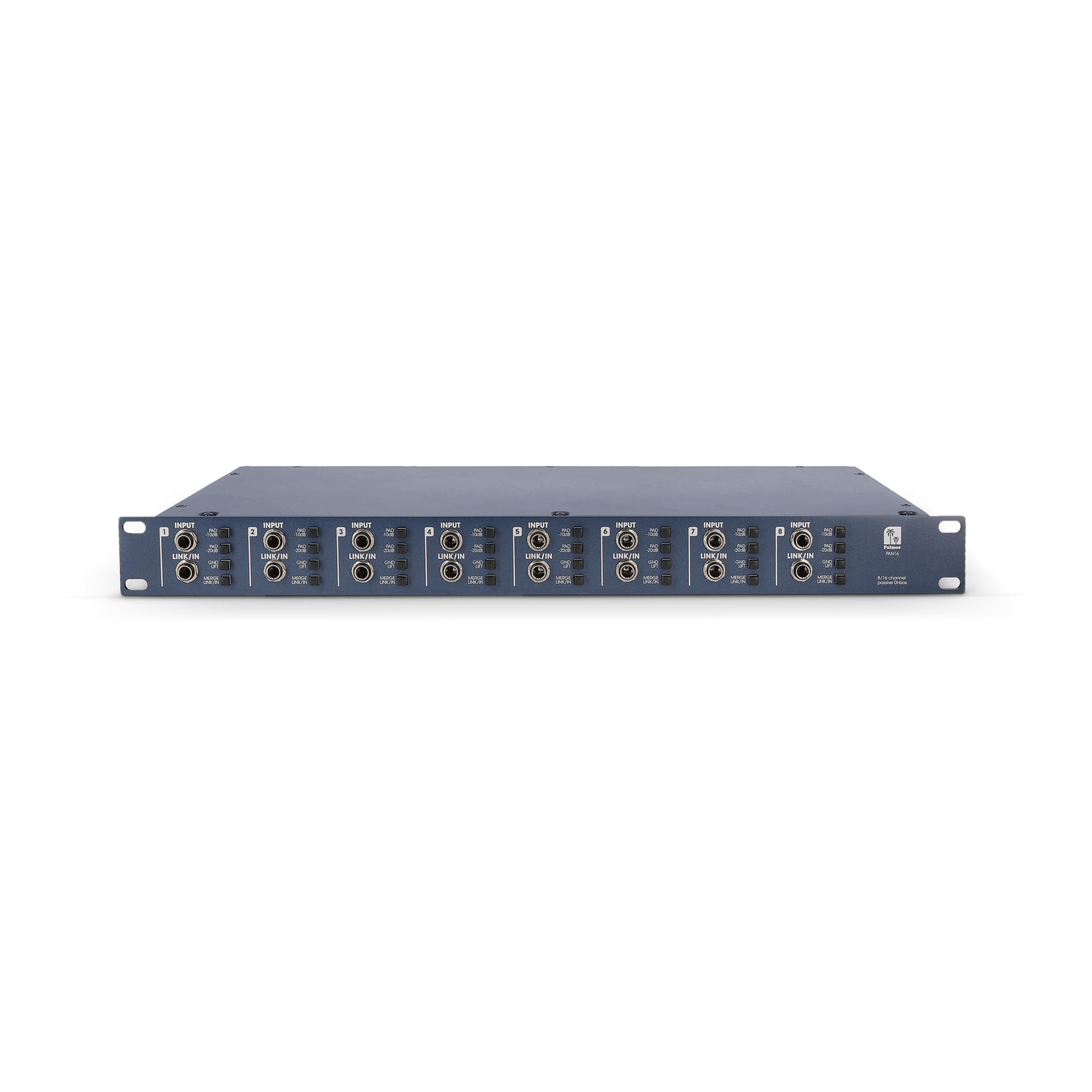

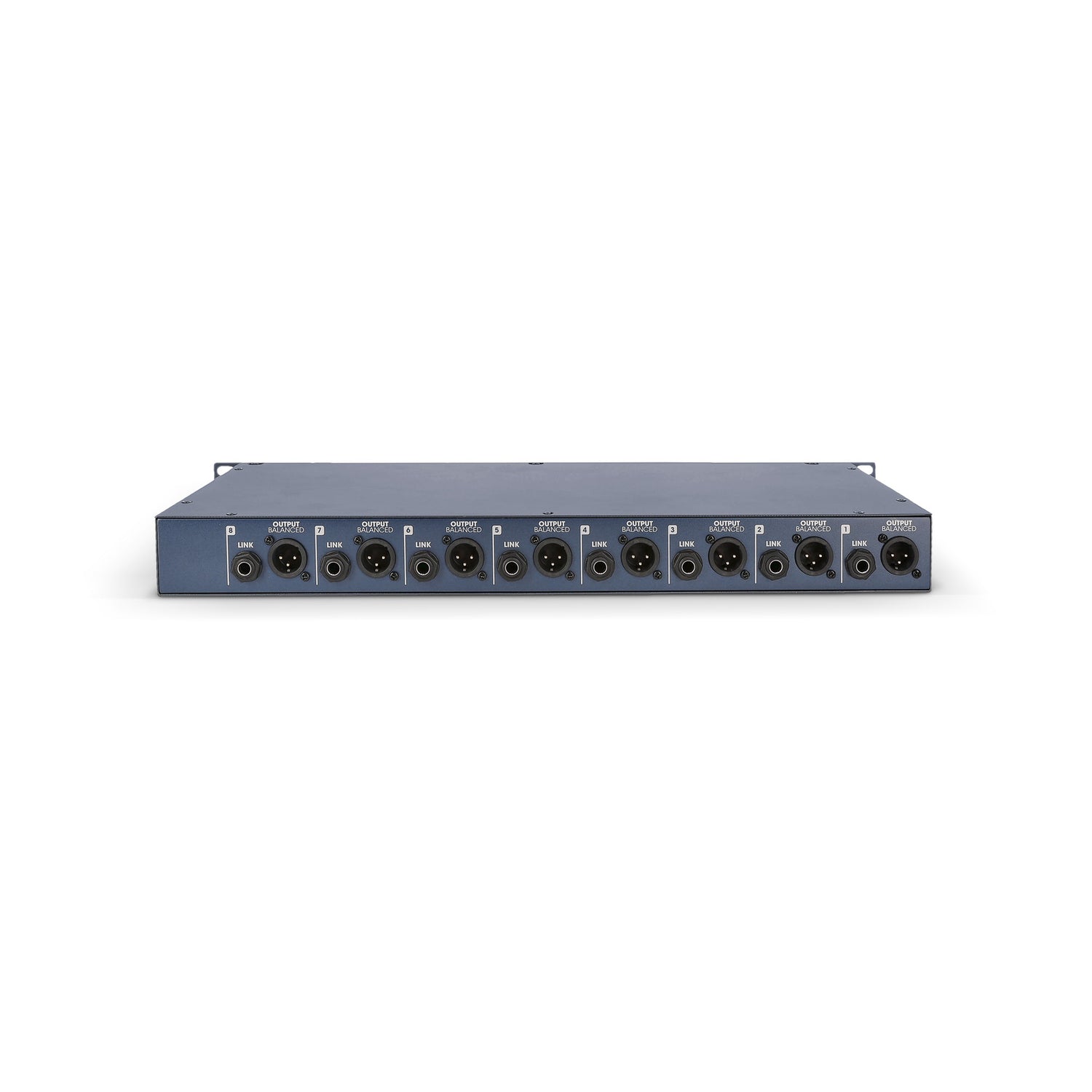

Palmer PAN16 is an 8-channel passive DI box in a 19" 1U rack format. Thanks to the special MERGE LINK/IN function, the front LINK output can be used as a second input. The signal is then summed to mono with the signal from the INPUT jack and routed to the output. This gives the PAN16 up to 16 inputs. Two PAD buttons allow attenuation of 10, 20 or 30 dB. The XLR outputs are transformer-balanced and electrically isolated. In addition, there are 8 extra LINK sockets on the unit’s rear panel.
- 19“ passive DI box
- 8 channels
- Up to 16 inputs
- Link Merge function
- Flexible PAD: -10dB, -20dB, -30dB
- Transformer balanced and isolated outputs
| Product type | DI boxes |
| Type | passive |
| Channels | 8 |
| Inputs | 8 / 16 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | (@ 60 Hz) 1 M Ohm(s) |
| Input pad | 0 / -30 dB |
| Number of outputs | 4 (+ 4 Parallel Thru out) |
| THRU outputs/channel | 2 |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Max. output level | +4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 40000 |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | PAD -10dB |
| Controls | PAD -20dB |
| Controls | ground lift |
| Controls | merge |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 " |
| Depth | 200 mm |
| Height | 45 mm |
| Height | 1 U |
| Weight | 2,39 kg |
