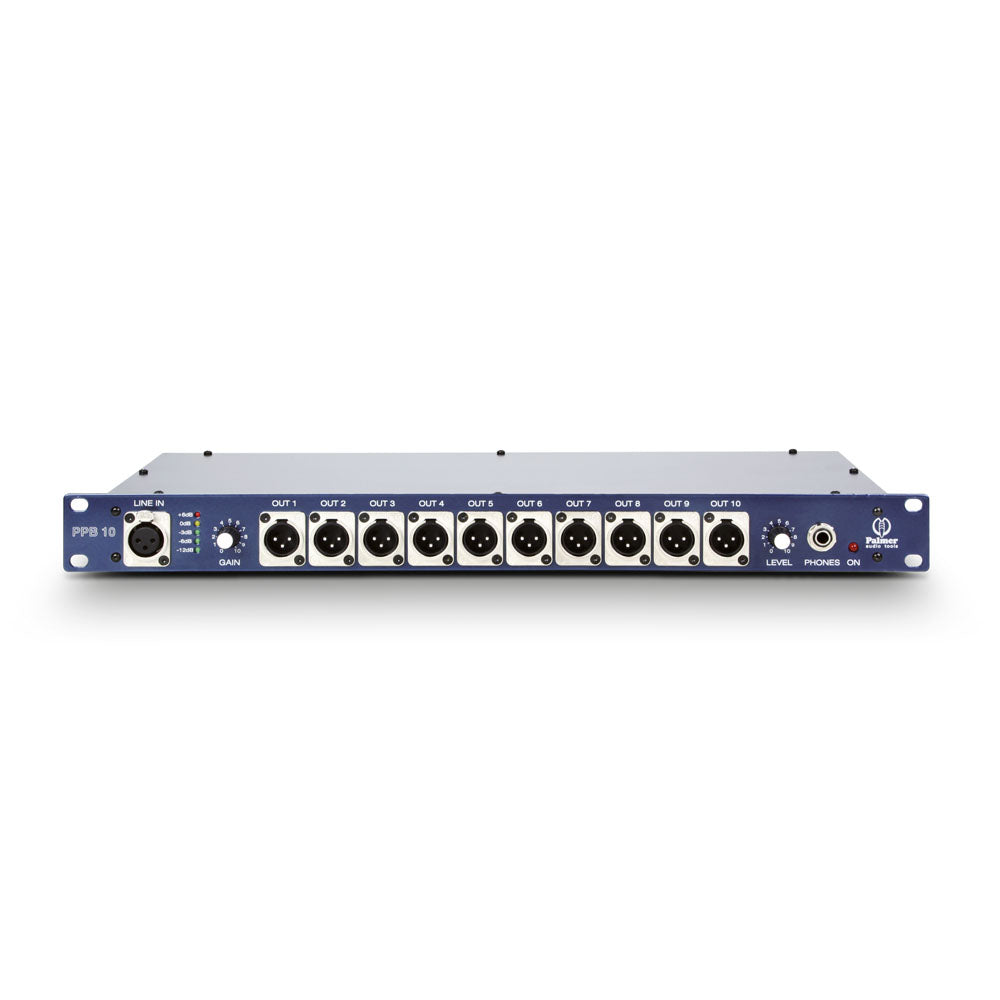

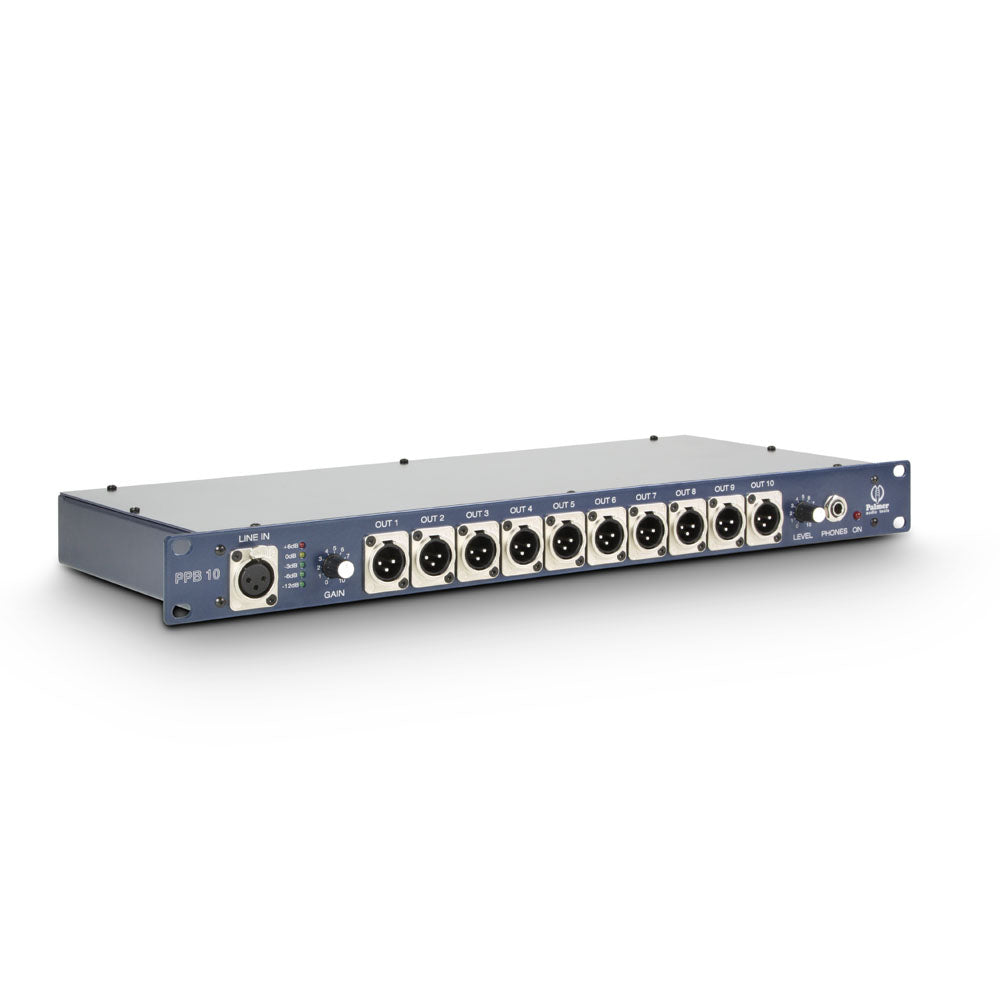

Palmer PB 10 - Push-patch box with 10 channels
€2.095,95
Unit price
/
Not available
Description
Description

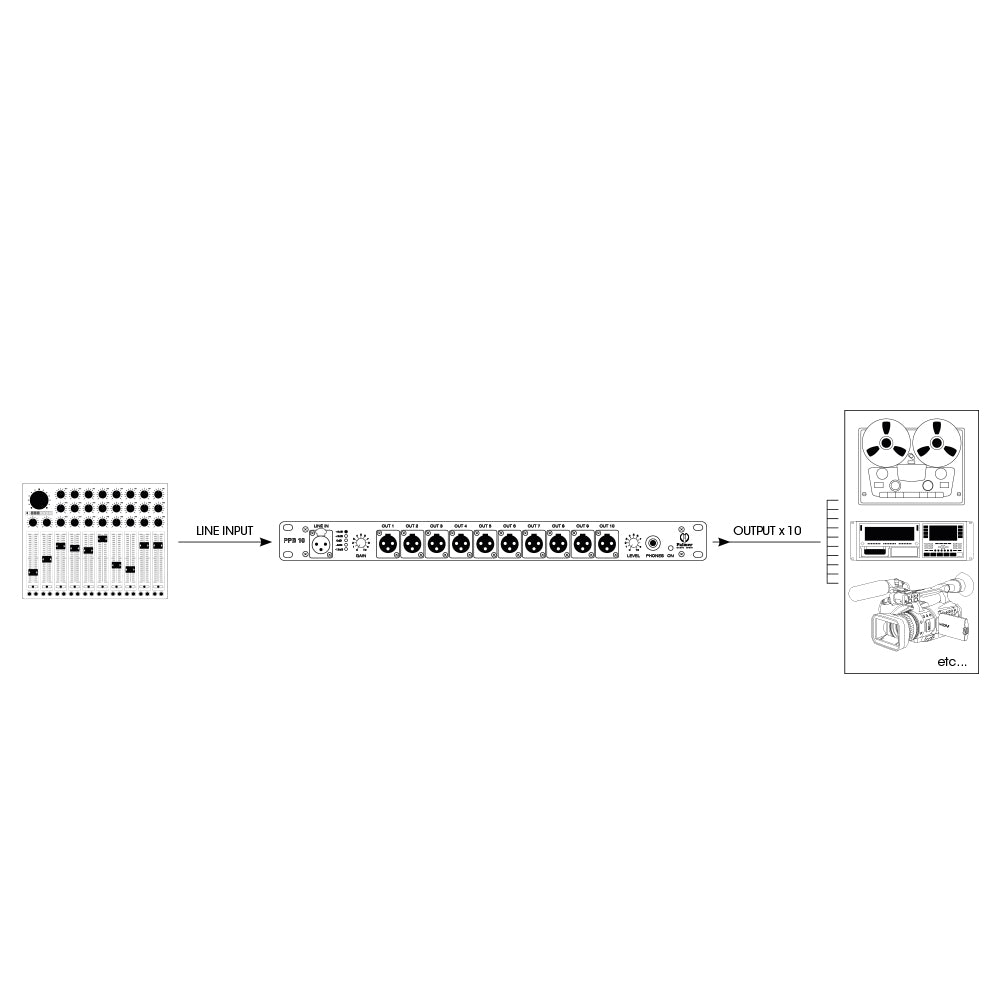

PPB10 is a compact version of the well-known and established PPB20 from Palmer. PPB10 is a 10-channel audio splitter for press conferences and other applications. Based on transformer splitting, one line input is split into ten outputs.
Technical specifications
Technical specifications
- All inputs and outputs are balanced transformer isolated
- Extremely reliable: Should one output be shorted, the other outputs remain unaffected
- Line input and outputs
- Adjustable input gain (-8 to +25dB)
- Level meter
- Headphone output to monitor the input level, headphone volume adjustable

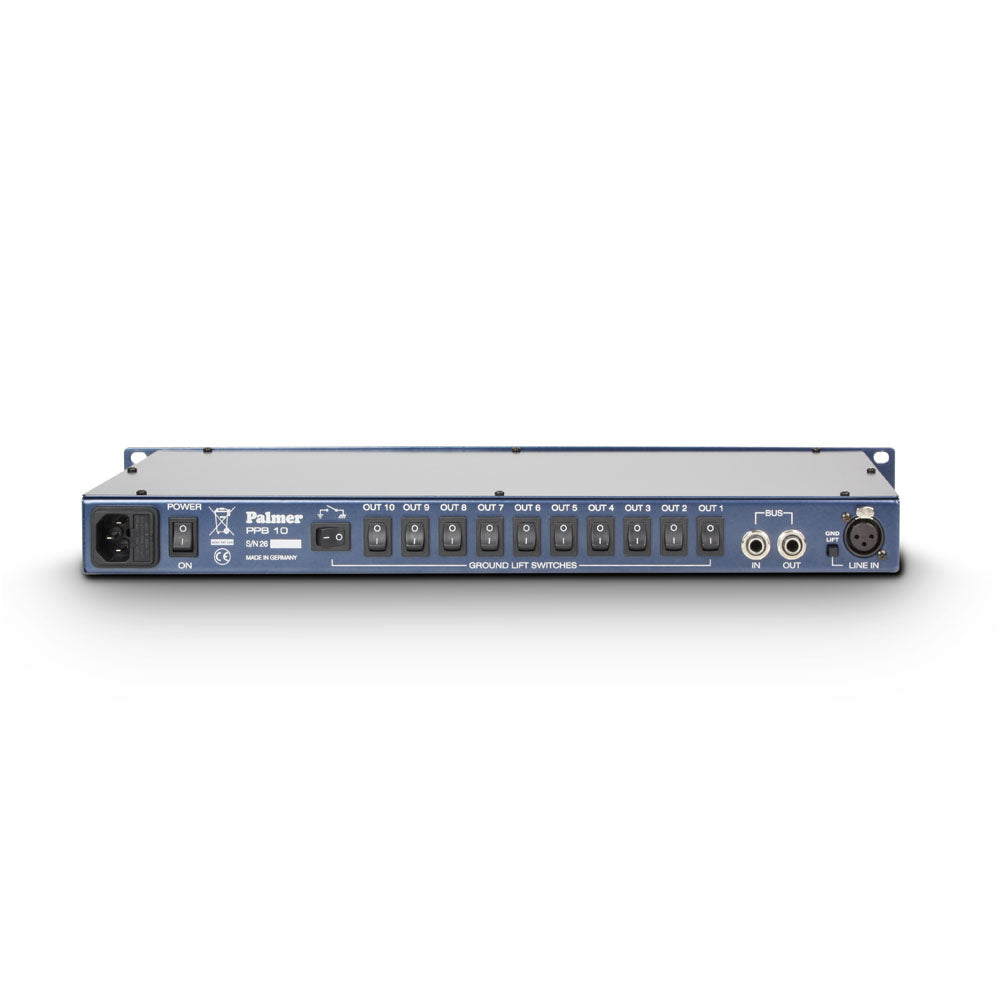

- Individual ground lift switches for each output
- Ground Lift switch for the input
- Expandable setup thanks to the Bus In/Out sockets - allowing you to cascade numerous PPB10 (or PPB20)
| Product type | Splitters |
| Type | line split |
| Split type | 1 in 10 |
| Channels | 1 |
| Number of inputs | 1 |
| Input connectors | XLR |
| Max. input level | + 20 dB |
| Adjustable input | Yes |
| Number of split-outputs per canal | 10 |
| THRU outputs/channel | 1 |
| Max. output level | + 4 dB |
| Nominal power consumption | 5 W |
| Maximum power consumption | 8 W |
| Output connectors | XLR |
| Adjustable output | No |
| Transformer isolated outputs | Yes |
| Controls | Power |
| Controls | ground lift |
| Controls | input gain |
| Controls | phones level |
| Power supply | integrated (115 / 230 V) |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 " |
| Depth | 205 mm |
| Height | 45 mm |
| Height | 1 U |
| Weight | 4,18 kg |
