Description
Description

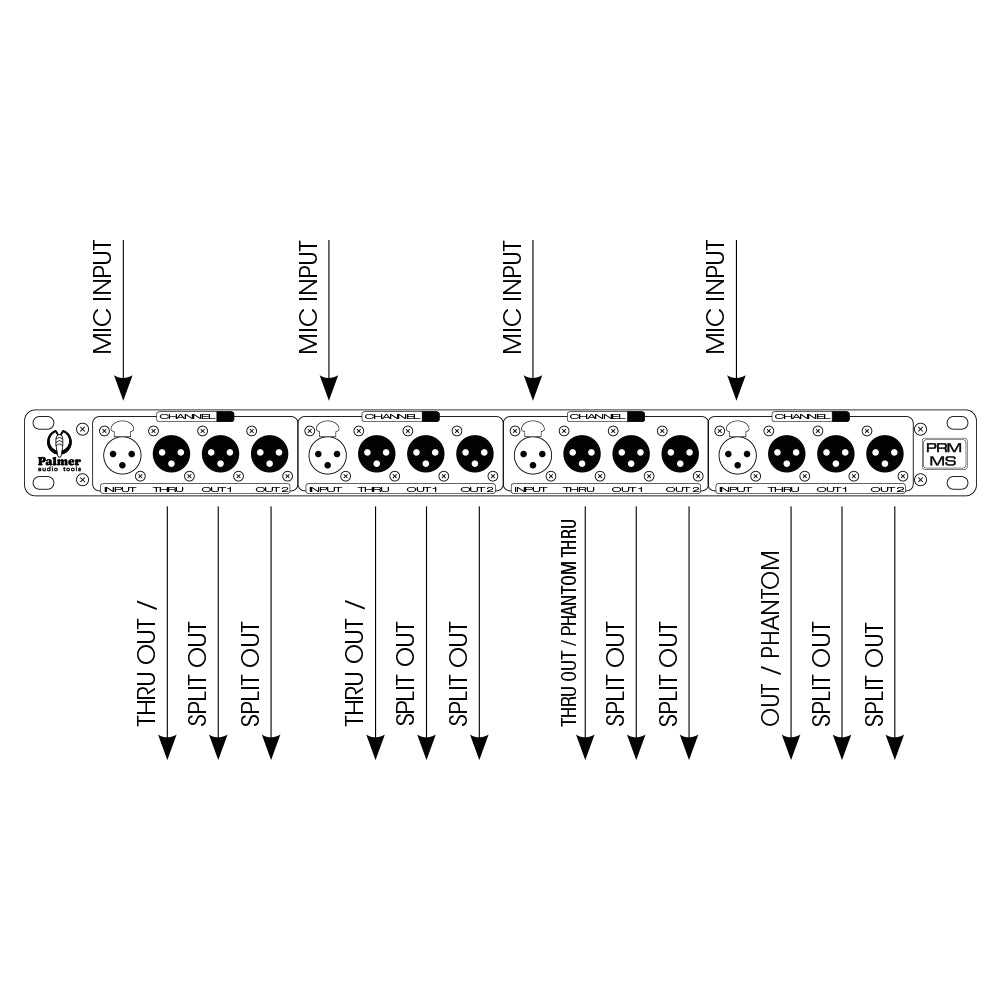

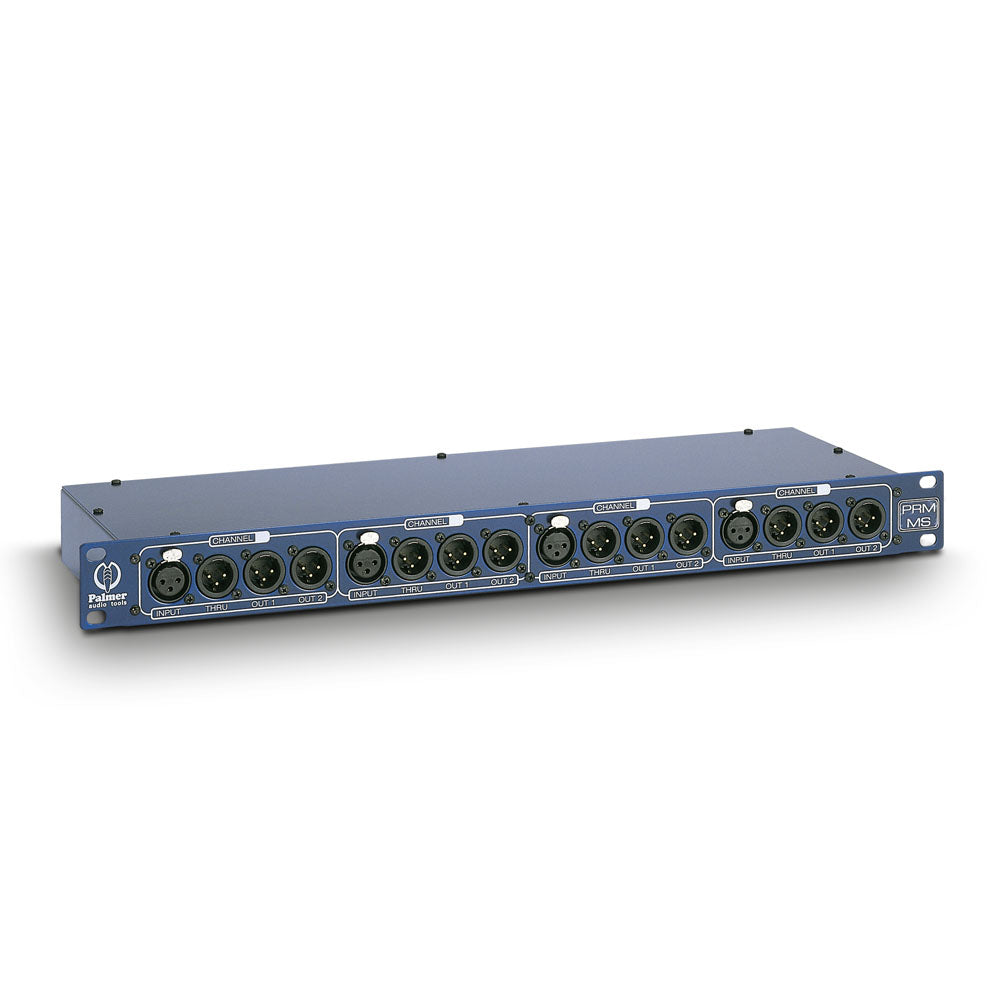

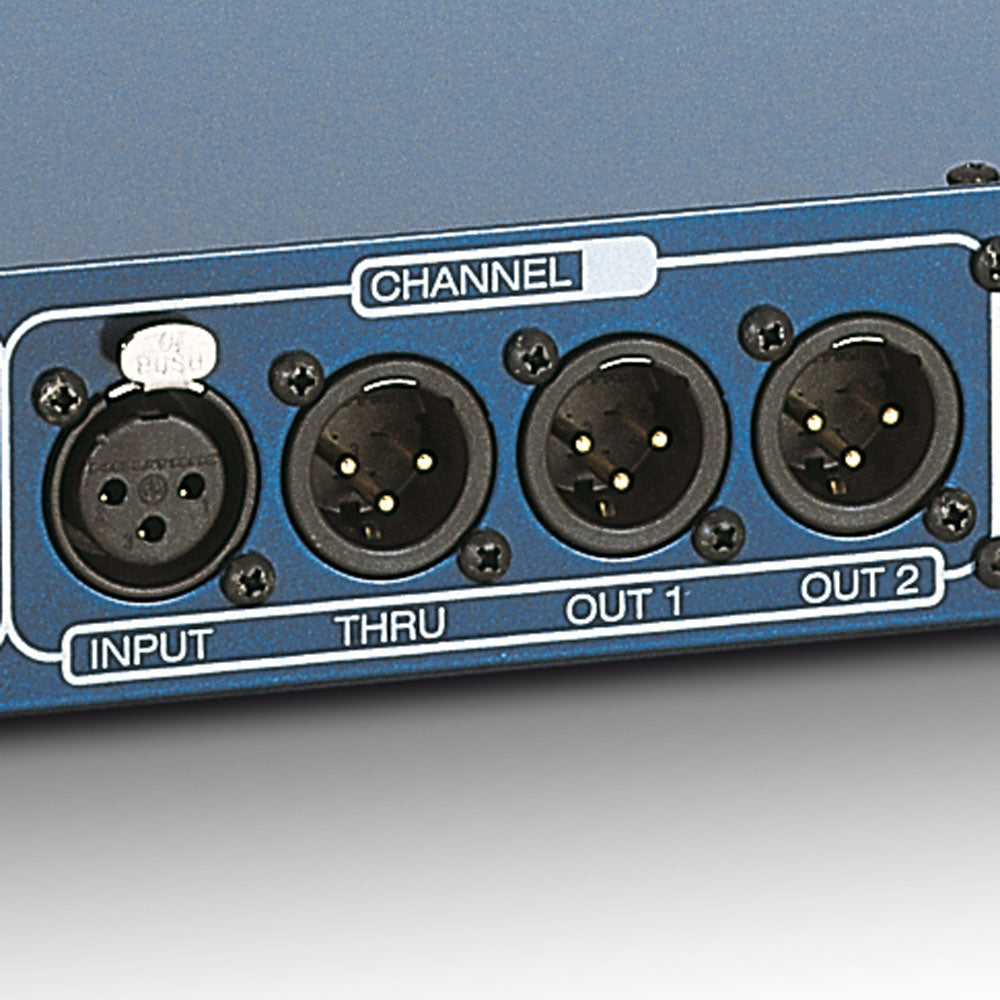

Passive splitter box for microphone signals. One module has 4 channels. Each channel has one input, one output connected in parallel for phantom power pass-through, and two transformer-isolated split outputs. All outputs are also decoupled via resistors.
Technical specifications
Technical specifications
| Product type | Splitters |
| Type | mic split |
| Split type | 1 in 2 +1 |
| Channels | 4 |
| Number of inputs | 1 |
| Input connectors | XLR |
| Max. input level | + 4 dB |
| Number of split-outputs per canal | 2 |
| THRU outputs/channel | 1 |
| Max. output level | + 4 dB |
| Output connectors | XLR |
| Transformer isolated outputs | Yes |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 " |
| Depth | 165 mm |
| Height | 44.5 mm |
| Height | 1 U |
| Weight | 2,18 kg |
