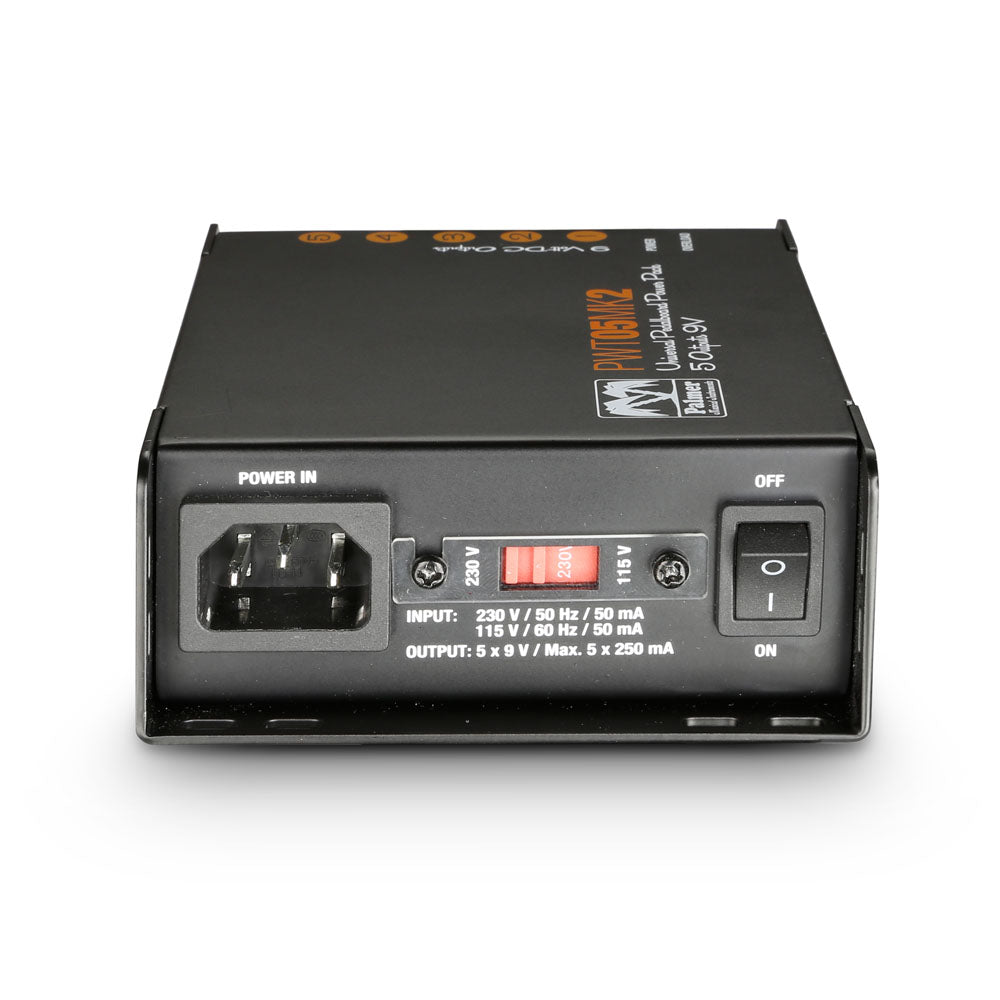

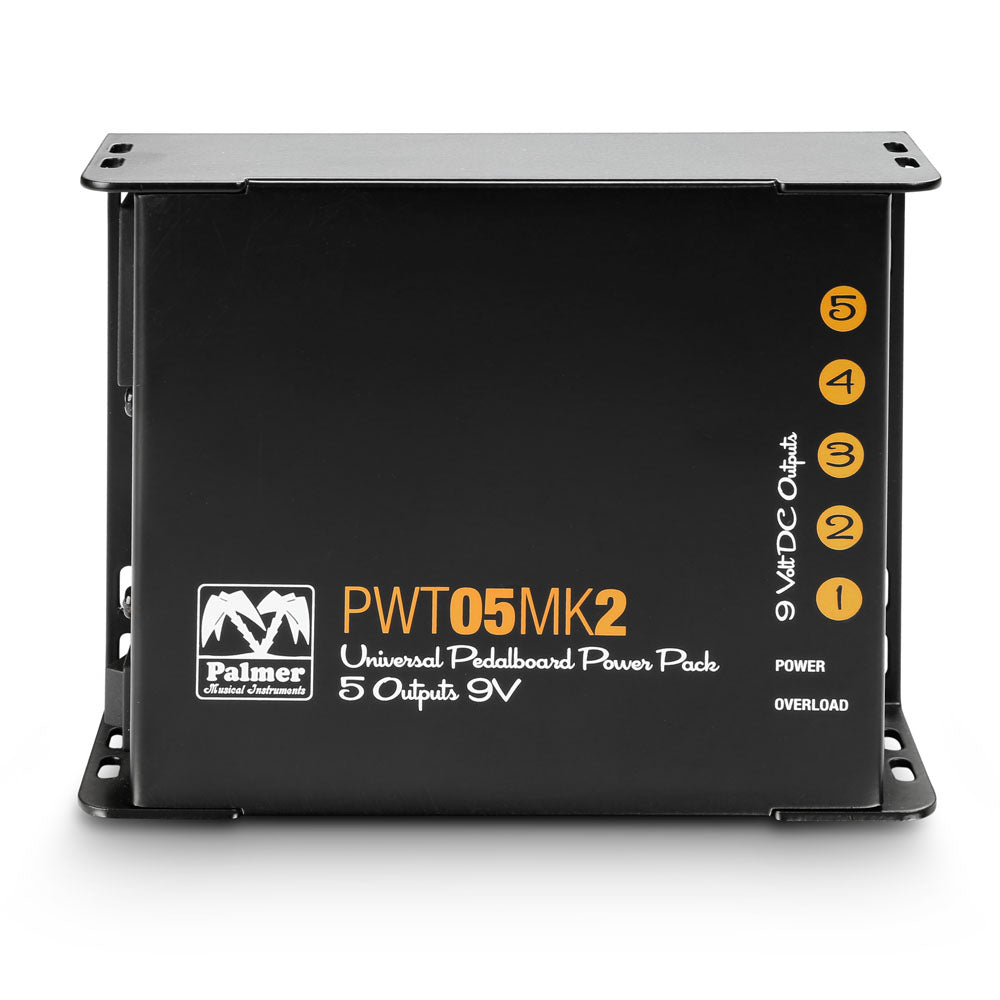

Palmer PWT 05 MK 2 – Universal 9V power supply for pedalboard with 5 outputs
1
of
5
Loading...
€157,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Palmer Passive Monitor Controller
€86,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer Pro Cable tester
€77,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer MONICON XL active studio monitor controller
€397,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer STUDIMON 5 Studio Monitor
€233,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer PBC400 drawer
€31,95
External warehouse. Estimated delivery in 9–12 business days.
Palmer PWT 05 MK 2 – Universal 9V power supply for pedalboard with ...
€157,95
Unit price
/
Not available
Description
Description
With a stable 250 mA on each of the five centre-negative barrel jack outputs, the compact Palmer PWT 05 MKII is suitable for virtually any pedalboard size. To deliver clean DC power to your pedals and eliminate ground loops between them and the resulting hum, the outputs are individually isolated.
The PWT 05 MKII is protected against overload and comes with 25 and 50 cm connection cables as well as two Y-cables. The first, with a black plug, connects two 9 V outputs to increase the current up to 500 mA; the second, with a white plug, connects two 9 V outputs to double the voltage to 18 V. Also included is a 1-to-5 daisy chain, which lets you power five pedals from one output, provided their total current draw does not exceed 250 mA. The rugged housing of the Palmer PWT 05 MKII offers mounting and strain-relief options, while the IEC mains input and voltage selector enable worldwide use.
Technical specifications
Technical specifications
- Universal 9 volt DC power supply
- 5 outlets with ultra stable 250 mA each
- Single isolated
- Overload protection
- Roadworthy enclosure
- Mounting and strain relief options
- Power, merge and daisy chain cables included
| Product type | Power Supplies |
| Mains connector | IEC socket |
| Input voltage | 230 V |
| Outputs | 5 |
| Output connectors | 2.1 x 5.5 mm |
| Output voltage | 9 V |
| Max. output current | each output 250 mA A |
| Isolated outputs | Yes |
| Polarity | Center negative |
| Cord length | 25 - 50 cm |
| Indicators | Overload |
| Indicators | Power |
| Controls | mains switch (on/off) |
| Controls | voltage selector switch |
| Width | 105 mm |
| Depth | 140 mm |
| Height | 45 mm |
| Weight | 1,5 kg |
