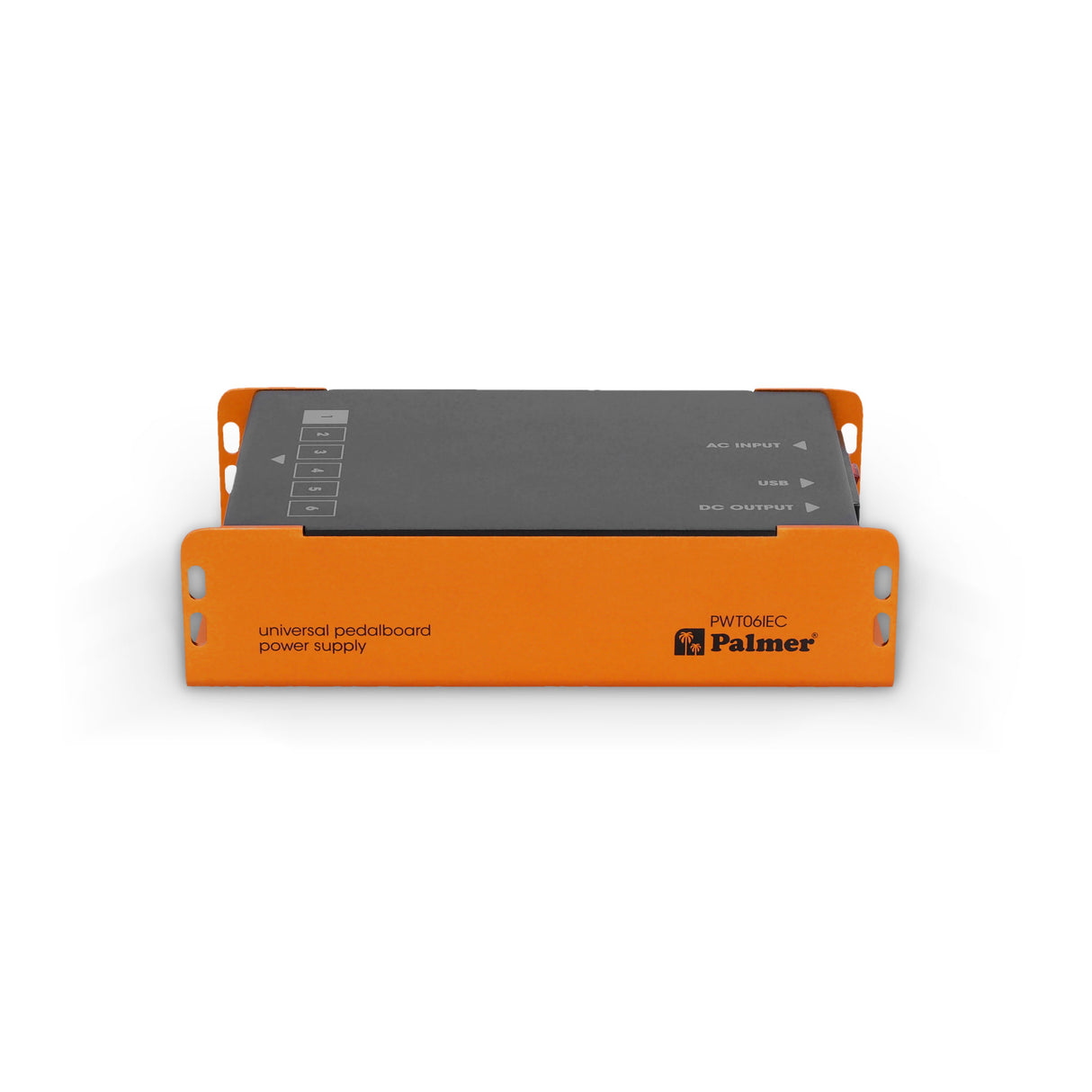

Palmer PWT 06 IEC - Universal pedalboard power supply with USB
1
of
9
Loading...
€170,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Palmer Passive Monitor Controller
€86,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer Pro Cable tester
€77,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer MONICON XL active studio monitor controller
€397,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer STUDIMON 5 Studio Monitor
€233,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer PBC400 drawer
€30,95
External warehouse – Estimated delivery in 9–12 business days.

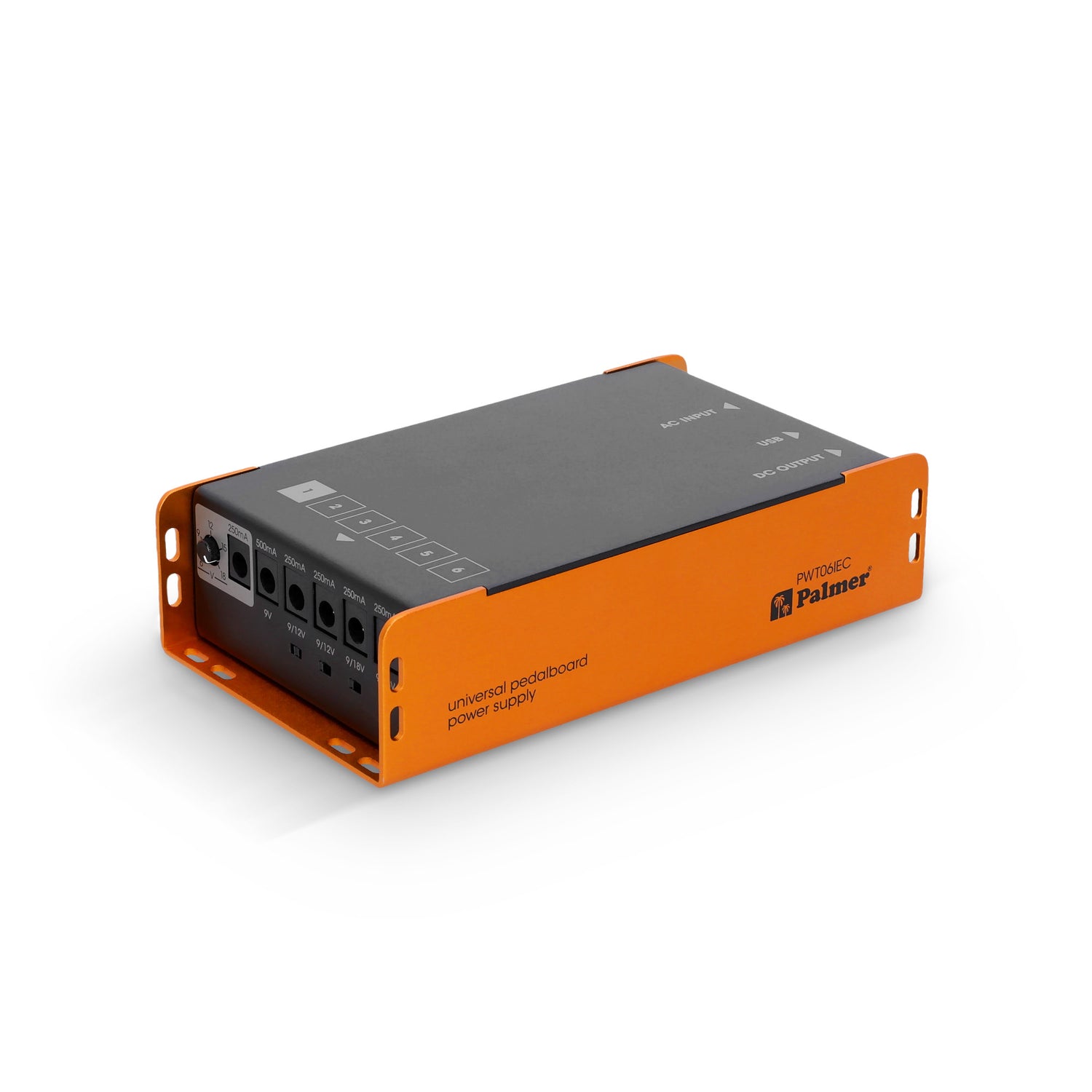

Palmer PWT 06 IEC - Universal pedalboard power supply with USB
€170,95
Unit price
/
Not available
Description
Description
Leave the noise behind!
A pedalboard can be a noisy place, and choosing the right power supply can make a big difference to noise levels and the clarity of your guitar tone. And that’s where the PWT 06 IEC comes in. With six high-current, individually isolated, ultra-low-noise outputs – each with its own dedicated regulator and custom-made isolated transformer – the PWT 06 IEC represents the next generation of Palmer® isolated pedal power supplies. With one variable voltage output, the PWT 06 IEC lets you adjust the voltage between 6 and 18 volts, giving you even more headroom for running your overdrive pedals as well as the “dying battery” sound that many guitarists love. In addition, the Palmer PWT 06 IEC has a USB C and a USB A output with 18 W, so you can charge your mobile devices or even power your MIDI keyboards. We designed the PWT 06 IEC to address guitarists’ biggest pain points when it comes to powering their precious effect pedals, so you can perform with complete peace of mind, knowing that your pedals and your setup will sound as good as they possibly can.
Technical specifications
Technical specifications

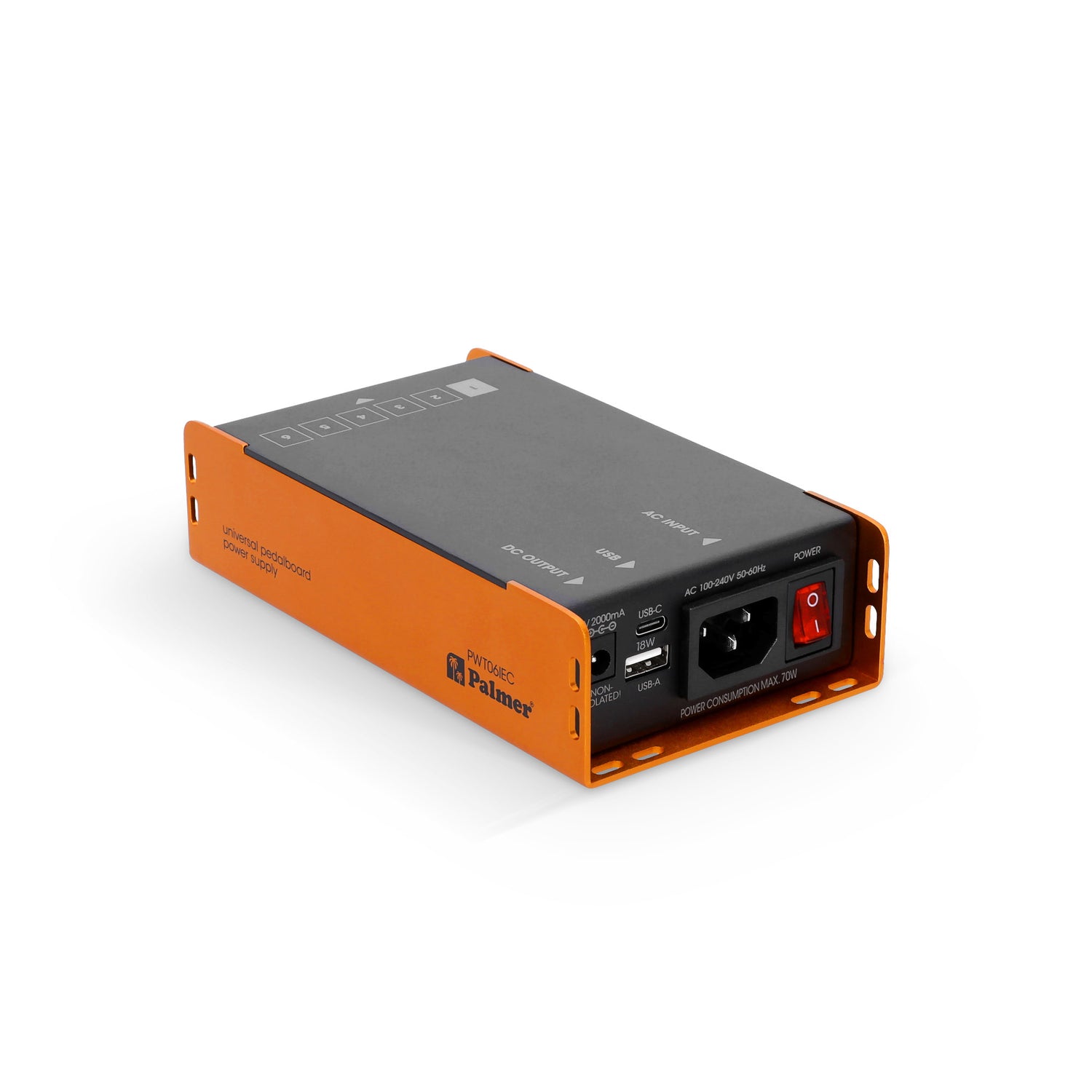

- universal powersupply with IEC mains socket
- 6 single isolated, centre negative 9V DC outlets

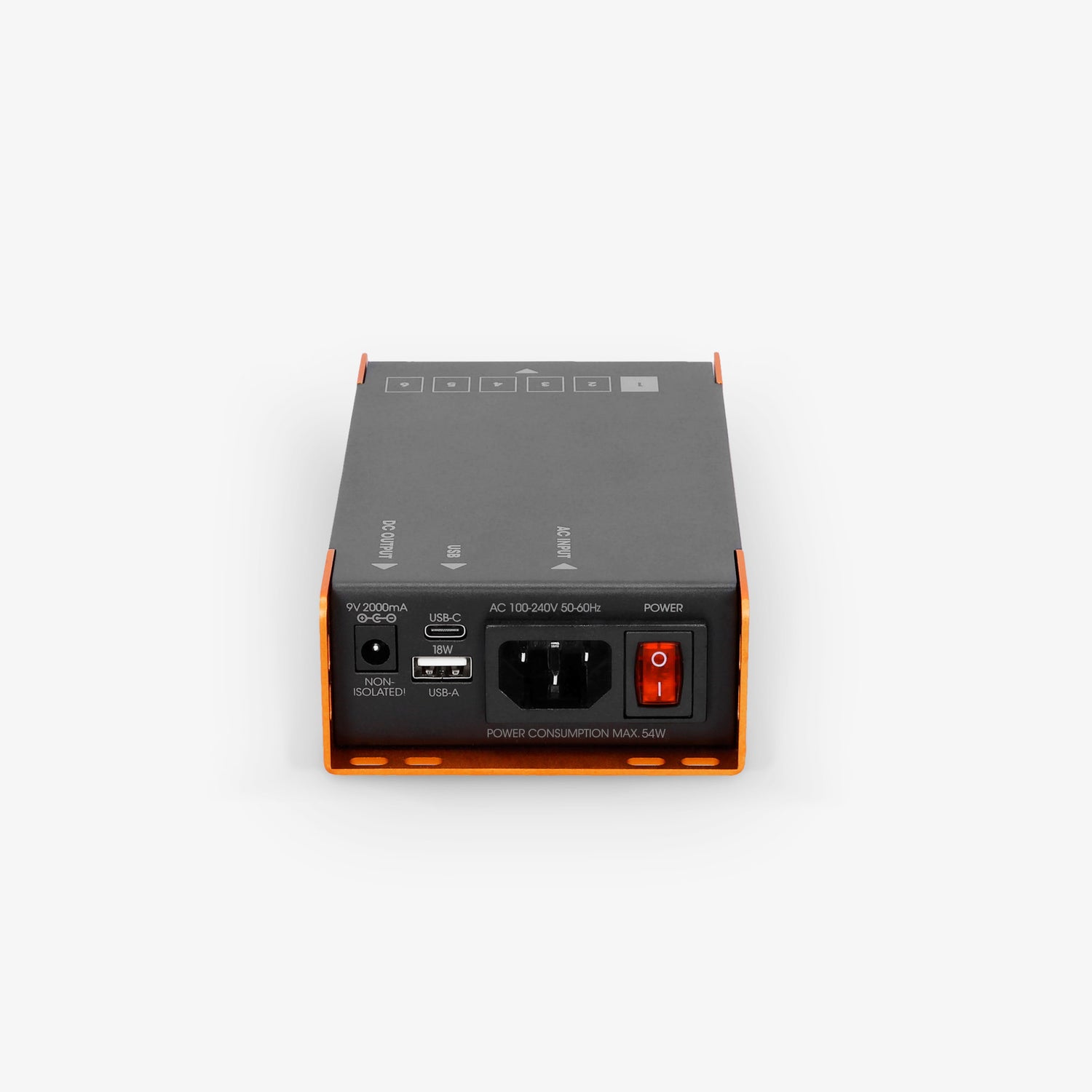

- USB C and USB A power outlets with 18W
- 9V DC 2000mA non isolated power outlet for e.g. a PWT04
- 1 variable voltage outlets 6 - 18 V
- Short circuit and overload protection for each outlet
- DC cable and mains cable included
| Product type | Power Supplies |
| Input voltage | AC 100 - 240 V |

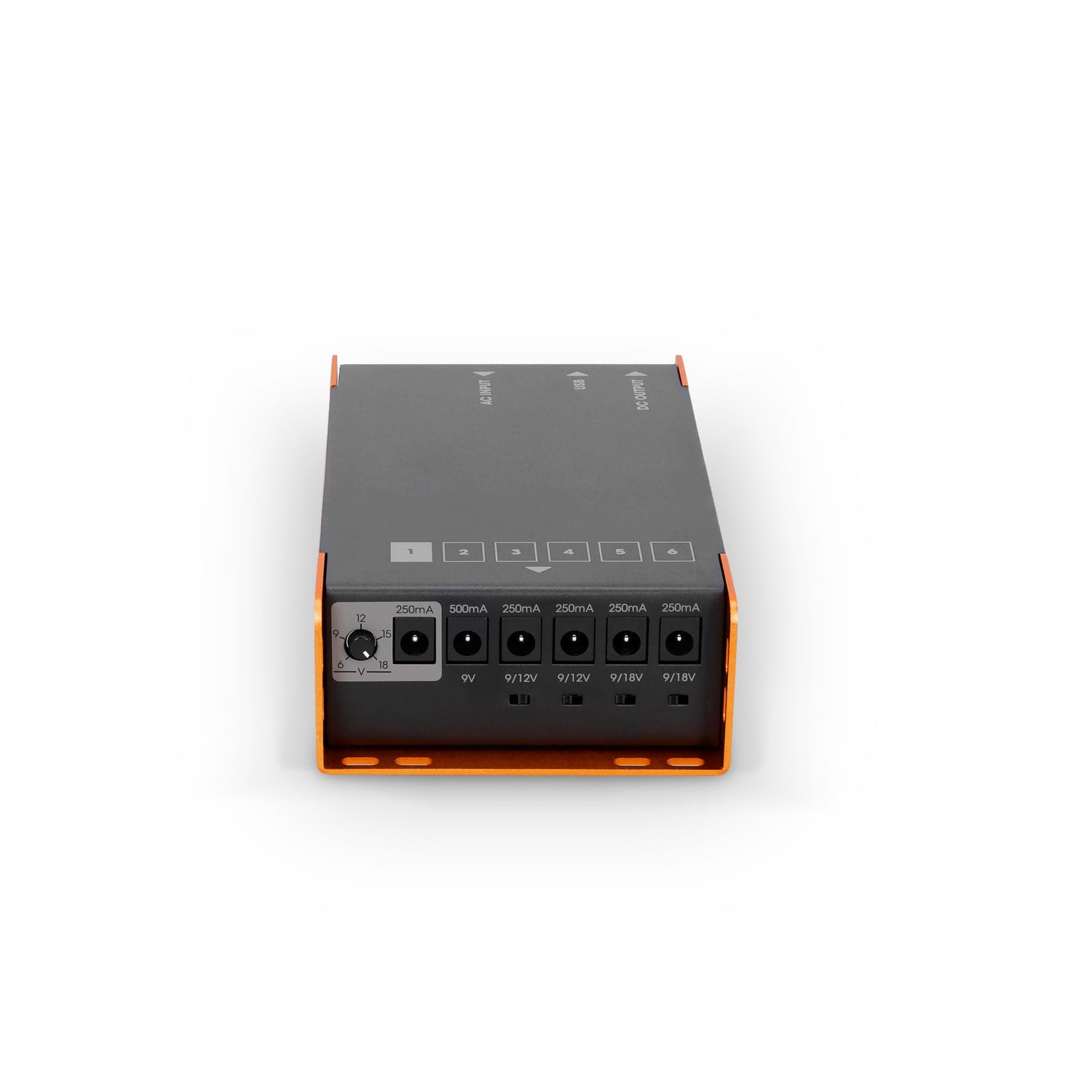

| single isolated DC outputs | 6 |
| Output 1 | 6 - 18 V (250 mA max) |
| Output 2 | 9 V (500 mA max) |
| Output 3-4 | 9 / 12 V (250 mA max) |
| Output 5-6 | 9 / 18 V (250 mA max) |
| non-isolated DC output | 9 V (2000 mA max) |
| Output connectors | 2.1 x 5.5 mm |
| Output voltage | 6 V - 18 V |
| Max. Output power | 36 W |
| Max. Power consumption | 54 W |
| Individually isolated outputs | Yes |
| Polarity | Center negative |
| USB-C / USB-A output power | 18 W max. |
| Indicators | Power |
| Controls | Mains switch, output voltage selector and switch |
| Depth | 93 mm |
| Width | 168 mm |
| Height | 42 mm |
| Weight | 0,48 kg |
| Accessories | Power cable, 9x DC cable (30 / 60 cm), 4x rubber feet |
| Noise | < 40 µV (output 1 - 6) |
| Ambient temperature (in operation) | 0 - 40 °C |
| Relative Humidity | < 80 %, not condensing |
