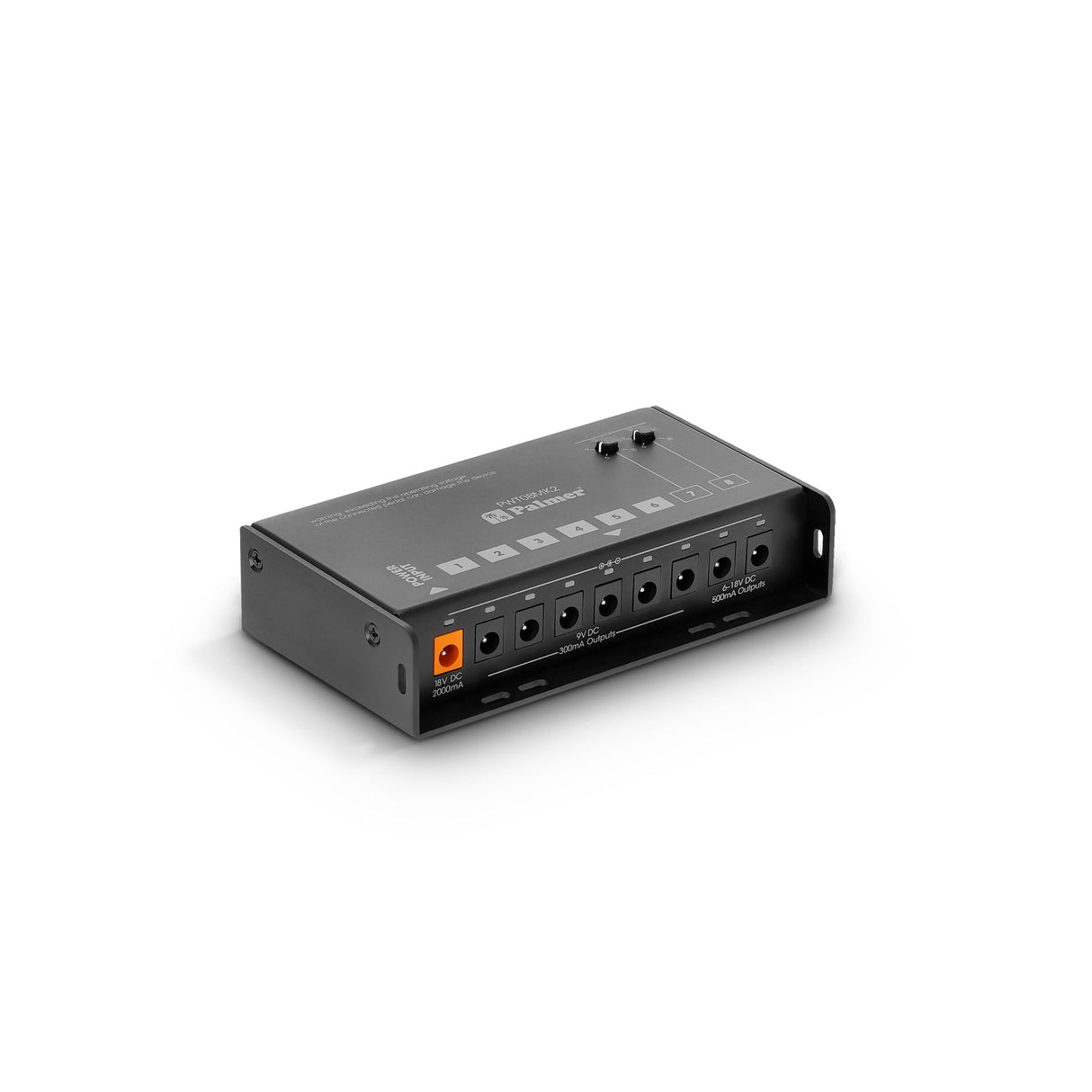

Palmer PWT 08 MK2 - Universal 8-output pedalboard power supply
€183,95
Unit price
/
Not available
Description
Description
No unwanted noise, plenty of power for high-current pedals and a slim design

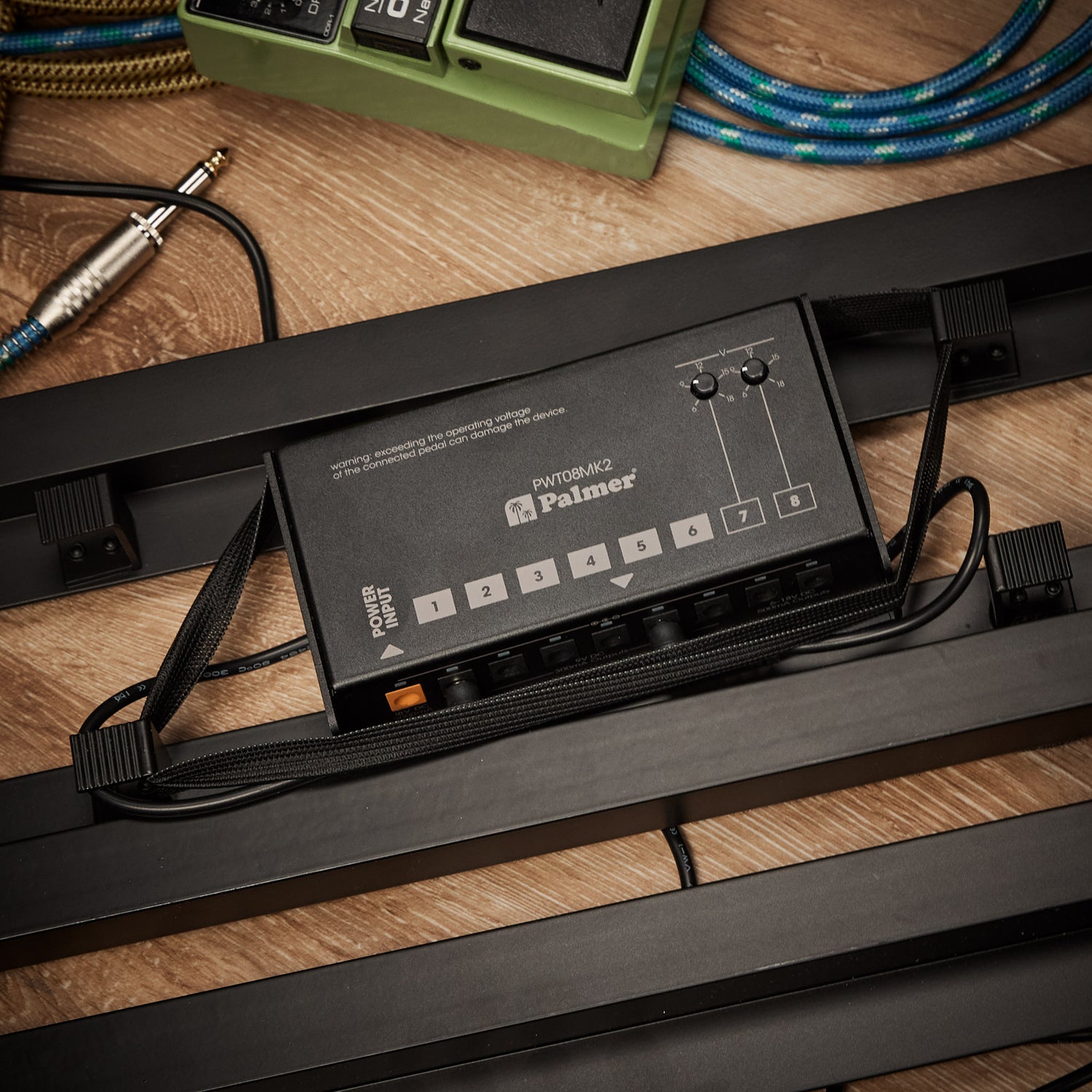

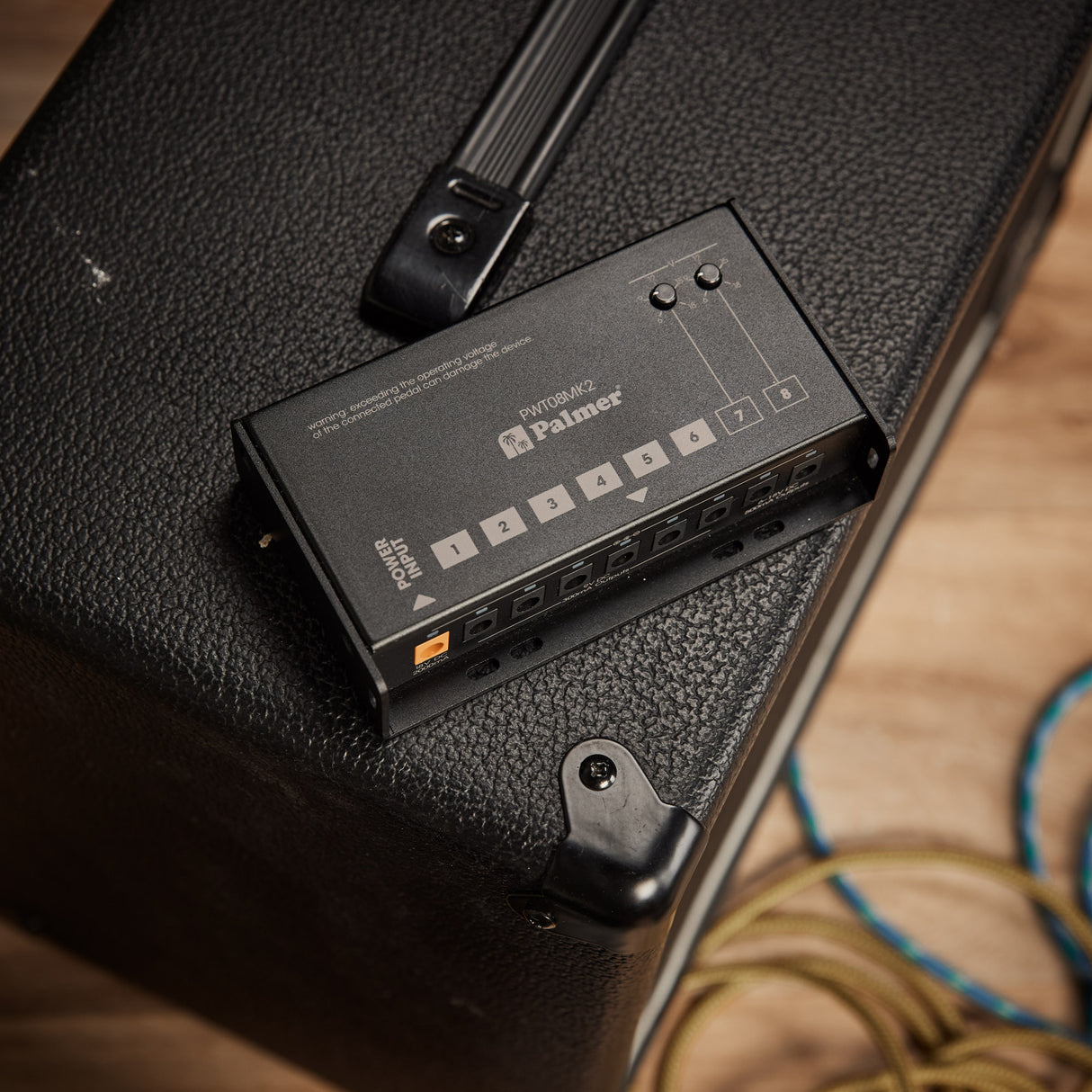

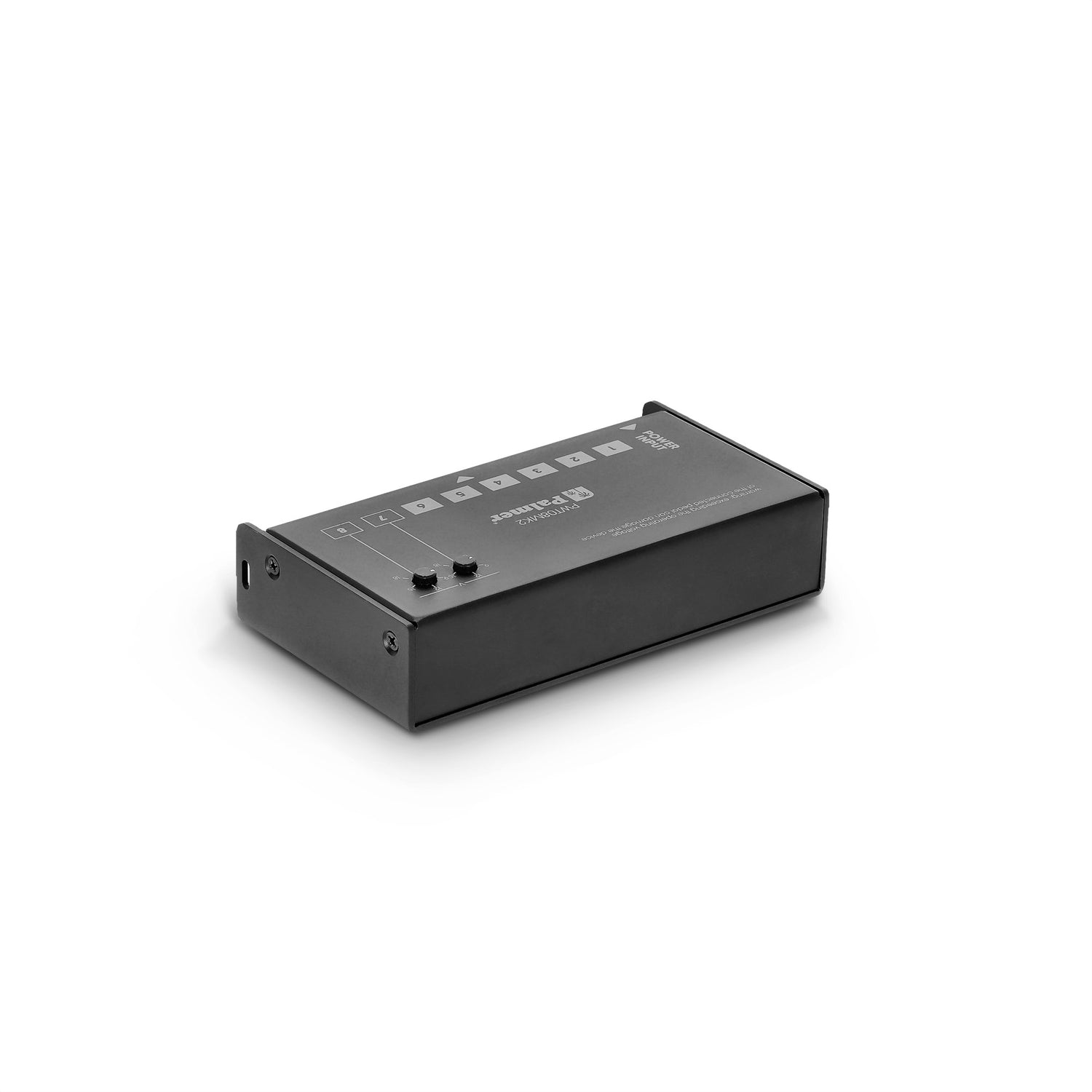

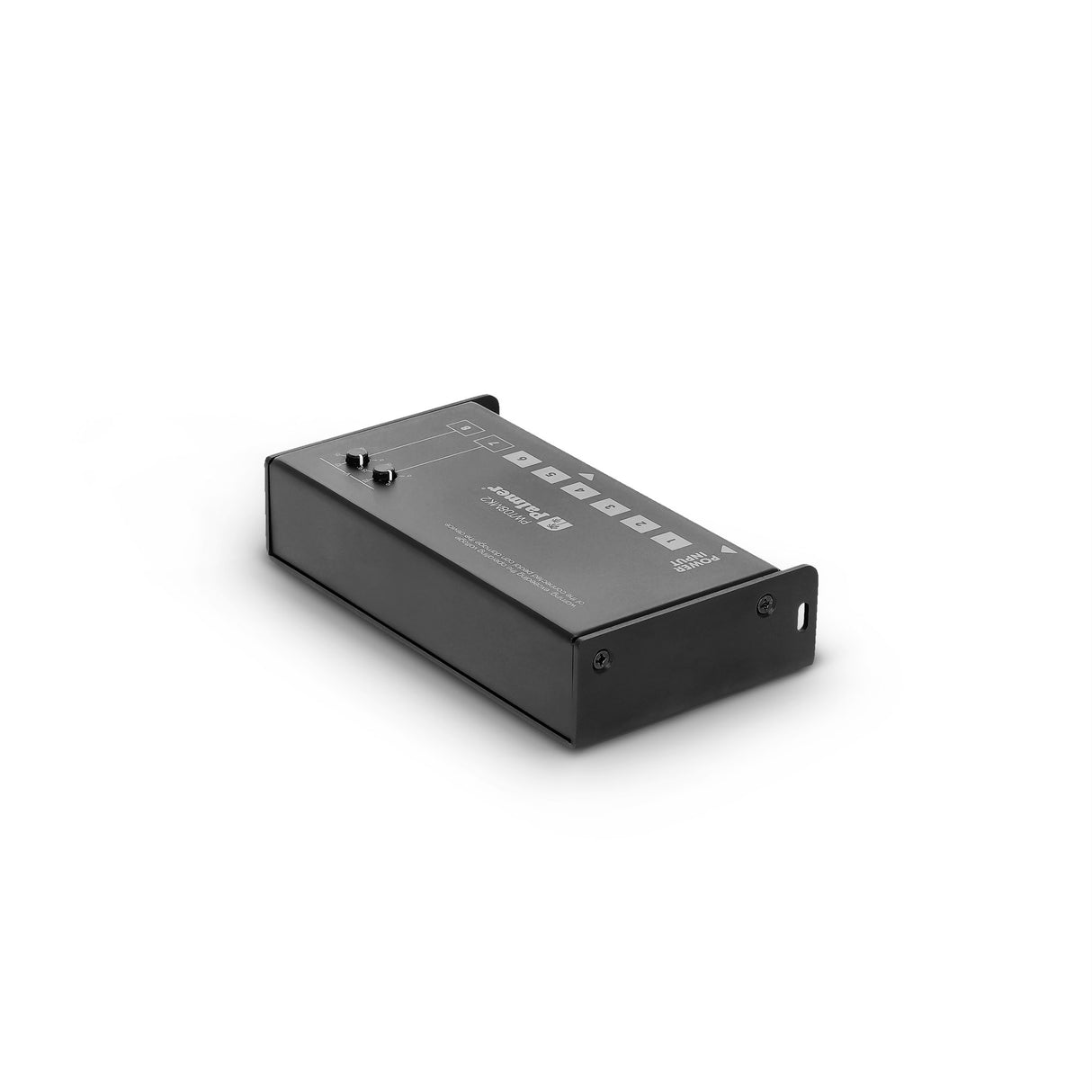

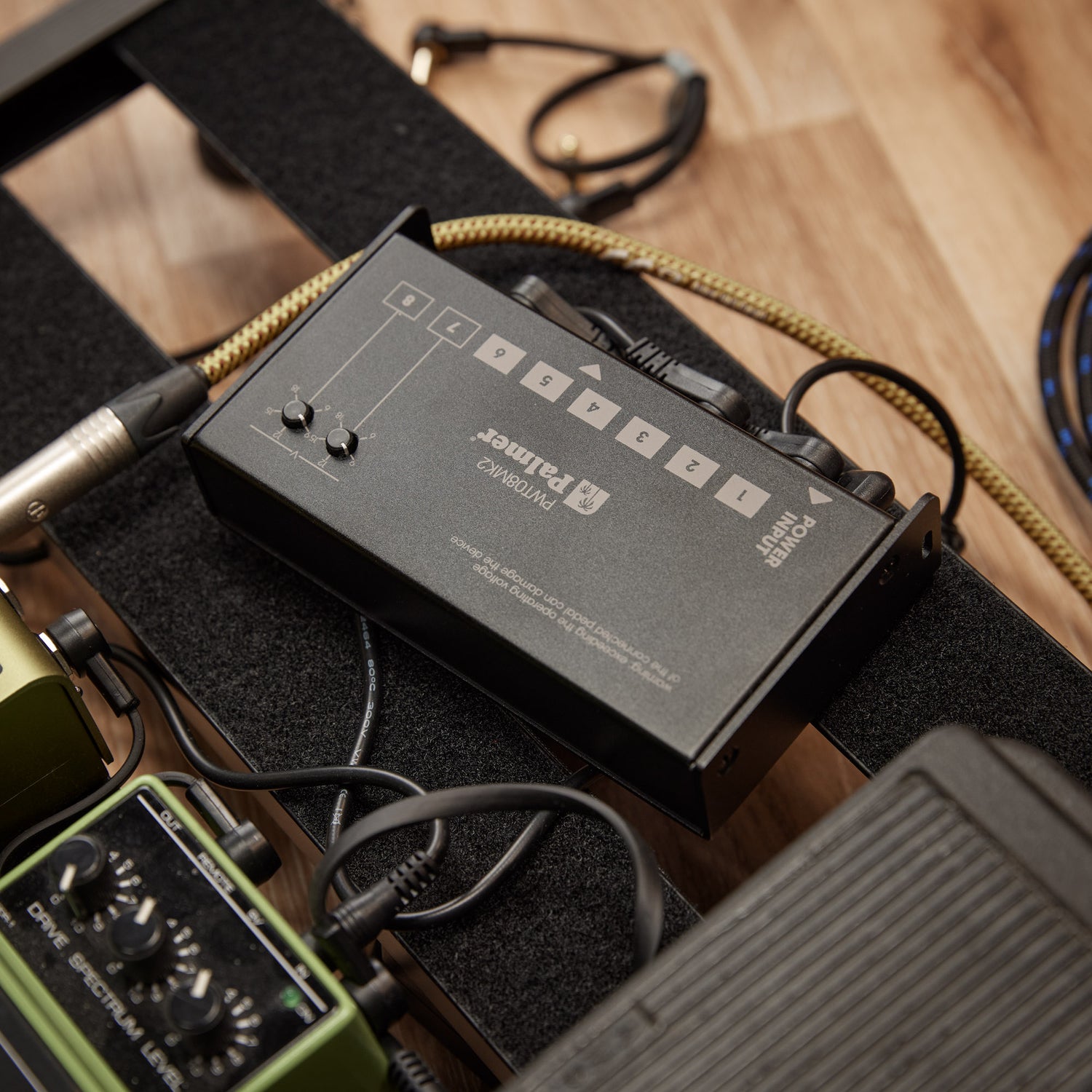

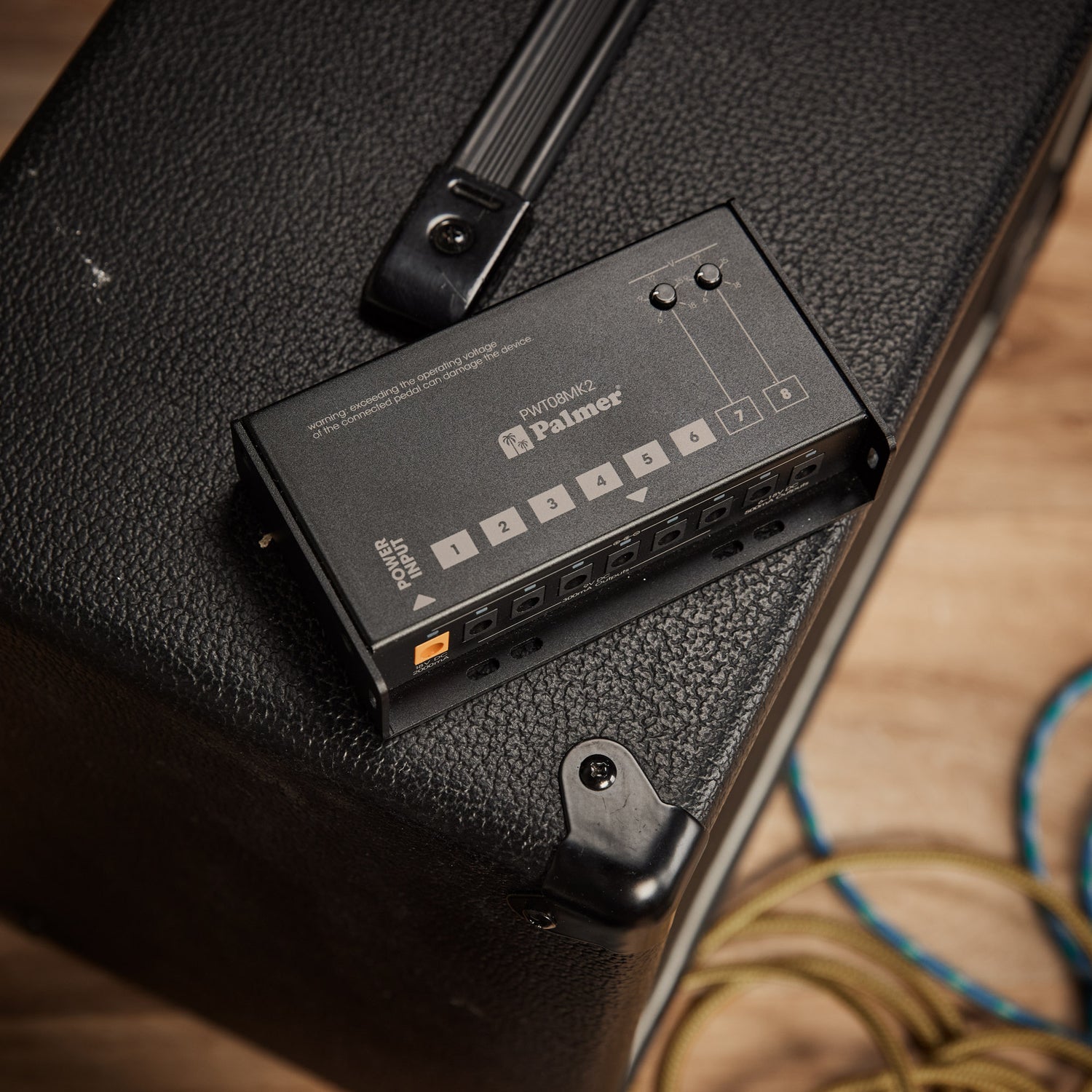

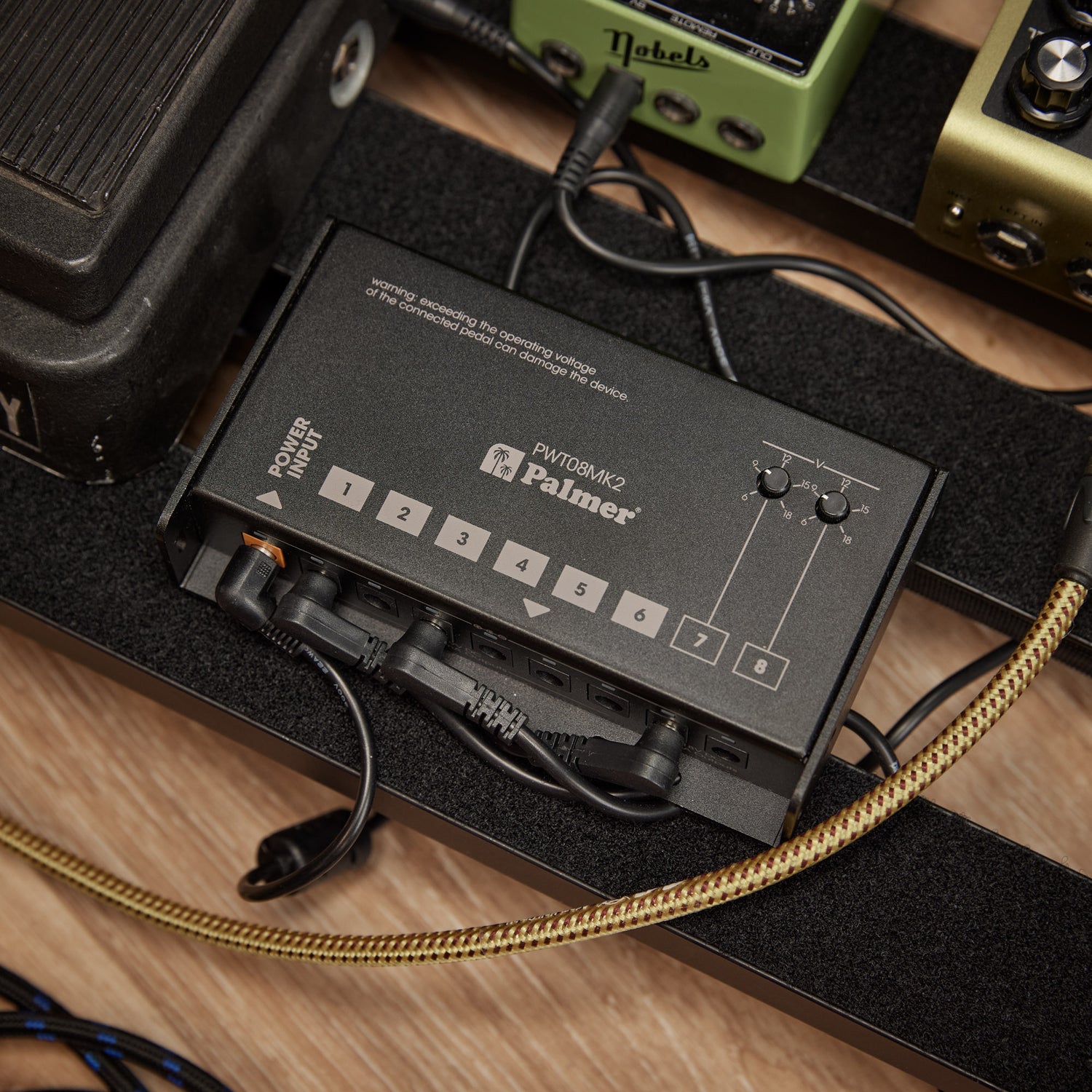

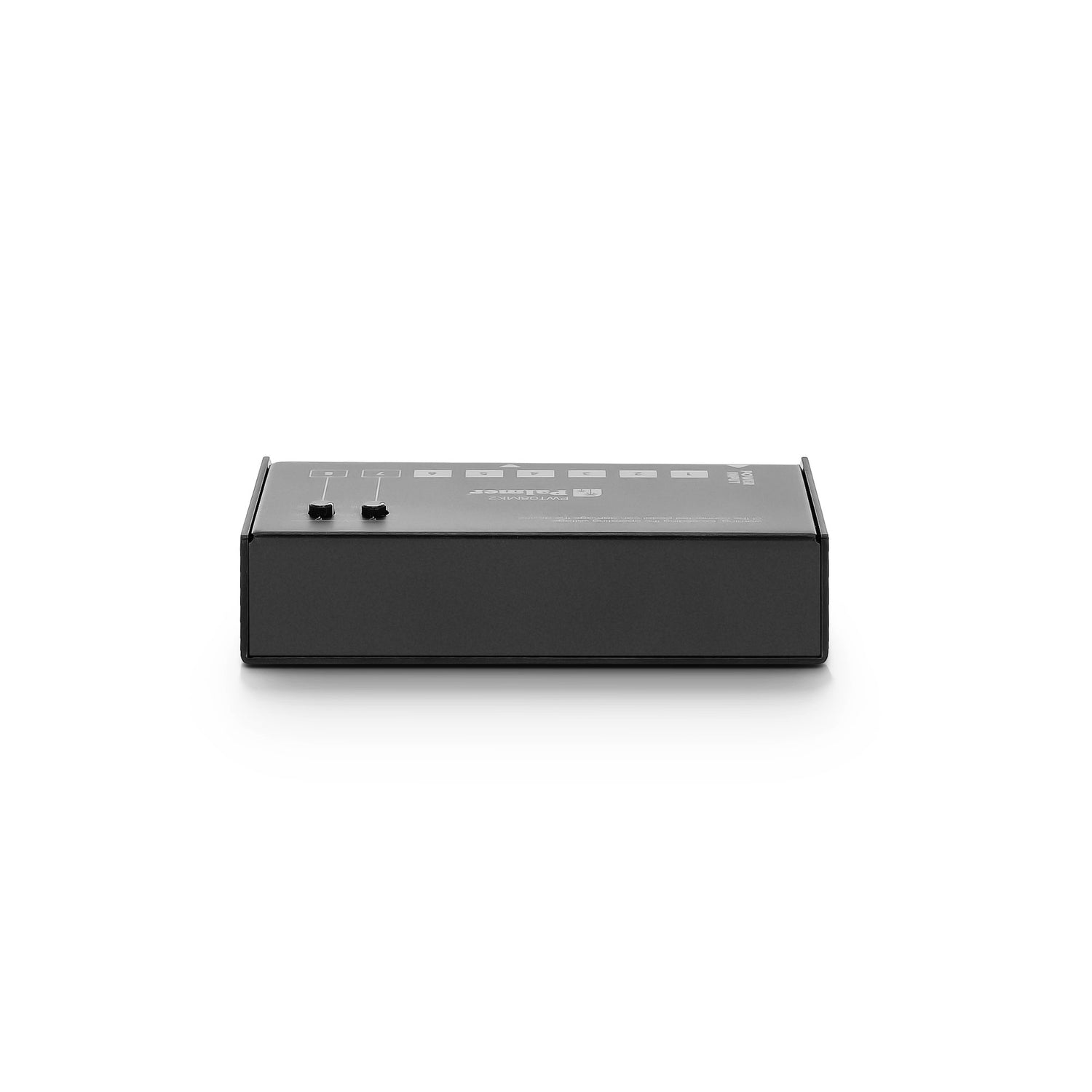

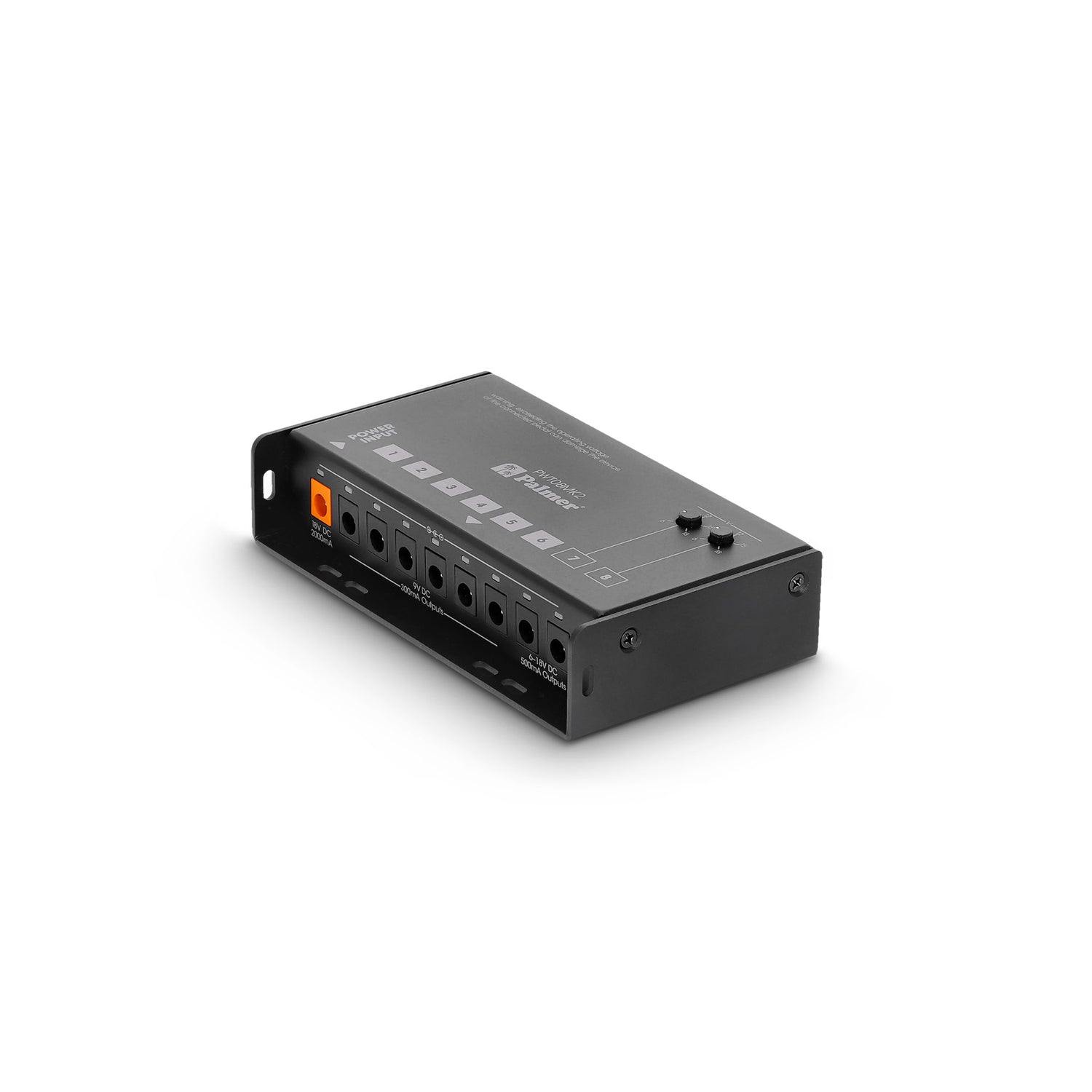

The PWT 08 MK2 power supply stands out with its slim design, which easily fits under almost any pedalboard. The total capacity of 2,000 mA is distributed across eight individually isolated 9V DC outputs.
Two of the outputs can be adjusted between 6 and 18 volts to simulate the voltage sag of old batteries or to power effects pedals with higher voltage requirements. In addition, these two individually isolated outputs deliver 500 mA each, making them ideal for digital effects pedals with high current draw. The remaining six individually isolated outputs deliver 300 mA each.

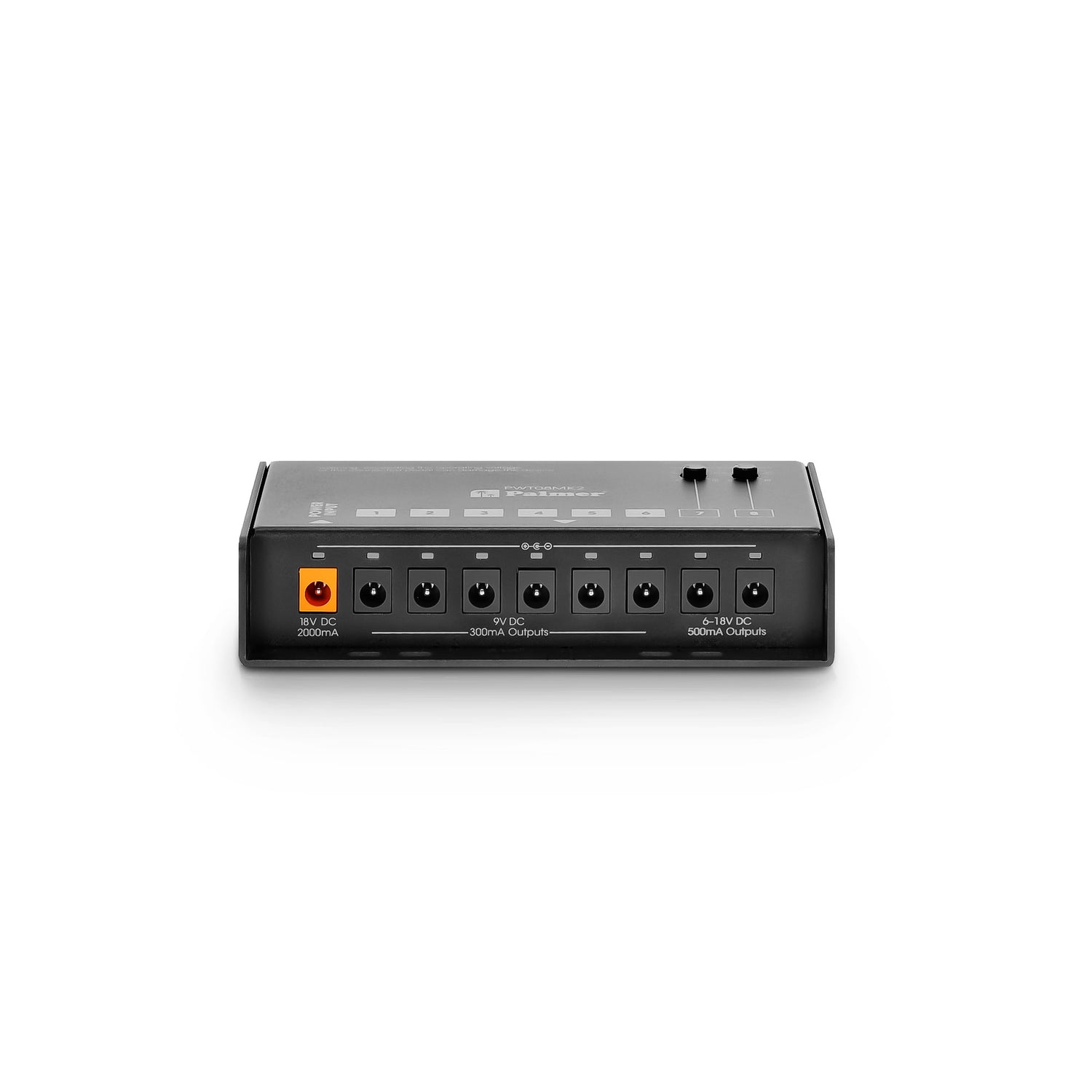

The PWT 08 MK2 power supply is regulated for a stable voltage supply and is protected against short circuits and overvoltage. The PWT 08 MK2 pedalboard power supply is also equipped with a power LED at the input socket as well as a bi-colour LED on all outputs to indicate output status.
It comes with the appropriate US/UK/EU power adapter and a complete set of DC cables.
The PWT 08 MK2 is the ideal solution for a low-noise pedalboard with high-current effects pedals.
Technical specifications
Technical specifications
- Fully regulated universal power supply for guitar effects
- Six single isolated centre negative 9V DC outlets (300 mA each)
- Two single isolated variable voltage outlets: 6-18V DC (500 mA each)
- Total output capacity: 2,000 mA
- Short-circuit and overload protection for each individual outlet
- DC cables and mains adapter for EU, UK and US included
| Product type | Power Supplies |
| single isolated DC outputs | 8 |
| Output 1-6 | 9 V (300 mA max) |
| Output 7-8 | 6 V - 18 V (500 mA max) |
| Output connectors | 2.1 x 5.5 mm |
| Output voltage | 6 V - 18 V |
| Individually isolated outputs | Yes |
| Polarity | Center negative |

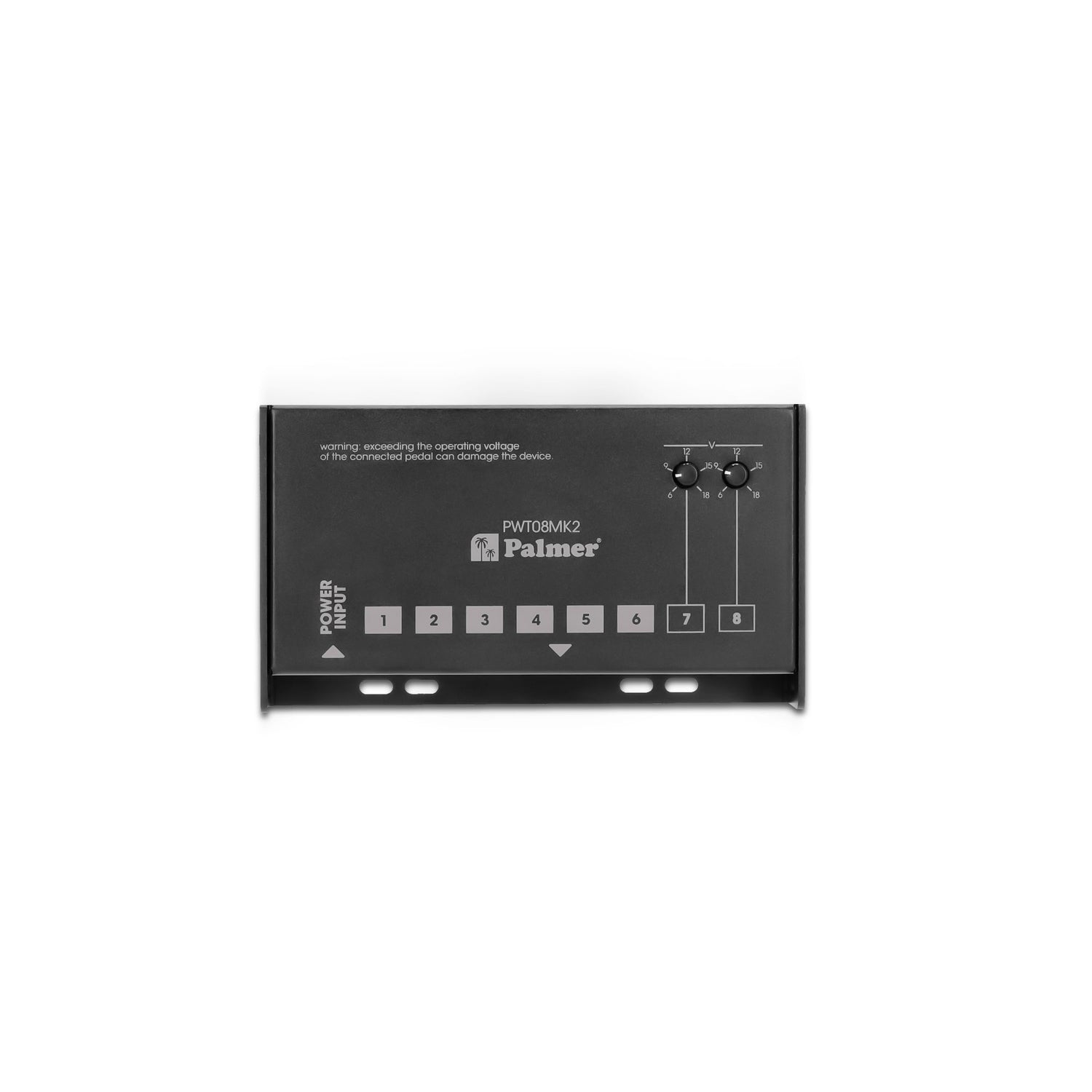

| Indicators | Power, status LED (green: output OK / red: error) |
| Controls | Output voltage regulator |
| Depth | 80 mm |
| Width | 140 mm |
| Height | 32 mm |
| Weight | 0,293 kg |
| Accessories | Plug-in power supply PW18VDCUNI (EU/UK/US), 8x DC cable (60cm), 4x rubber feet |
| Noise | < 40 µV (Output 1 - 8) |
| Relative Humidity | < 80 % ( non-condensing ) |
| Ambient temperature (in operation) | 0°C - 40 °C |
