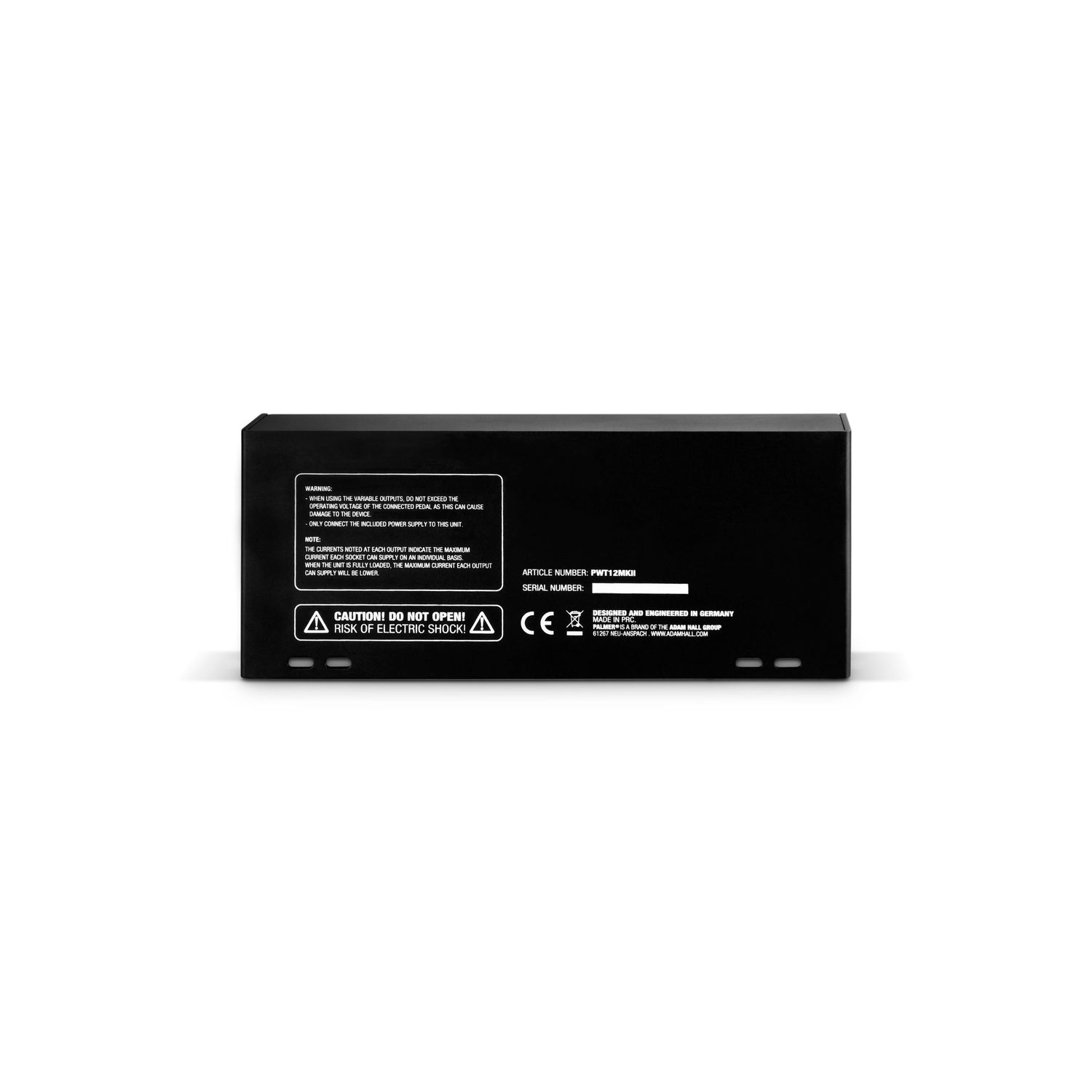

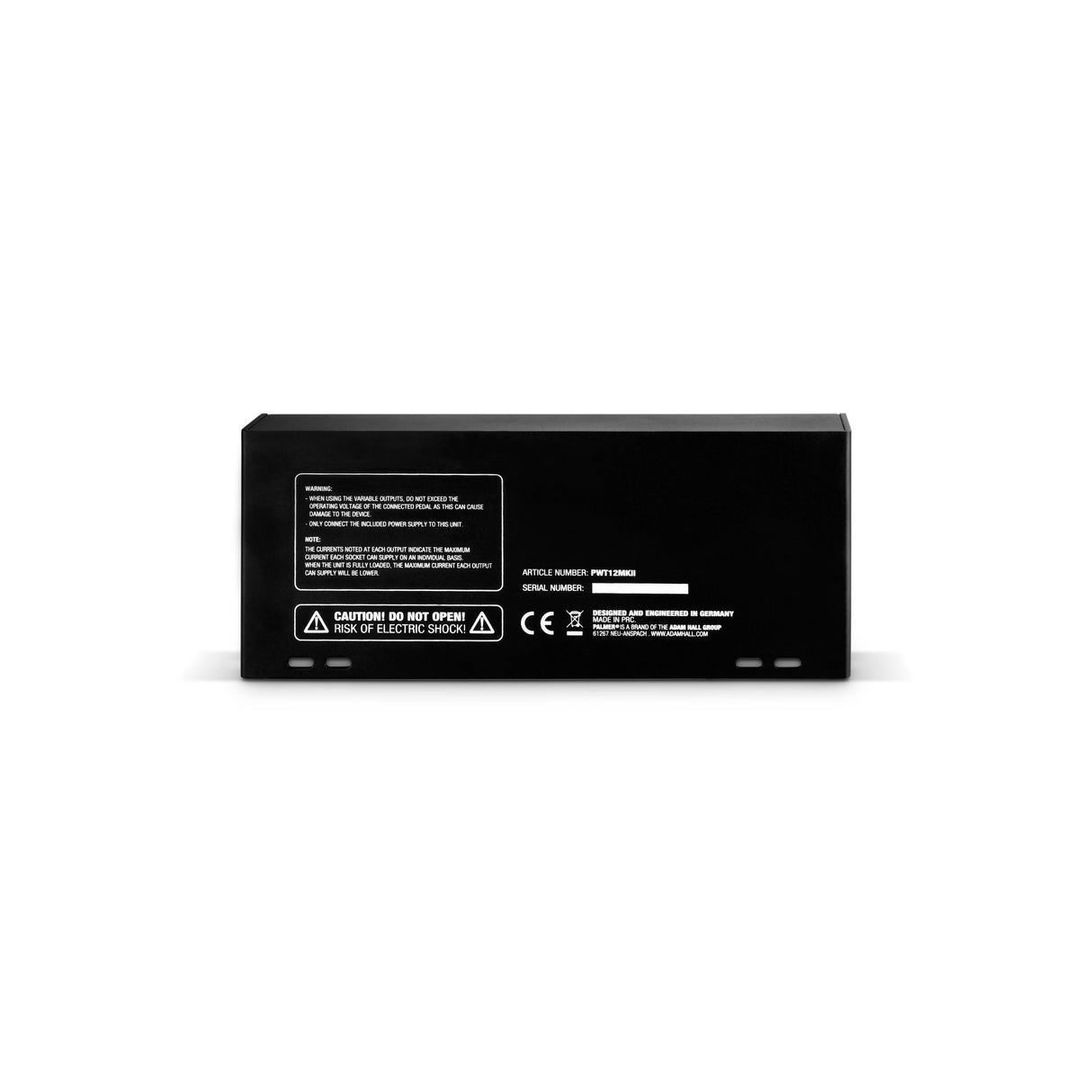

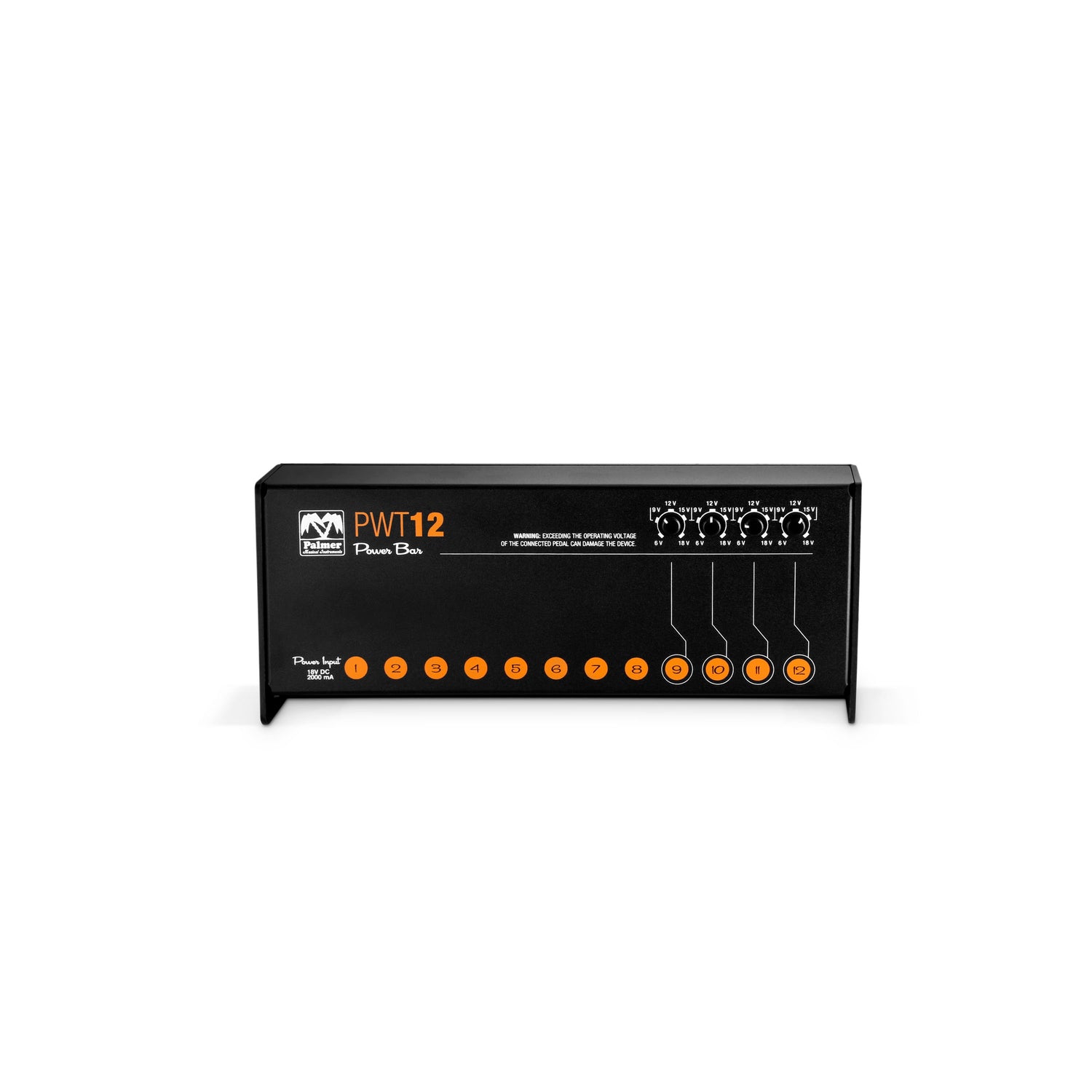

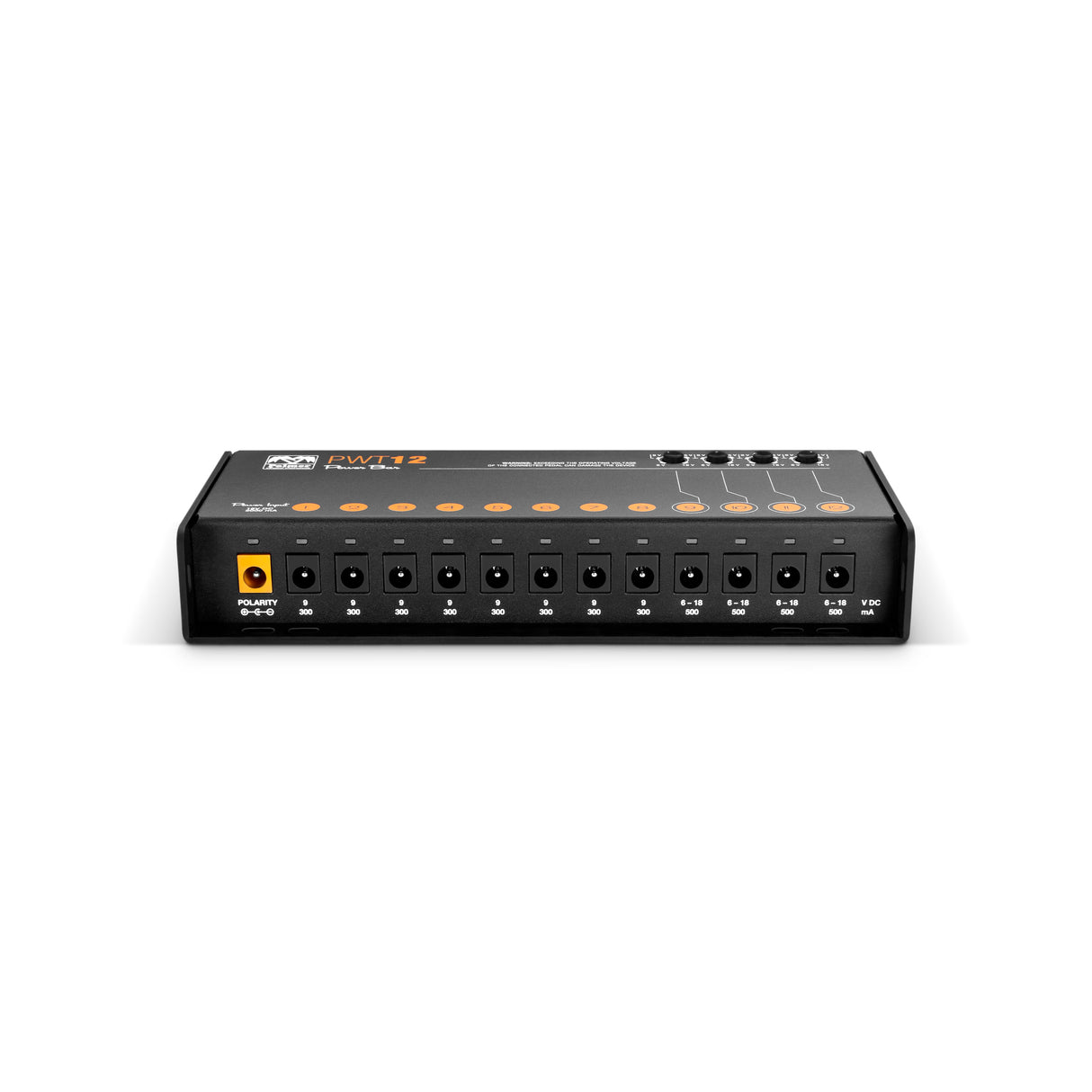

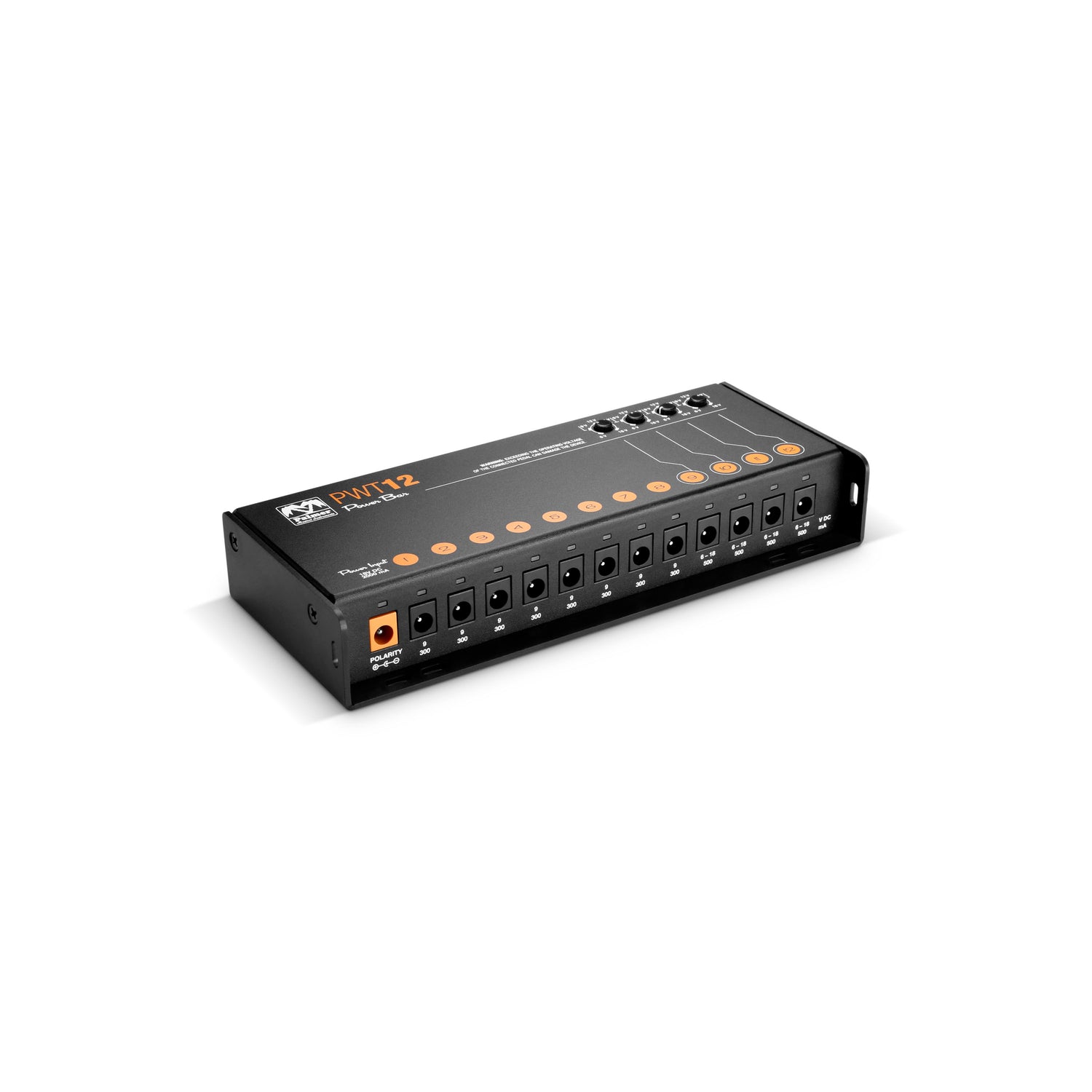

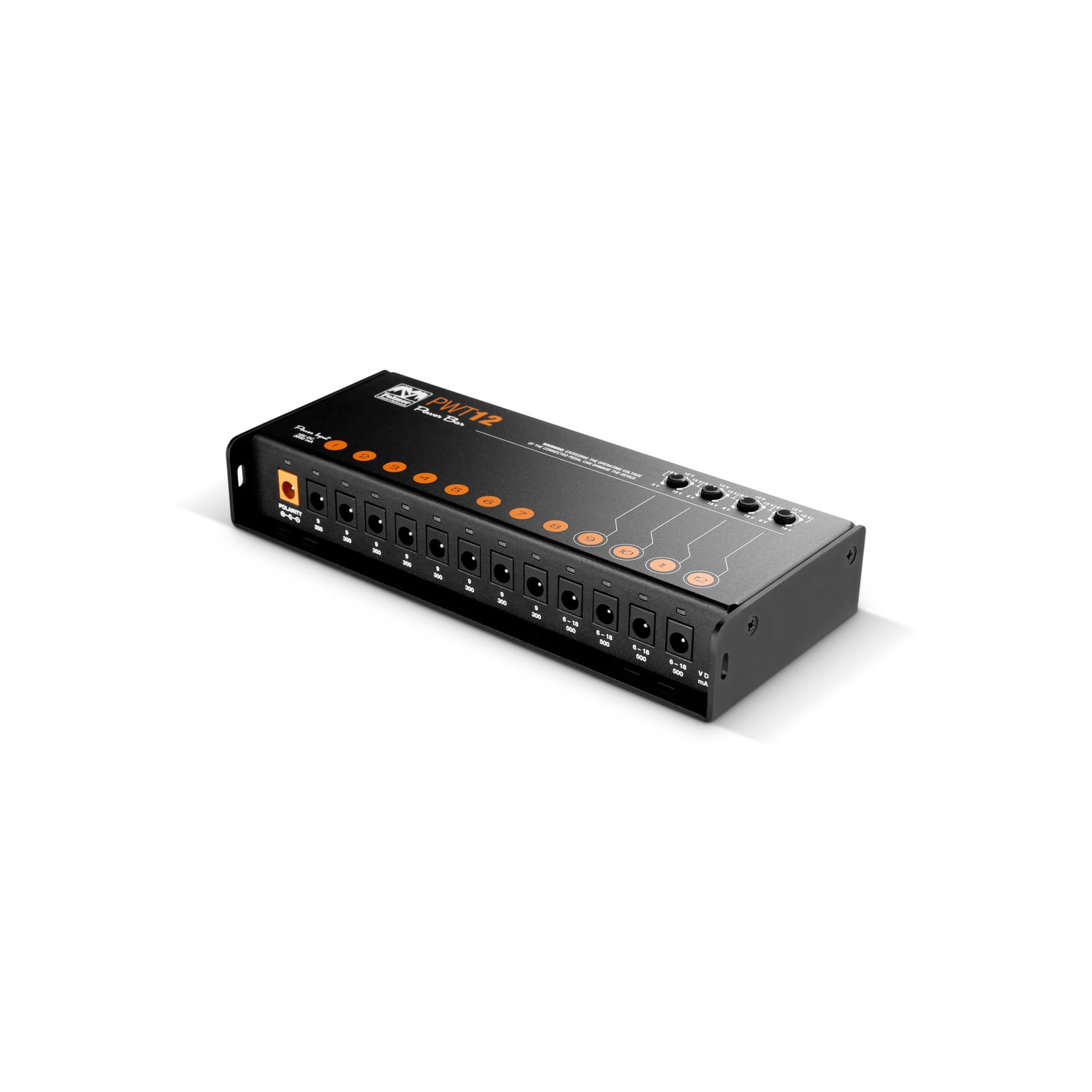

Palmer PWT 12 MK 2 – Universal power supply for pedalboard with 12 outputs
1
of
5
Loading...
€236,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Palmer Passive Monitor Controller
€86,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer Pro Cable tester
€77,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer MONICON XL active studio monitor controller
€397,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer STUDIMON 5 Studio Monitor
€233,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer PBC400 drawer
€31,95
External warehouse. Estimated delivery in 9–12 business days.
Palmer PWT 12 MK 2 – Universal power supply for pedalboard with 12 ...
€236,95
Unit price
/
Not available
Description
Description
PWT 12 is a powerful (2000 mA) universal power supply for pedalboards with 12 individually isolated 9 V DC outputs with a centre-negative female pin connector. The variable outputs make it possible to simulate voltage drop or “battery sag” in old batteries. The power supply is regulated for constant voltage delivery and protected against short circuits and overload. PWT 12 is equipped with a power LED and a two-colour LED status indicator for the outputs. It comes with an AC adapter and a set of DC cables. PWT 12 is the ideal solution for power-hungry stompboxes or 9-volt effects units that can be run at higher voltages for increased dynamics and stability.
Technical specifications
Technical specifications
- Fully regulated universal pedalboard power supply
- 12 single isolated standard centre negative outlets with 2,000 mA output total
- 8 x 9 V outlets (300 mA each)
- 4 variable voltage outlets 6 to 18 V (500 mA each)
- Short circuit and overload protection for each outlet
- DC cables and mains adapter included
| Product type | Power Supplies |
| Input voltage | 100 - 250 V |
| Outputs | 12 |
| Output connectors | 2.1 x 5.5 mm |
| Output voltage | 12 V |
| Output voltage | 18 V |
| Output voltage | 9 V |
| Isolated outputs | Yes |
| Polarity | Center negative |
| Cord length | 25 - 50 cm |
| Indicators | Power |
| Indicators | fault |
| Controls | Output voltage selector |
| Width | 193 mm |
| Depth | 70 mm |
| Height | 30 mm |
| Weight | 0,4 kg |
