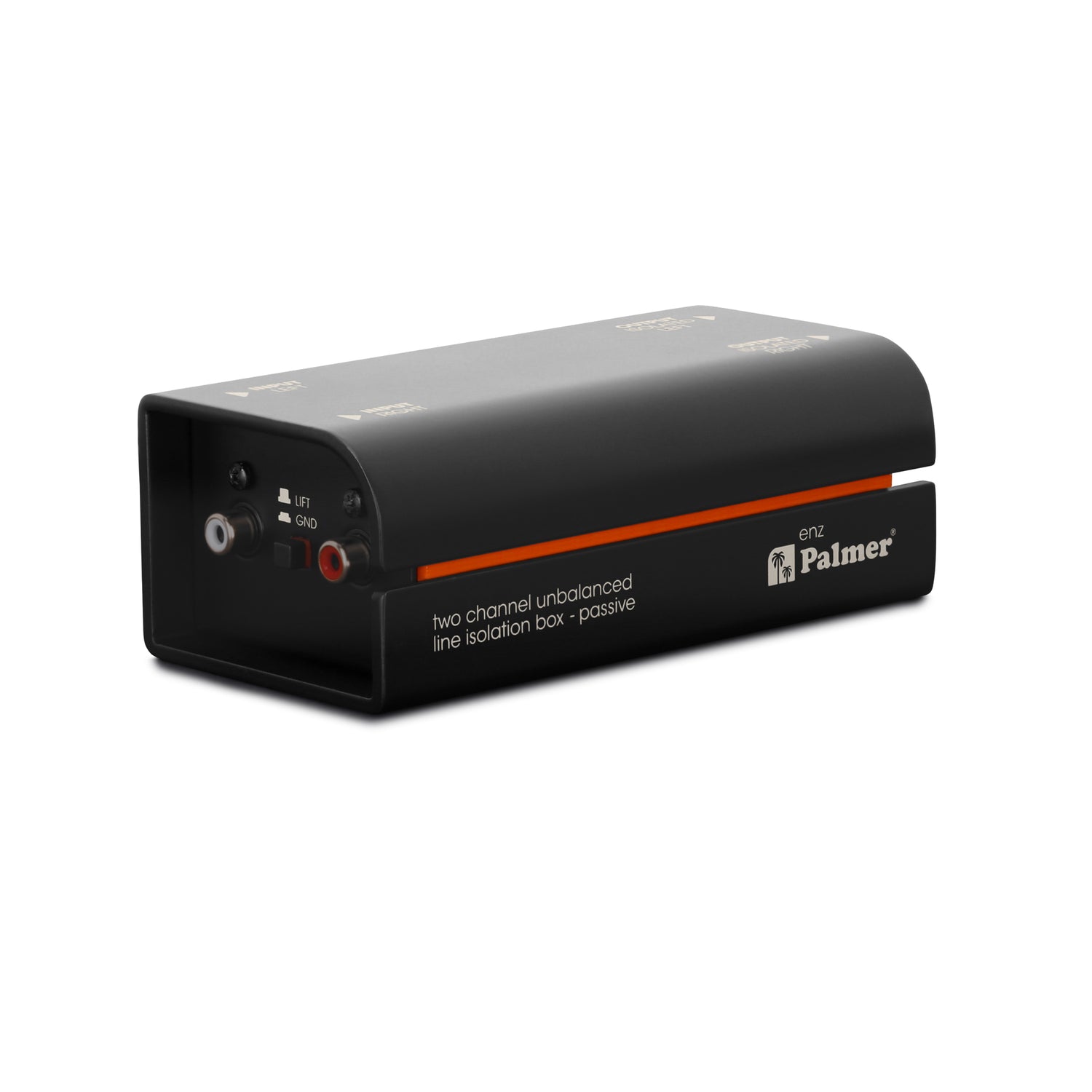

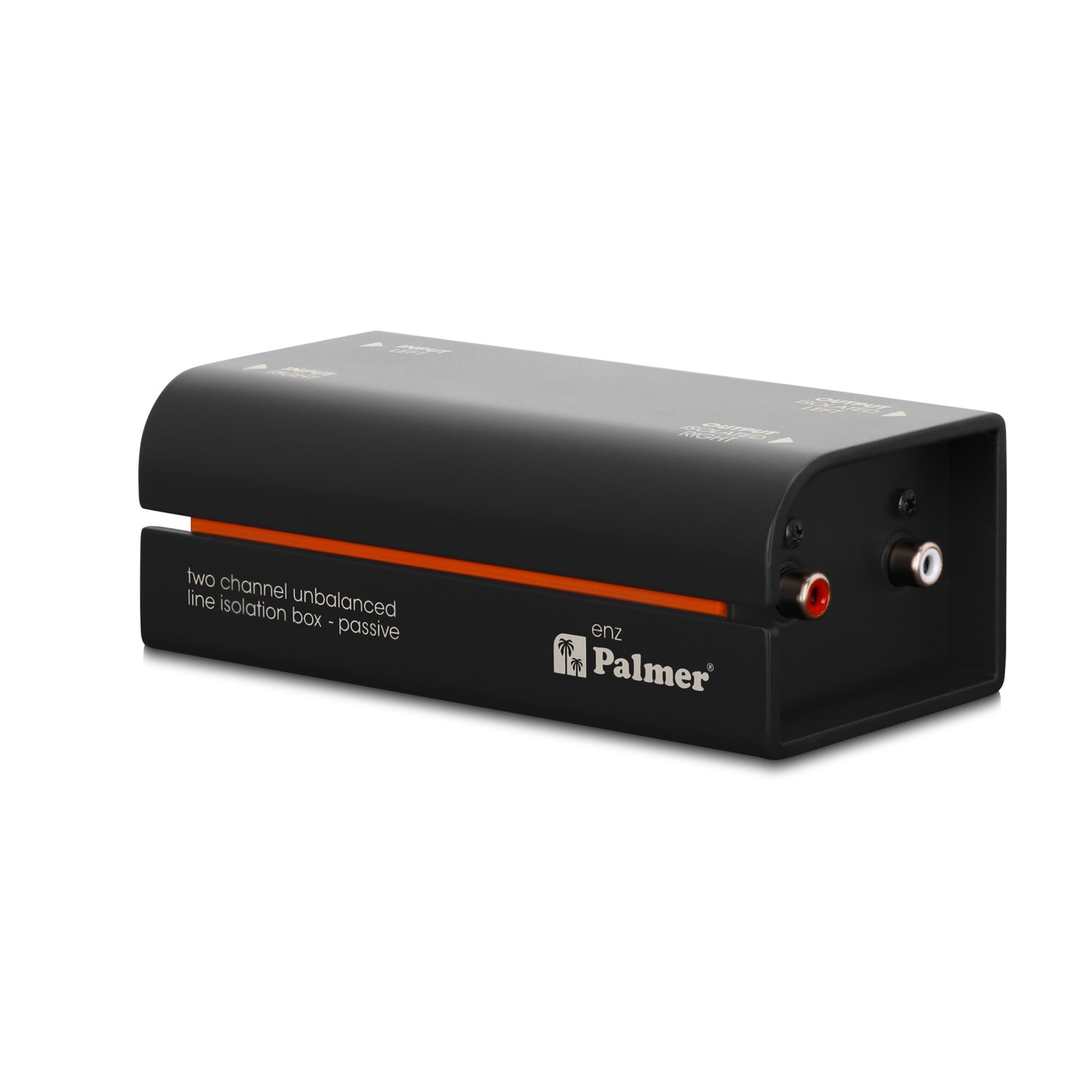

Palmer RIVER enz - 2-channel isolation box for unbalanced line

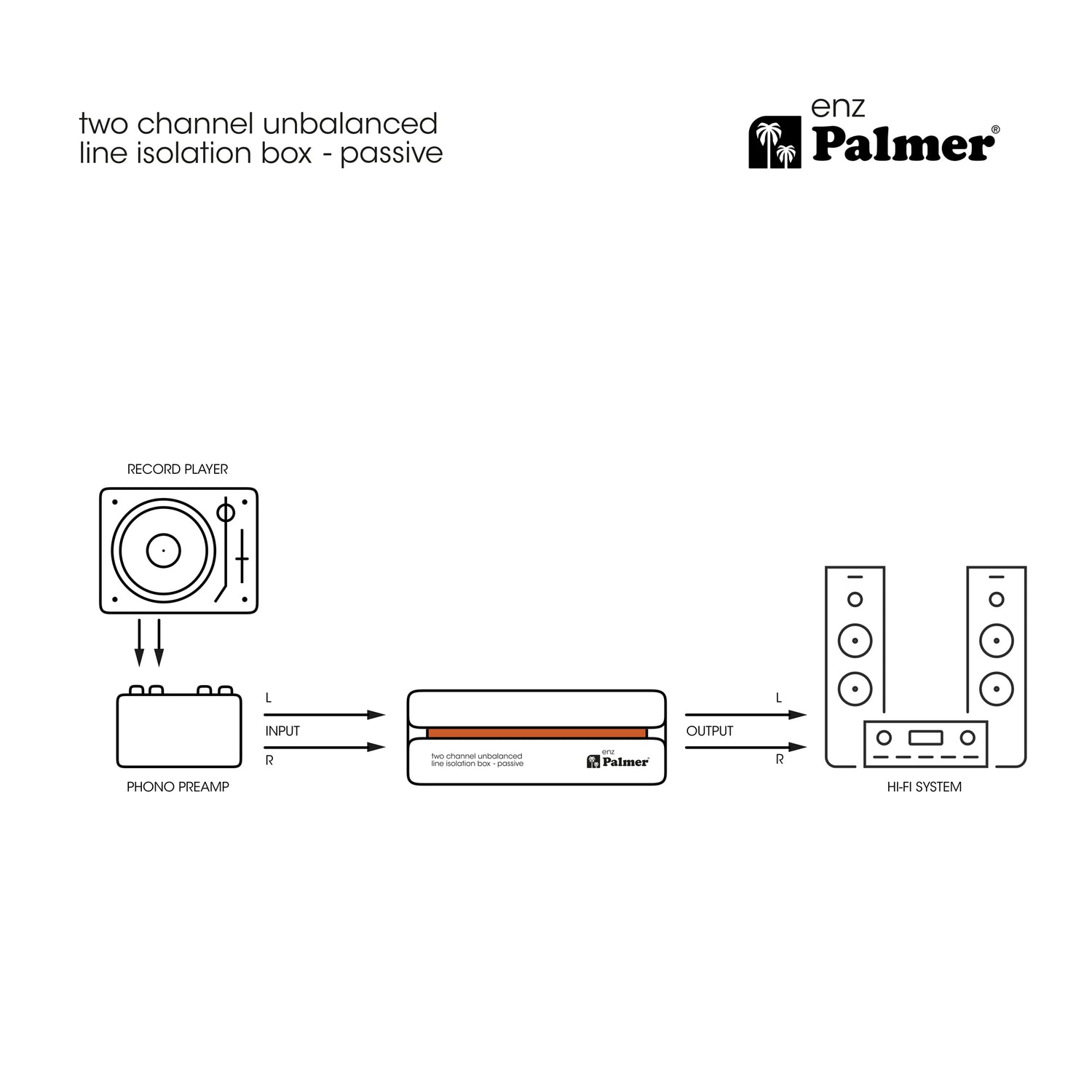

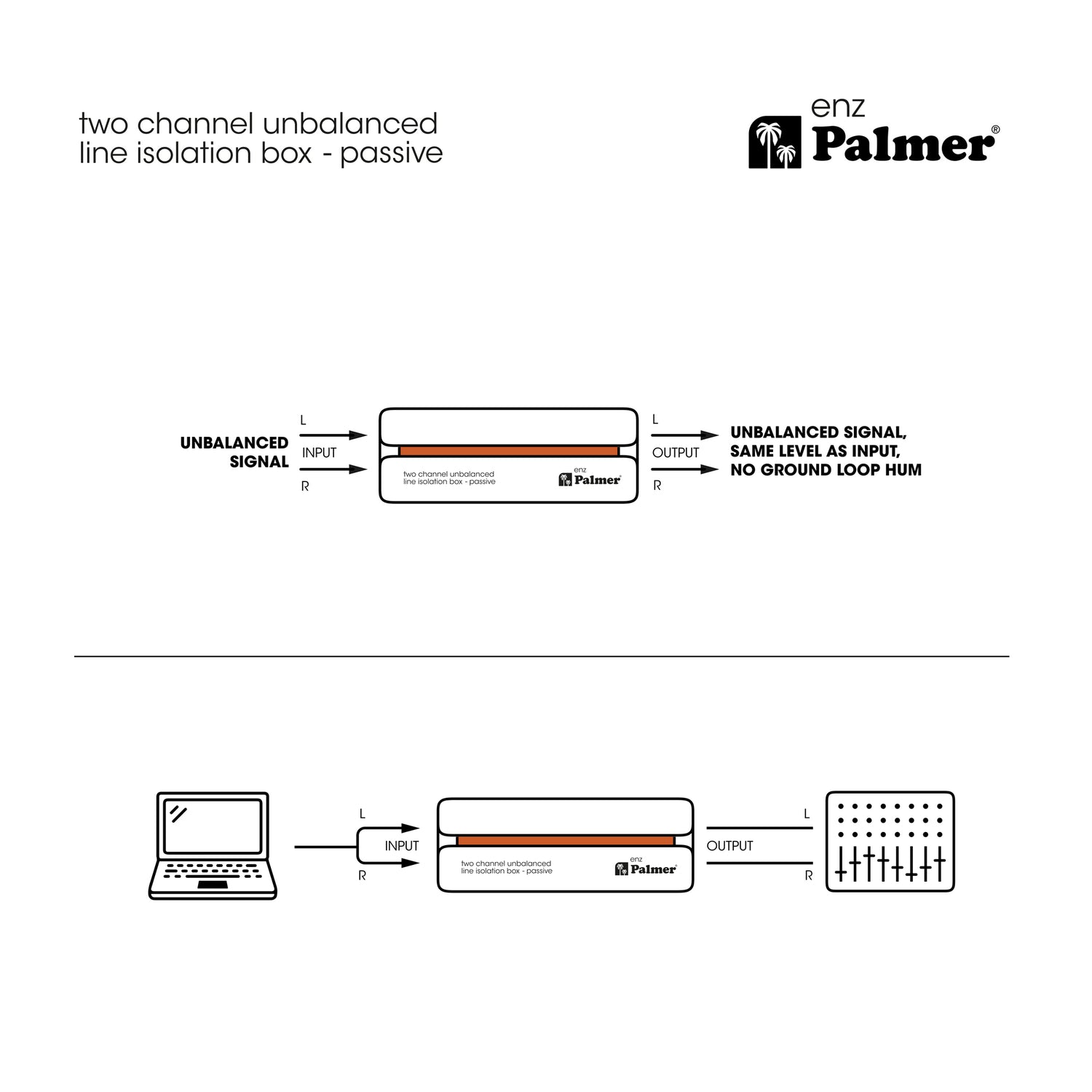

When you connect a media player or a laptop to a HiFi or PA system, you often experience noise such as hum and buzzing caused by ground loops. With Palmer enz,
With Palmer enz you can be sure that such annoying noise signals will no longer occur!
The cause of this interference is mostly due to differences in ground potential, resulting in stray DC currents via the audio lines. The solution is to place a transformer between the two devices to isolate the ground connection. Palmer enz has two of these transformers for its two channels. Its inputs and outputs are RCA connectors, which are common for HiFi and consumer equipment. However, the audio quality will also satisfy professionals, as the sound remains unchanged.
This makes the enz Line Isolation Box a useful problem-solver for home or car HiFi systems and PA systems from conference rooms to nightclubs. A line isolation box simply belongs in every DJ's setup. When there is buzzing and hum, Palmer enz brings silence at the push of a button.
- Eliminates ground loop hum and interfering signals
- Two channel

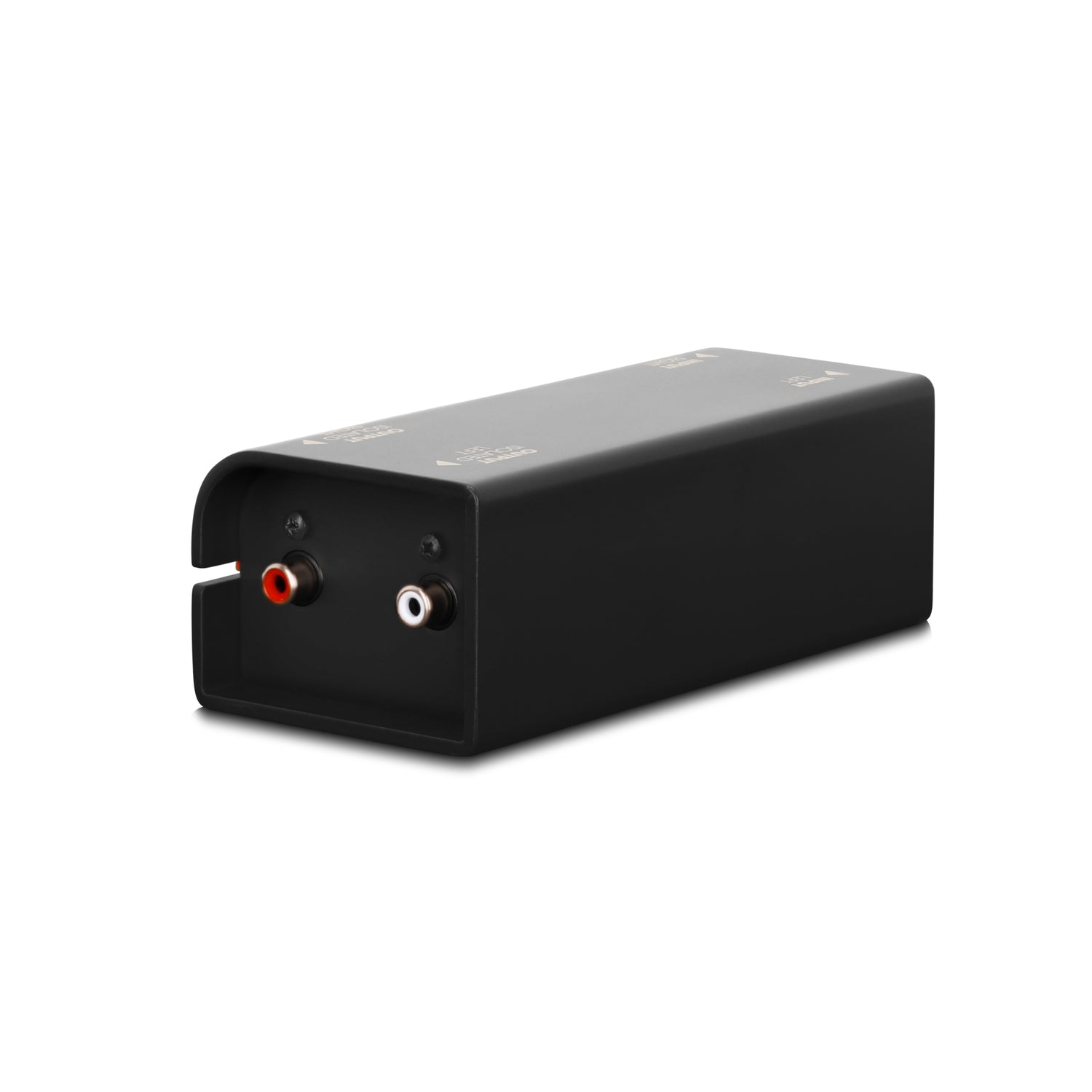

- 2 RCA inputs
- 2 RCA outputs
- Galvanic isolation via transformer
- No loss of sound quality
- Perfect for HiFi systems, car stereos, presentations and installations
- No power supply needed

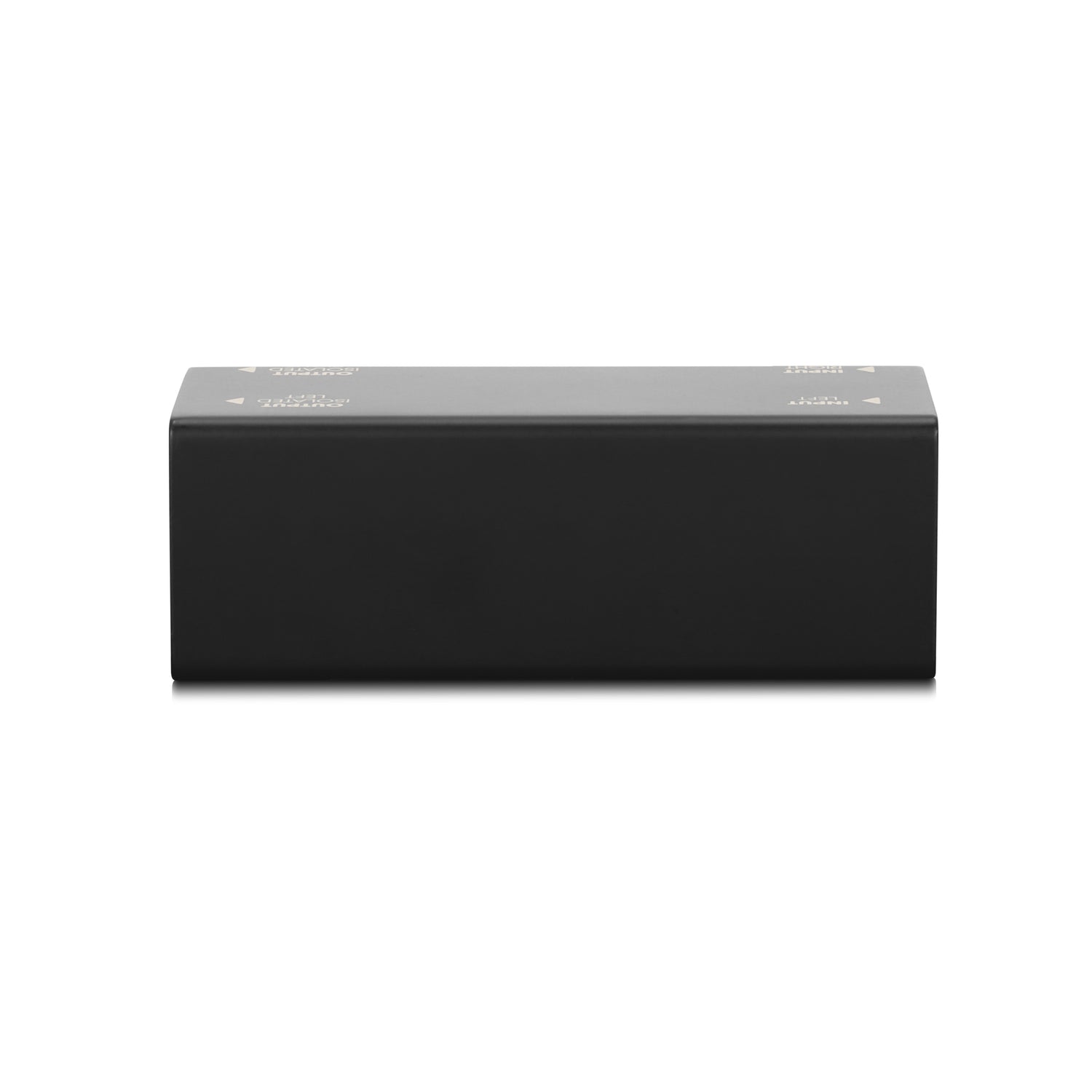

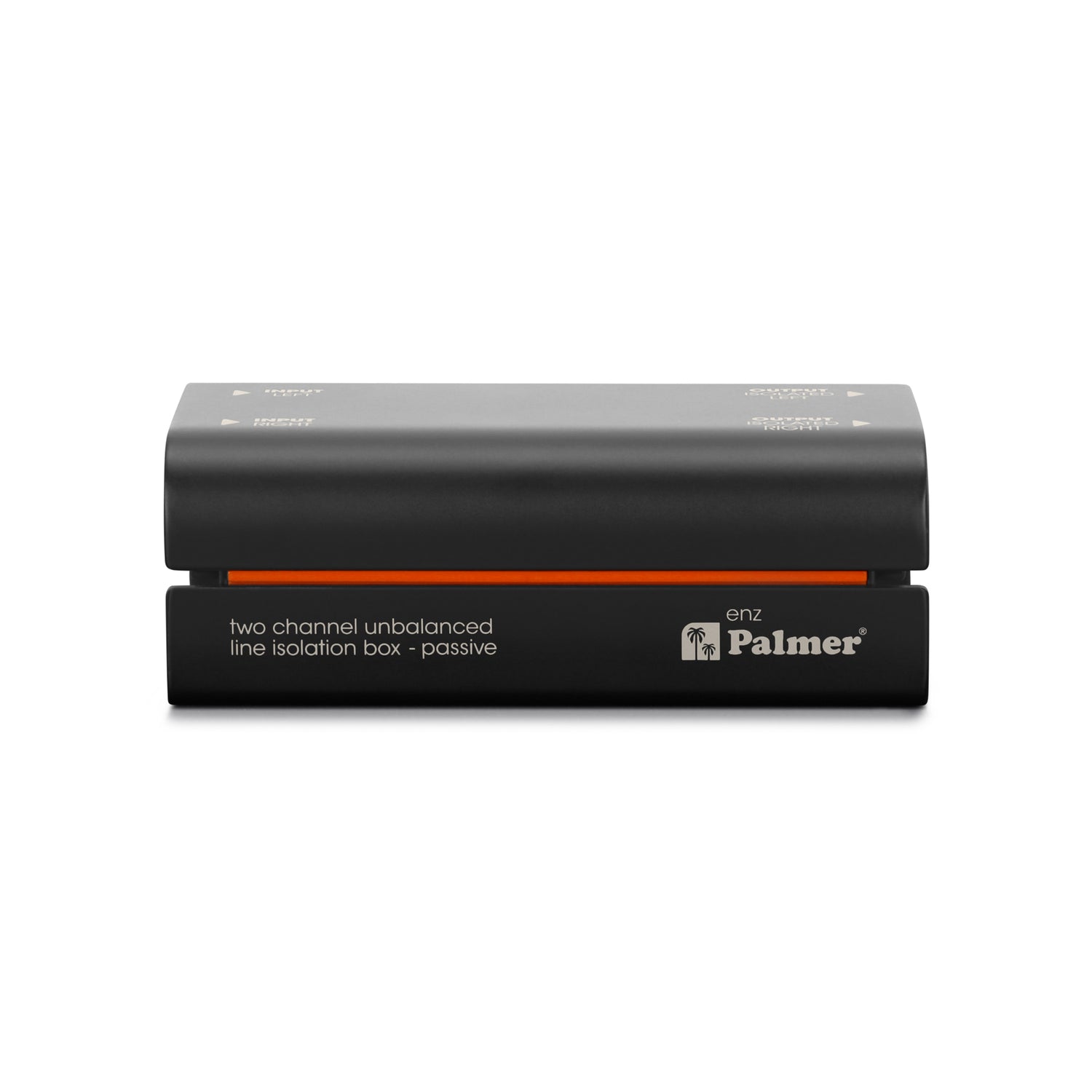

- Solid casing made of aluminium and steel

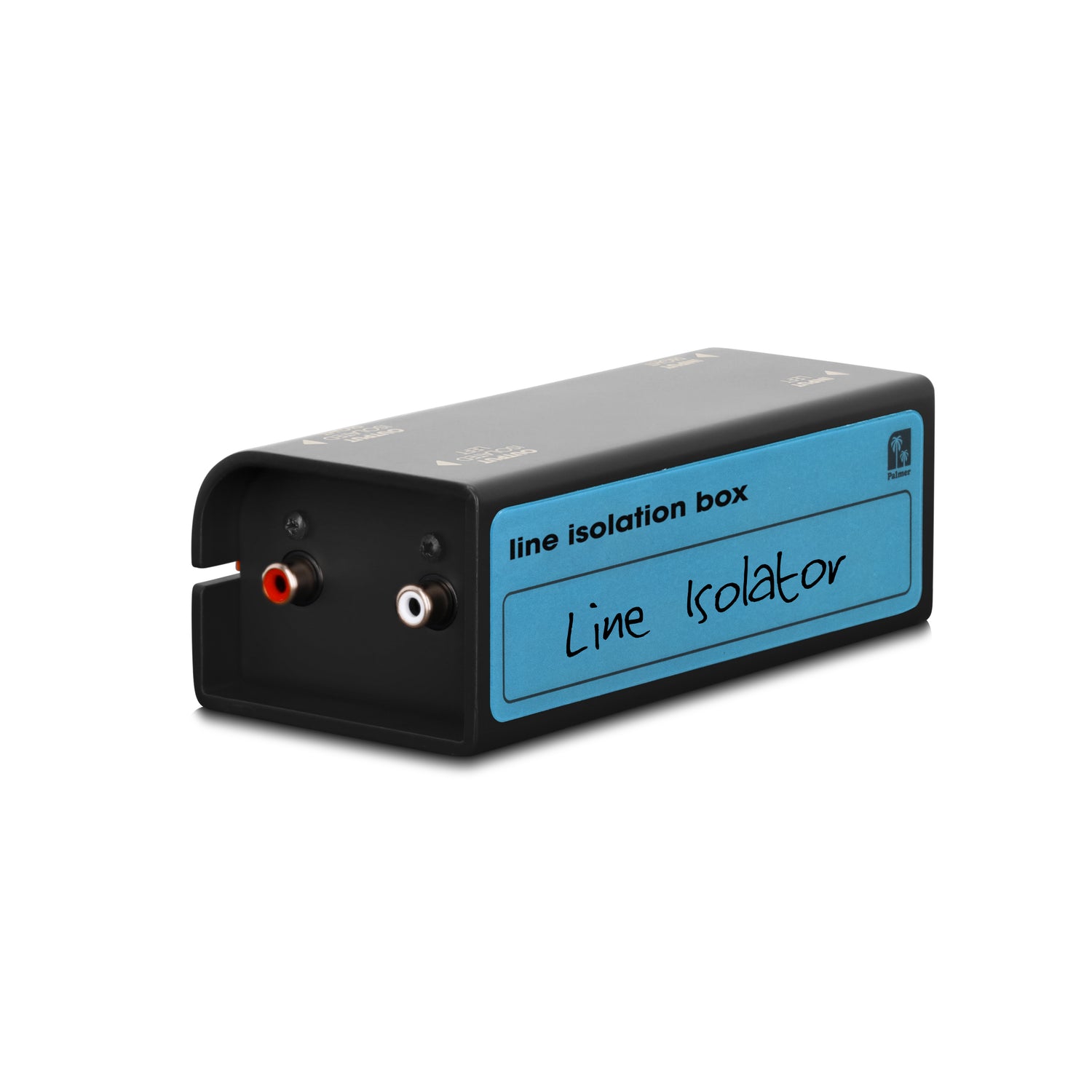

- Incl. rewritable tour label for attachment onto the back of the enz
- Engineered in Germany
| Product type | line isolator |
| Type | passive |
| Channels | 2 |
| Transformer isolated | Yes |
| Number of inputs | 2 |
| Input type | unbalanced |

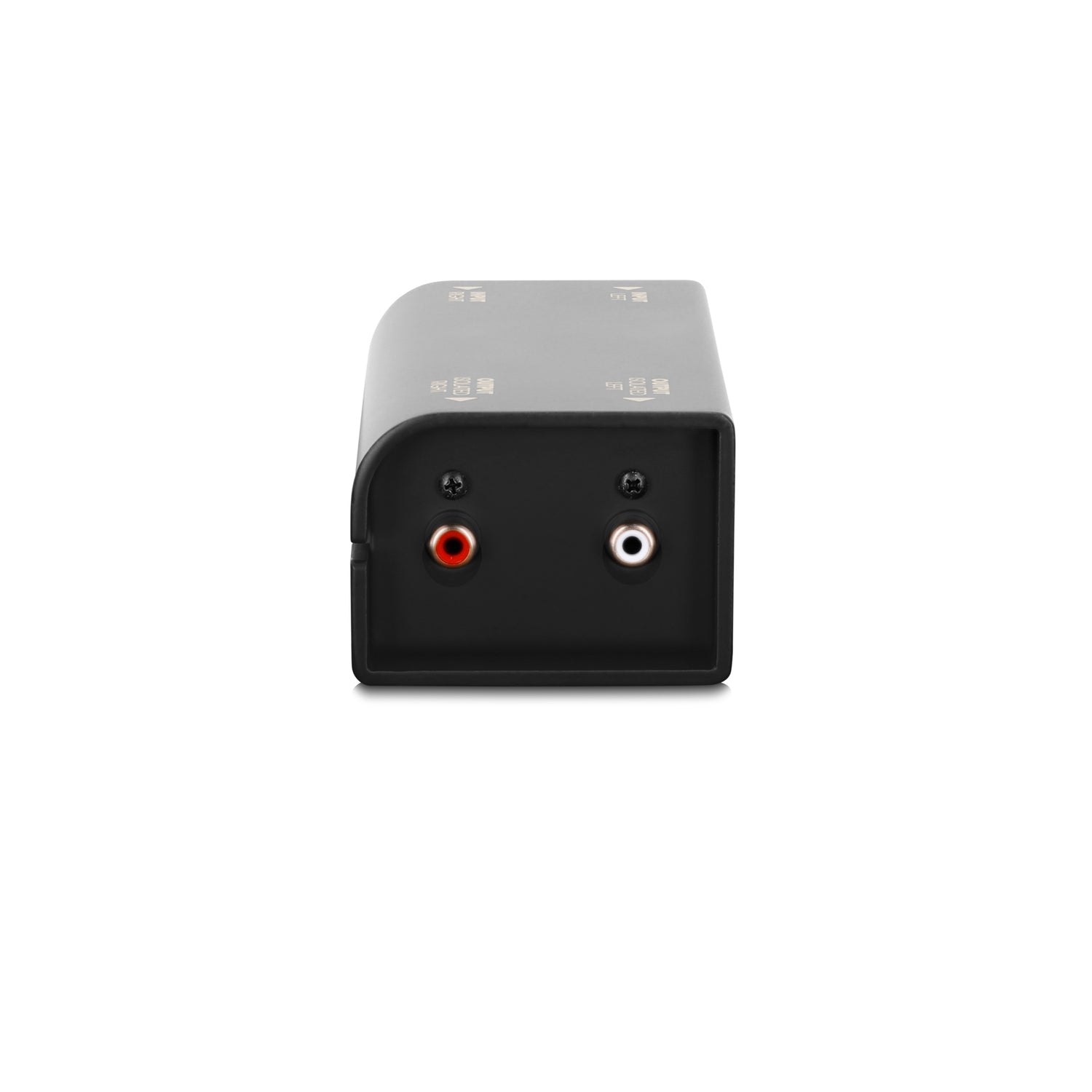

| Input connectors | RCA |
| Number of outputs | 2 |
| Output type | Unbalanced |
| Output connectors | RCA |

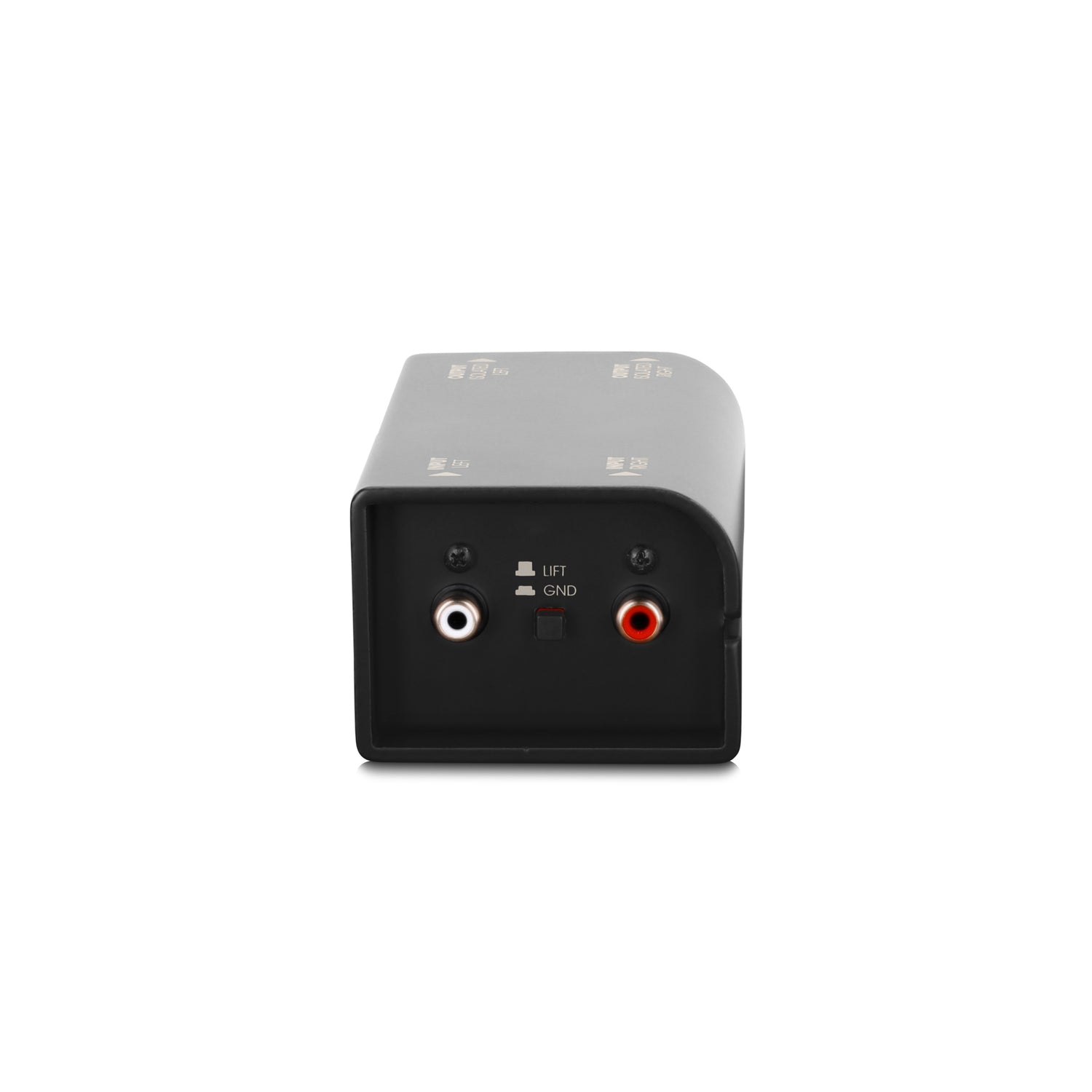

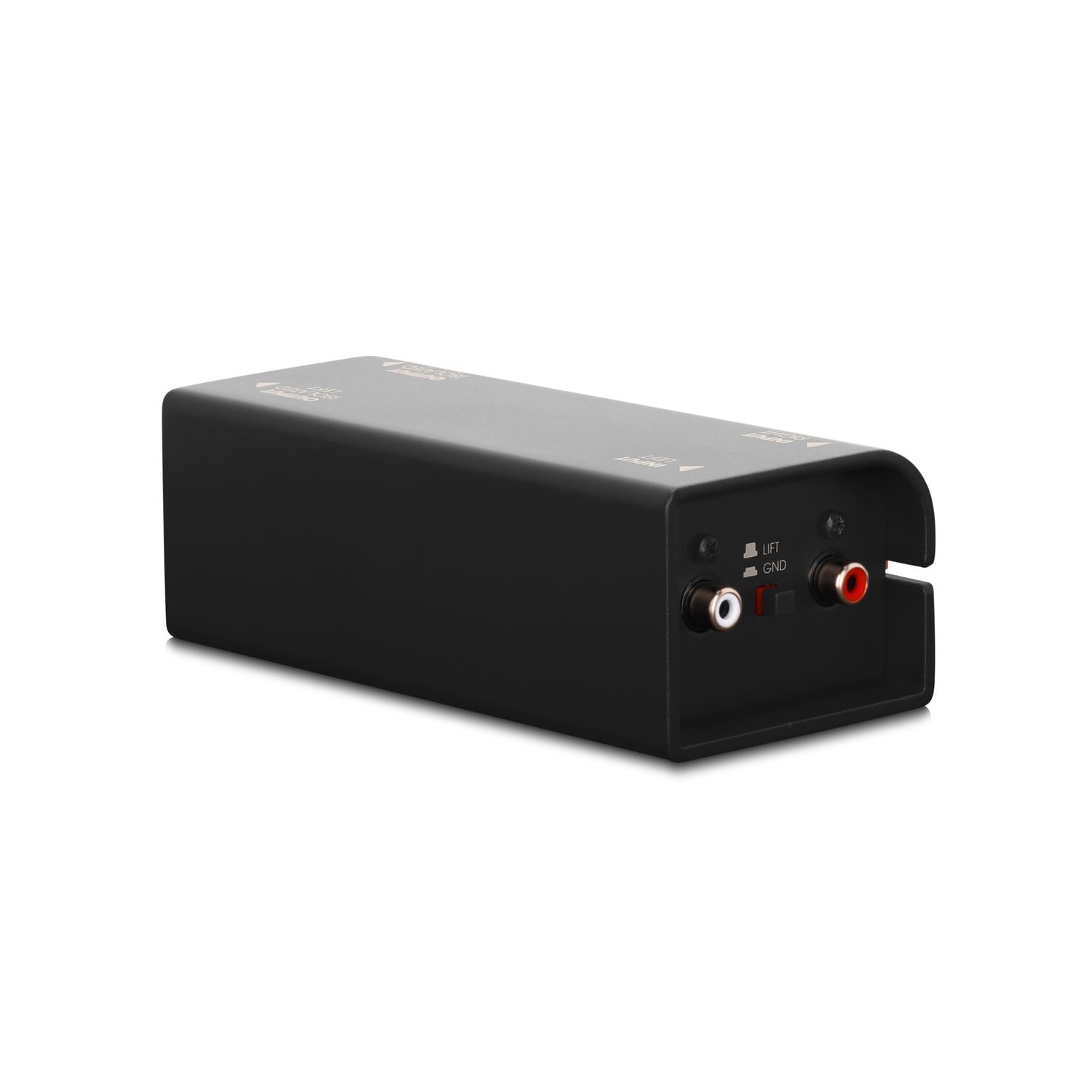

| Ground lift switch | Yes |
| Housing | Aluminium continuous casting |
| Dimensions (W x H x D) | 140 x 50 x 68 mm |
| Weight | 0,42 kg |
| Ambient temperature (in operation) | - 20 - 70 °C |
| Relative Humidity | < 80% (non-condensing) |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
Audio
| Max. input level (< 1% THD, 20 Hz) | + 14 dBu |
| Max. input level (< 1% THD, 1 kHz) | +32 dBu |
| Frequency response (±1dB, relative 1kHz) | 5 Hz - 20 kHz |
| Input impedance (1 kHz, Setting: 0 dB Pad, THRU) | 16 kOhm |
| Output impedance (1 kHz, Setting : 0 dB Pad, THRU) | 1,3 kOhm |
| THD (30 Hz, +4 dBu, unity, unweighted) | < 0.15 % |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,003 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | < 0,003 % |
| Transformer ratio | 1 : 1 |
