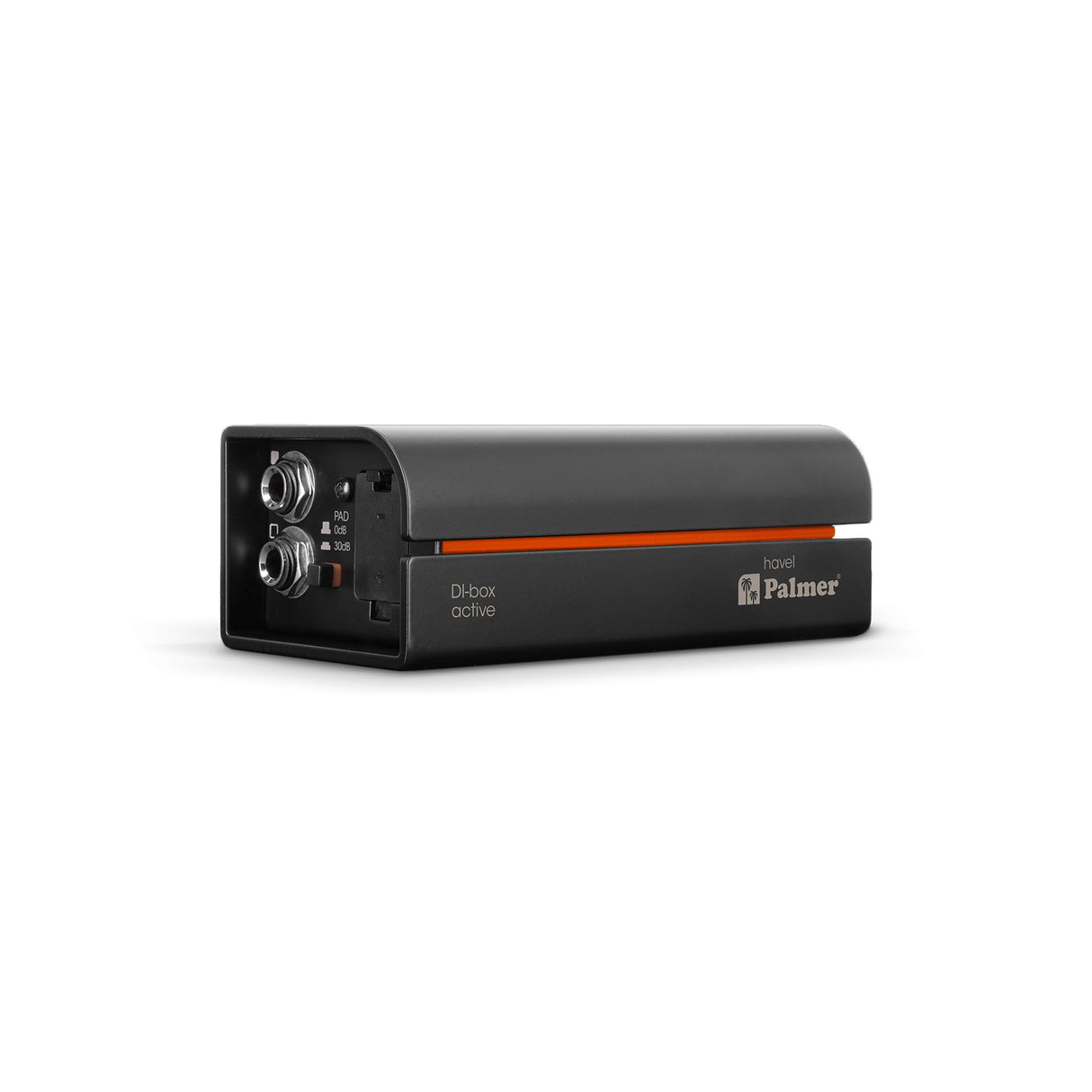

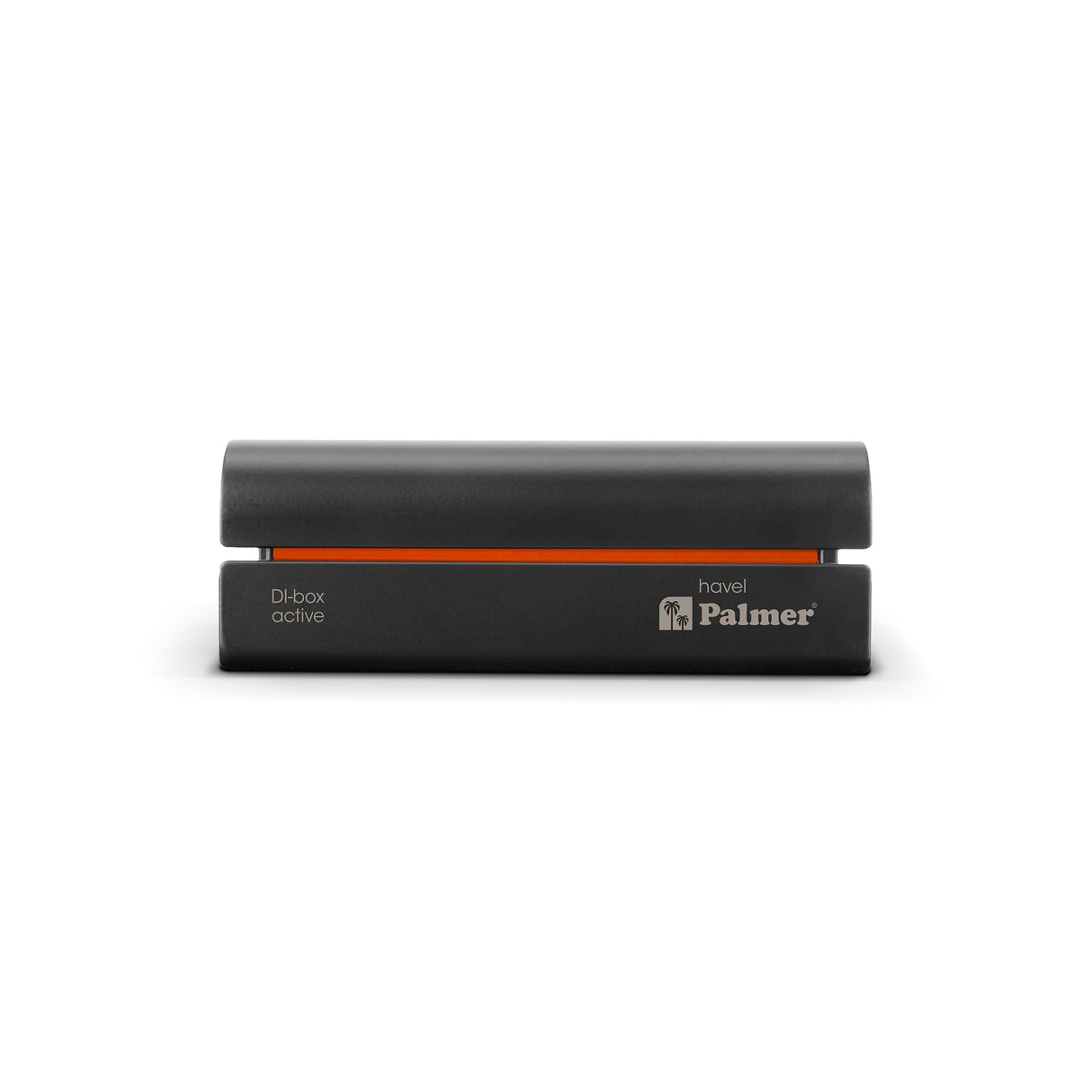

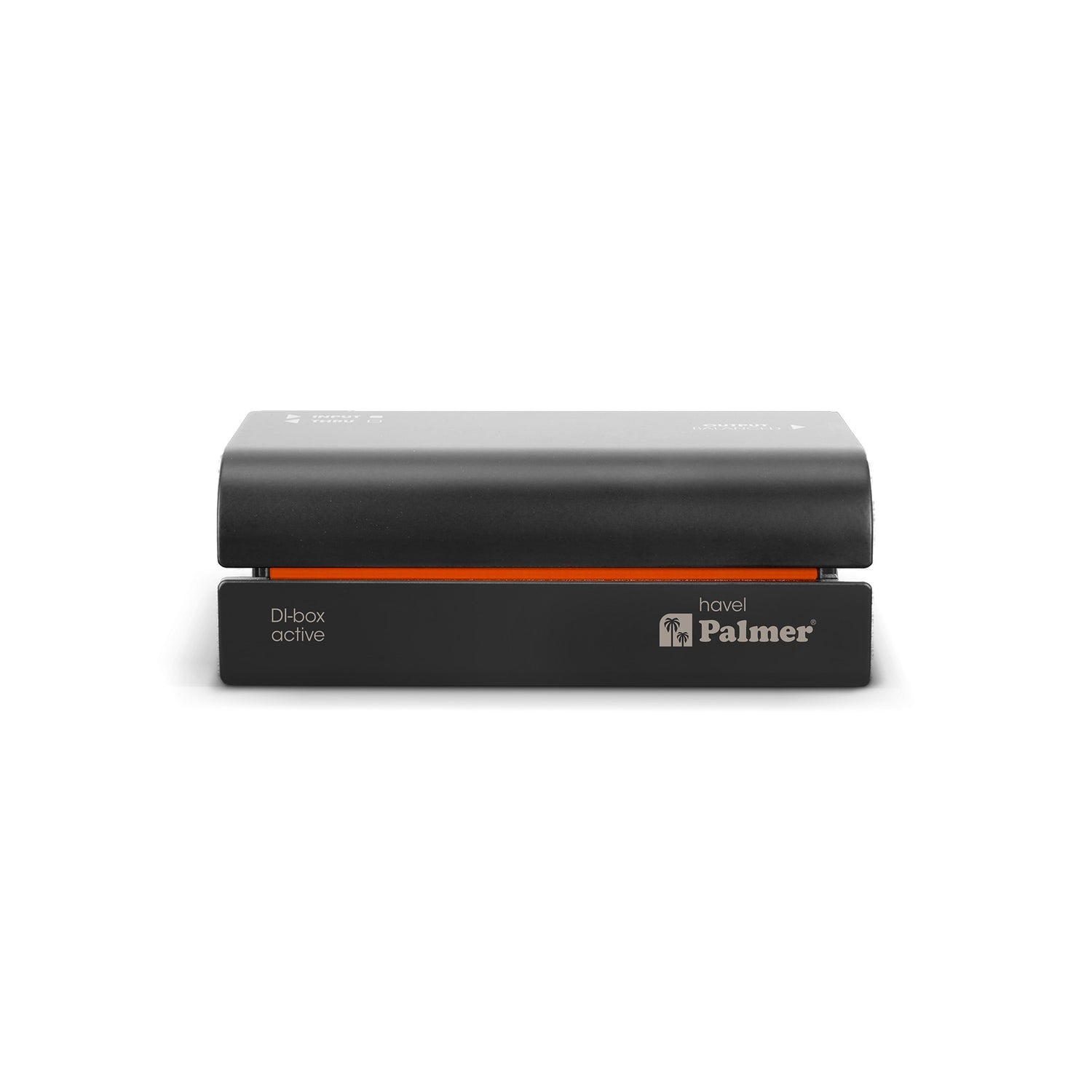

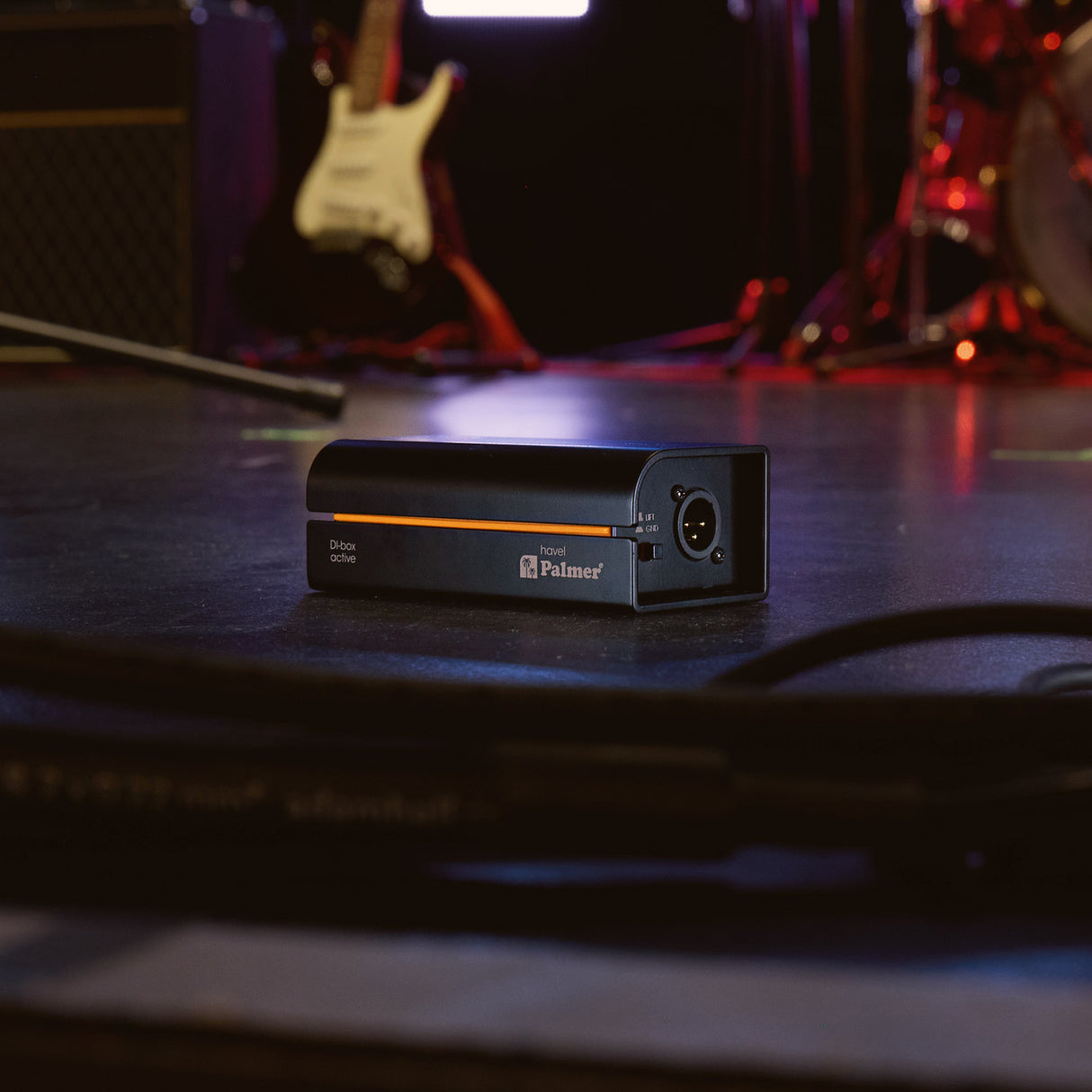

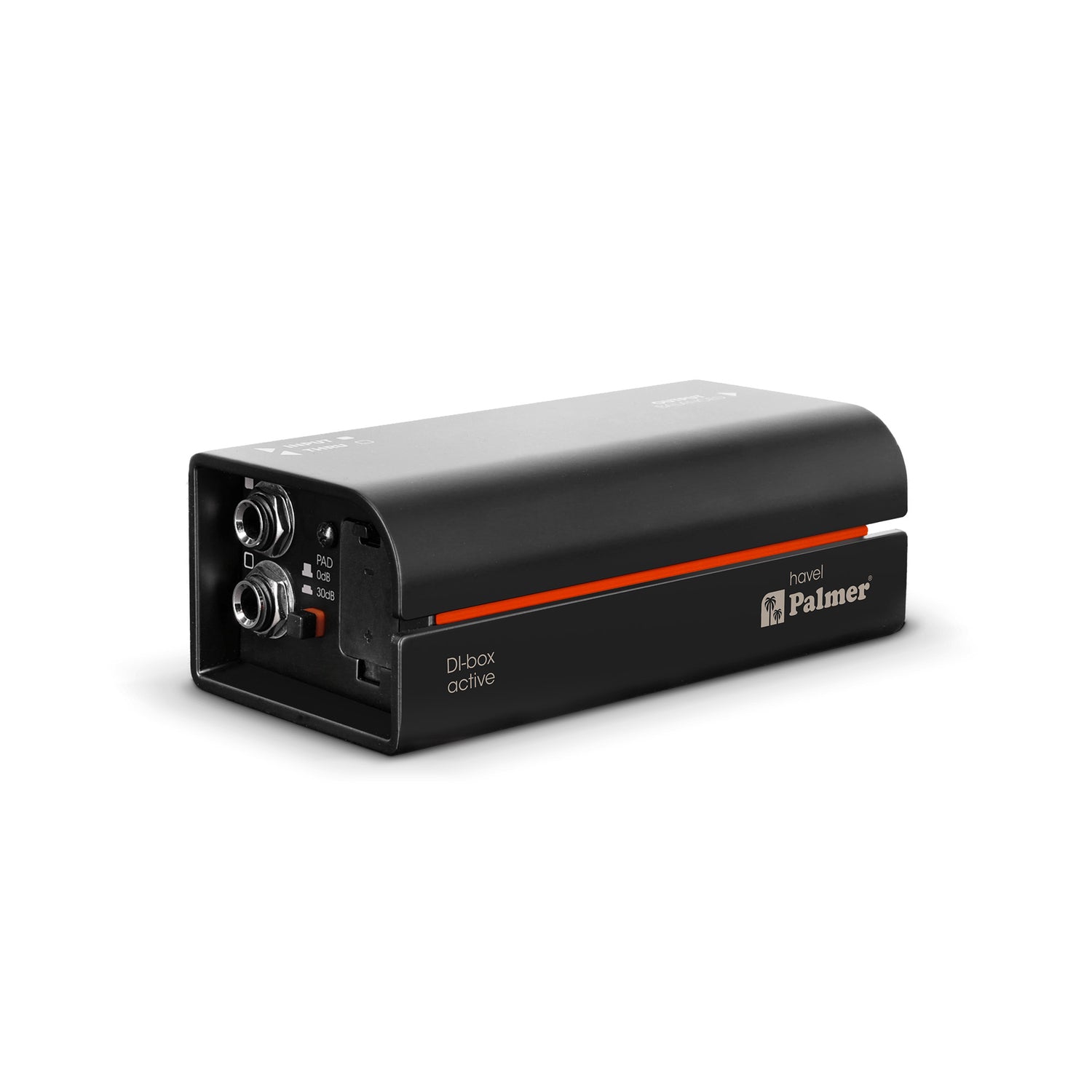

Palmer RIVER havel - Active DI box
€157,95
Unit price
/
Not available
Description
Description

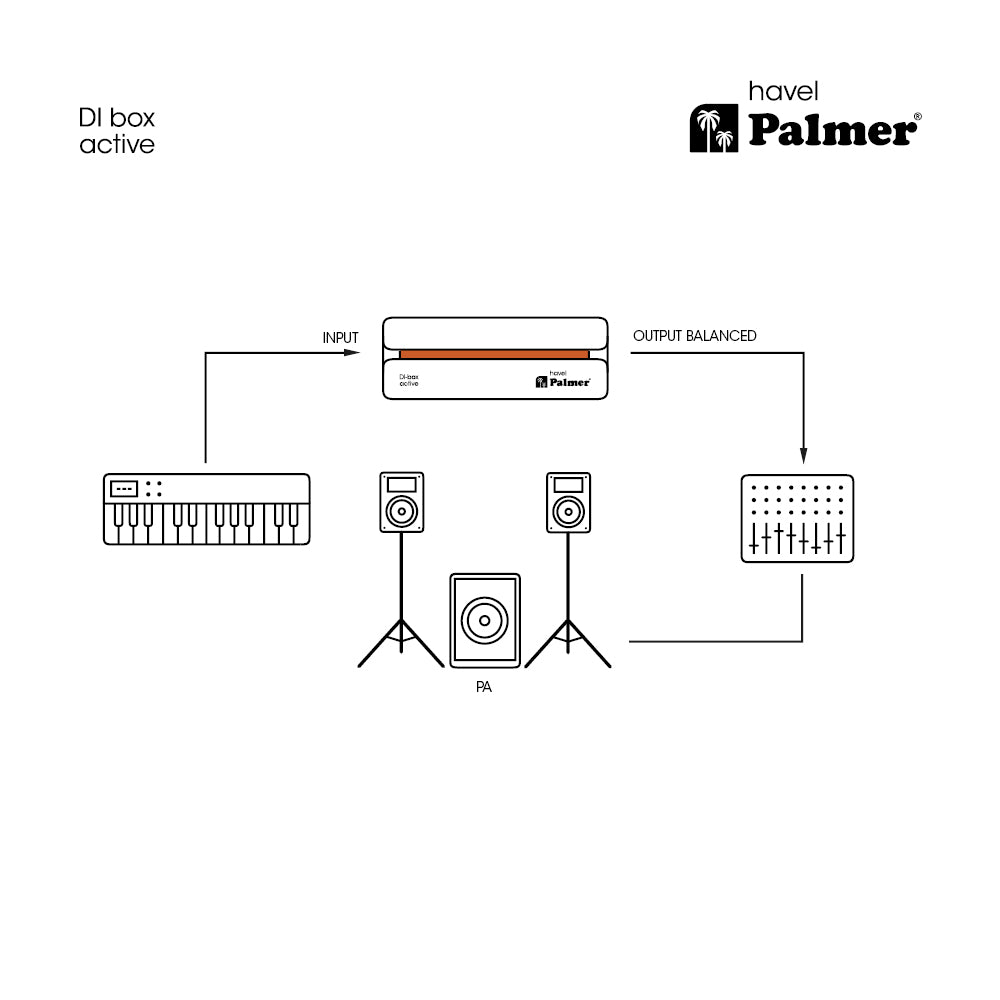

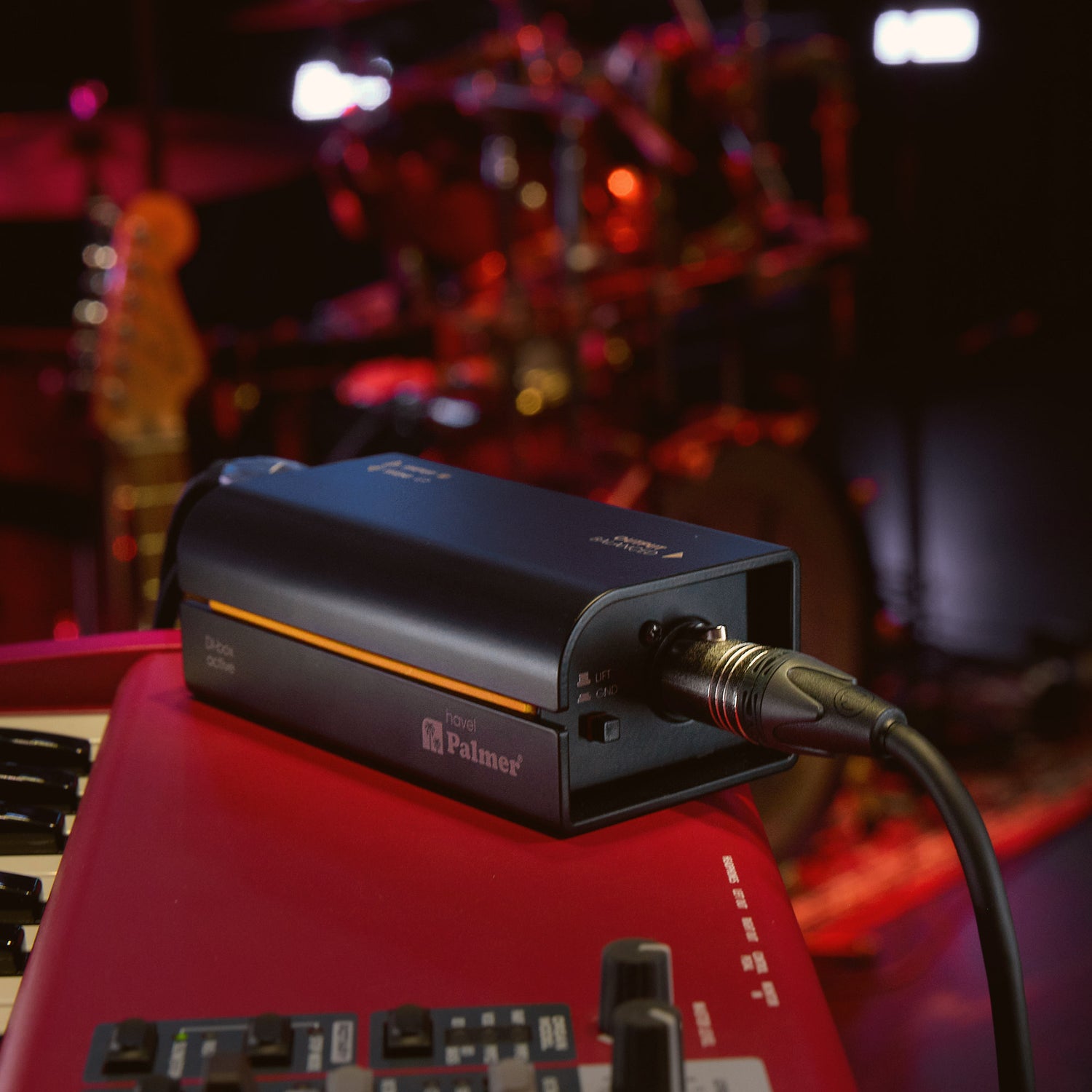

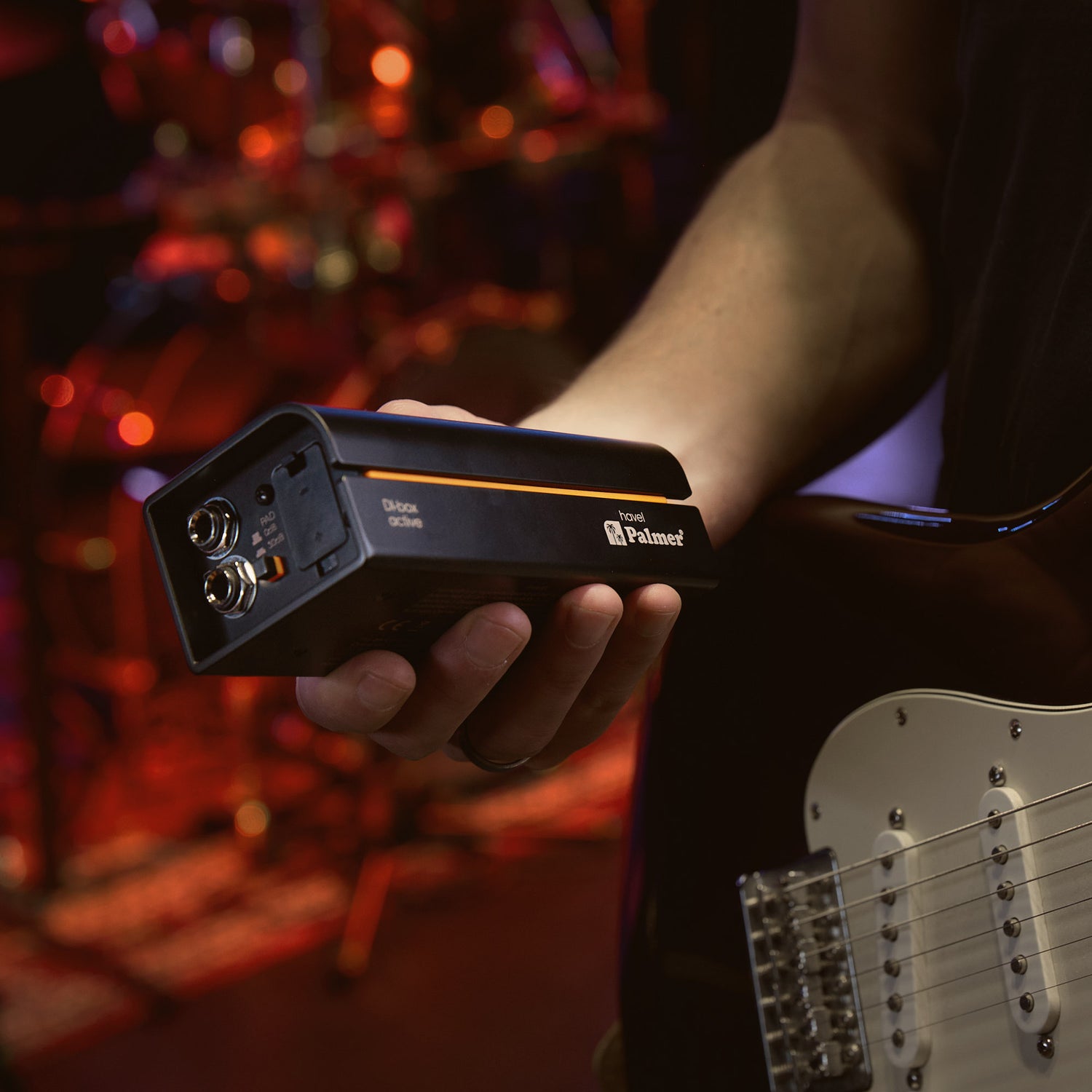

Are you looking to capture a clean guitar, bass or electric piano signal with all its brilliance and without any tonal changes? An active DI box offers the best solution – as long as it has the same high build quality as Palmer havel. havel’s low-noise active circuitry provides a higher input impedance than a passive DI box. This means your instrument’s sound is captured without any loss of treble or bass. High input impedance is particularly important when used with the magnetic pickups found in electric guitars, electric basses and electromechanical electric pianos (e.g. Rhodes), as well as with (passive) piezo pickups for acoustic instruments. Palmer havel is also ideally suited to synthesizers and other electronic keyboards, as it offers sufficient headroom to handle even high-level signals without unwanted distortion.

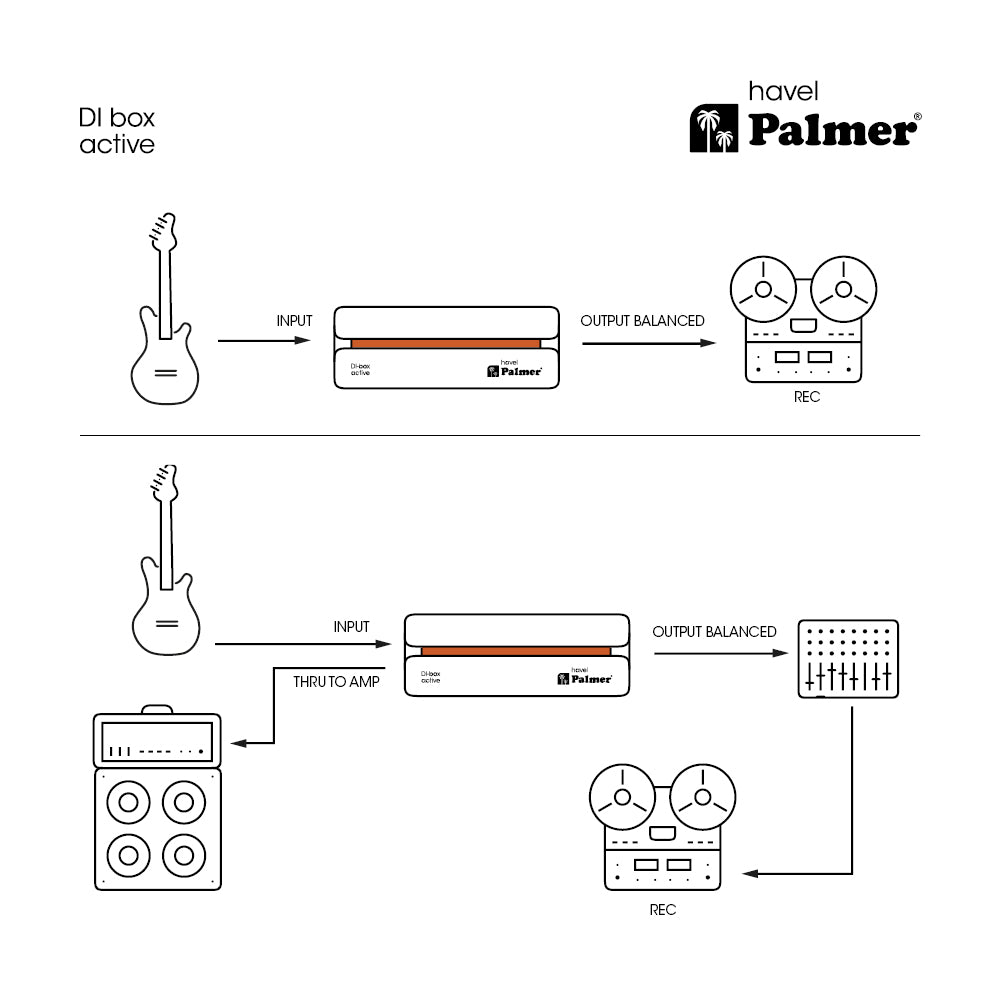

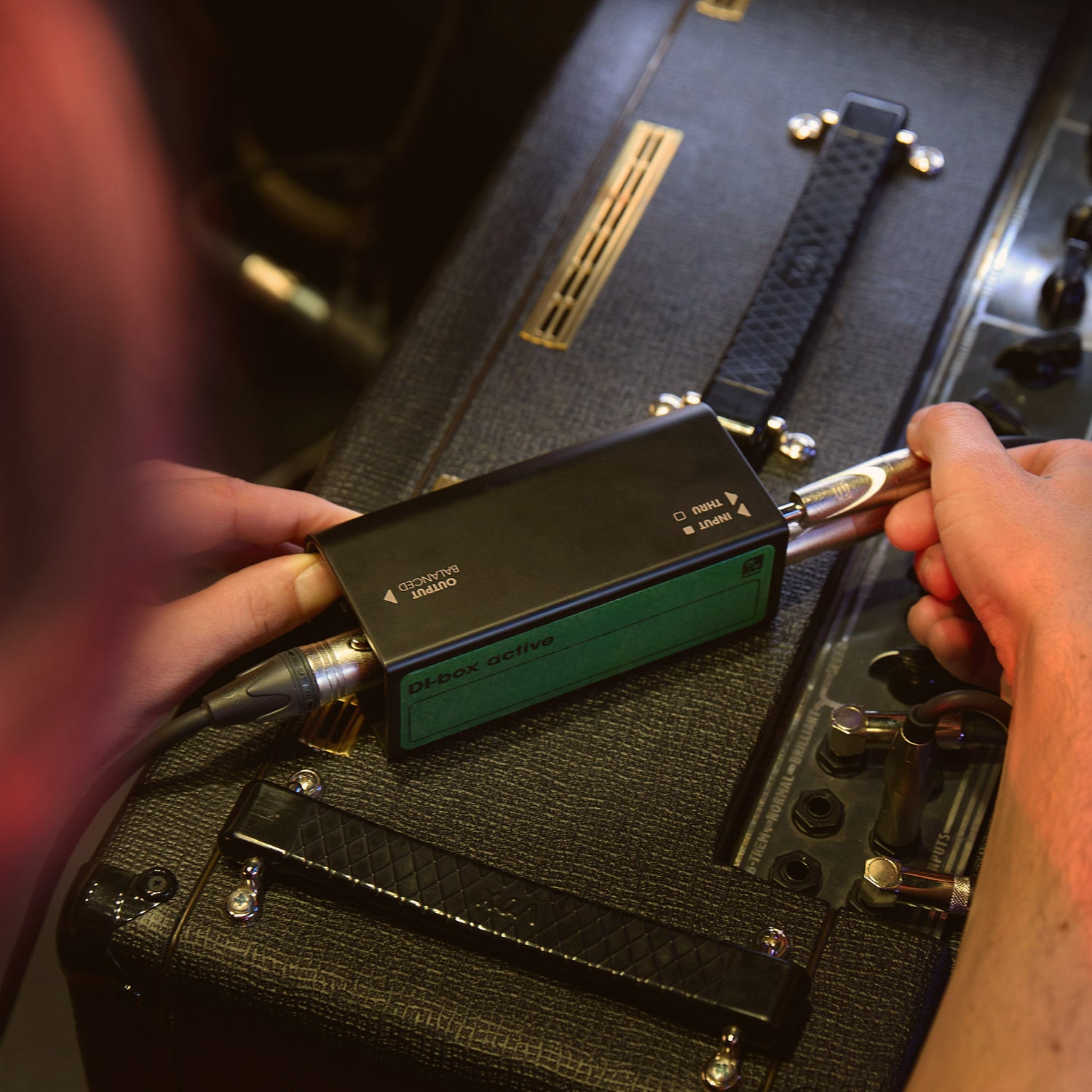

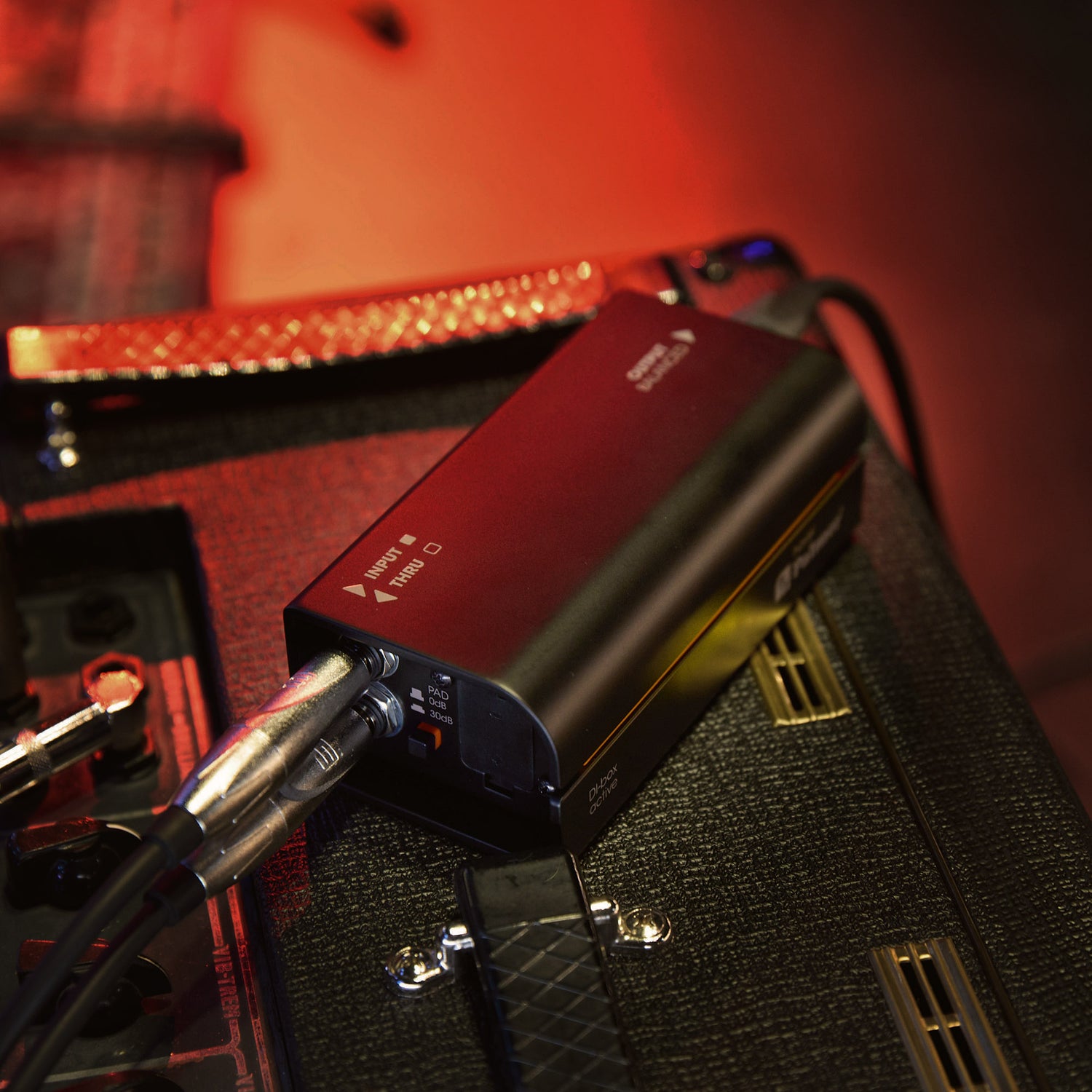

Palmer havel of course has a THRU output to pass the input signal on to the instrument amplifier. With 30 dB pre-attenuation engaged, Palmer havel can also be inserted between the amplifier’s output and the speaker if you want to include the sound of the amplifier rather than the “raw” instrument signal.

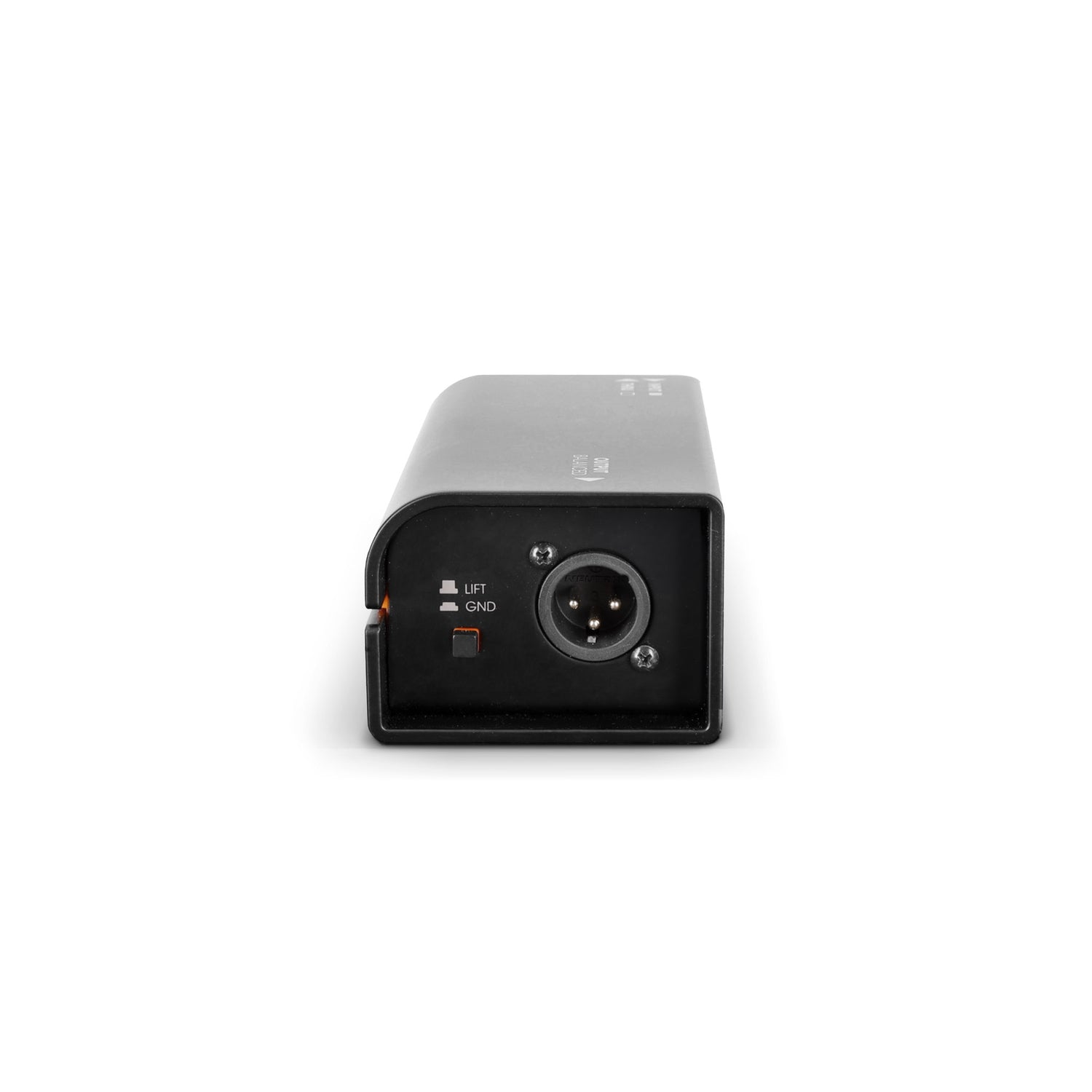

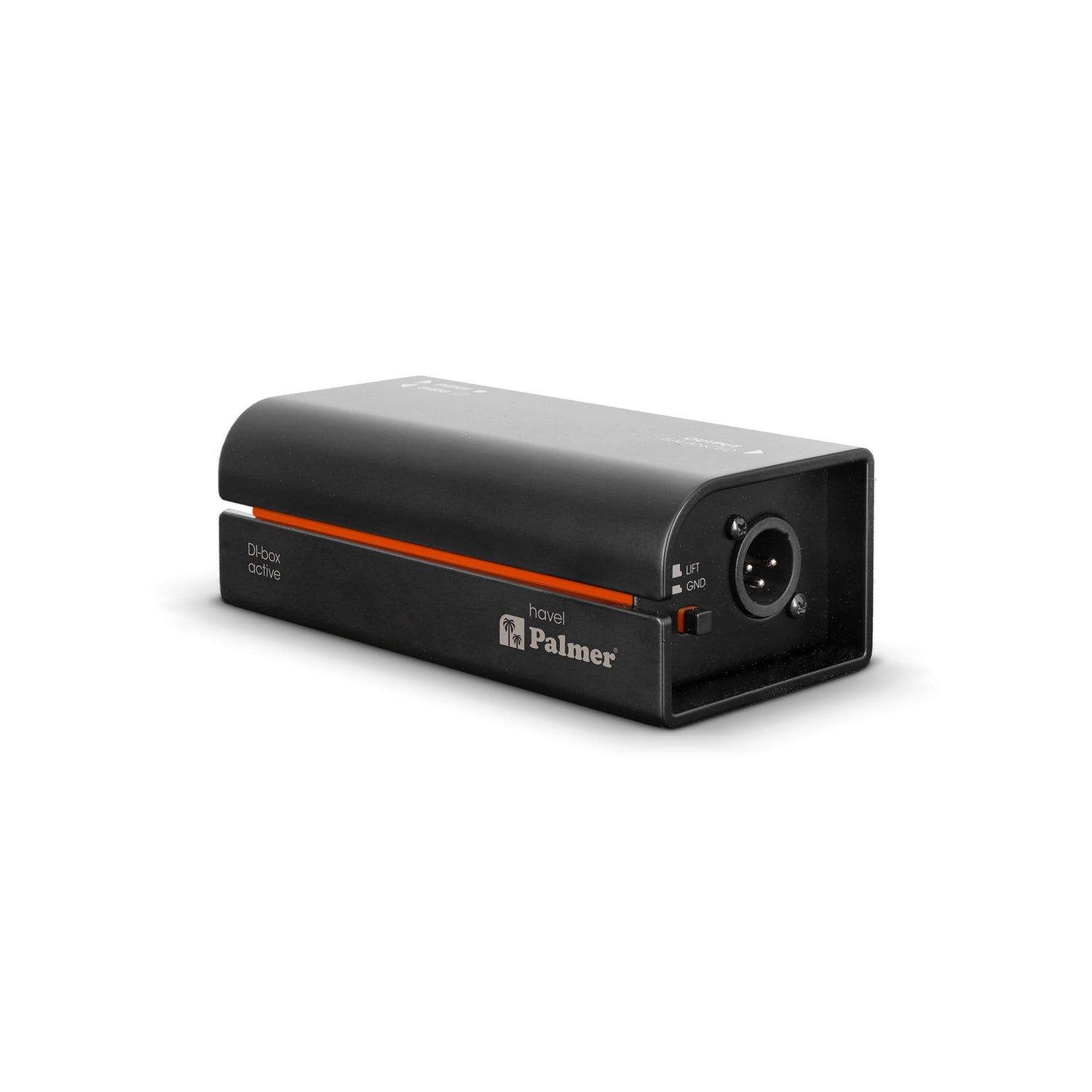

The balanced, low-impedance output signal from Palmer havel is resistant to interference, enabling long cable runs without any loss of sound quality. Thanks to the built-in transformer, the XLR output is galvanically isolated. Any ground loops that may occur can easily be eliminated by pressing the ground lift switch. For power, you can use 48V phantom power or a standard 9V battery.
We’re sure you’ve spent a long time finding YOUR sound, and that you’ve invested a lot of time and money into making your instrument sound the way it should. Palmer havel transfers your sound faithfully and without interference. This means your sound reaches the listener exactly as nature intended!
Technical specifications
Technical specifications
- Balancing and impedance matching for guitar/bass/keyboards/synthesisers
- Eliminates ground loop hum through galvanic transformer isolation
- Neutral sound thanks to active input stages with high impedance
- Low noise floor

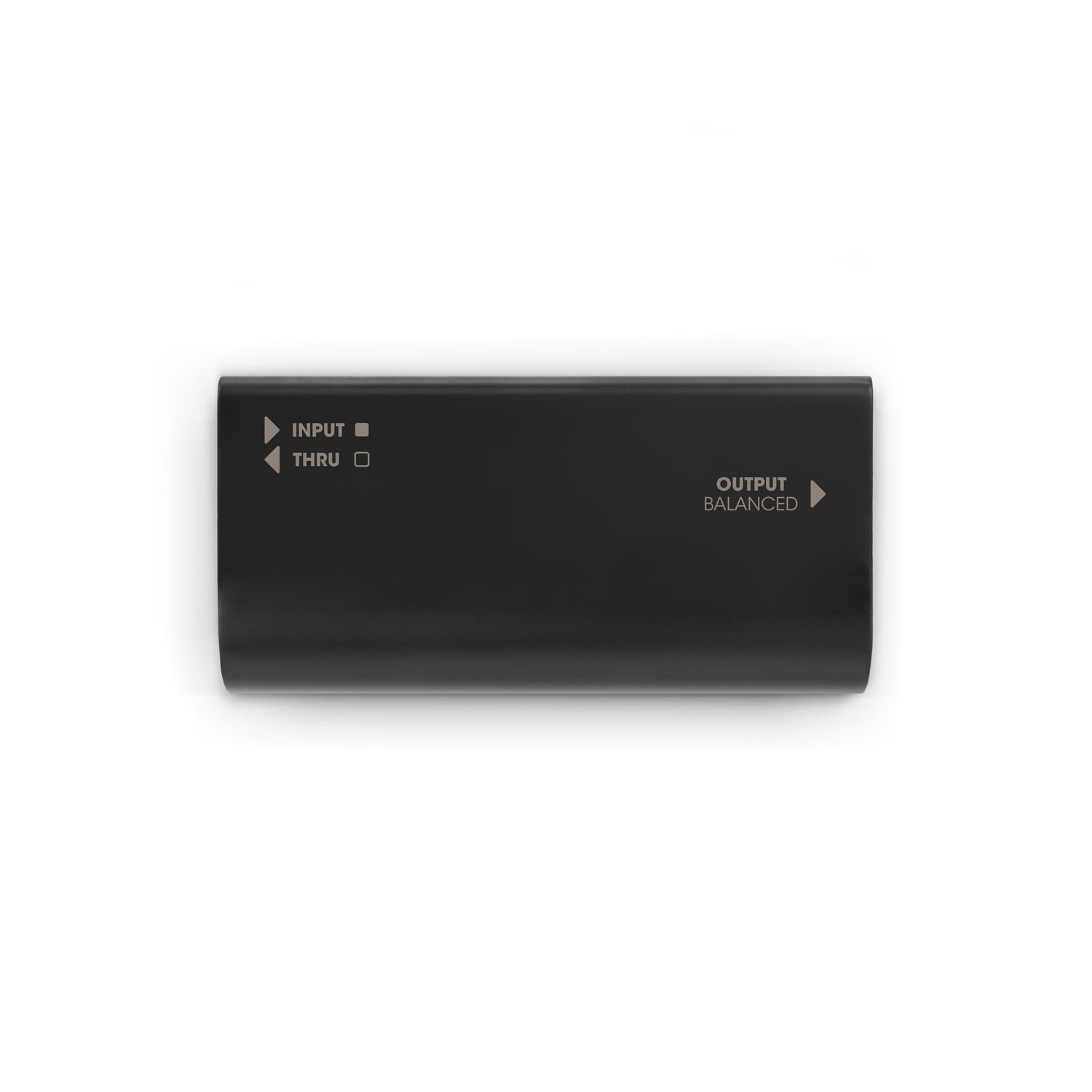

- THRU connection for passing the input signal to the amplifier
- Handles even high-level inputs without distortion

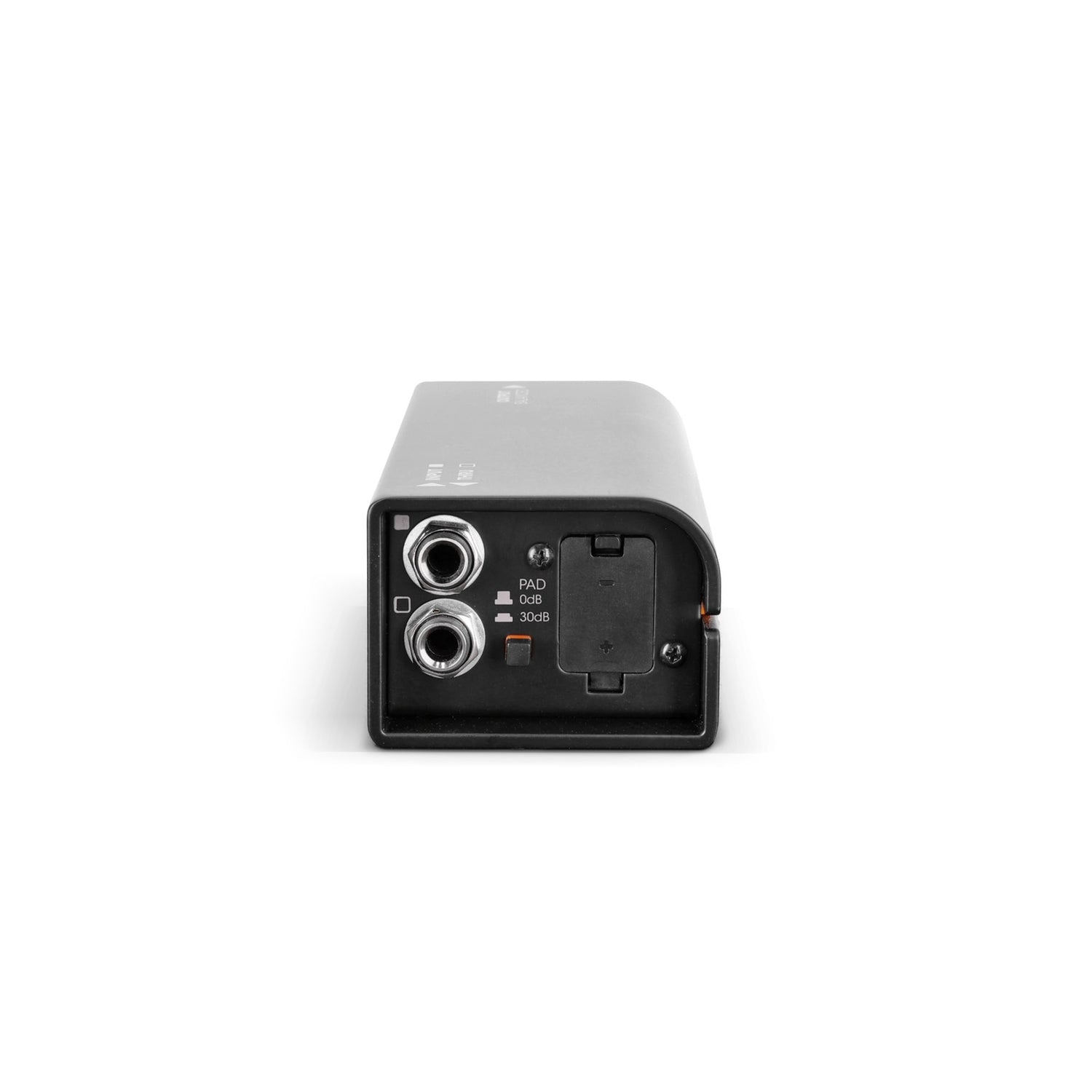

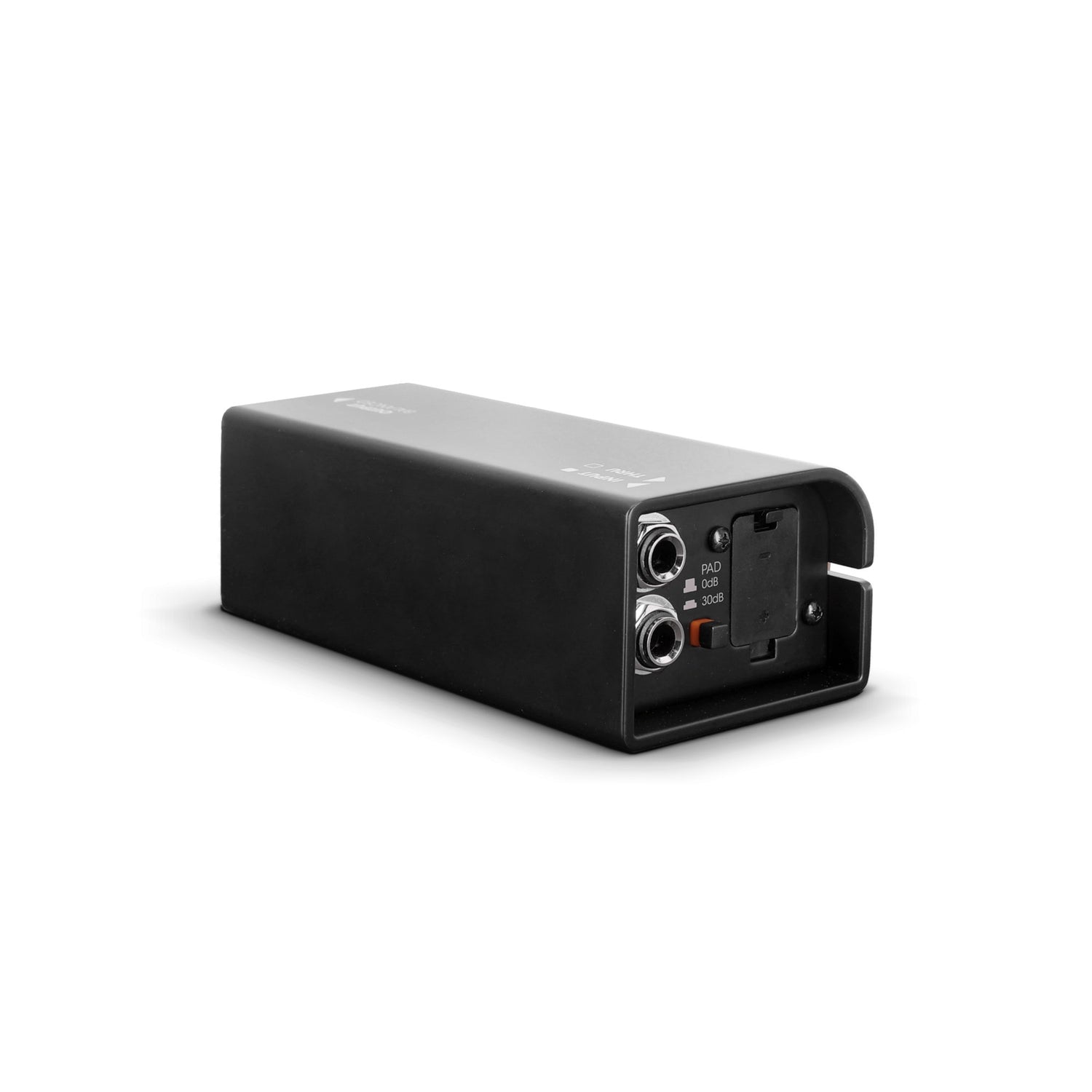

- Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
- Power supply via 9V battery or 48V phantom power unit
- Road-ready aluminium and steel casing

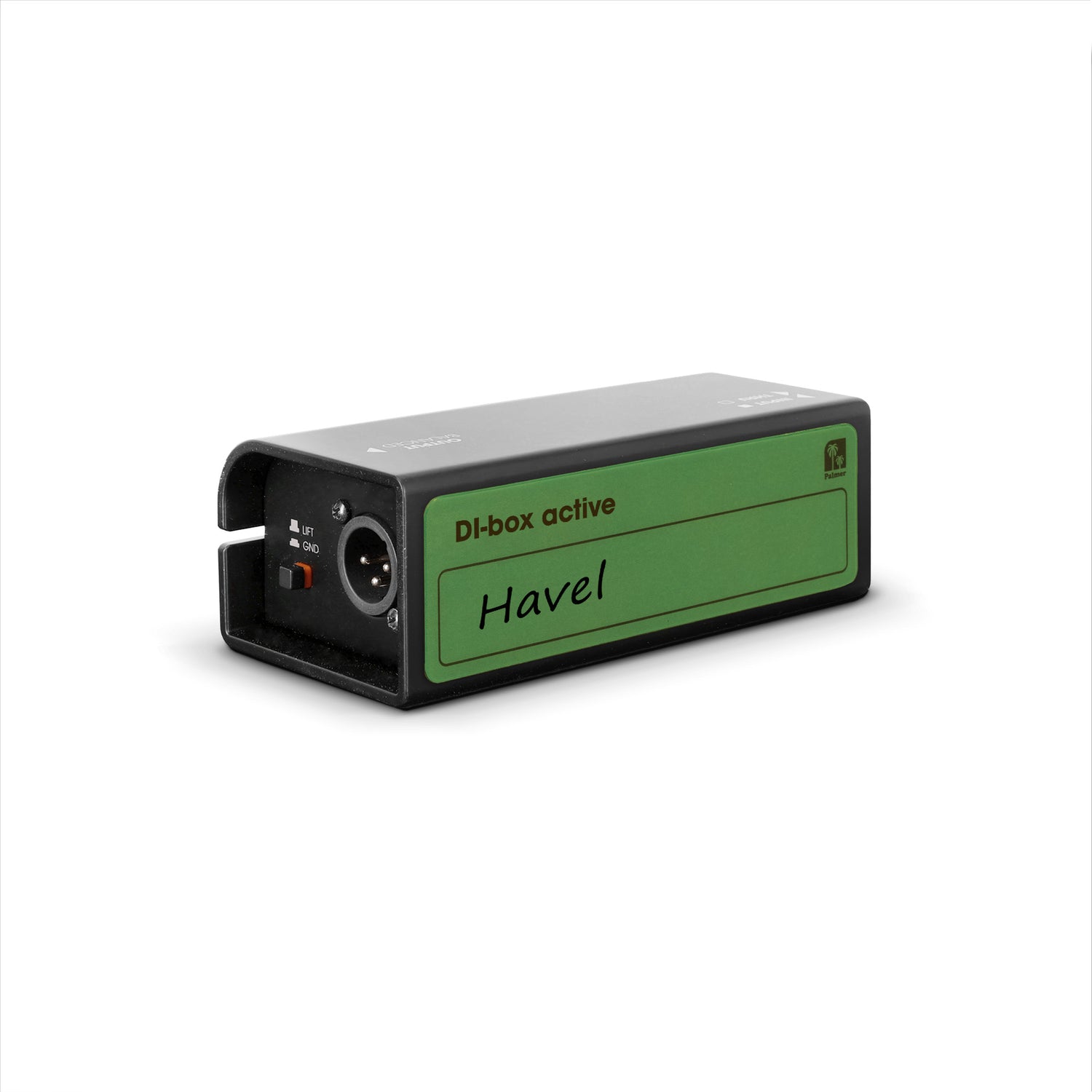

- Incl. rewritable tour label for attachment on to the back of the havel
- Engineered in Germany
General
| Type | Active |
| Included Accessories | Rubber feet |
| Included Accessories | Tour label |
| Isolated transformer | Yes |
| Transformer Ratio | 1:1 |
| Ground Lift | Yes |
| On/Off switch | No |
| Frequency response (±1 dB, rel. Avg) | 20 - 20,000 Hz |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Number of channels | 1 |
Inputs
| Input signal type | Unbalanced |
| Input connector types | 6.3 mm Jack TS |
| Number of instrument inputs | 1 |
| Max. input level | 9.5 dBu |
| Input impedance | 500 kΩ |
| Input pad | 0 dB |
| Input pad | 30 dB |
Outputs
| Output signal type | Balanced |
| Output connector types | XLR 3-pole male |
| Linked outputs per channel | 1 |
Line output performance
| Max. output level | 4.5 dBu |
| Balanced output impedance (1 kHz) | 100 Ω |
Signal processing
| Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted) | 105 dB |
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted) | 0.0017 % |
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted) | 0.0026 % |
| Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu) | 0.0017 % |
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu) | 0.0017 % |
Mains operation
| Operation voltage | 48 V phantom power |
| Rated power | 0.5 W |
Battery operation
| Batteries | 1 x 9V block (6LR61) |
| Built in battery tester | No |
Housing
| Chassis material | Aluminum continuous casting |
| Colour | Black |
Environmental
| Ambient temperature | -20 - 70 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 140 mm |
| Height | 50 mm |
| Depth | 68 mm |
| Weight | 0.41 kg |
