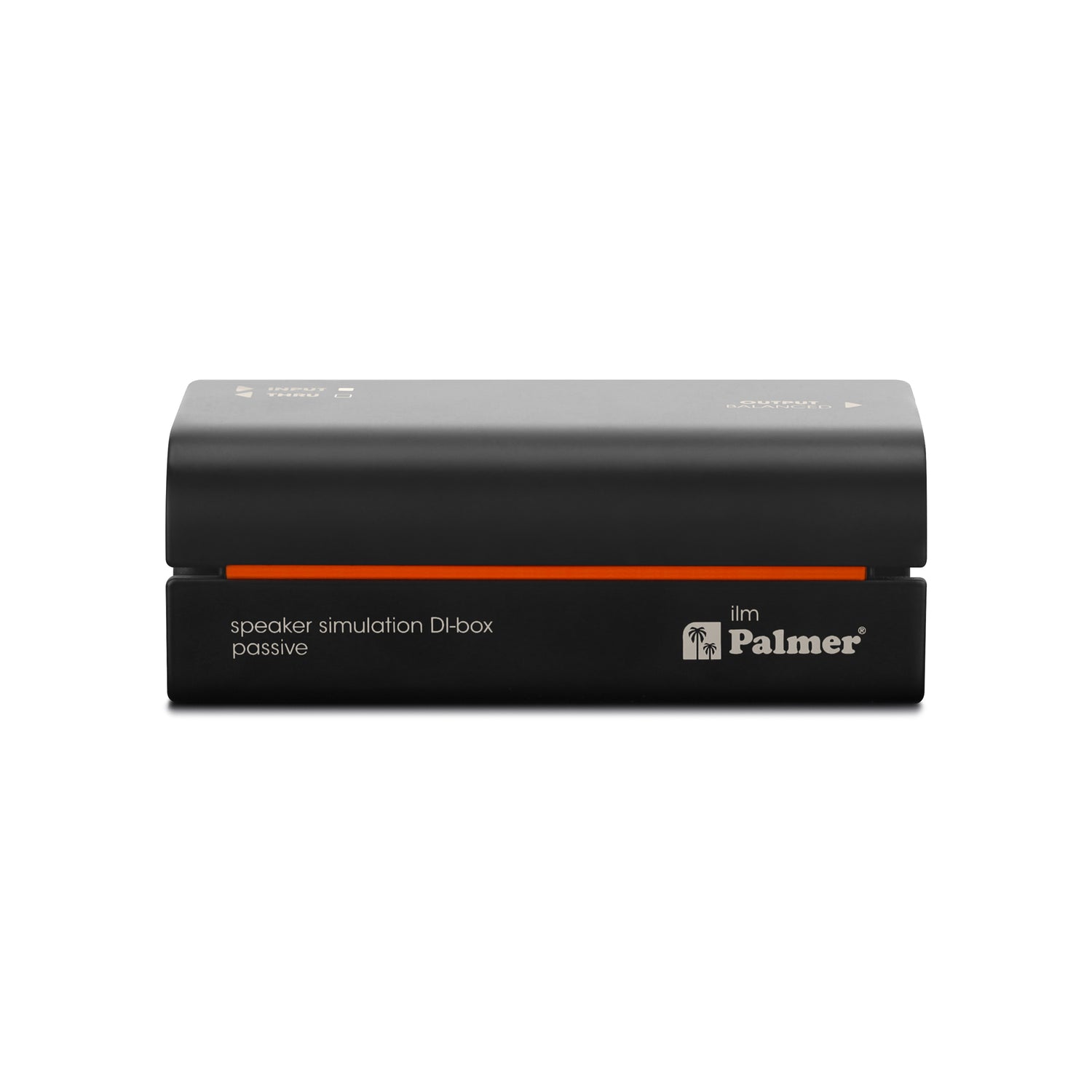

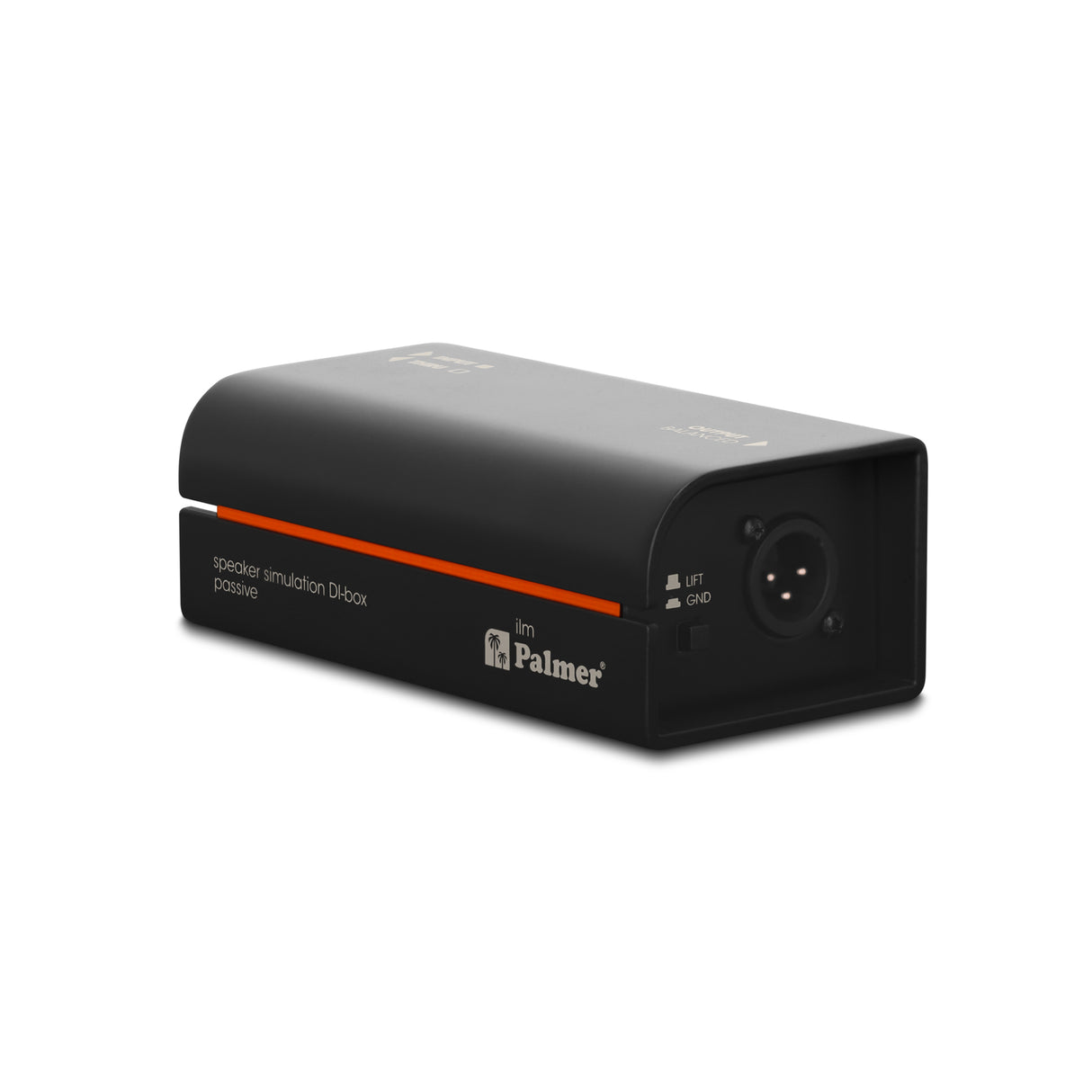

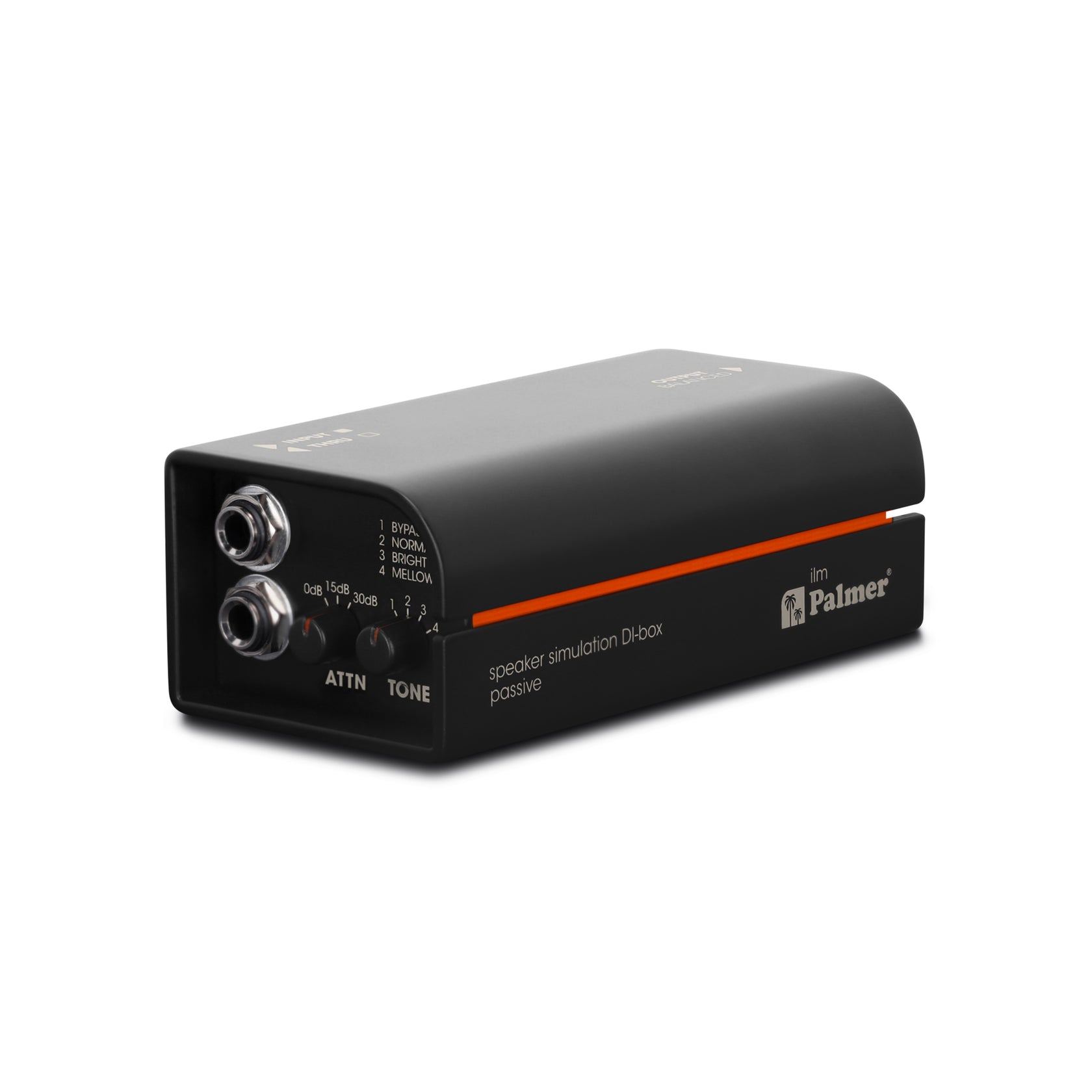

Palmer RIVER ilm - Passive speaker simulation DI box
You’ve found your perfect amp tone, but for some reason it sounds different on every stage?

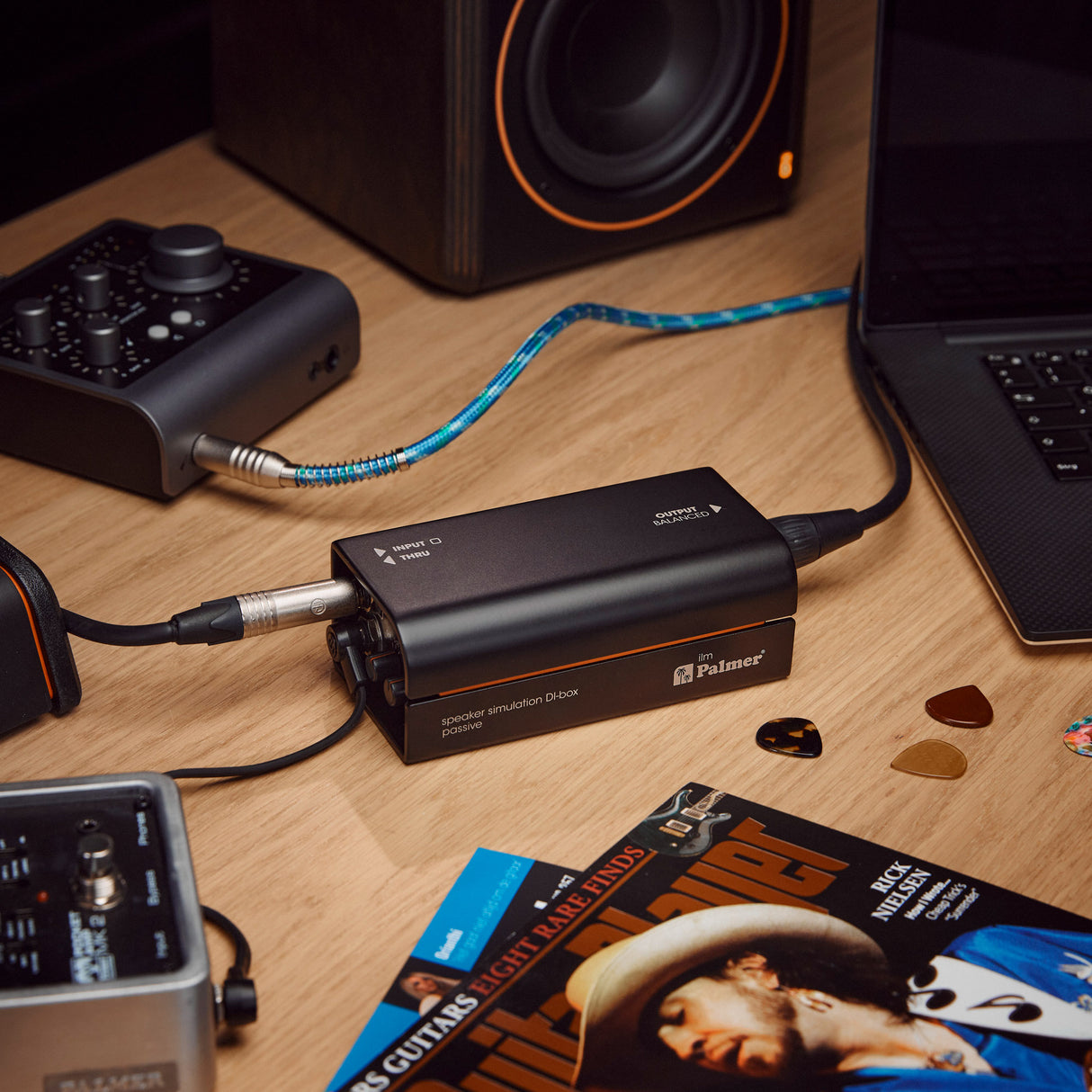

The Palmer ilm speaker simulation DI box eliminates all the uncertainties of miking up amps, such as microphone choice, acoustic environment and placement. With a sophisticated filter switch that simulates the sonic behaviour of a real guitar speaker, it captures your authentic sound – even without a microphone. Its direct signal always sounds the same, whether you’re at home, in the (home) studio, at rehearsal or on stage, regardless of the room size.

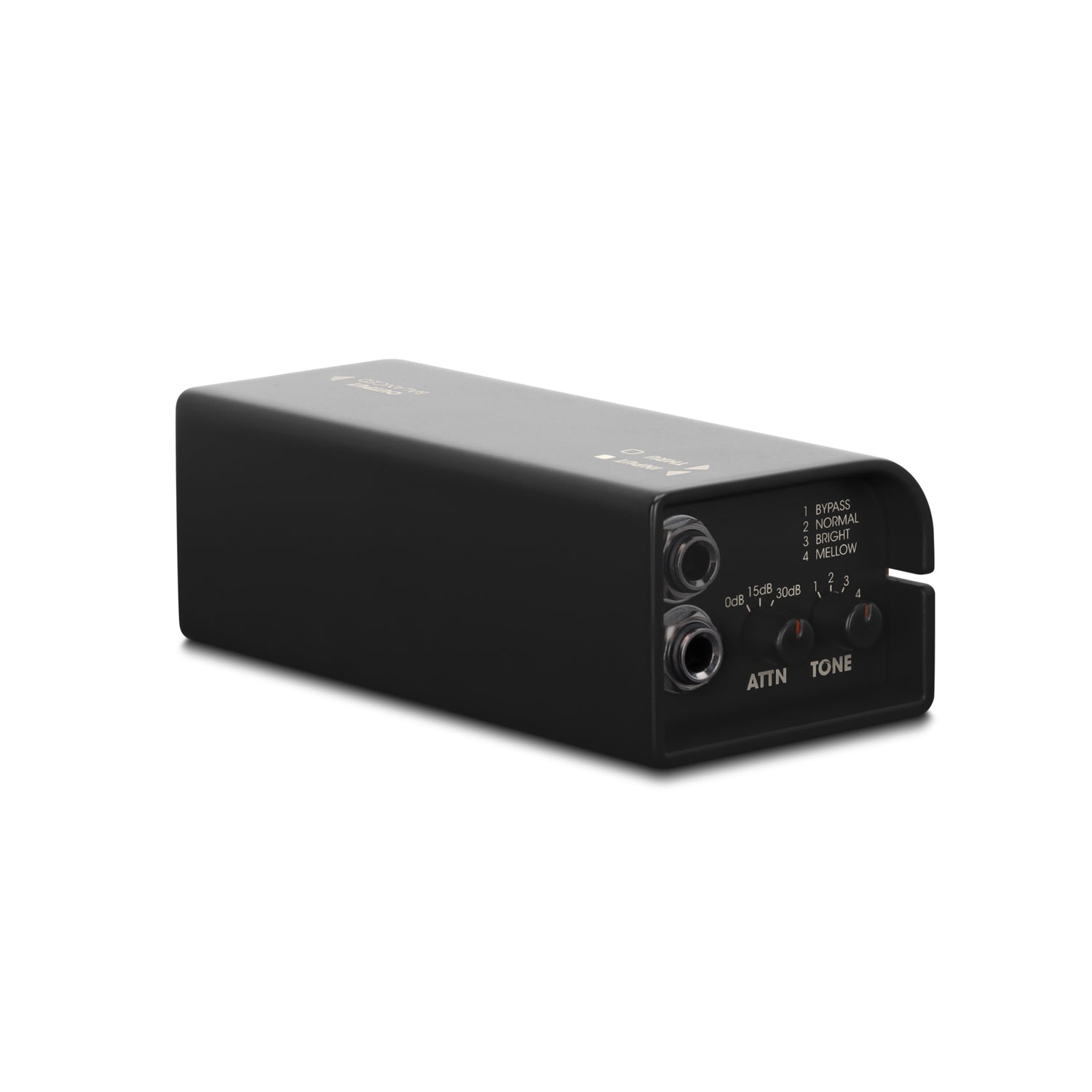

The Palmer ilm offers three analogue guitar speaker simulation settings representing typical guitar speaker models. We’ll leave the fancy names to others; on the Palmer ilm they’re called “normal”, “mellow” and “bright”.

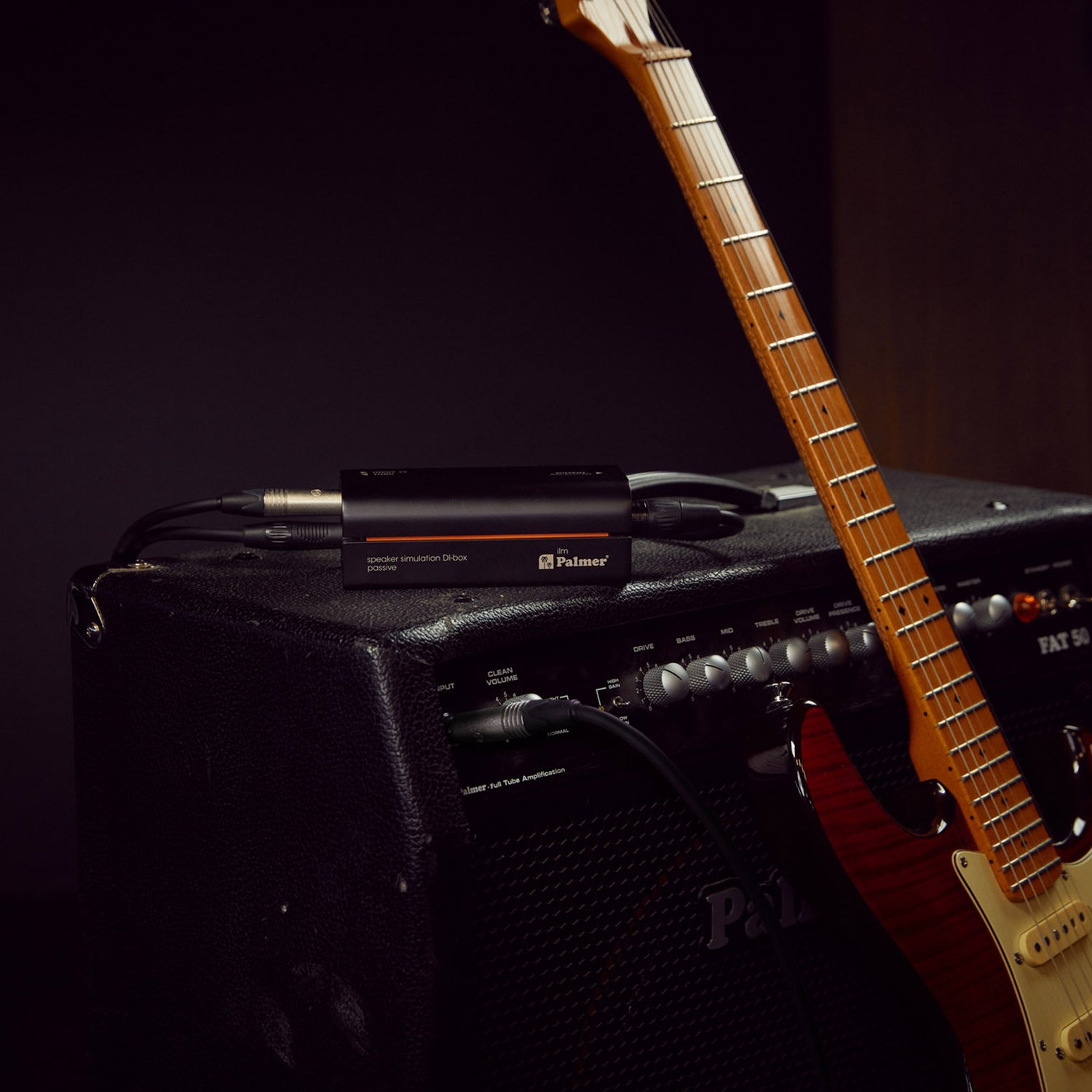

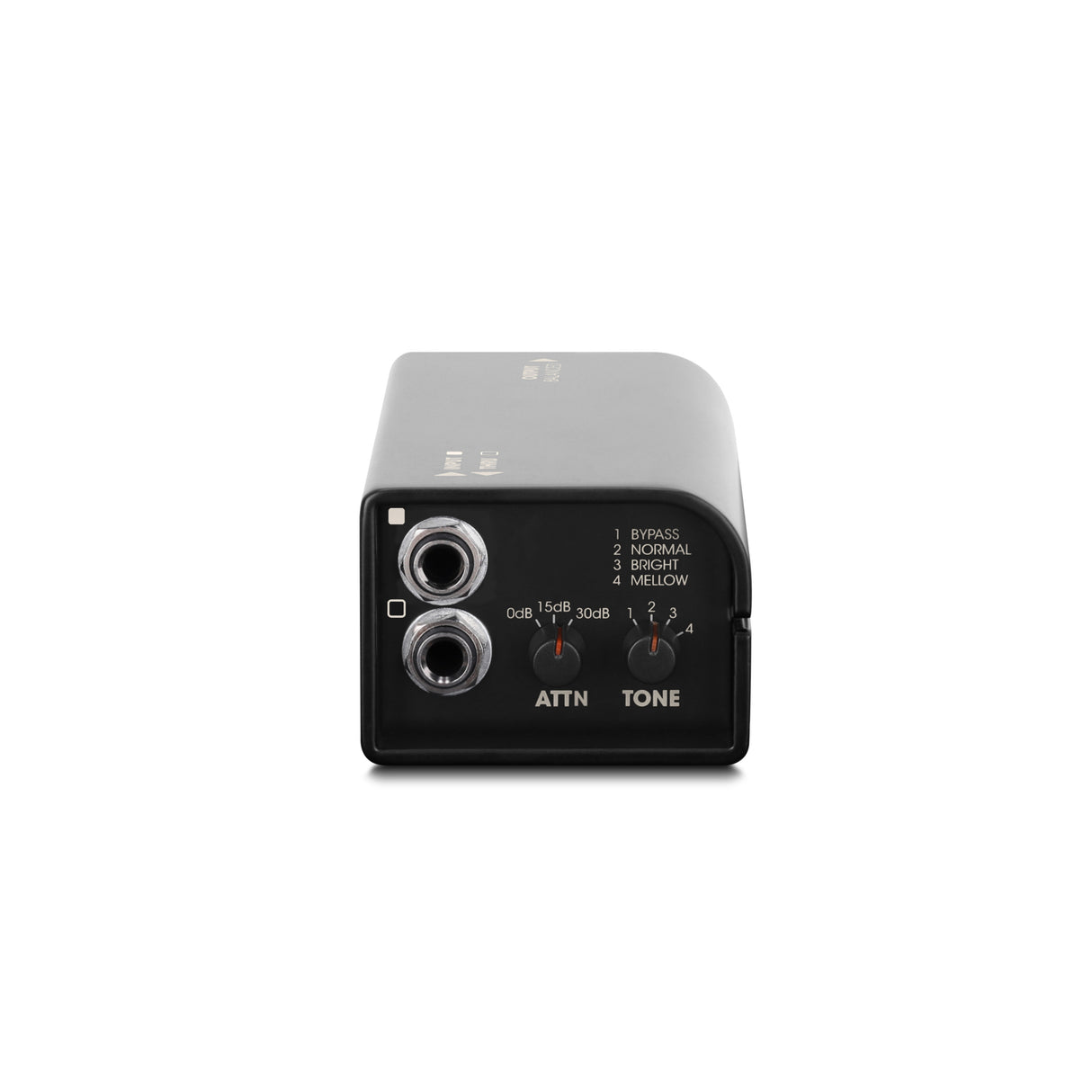

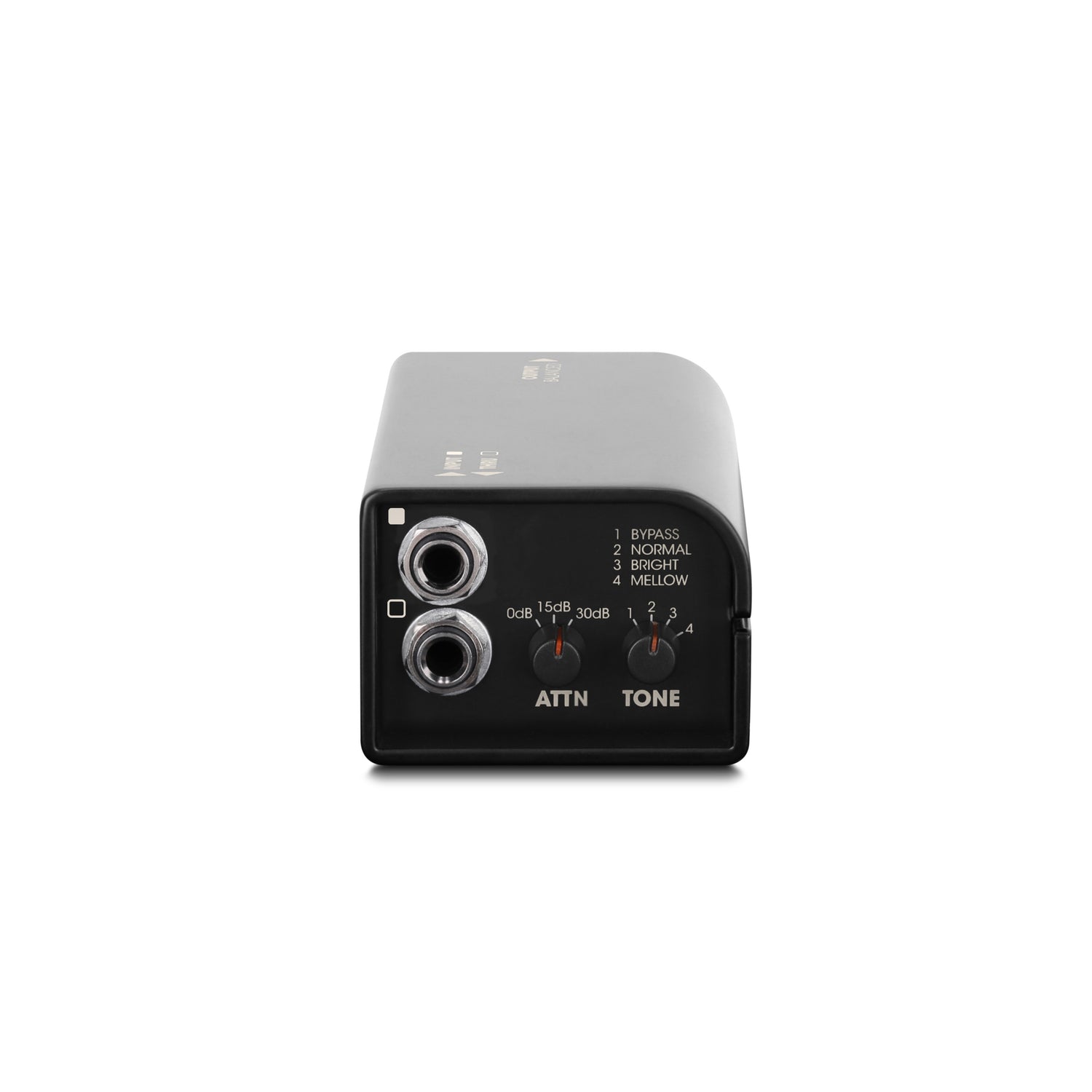

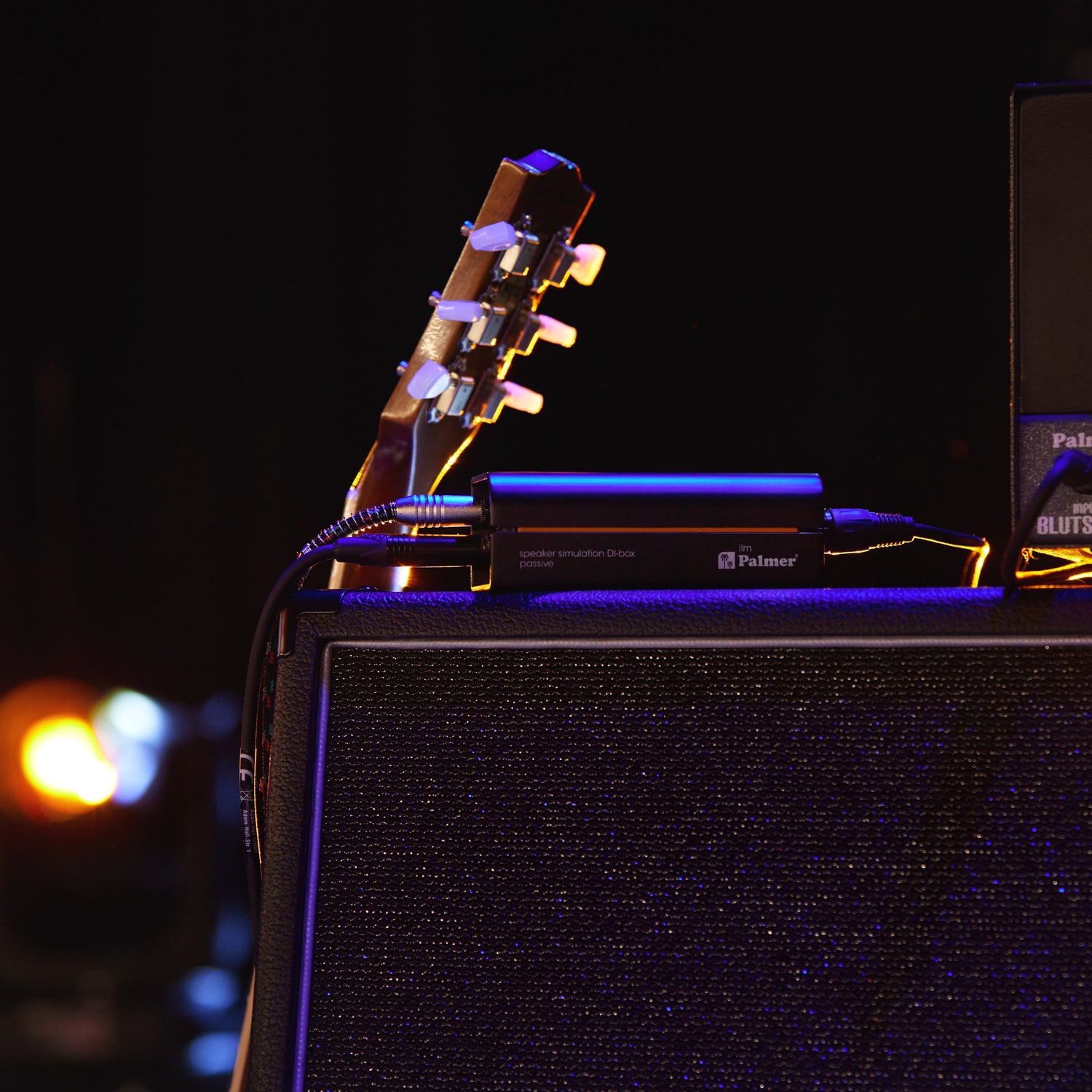

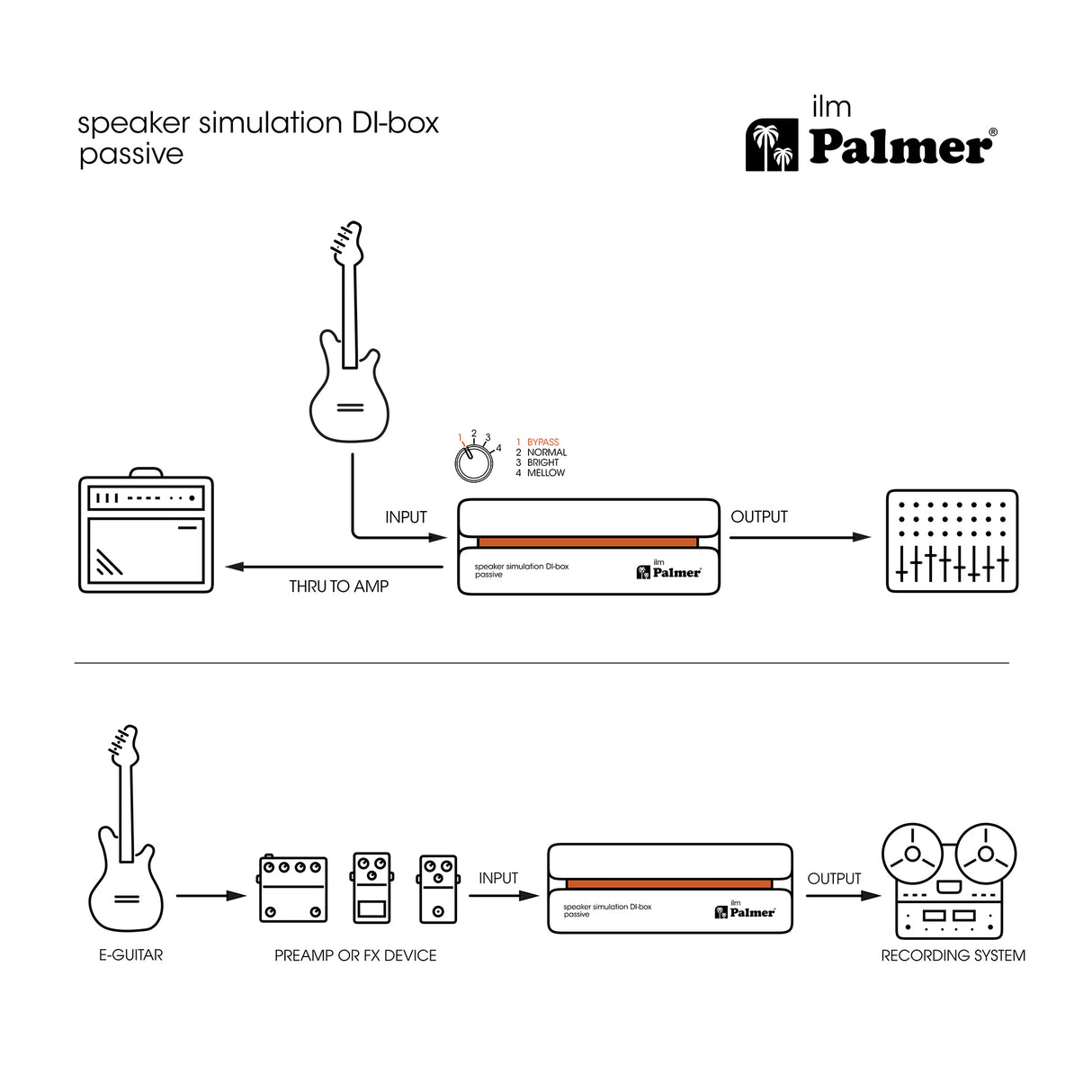

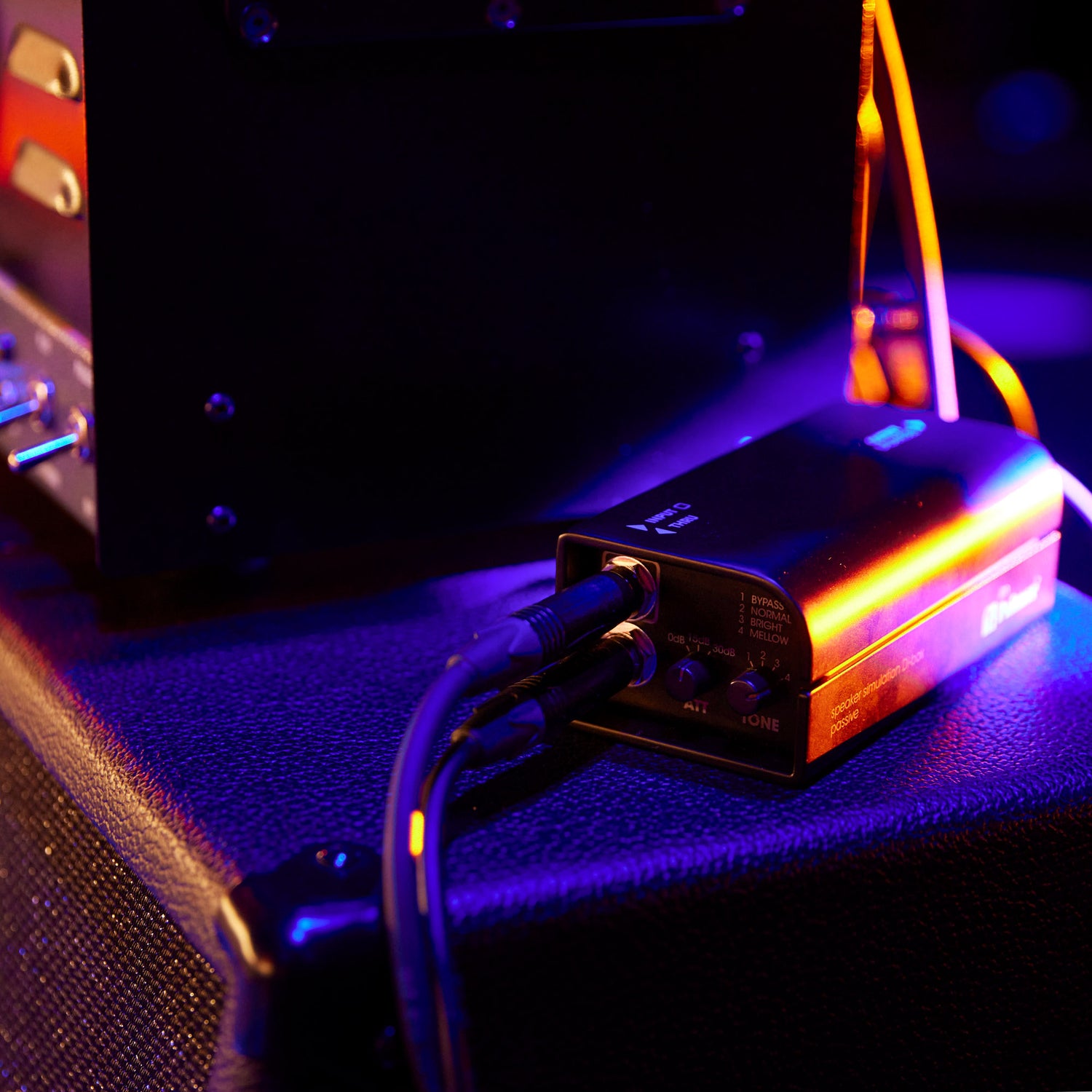

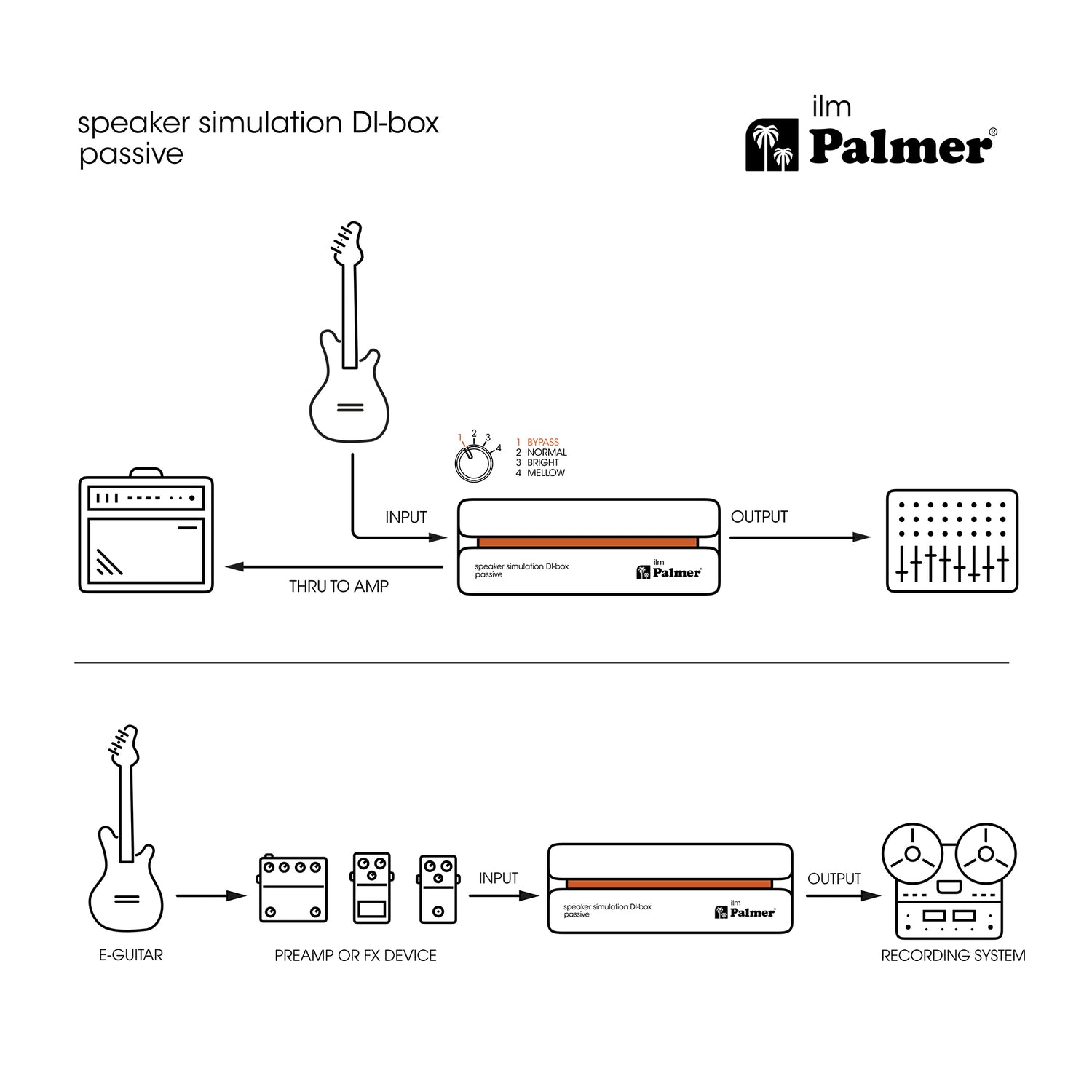

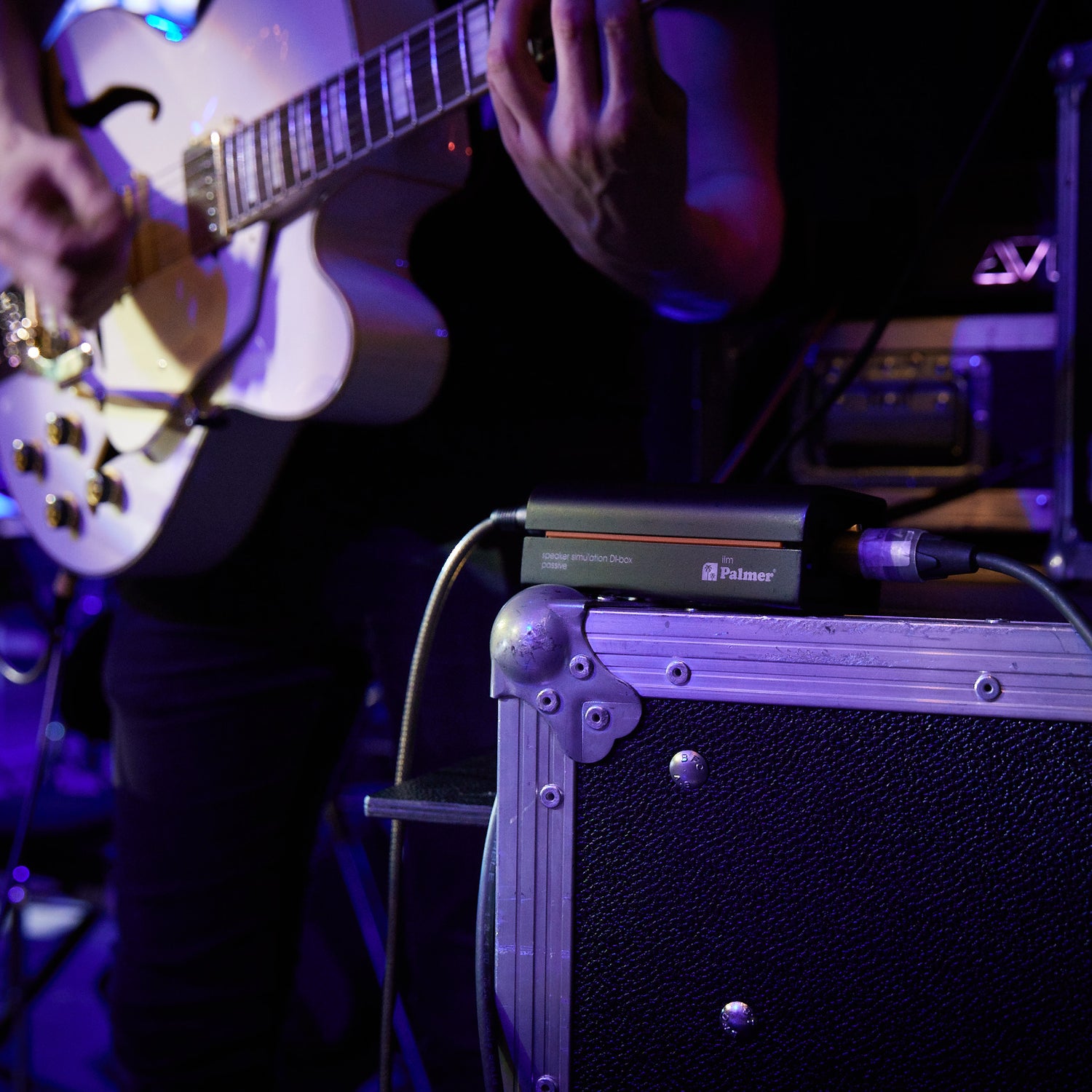

As a rule, the Palmer ilm is connected in a loop between the guitar amp’s output and the guitar speaker; but it can also be used on the amp’s line out. To adjust the input level, the ilm has a pad switch with three settings: 0, -15 and -30 dB.
The output of the Palmer ilm is balanced and transformer-isolated, meaning no interference or hum from ground loops occurs when connected to a mixing console or an audio interface. With the Palmer ilm, you can always rely on what really matters: your music, your instrument and your sound.
- Analog Speaker simulation for authentic guitar sound without mic
- Three sound settings: normal, mellow, bright
- Can be used as DI box with speaker simulation bypassed

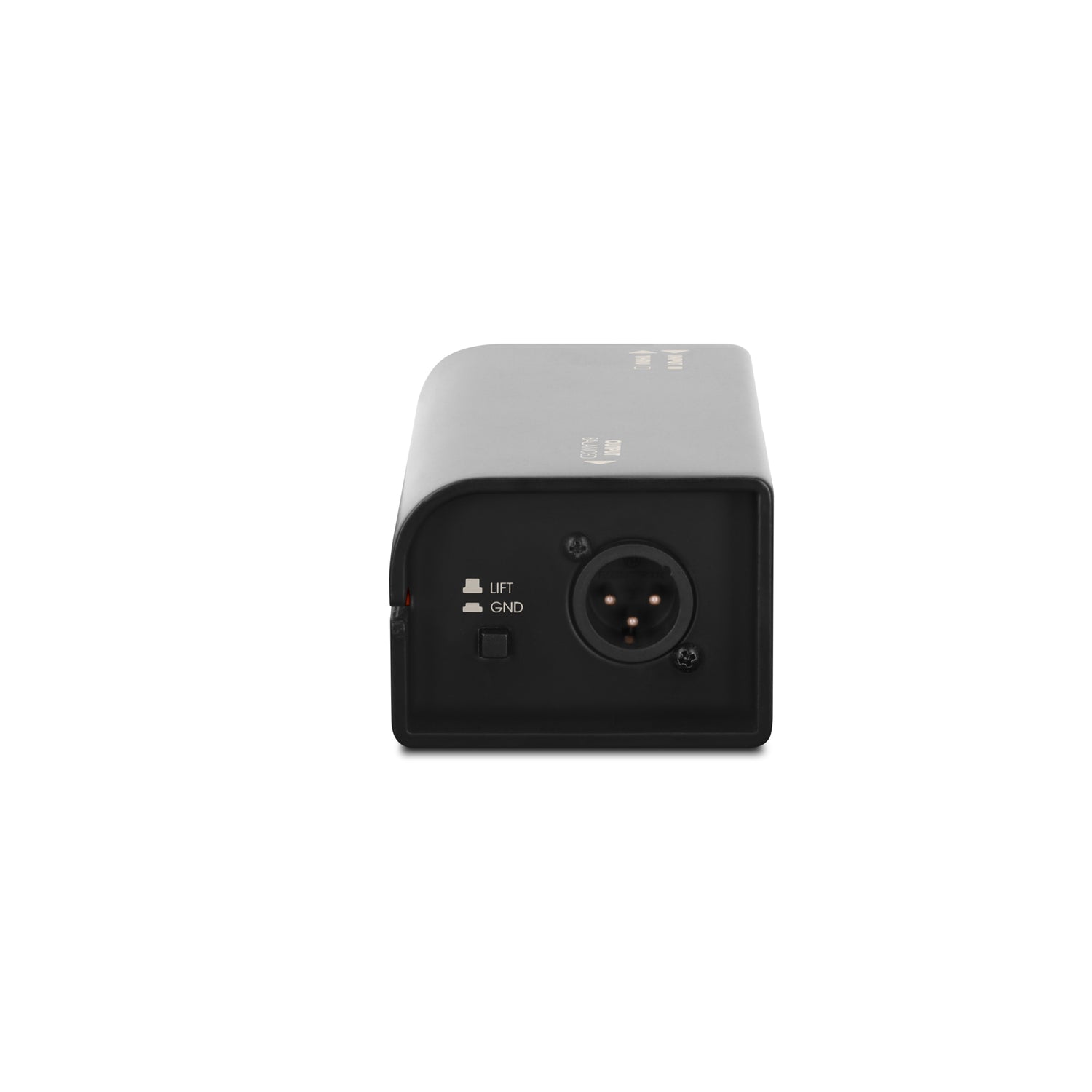

- Balanced XLR output
- Operation either between amplifier output and speaker or on the line output
- Switchable pre-attenuation for adjustment to amp levels
- No humming: galvanic transformer isolation

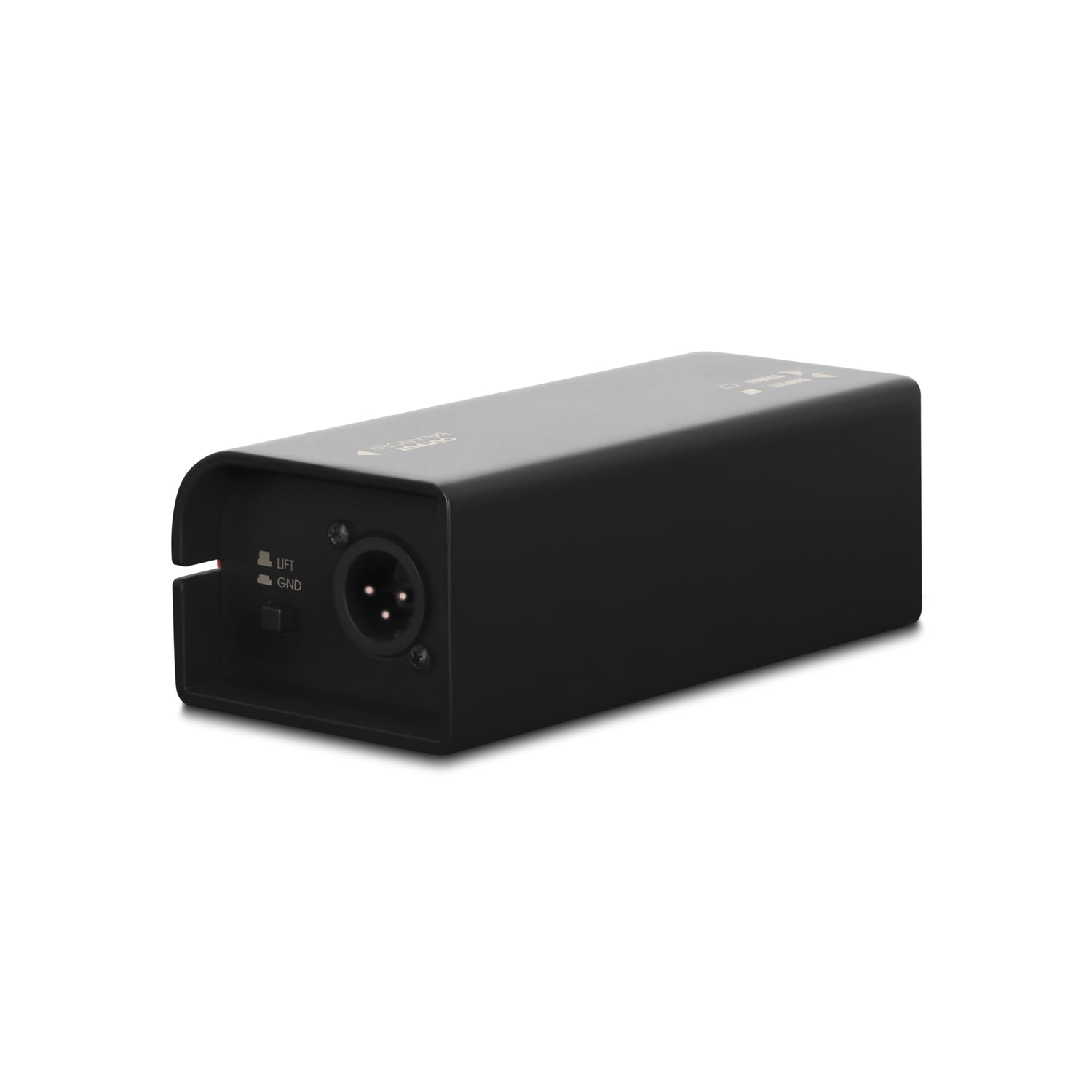

- Ground lift switch
- Simple and fail-safe, no power supply required
- Solid casing made of aluminium and steel

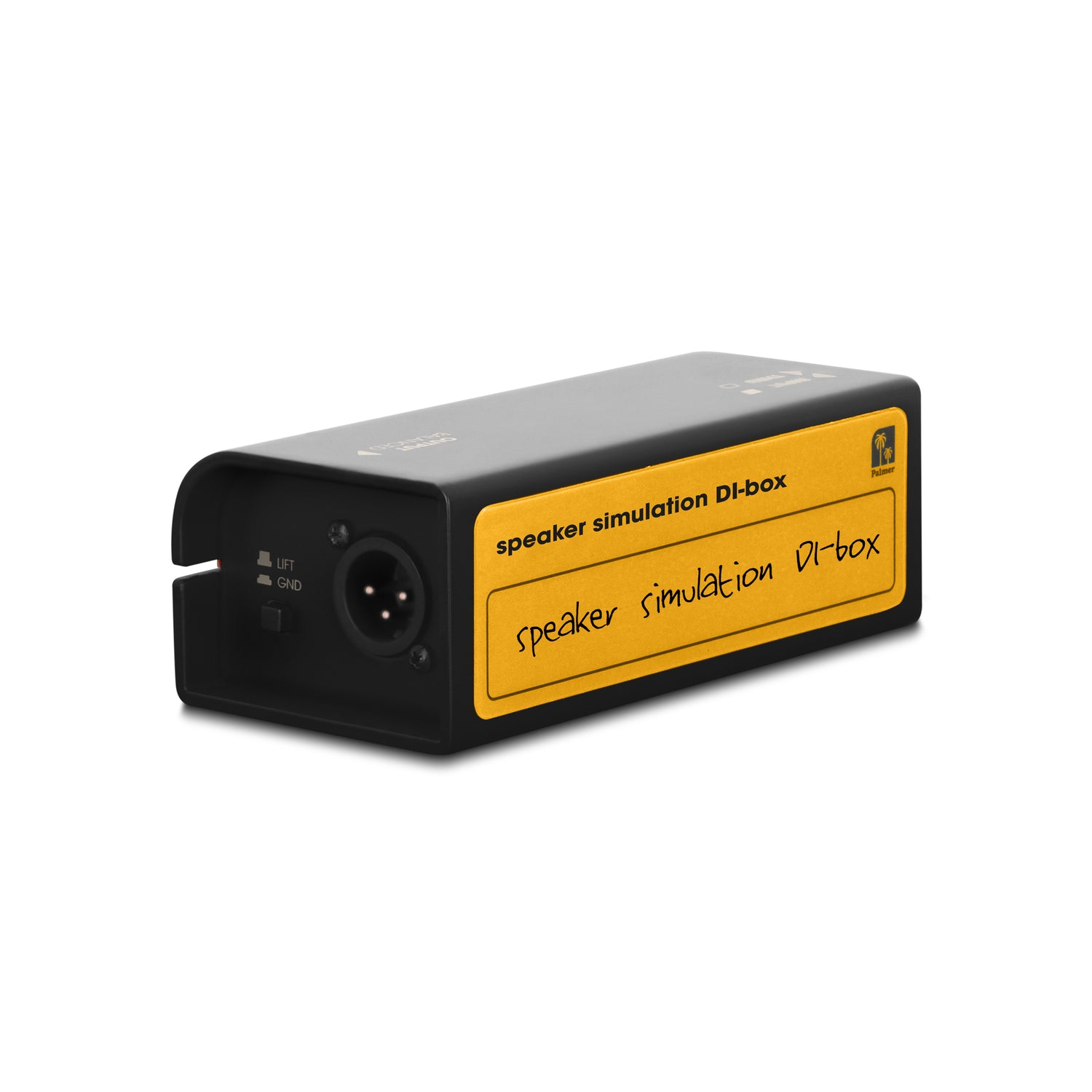

- Incl. rewritable tour label for attachment onto the back of the ilm
- Engineered in Germany
| Product type | Speaker Simulation DI-Box |
| Type | passive |
| Channels | 1 |
| Transformer isolated | Yes |
| Number of inputs | 1 |
| Input type | unbalanced |
| Input connectors | 6.3 mm jack |
| Outputs | 1 |
| Output type | balanced |
| Output connectors | XLR |
| THRU outputs per channel | 1 |
| Ground lift switch | Yes |
| More features | Tone: Bypass, Normal, Bright, Mellow |
| Housing material | Aluminium continuous casting |
| Height | 50 mm |
| Width | 140 mm |
| Depth | 68 mm |
| Ambient temperature (in operation) | - 20 - 70 °C |
| Relative Humidity | < 80 %, not condensing |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
| Weight | 0,445 kg |
Audio
| Max. input level (< 1% THD, 20 Hz) | +12 dBu |
| Max. input level (< 1% THD, 1 kHz) | +32 dBu |
| Frequency response (±1 dB, relative 1 kHz) | 10 Hz - 60 kHz |
| Input impedance (1 kHz, max. Level, -10dBV) | 8,8 kOhm |
| Output impedance (1 kHz, max. Level, -10dBV) | 125 Ohm |
| THD (30 Hz, +4 dBu, unity, unweighted) | < 0,25 % |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,009 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | < 0.005 % |
| Transformer ratio | 1:5 |
