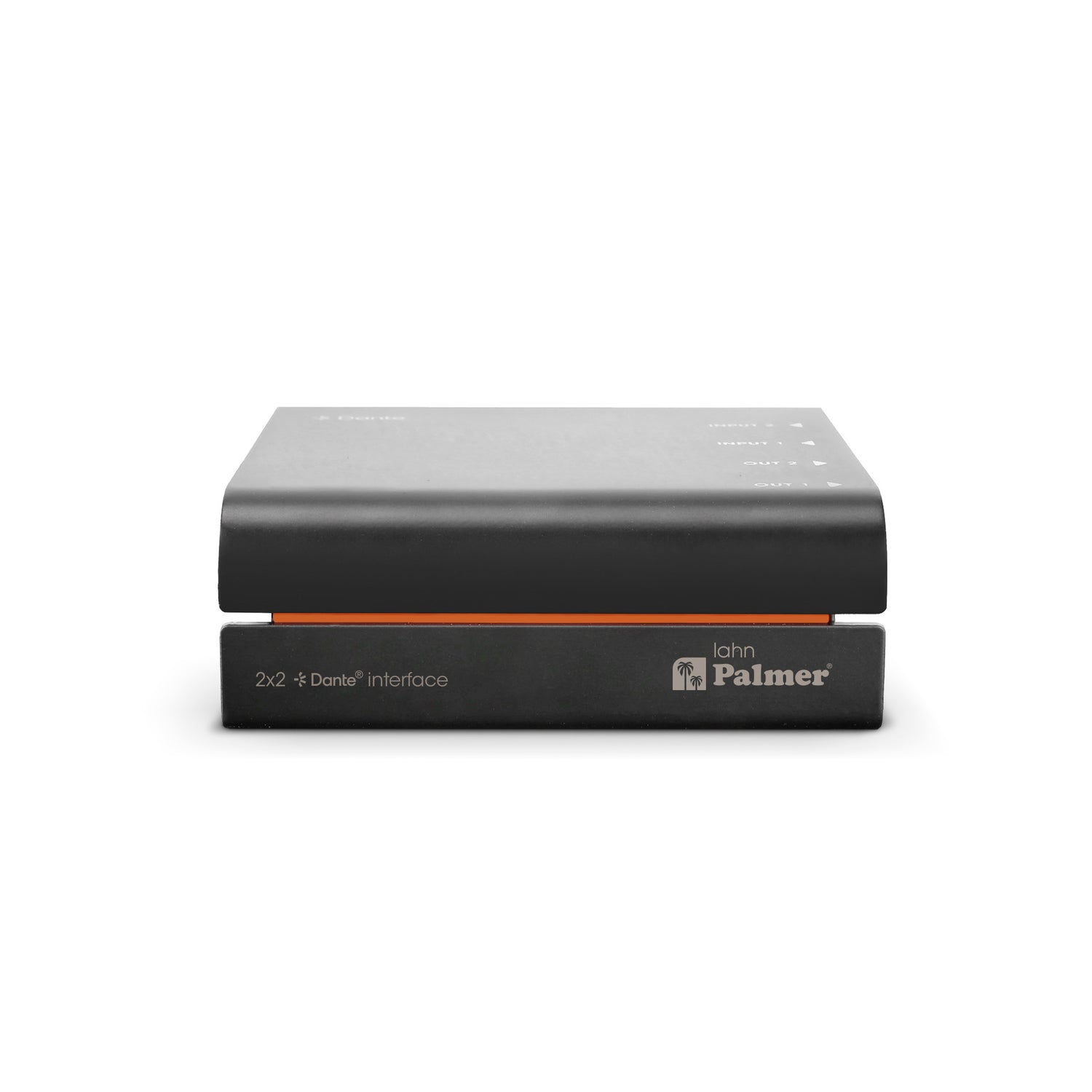

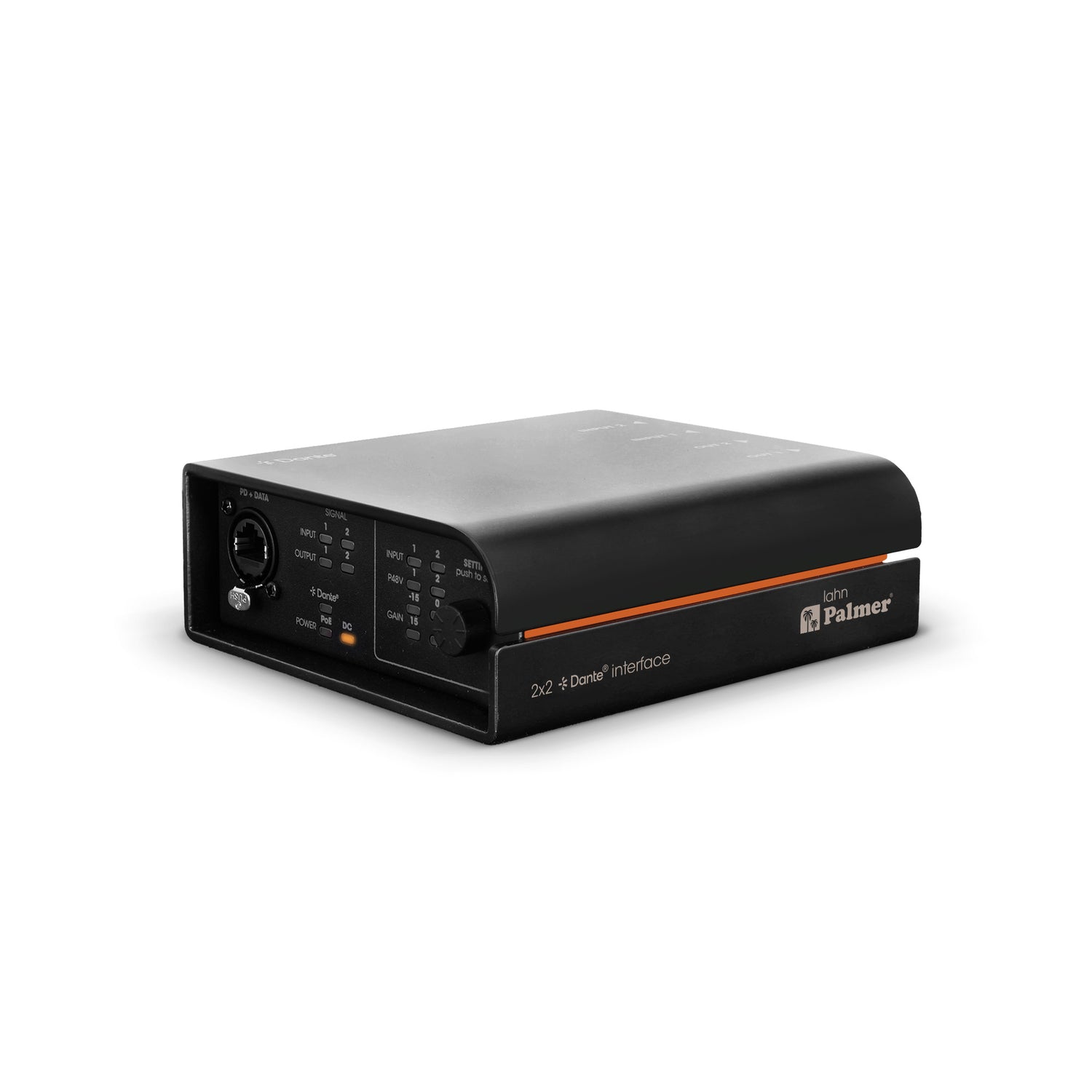

Palmer RIVER lahn - 2x2 Dante® interface
€791,95
Unit price
/
Not available
Description
Description

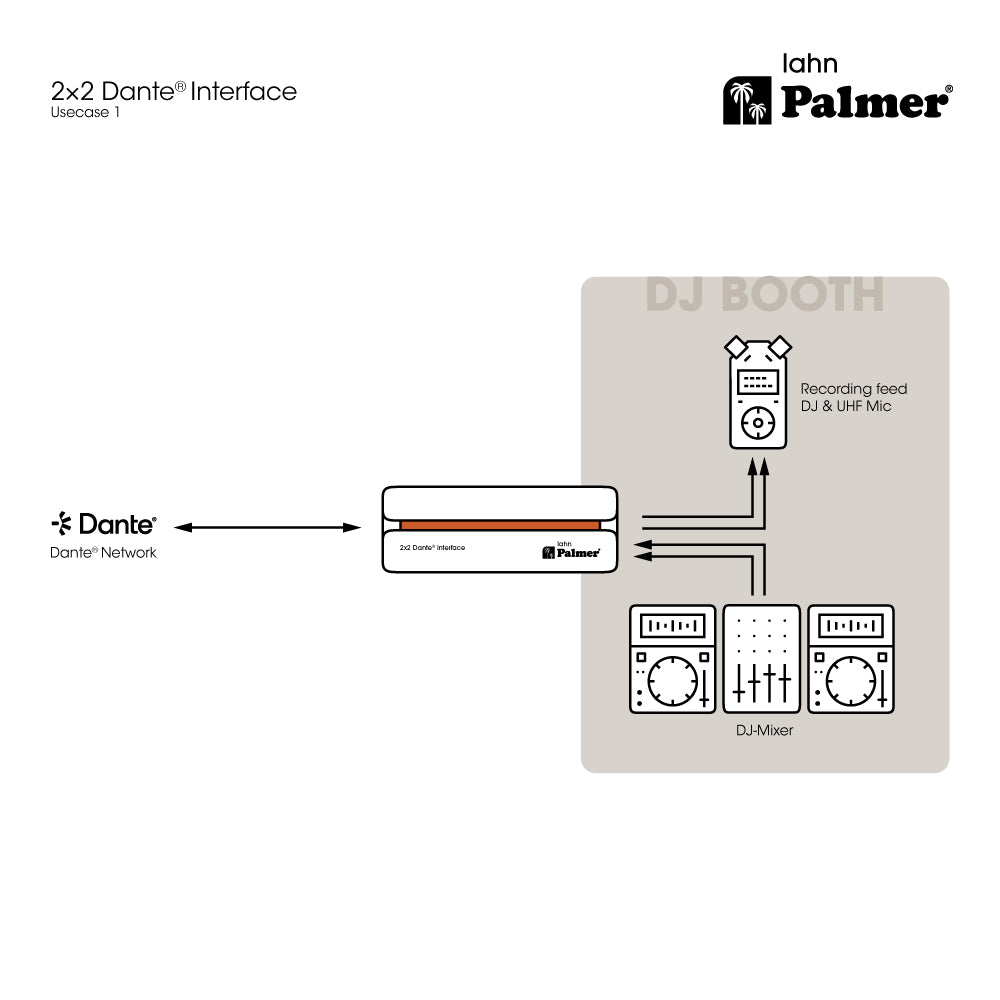

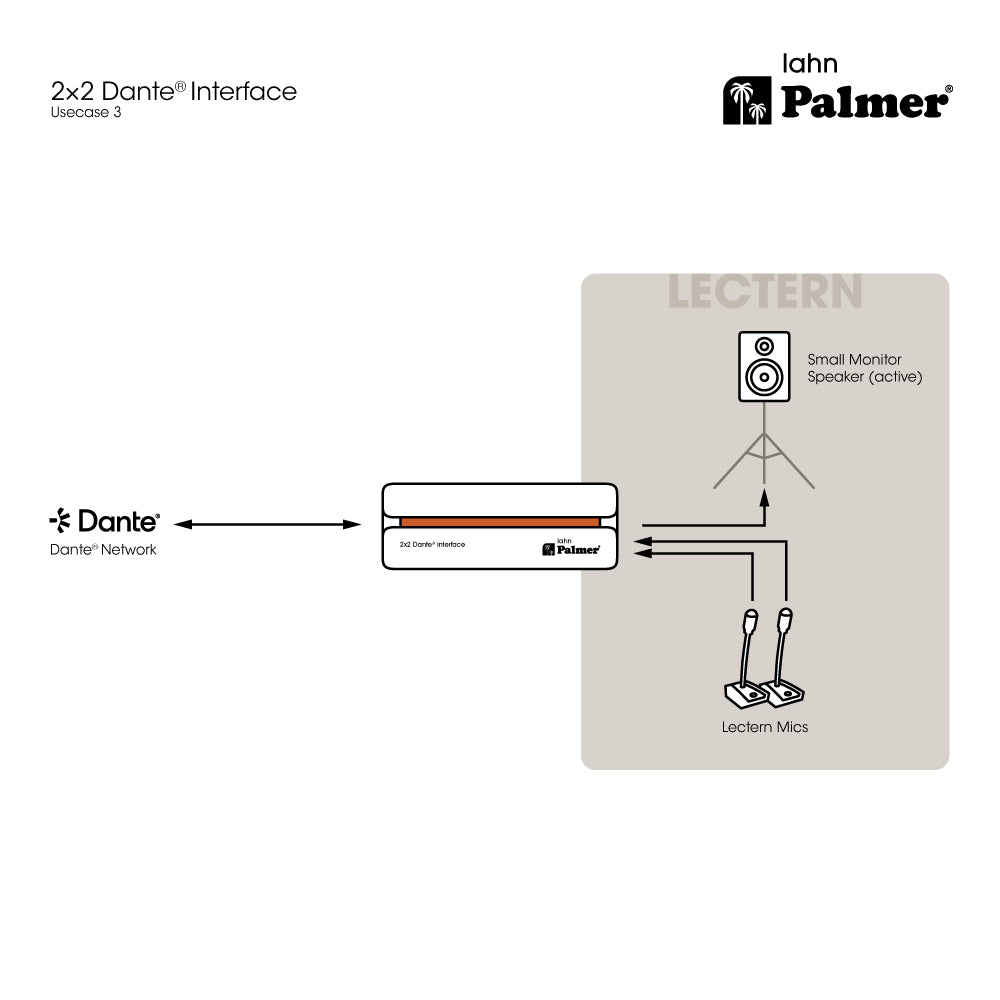

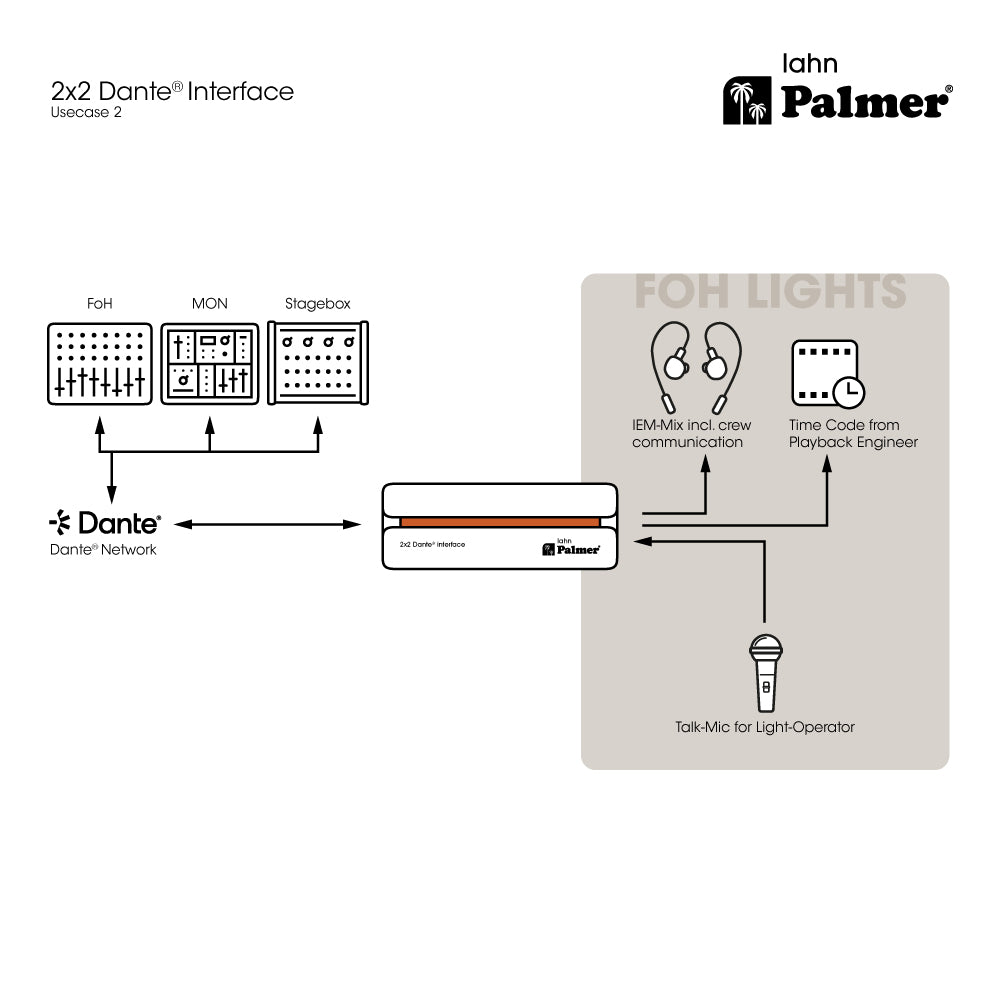

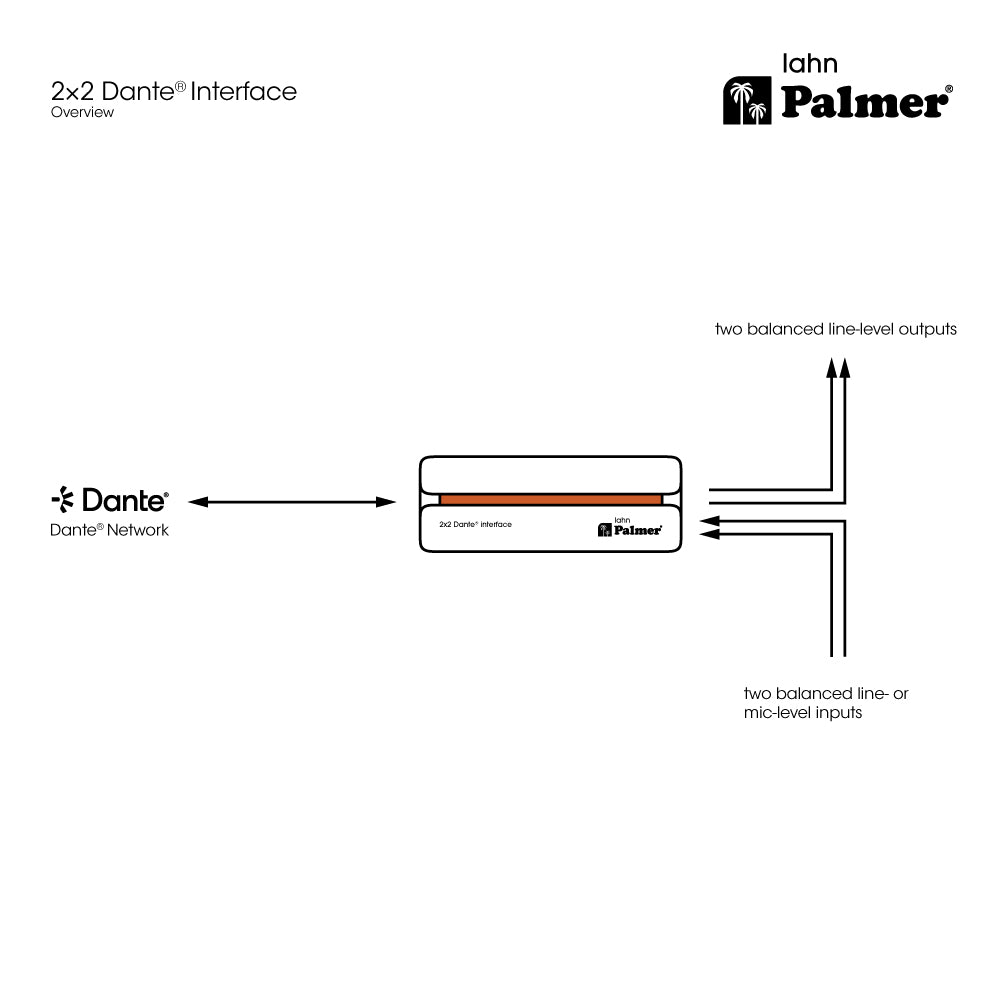

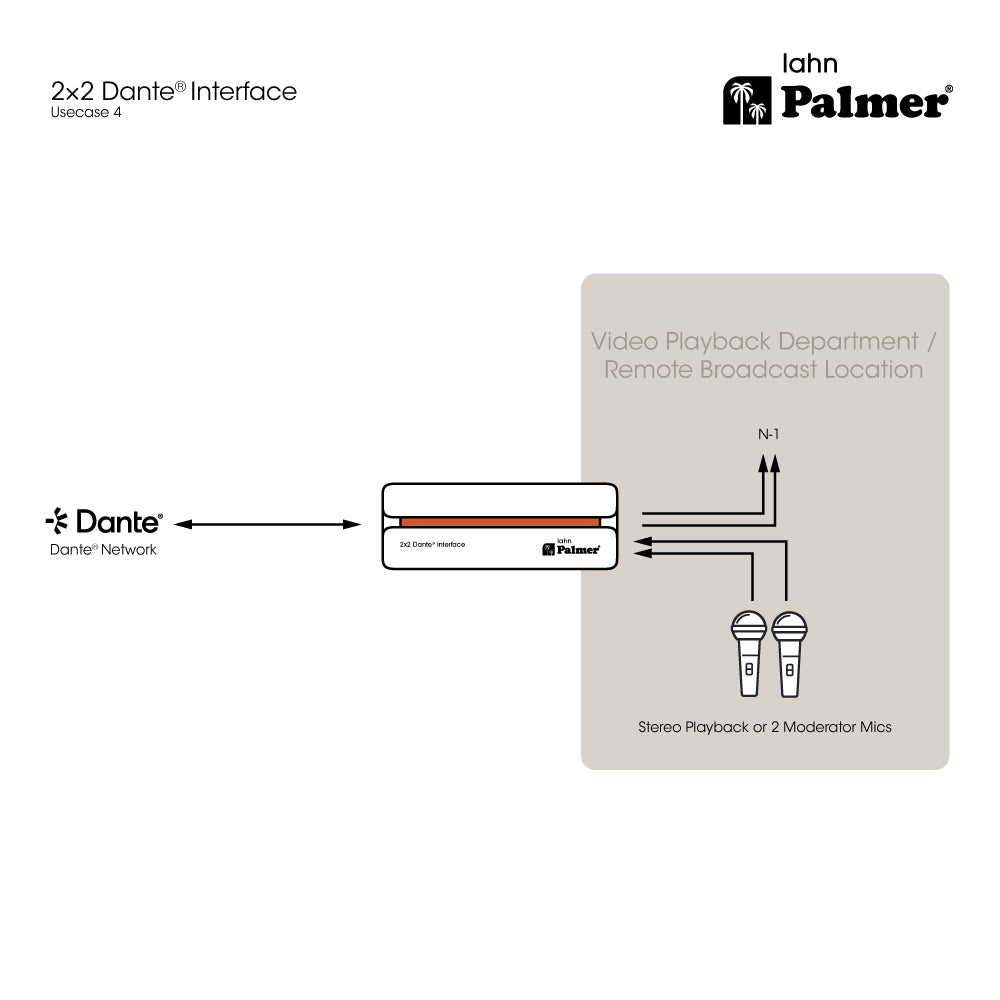

With the Palmer RIVER lahn, you can integrate analogue audio devices into a Dante® network: lahn is an endpoint interface that can be used to feed two analogue microphone or line signals into a Dante® network. Thanks to its bidirectional functionality, Dante® signals can also be converted into high-quality analogue audio signals so they can be fed into mixers, amplifiers or speakers.

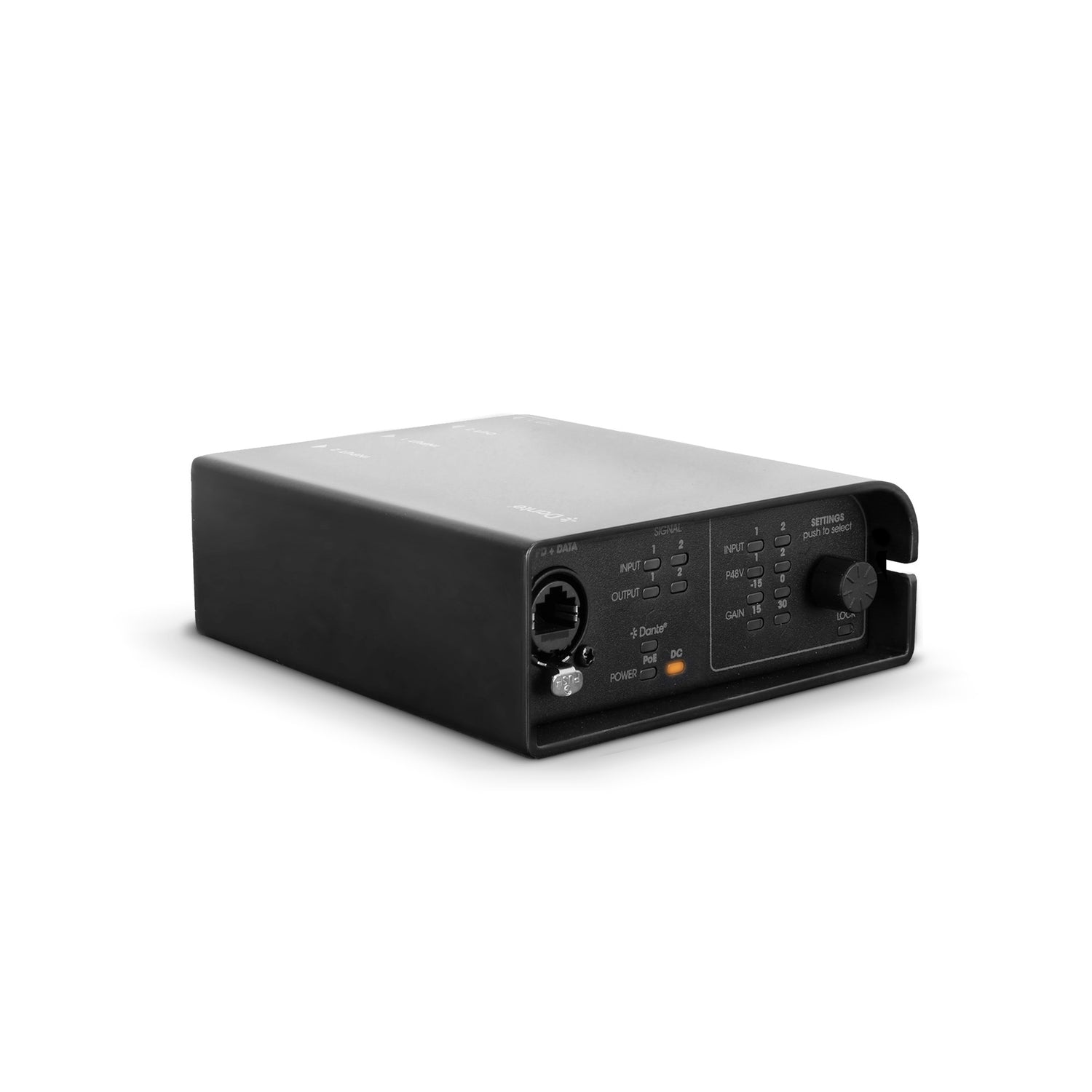

With four-step gain control and 48 V phantom power per channel, the RIVER lahn offers precise control and flexibility for a range of applications. The lockable XLR connectors and Neutrik® etherCON® network connector ensure secure connections, while the simple front-panel configuration and the user lock on the control panel ensure user-friendly operation.
Each channel is equipped with a signal indicator that shows the status of your audio transmission at all times. In addition to the power supply included in the box, PoE (Power over Ethernet) can also be used for power, providing extra flexibility during installation. RIVER lahn is developed in Germany and is compatible with Dante® Domain Manager and AES 67. The robust aluminium and steel housing guarantees durability and toughness, making it ideal for use in demanding environments.
Experience seamless integration of analogue and digital audio technology with the Palmer® RIVER lahn and enjoy first-class sound quality and ease of use.
Technical specifications
Technical specifications
- Dante® interface with two inputs and two outputs
- Feeding two analogue microphone or line signals into Dante® networks
- Conversion of Dante® signals for mixers, amplifiers, loudspeakers, etc.
- Four-stage gain control and 48 V phantom power per channel

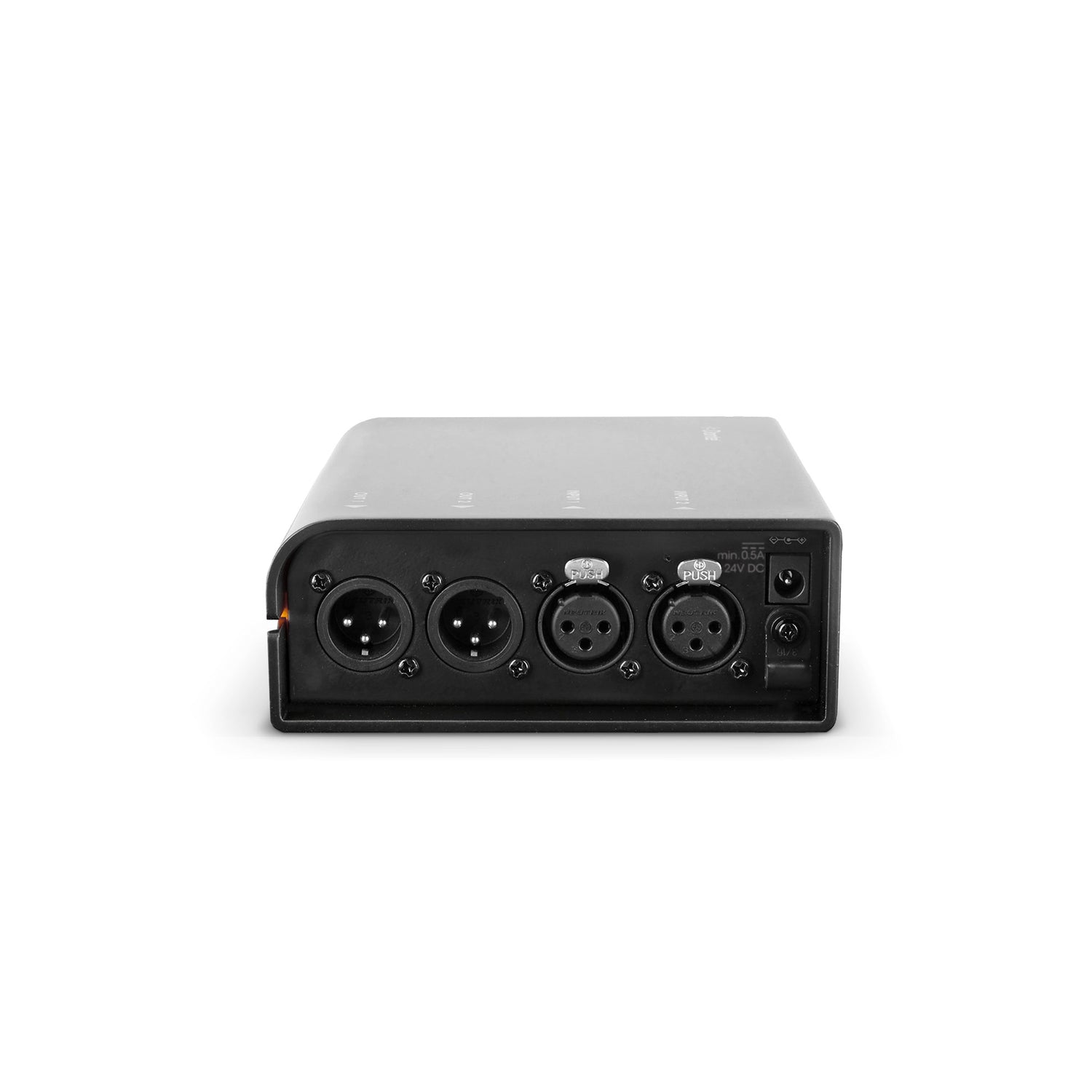

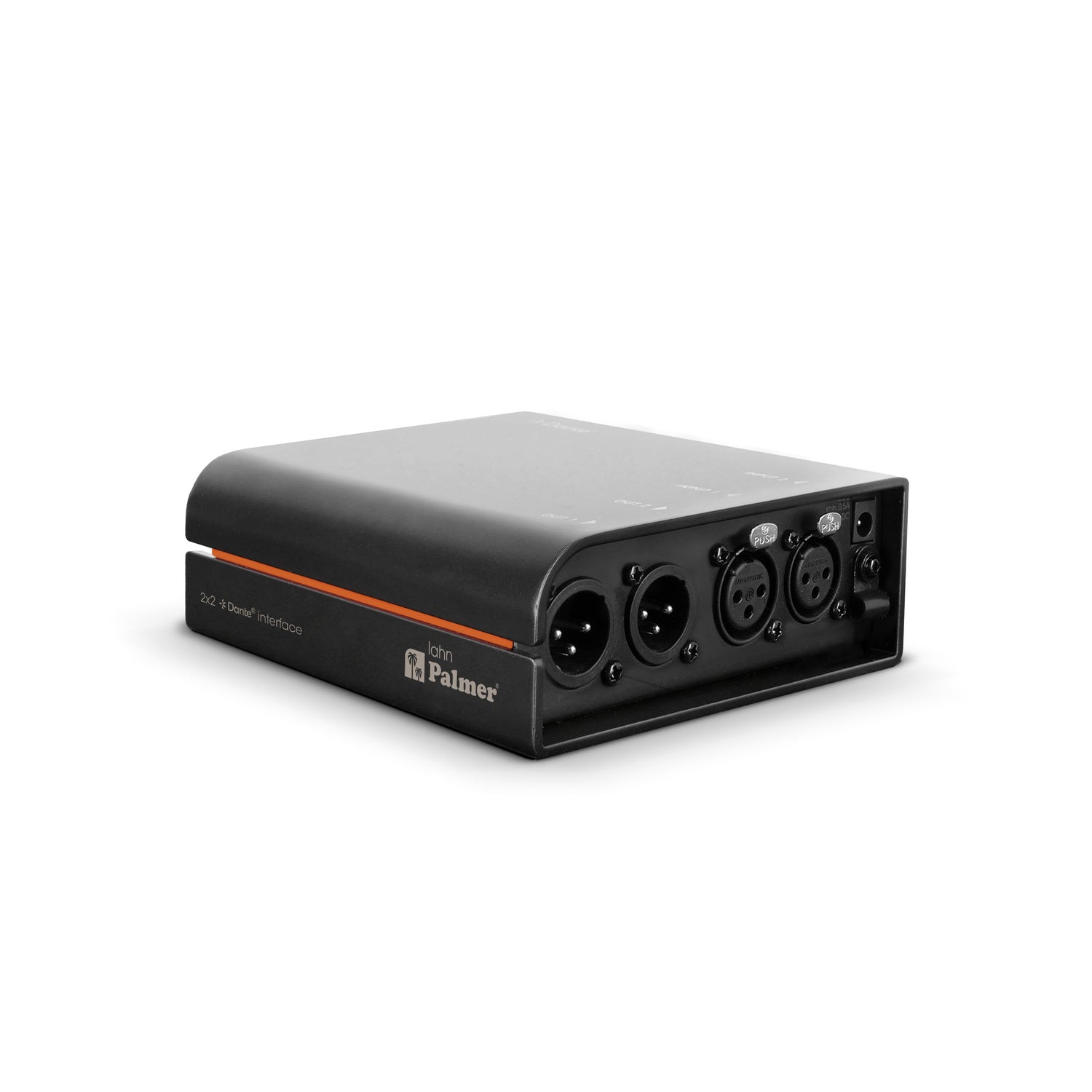

- Lockable XLR audio connections and etherCON® network socket from Neutrik®

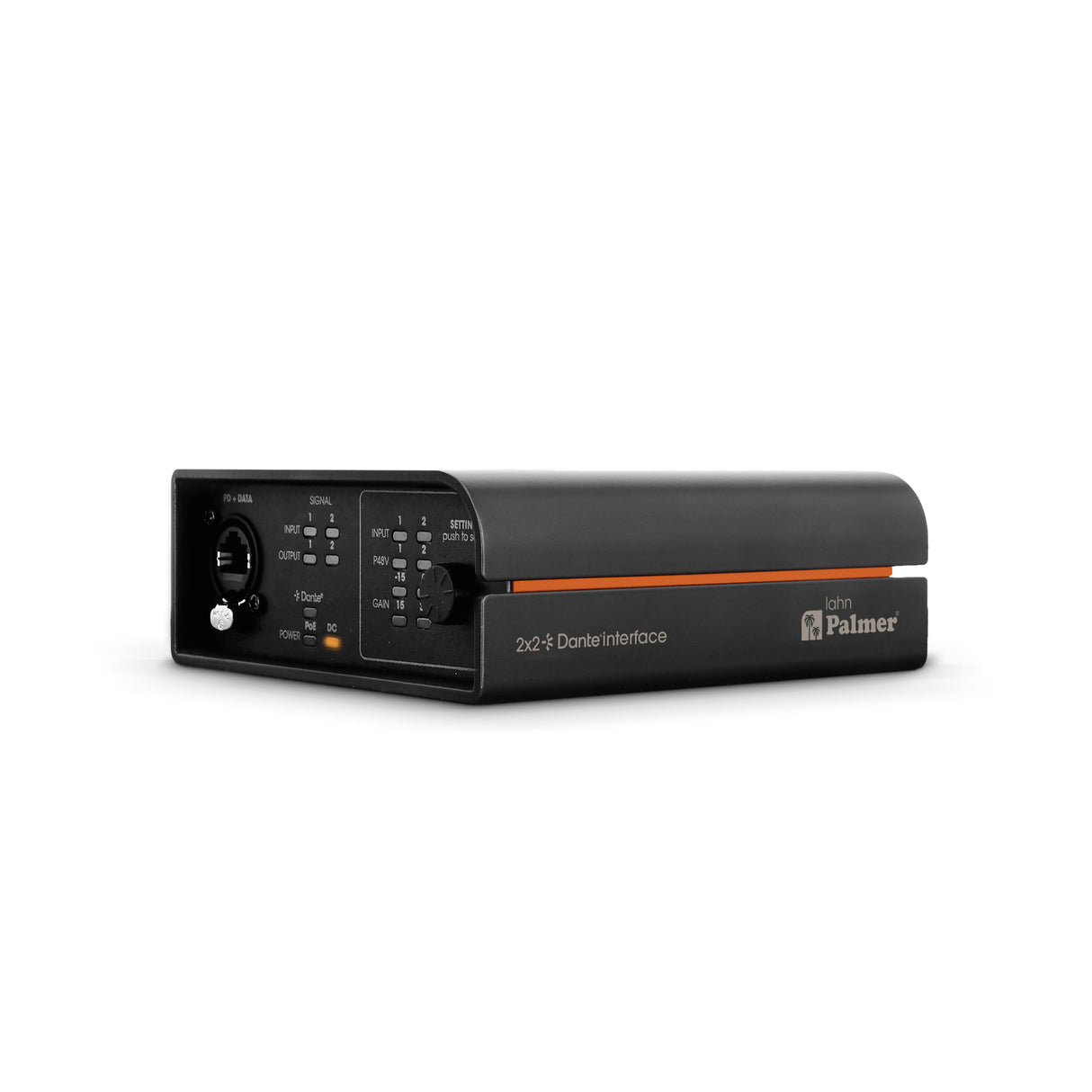

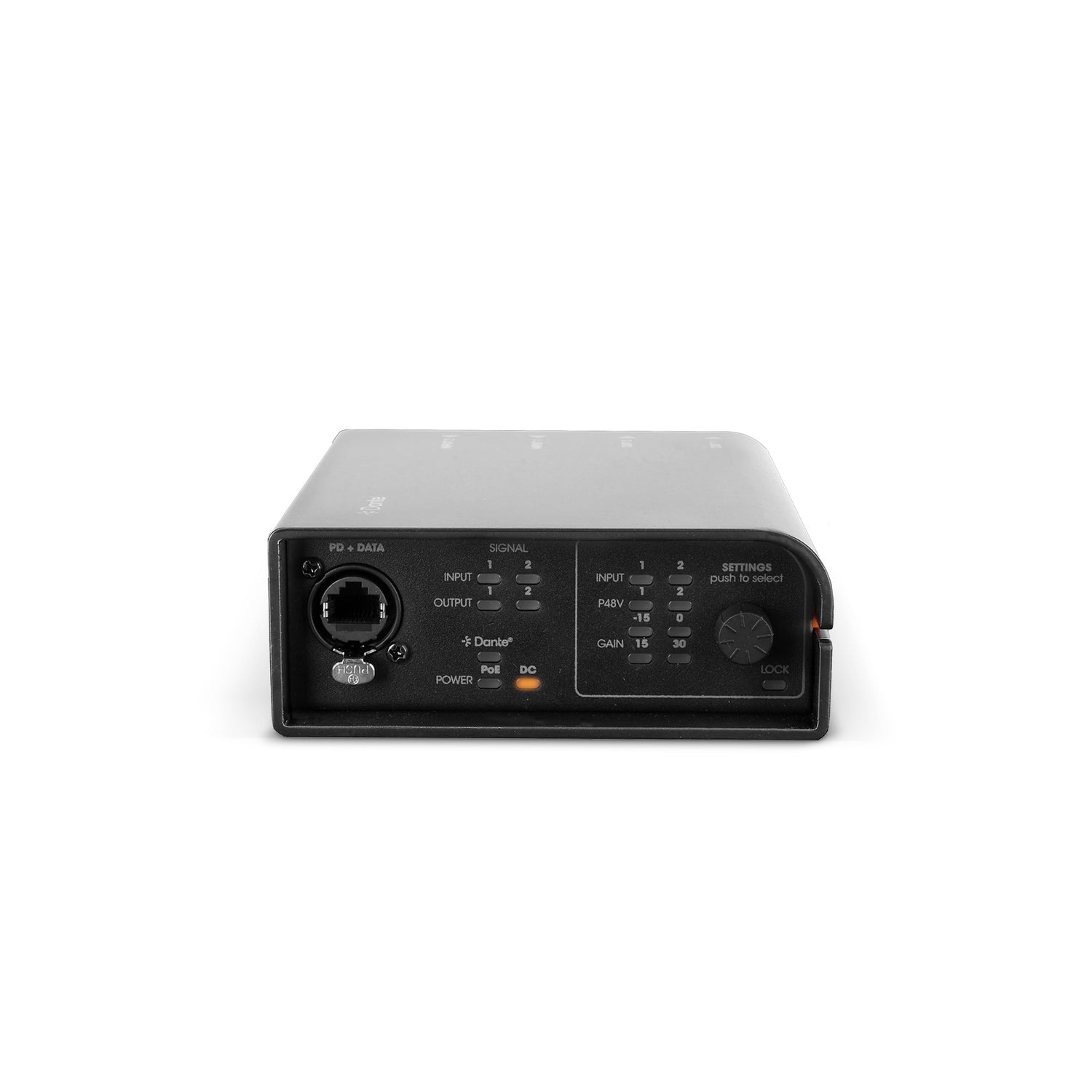

- Simple configuration on the front and user lock
- Signal display for each channel
- Compatible with Dante® Domain Manager and AES 67
- Solid aluminium and steel housing
- Engineered in Germany
| Product type | 2 x 2 I/O Dante Interface |
| Inputs | 2 |
| Input type | Switchable Balanced mic or line level |
| Line outputs | 2 |
| Output type | Balanced line level with auto mute relay on loss of Dante/AES67 signal |
| Cooling | Convection |
Analogue Input Section
| Number of input connectors | 2 |
| Connector | XLR-F |
| Mic input sensitivity | 63 mV (gain +30 dB) |
| Nominal input clipping | 19 dBu (Sine 1kHz, Gain -15 dB) |
| Frequency response | 10 Hz - 20 kHz (-0.5 dB) |
| THD + Noise | < 0.003 % (gain -15 dB, input 4 dBu, 20 kHz BW) |
| Input Impedance | 38 kohm (balanced) |
| Crosstalk | < -100 dB (input 18 dBu, 20 kHz BW) |
| SNR | > 112 dB (gain -15 dB, input 20 dBu, 20 kHz BW, a-weighted) |
| CMRR | > 45 dB |
| Phantom Power (per input) | + 48 VDC @ 10 mA max |
| Gain | -15dB, 0dB, +15dB, +30dB |
Analogue line outputs
| Number of output connectors | 2 |
| Connection type | XLR male |
| Max. output level | 19 dBu |
| Intermodulation Distortion (SMPTE) | < 0.005 % (-20 dBFS to 0 dBFS) |
| THD + N | < 0.002% (-4 dBFS, 20 kHz BW) |
| Idle Noise | < - 85 dBu |
| Dynamic Range | > 103 dB (0 dBFS, AES 17, CCIR-2k weighting) |
| Frequency range | 15 Hz - 20 kHz (-0,5 dB) |
Dante™ Specifications
| Audio Channels | 2 inputs / 2 outputs |
| Bit depth AD/DA converter | 24/32 bit |
| Sampling frequency | 48 kHz |
| System Latency: | Minimum 1 ms |
| Connector DANTE | 100 BASE-T RJ45 |
Power over Ethernet (PoE) specifications
| Minimum PoE Requirements | PoE+ IEEE 802.3at |
Power input requirements
| Input voltage | 24 V DC |
| Minimum Current | 500 mA |
| Power connector | 5.5 mm Barrel Jack, inner 2.1 mm |
| Max. Power consumption | 12 W |
| Idle power consumption | 7.5 W (no signal input) |
| Mains Inrush Current | 2 A @ 230 V AC |
| Operating temperature ( non-condensing ) | 0°C - 40°C; < 85% humidity, non condensing |
General data
| Material | Aluminum chassis |
| Material | Steel front panel |
| WAF | 60% |
| Dimensions (W x H x D) ( height with rubber feet ) | 128 x 50 x 140 mm |
| Weight | 0,96 kg |

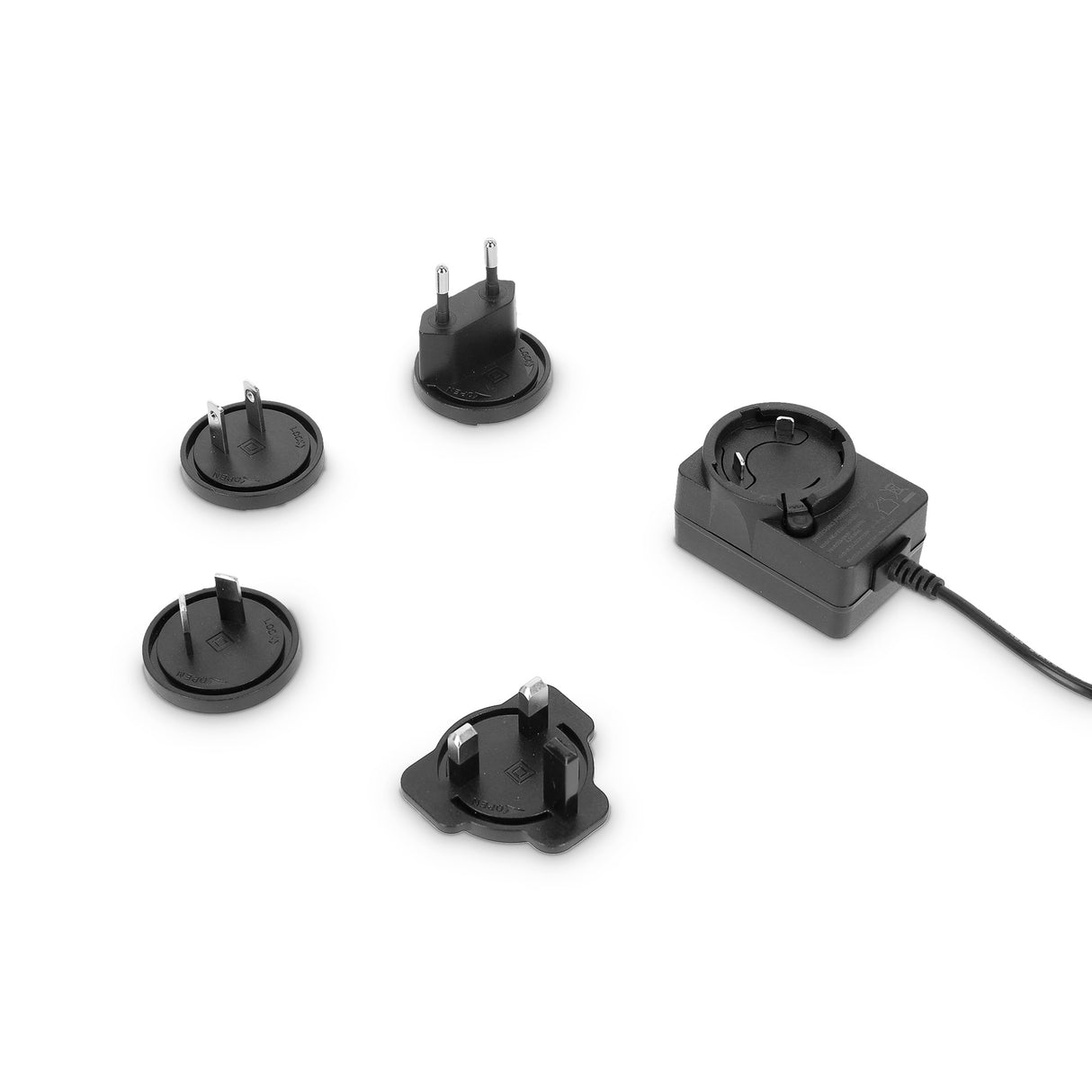

| Accessories (included) | External power supply with interchangeable plugs |

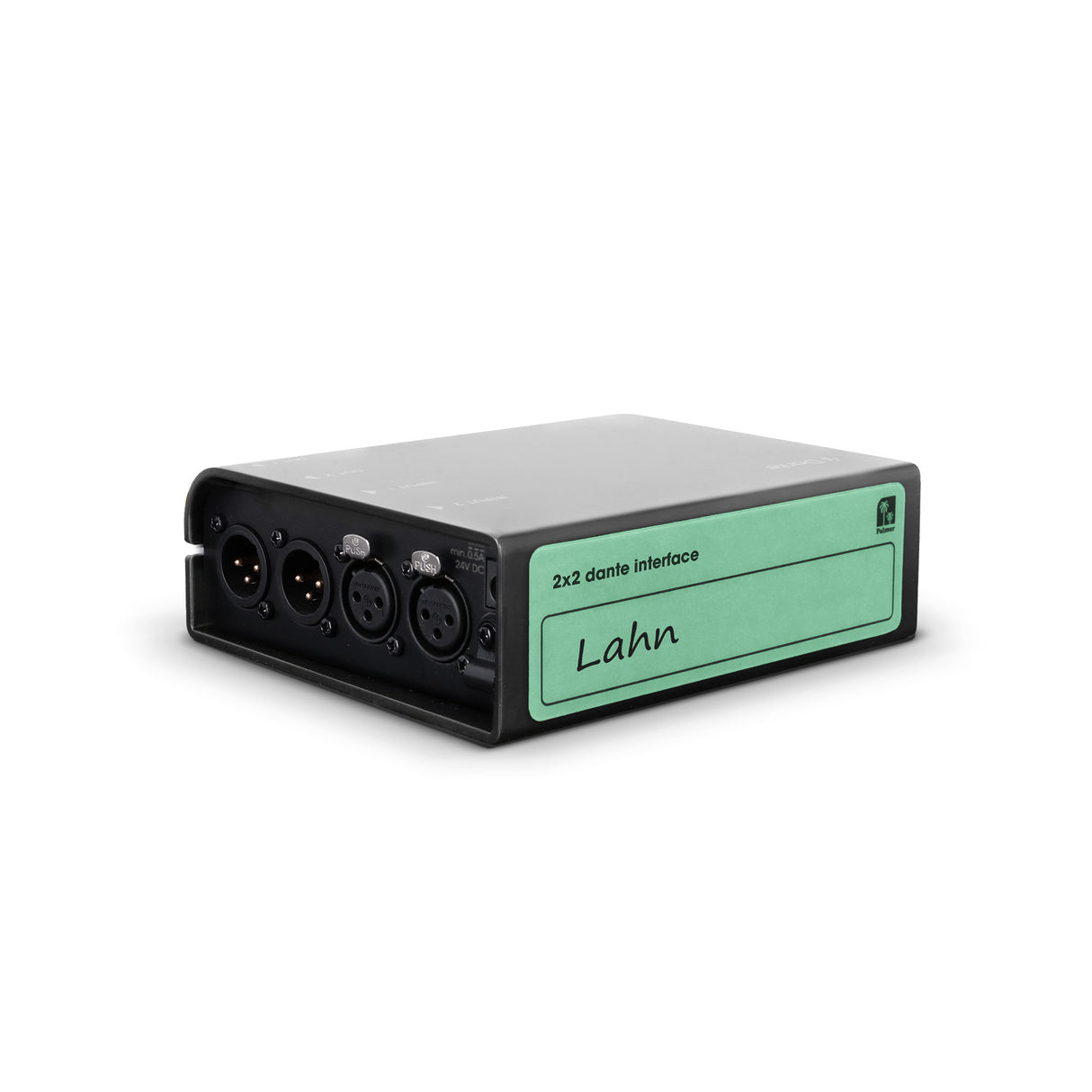

| Accessories (included) | Inscription label (tour label) |
