Palmer RIVER model – active DI box
€341,95
Unit price
/
Not available
Description
Description

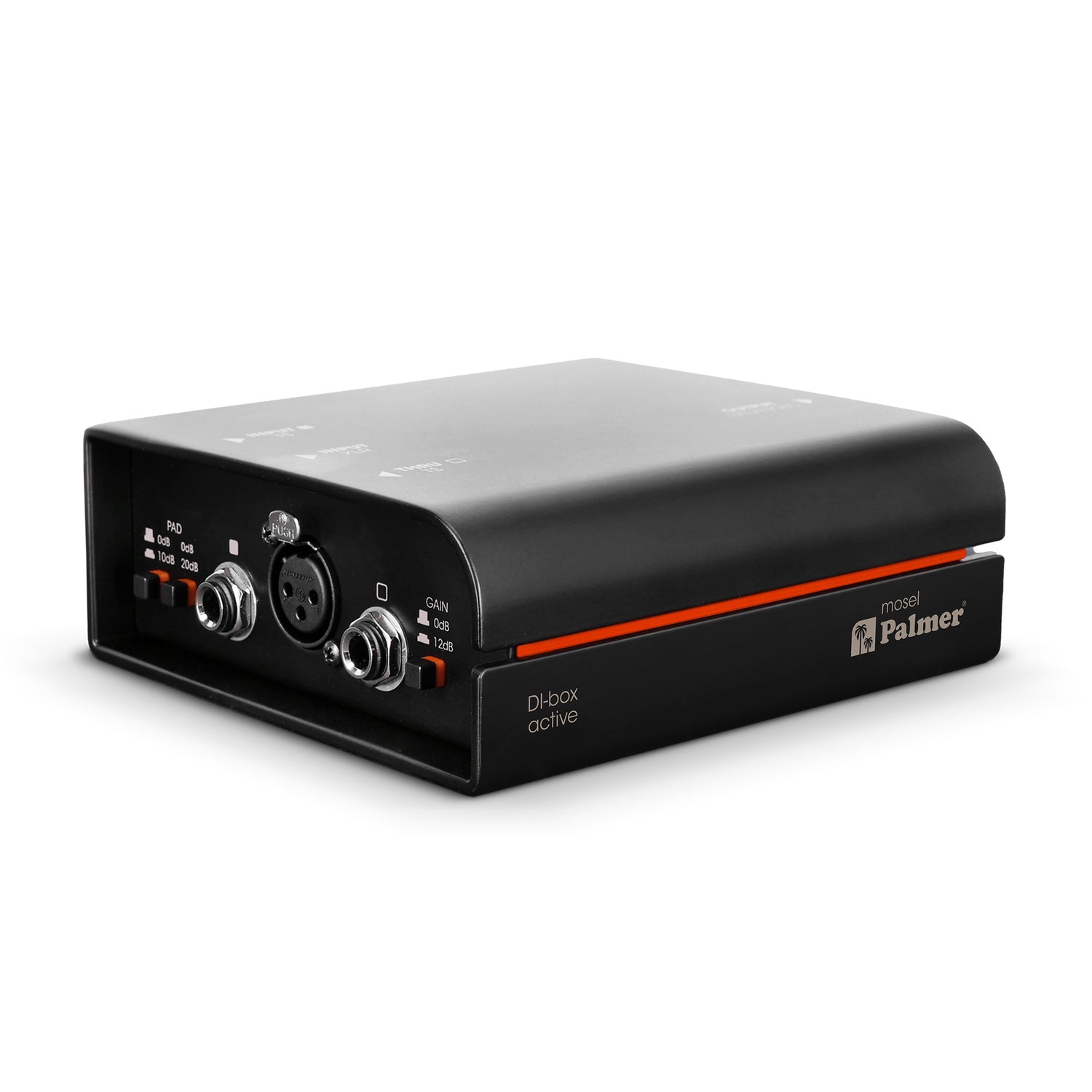

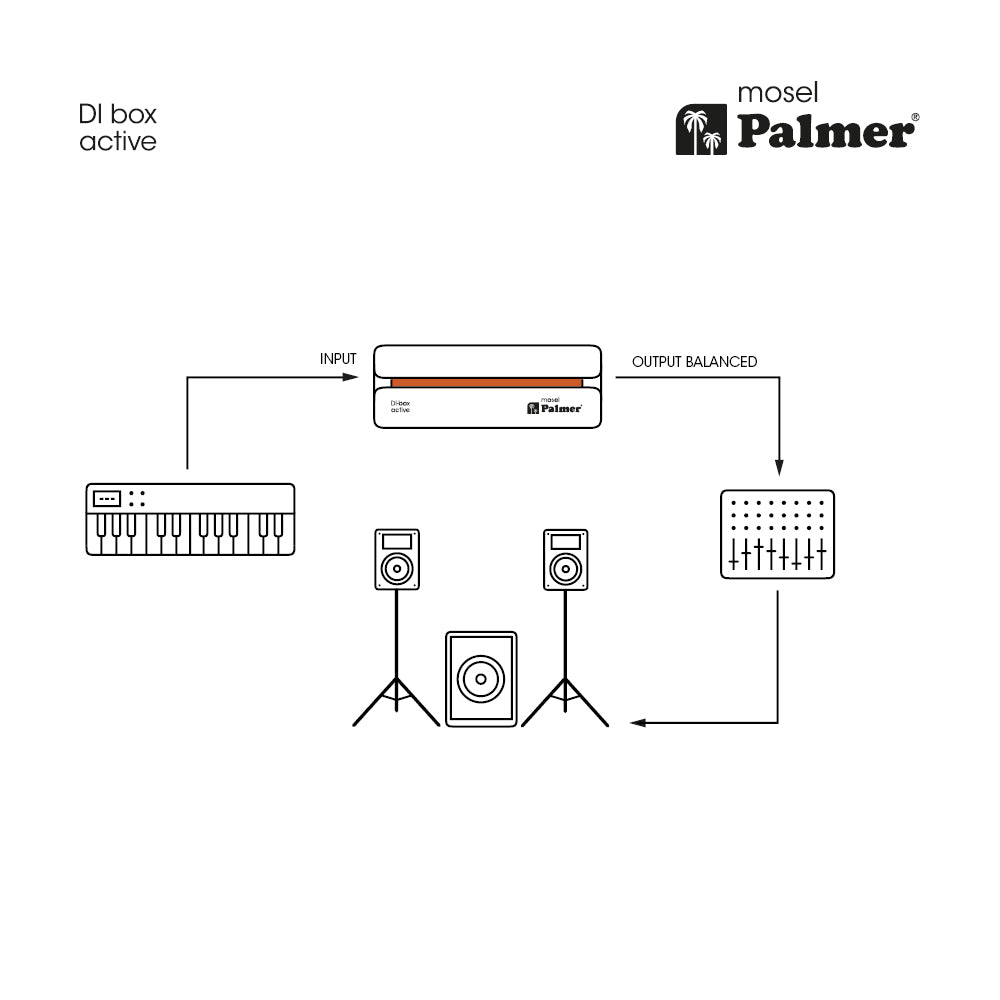

Need a bit more? Looking for a DI box that’s not only outstanding on stage, but also unlocks your instrument’s full sonic potential in the studio? Palmer mosel is a no-compromise, premium-quality DI box with useful extra features. Its active circuitry ensures an especially high input impedance for a punchy, clean sound. The unbalanced, high-impedance signal from magnetic and piezo pickups is converted into a low-impedance, balanced output signal without any loss of brilliance – even over longer cable runs. Palmer mosel is also ideal for synthesizers and other electronic keyboards, as it is exceptionally stable.
The output transformer – which provides galvanic isolation to eliminate ground loops – can handle studio levels up to +20 dBu. In addition, mosel is enclosed in Mu-metal to eliminate electromagnetic interference.

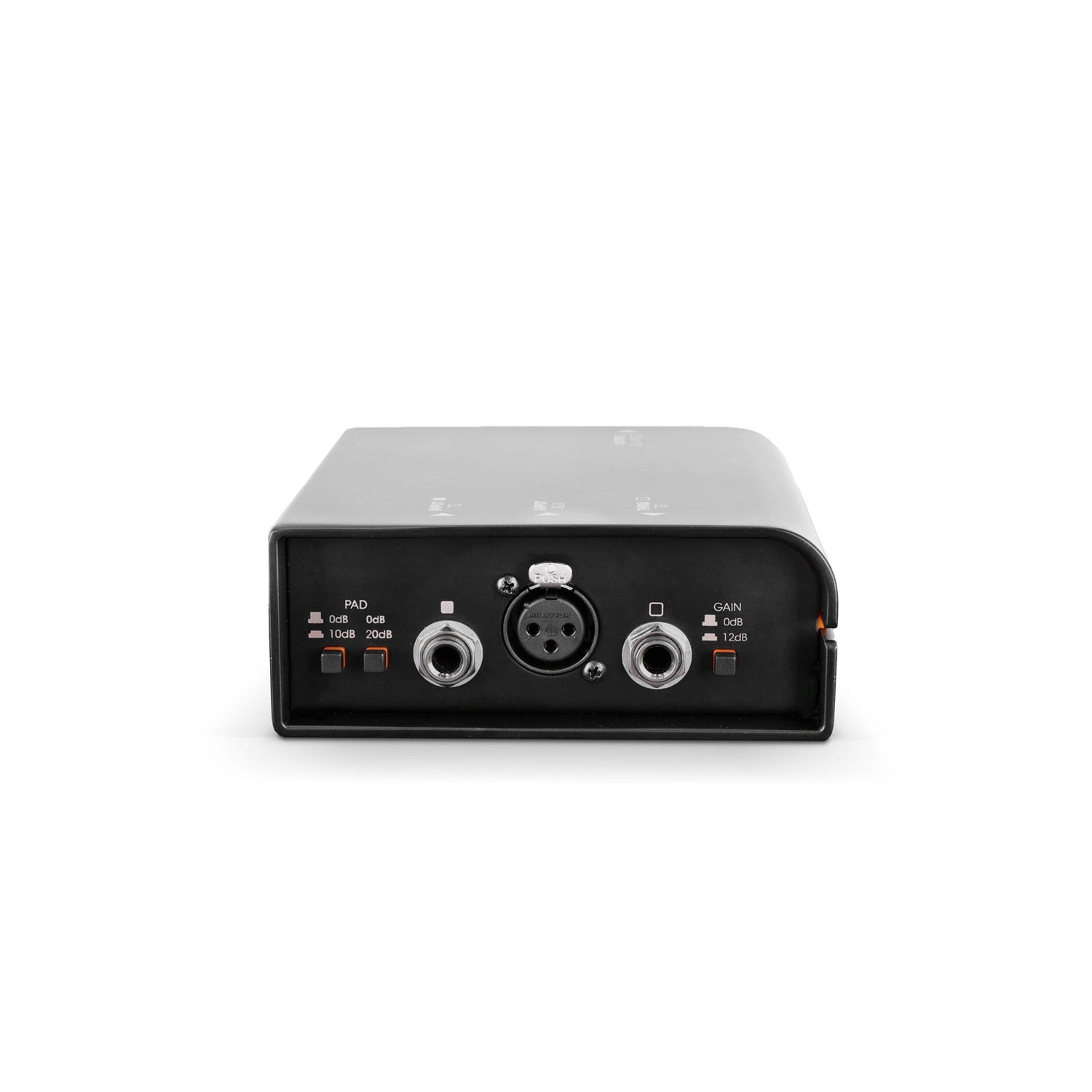

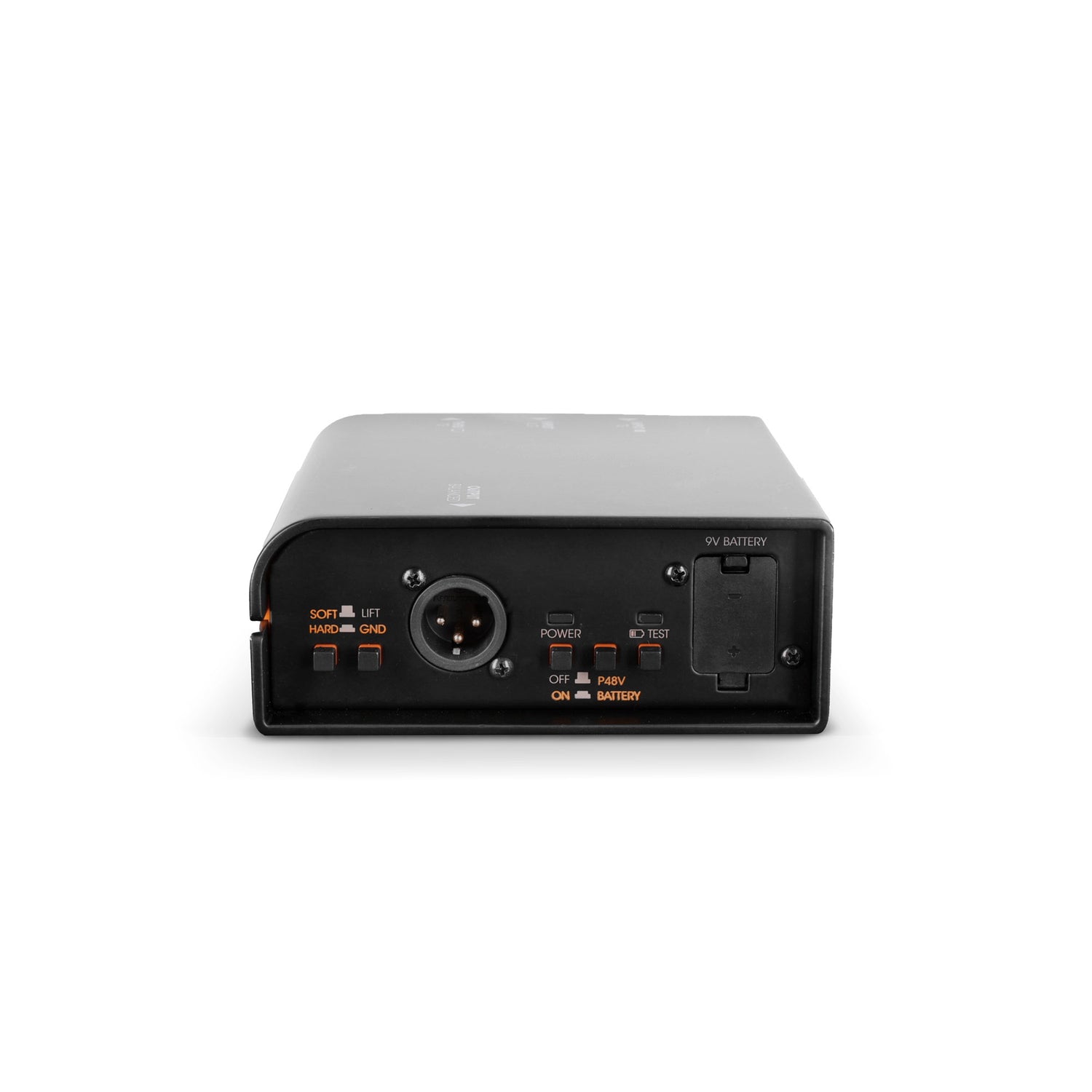

Palmer mosel offers two truly special extra features: a variable pad (-10/20/30 dB) and a boost function (+12 dB). These features ensure you can always achieve the optimum level for noise-free recordings. mosel is also extremely practical, because the unbalanced input is available not only on a jack, but also via XLR sockets. This makes unstable adapters unnecessary. The ground lift switch – for disconnecting the ground connection – also has a soft lift setting. Power for mosel can be supplied either via 48V phantom power or a 9V battery.
Palmer mosel is a high-end active DI box for studio use and demanding PA applications. And for those times when good simply isn’t good enough! Choose the best – choose mosel.
Technical specifications
Technical specifications
- Balancing and impedance matching for guitar/bass/keyboards/synthesisers
- Premium design: high headroom, low noise floor, ultra-efficient ground lift
- Prevents humming through galvanic transformer isolation with Mu-metal shielding
- Neutral sound thanks to active input stages with high impedance

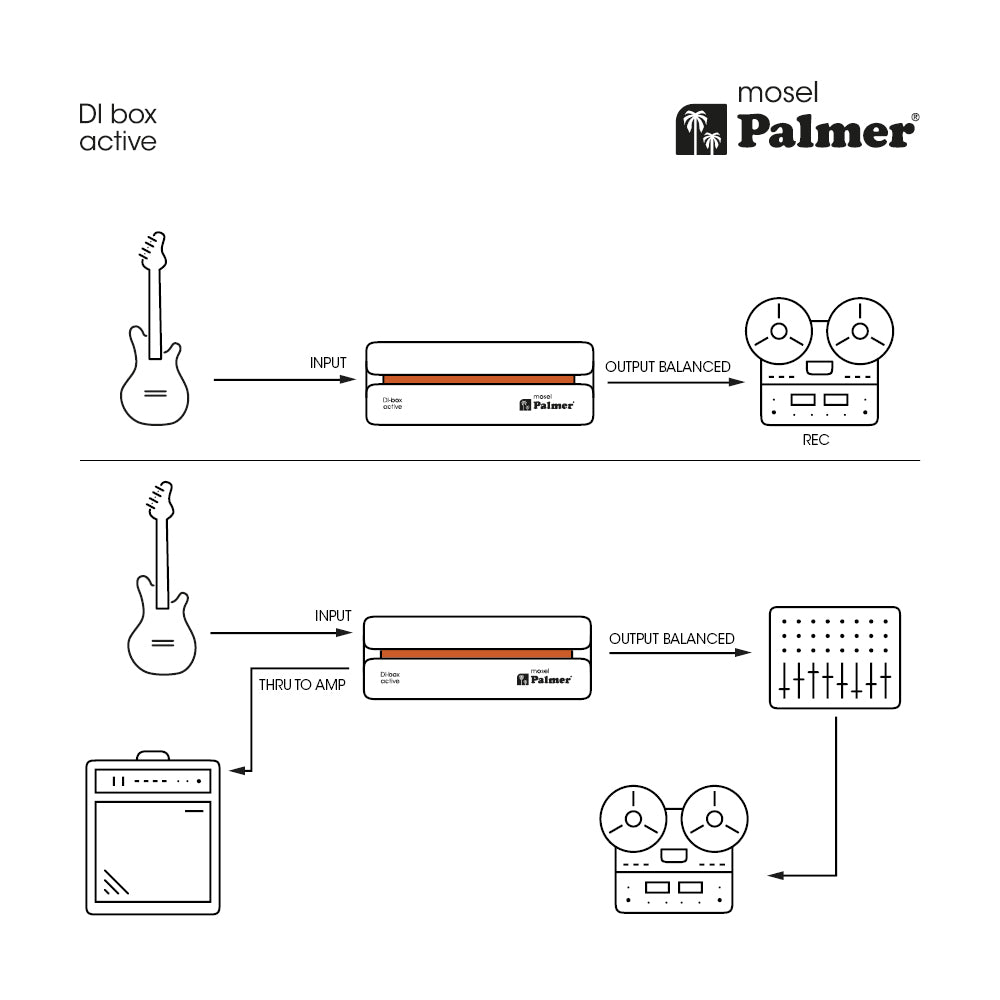

- THRU connection for passing the input signal to the amplifier
- Handles even very high-level inputs without distortion
- Variable pre-attenuation for high-level inputs plus a boost for weak signals
- Power supply via 9V battery or 48V phantom power unit
- Road-ready casing made of aluminium and steel plate

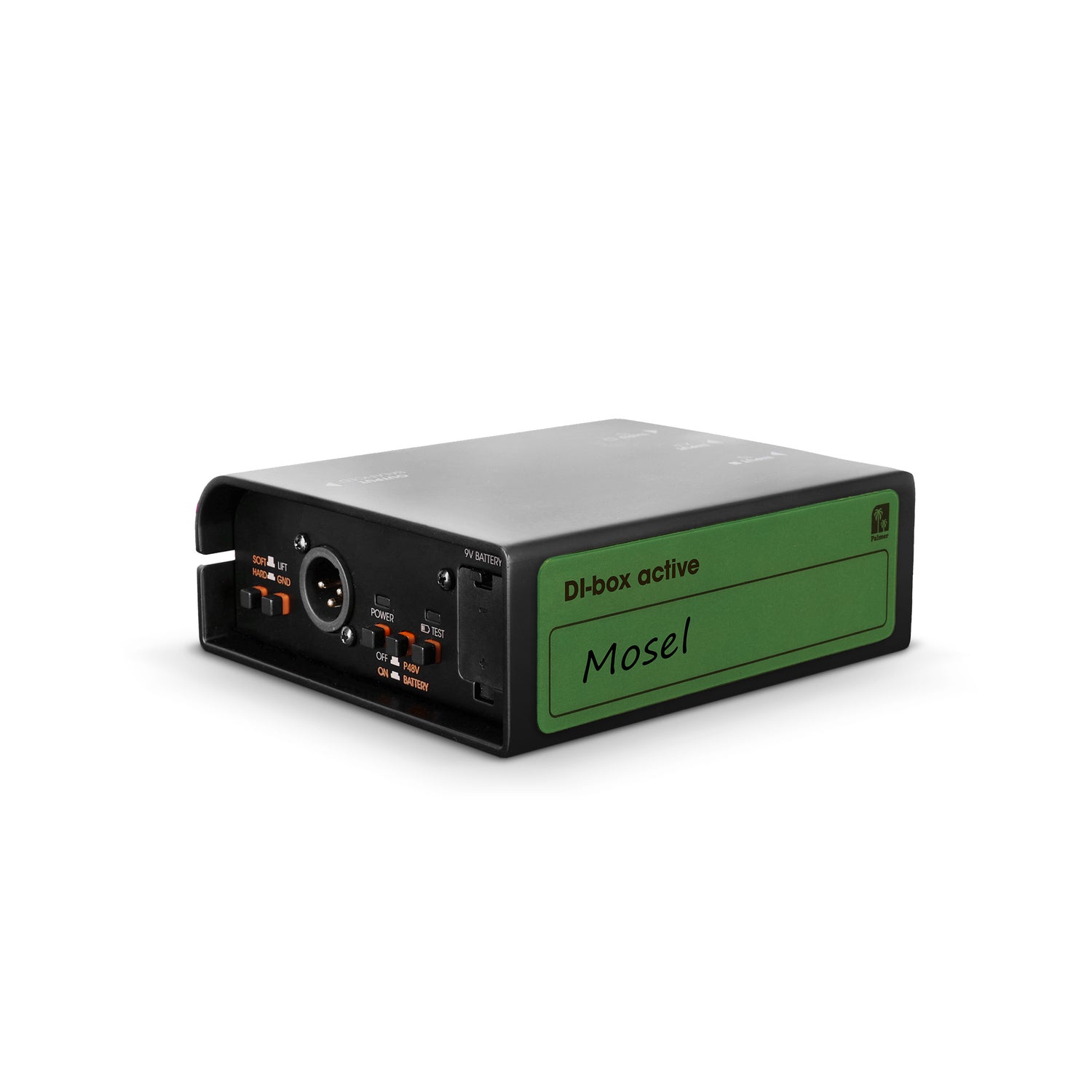

- Incl. rewritable tour label for attachment on to the back of the mosel
- Engineered in Germany
General
| Type | Active |
| Included Accessories | Rubber feet |
| Included Accessories | Tour label |
| Isolated transformer | Yes |
| Transformer Ratio | 1:1 |
| Ground Lift | Hard |
| Ground Lift | Soft |
| On/Off switch | Yes |
| Frequency response (±1 dB, rel. Avg) | 20 - 20,000 Hz |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Number of channels | 1 |
Inputs
| Input signal type | Unbalanced |
| Input connector types | 6.3 mm Jack TS |
| Input connector types | XLR 3-pole female |
| Number of mic/line inputs | 1 |
| Number of instrument inputs | 1 |
| Max. input level (< 1% THD, rel. 20 Hz) | 14 dBu |
| Max. input level (< 1% THD, rel. 1 kHz) | 21 dBu |
| Input impedance | 600 kΩ |
| Input pad | 0 dB |
| Input pad | 10 dB |
| Input pad | 20 dB |
| Input pad | 30 dB |
| Input gain | 0 - 12 dB |
Outputs
| Output signal type | Balanced |
| Output connector types | XLR 3-pole male |
| Linked outputs per channel | 1 |
Line output performance
| Max. output level | 14 dBu |
| Balanced output impedance (1 kHz) | 83 Ω |
Signal processing
| Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted) | 113 dB |
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted) | 0.006 % |
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted) | 0.35 % |
| Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu) | 0.0087 % |
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu) | 0.0087 % |
Mains operation
| Operation voltage | 48 V phantom power |
| Rated power | 0.5 W |
Battery operation
| Batteries | 1 x 9V block (6LR61) |
| Built in battery tester | Yes |
Housing
| Chassis material | Aluminum continuous casting |
Environmental
| Ambient temperature | -20 - 70 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 140 mm |
| Height | 50 mm |
| Depth | 128 mm |
| Weight | 0.72 kg |
