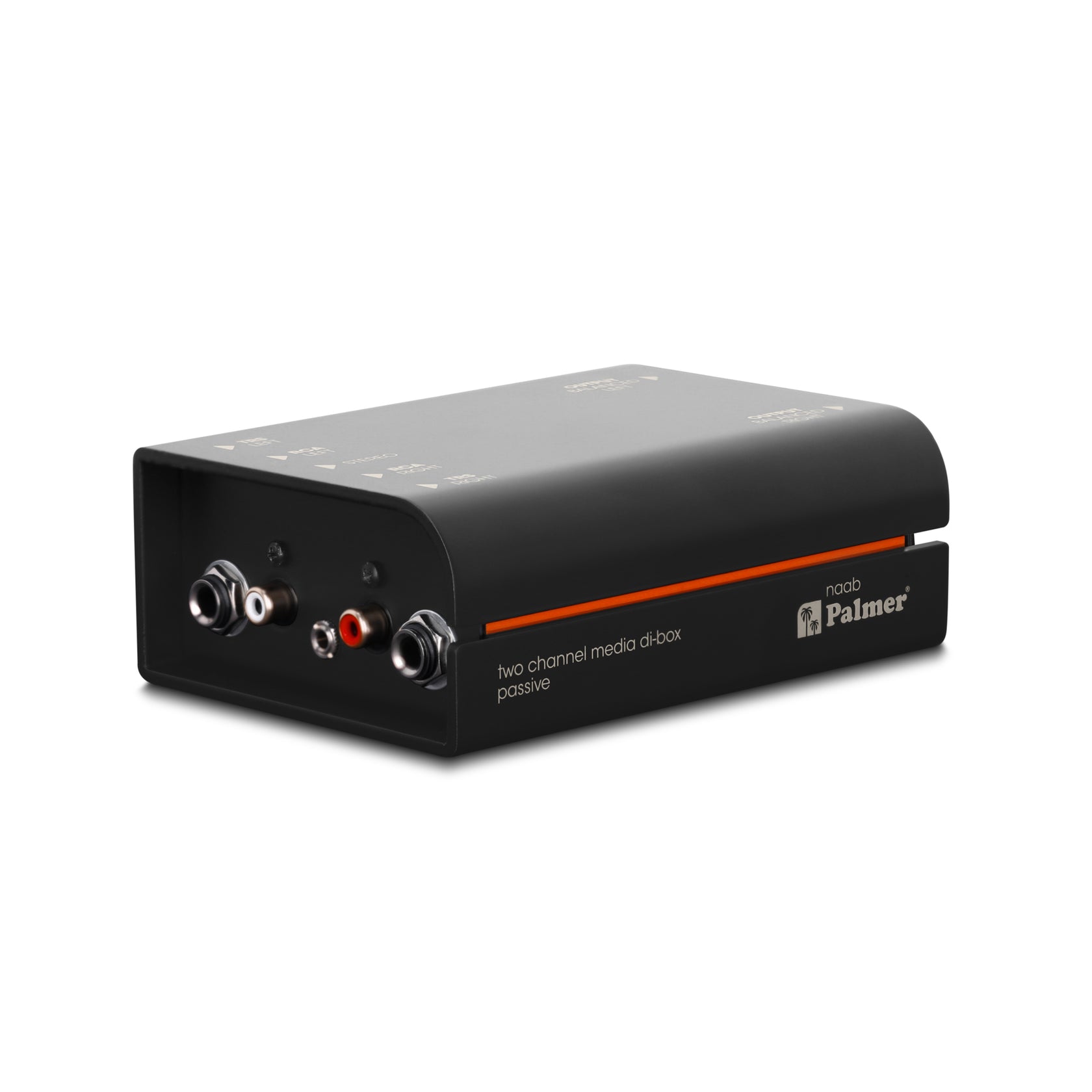

Palmer RIVER naab - Passive 2-channel DI box for media applications
1
of
15
Loading...
€356,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Palmer Passive Monitor Controller
€86,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer Pro Cable tester
€77,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer MONICON XL active studio monitor controller
€397,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer STUDIMON 5 Studio Monitor
€233,95
External warehouse. Estimated delivery in 9–12 business days.
-
Palmer PBC400 drawer
€31,95
External warehouse. Estimated delivery in 9–12 business days.

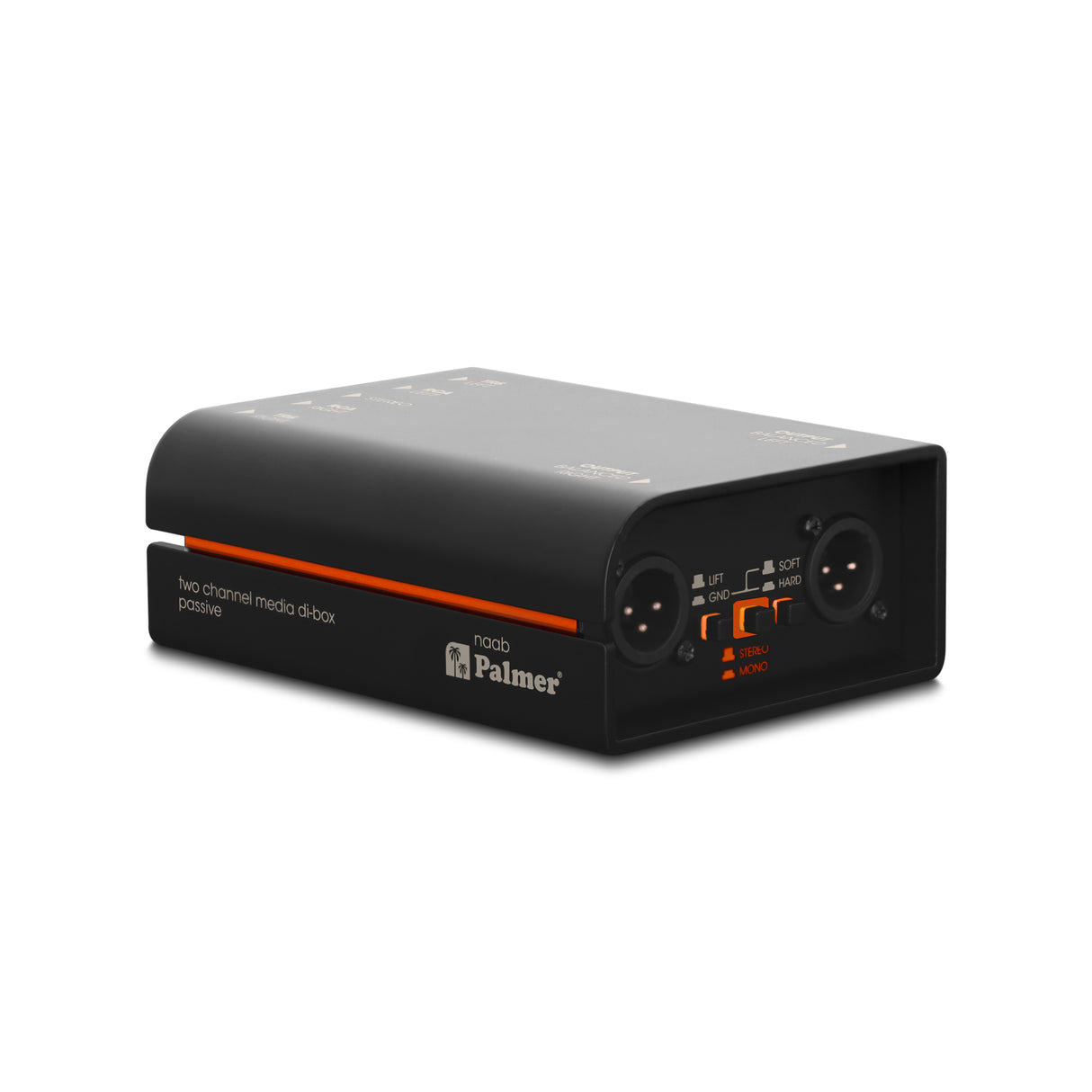

Palmer RIVER naab - Passive 2-channel DI box for media applications
€356,95
Unit price
/
Not available
Description
Description

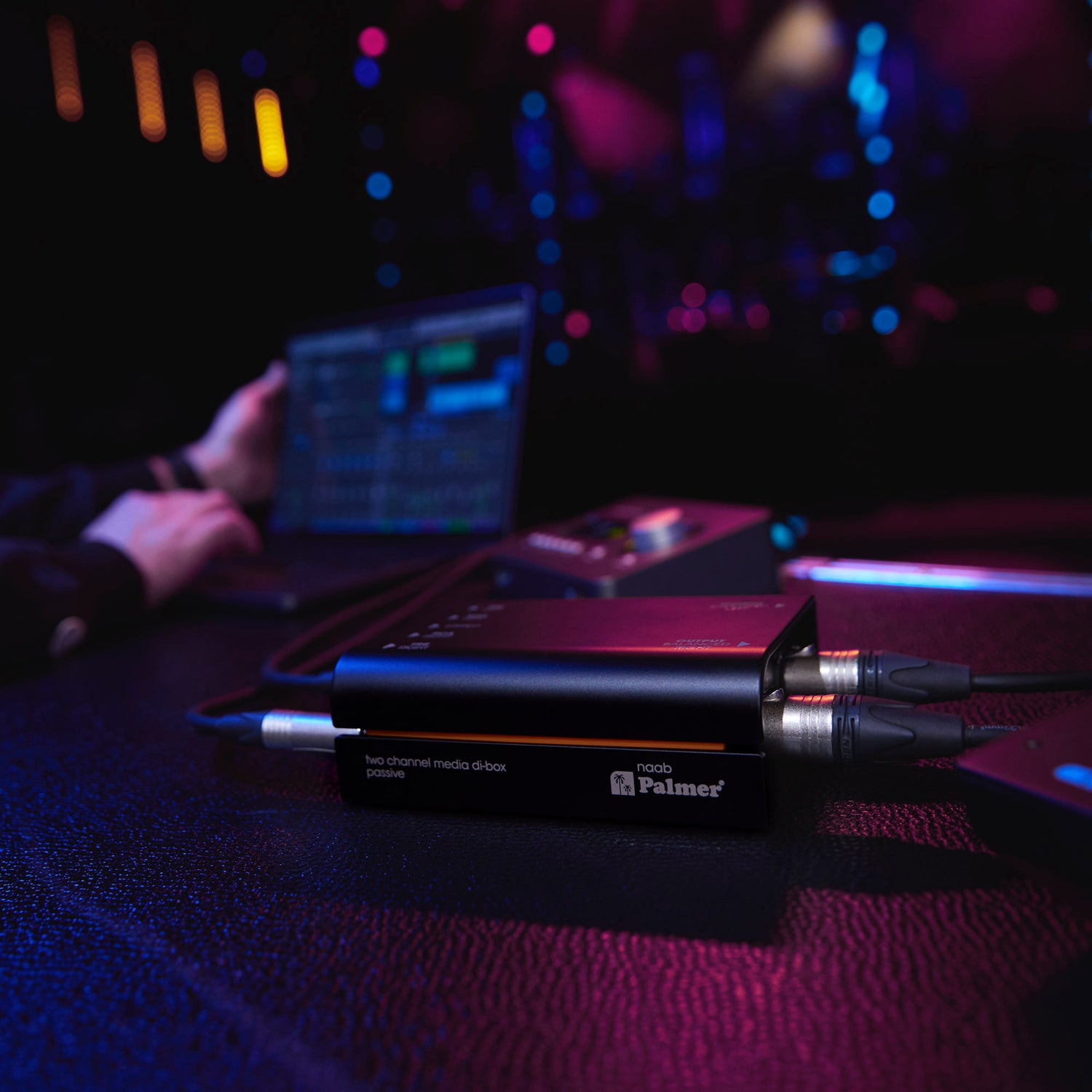

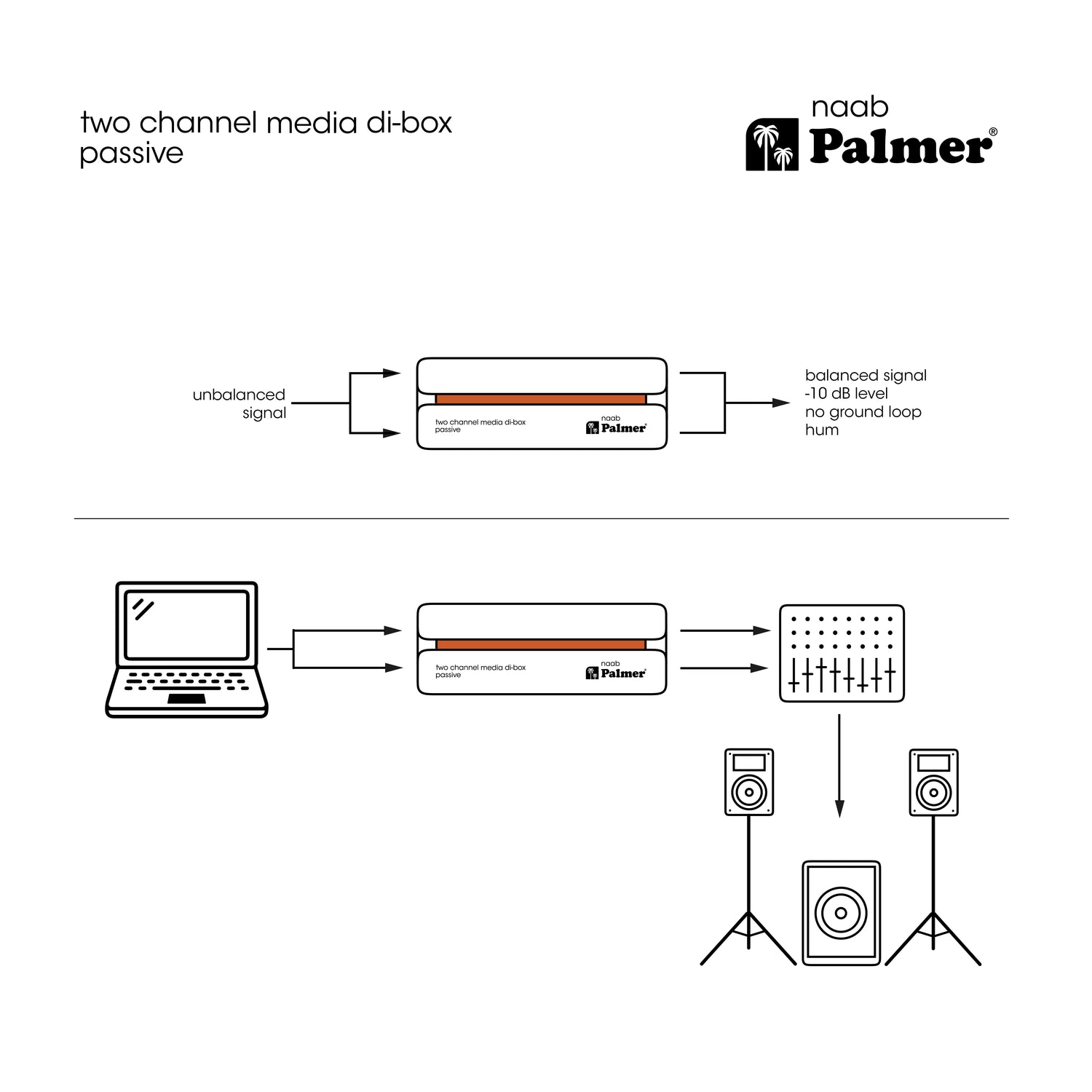

When you connect a laptop to a sound system, in many cases the audio quality leaves a lot to be desired. It hums and crackles, and sometimes there is also a loss of sound in the low and high frequencies. Palmer naab, a two-channel media DI box, provides a reliable solution in this situation.
Its class-leading isolation transformers and the switchable hard or soft ground lift prevent any hum. The transformers also ensure perfect level and impedance matching. The result is clean audio without any kind of noise.

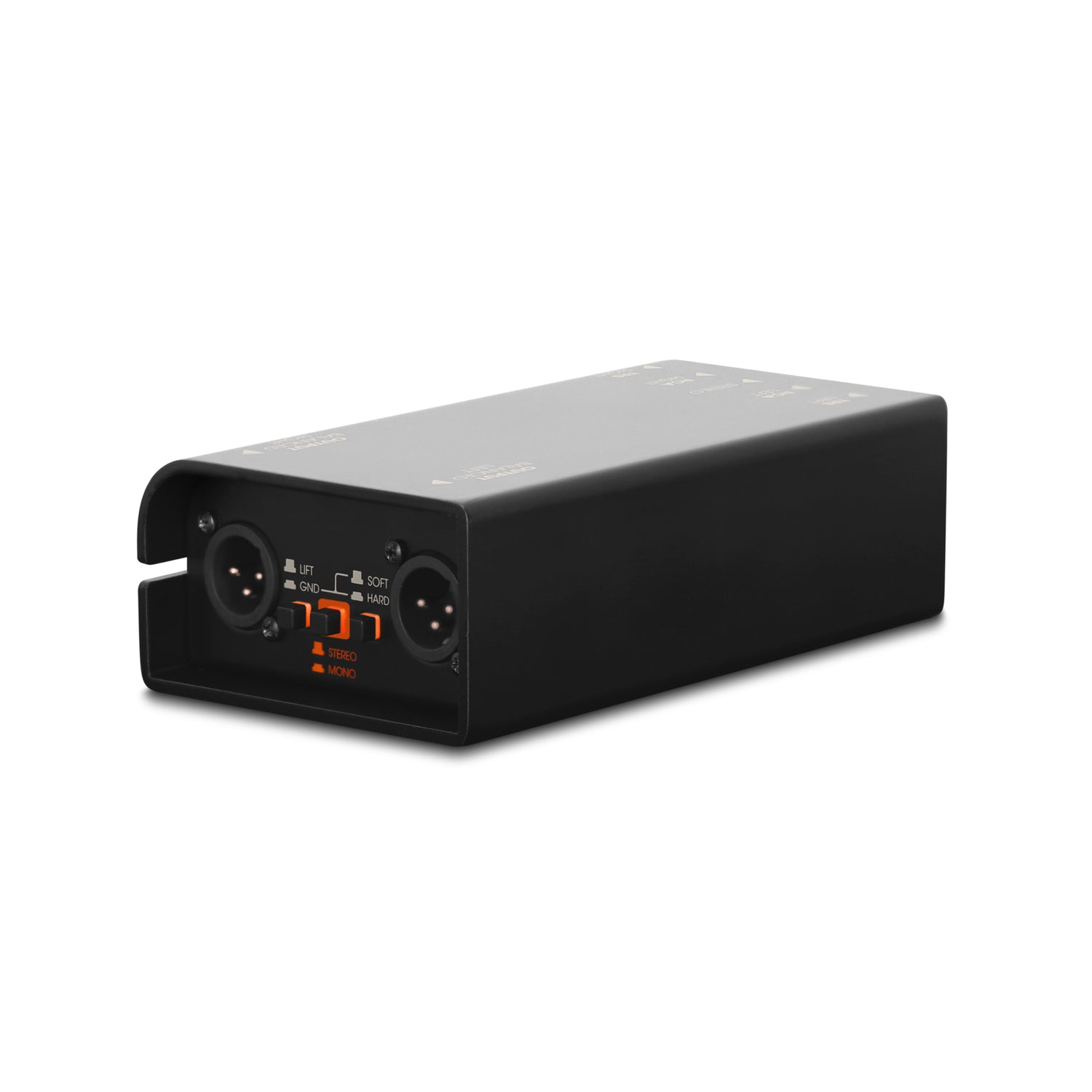

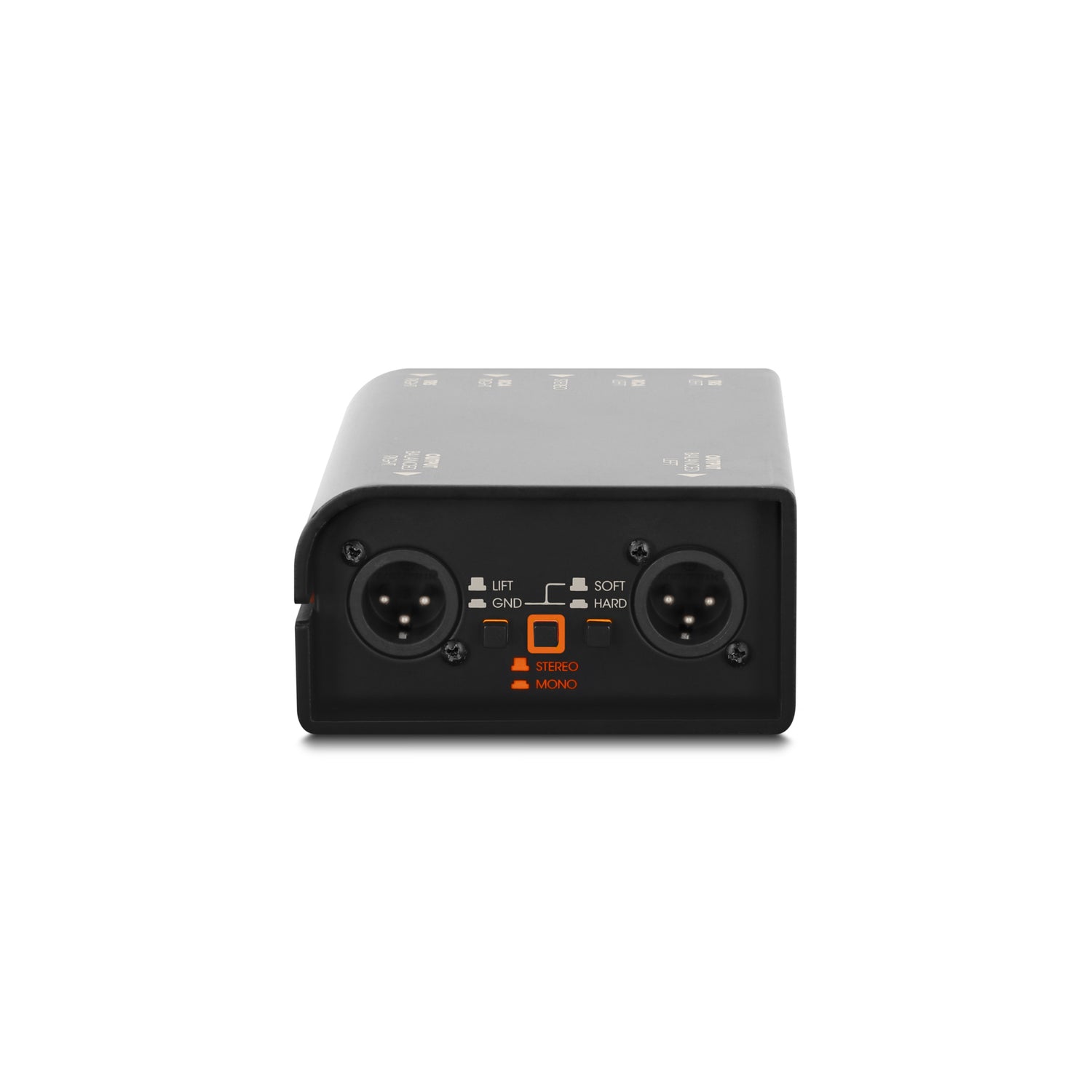

If required, Palmer naab can be switched from stereo to mono, which is often very useful in practice. The mono sum signal is then available on both XLR outputs at the same time; this also allows naab to be used as a split box.

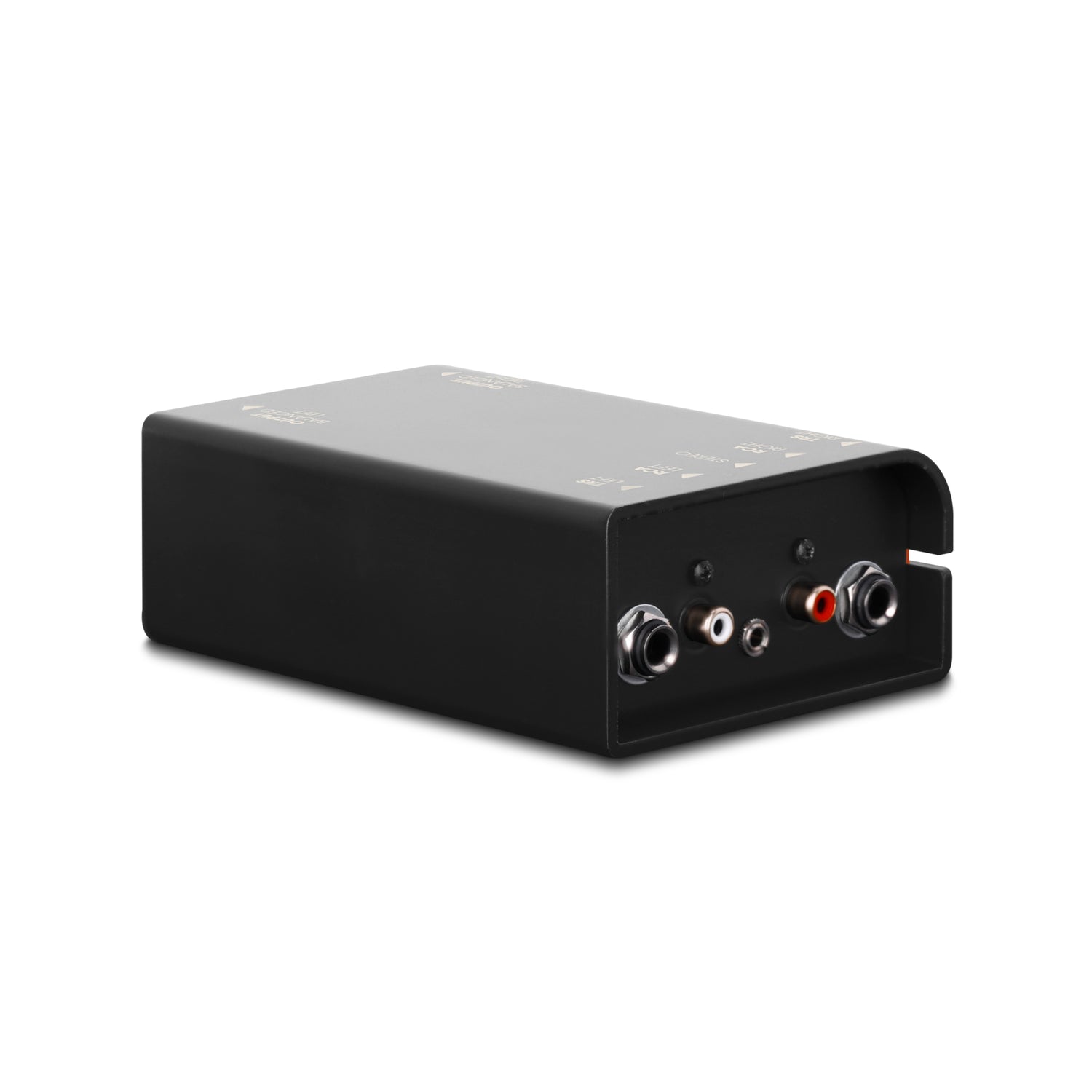

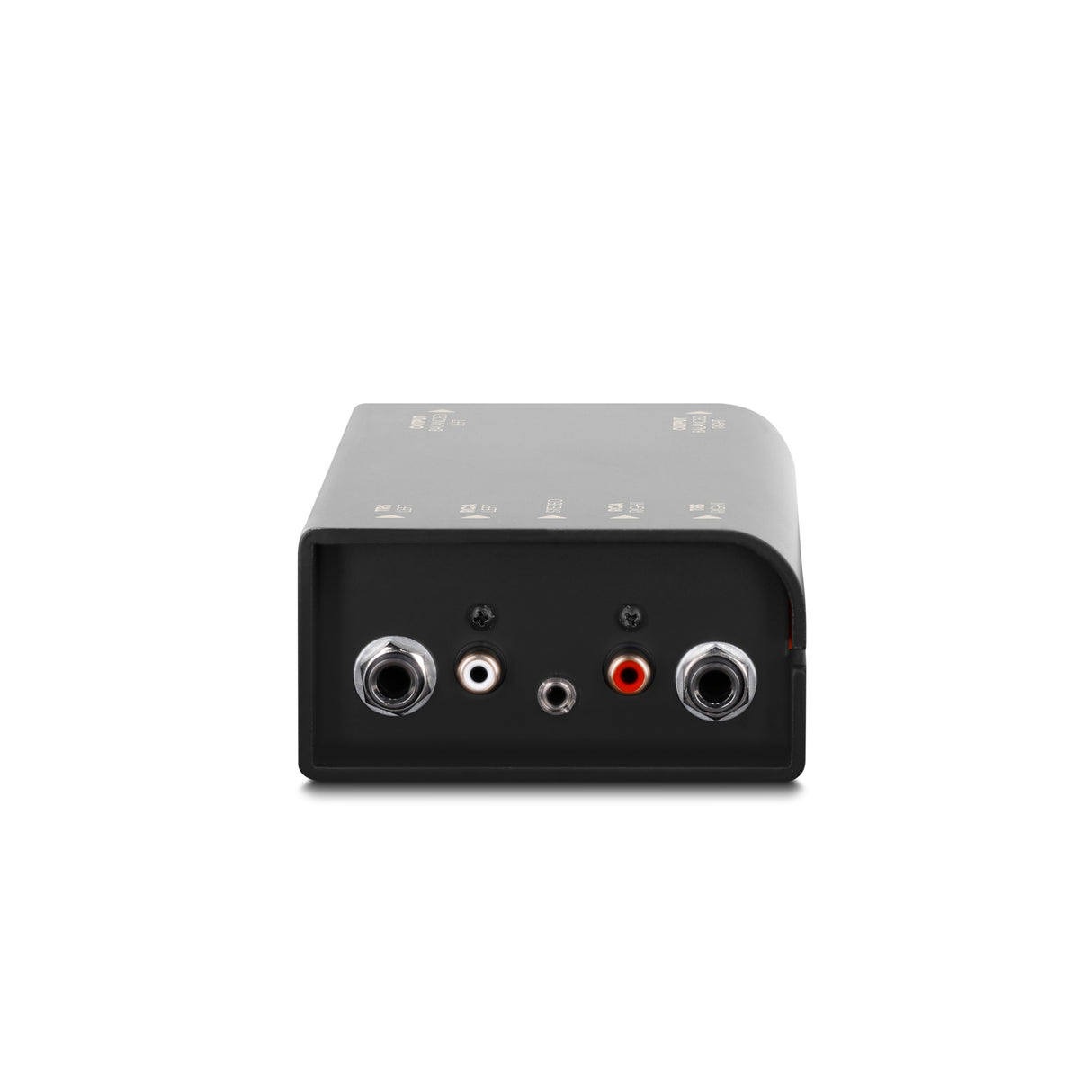

On the input side, there is a wide selection of connections: 2 x 6.3 mm jack sockets, which can be balanced or unbalanced, as well as 2x RCA and 1x 3.5 mm mini-jack (stereo). This eliminates the need for adapter cables – which you always forget to bring along anyway! The outputs are professional XLR sockets; their balanced wiring enables even longer cable runs without noise.
Thanks to its passive design, Palmer naab does not require a power supply; this makes it extremely reliable, especially as the rugged metal housing can withstand a lot. Palmer naab is the ace up the sleeve for any presenter on the go, DJ and sound engineer.
Technical specifications
Technical specifications
- For connecting media devices (e.g., a laptop) to PA systems
- Reliably eliminates ground loop hum and interfering signals
- Galvanic transformer isolation
- Stereo, mono-switchable
- Inputs as 2 x 6.3 mm jacks (balanced/unbalanced) 2 x RCA, 1 x mini jack stereo
- 2 balanced XLR outputs
- Optimal impedance matching to avoid sound losses
- Passive construction, no power supply required
- Solid casing made of aluminium and steel

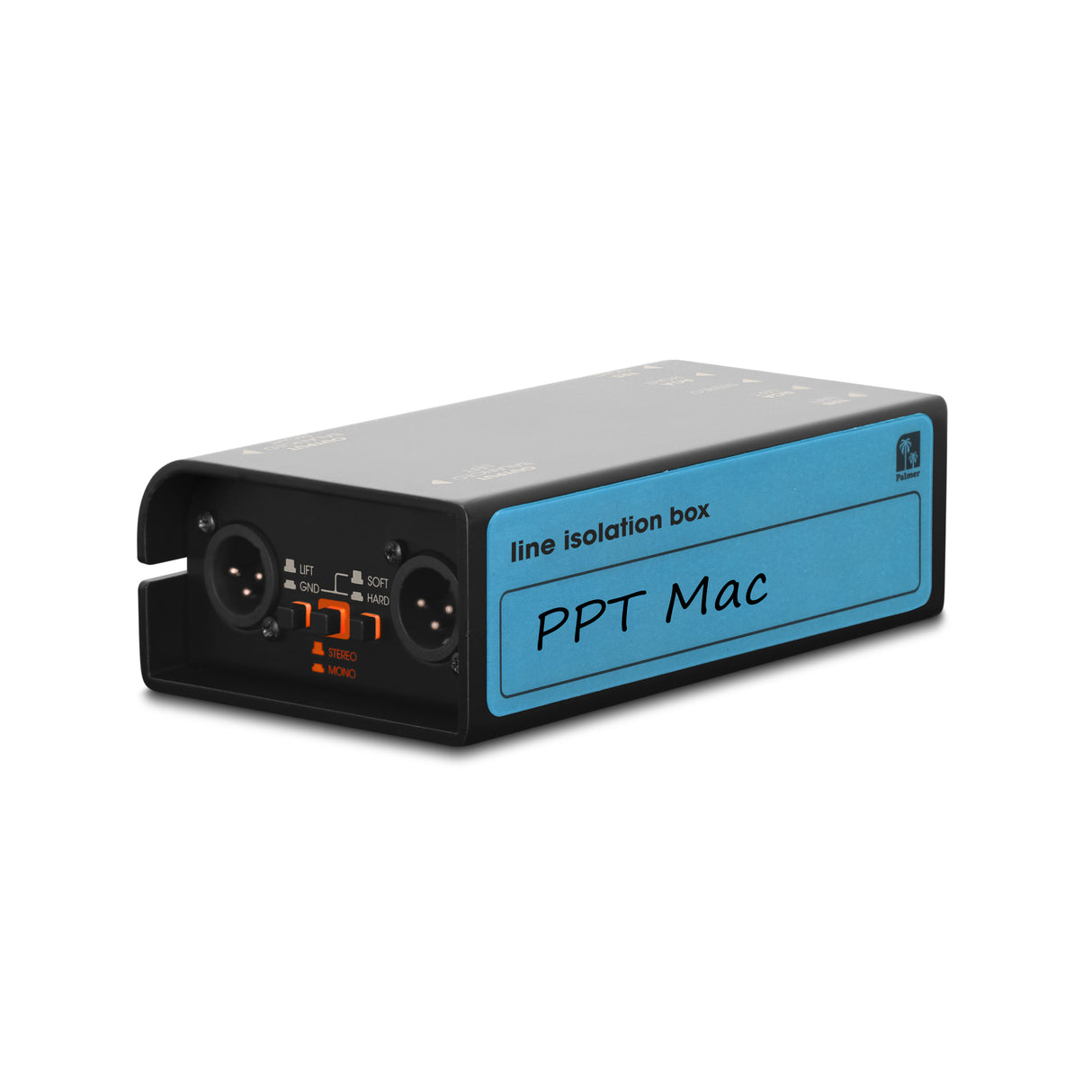

- Incl. rewritable tour label for attachment onto the back of the naab
- Engineered in Germany
| Product type | line isolator |
| Channels | 2 |
| Type | passive |
| Transformer isolated | Yes |
| Number of inputs | 2 |
| input type | unbalanced |
| Input connectors | 3.5 mm TRS |
| Input connectors | 6.3 mm jack |
| Input connectors | RCA |
| Number of outputs | 2 |
| Output type | balanced |
| Output connectors | XLR |
| Ground lift switch | Yes |
| Additional Features | Mono summing switch |
| Housing | Aluminium continuous casting |
| Dimension (H/W/D) | 50 x 140 x 58 mm |
| Weight | 0,555 kg |
| Ambient temperature during operation | -20 - 70 °C |
| Relative Humidity | < 80 %, not condensing |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
Audio
| Max. input level (< 1% THD, 20 Hz) | + 14 dBu |
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu |
| Frequency response (±0,2dB, relative 1kHz) | 5 Hz - 60 kHz |
| Input impedance (1 kHz) | 10 kOhm |
| Output impedance (1 kHz) | 80 Ohm(s) |
| THD (30 Hz,-10 dBV, unity, unweighted) | < 0,03 % |
| THD (1 kHz, - 10 dBV, unity, unweighted) | < 0,0008 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | < 0,002 % |
| Transformer ratio | 3.16 : 1 |
