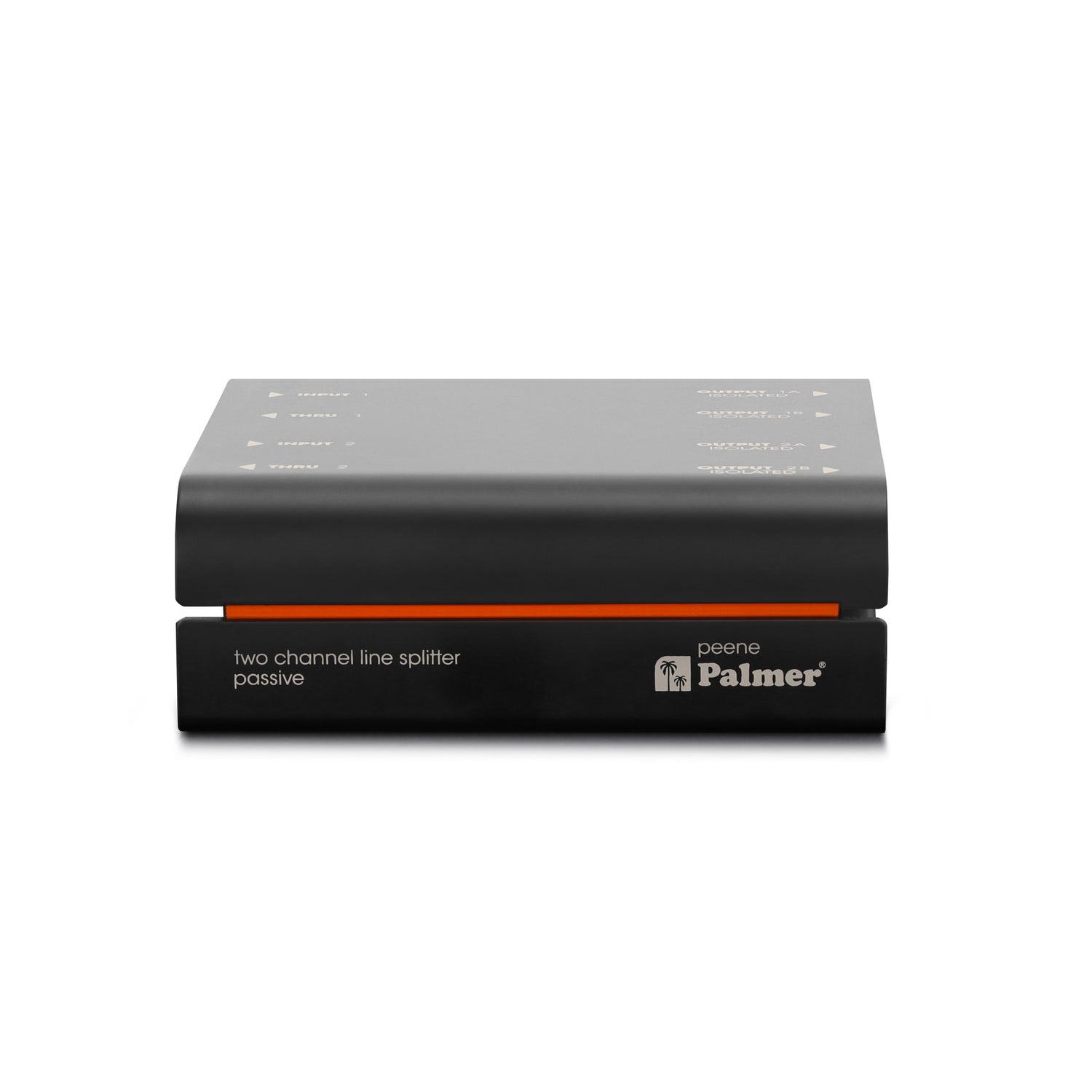

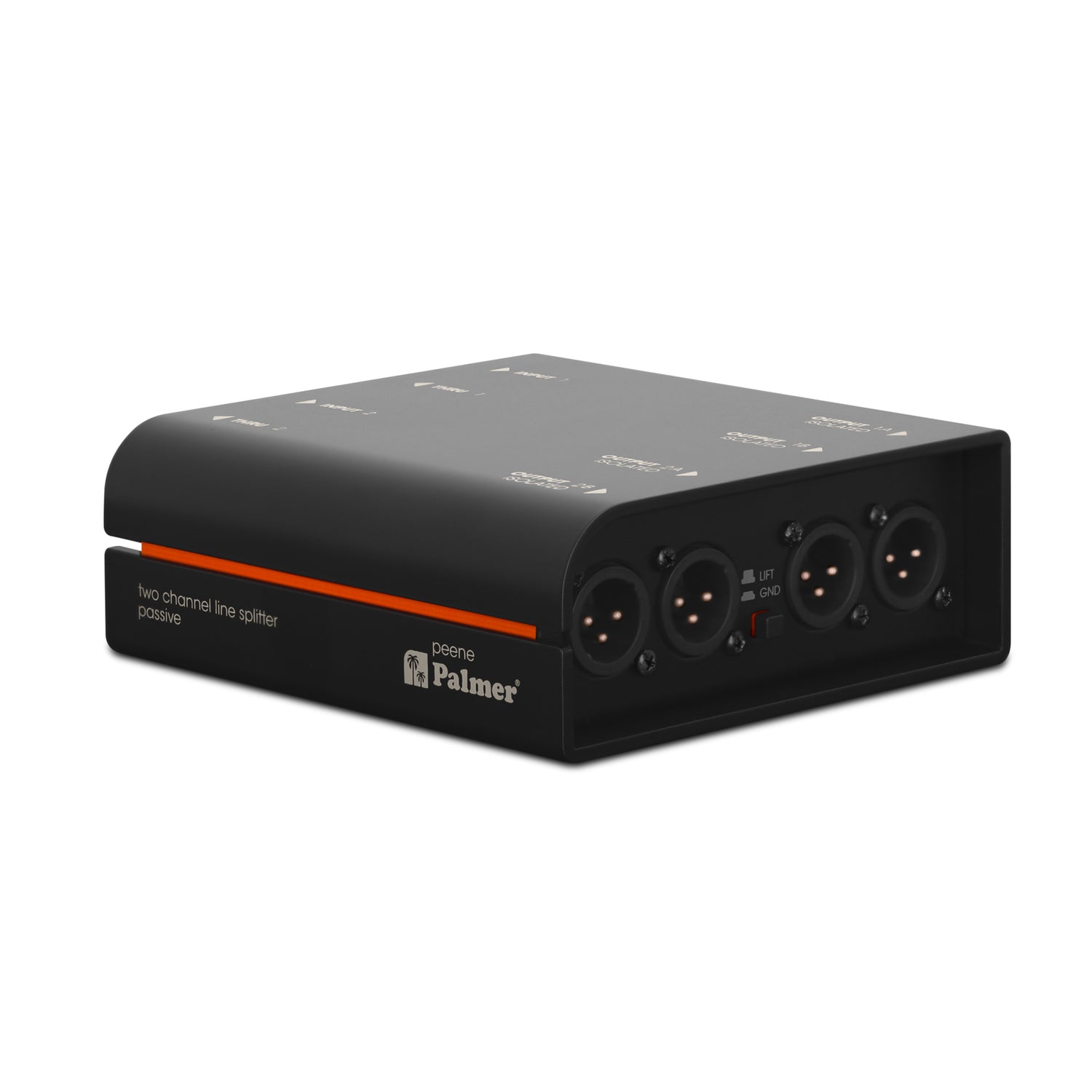

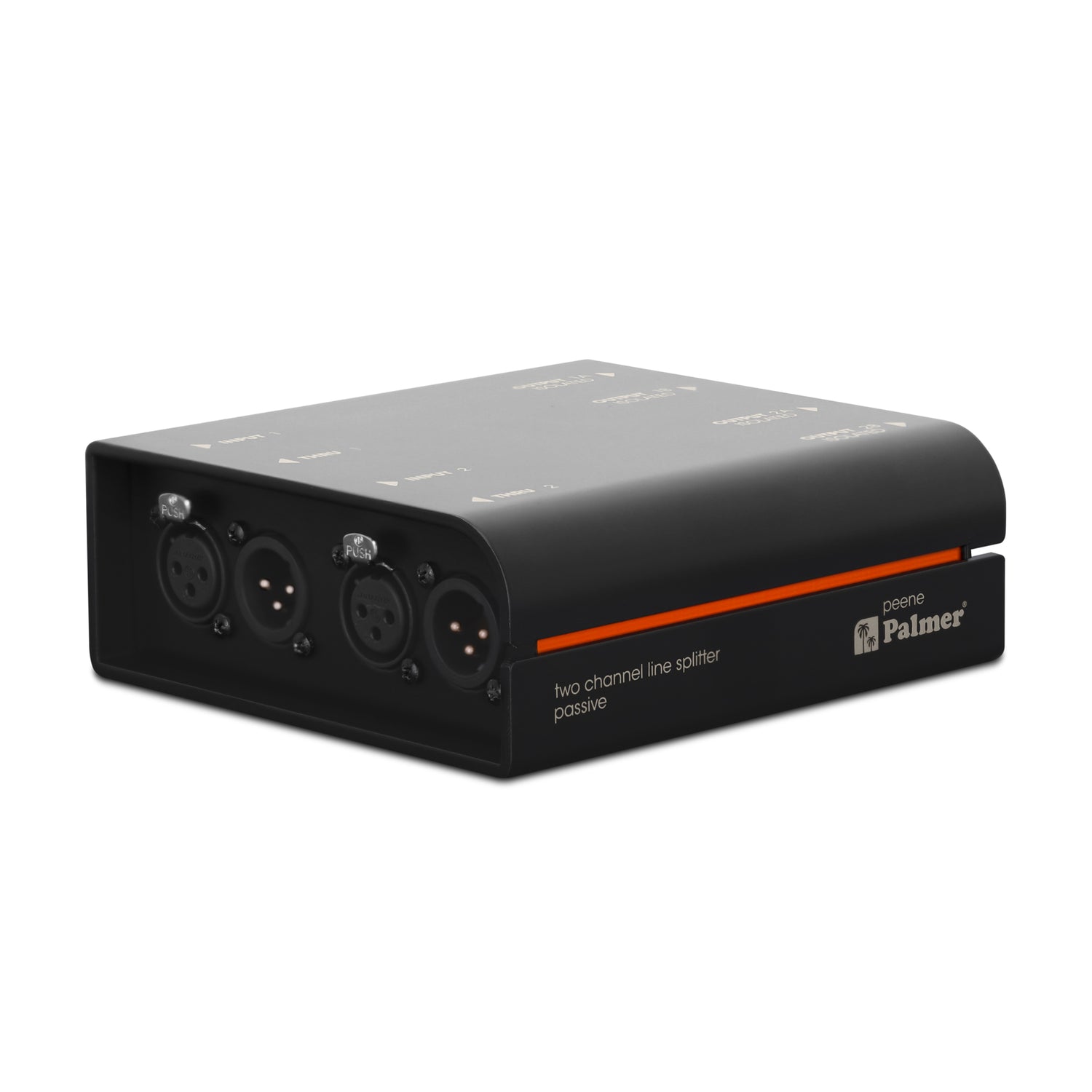

Palmer RIVER peene - Passive 2-channel line splitter
Description
Description

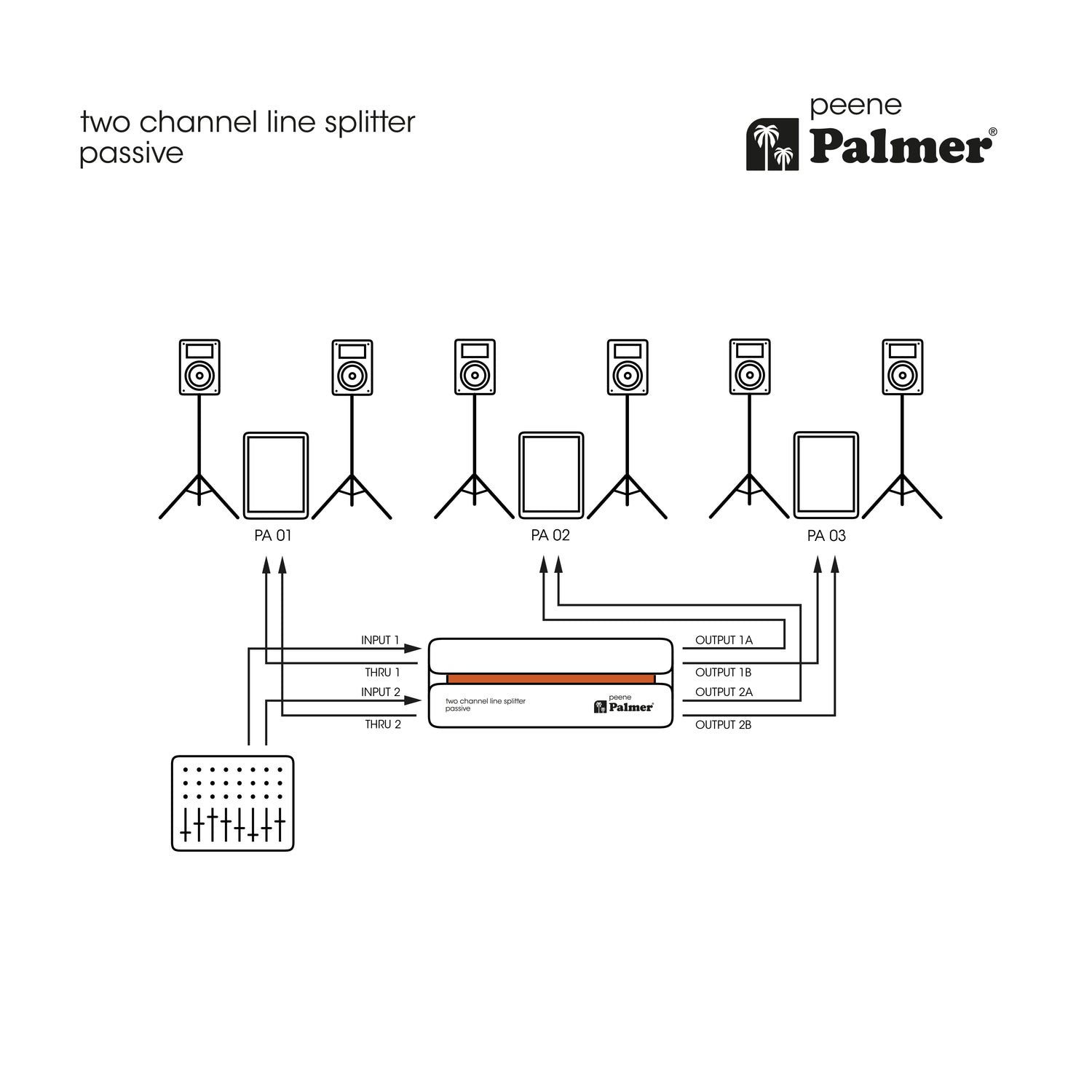

Do you want to send a line signal – stereo or dual mono – to multiple devices without interference such as hum? Then the Palmer peene line splitter box is the right tool for you. It operates purely passively with large isolation transformers that can even handle high-level signals without distortion. For example, you can route the mixing console’s stereo output signal to multiple power amplifiers without ground loops. Palmer peene also features a ground lift switch. In addition to the two transformer-isolated outputs, peene also passes the input signal through directly via a link output.
Palmer peene is everything you need to distribute line signals to multiple devices, and is a reliable audio tool with ultra-simple operation and professional sonic performance.
Technical specifications
Technical specifications
- Distributes two input signals to two outputs each + link outs
- For line signals
- Galvanic isolation of outputs by transformers

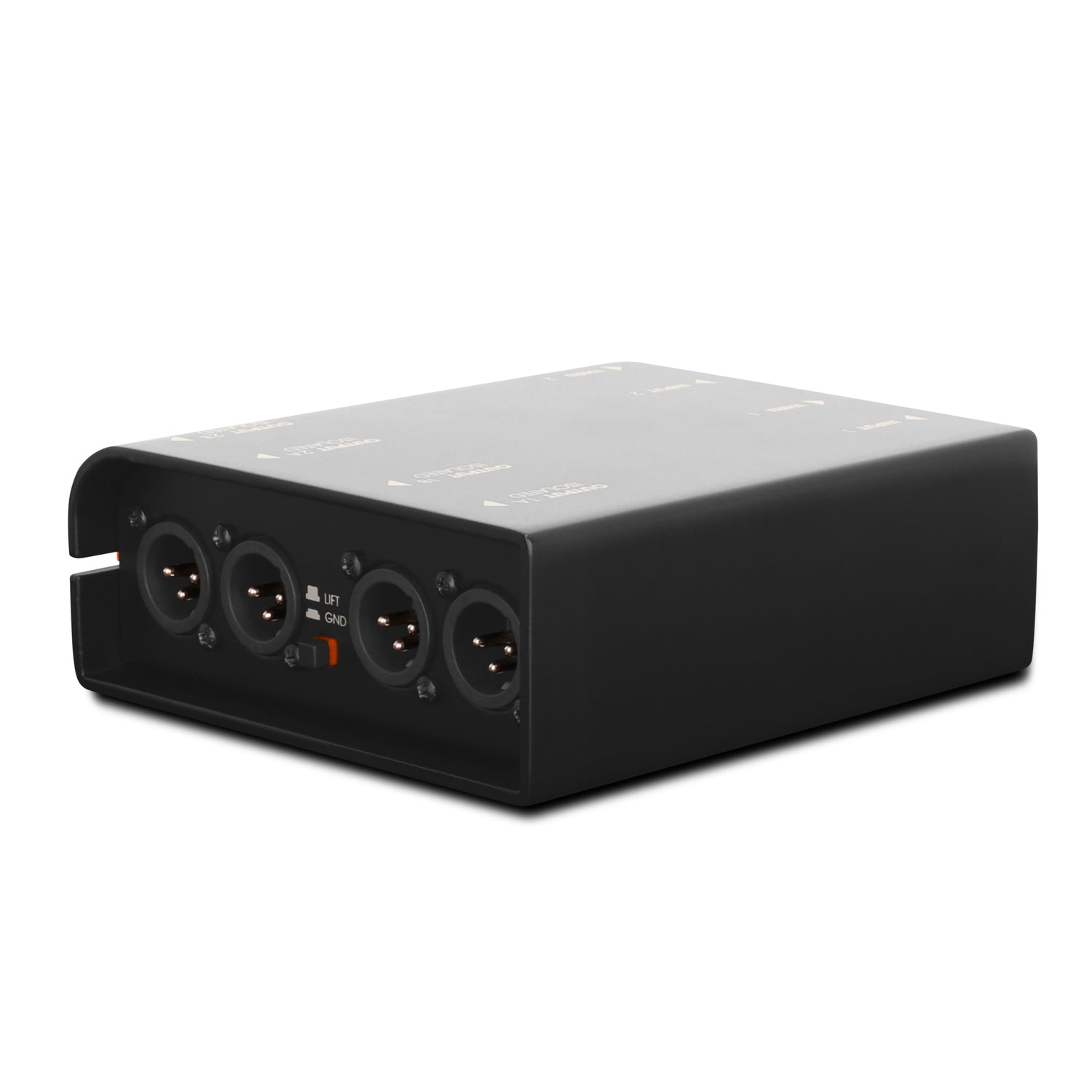

- Switchable ground lift to isolate ground loop hum
- Neutral sound
- High headroom (+20 dBu max. input level)
- Passive construction, no power supply required
- Extremely fail-safe
- Solid casing made of aluminium and steel

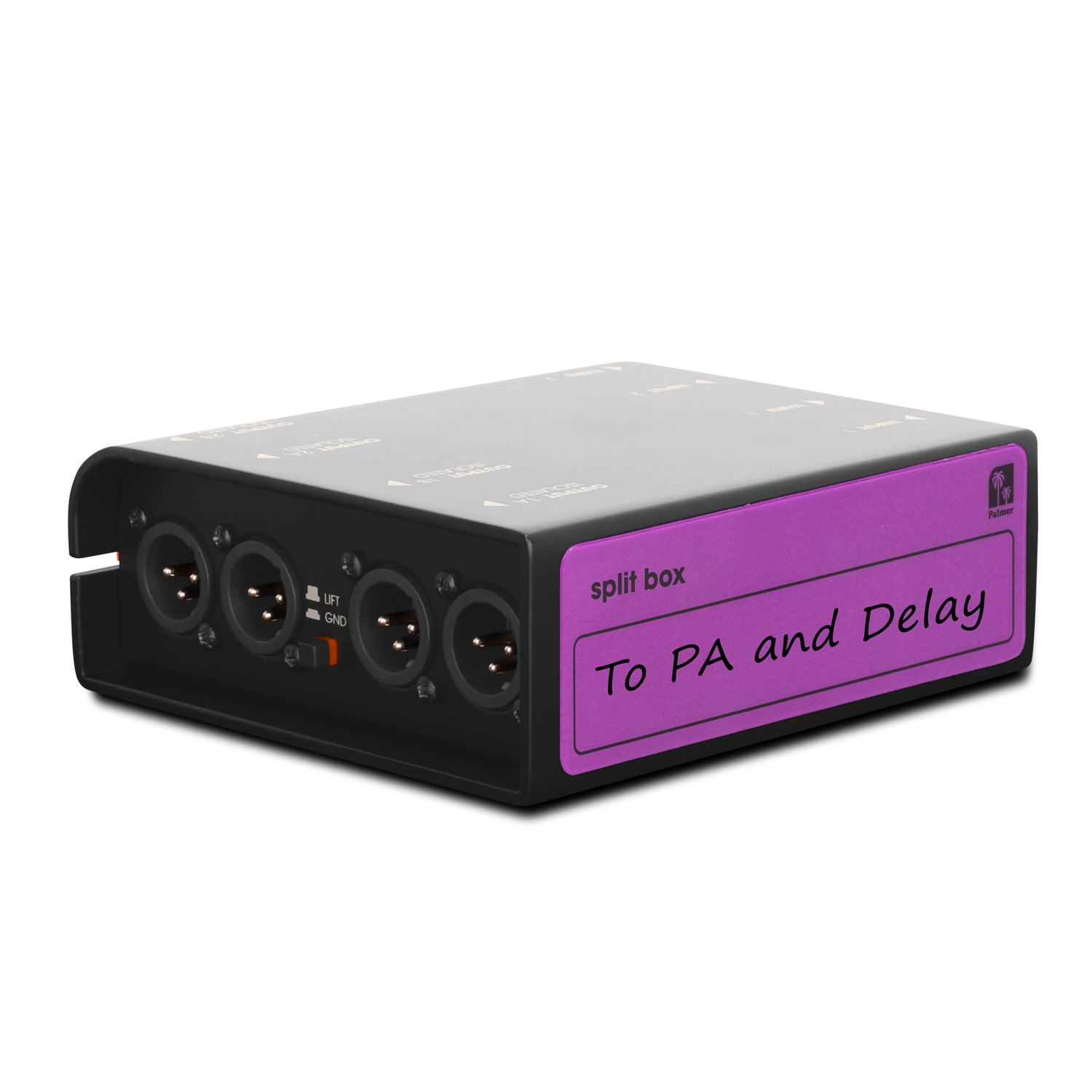

- Incl. rewritable tour label for attachment onto the back of the peene
- Engineered in Germany
| Product type | Line Splitter |
| Channels | 2 |
| Type | passive |
| Transformer isolated | Yes |
| Number of inputs | 2 |
| input type | balanced |
| Input connectors | XLR |

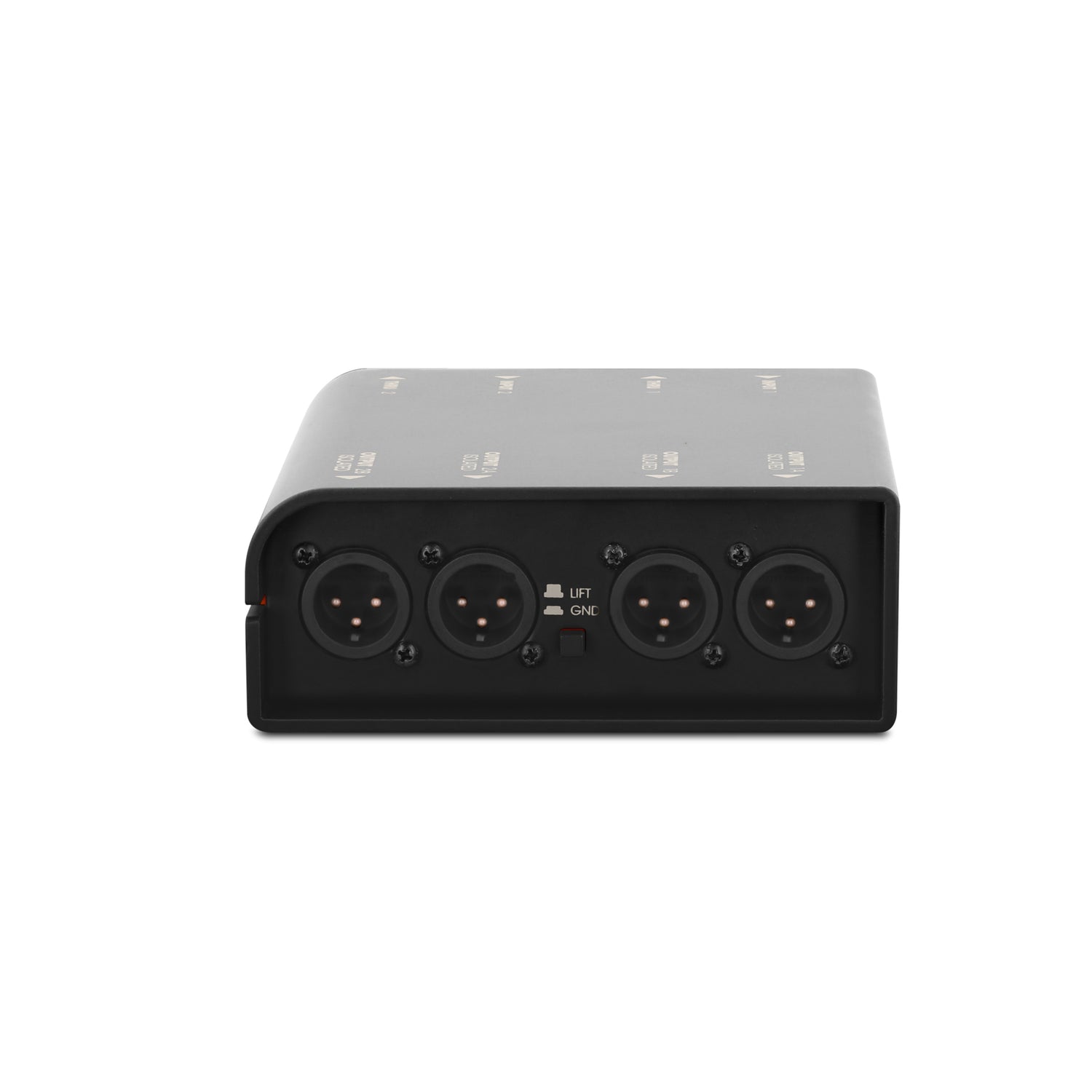

| Number of outputs | 4 |
| Output type | balanced |
| Output connectors | XLR |

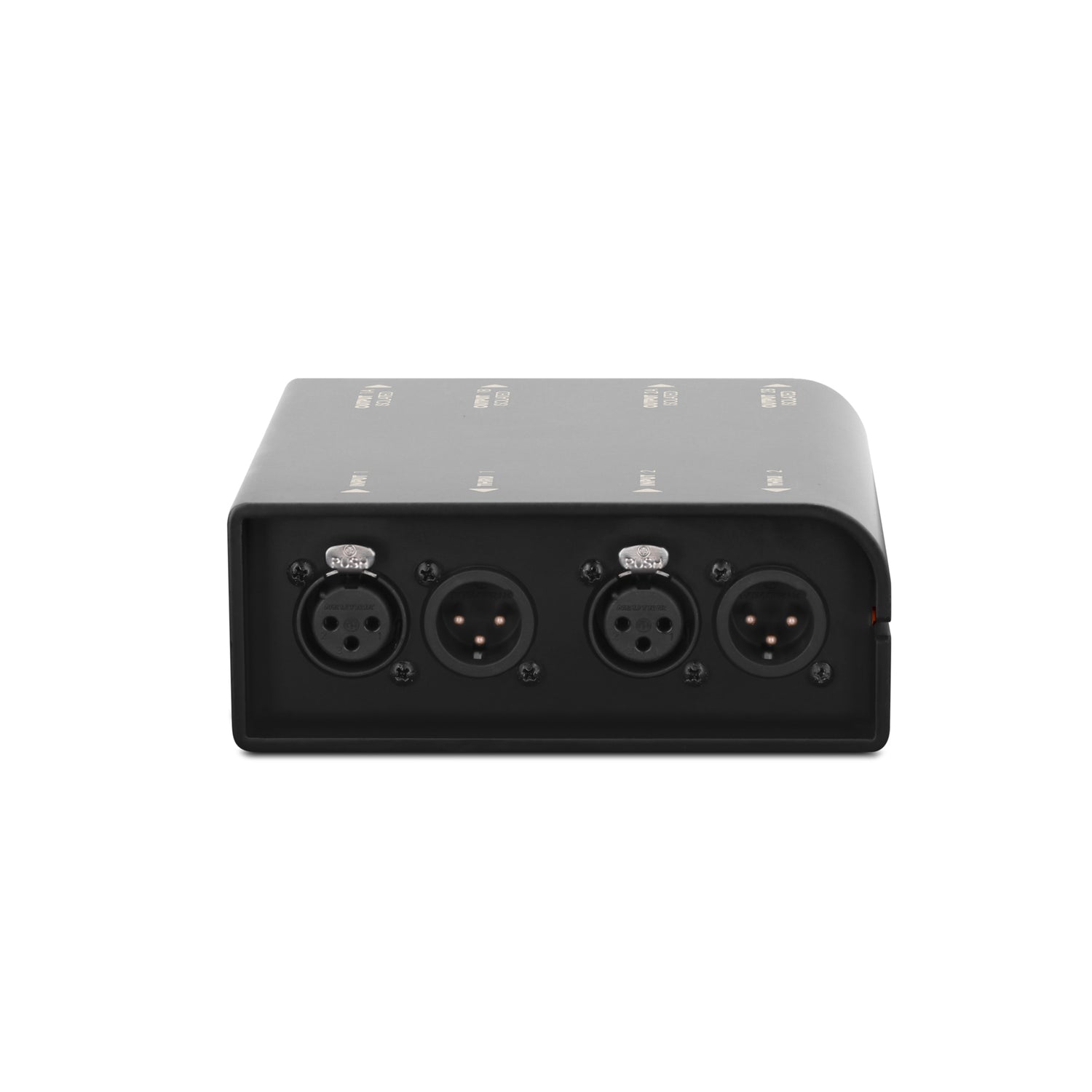

| THRU outputs per channel | 1 |
| Ground lift switch | Yes |
| Housing | Aluminium continuous casting |
| Dimension (H/W/D) | 50 x 140 x 128 mm |
| Weight | 0,805 kg |
| Ambient temperature during operation | -20 - 70 °C |
| Relative Humidity | < 80 %, not condensing |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
Audio
| Max. input level (< 1% THD, 20 Hz) | + 20 dBu |
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu |
| Frequency response (±1 dB, relative 1 kHz) | 10 Hz - 30 kHz |
| Input impedance (1 kHz) | 6.8 kOhm |
| Output impedance (1 kHz) | 500 Ohm(s) |
| THD (30 Hz, +4 dBu, unity, unweighted) | < 1 % |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0,02 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | < 0,01 % |
| Transformer ratio | 1:1:1 |
