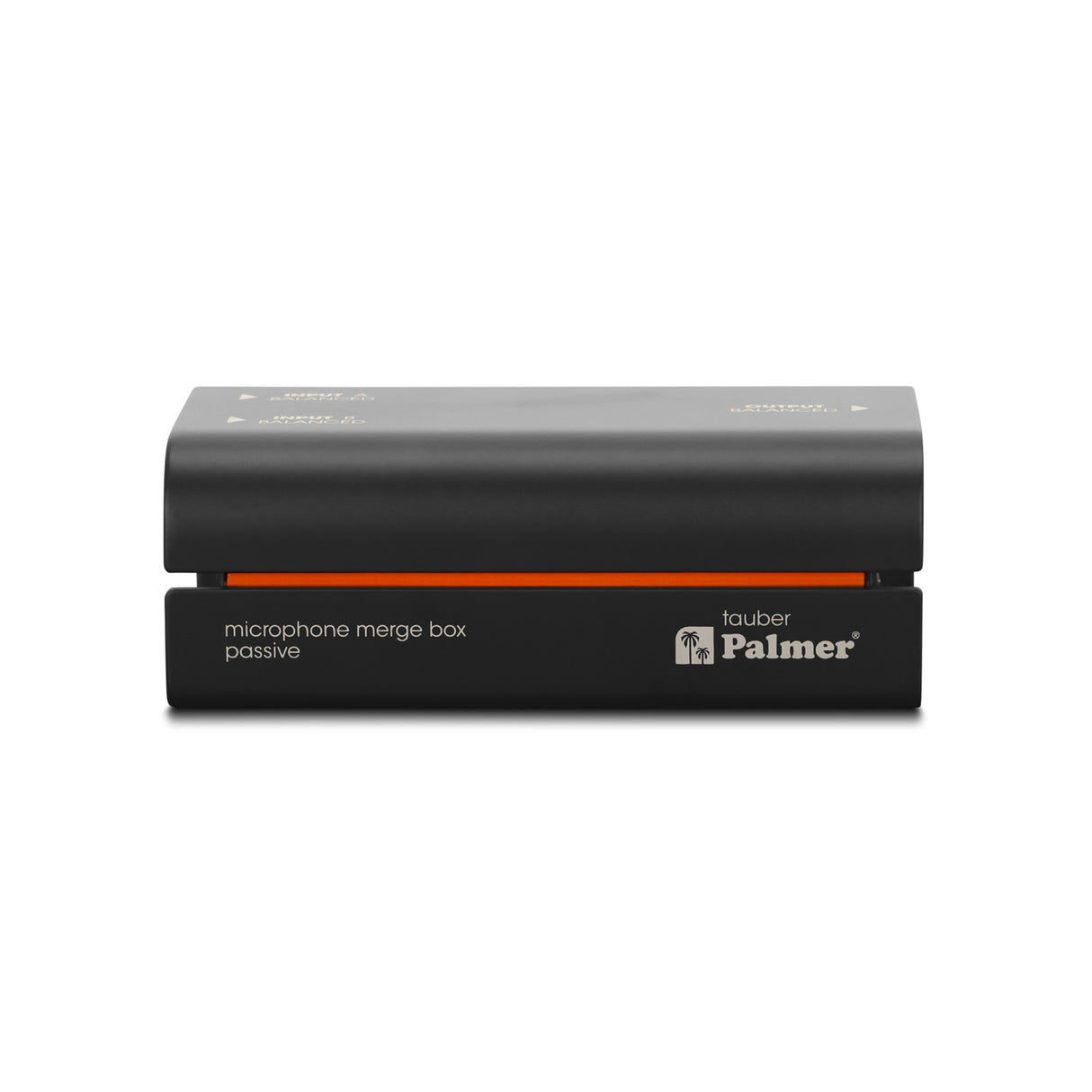

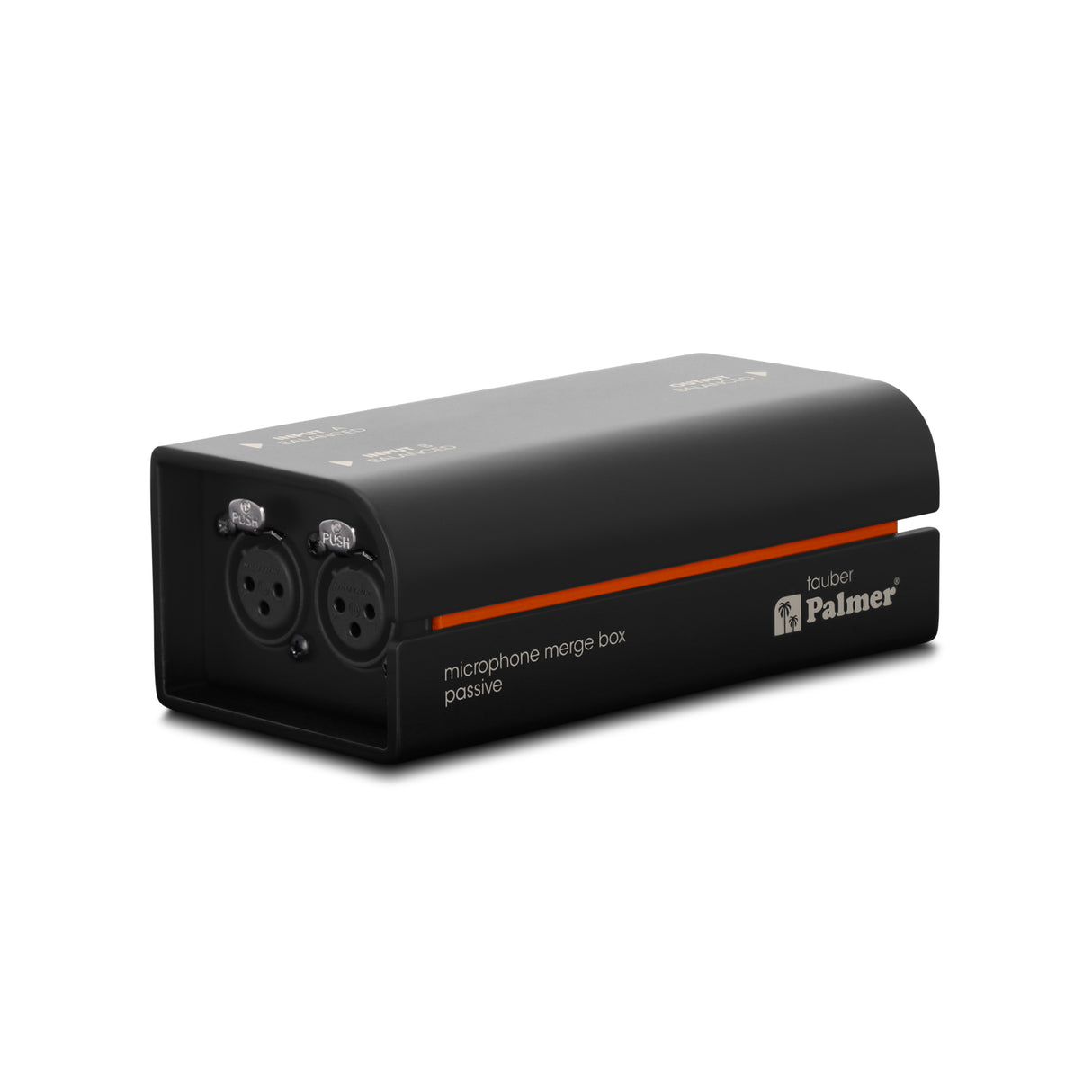

Palmer RIVER tauber - Passive combiner box for microphones
€100,95
Unit price
/
Not available
Description
Description
Do you have two microphones, but only one free microphone input?

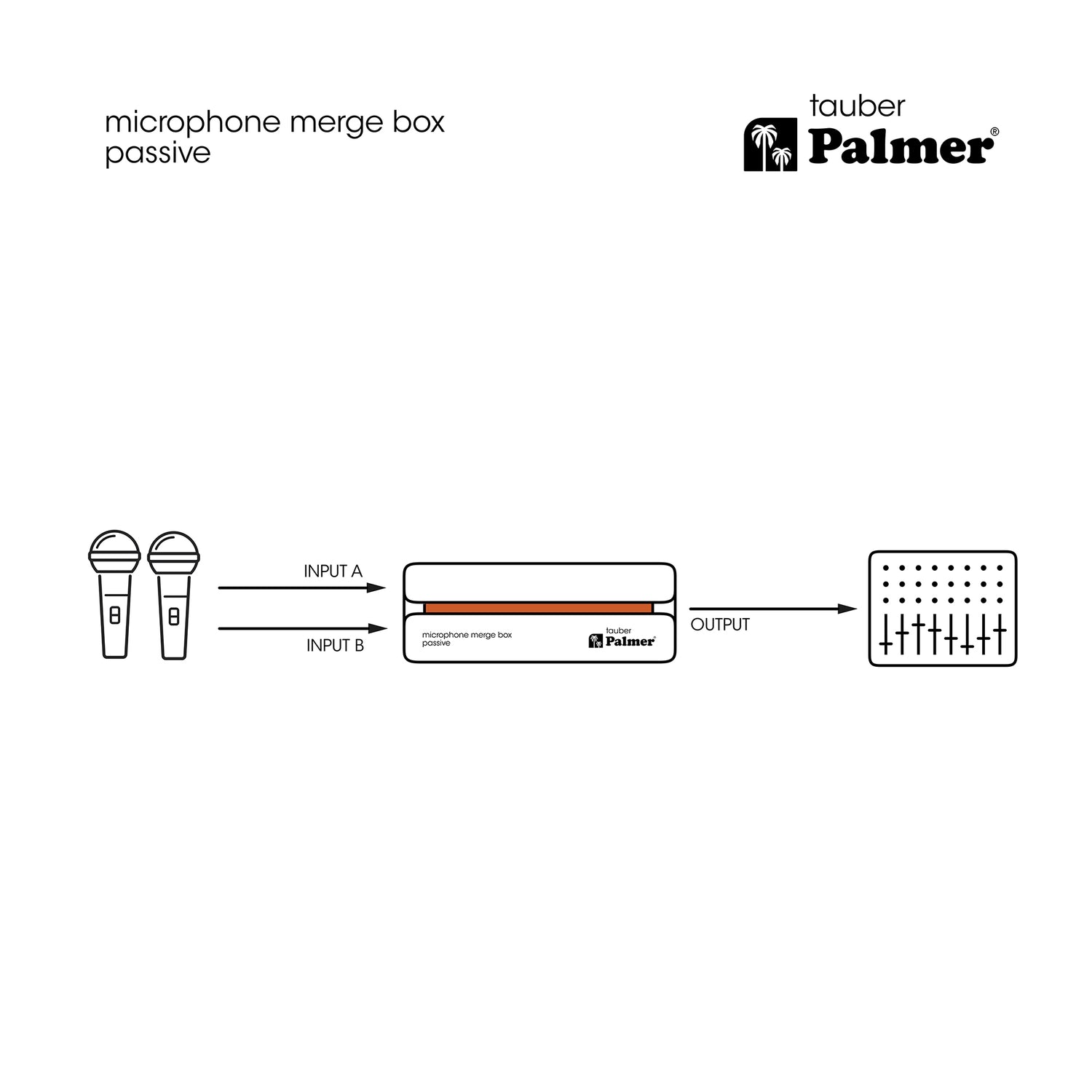

This problem has existed for as long as there have been PA systems! The Palmer tauber Microphone Merge Box solves it in a simple way. It has two balanced microphone inputs that are summed via a resistor matrix into a balanced mono signal, which is routed to a single XLR output. It’s as easy as it sounds!
It can be used with two dynamic microphones or two condenser microphones. Ideally, they should be identical or similar microphone types to avoid unwanted level differences. Phantom power is passed through to both inputs.
Thanks to its passive circuitry, tauber works without any coloration of the sound and requires no power supply. The enclosure and connectors are extremely robust and built for long-term durability.
Technical specifications
Technical specifications
- For connecting two microphones to one microphone input

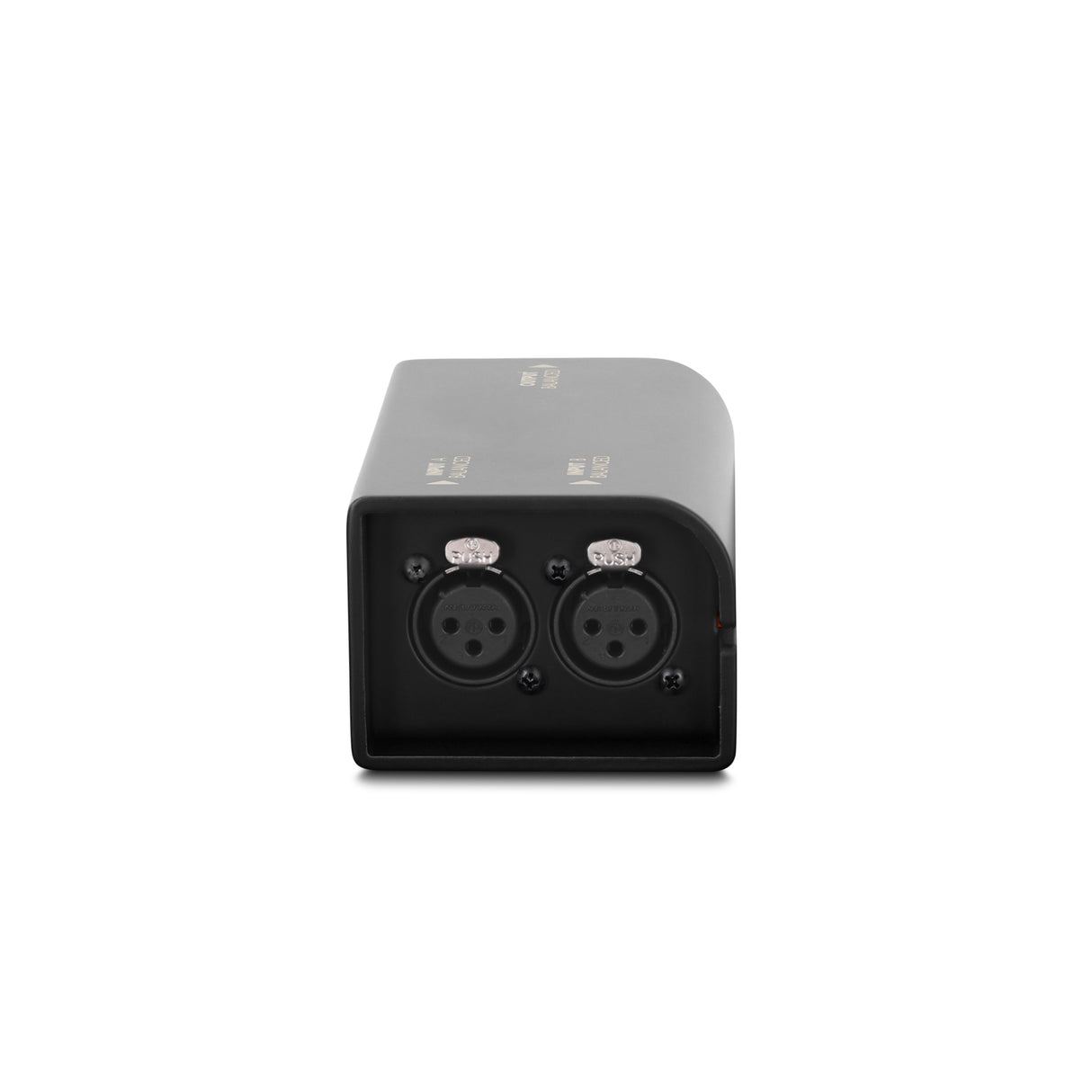

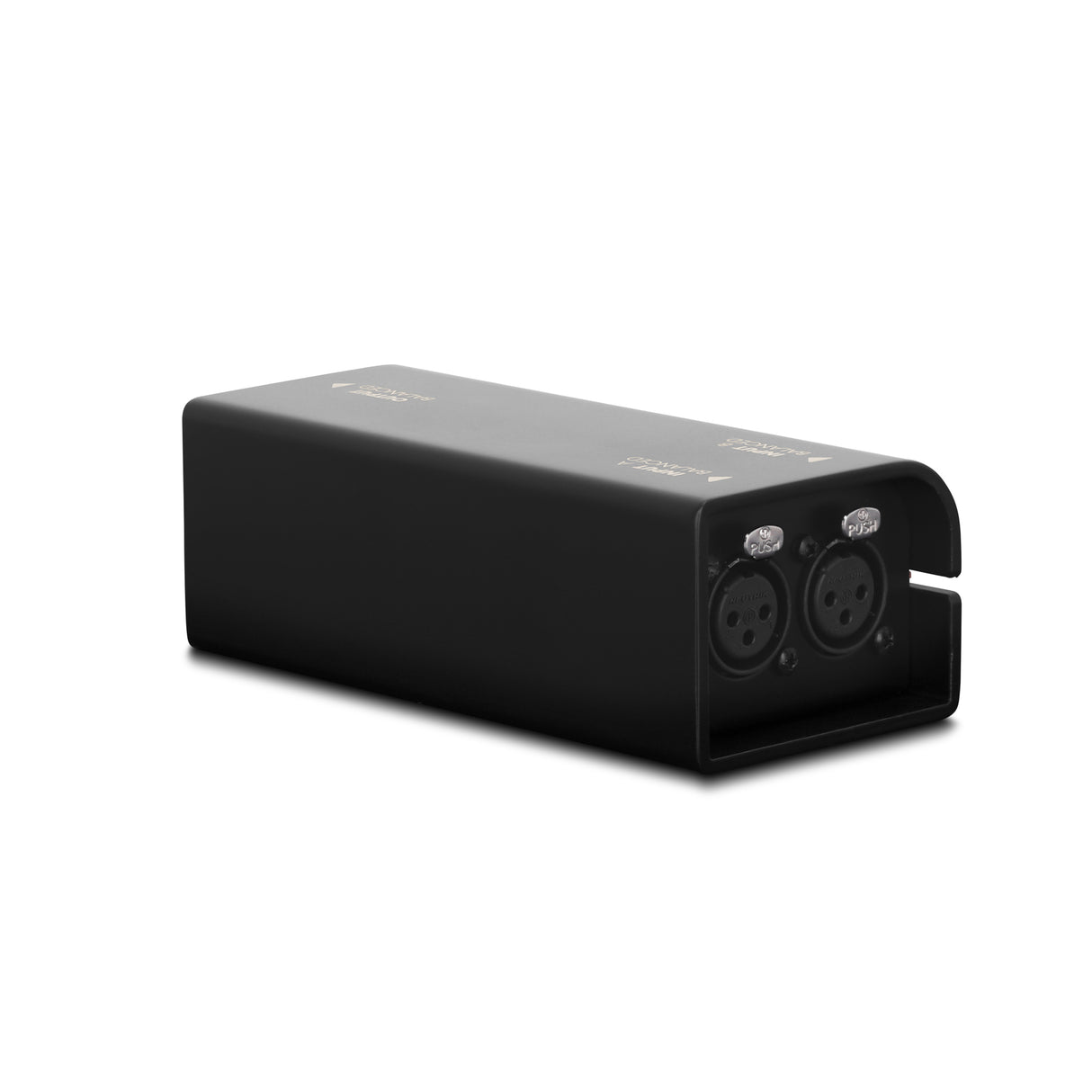

- Two balanced XLR inputs

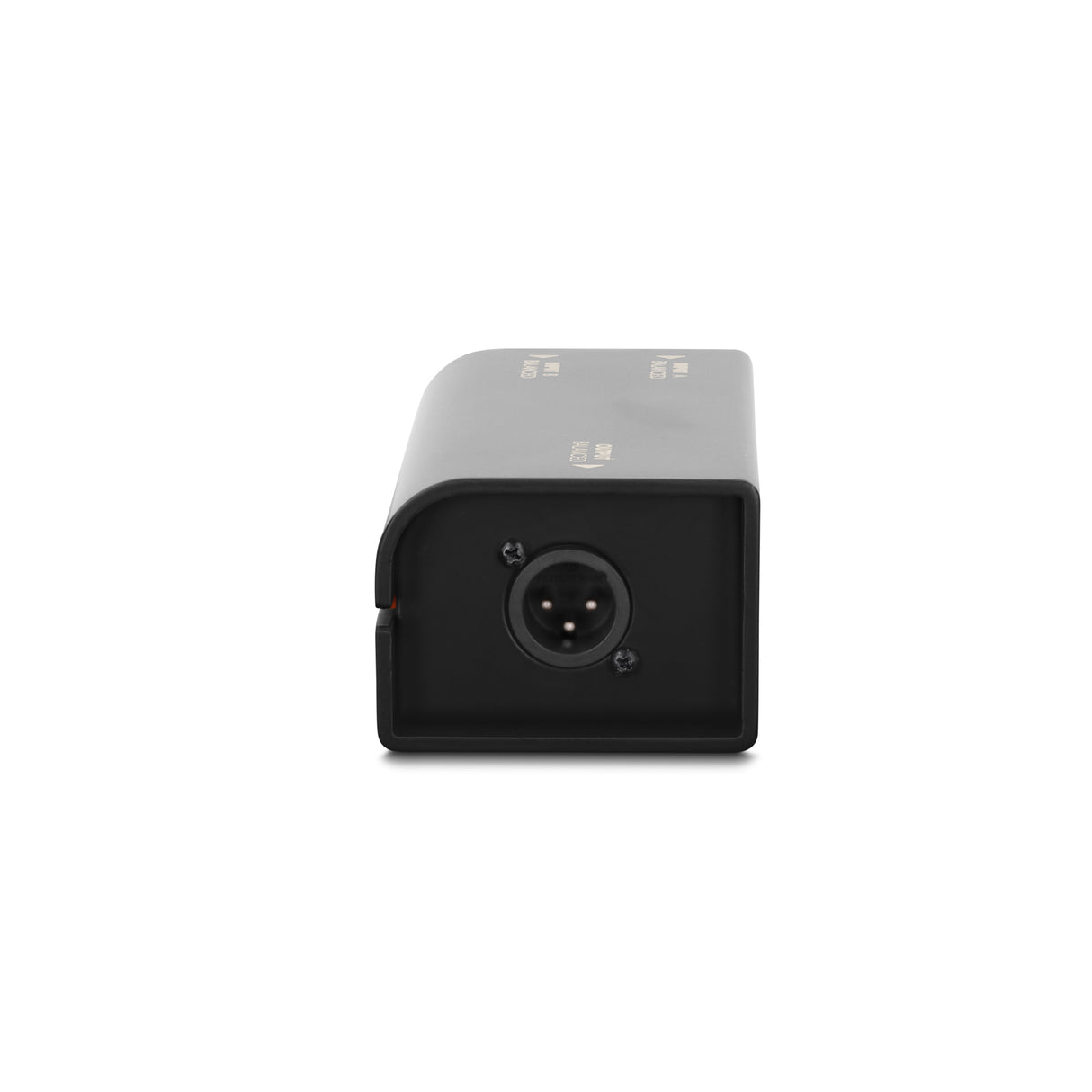

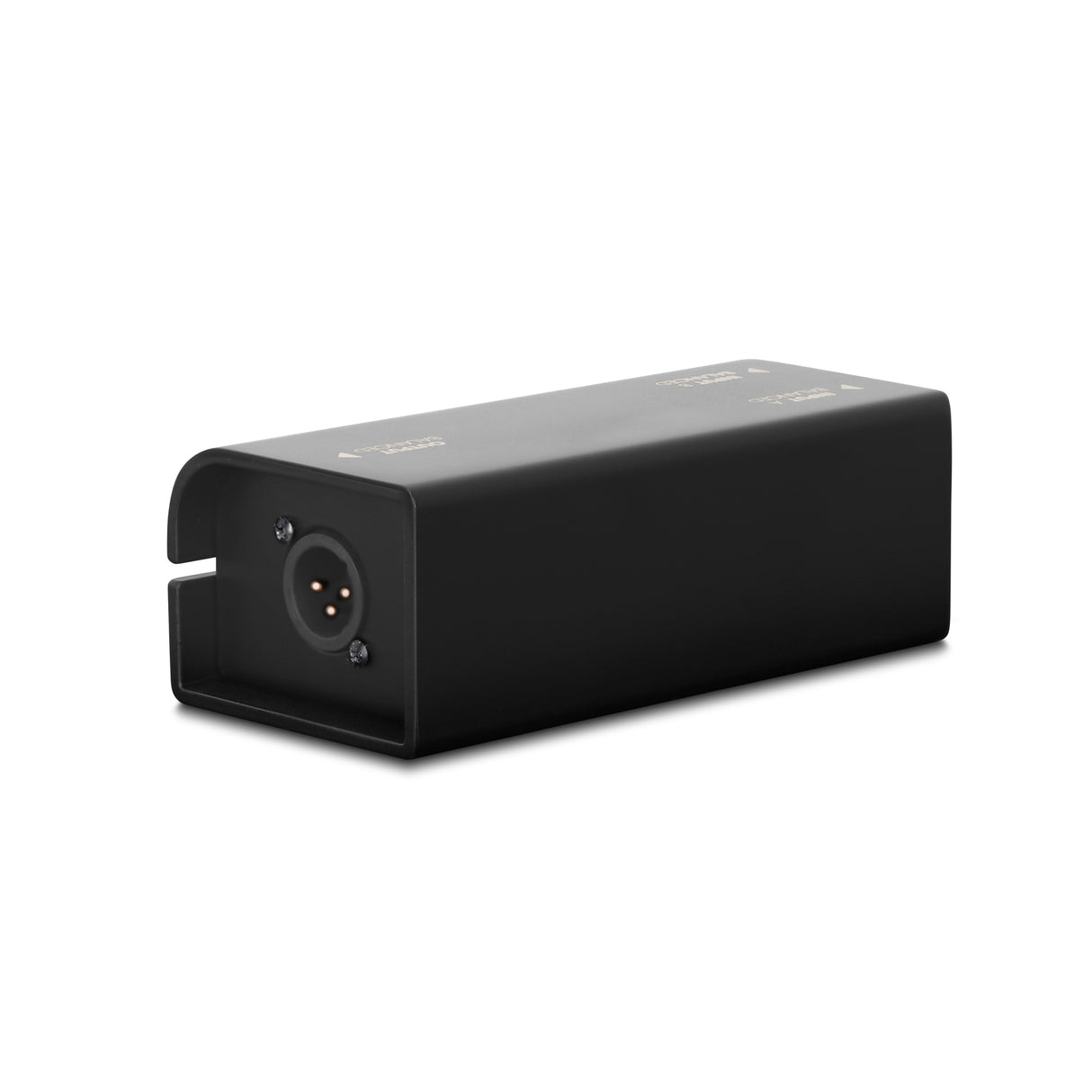

- One balanced XLR output
- For two dynamic microphones or two condenser microphones
- Phantom power can pass through
- Reliable problem-solver for PA systems with a shortage of mixer channels
- Extremely fail-safe
- Passive switching, no power supply required
- Solid casing made of aluminium and steel

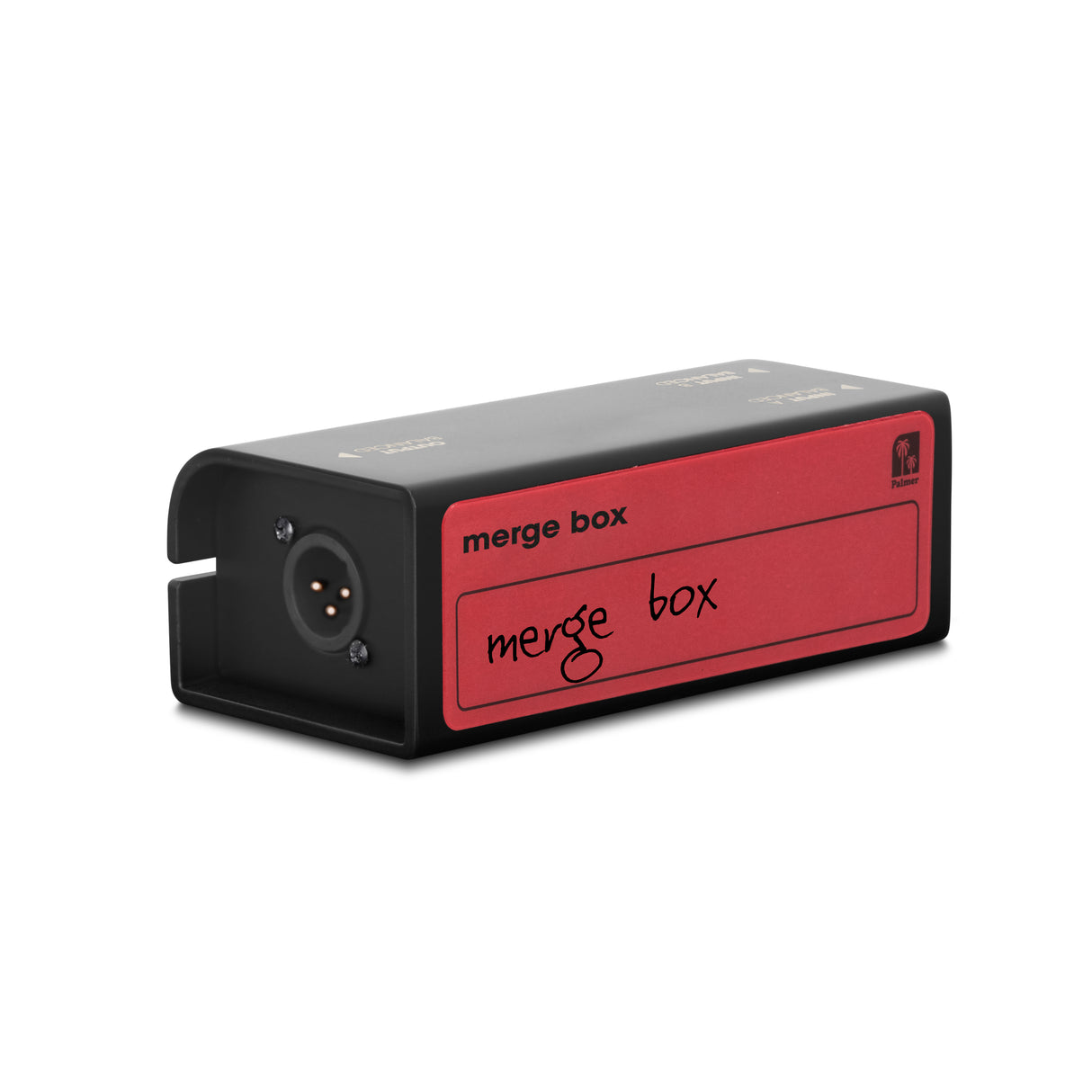

- Incl. rewritable tour label for attachment onto the back of the tauber
- Engineered in Germany
| Product type | Microphone summing unit |
| Type | passive |
| Channels | 1 |
| Transformer isolated | No |
| Number of inputs | 2 |
| Input type | balanced |
| Input connectors | XLR |
| Number of outputs | 1 |
| Output type | balanced |
| Output connectors | XLR |
| Housing | Aluminium continuous casting |
| Dimensions (W x H x D) | 140 x 50 x 68 mm |
| Weight | 0,36 kg |
| Ambient temperature (in operation) | - 20 - 70 °C |
| Relative Humidity | < 80% (non-condensing) |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
Audio
| Input impedance (1 kHz) | 644 kOhm |
| Output impedance (1 kHz) | 400 Ohm(s) |
