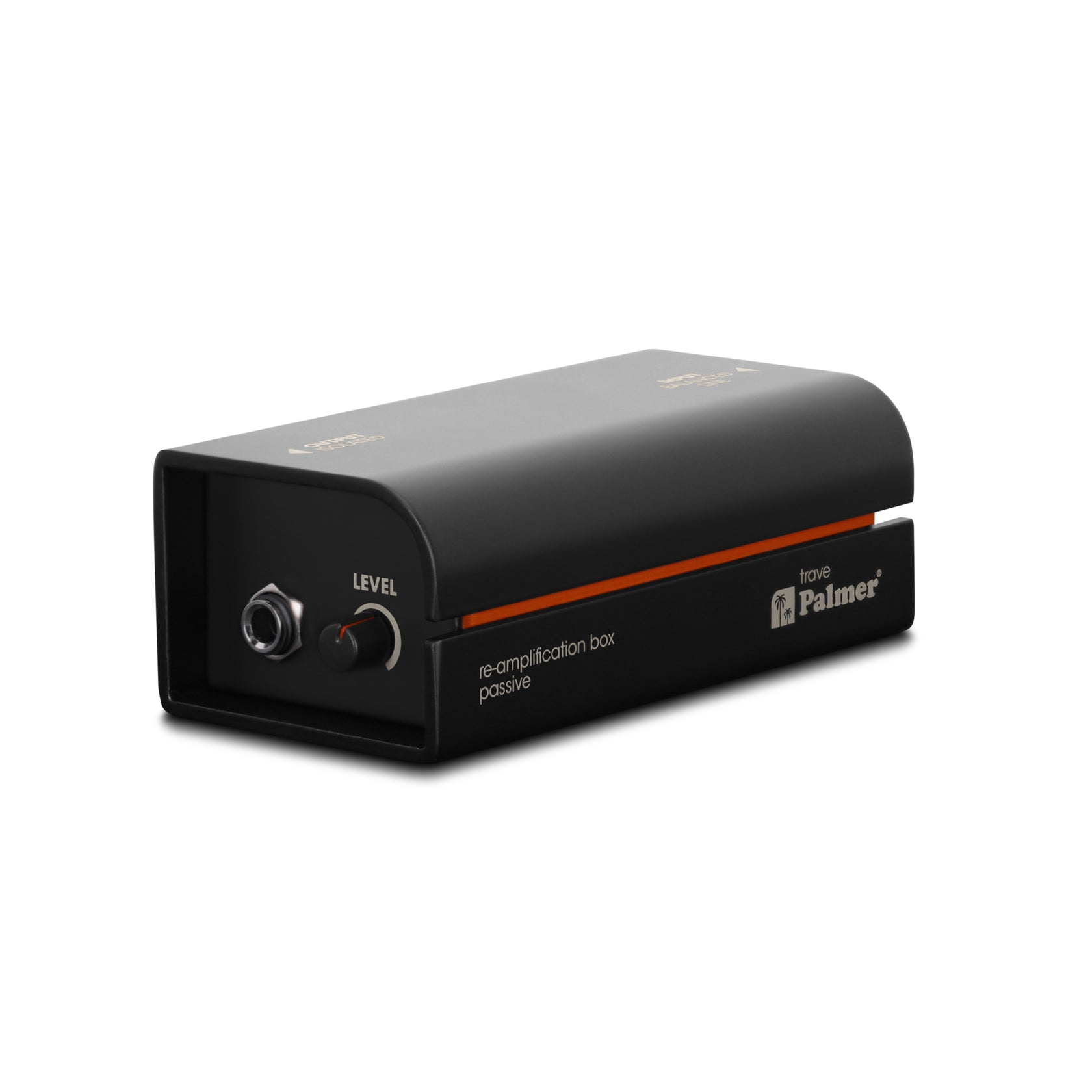

Palmer RIVER trave - Passiv re-amp-boks til korrigering
Reamping er en værdifuld indspilningsteknik, som bruges af mange lydteknikere.
Den giver dig mulighed for at eksperimentere i ro og mag ved at sende guitar-, bas-, keyboard-, tromme- og endda vokalspor gennem forstærkere og effektpedaler. Som med mange andre teknikker kræver det det rigtige udstyr.

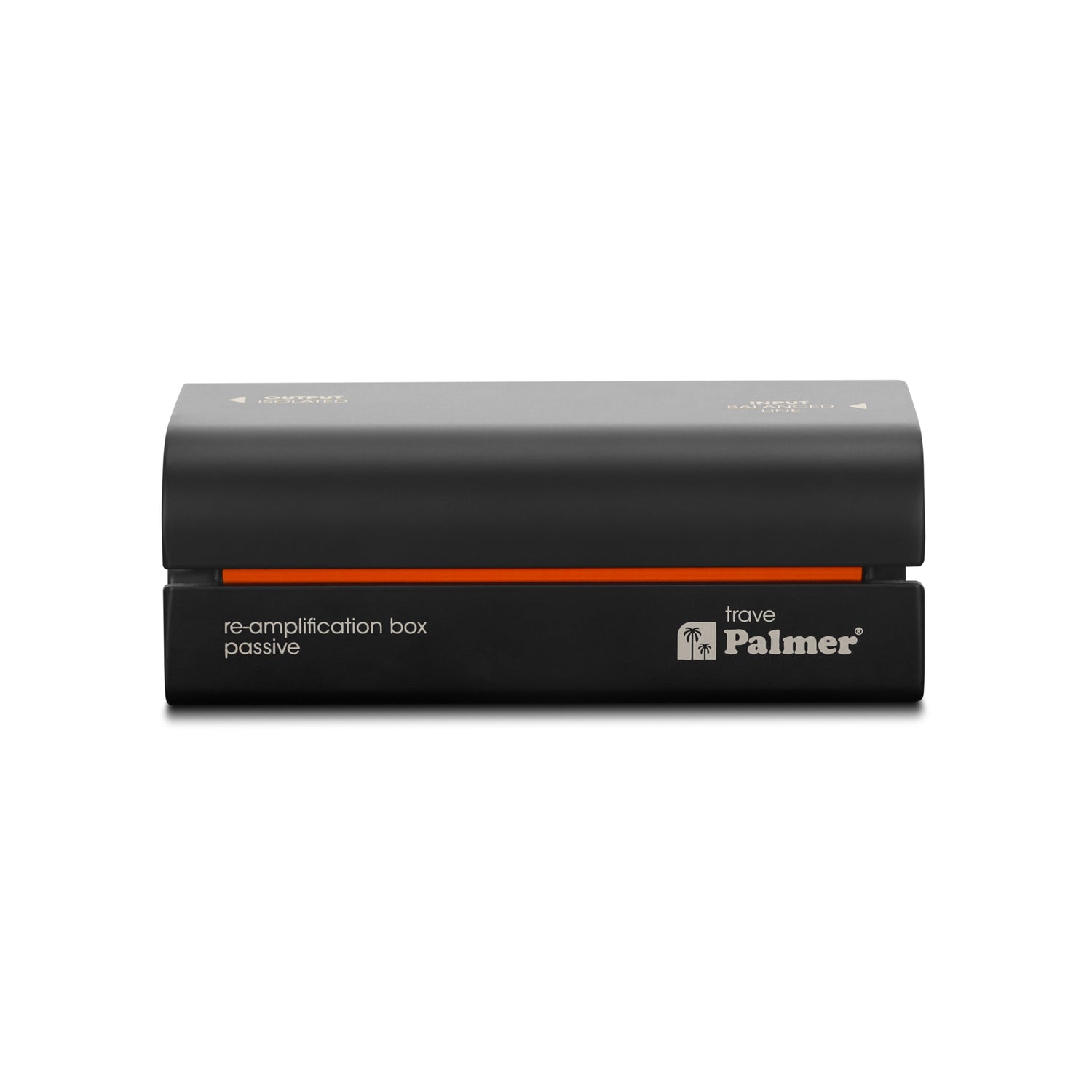

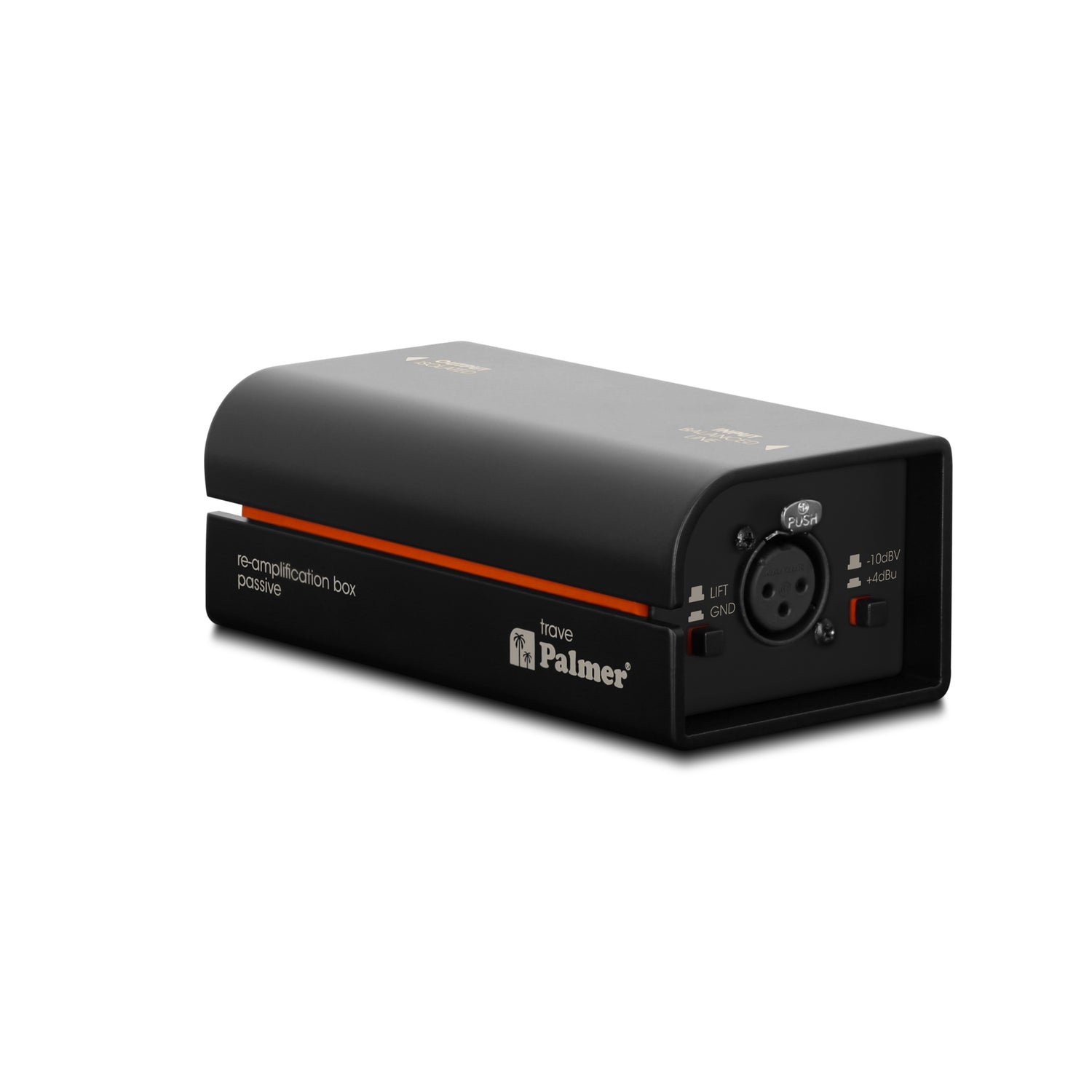

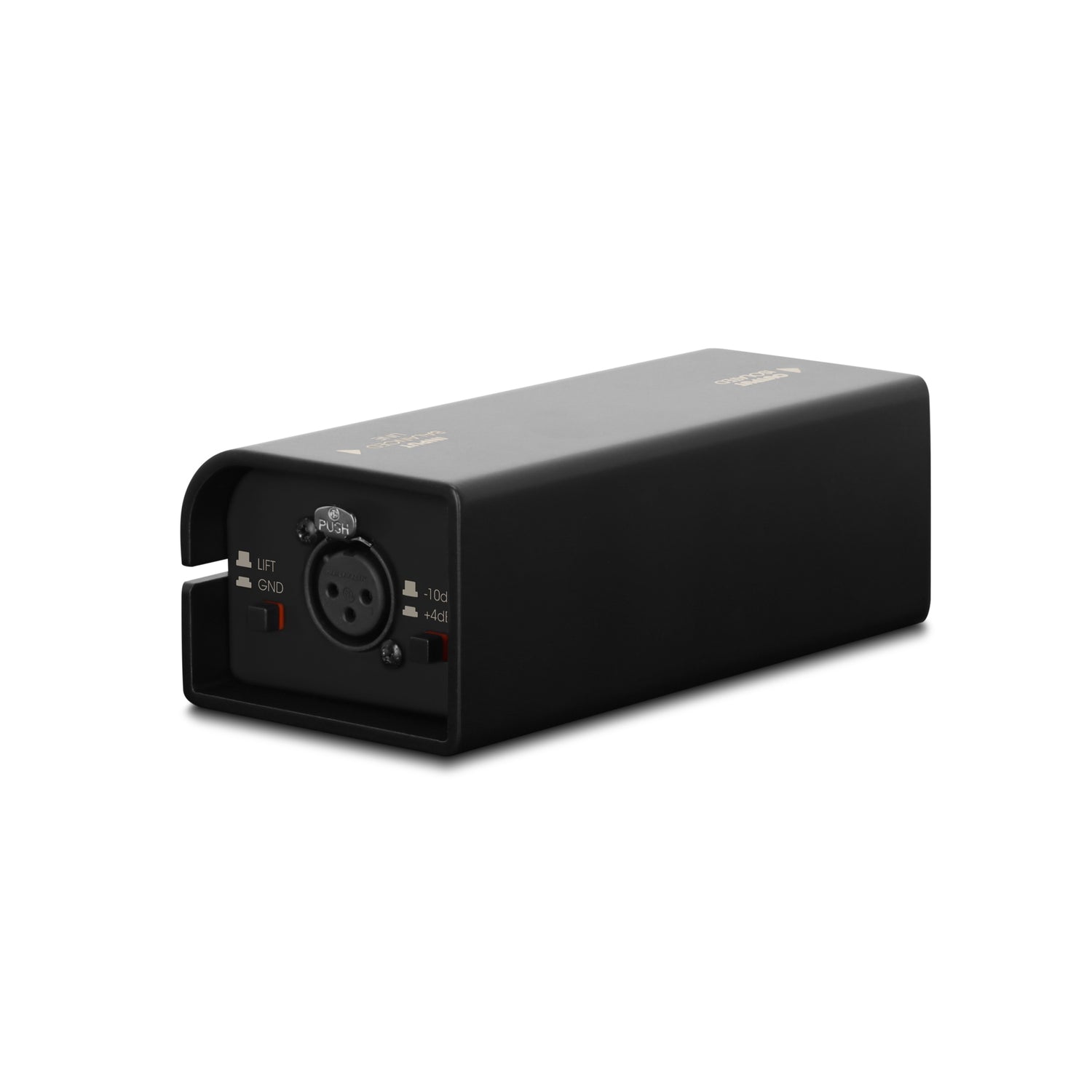

Palmer trave er en passiv reamping-boks, der ikke kræver ekstern strømforsyning. Indeni sidder en specialudviklet transformer, der konverterer det balancerede line-signal til et ubalanceret Hi-Z-signal med perfekt tilpasset impedans til din guitarforstærker eller effektpedal. Samtidig forhindrer trave jordsløjfer, som ellers næsten er uundgåelige, når du kombinerer et lydinterfaces eller en mixers udgang med en guitarforstærker eller effektpedal. Indgangen på denne reamping-boks gør det muligt at skifte mellem forbruger- (-10 dBV) og professionelt (+4 dBu) niveau, og udgangsniveauet kan justeres trinløst, så du kan drive din forstærker eller dine pedaler, præcis som du ønsker det.
Med Palmer trave passive reamping-boks kan du tilføre nye kreative lyde og klangfarver til din musik og i sidste ende være tro mod din lyd.

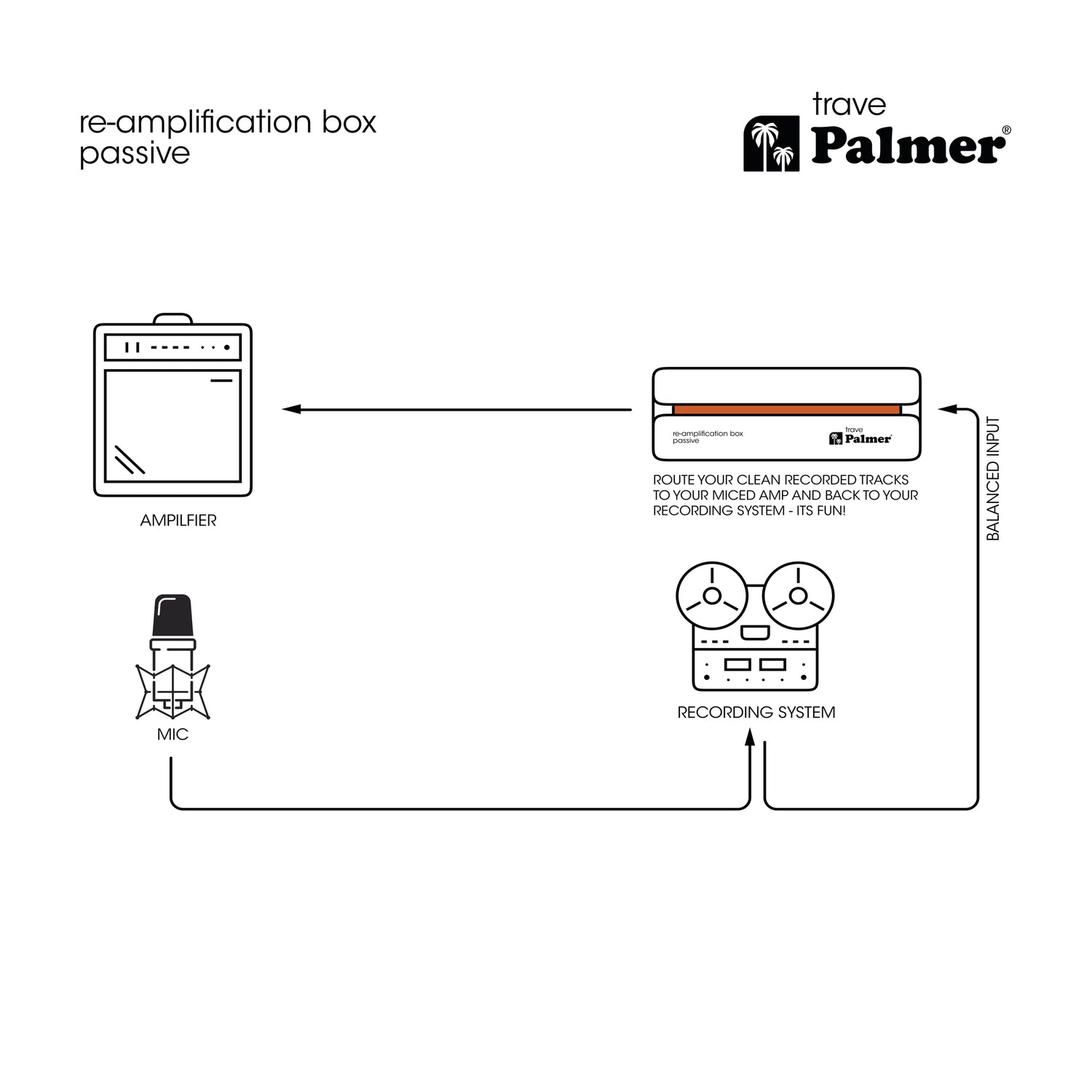

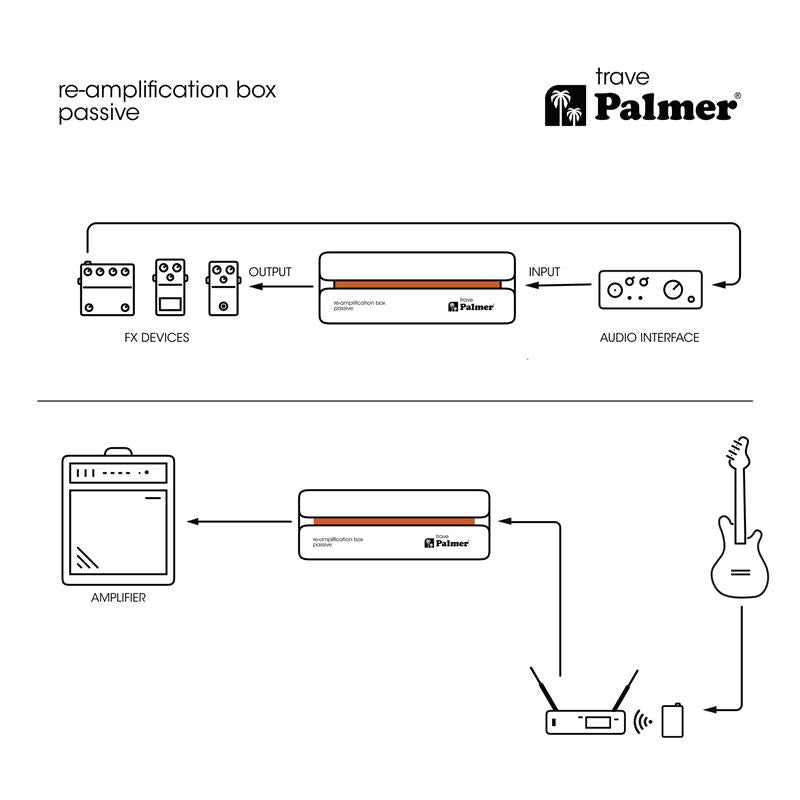

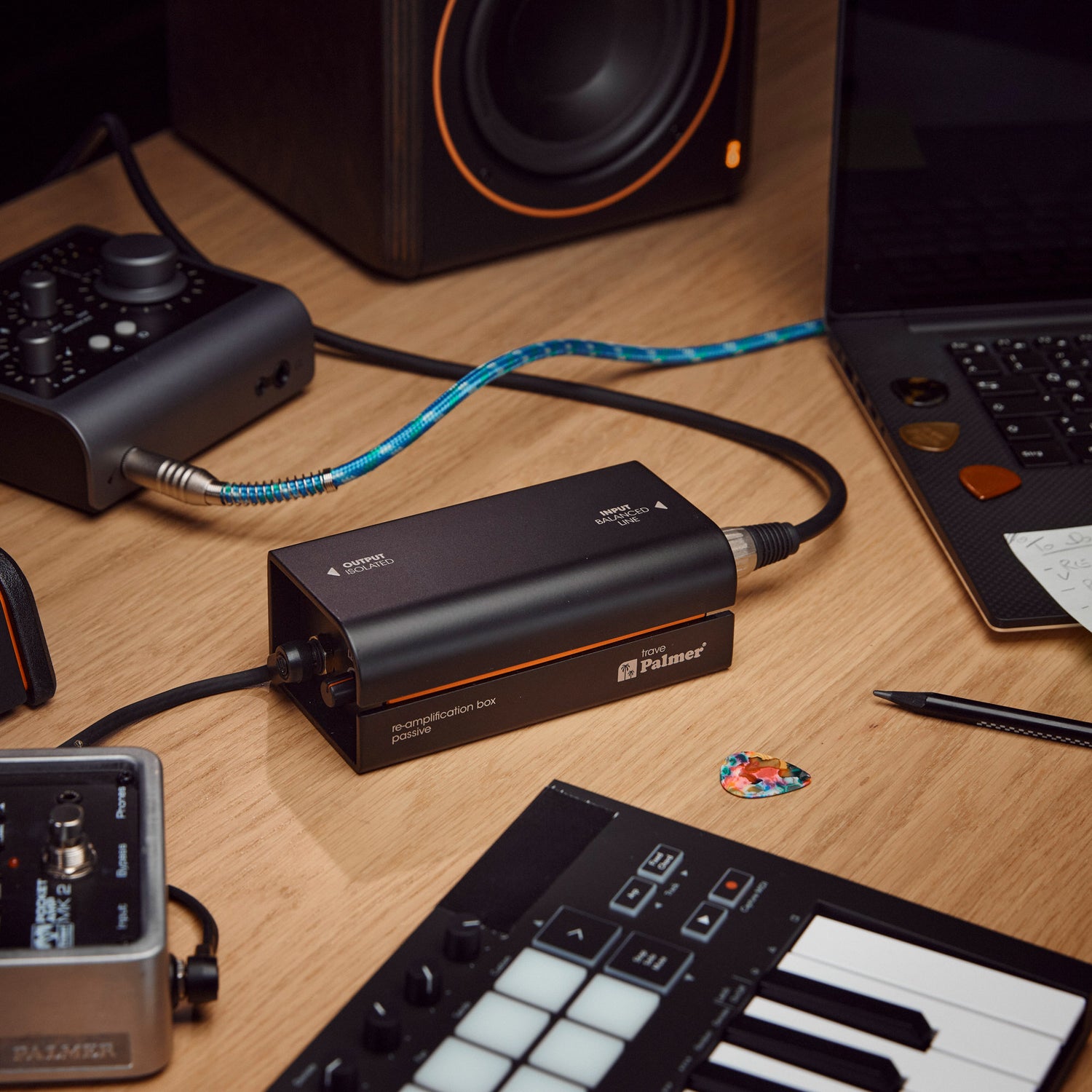

- For routing your signal from the DAW or mixer to your guitar or bass amplifier

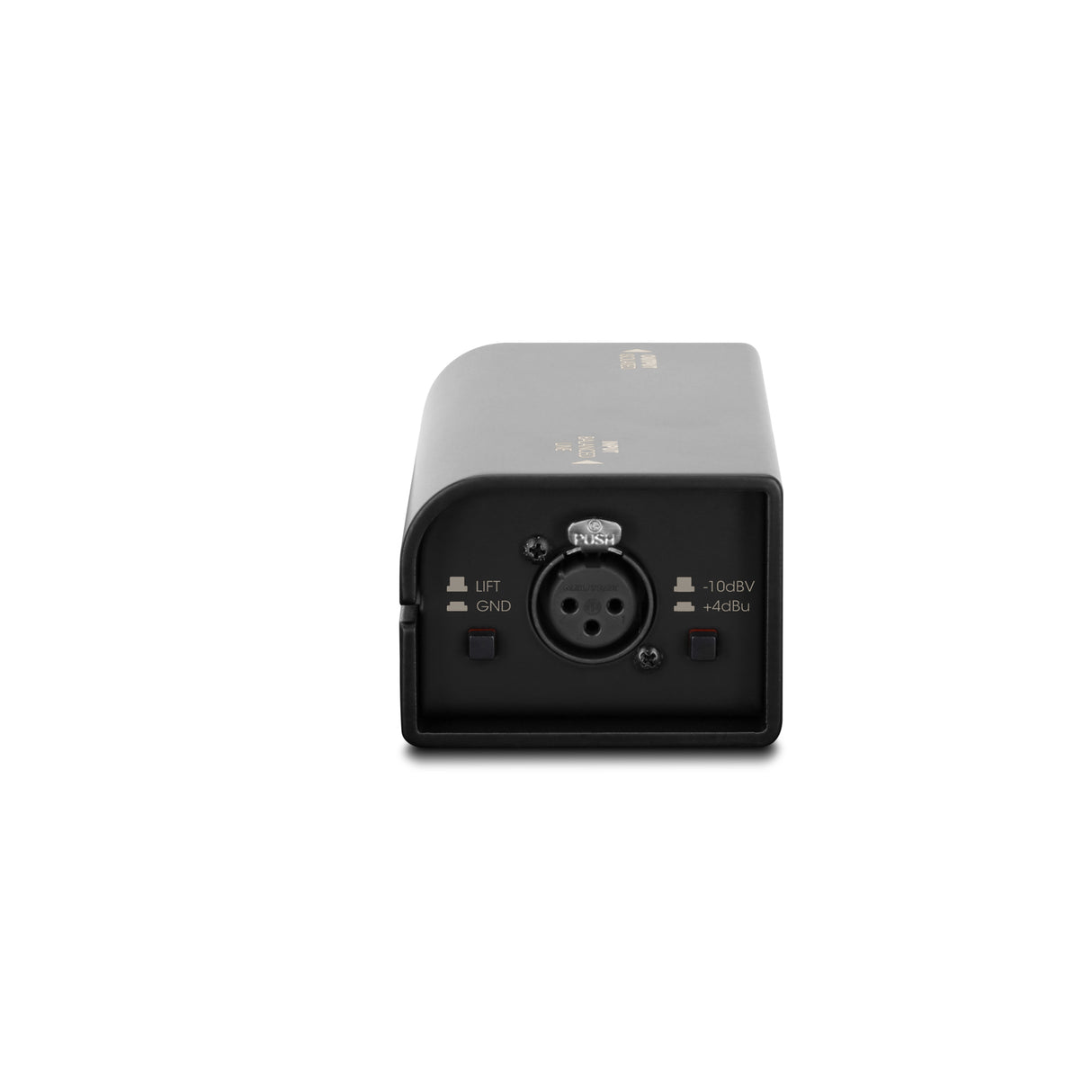

- Prevents ground loop hum, ground lift switch
- Converts balanced line signal to unbalanced instrument signal
- Optimal impedance matching
- Retains your sound clean and pure

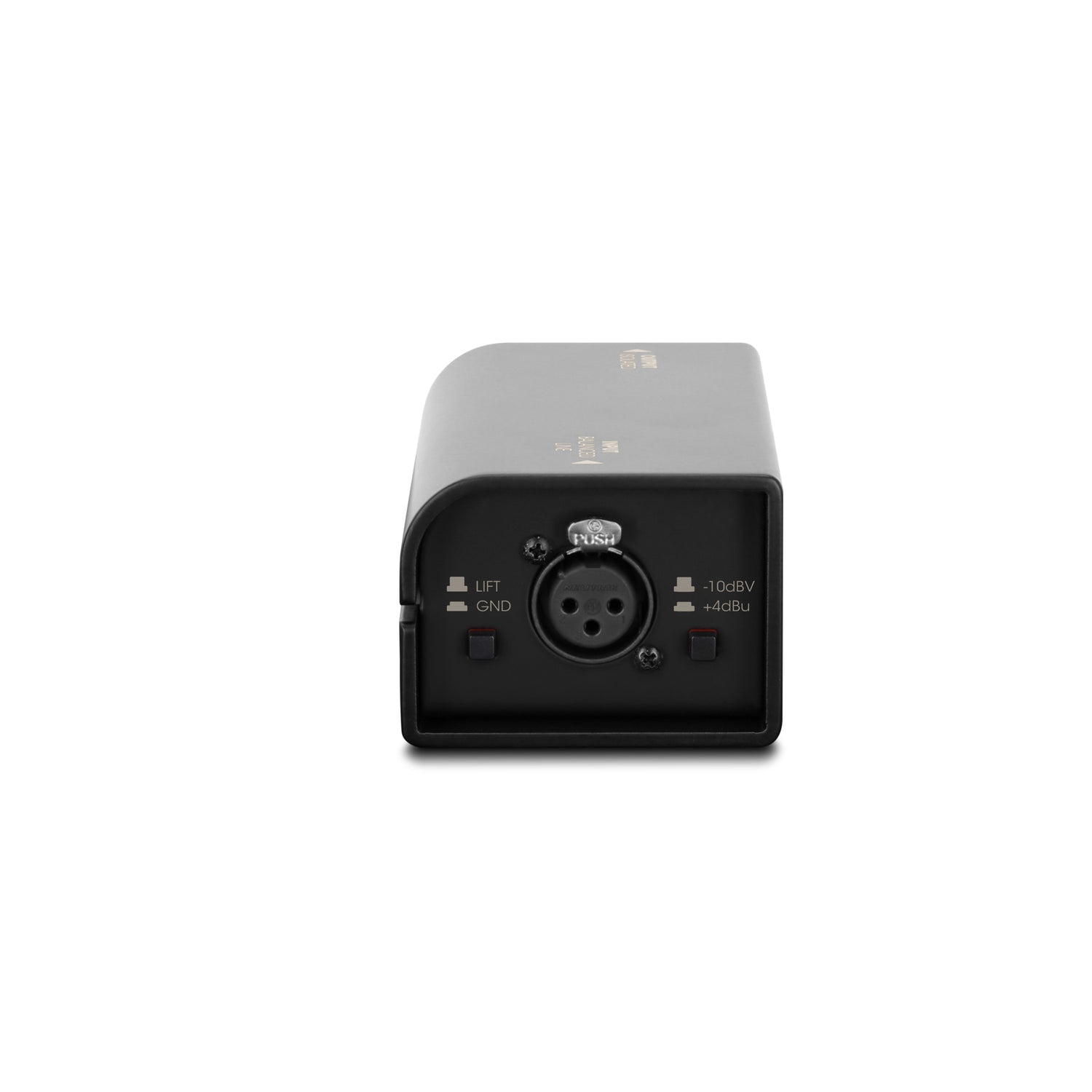

- Switchable input level - 10dBV/+4 dBu

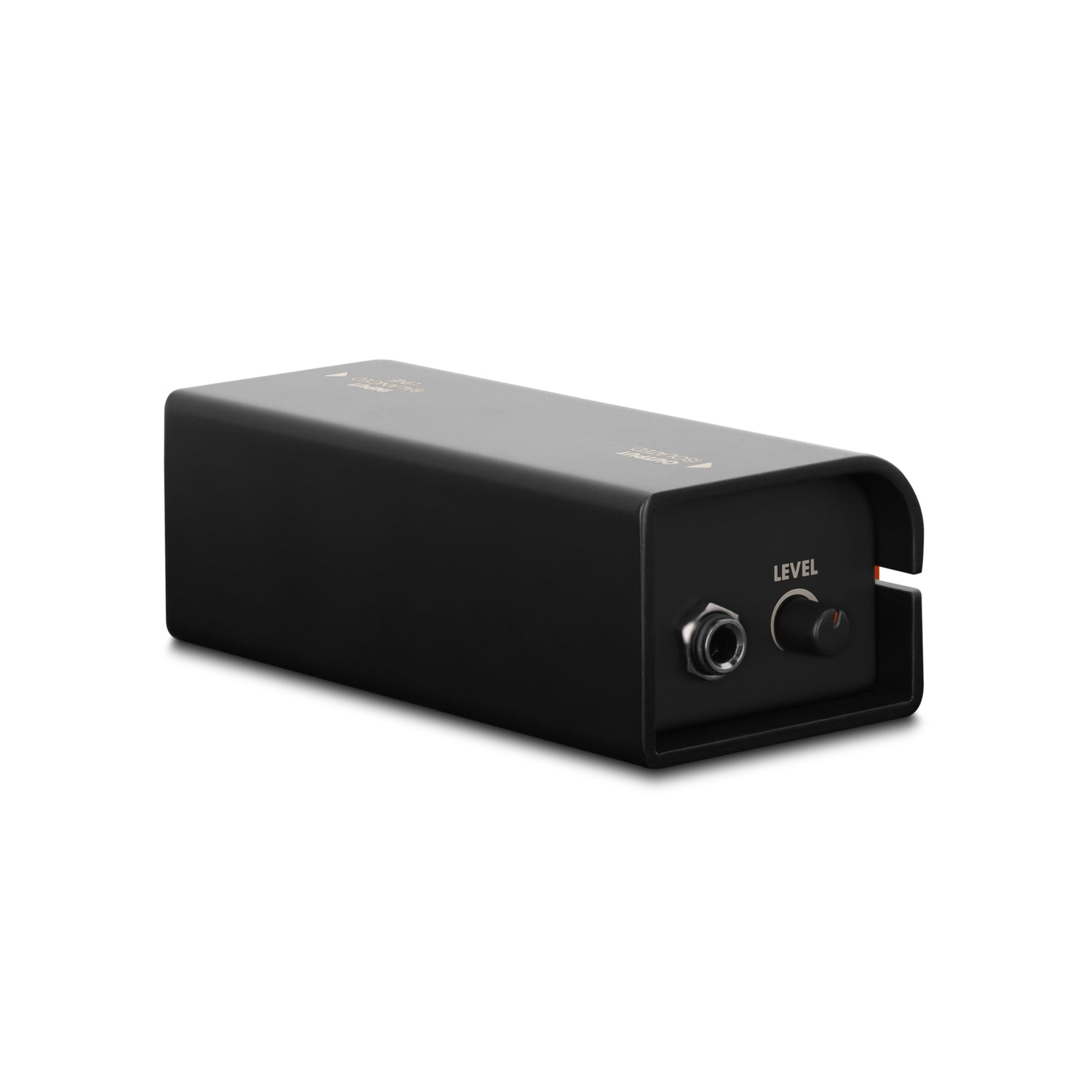

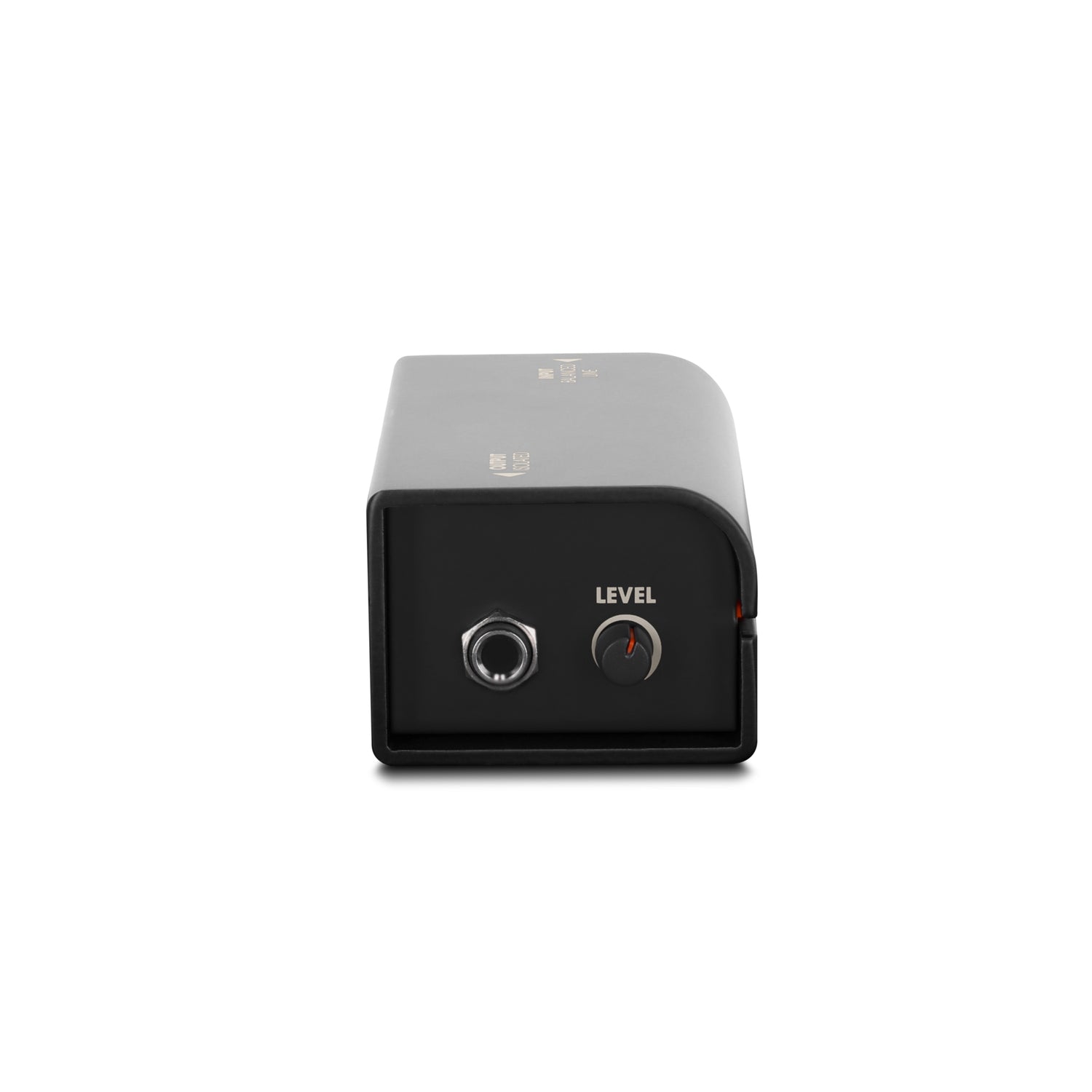

- Output level continuously adjustable
- Passive operation, no power supply required

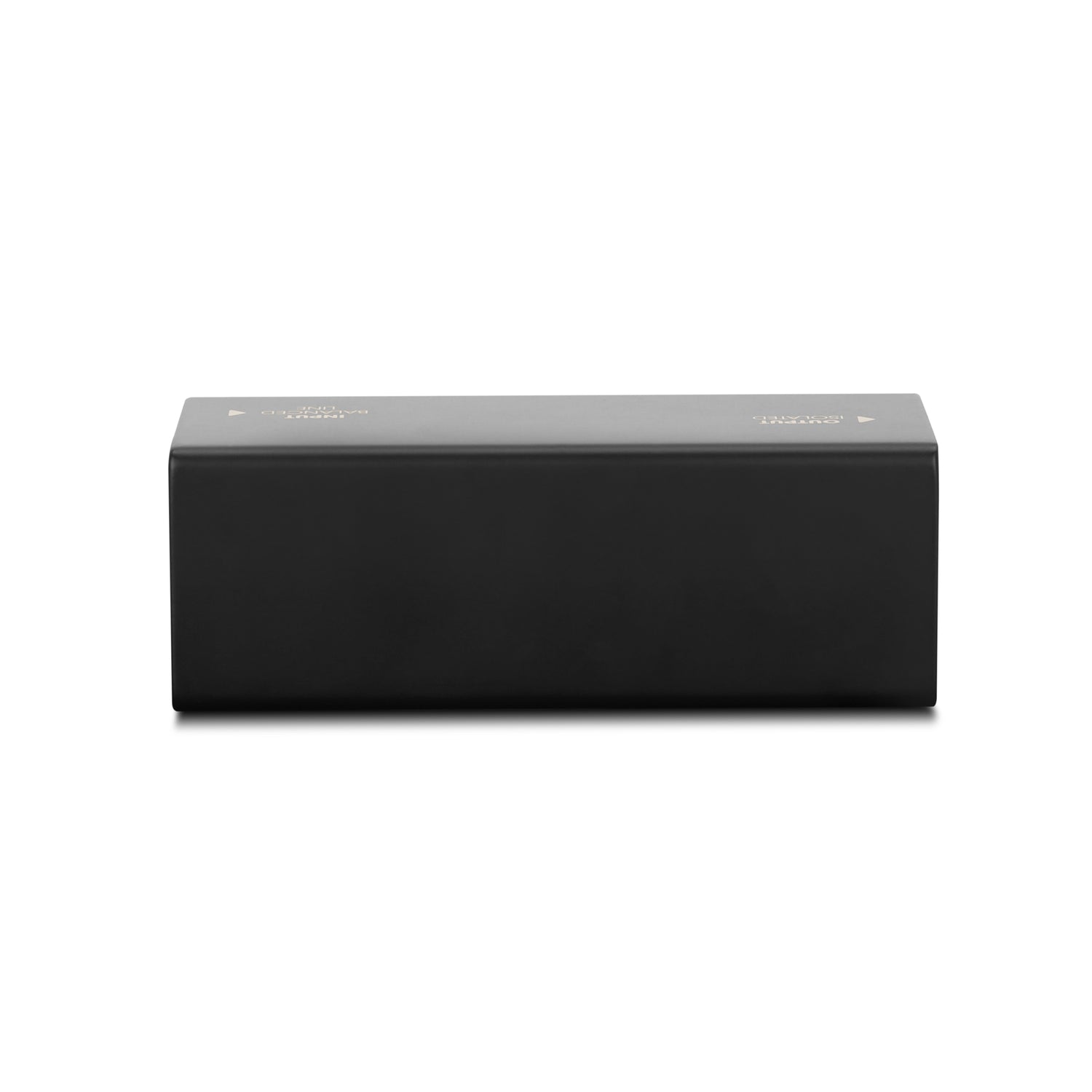

- Solid casing made of aluminium and steel

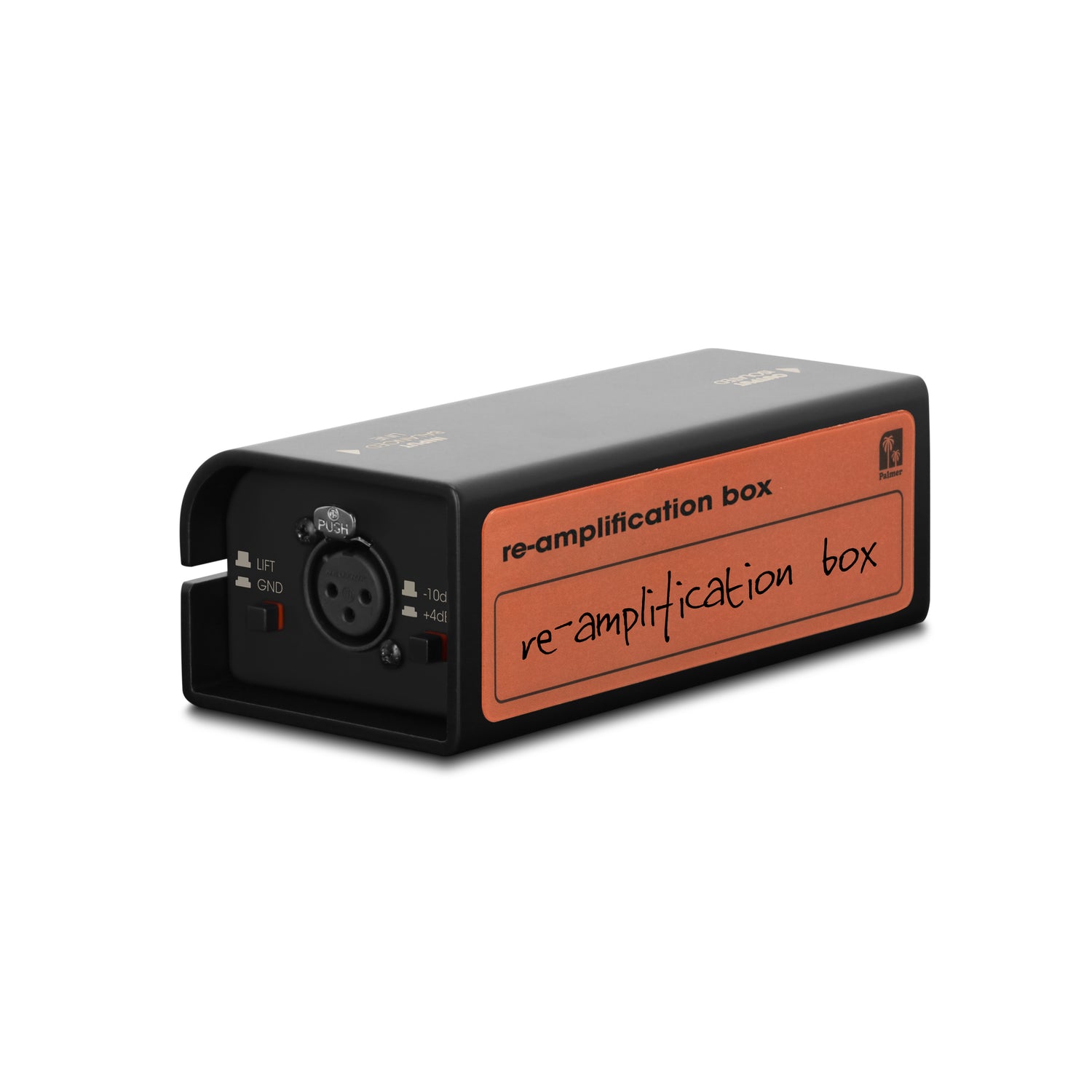

- Incl. rewritable tour label for attachment onto the back of the trave
- Engineered in Germany
| Product type | DI box |
| Type | passive |
| Channels | 1 |
| Transformer isolated | Yes |
| Number of inputs | 1 |
| Input type | balanced |
| Input connectors | XLR |
| Outputs | 1 |
| Output type | unbalanced |
| Output connectors | 6.3 mm jack |
| Ground lift switch | yes |
| More features | Input Level Switch |
| More features | Output Level Potentiometer |
| Housing material | Aluminium continuous casting |
| Height | 50 mm |
| Width | 140 mm |
| Depth | 68 mm |
| Ambient temperature (in operation) | -20 - 70 °C |
| Relative Humidity | < 80% (non-condensing) |
| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
| Weight | 0,395 kg |
Audio
| Max. input level (< 1% THD, 20 Hz) | +19 dBu |
| Max. input level (< 1% THD, 1 kHz) | +32 dBu |
| Frequency response (±1 dB, relative 1 kHz) | 10 Hz - 20 kHz |
| Input impedance (1 kHz, max. Level, -10dBV) | 5 Ohm |
| Output impedance (1 kHz, max. Level, -10dBV) | 4.2 |
| THD (30 Hz, +4 dBu, unity, unweighted) | <0,08% |
| THD (1 kHz, +4 dBu, unity, unweighted) | <0,003% |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | <0,004% |
| Transformer ratio | 1:3 |
