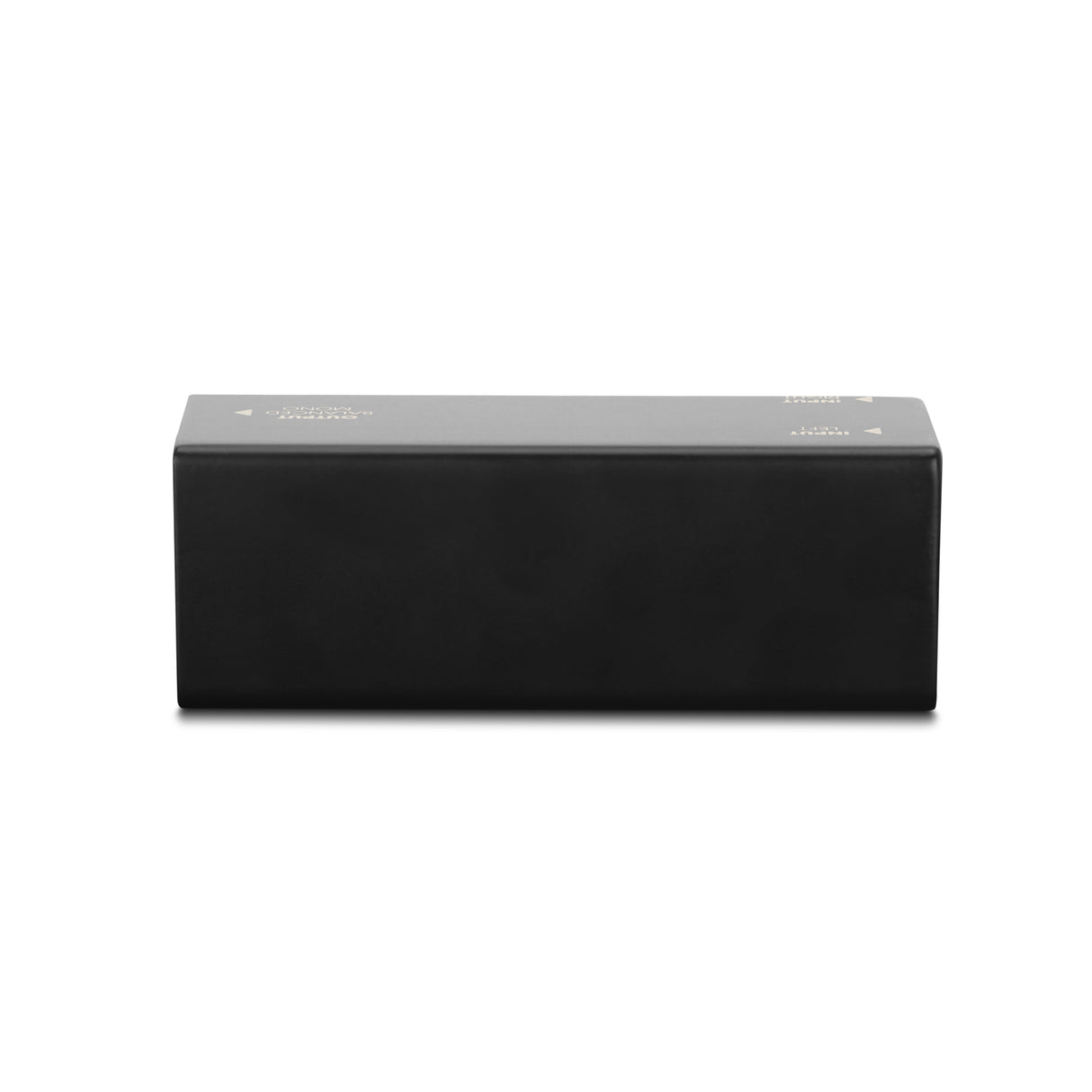

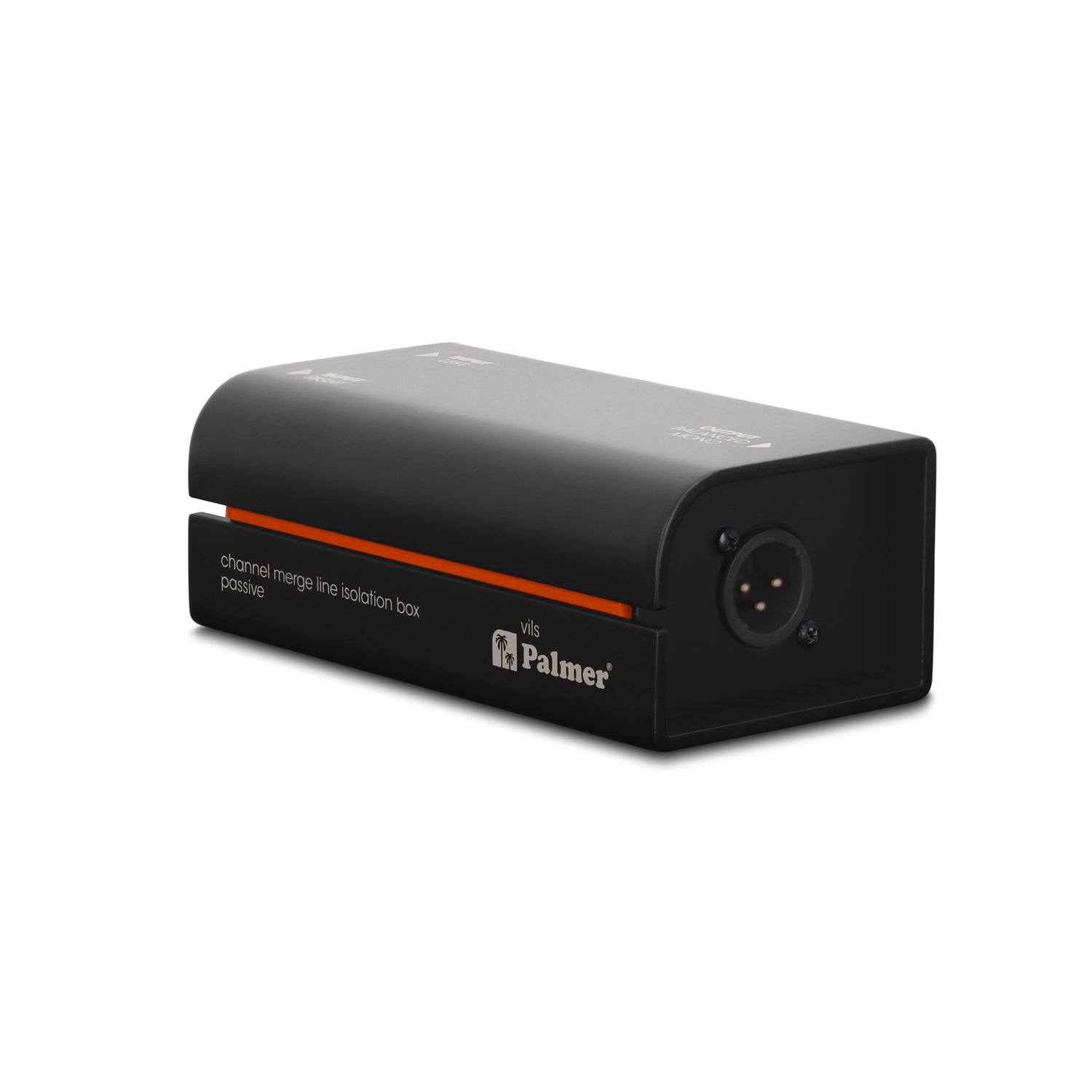

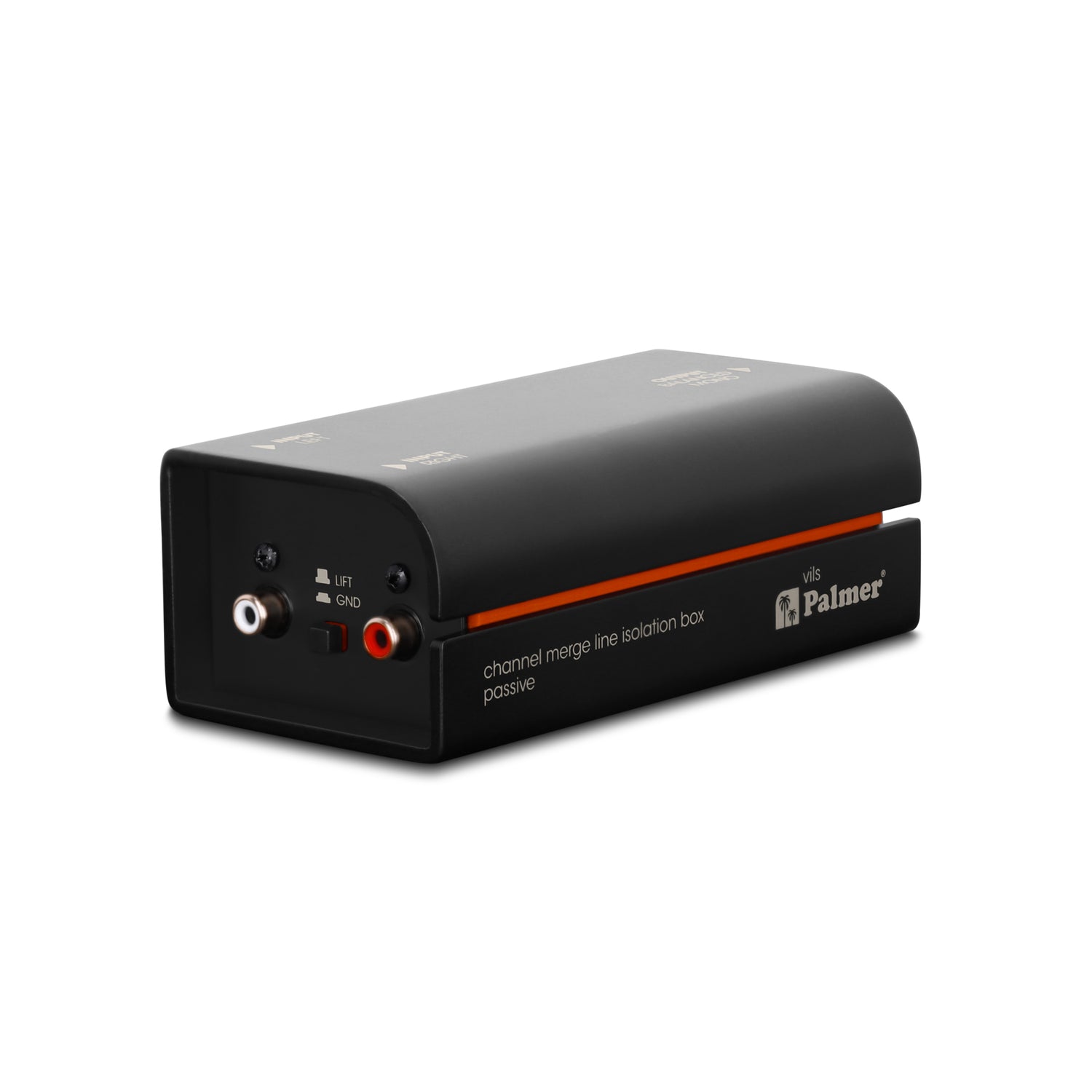

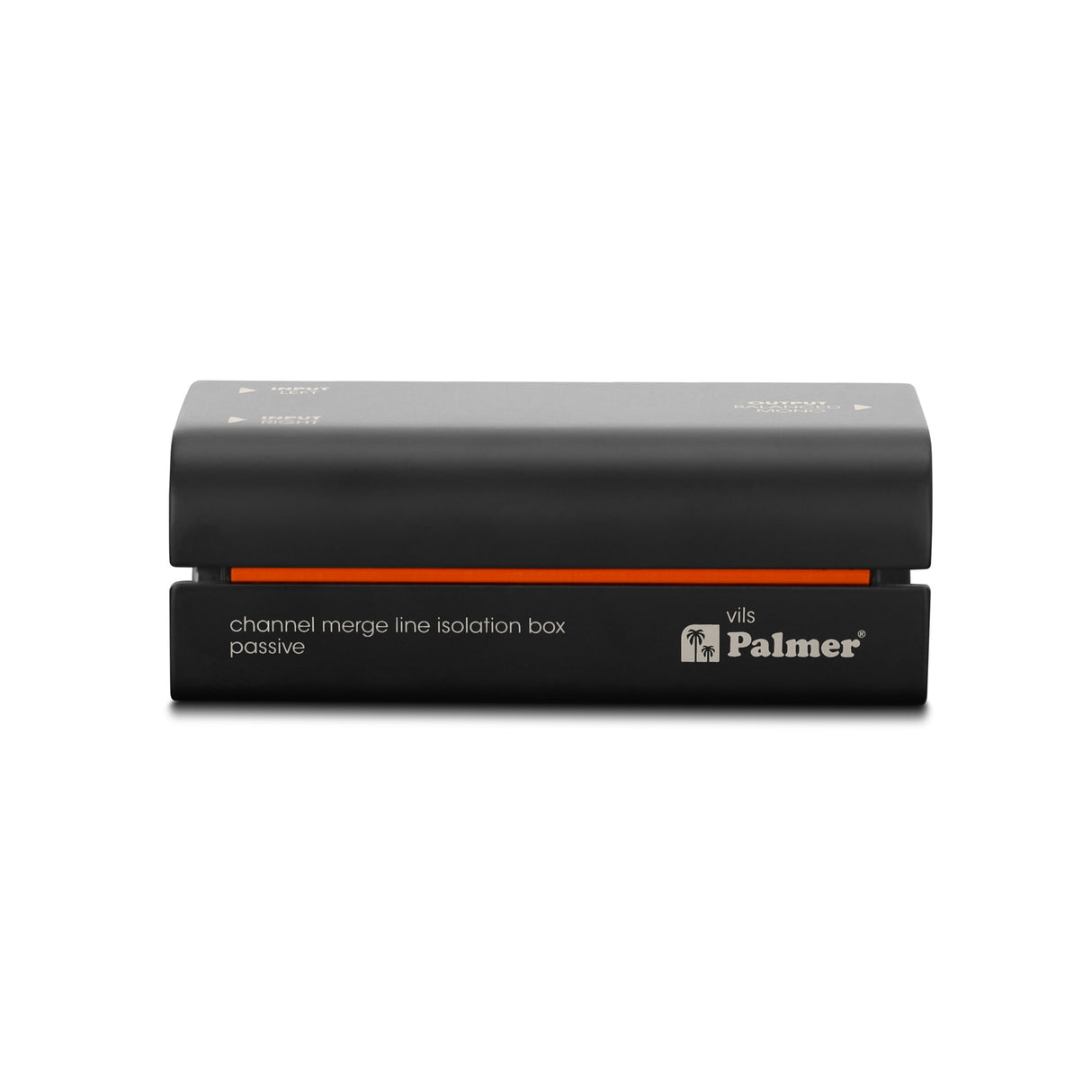

Palmer RIVER vils - Channel merge line isolation box
€175,95
Unit price
/
Not available
Description
Description
We’ve all experienced the same thing before:
At home the sound was crisp and clear, but during the presentation it starts humming and buzzing, and there’s no time to find the cause.
This is where the Palmer vils comes into its own, reliably isolating the ground potentials between laptop, media devices and PA systems. (Peace returns, and you can once again focus fully on your presentation.)

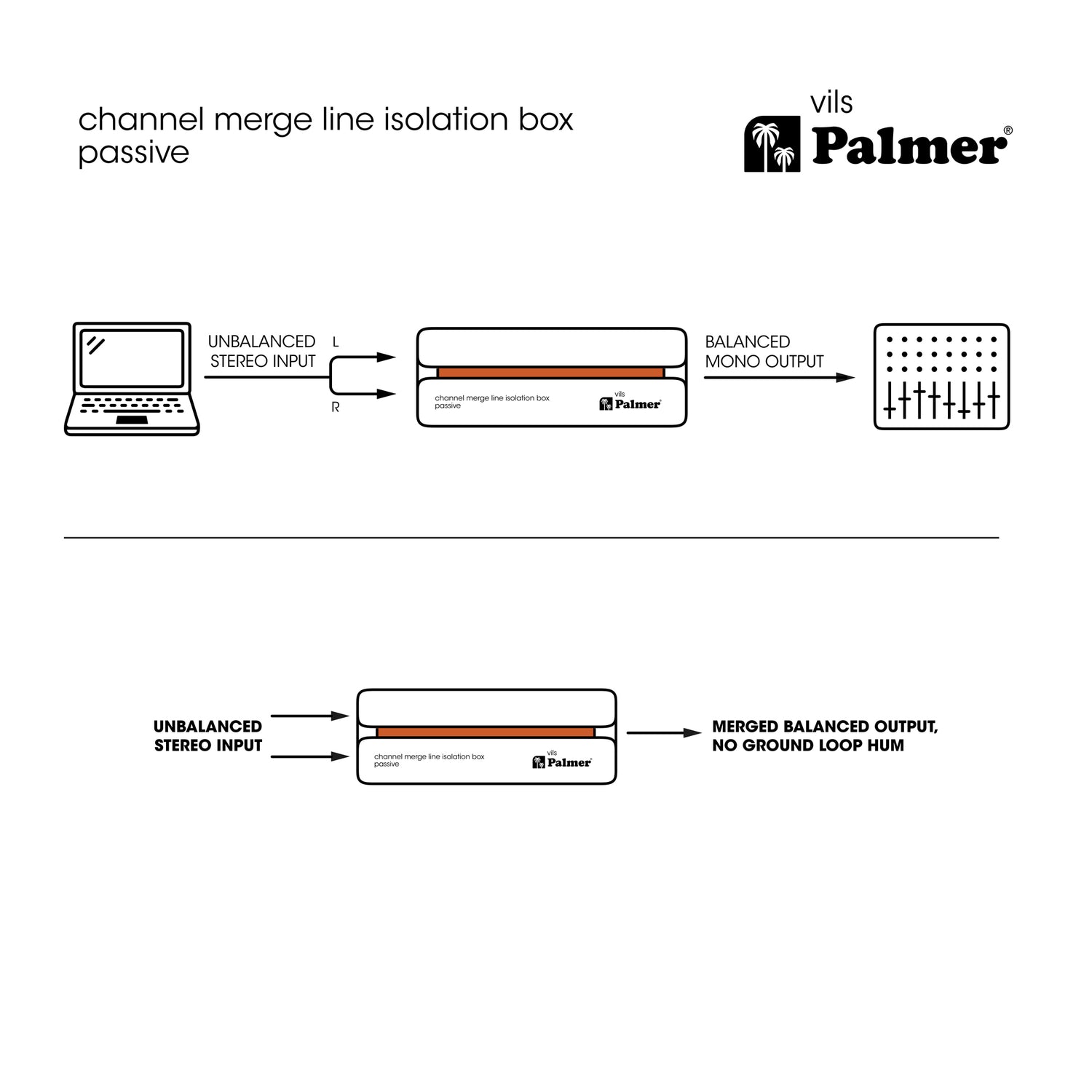

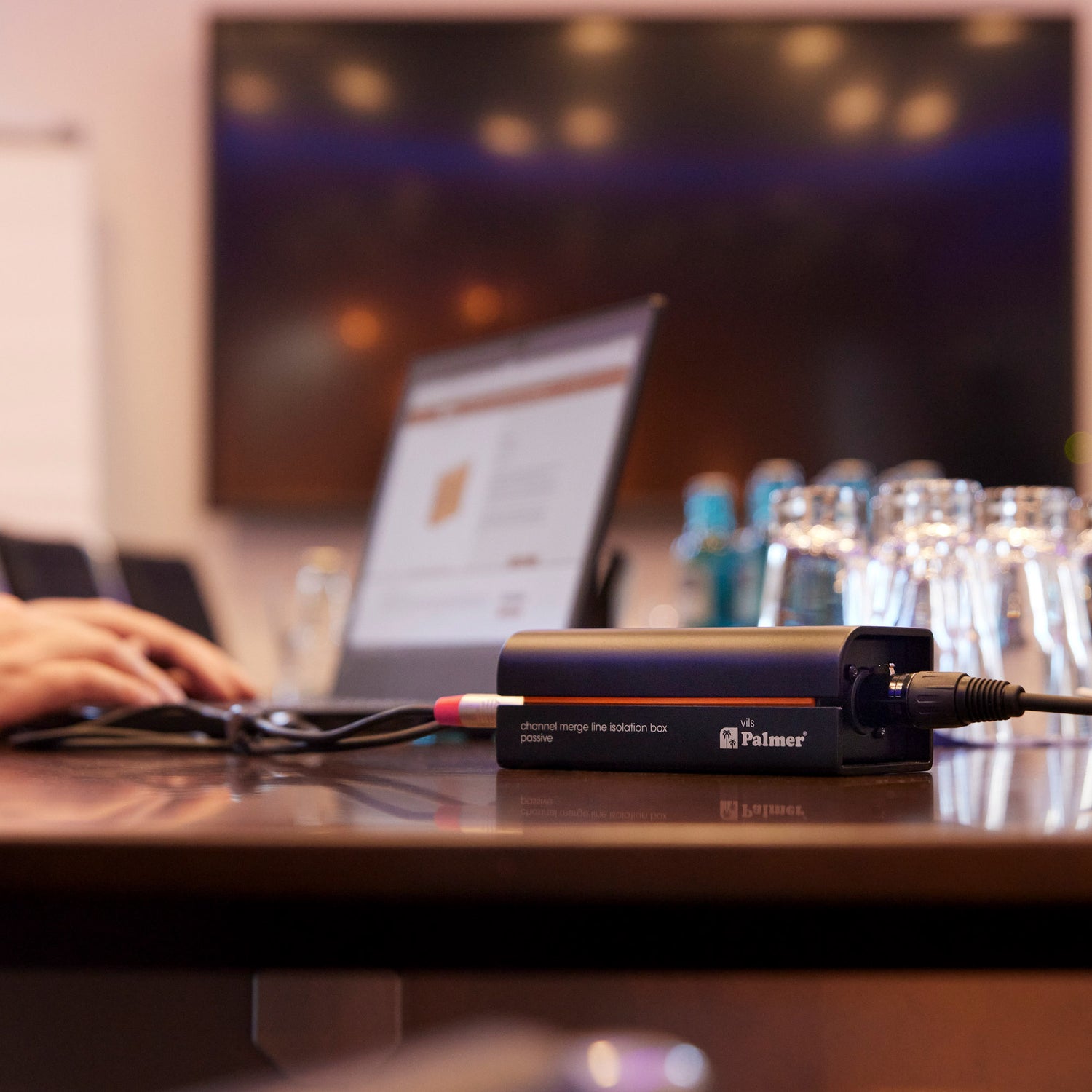

The Palmer vils has two unbalanced RCA inputs. You can use a standard 3.5 mm jack Y-cable to connect to the laptop’s headphone output. The vils sums both stereo channels to mono, so you only need one free microphone input for the connection to the PA.
The Palmer vils is extremely easy to use, and its passive operation means it doesn’t require a power supply. A resistor network and a transformer, which also balances the signal, ensure optimum matching of level and impedance. This means there won’t be any interference, even over longer cable runs.
With the Palmer vils, you can be sure your presentations are just as crisp and clear as they sound at home.
Technical specifications
Technical specifications
- Noisless sound for presentations

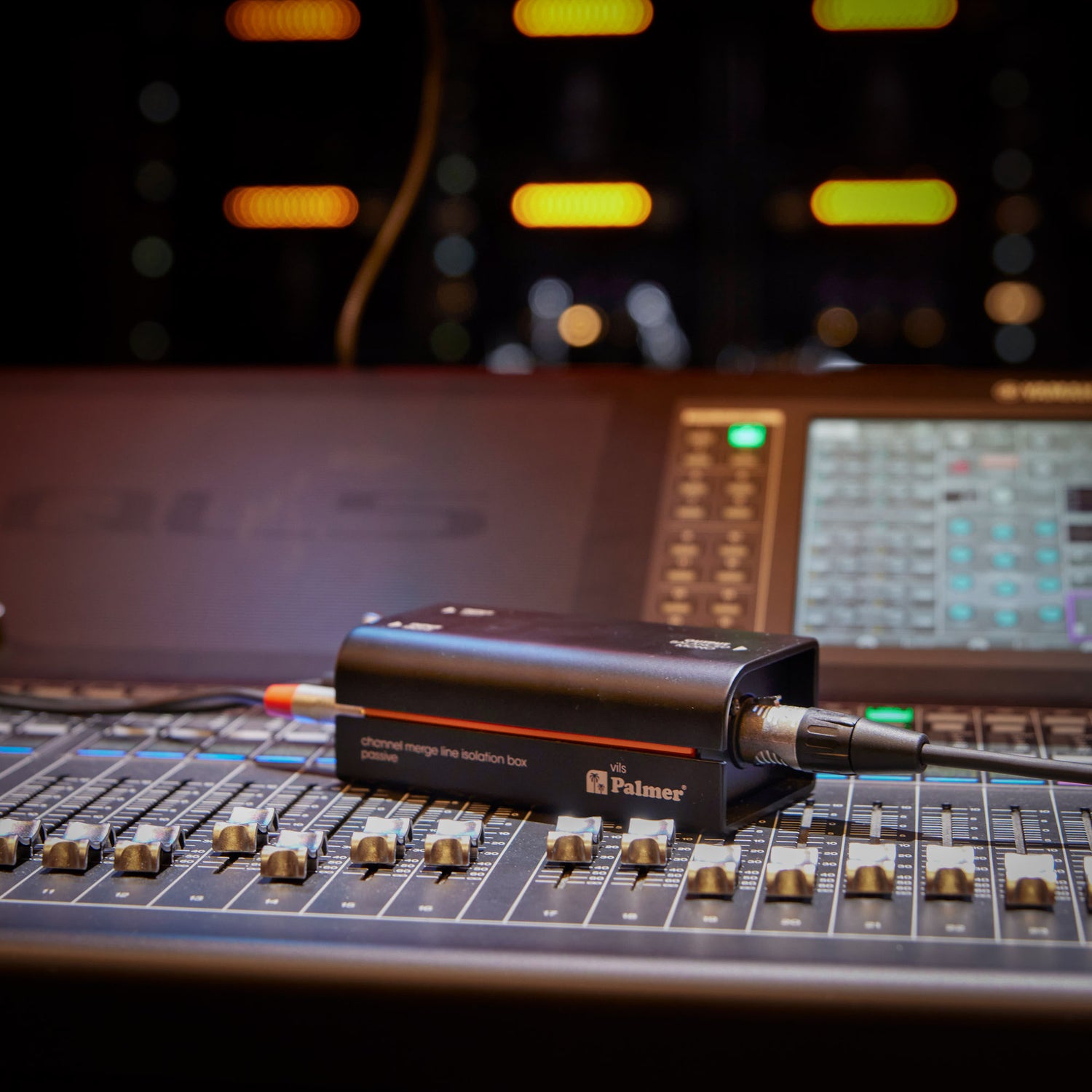

- For connecting a laptop or consumer audio device to a professional microphone input
- Mix two input channels (e.g. laptop headphone output) to mono
- Galvanic transformer isolation for interference-free sound
- Passive operation, no power supply needed
- Perfect adjustment of level and impedance
- Balanced output allows for longer cable runs without interference
- Solid casing made of aluminium and steel
- Incl. rewritable tour label for attachment onto the back of the vils
- Engineered in Germany
| Product type | line isolator |
| Type | passive |
| Channels | 1 |
| Transformer isolated | yes |
| Number of inputs | 2 |
| Input type | unbalanced |

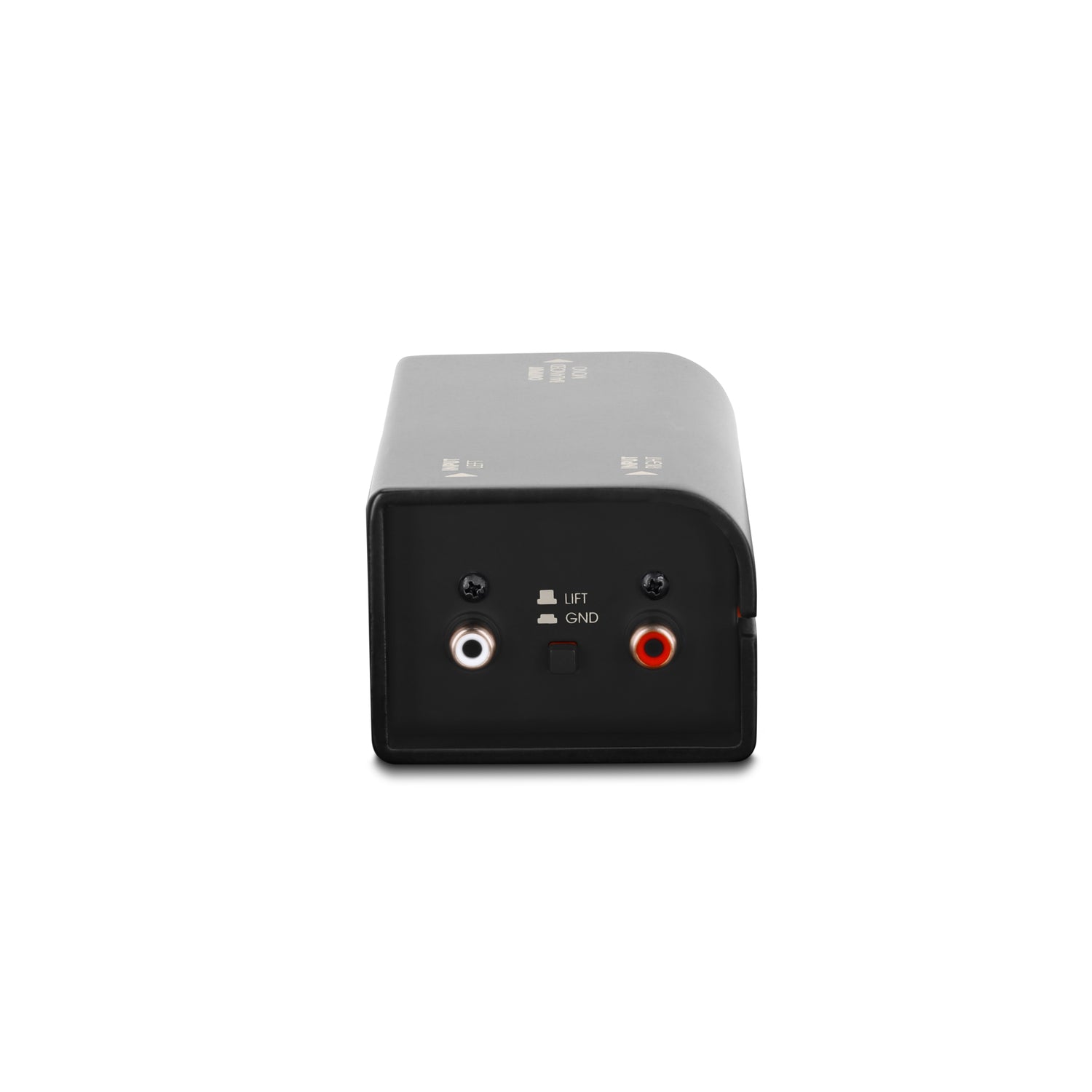

| Input connectors | RCA |
| Number of outputs | 1 |
| Output type | balanced |

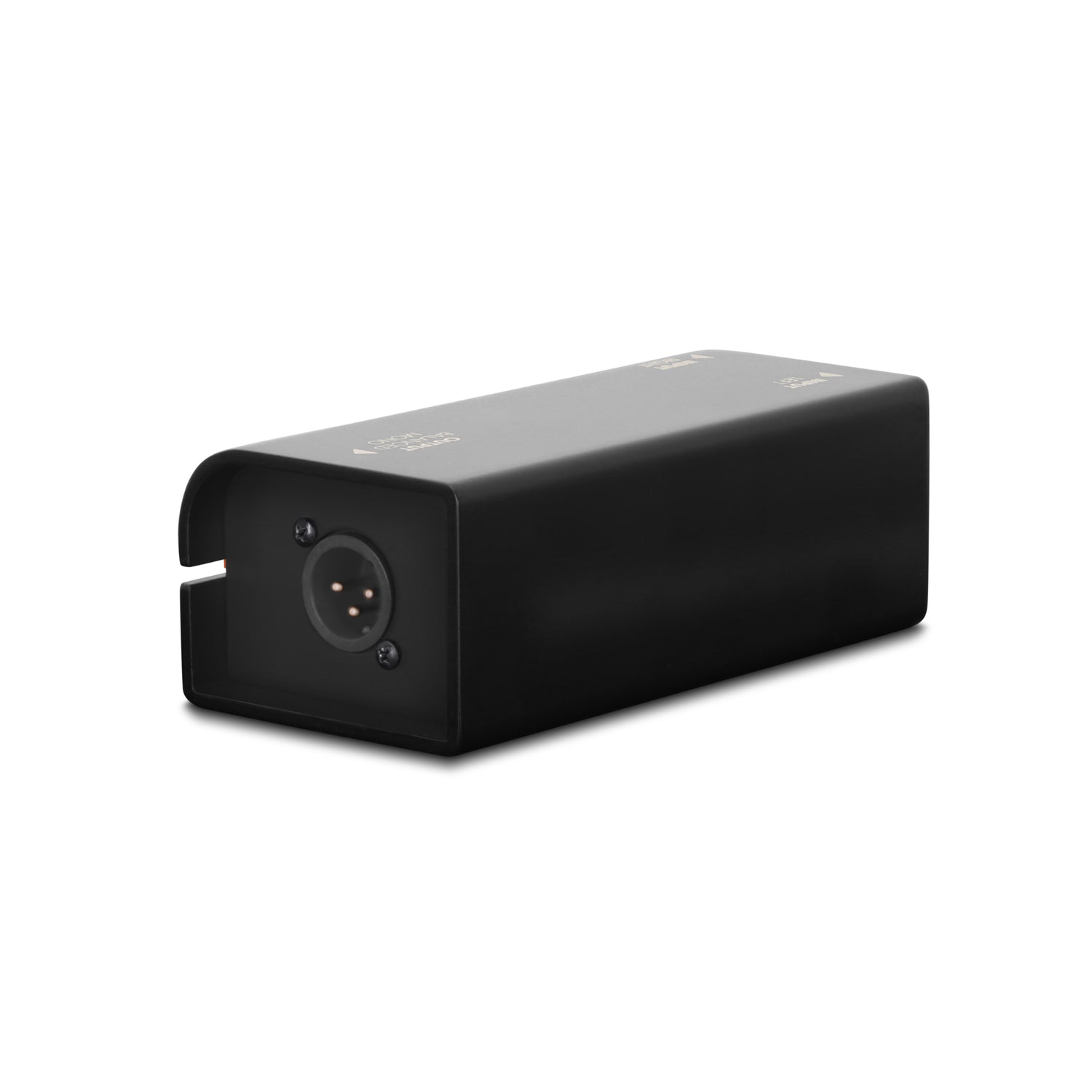

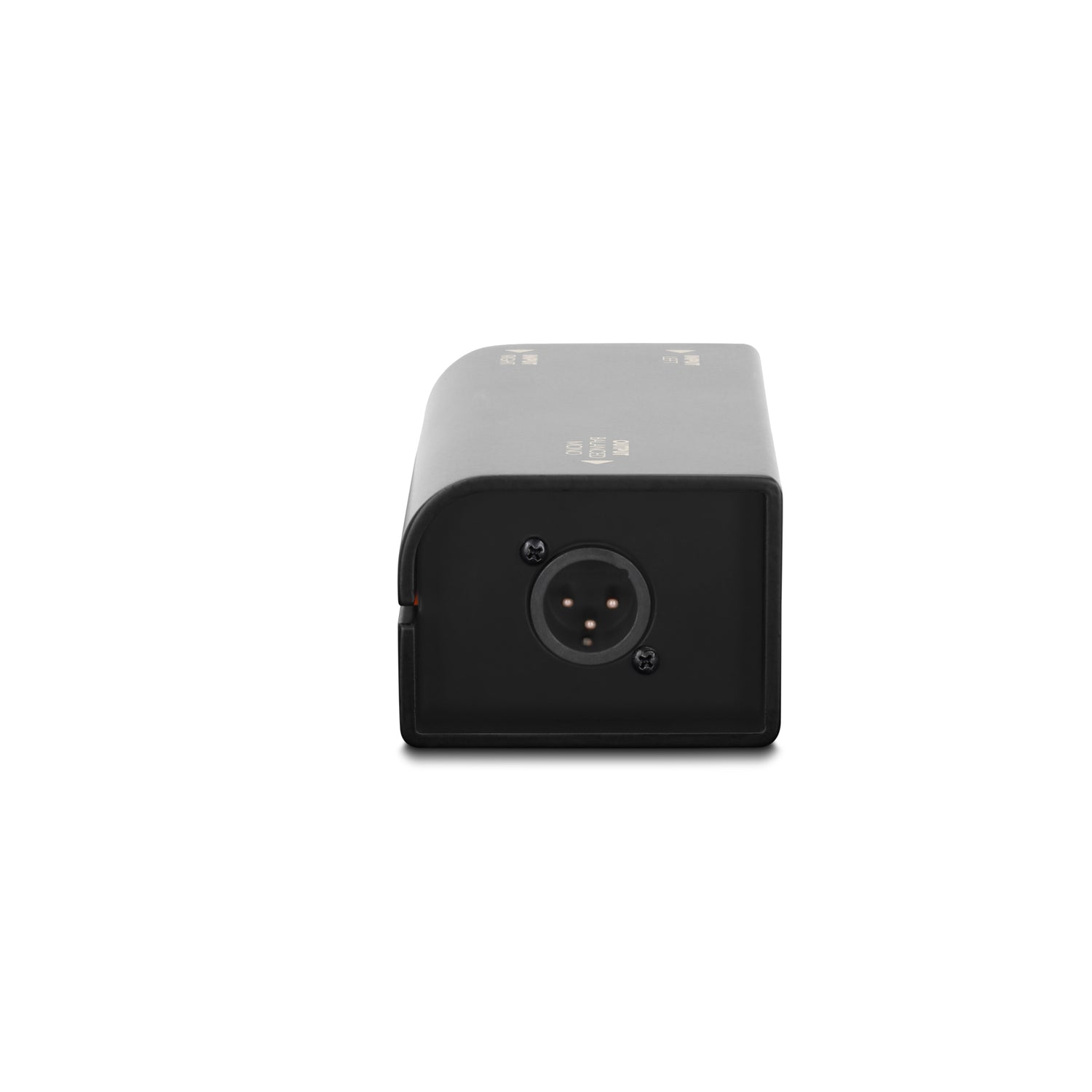

| Output connectors | XLR |

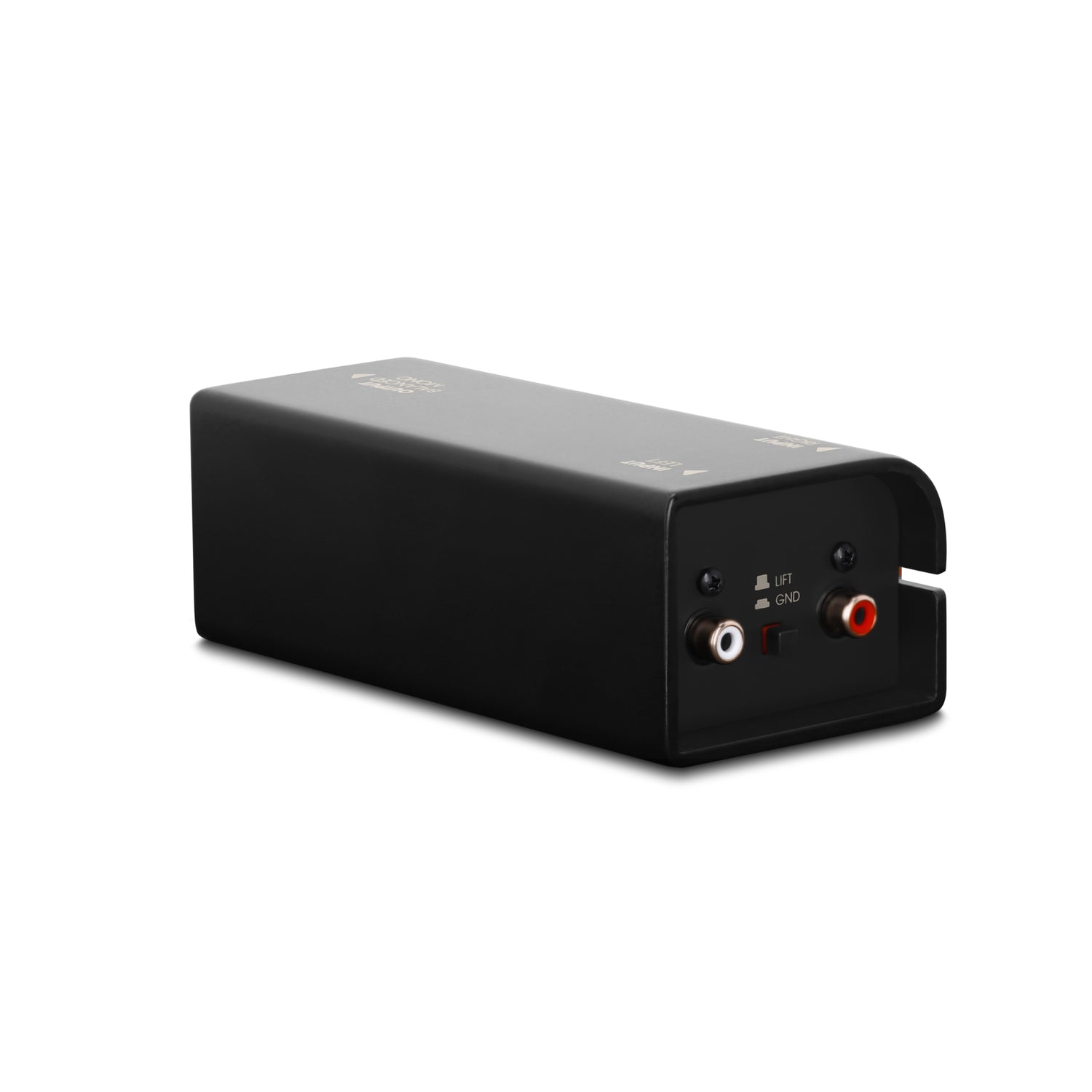

| Ground lift switch | yes |
| Housing | Aluminium continuous casting |
| Dimensions (W x H x D) | 140 x 50 x 50 mm |
| Weight | 0,385 kg |
| Ambient temperature (in operation) | - 20 - 70 °C |
| Relative Humidity | < 80% (non-condensing) |

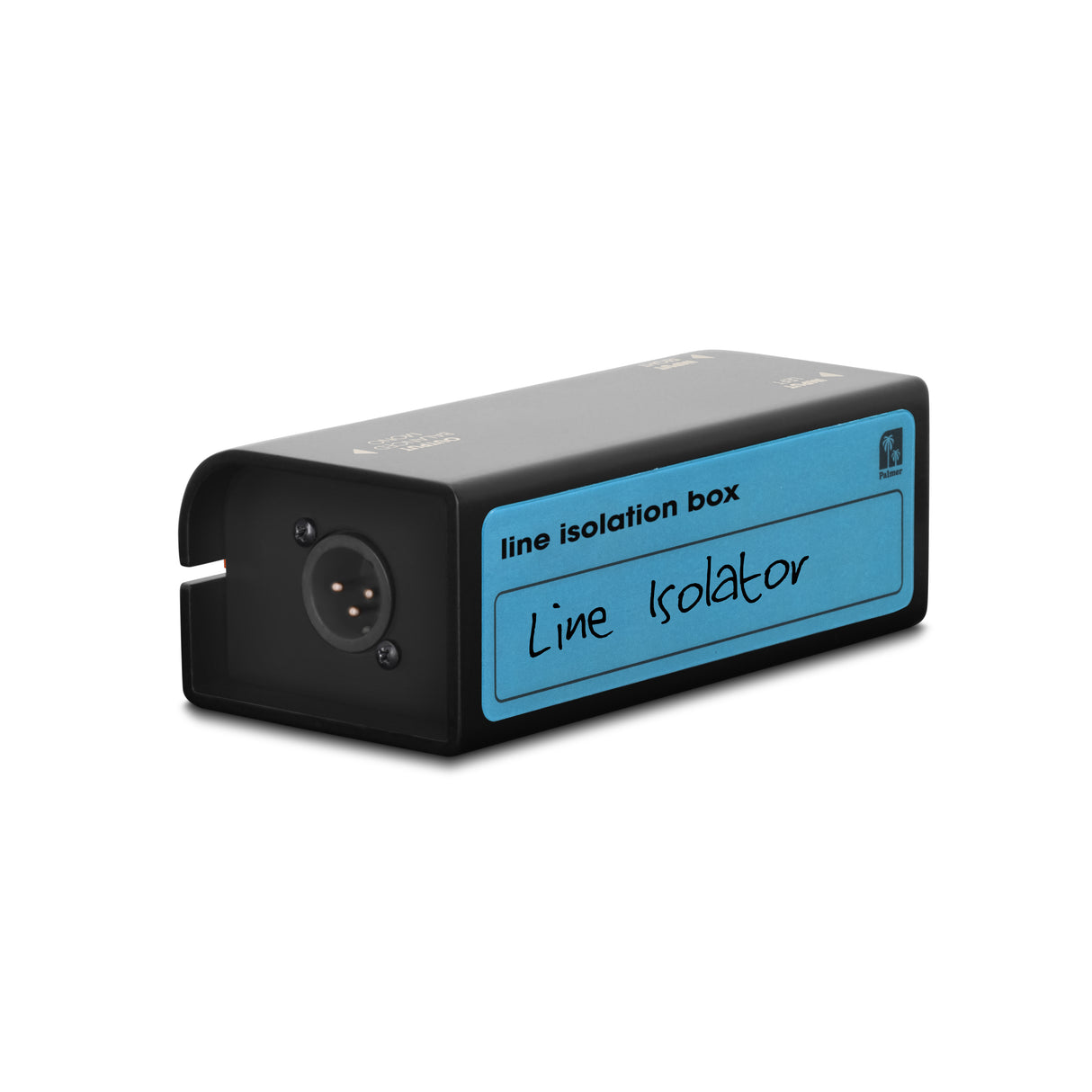

| Accessories (included) | Inscription label (tour label) |
| Accessories (included) | rubber feet |
Audio
| Max. input level (< 1% THD, 20 Hz) | +12 dBu |
| Max. input level (< 1% THD, 1 kHz) | + 32 dBu |
| Frequency response (±0,2dB, relative 1kHz) | 20 Hz - 30 kHz |
| Input impedance (1 kHz, Setting: 0 dB Pad, THRU) | 2,7 kOhm |
| Output impedance (1 kHz, Setting : 0 dB Pad, THRU) | 600 Ohm |
| THD (30 Hz, +4 dBu, unity, unweighted) | <0,08% |
| THD (1 kHz, +4 dBu, unity, unweighted) | <0,003% |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | < 0,002 % |
| Transformer ratio | 1 : 1 |
