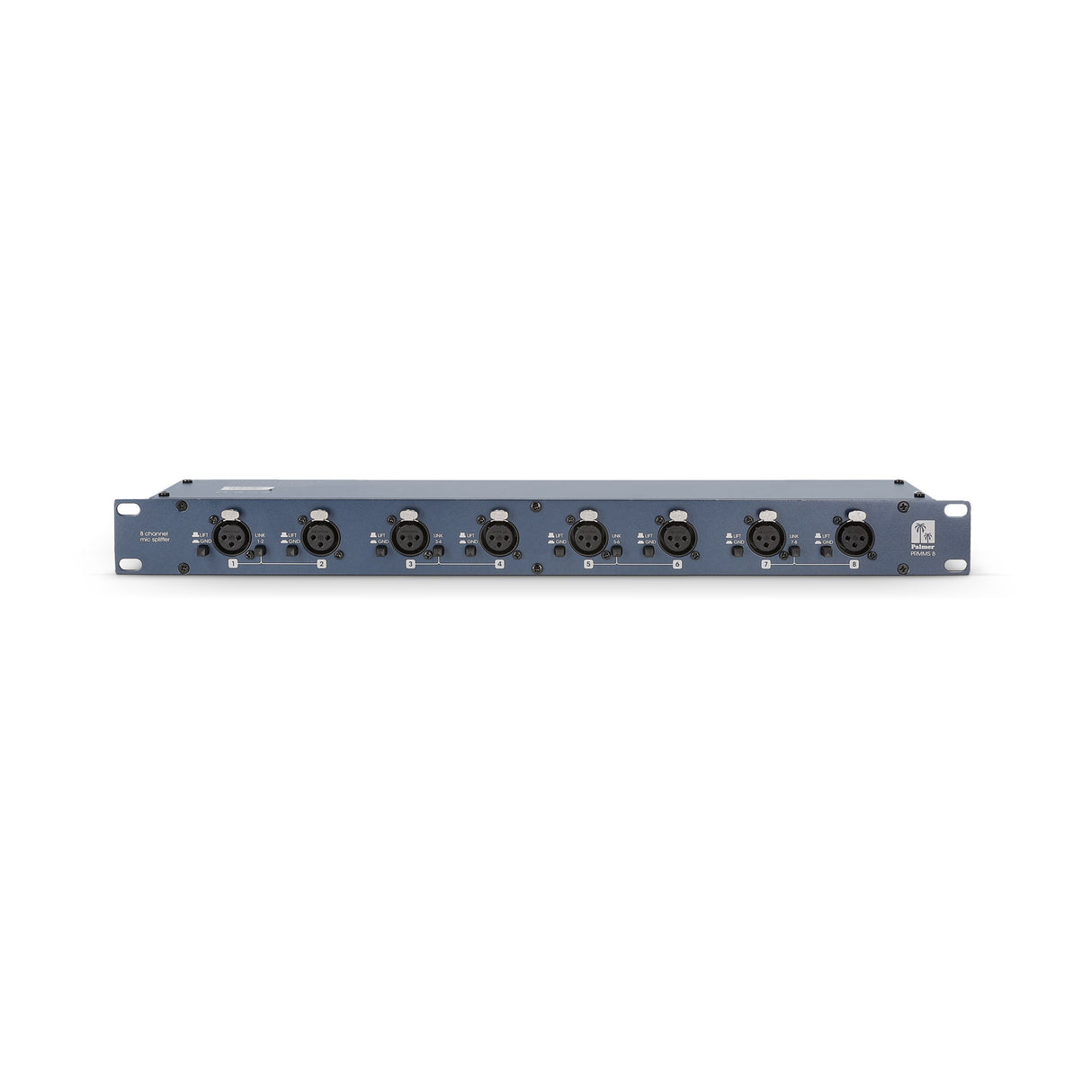

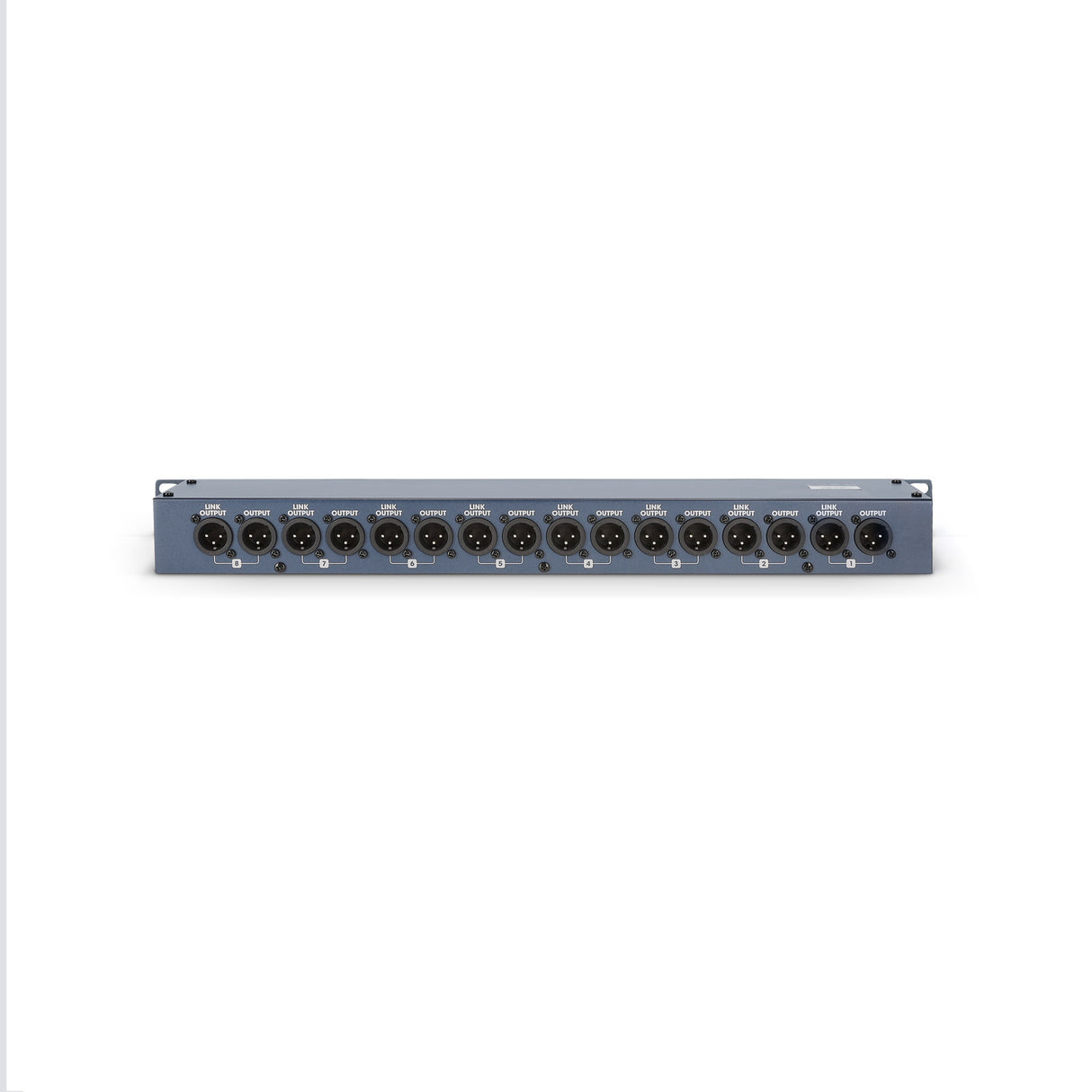

Palmer RMMS 8 - 8-channel microphone splitter
€617,95
Unit price
/
Not available
Description
Description
PRMMS8 is an ultra-low-noise 8-channel microphone splitter that provides a direct output and a transformer-isolated output for each balanced XLR input. For added flexibility, four front-panel switches allow channel linking, making it possible to route a single input signal to multiple outputs feeding FOH, monitor, recording and broadcast mixing consoles, or to combine two input signals into a single output. When used with condenser microphones, the direct outputs act as a path for phantom power. Each channel includes a ground lift switch to eliminate hum and interference caused by ground loops between electronic equipment connected to PRMMS8.
Technical specifications
Technical specifications
- Single space 8-channel rackmount microphone splitter
- Transformer isolated and direct outputs
- Channel pair link switches for doubling outputs or merging inputs
- Individual ground lift on each channel
- Suitable for phantom powered condenser microphones and DI boxes
| Product type | Splitters |
| Type | mic split |
| Split type | 1 in 1 +1 |
| Channels | 8 |
| Number of inputs | 1 |
| Input connectors | XLR |
| Max. input level | +5 dBu |
| Number of split-outputs per canal | 1 |
| THRU outputs/channel | 1 |
| Max Output Level | +5 dBu |
| Output connectors | XLR |
| Transformer isolated outputs | Yes |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 483 mm |
| Width | 19 " |
| Depth | 73 mm |
| Height | 44.5 mm |
| Height | 1 U |
| Weight | 1,3 kg |
