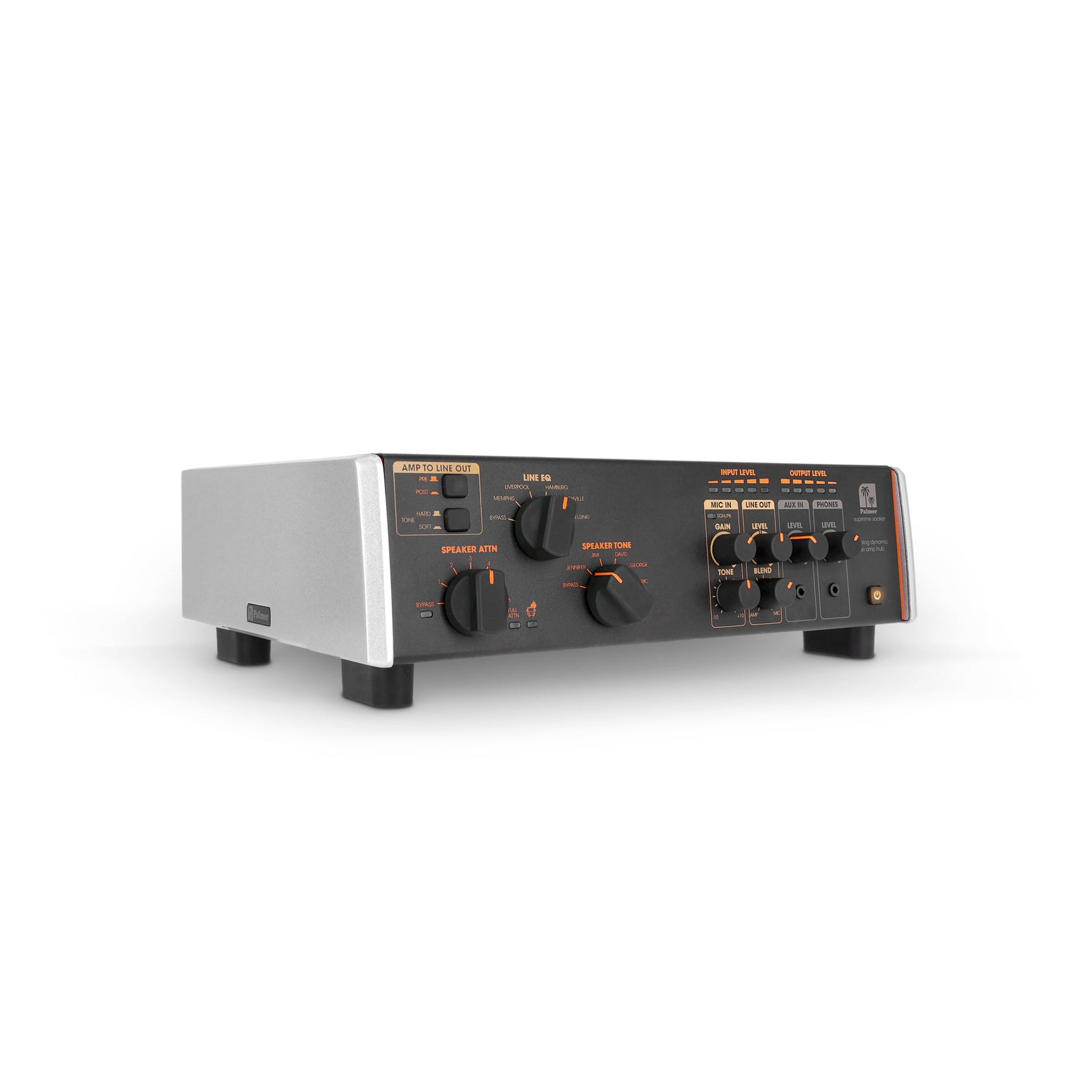

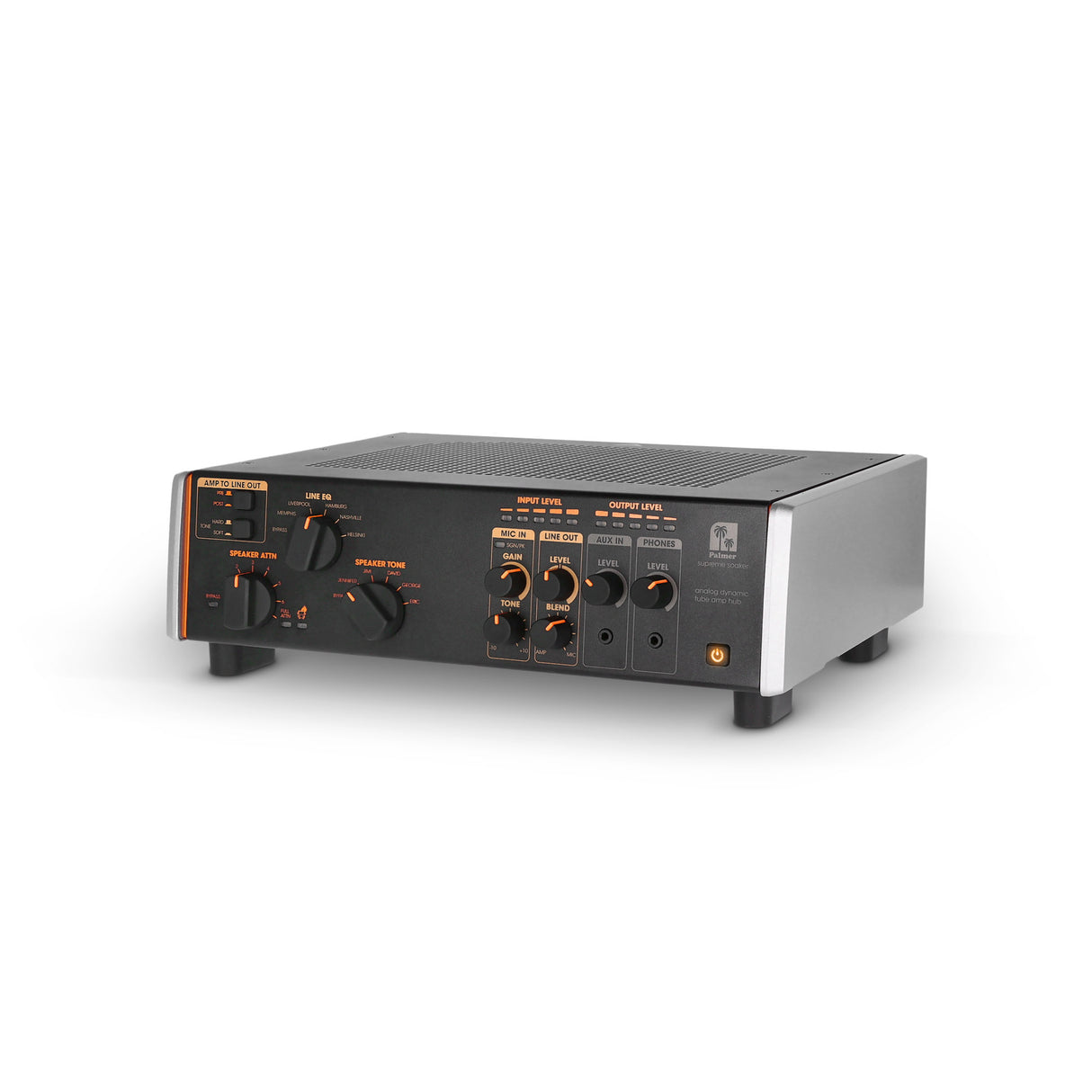

Palmer SUPREME SOAKER - Analog dynamic tube amplifier hub
1
of
21
Loading...
€1.512,95
Unit price
/
Not available
Secure checkout
Payment methods accepted
Others also bought:
-
Palmer Passive Monitor Controller
€86,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer Pro Cable tester
€77,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer MONICON XL active studio monitor controller
€397,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer STUDIMON 5 Studio Monitor
€233,95
External warehouse – Estimated delivery in 9–12 business days.
-
Palmer PBC400 drawer
€31,95
External warehouse – Estimated delivery in 9–12 business days.
Palmer SUPREME SOAKER - Analog dynamic tube amplifier hub
€1.512,95
Unit price
/
Not available
Description
Description
Supreme Soaker enables guitarists to unlock the full potential of their tube amps in a way that has never been possible – until now. As a reactive attenuator and load box with a finely tuned analogue speaker simulator built in, Supreme Soaker lets guitarists permanently set their amp’s sweet spot – at any volume – and it will quickly become their go-to unit in any musical situation, from playing and recording at home to rehearsing with a band and even live performance… without compromising so much as a single iota of their precious guitar tone.
Whether it’s for jamming at home, recording their own music or playing with others – or all of the above – Supreme Soaker is the perfect way to do it, while keeping the guitar/amp signal untouched and analogue from start to finish.
Here are just some of Supreme Soaker’s key benefits:- Reactive attenuator and load box: set a tube guitar amp’s sweet spot at any volume, from zero (either using headphones or recording completely silently) to living-room level and all the way up to the limit of what’s acceptable in terms of noise… with no need for a speaker cabinet at all!
- Finely tuned analogue speaker simulator: tailor your guitar rig’s tone as needed to bring out its ultimate sounds – no need to ever mic up a cabinet again!
- Speaker output with unique tone control: shift the speaker cabinet’s tonal palette to conjure up new iconic sound worlds.
- Mic/line input (can be blended with the speaker simulator): blend a miked cabinet with Supreme Soaker’s speaker simulator for a superb analogue sound experience.
- Front-panel headphone output: perfect for silent practice when inspiration strikes.
- Stereo FX loop: for guitarists who love their effect pedals, Supreme Soaker features a stereo FX loop to create otherworldly soundscapes with delays, reverbs, etc.
- Front-panel aux input: for jamming with backing tracks or even playing to a click! It doesn’t get any easier with Supreme Soaker.
- Balanced stereo XLR line outputs: when it comes to recording the sound of a guitar amp, it doesn’t get any easier.
- Compatible with 8- and 16-ohm setups: works flawlessly with 99% of tube amps.
- Rated for amps up to 150 watts: perfect for taming even the stadium-filling, full-size tube heads of yesteryear! With Supreme Soaker, every guitarist has a reason to dust off the big stack again!
- Amp-protective circuitry with permanent amp load: never worry about connecting an amp without a connected speaker again!
- A completely analogue experience – with no need for an app! Perhaps most importantly, Supreme Soaker is simple, direct and pure: the guitarist’s analogue tone is preserved at all times, and all the controls they need are on the unit itself, so they can focus on what matters most: making music!
And that’s only the beginning. Supreme Soaker will quickly become an indispensable tool for guitarists everywhere when it comes to their music-making and creative pursuits. Its outstanding tonal response, user experience and connectivity will certainly make it the cornerstone of many rigs going forward – and family members, neighbours and audiences will also thank Supreme Soaker players!
Finally, for us – the Palmer team – this is the culmination of a long-term goal, the realisation of a decades-long dream of sound. We have been an industry leader in analogue tonal solutions for musicians and audio engineers for over 40 years. Now, building on the legacy of the award-winning PDI-09 and PDI-03 speaker simulators as well as the PDI-06 Attenuator and Load Box, our designers and engineers have applied their decades of experience to the development of Supreme Soaker.
Technical specifications
Technical specifications
- Reactive attenuator and load box
- Finely-tuned analogue speaker simulator
- Speaker output with unique tone control
- Microphone / line input (blendable with speaker simulator)
- Front panel headphone output
- Stereo FX loop
- Front panel aux input
- Balanced stereo XLR Line Outputs
- Compatible with 8 and 16-ohm setups
- Rated for tube amps up to 150 Watts
- Amp protection circuit with permanent amp load
- All analogue experience; no app required!
| Product type | DI box |
| Product type | Headphone Amp: |
| Product type | Microphone preamplifier |
| Product type | attenuator |
| Product type | load box |
| Product type | power soak |
| Product type | speaker simulator |
| Signal processing | Analog |

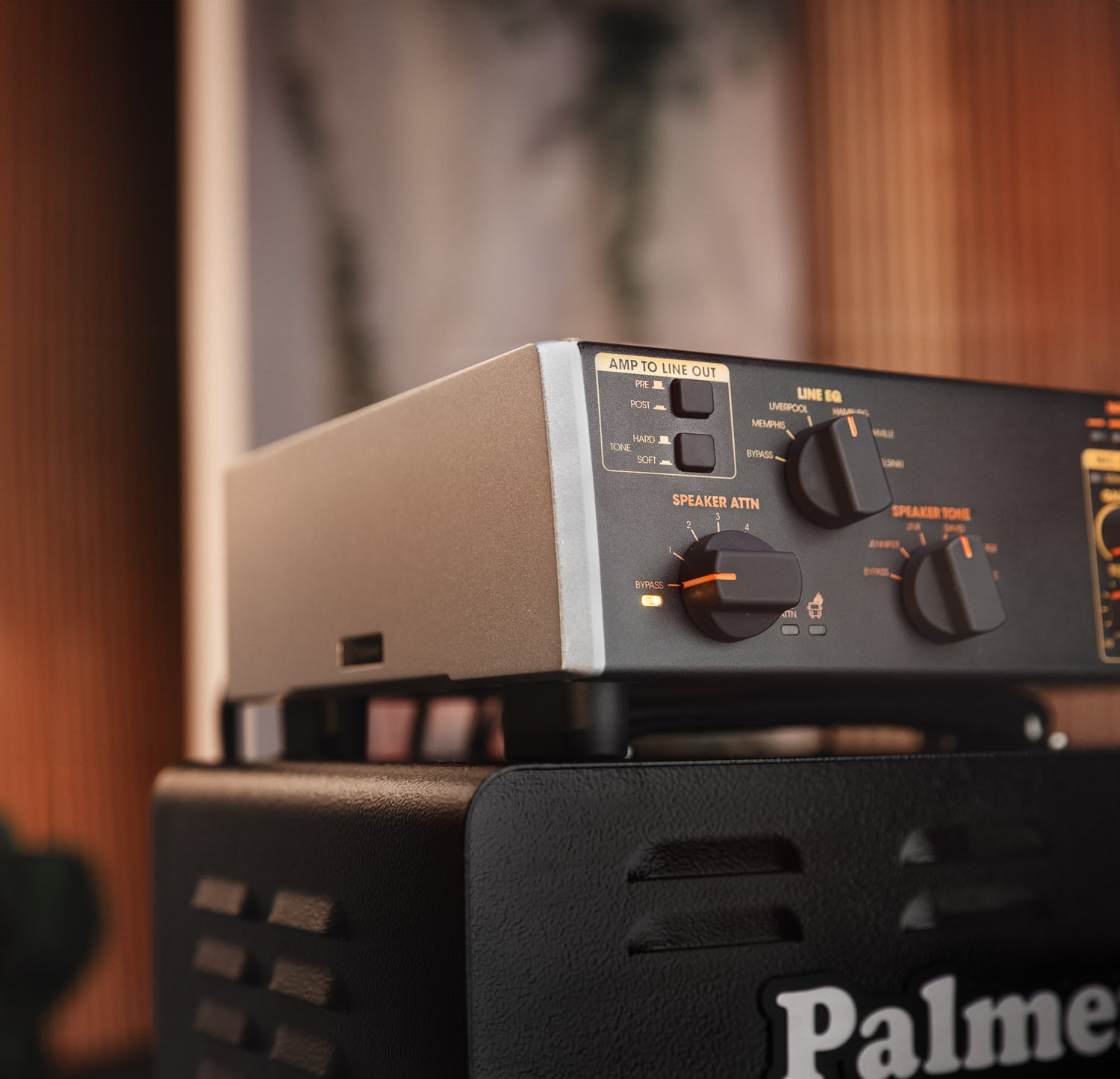

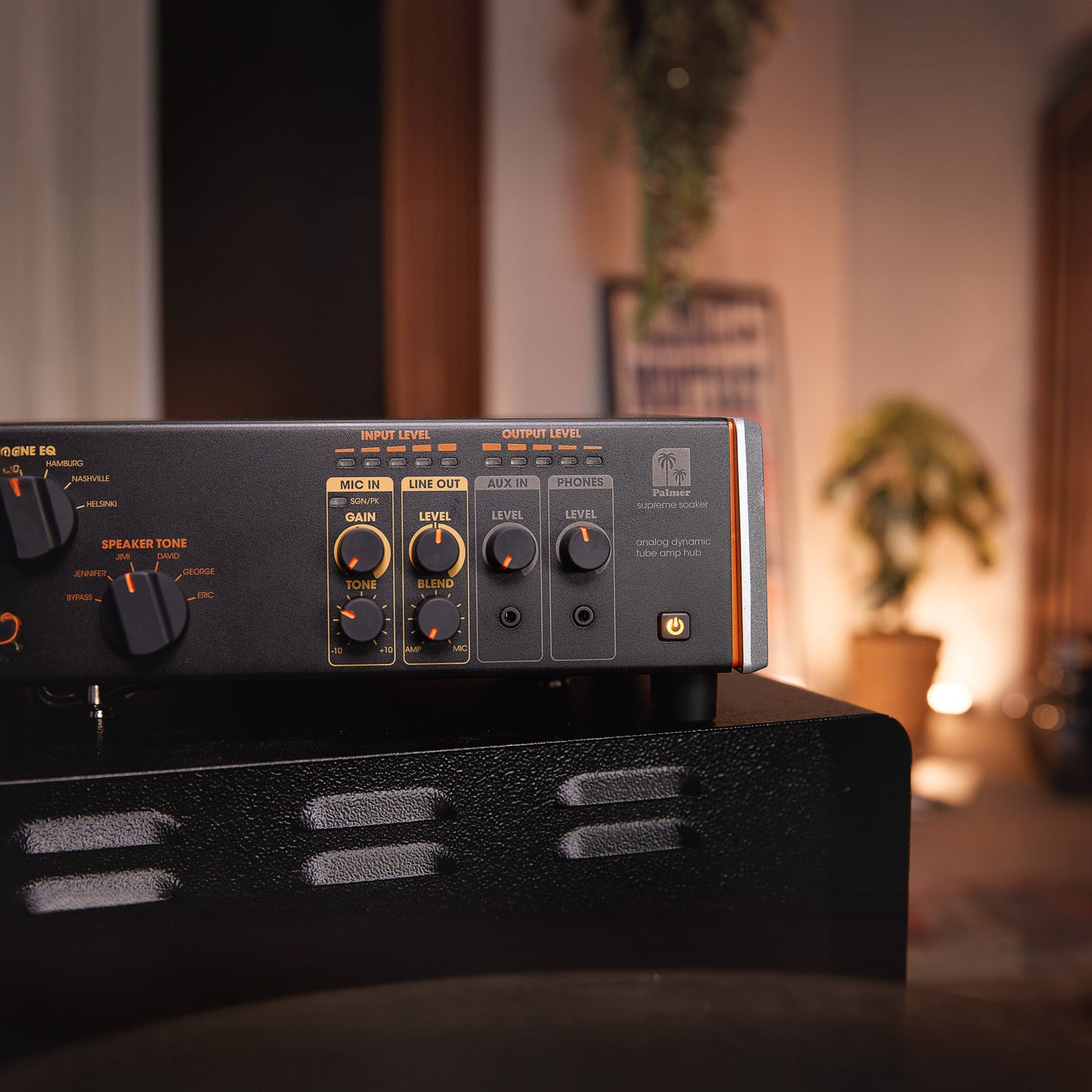

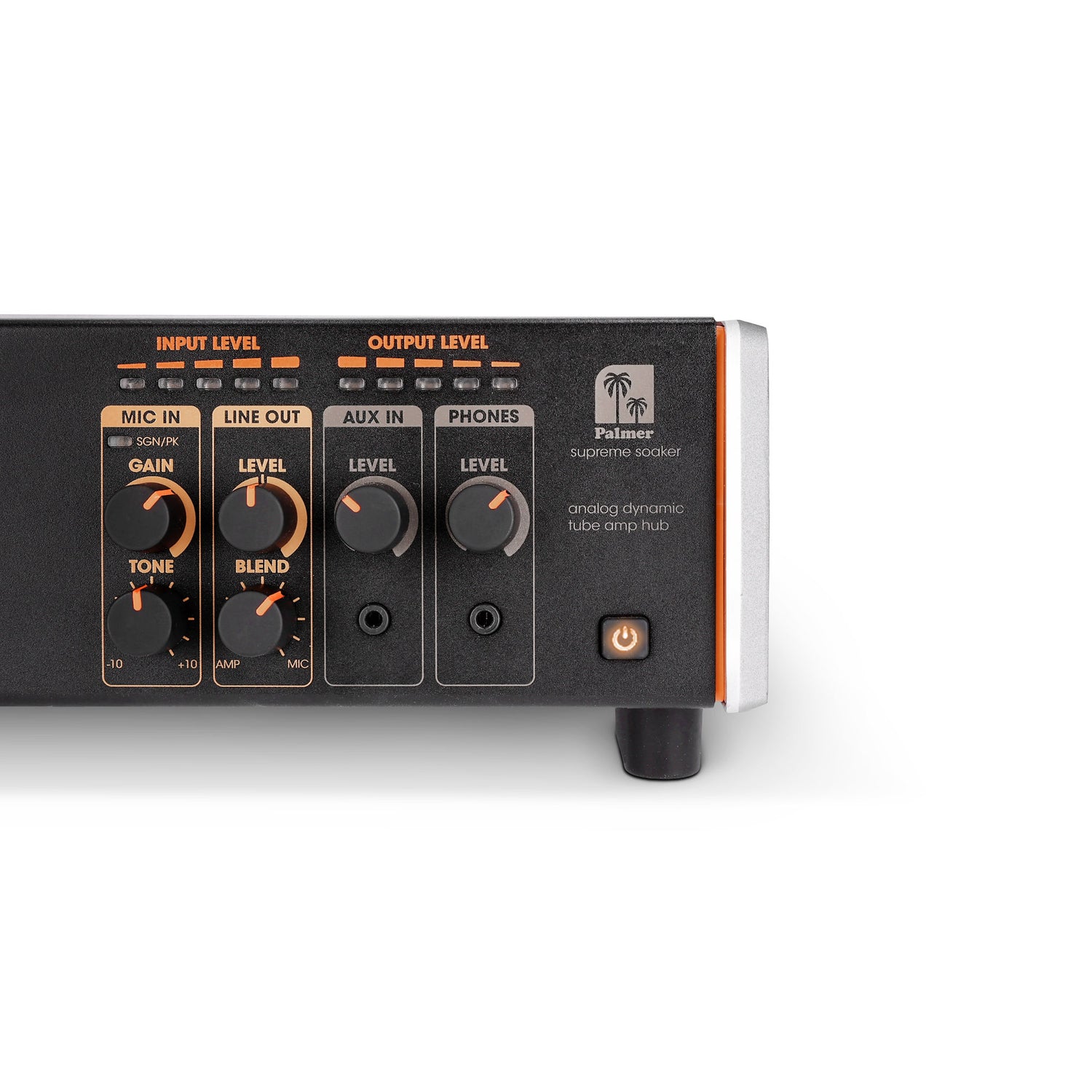

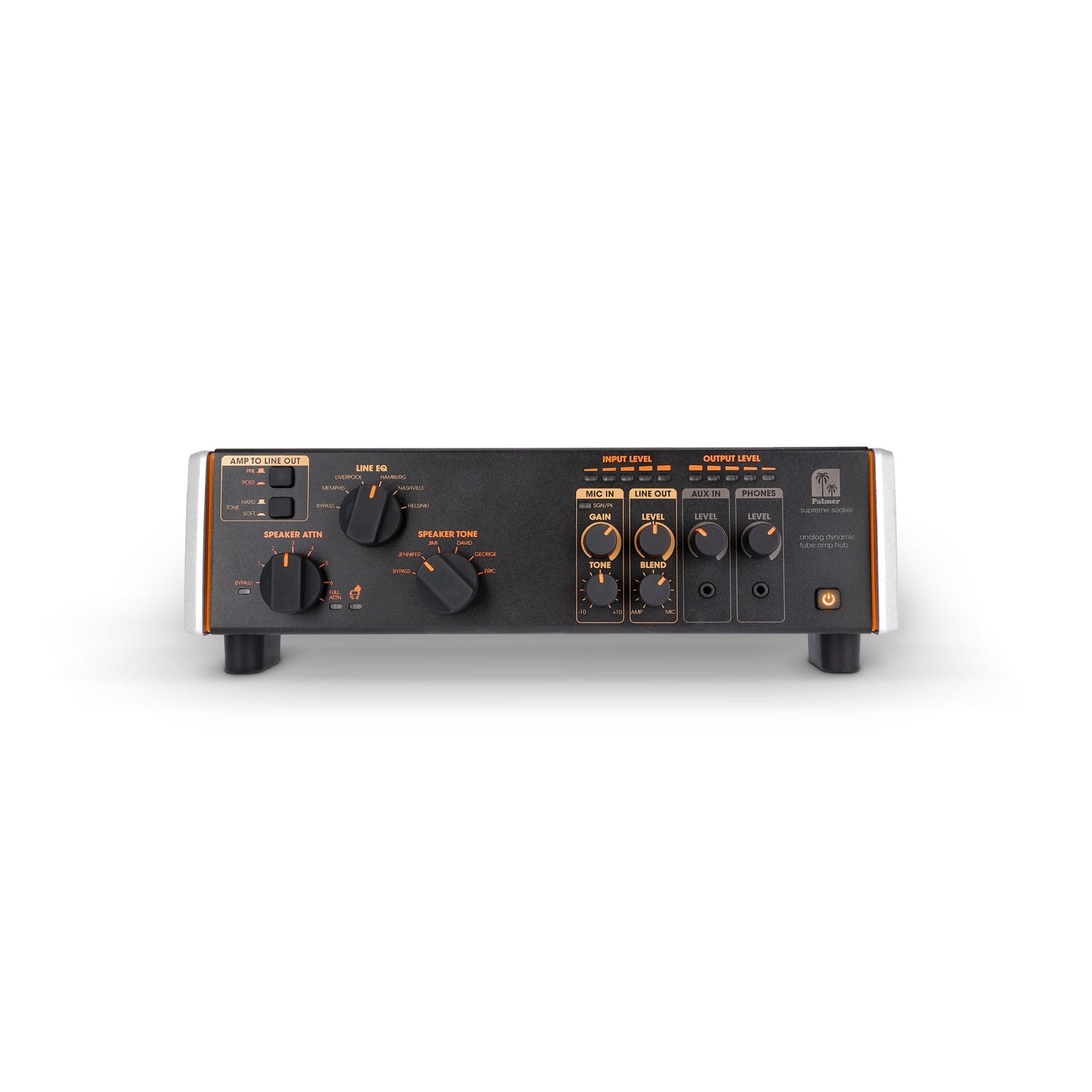

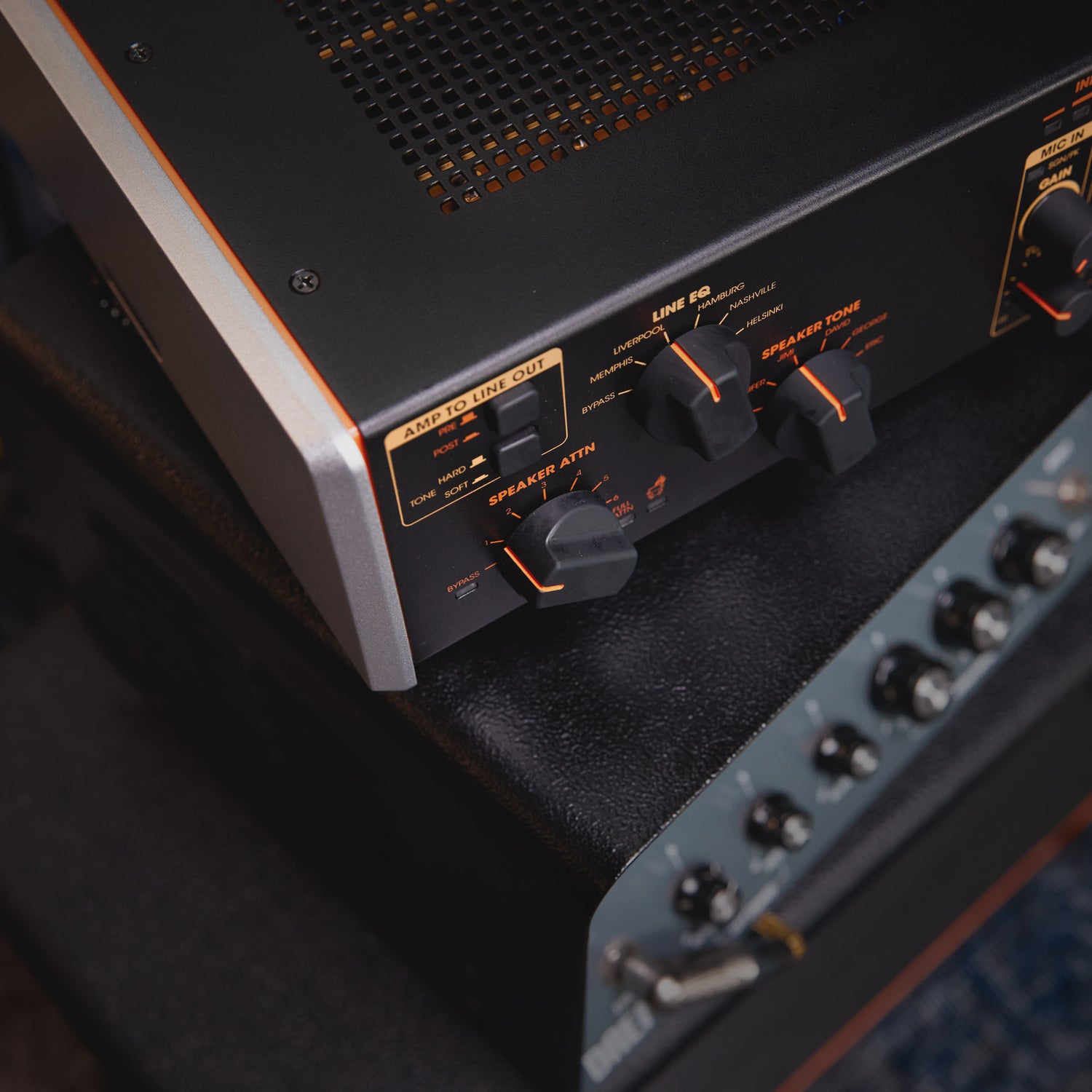

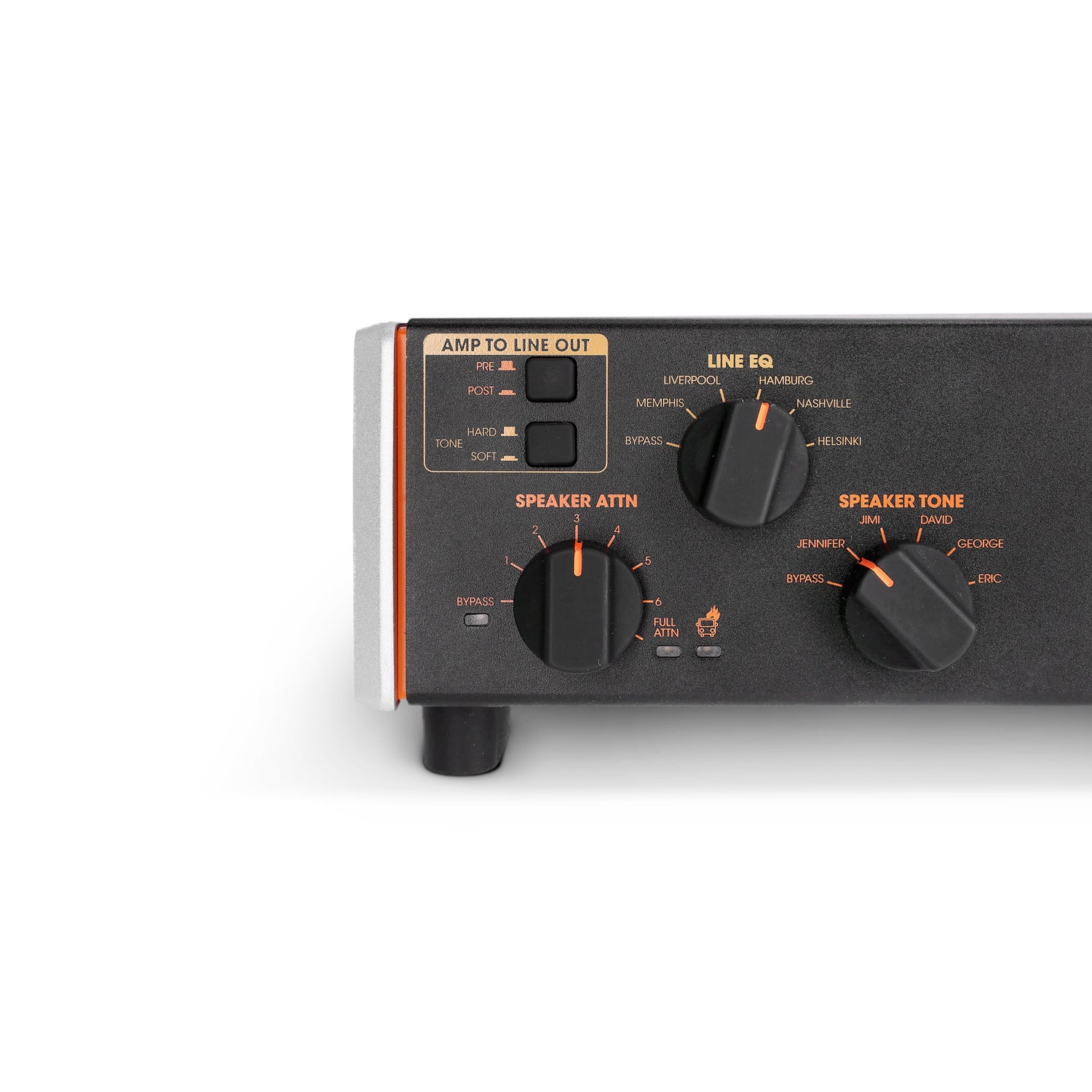

| Front panel controls | 7-Step Speaker Attenuation |
| Front panel controls | Aux In Level |
| Front panel controls | Hard/Soft Tone Selector |
| Front panel controls | Line EQ (5 Voicings) |
| Front panel controls | Line Out Blend |
| Front panel controls | Line Out Level |
| Front panel controls | MIC Tone |
| Front panel controls | Mic Gain |
| Front panel controls | Phone Level |
| Front panel controls | Pre/Post Switch (Amp to Line Out) |
| Front panel controls | Speaker Tone (5 Voicings) |

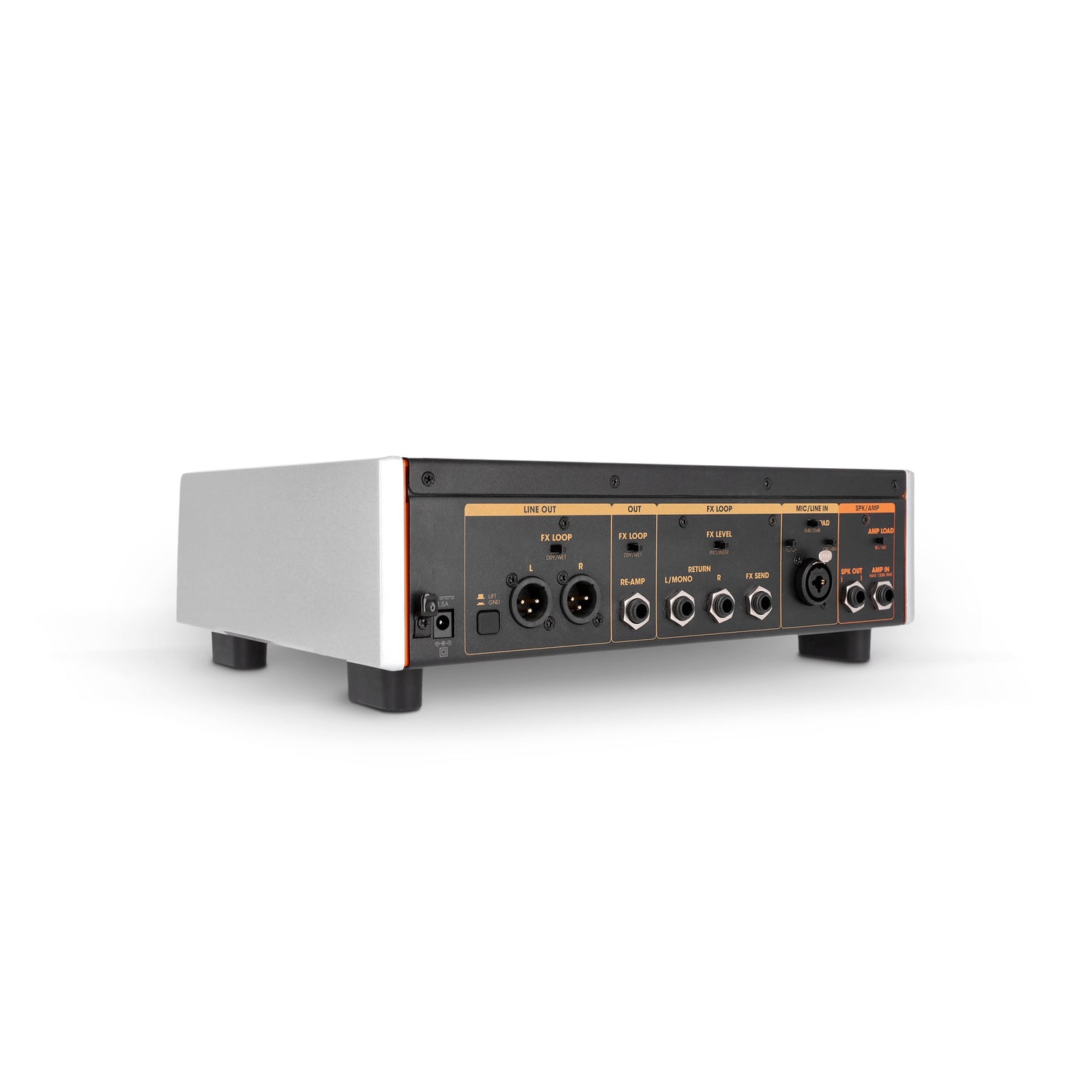

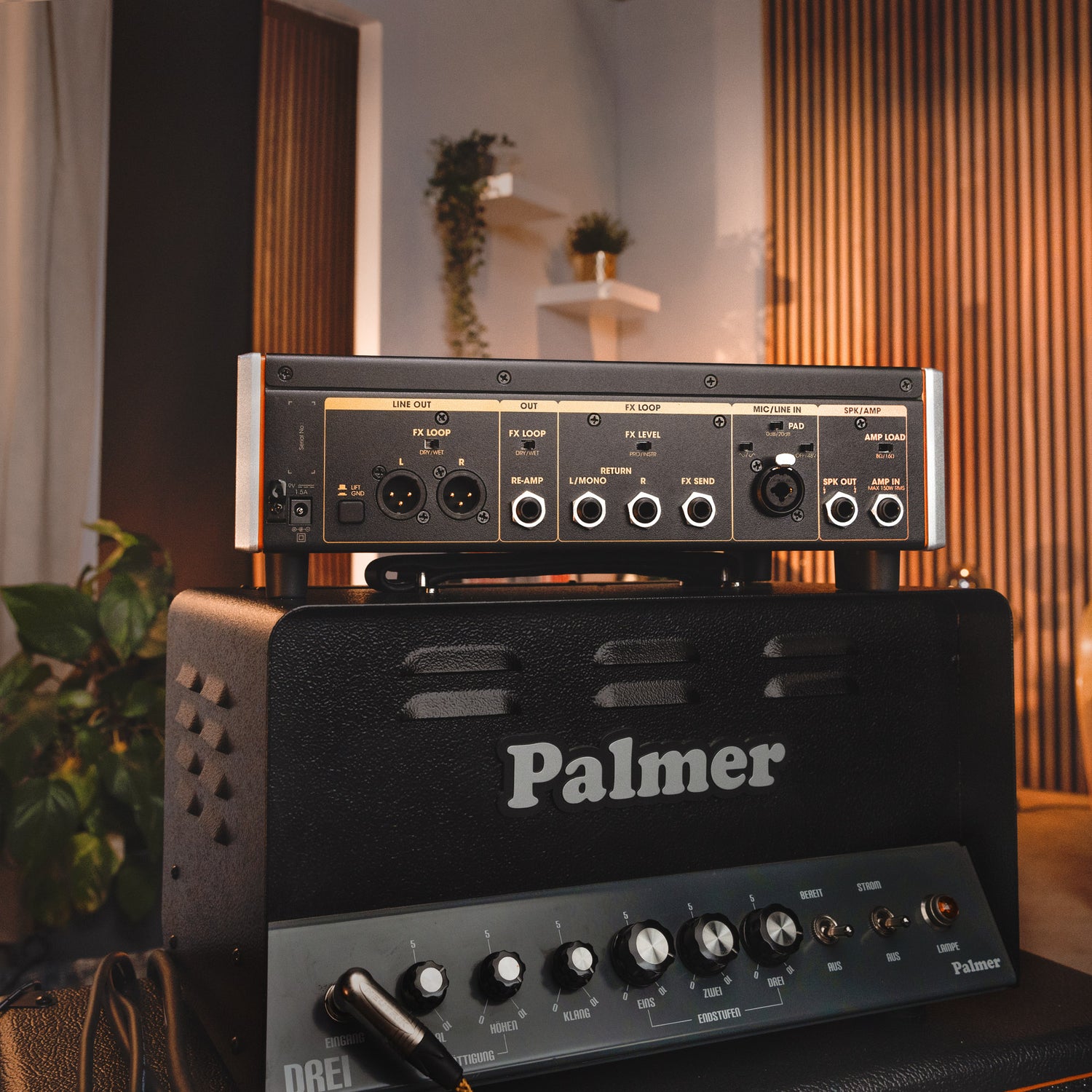

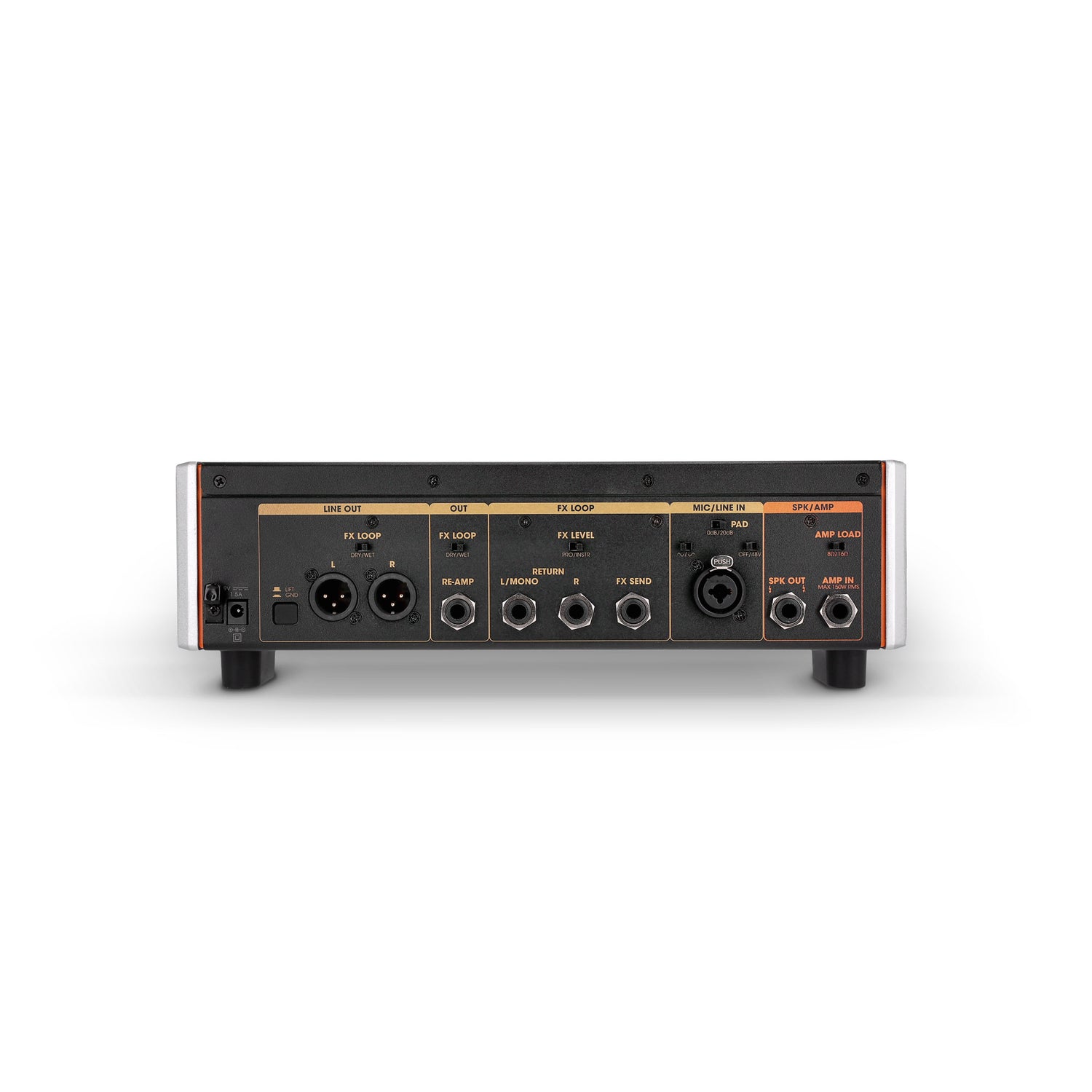

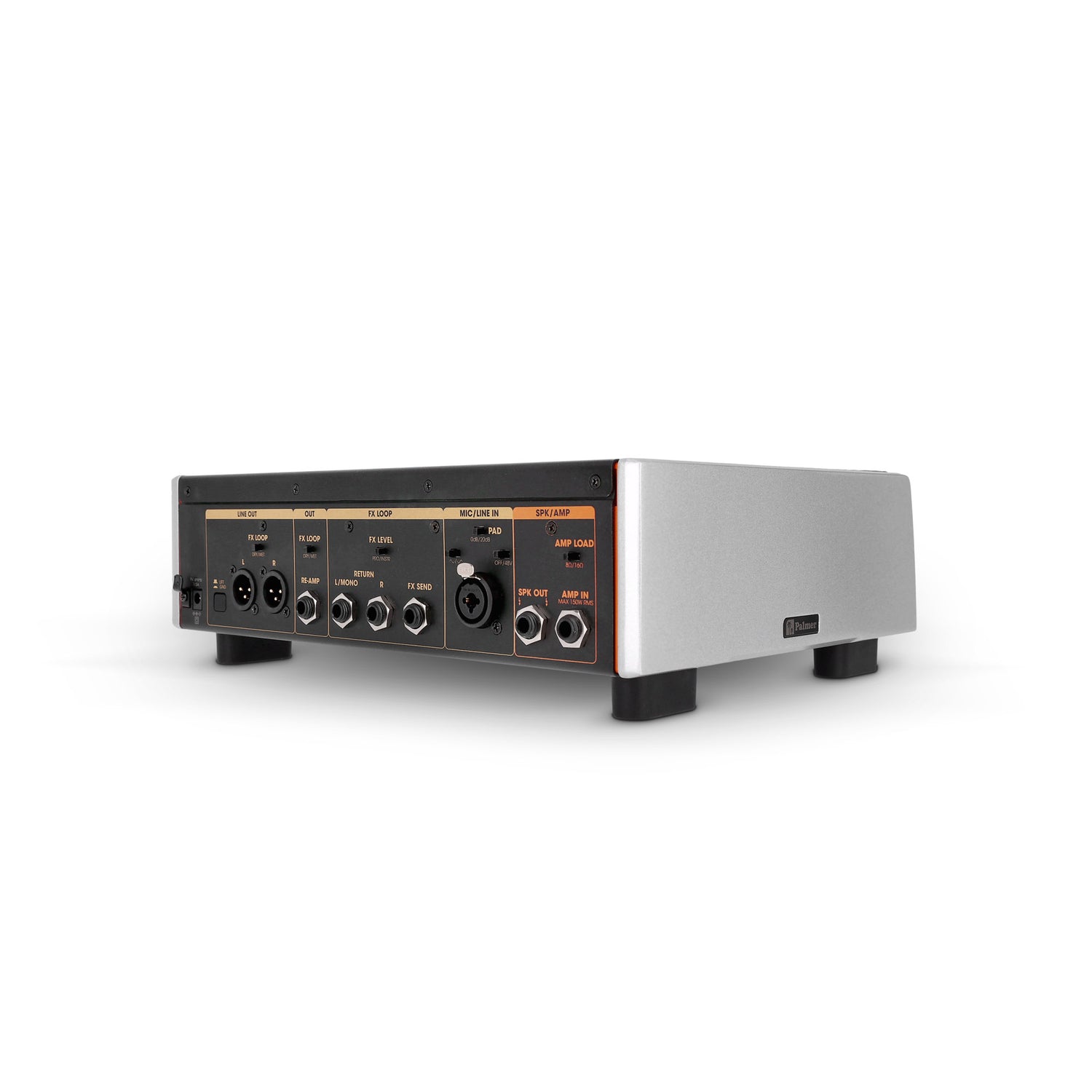

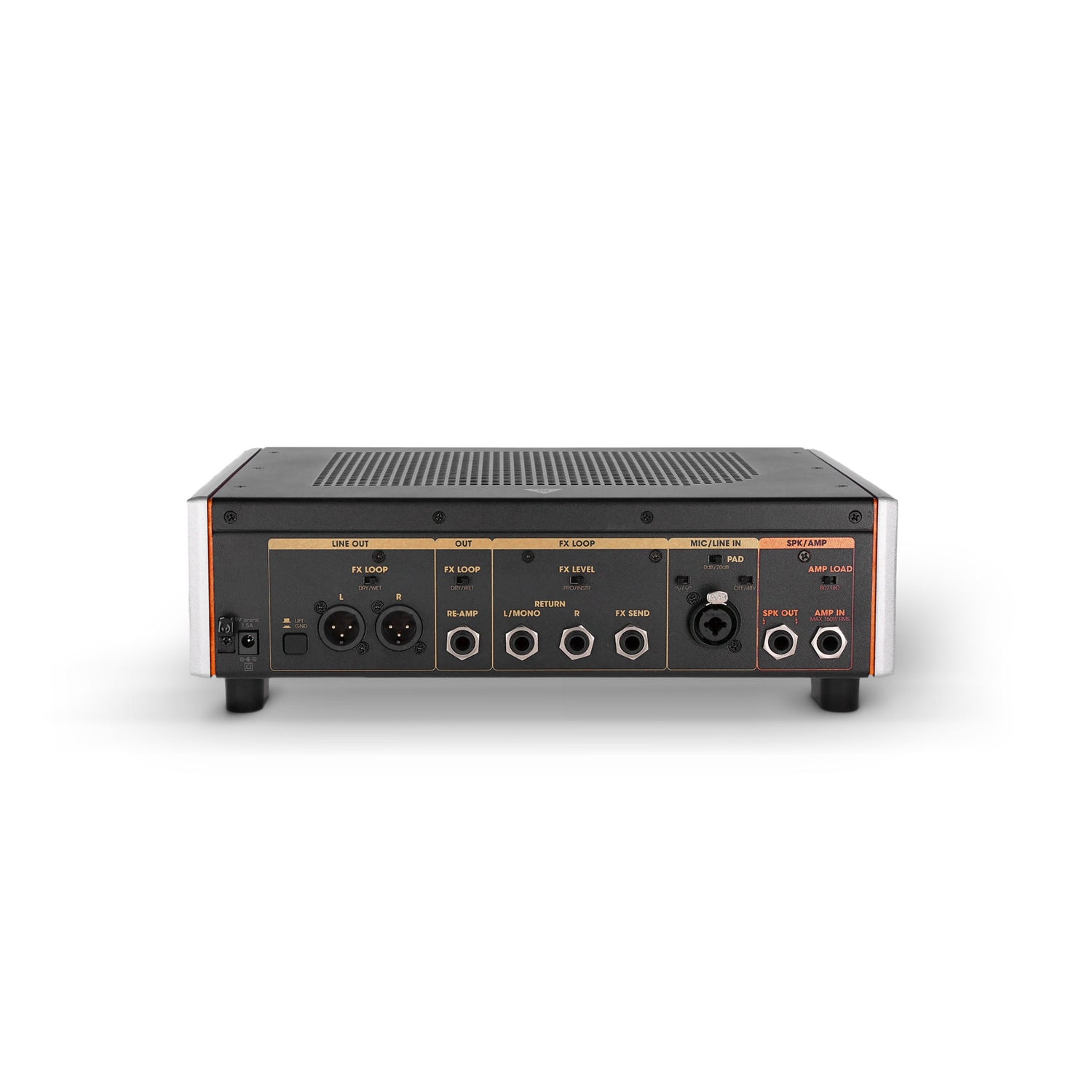

| Rear panel controls | Amp Load Impedance Switch |
| Rear panel controls | FX Level (Pro/Instrument) |
| Rear panel controls | FX Loop Line Out |
| Rear panel controls | FX Loop Re-Amp |
| Rear panel controls | GND/Lift |
| Rear panel controls | MIC/LINE Input PAD |
| Rear panel controls | Phantom Power |
| Rear panel controls | Polarity |
| Number of inputs | 5 |
| Input type | Balanced |
| Input type | Unbalanced |
| Input connectors | 3.5 mm jack |
| Input connectors | 6.3 mm jack |
| Input connectors | XLR |
| Number of outputs | 6 |
| Output type | Balanced |
| Output type | Unbalanced |
| Output connectors | 3.5 mm jack |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Ground/lift switch | Yes |
| Transformer isolated outputs | Yes |
| Internal load impedance | 16 ohms |
| Internal load impedance | 8 ohms |
| Minimal load in OFF status | 16 ohms |
| Max input handling | 150 W |
| Power attenuator | 7-step |
| Voicing filter | 5-step Speaker Tone and 5-step Line EQ |
| Indicators | Full attenuation |
| Indicators | MIC-Signal/Clip |
| Indicators | Output level |
| Indicators | bypass |
| Indicators | input level |
| Indicators | power soak |
| Indicators | thermal overload |
| Power supply | + 9 V DC barrel jack - 1.5 A |
| Power supply polarity | Center negative |
| Power connector | 2 x 5.5mm |
| Maximum power consumption | 13.5 W |
| Standby power consumption | 0.3 W |
| Dimensions (W x H x D) | 334 x 108 x 274 mm |
| Weight | 6,6 kg |
| Ambient temperature (in operation) | - 20°C - 25 °C |
| Relative Humidity | < 80 % ( non-condensing ) |
| Accessories (included) | Power supply |
Audio inputs
| AUX IN max. input level (< 1% THD, 1kHz) | + 9 dBV |
| AMP IN max. input power | 150 W Peak, 100 W RMS |
Audio outputs
| LINE OUT max. output level (<1% THD) | + 18 dBu |
| RE-AMP max. output level (<1% THD) | + 1.5 dBv |
| PHONES OUT max. output level (<1% THD, 1kHz) | 1.4 V RMS |
| PHONES OUT min. impedance | 33 Ohm |
MIC / LINE Input
| MIC / LINE IN low cut frequency (-3dB) | 90 Hz |
| MIC IN max. gain | 58 dB |
| MIC / LINE IN Gain range | 0 - 25 dB |
| MIC IN (XLR) max. input level (< 1% THD, 1kHz) | + 1 dBu |
| LINE IN (TRS) max. input level (< 1% THD, 1kHz) | + 22 dBu |
| MIC IN to LINE OUT THD+N (1kHz, +4dBu) | < 0.006 % |
| MIC IN to LINE OUT THD+N (20Hz-20kHz, +4dBu) | < 0,04 % |
| MIC IN to LINE OUT EIN (max. gain, unweighted) | - 114 dBu |
| MIC IN to LINE OUT SNR (all bypass) | 105 dB |
| MIC/LINE IN PAD attenuation | 20 dB |
| MIC IN (XLR) input impedance (balanced) | 1500 Ohm(s) |
| LINE IN (TRS) input impedance (balanced) | 24000 Ohm(s) |
