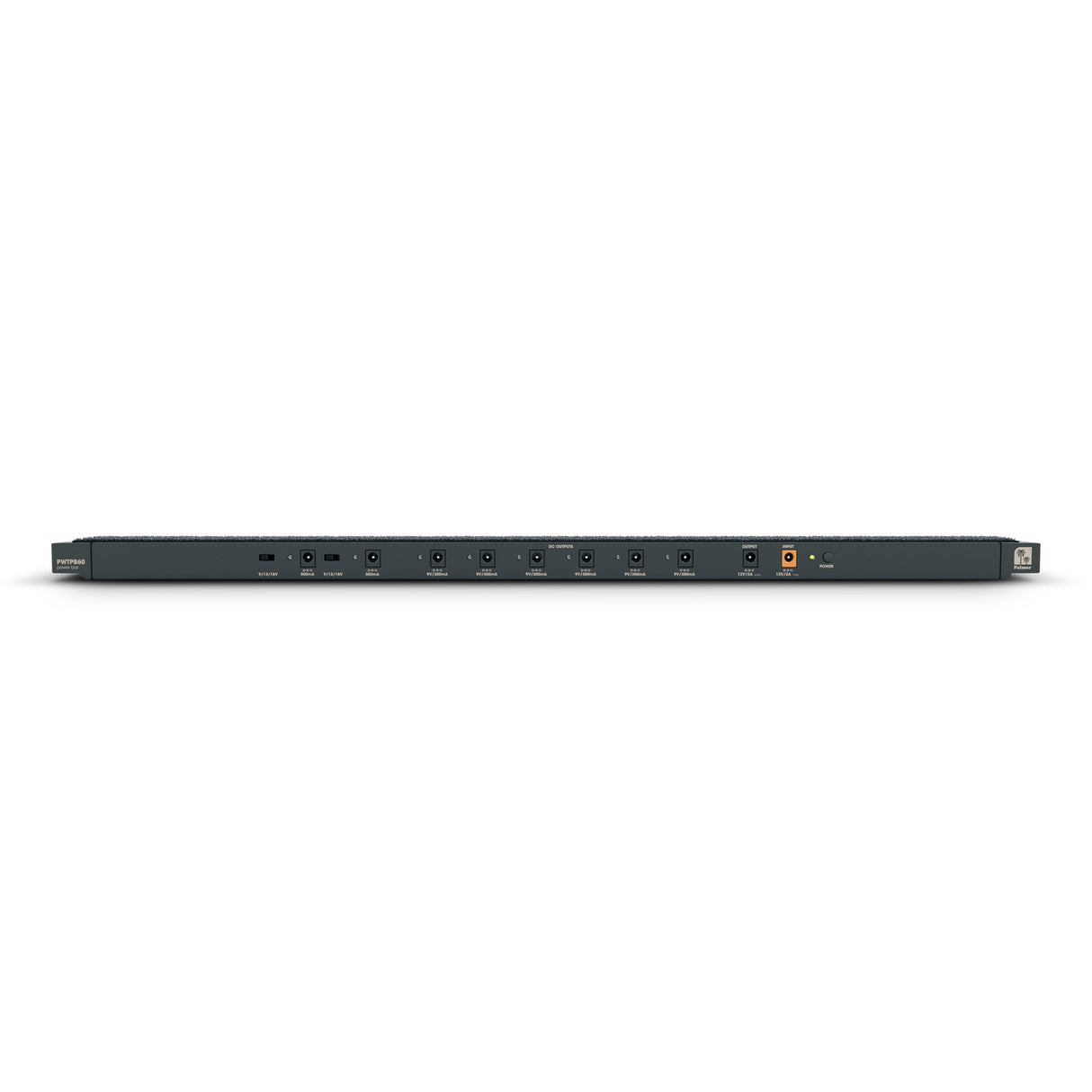

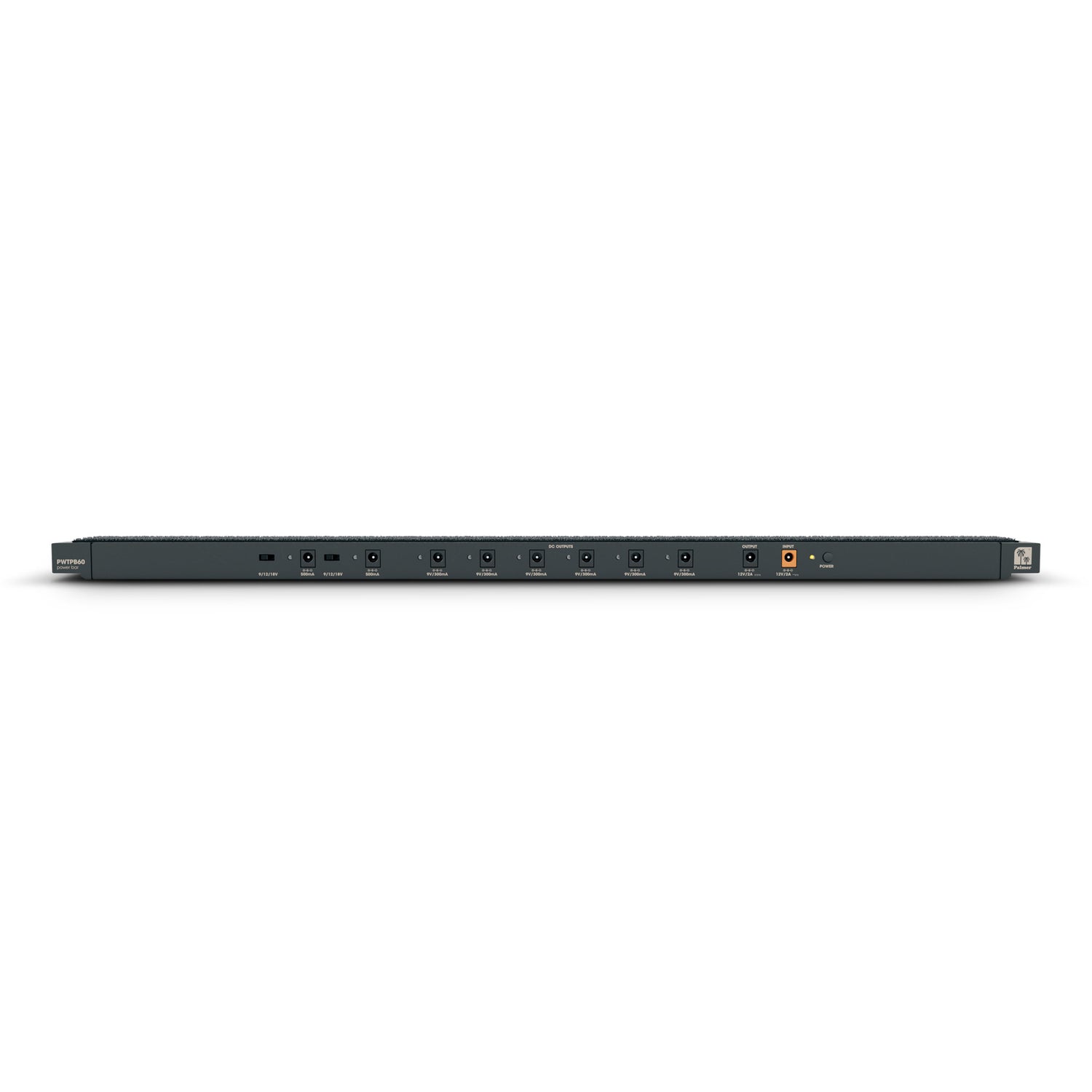

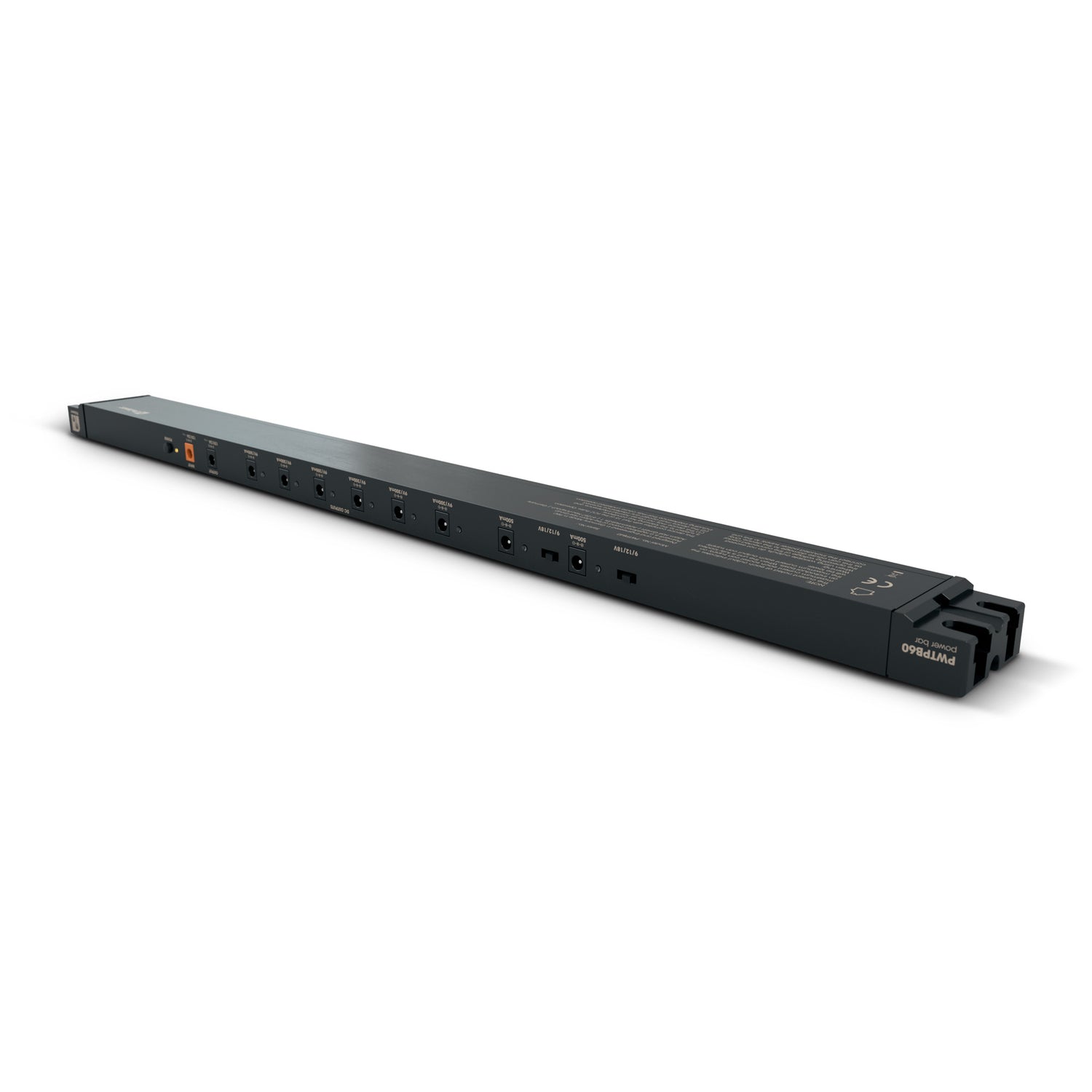

Palmer WT PB 60 - Power supply with 8 outputs for PEDALBAY® 60
€282,95
Unit price
/
Not available
Description
Description

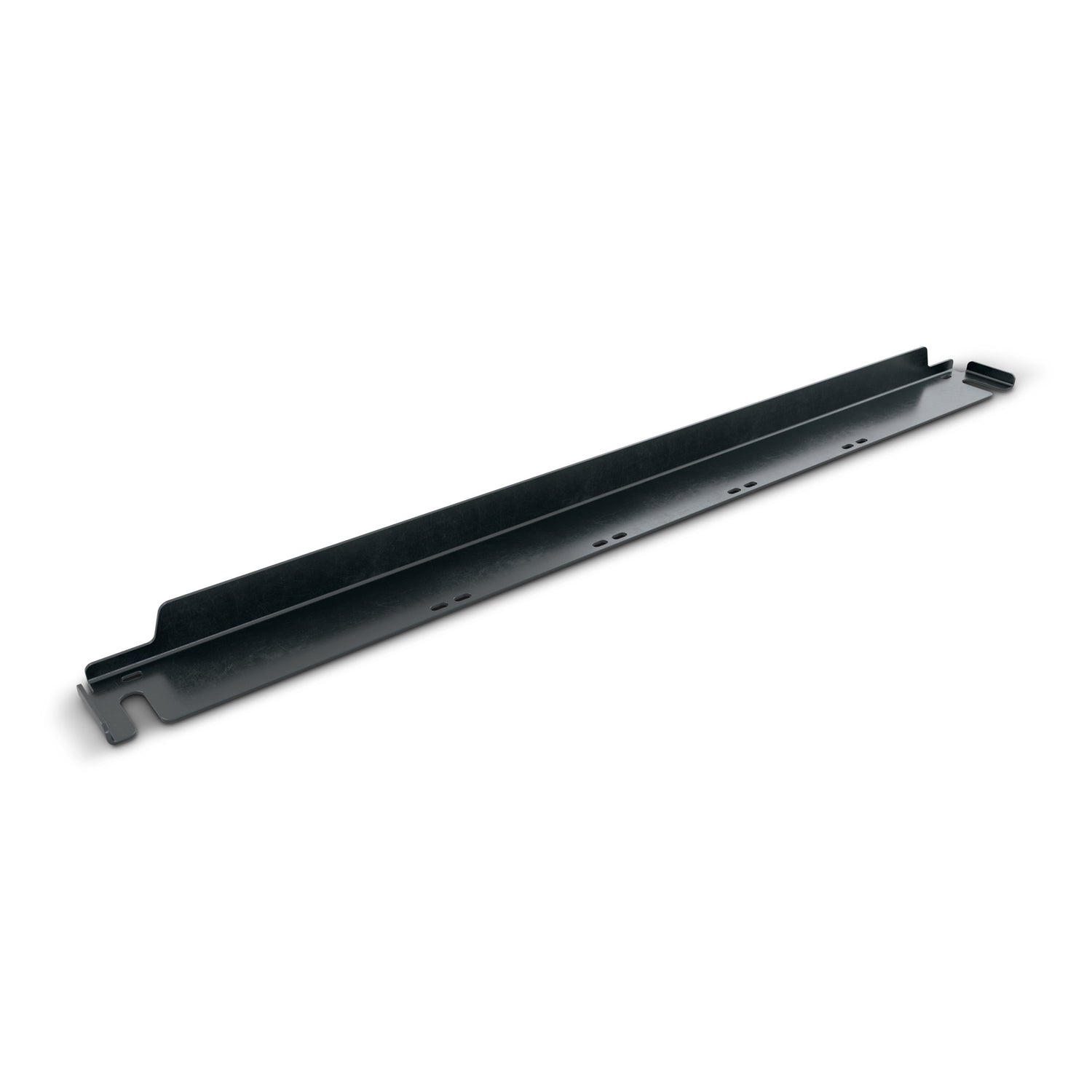

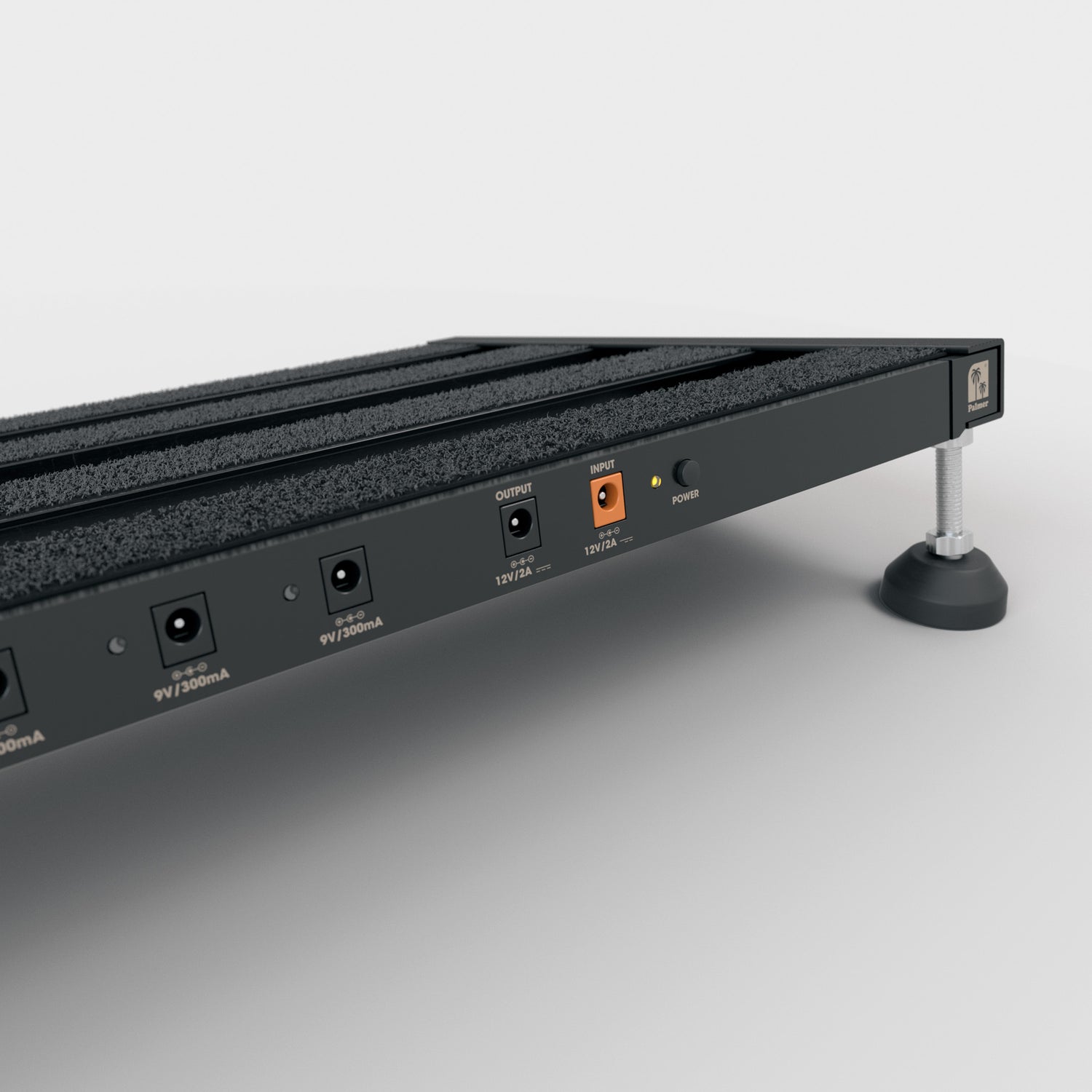

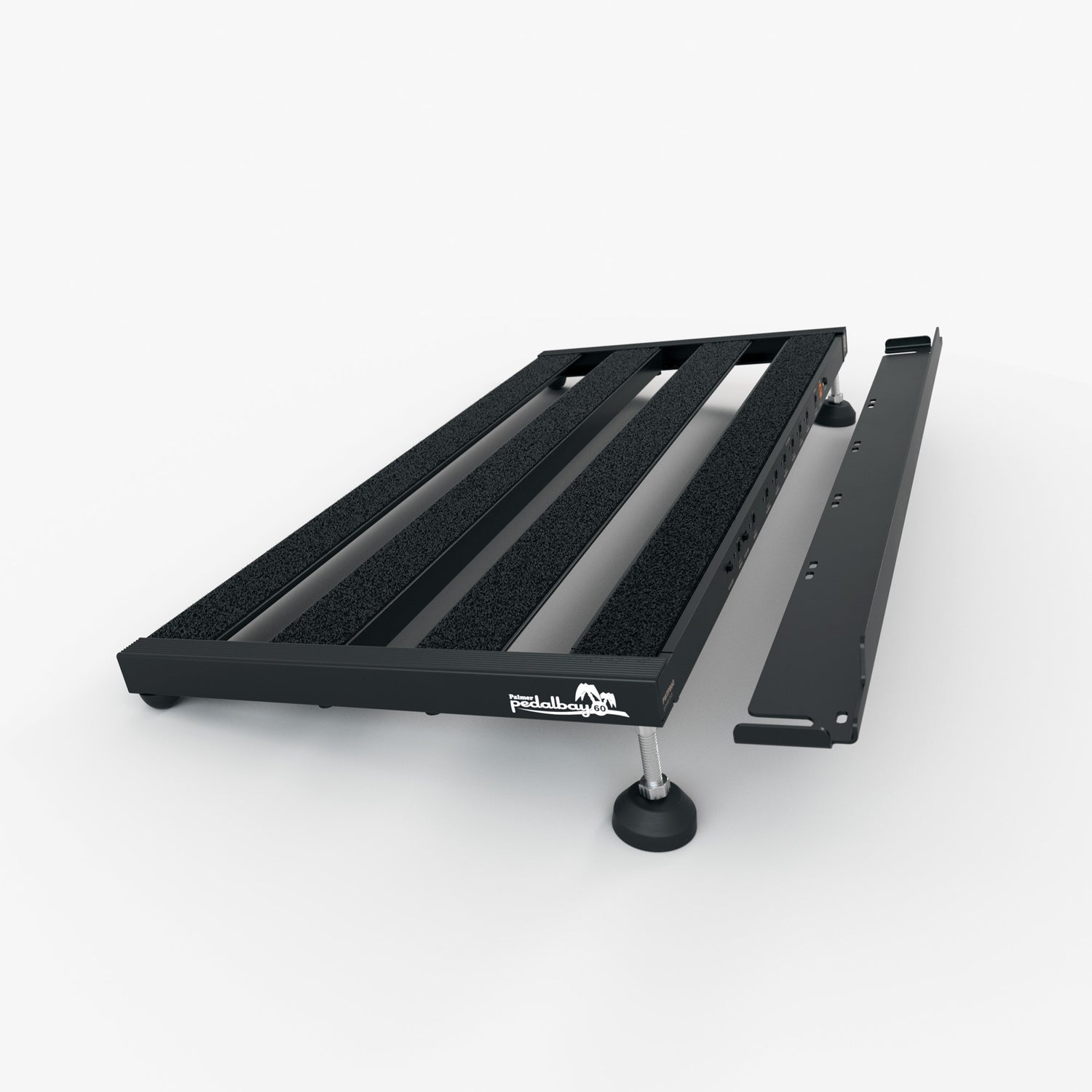

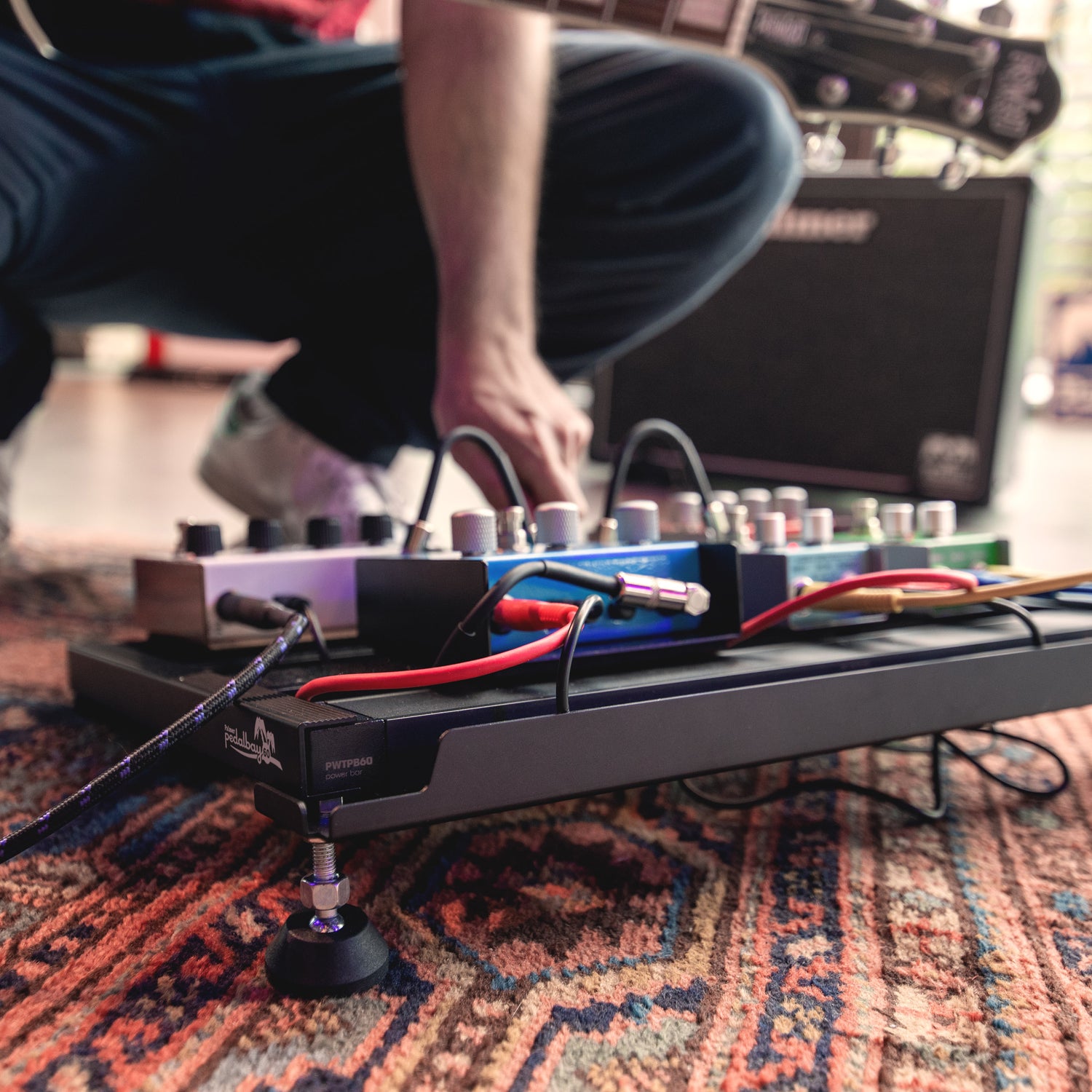

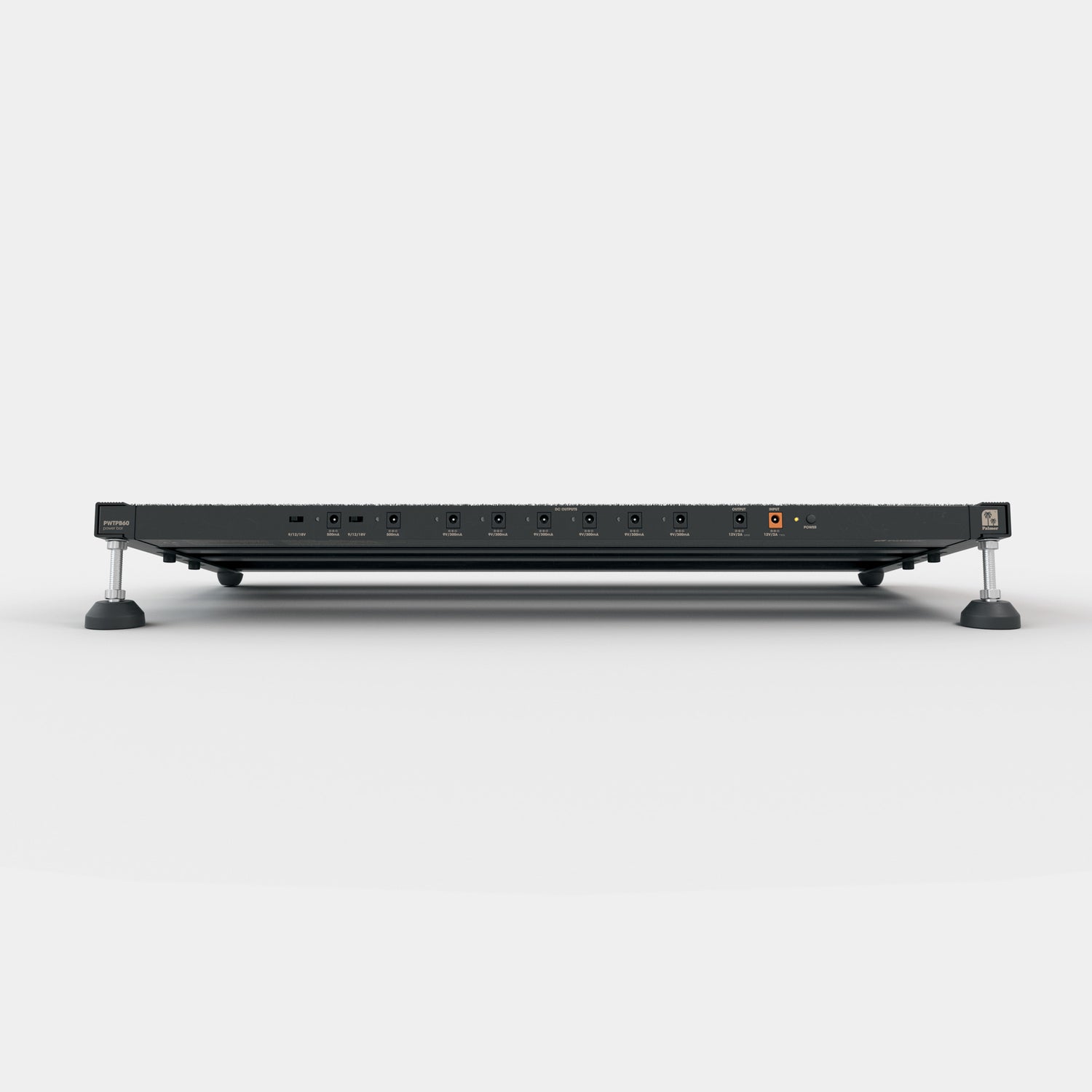

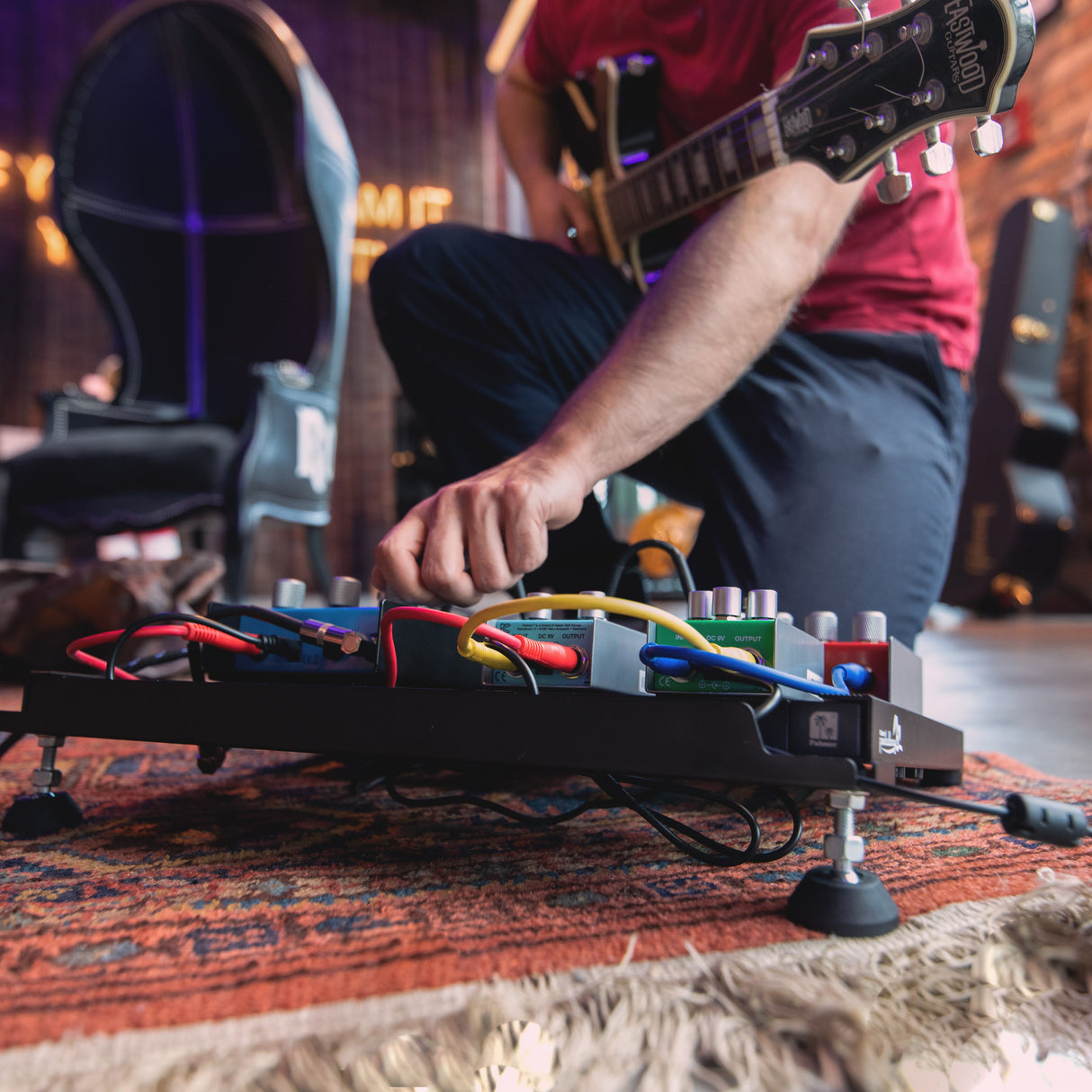

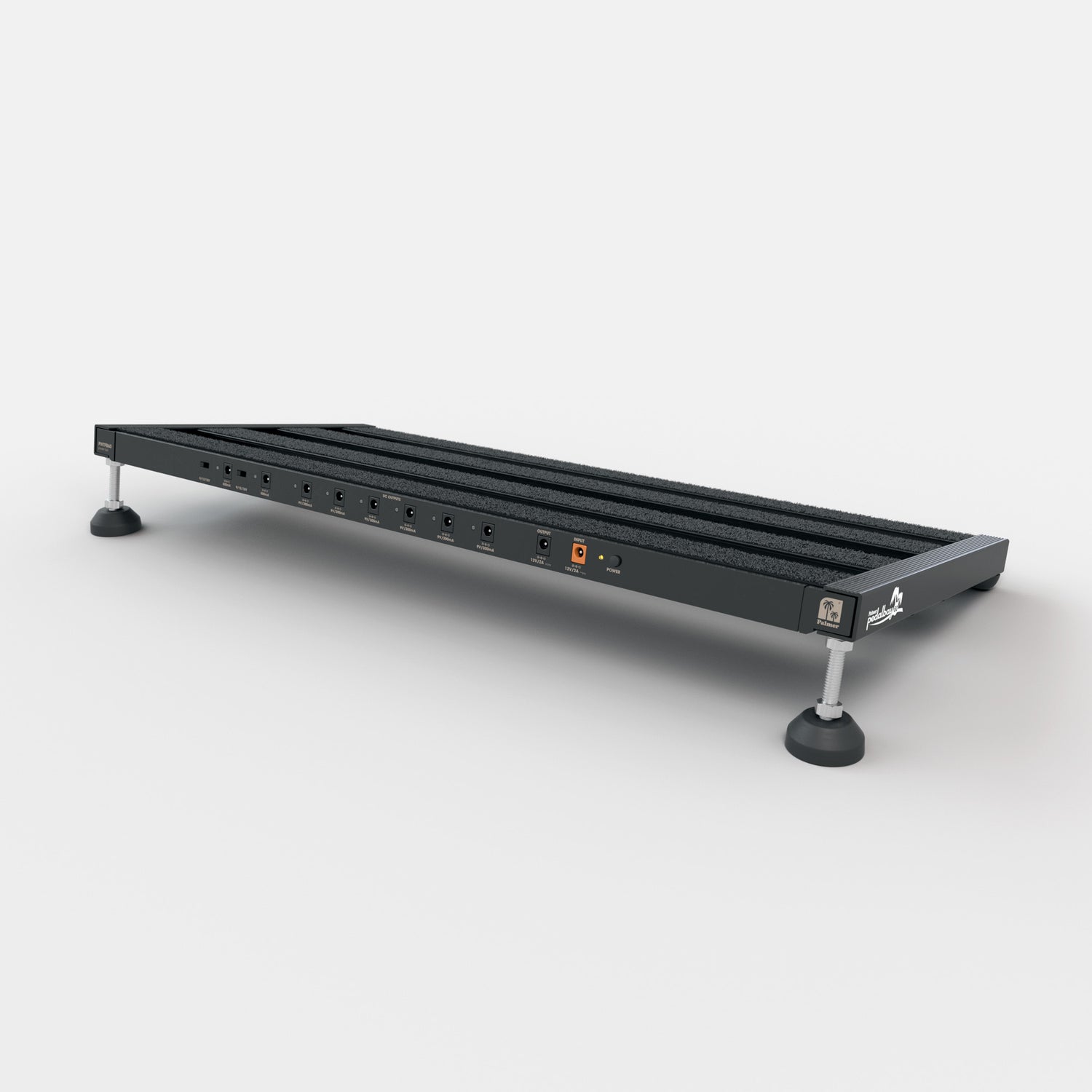

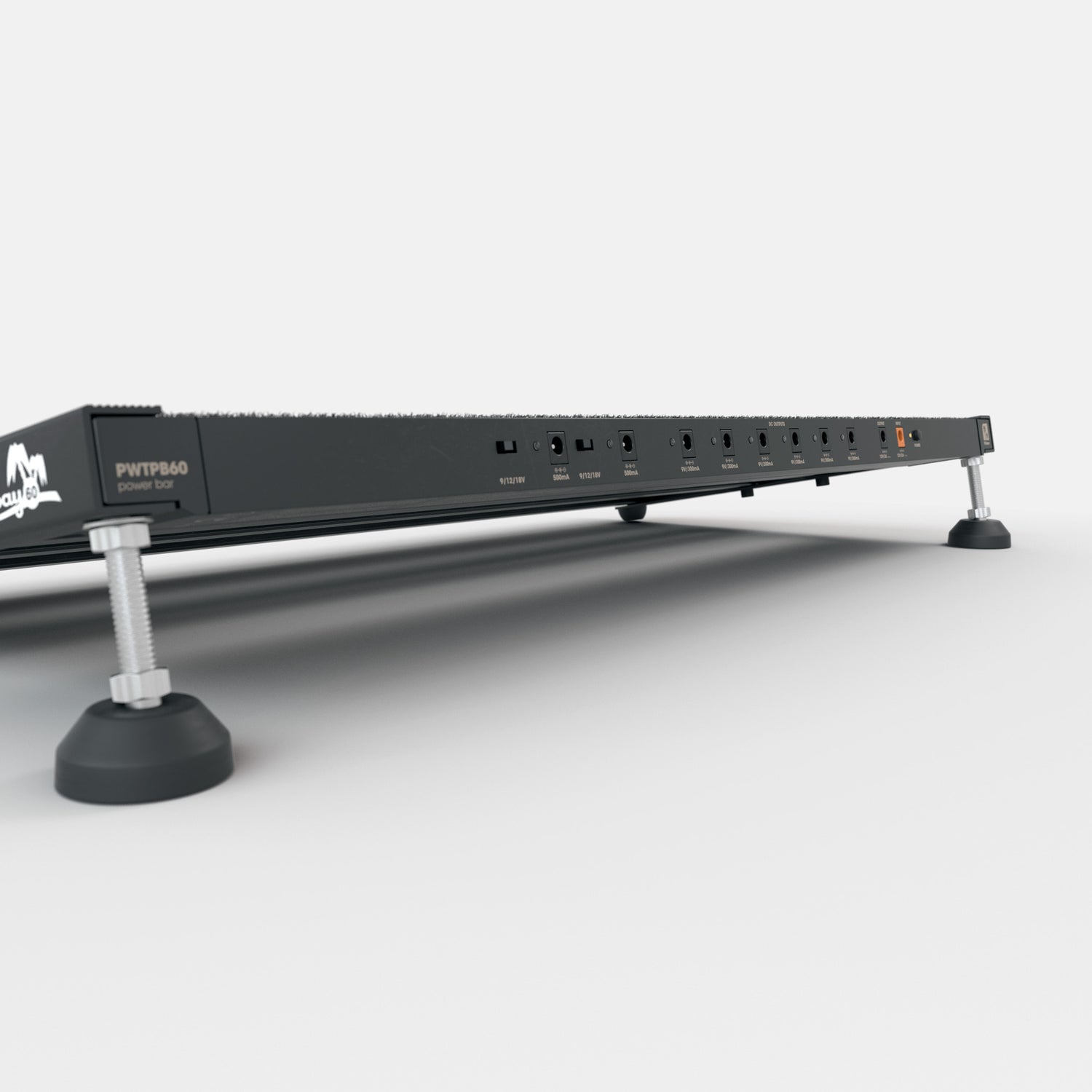

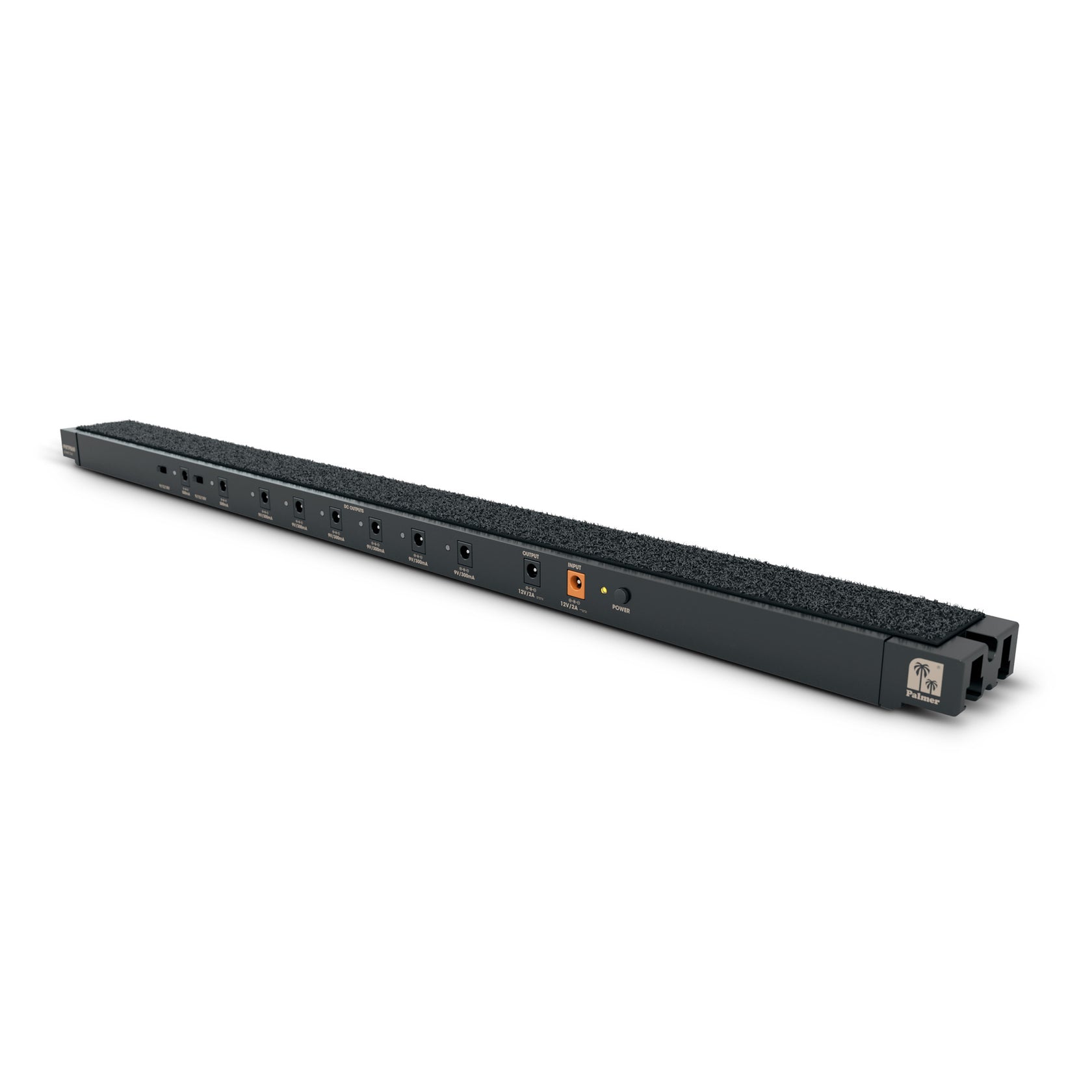

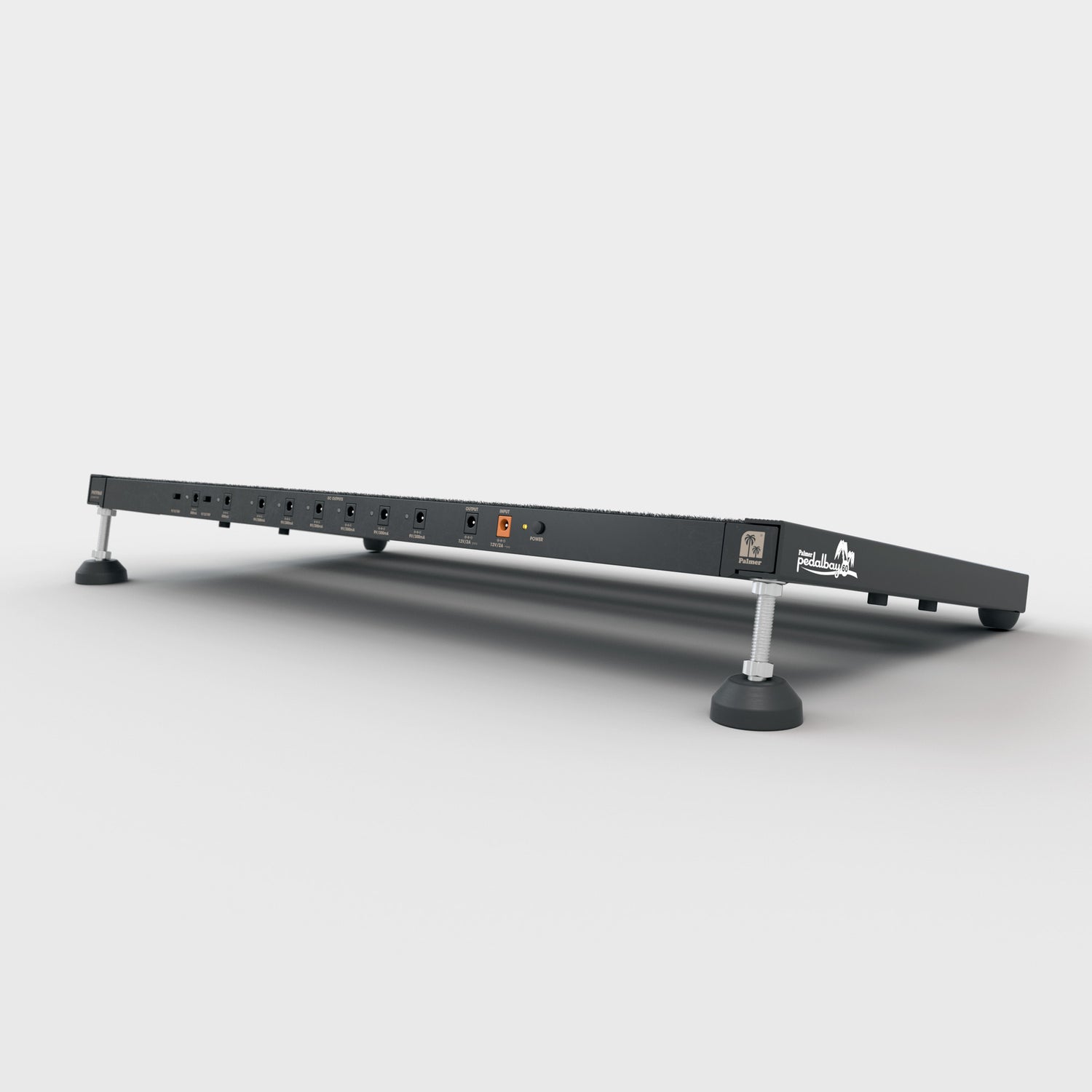

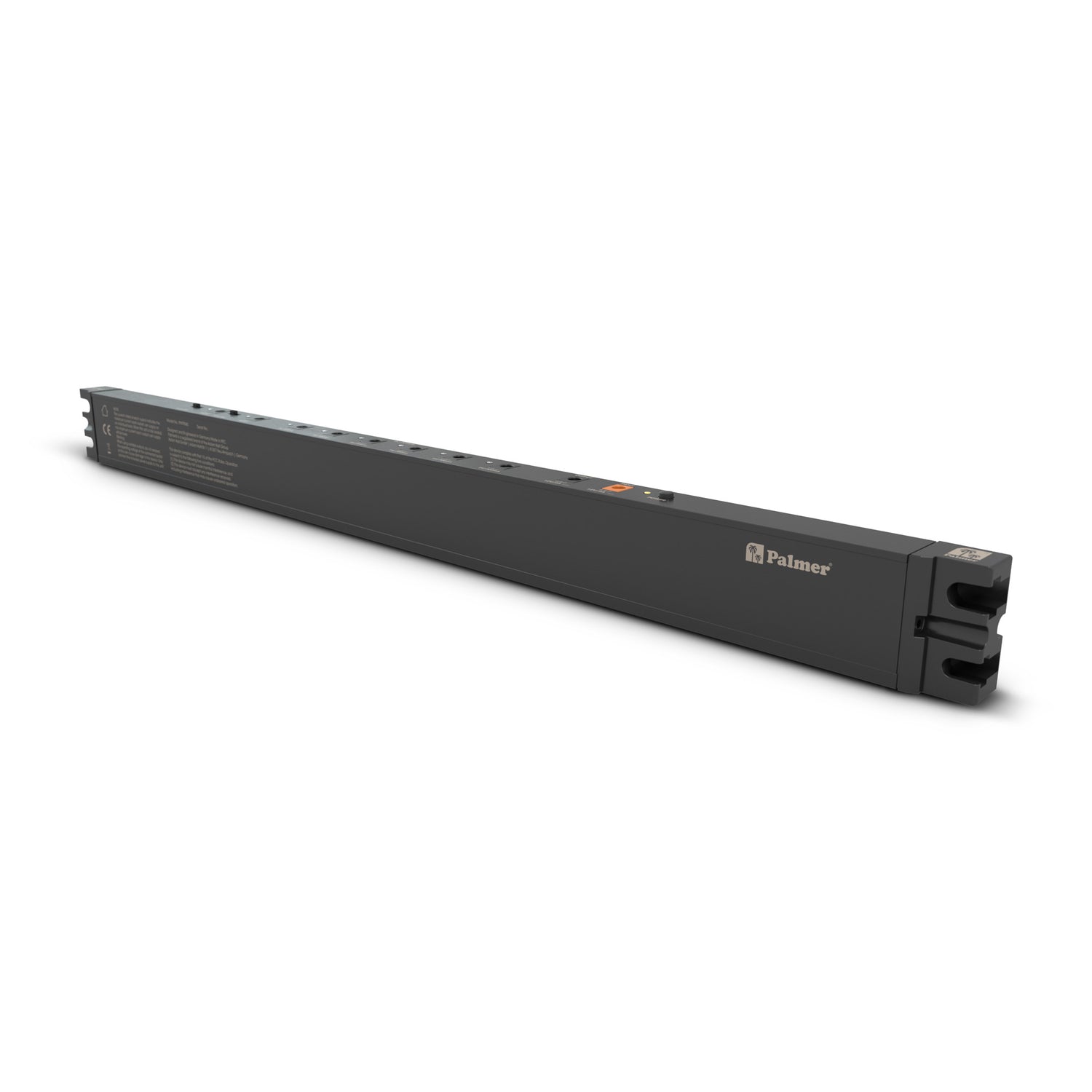

Attention stage musicians: the Palmer Powerbar significantly reduces your setup time for gigs thanks to the universal power supply, which can be fully and discreetly integrated into the pedalboard. Simply replace the first crossbar with the power supply to experience the familiar high quality: eight individually isolated, centre-negative outputs, two of which are switchable outputs at 9, 12 or 18 volts for added flexibility. Optimum performance is delivered by a total current of 2,000 mA. Best of all: no more forgotten power supplies or unnecessary cable clutter on stage means no stress.
Technical specifications
Technical specifications
- Space-saving universal power supply unit through patented integration into the pedalboard
- 8 single isolated centre-negative outputs
- Two 9, 12 or 18 V switchable outputs
- Total current 2,000 mA
- Safe use thanks to short circuit and overload protection for each output
- Built-in LED power and function indicators
| Product type | Power Supplies |
| Mains connector | Plug-in power supply |
| Input voltage | 100 - 250 V |
| Outputs | 8 |
| Output connectors | 2.1 x 5.5 mm |
| Material | Aluminium |
| Surface | Anodized |
| Surface | Powder-coated |
| Output voltage | 12 V |
| Output voltage | 18 V |
| Output voltage | 9 V |
| Max. output current | 2 A |
| Isolated outputs | Yes |
| Polarity | Center negative |
| Cord length | 150 + 150 cm |
| Indicators | Fault |
| Indicators | Power |
| Controls | Output voltage selector |
| Width | 600 mm |
| Depth | 50 mm |
| Height | 24 mm |
| Weight | 0,7 kg |
| Accessories (included) | 5x DC cable straight to angled 16cm long |
| Accessories (included) | 9x DC cable straight to angled 60cm long |
| Accessories (included) | M6 Nuts |
| Accessories (included) | M8 Nuts |
| Accessories (included) | Power supply |
| Accessories (included) | hook-and-loop tape |
