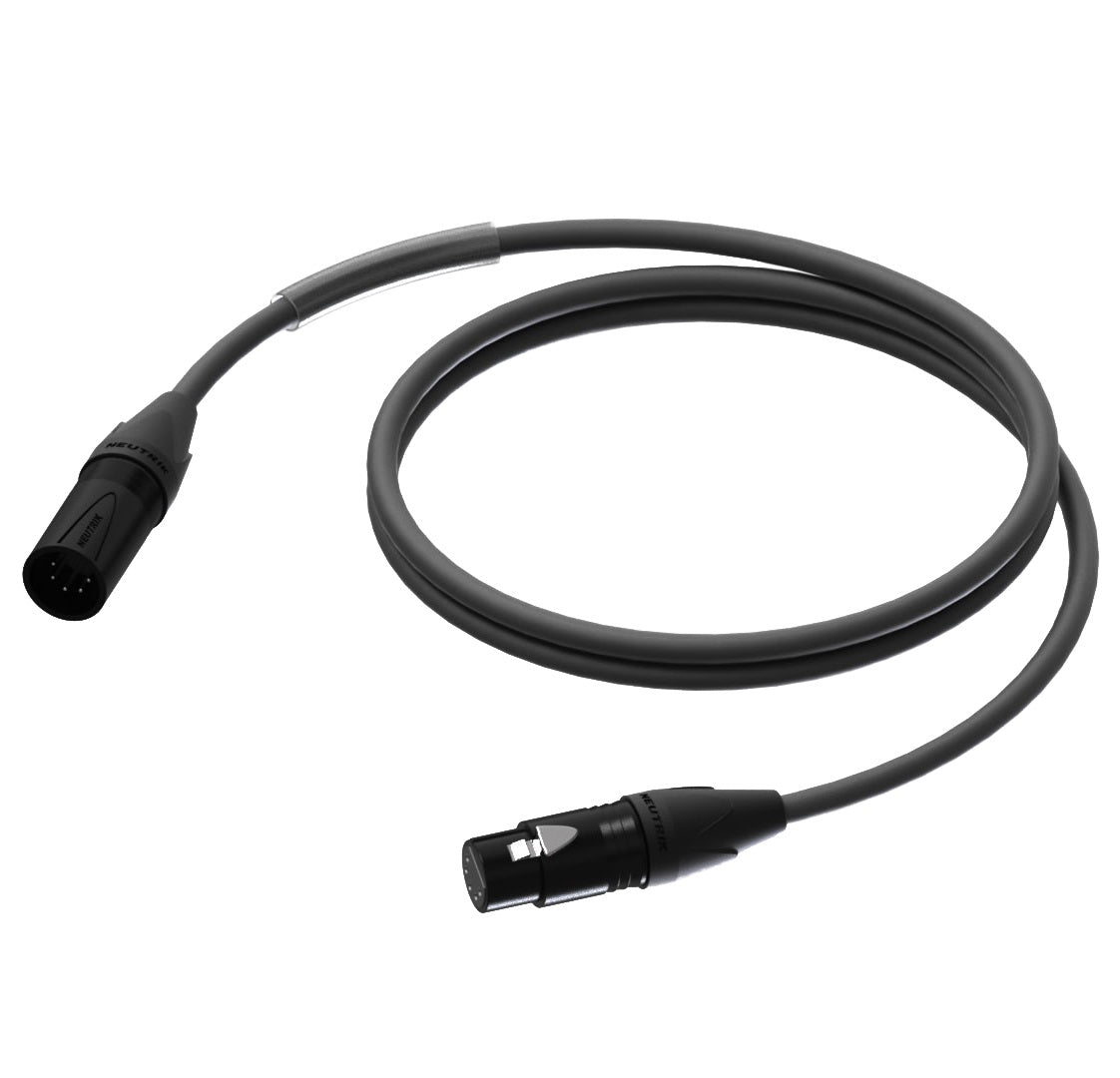

ProCab DMX/AES 5 polet XLR han-hun m/sort Neutrik - 0,5 m

ProCab PRD955 DMX/AES XLR han > XLR hun m/sort Neutrik - 0,5 m

PRD955 er et 110 Ohm DMX-AES-kabel konstrueret ved brug af PMX422-kablet og udstyret med Neutrik 5-pin XLR-stik. Den fortinnede, 22 AWG, flettede dobbeltafskærmning (Al-foil + TC braiding), sammen med den fleksible ydre PVC-kappe, giver kablet en forhøjet brugervenlighed. PRD953 fås i forskellige længder fra 0,5 meter til 20 meter.

Type of cable: DMX - 512 cable
Inner conductor: 17 x 0.16 mm Tinned Copper
Inner conductor section: 0.342 mm²
Insulation color: Red / White / Yellow / Black
Number of conductors: 4
Overall shield: Aluminum foil + Tinned copper braiding 16 x 8 x 0.1
Filling: Cotton
Separator: None
Outer jacket: Flexible PVC
Outer jacket color: Dark Grey
Outer jacket dimensions: ø 6.8 mm ± 0.1 mm
American Wire Gauge: 22 AWG
Lead resistance: Less than 52 Ohms / km
Capacitance Conductor / Shield @ 1 MHz: 79 pF / m
Capacitance Conductor / Conductor @ 1 MHz : 50pF / m
Characteristic impedance: 110 Ohm
Fitted Connectors : NC5MXX-BAG, NC5FXX-BAG
