ProCab Video coax kabel 75 Ohm 6 mm, rulle 100 m

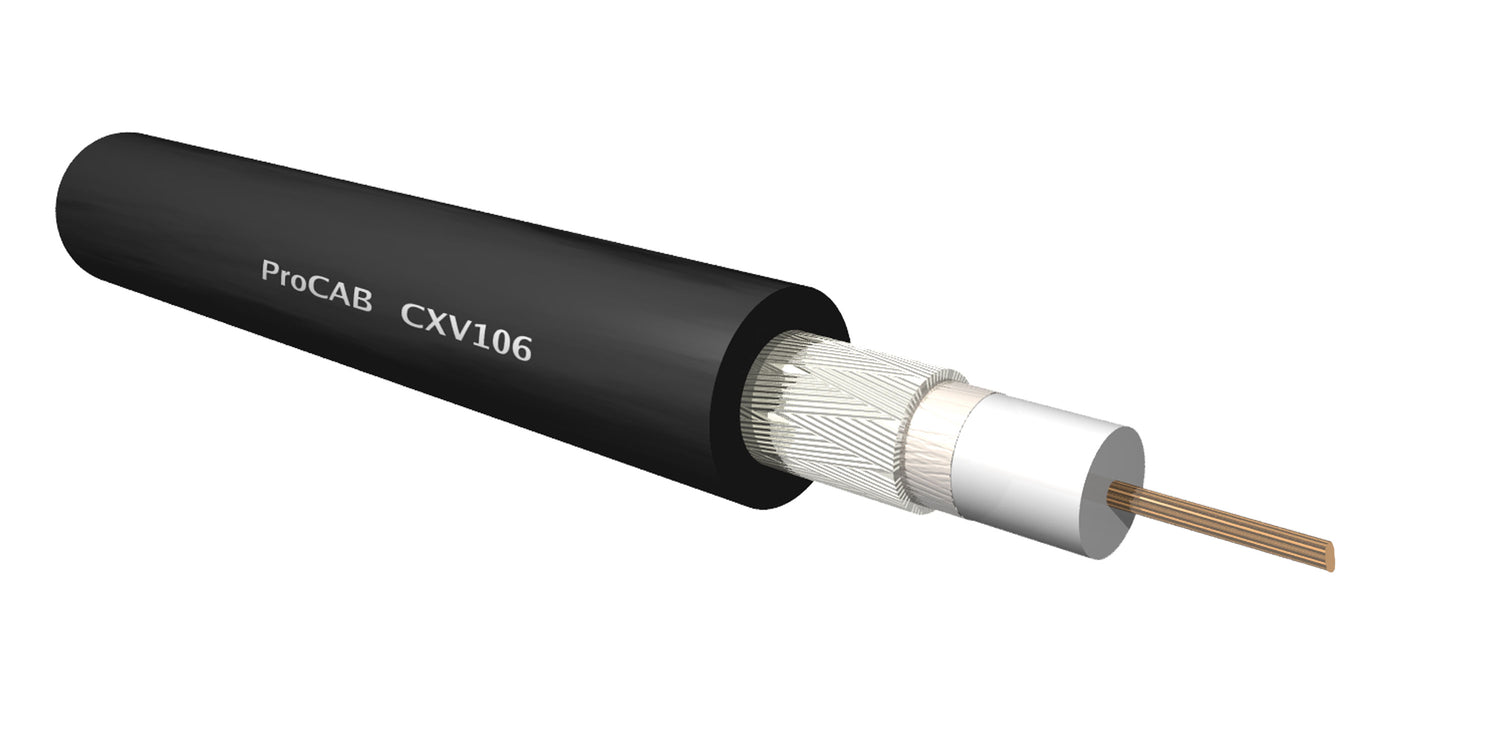

ProCab CXV106 Video coax kabel 75 Ohm 6 mm, rulle 100 m

CXV106 er et 6 mm videokabel med massiv kobberleder og dobbeltafskærmning (aluminium-mylarfolie + fortinnet kobberfletning), som tilbyder en sublim elektrisk ydeevne. CXV106 er ideel til CATV- og CCTV-applikationer og andre videodistributions-applikationer hvor signalet ikke er videre processeret eller opbevaret.

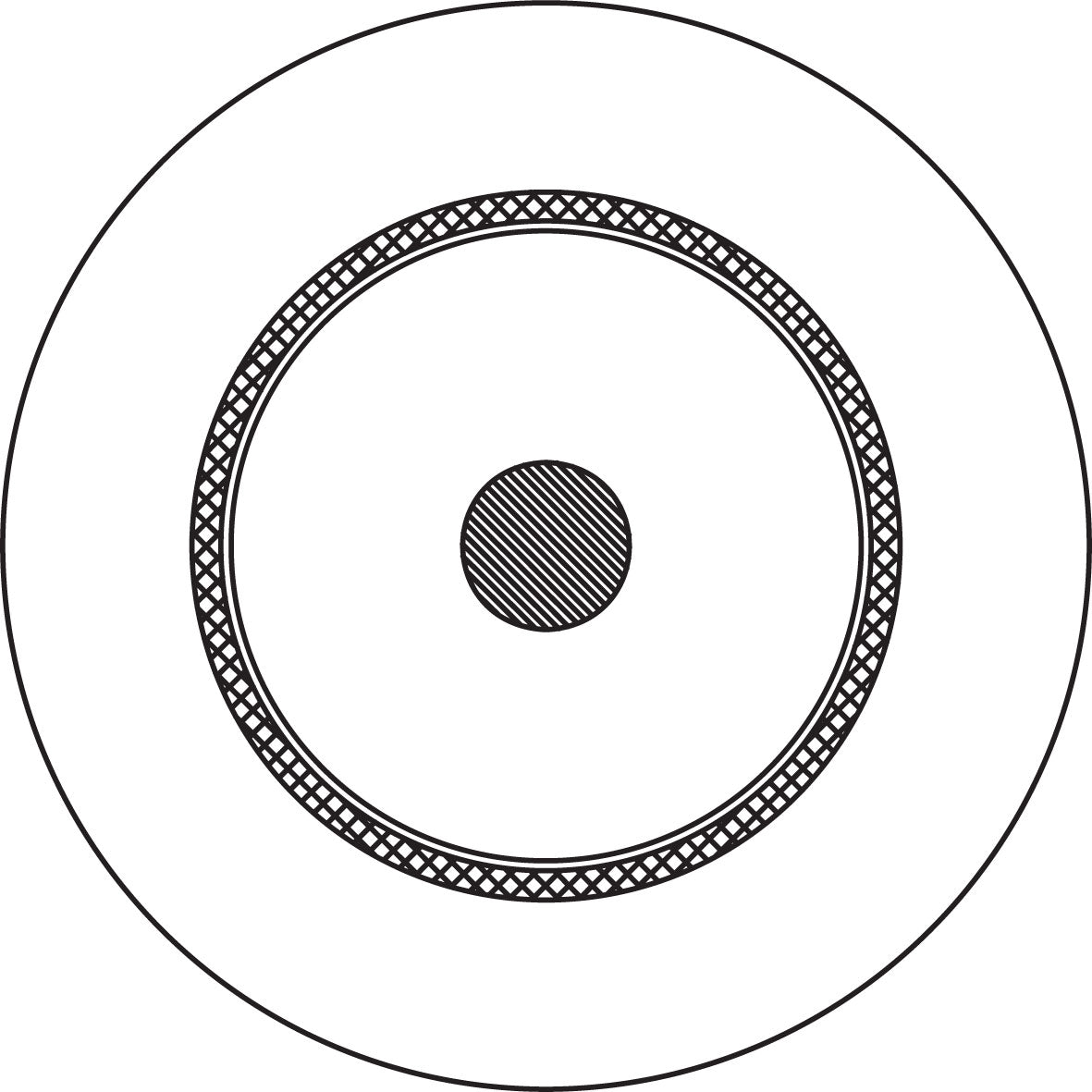

Type of cable: Coaxial video cable - 75 Ohm - ø 6 mm
Inner conductor: BC 23 x 0.12 mm
Inner conductor section: 0.26 mm²
Isolation: Foamed PE ø 3.1 mm
Isolation colour: White
Number of conductors: 1
Shielding: TC 16 x 7x 0.12 mm - Braiding + Aluminium foil
Shielding %: 100%
Outer jacket: Flexible PVC
Outer jacket colour: Black
Outer jacket dimensions: ø 6 mm
Impedance: 75 Ohm
Printing colour: White
Printing text: ProCab CXV106
Lead resistance - 100 meter: 8 Ohm
Shield resistance - 100 meter: 1.5 Ohm
Lead capacitance @ 1 kHz - meter: 58 pF
Lead attenuation @ 10 MHz - meter: 0.065 dB
Voltage resistance: 300 VAC - 15 sec
Insulation resistance: 10 MOhm / m @ 250V DC - 1 min
Rated voltage: 30 V
Velocity of proporation (%): 83.50%
American Wire Gauge (AWG): 23
