PSSO PXS TWO 2-channel True Diversity Receiver 470-510 MHz

1 5
€507,95
External warehouse – Estimated delivery in 10–14 business days.
Secure checkout
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • USDC
  • Visa
4.8 of 5 14,000+ reviews

Others also bought:

Show all PSSO

Description


License-free true diversity wireless receiver with auto scan, 3-band EQ & TFT color displays

  • Professional multifrequency wireless receiver with true diversity reception for stage use
  • High-grade components and intelligent features ensure best performance and high reliability
  • Ideal for large multi-channel systems
  • Automatic frequency setup
  • Spectrum analysis to identify interference frequencies
  • Multifunctional jogdial for menu settings
  • 2 detachable BNC antennas allow for use with external antenna divider
  • (19") 48.3 cm rack installation 1 U
  • Operating range up to 200m
  • Up to 28 transmitters can be operated in parallel without interference
  • Multicolor TFT display
  • Charge status indicator

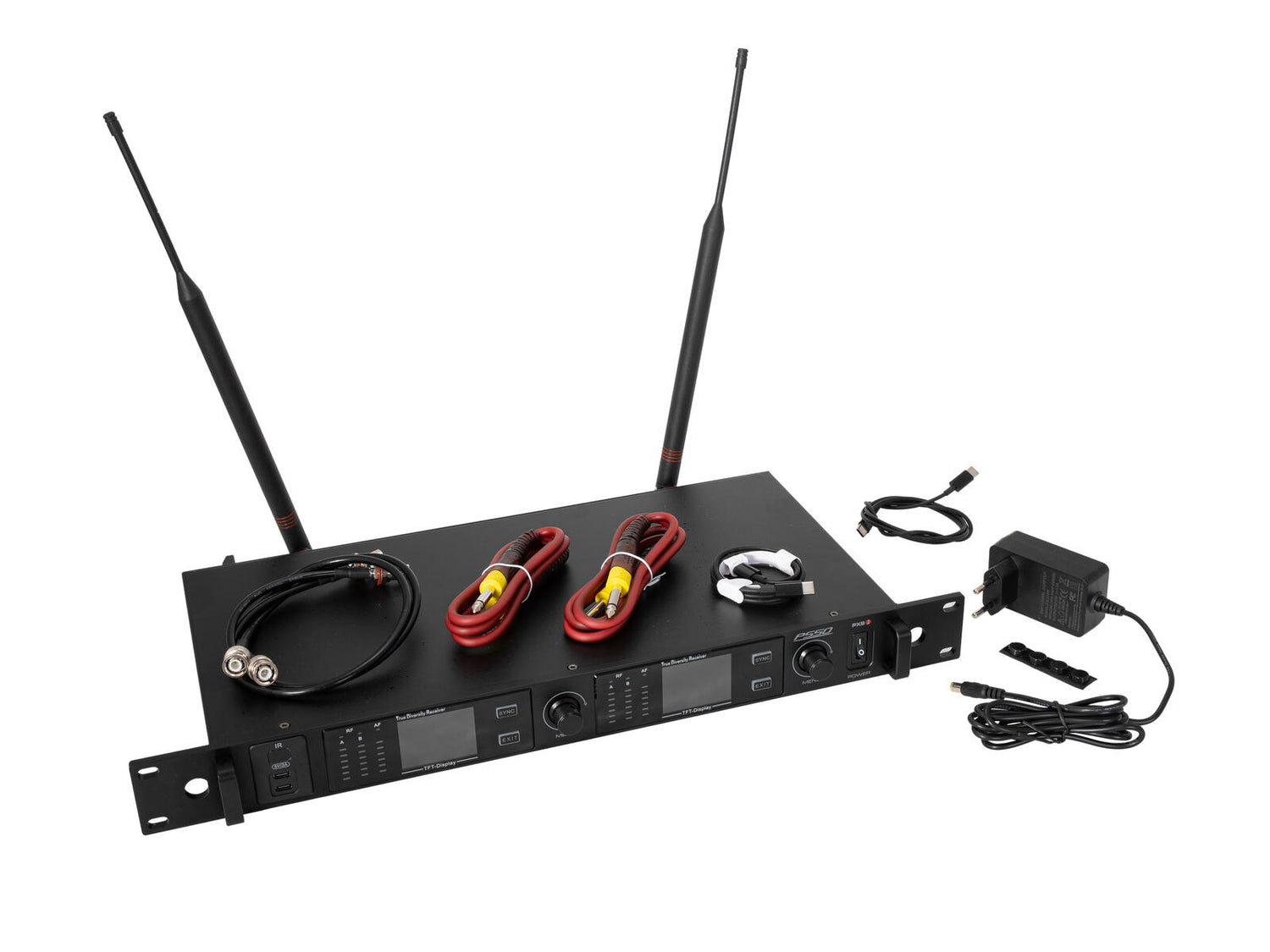

Scope of delivery
  • 1 x receiver
  • 2 x antenna
  • 1 x external mains adapter
  • 2 x USB cable
  • 2 x jack cable
  • 2 x BNC cable
  • 4 x foot
  • 1 x user manual
  • 1 x declaration of conformity


Type: Receiver
Power supply: 100-240 V AC, 50/60 Hz
12V DC 1500 mA
Power consumption: 6 W
Protection class: Protection class III
Power connection: Mains input via coaxial power connector (M) power supply cord with AC adapter (provided)
Number of channels: 1
Frequency range: 30 - 19000 Hz
S/N ratio: >112 dB
THD: <0.5 % at 1 kHz
Range: Range up to 200m
Frequency band: UHF 470 - 510 MHz
Diversity: True diversity
Switching bandwidth: 40 MHz
Frequency stability: ± 0.001 %
Parallel mode: Max. 28 transmitter
Frequency selection: Frequencies automatically scannable
Housing color: Black
Display type: Multicolor TFT display
Display: Frequency , goup , channel , charge status indicator; RF signal level , AF audio level , antenna A/B , Mute
Control elements: Power switch, encoder, exit, sync button
Status LED: Power

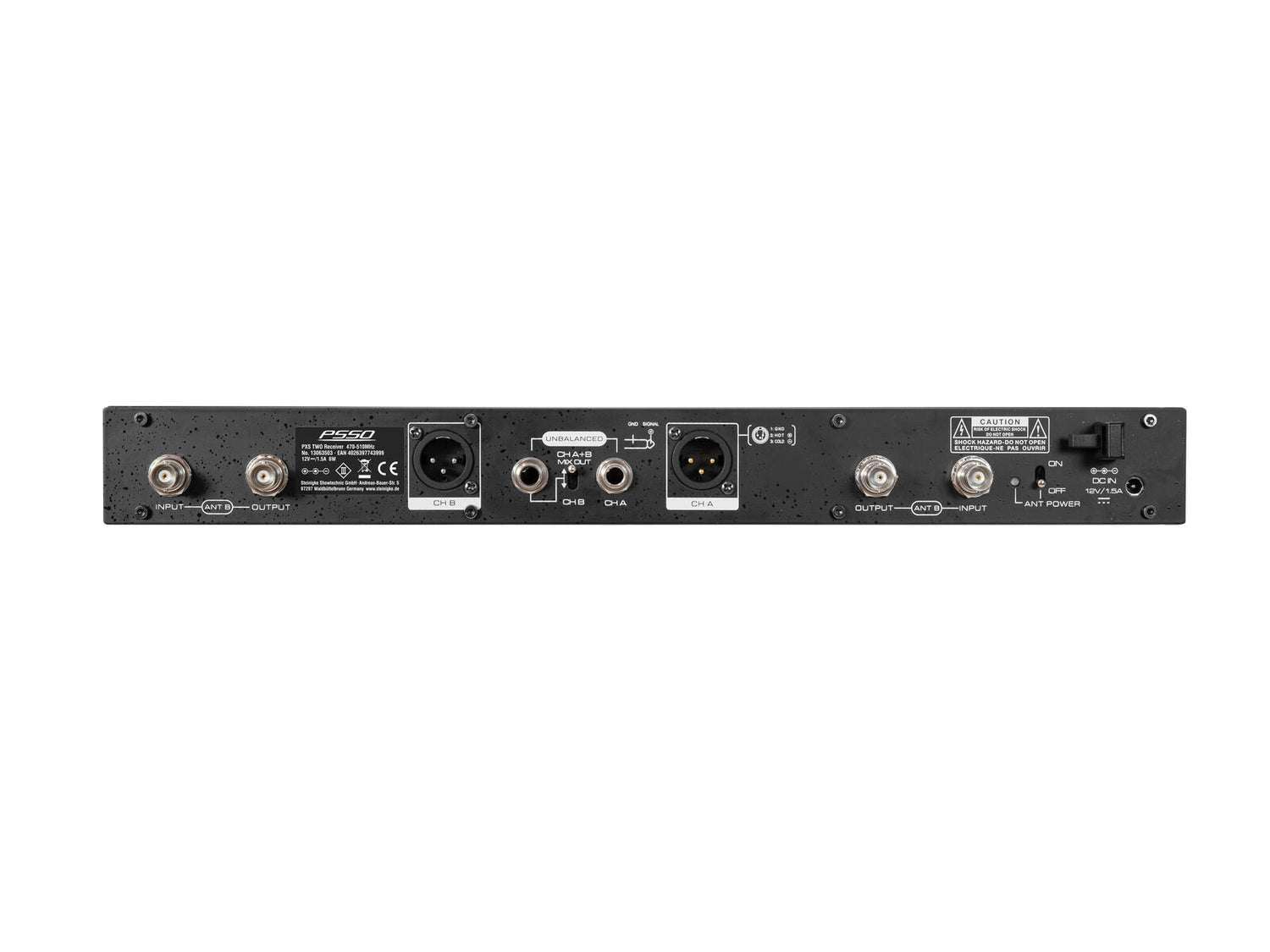

Connections: Input: antenna via 2 x BNC (F) 11.54 V
Output: antenna via 2 x BNC (F)
Output: microphone via 2 x 6.3 mm plug (unbal.)
Output: microphone via 2 x 3-pin XLR (M) mounting version
Equalizer: 3-band tone control
USB port: 2 x type C
Material: Metal
Mounting dimensions: 27 cm x
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48.1 cm
Depth: 27 cm
Height: 4.5 cm
Weight: 2.88 kg
Jack cable
Dimensions: Length: 100 cm

Technical specifications

Brand: PSSO
SKU: STE-13063503
EAN: 4026397743999
Weight: 3.5 kg
