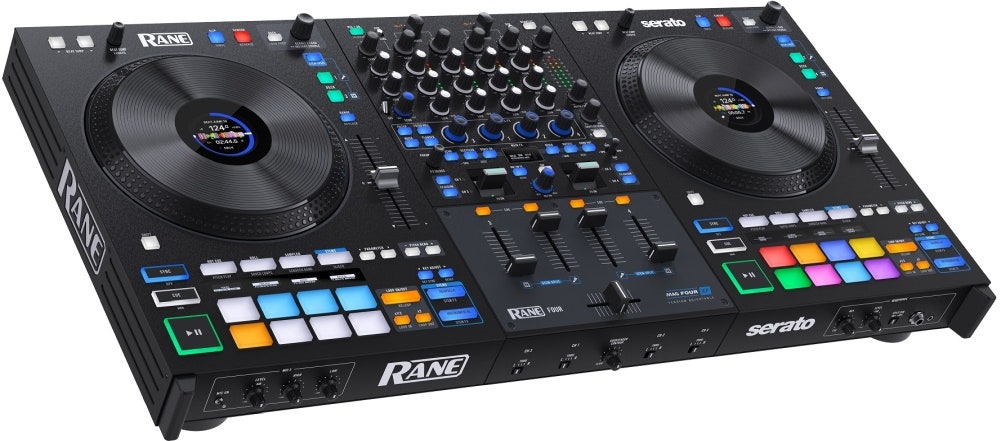

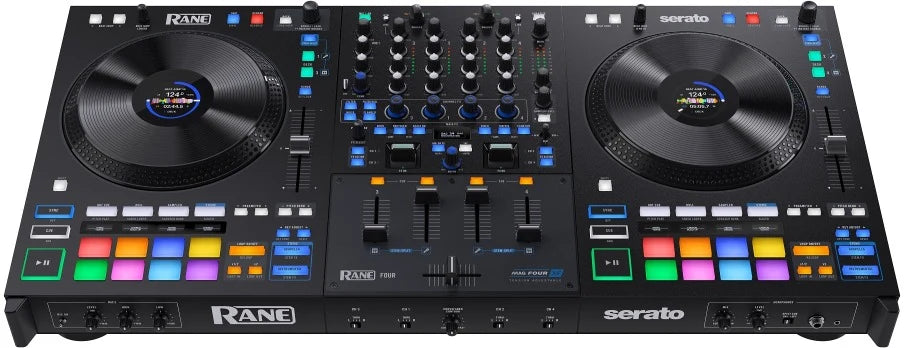

RANE FOUR is developed as the ultimate Serato Stems controller for DJs who want to go beyond classic mixing and into live remixing and mashups. The dedicated Stems controls with Stems pad mode, separate Acapella/Instrumental buttons and the exclusive STEM-SPLIT function make it possible to split a track across two channels, so you can EQ and apply effects to vocals, drums, bass and instruments completely independently.

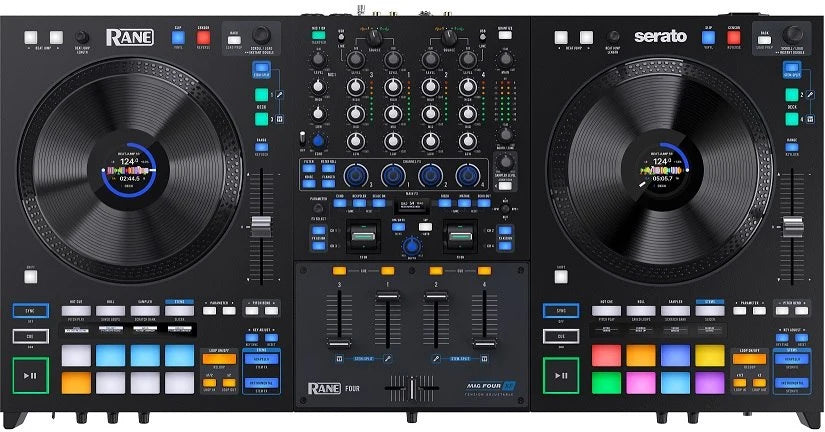

The large 8.5" jog wheels with built-in colour LCD displays provide precise control and show, among other things, waveforms, BPM, pitch and other essential track info right at your fingertips. Above the 16 RGB performance pads are 8 small OLED displays showing pad mode, cue names, loop length, beat divisions, pitch play and Stems elements, so you can focus on the controller and not on your laptop.
The internal FX engine delivers 22 hardware Main FX (incl. Reverb, Echo, Scale Down, Recycler, Riser, Filter, Filter Roll, Noise and Flanger) as well as 4 knob-controlled Channel FX that can be used on both full tracks and individual Stems. Combined with Serato DJ Pro FX, MAG FOUR crossfader, 4-channel mixer with full EQ, external phono/line inputs and DVS-ready functionality, you get a flagship setup for club use, touring, livestreaming and advanced open-format DJing.
Tekniske specifikationer
Digital audio
| Konvertere | Cirrus Logic, 24-bit PCM, 48 kHz |
| Digital signalprocessering | 32-bit floating point, double precision |
| Dynamikområde (A-vægtet, unity gain) | ADC: 113 dB, DAC: 113 dB |
Indgange
| Mikrofon 1/2 | 2 x XLR / 1/4" (6,35 mm) TRS combo, analog gain 25 dB, max input 110 mV, gain trim Off til +26 dB, 2-bånds EQ |
| Line/Phono 3/4 | 2 x RCA stereo-par, switchbare Line/Phono |
| Line-mode | Max input 4 Vrms, gain trim Off til +12 dB, 3-bånds EQ (full-cut til +10 dB), THD+N 0,004 % |
| Phono-mode (RIAA) | RIAA-kurve ±0,25 dB, gain 31,5 dB @ 1 kHz, max input 106 mV @ 1 kHz, dynamikområde 102 dB |
Udgange
| Main Out (XLR) | Gain trim Off til 0 dB, max output 8 Vrms, THD+N 0,004 %, frekvensrespons 20 Hz – 20 kHz (flat) |
| Main Out (RCA) | Max output 4 Vrms, THD+N 0,004 %, frekvensrespons 20 Hz – 20 kHz (flat) |
| Booth Out (1/4") | Gain trim Off til 0 dB, max output 8 Vrms, THD+N 0,004 %, frekvensrespons 20 Hz – 20 kHz (flat) |
| Hovedtelefoner | 1 x 1/4" (6,35 mm) TRS + 1 x 1/8" (3,5 mm) TRS, max 4 Vrms (no load), 50 mW @ 50 ohm, dynamikområde 108 dB |
Jog wheels, pads & displays
| Jog wheels | 2 x 8,5" high-resolution jog wheels med indbyggede farve-LCD-displays |
| Wheel displays | 2 x 320 x 240 farve-LCDs (track info, waveforms m.m.) |
| Performance pads | 16 RGB pads (8 pr. deck, 9 modes inkl. Stems, Hot Cue, Saved Loop, Roll, Sampler, Slicer, Combo Pad) |
| Pad & FX displays | 8 dedikerede OLED pad-displays + ekstra FX/OLED displays |
Faders & mixer
| Channel faders | 4 standard channel faders med 3-bånds EQ og FX-tildeling |
| Crossfader | MAG FOUR, tension-justerbar med contour-kontrol for kurve |
| Mixer | 4-kanals mixer, fuld EQ, forbedret sampler-routing, deck-select-knapper |
FX & Stems
| Interne Main FX | 22 hardware FX, aktiveres via battle-style paddles (Reverb, Echo, Scale Down, Recycler, Riser, m.fl.) |
| Channel FX | 4 knob-styrede FX: Filter, Filter Roll, Noise, Flanger |
| Stems-kontrol | Dedikeret Stems pad-mode, Acapella/Instrumental-knapper, eksklusiv STEM-SPLIT, Stem Level-control |
| Software FX | Fuldt Serato DJ Pro FX-support |

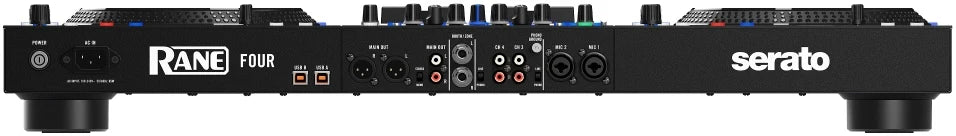

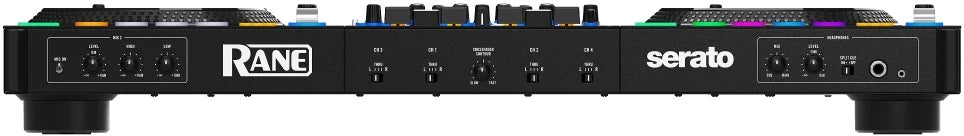

Tilslutninger
| Outputs | 2 x XLR (Main), 2 x 1/4" (Booth), 1 x RCA stereo (Main) |
| Inputs | 2 x XLR/1/4" combo (Mic 1–2), 2 x RCA stereo (Deck 3–4, Line/Phono), 1 x 1/4" og 1 x 1/8" hovedtelefon |
| USB | 2 x USB Type-B (dual computer support) |
| Strøm | IEC strømindgang |
Strøm & mål
| Spænding | 100–240 V, 50/60 Hz |
| Effektforbrug | 20 W |
| Dimensioner (B x D x H) | ca. 783 x 403 x 104 mm (30,84" x 15,84" x 4,08") |
| Vægt | 8,27 kg (inkl. jog wheels) |
Highlights
- Avanceret 4-kanals Serato Stems-controller med dedikerede Stems-kontroller
- 22 interne hardware FX + 4 Channel FX og Serato software FX
- Store 8,5" jog wheels med indbyggede LCD-displays
- 16 RGB performance pads med dedikerede OLED pad-displays
- DVS-ready og eksterne Line/Phono-indgange til decks og turntables
