RANE ONE MKII - DJ Controller
Description
Description

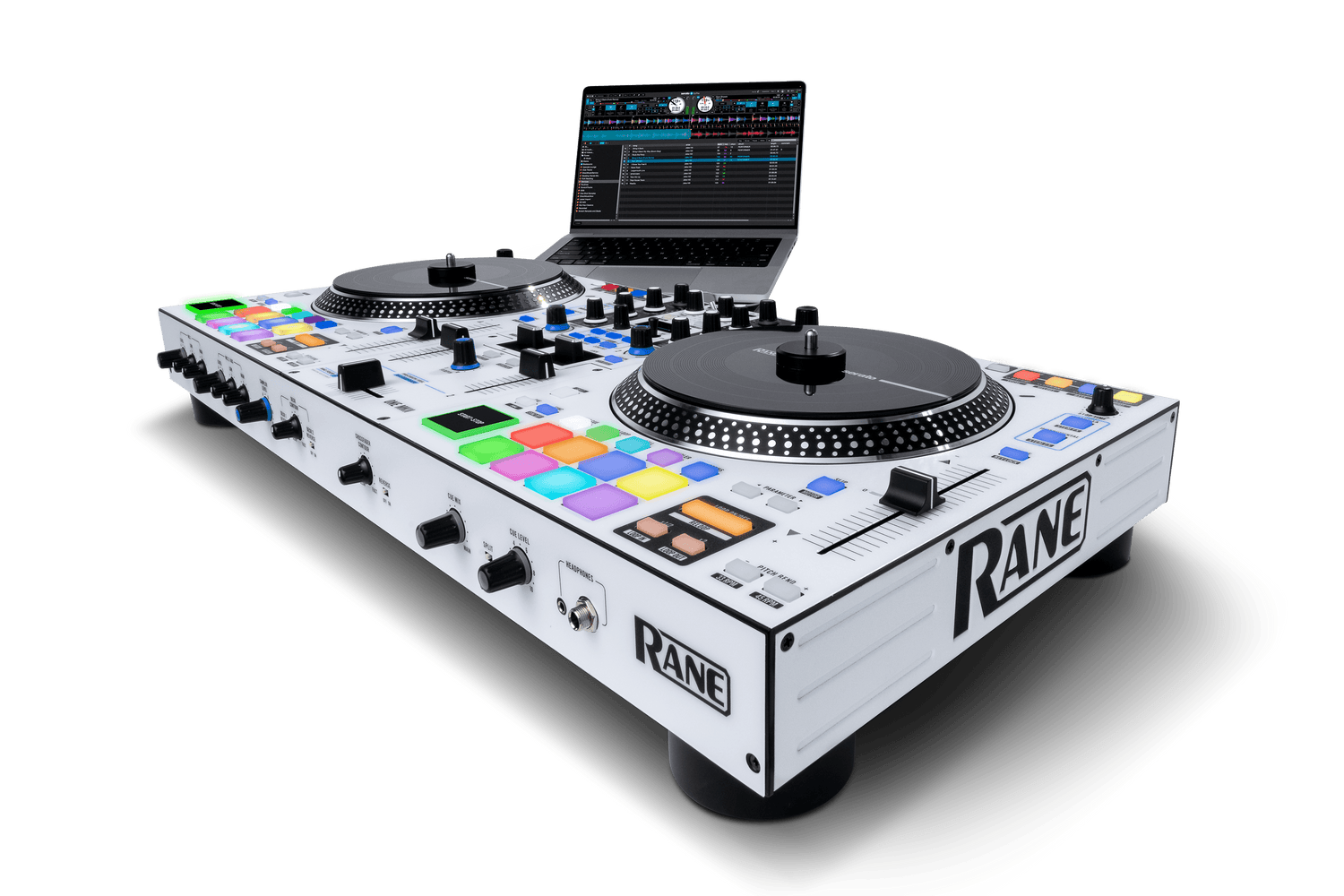

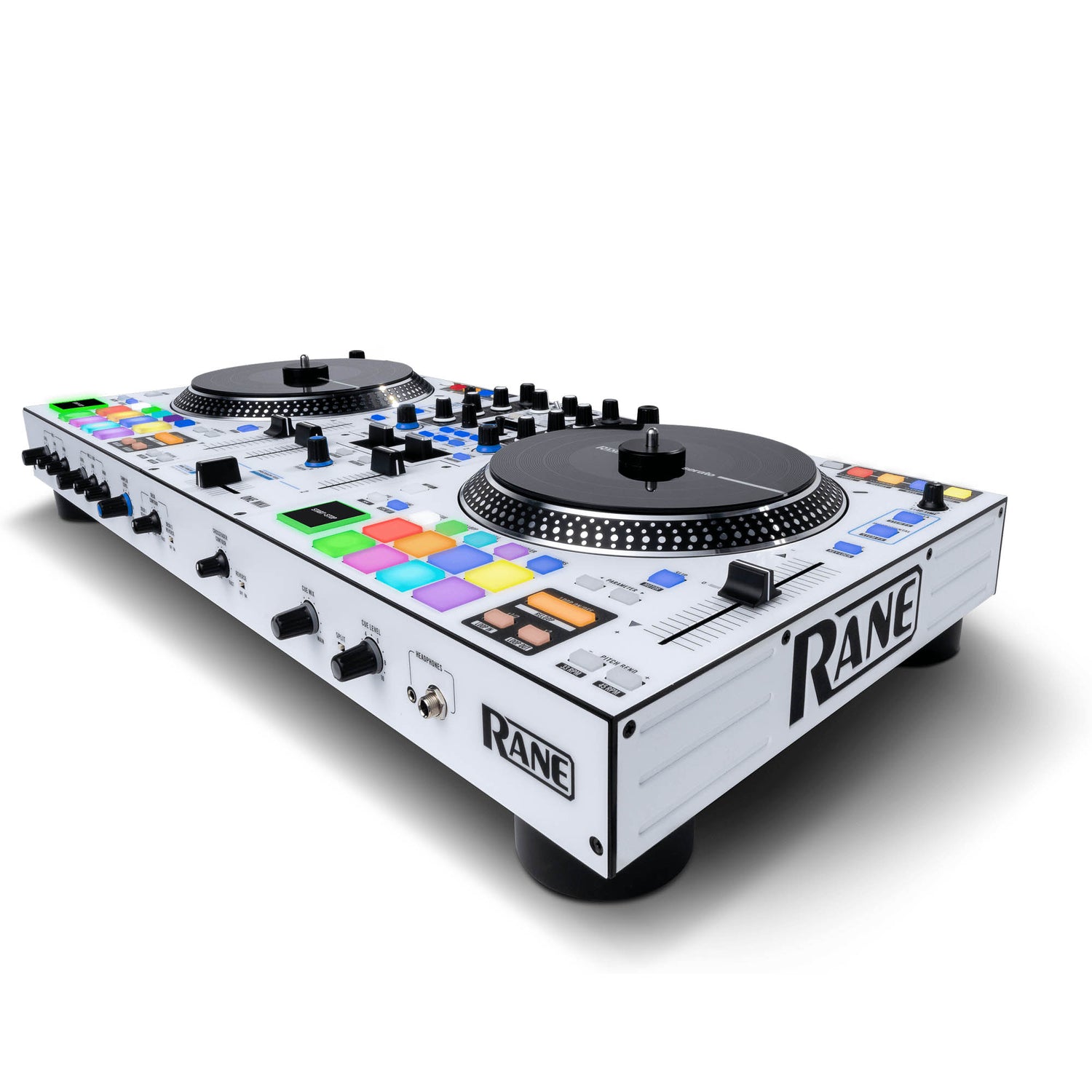

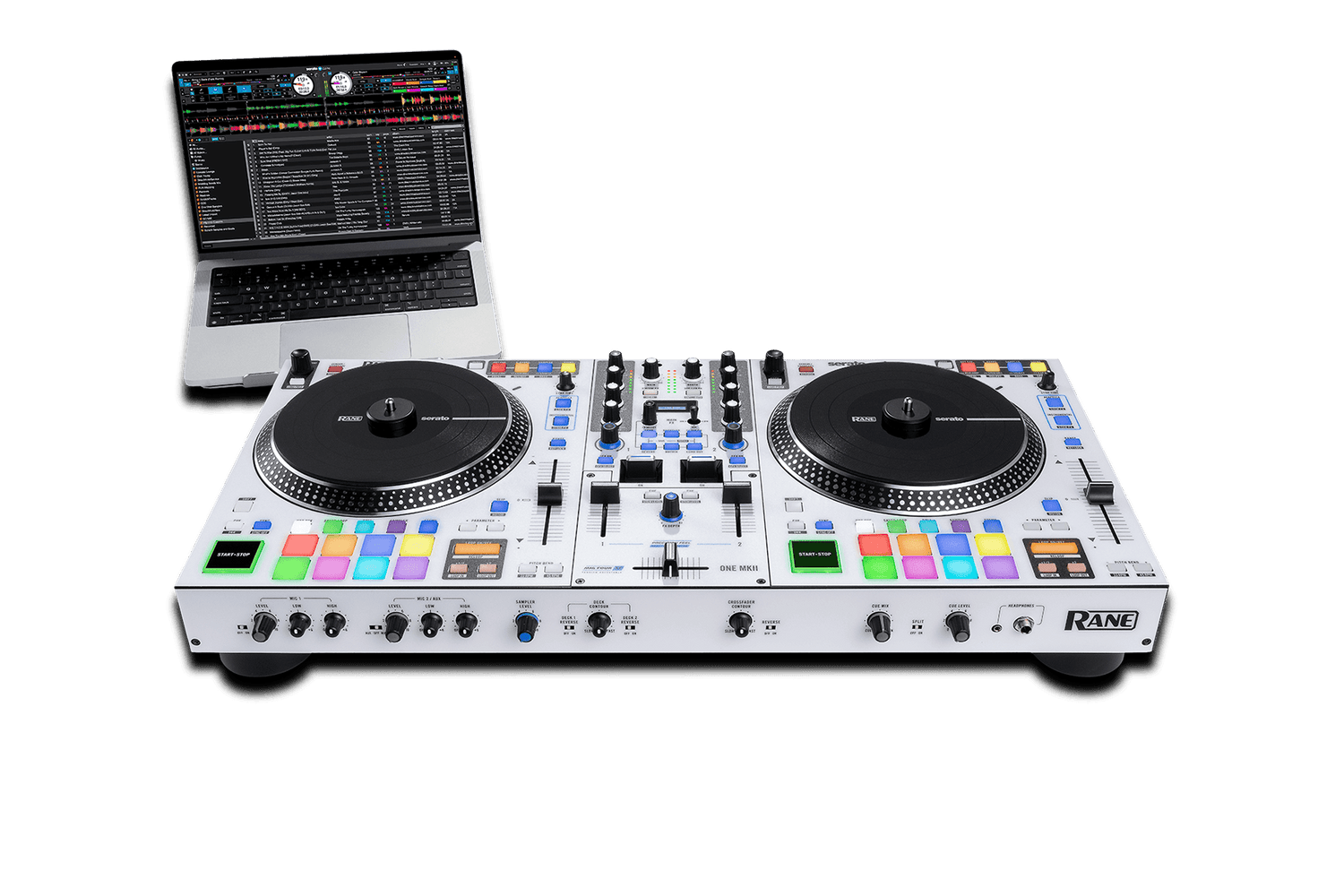

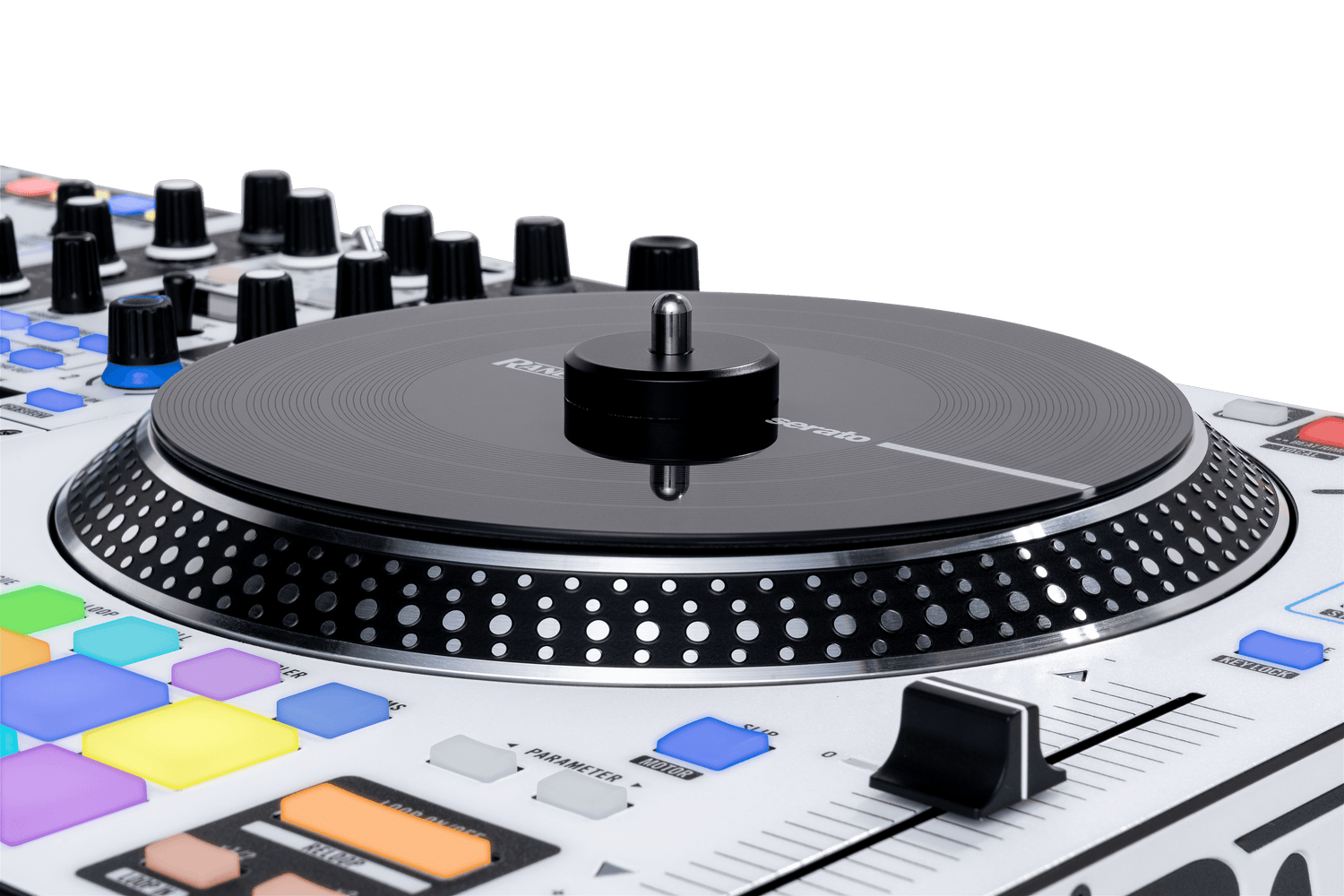

RANE ONE MKII is the next generation of motorised DJ controllers for DJs who want true vinyl feel combined with modern stems, effects and precise control. The dual motorised 7,2" platters with adjustable torque deliver an authentic turntable experience, while classic plunger start/stop buttons complete the feel.

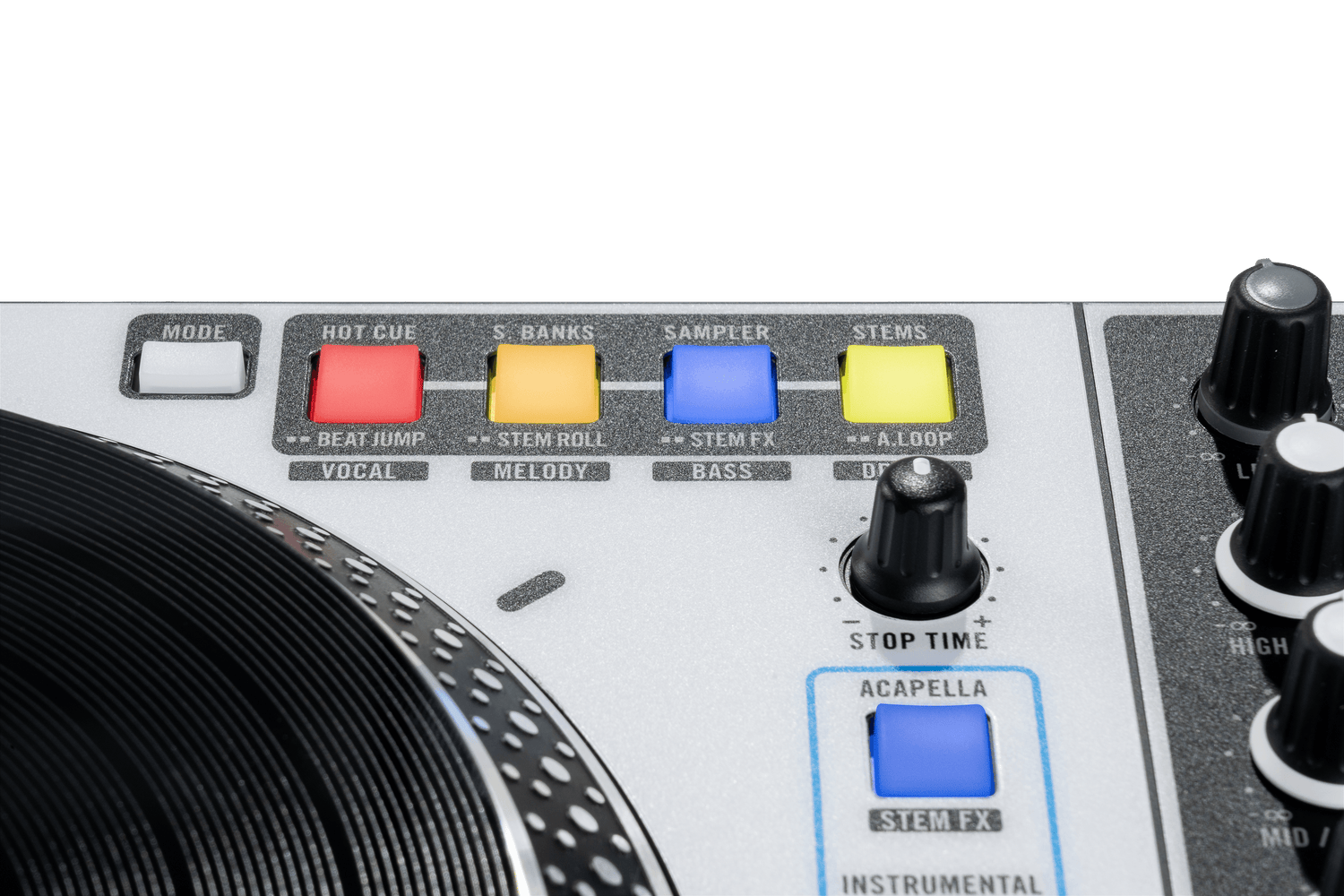

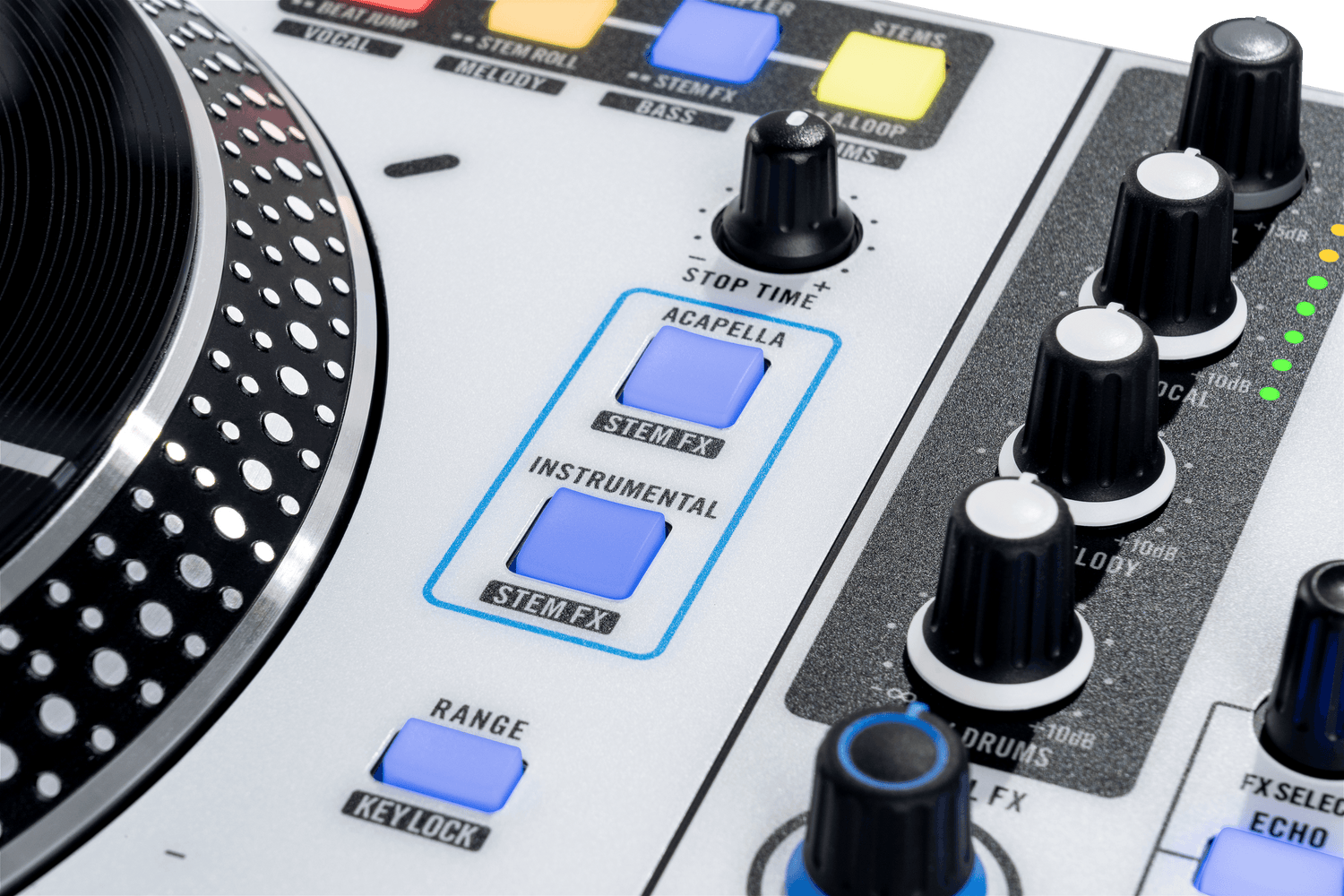

ONE MKII is built for Serato DJ Pro and unlocks deep stems integration: dedicated Acapella/Instrumental buttons, Stems Level, Stem FX and Stem Roll make it possible to pull vocals, drums, bass and instruments out live and remix directly on stage. At the same time, 16 RGB performance pads (10 modes + Split Pad Mode) and secondary pad buttons give you lightning-fast access to cues, loops, sampler, stems and FX without constantly switching layers.
The internal FX suite with 29 hardware effects, an OLED FX display, and Channel FX via dedicated Filter buttons gives you everything from subtle enhancements to wild soundscapes – without relying on the computer’s CPU. PRECISION FEEL channel faders and the MAG FOUR crossfader with adjustable tension, curve and cut-in make the controller just as suitable for battle-scratch as for open-format club mixing.

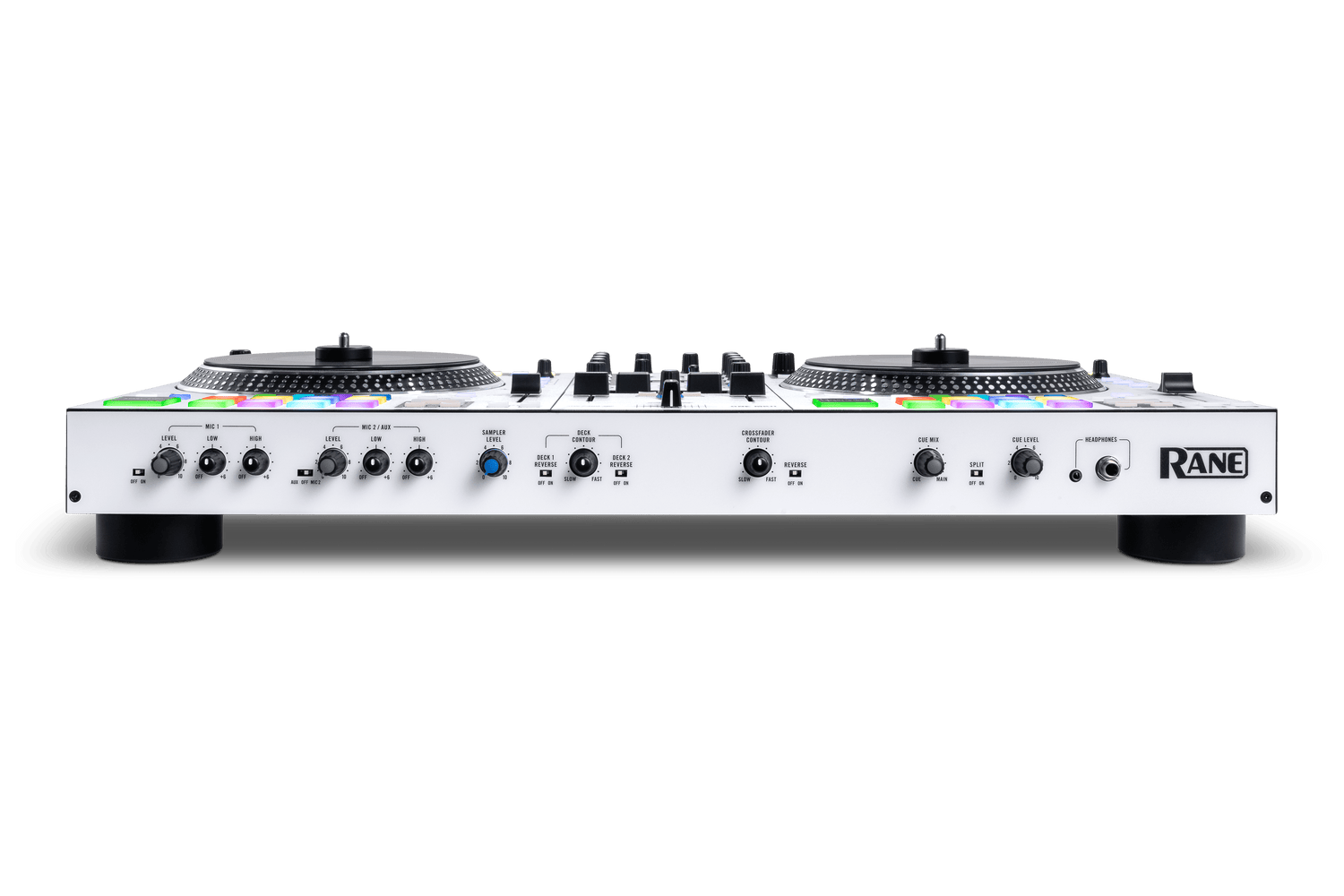

With XLR main & booth outputs, RCA master, mic inputs, aux, dual USB, and both 1/4" and 1/8" headphone outputs, ONE MKII is ready for everything from the home studio to a packed club and touring setup. The white finish makes it easy to see the controls in dark venues and delivers a modern look on stage.
Technical specifications
Technical specifications
Tekniske specifikationer
Digital audio
| Konvertere | Cirrus Logic, 24-bit PCM, 48 kHz |
| Digital signalprocessering | 32-bit floating point, double precision |
| Dynamikområde (A-vægtet, unity gain) | ADC: 113 dB, DAC: 113 dB |
Indgange
| Mikrofon 1/2 | 2 x XLR / 1/4" (6,35 mm) TRS combo, analog gain 25 dB, max input 110 mV, gain trim Off til +26 dB, 2-bånds EQ |
| AUX-indgang | 1 x RCA stereo-par (CD), dynamikområde 114 dB, gain trim Off til +12 dB, 2-bånds EQ |
| CD/Phono inputs 1/2 | 2 x RCA stereo-par, switchbare CD/Phono |
| CD-mode | Max input 4 Vrms, gain trim Off til +12 dB, 3-bånds EQ (full-cut til +10 dB), THD+N 0,004% |
| Phono-mode | RIAA ±0,25 dB, gain 31,5 dB @ 1 kHz, max input 106 mV @ 1 kHz, dynamikområde 102 dB |
Udgange
| Main outputs (XLR) | Gain trim Off til 0 dB, max output 8 Vrms, THD+N 0,004 %, frekvensrespons: Flat (20 Hz – 20 kHz) |
| Booth outputs (XLR) | Gain trim Off til 0 dB, max output 8 Vrms, THD+N 0,004 %, frekvensrespons: Flat |
| Master outputs (RCA) | Max output 4 Vrms, THD+N 0,004 %, frekvensrespons: Flat |
| Hovedtelefoner | 1 x 1/4" (6,35 mm) TRS, 1 x 1/8" (3,5 mm) TRS, max 4 Vrms (no load), 50 mW @ 50 ohm, dynamikområde 108 dB |

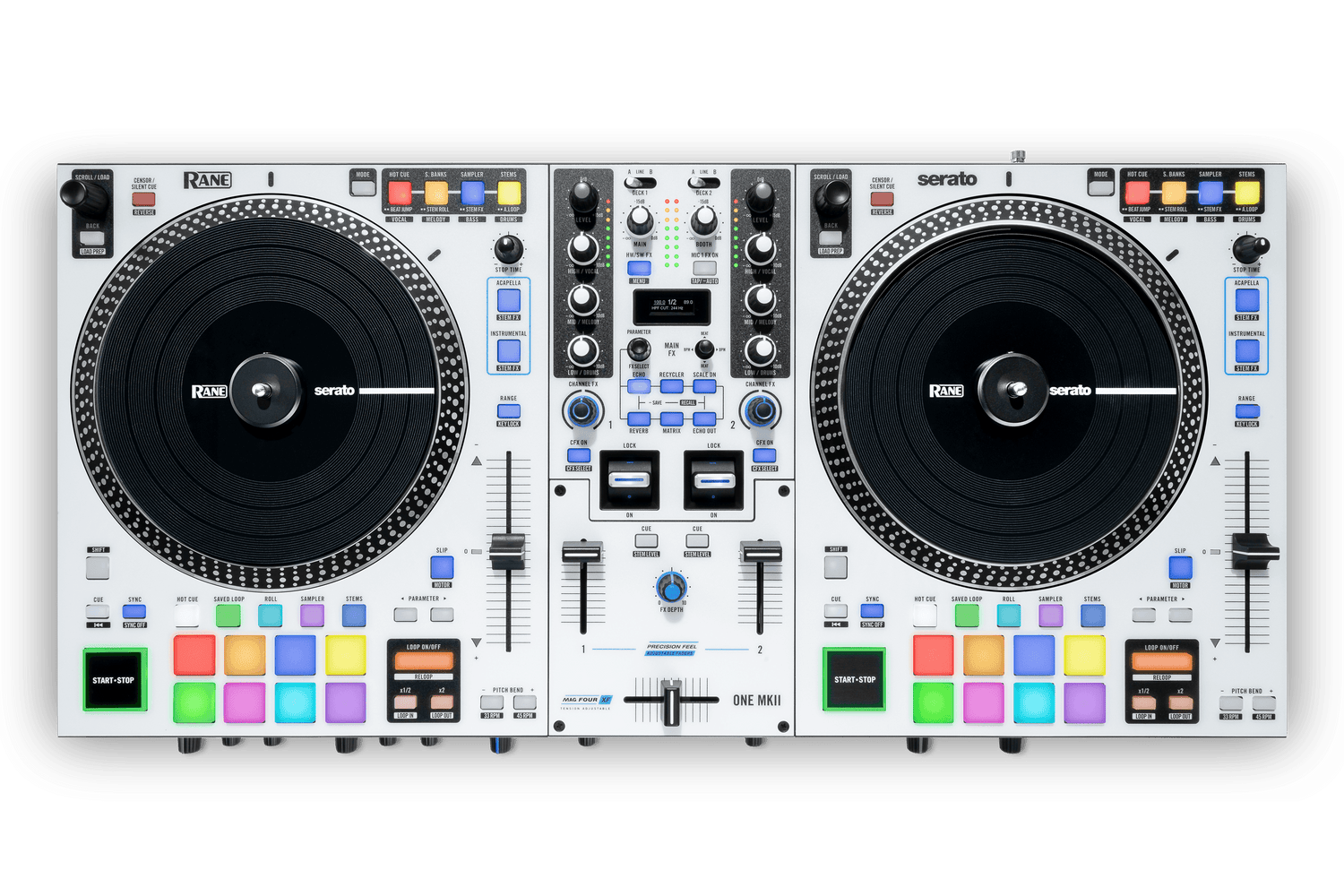

Pads & faders
| Performance pads | 16 flerfarvede, bagbelyste pads (8 pr. deck, 10 modes pr. deck) |
| Sekundære pad-knapper | Dedikerede secondary performance pad-knapper med 8 ekstra pad-modes |
| Crossfader | 1 x MAG FOUR, spændings-justerbar, med separat curve-knap, cut-in justering og reverse |
| Channel faders | 2 x PRECISION FEEL faders, spændings-justerbare, med Contour-knap og Reversal switches |
Plattere & kontrol
| Plattere | Dual motoriserede 7,2" high-torque pladetallerkener med justerbar torque |
| Start/Stop | Klassiske plunger start/stop-knapper |
FX & stems
| Interne FX | 29 interne hardware FX med OLED-display |
| Channel FX | Filter, Filter Roll, Flanger og Noise via dedikerede Filter-knapper |
| Stems-kontrol | Dedikerede Acapella/Instrumental-knapper, Stems Level, Stem FX, Stem Roll, Stem pad modes |
| Software FX | Serato DJ Pro FX support |

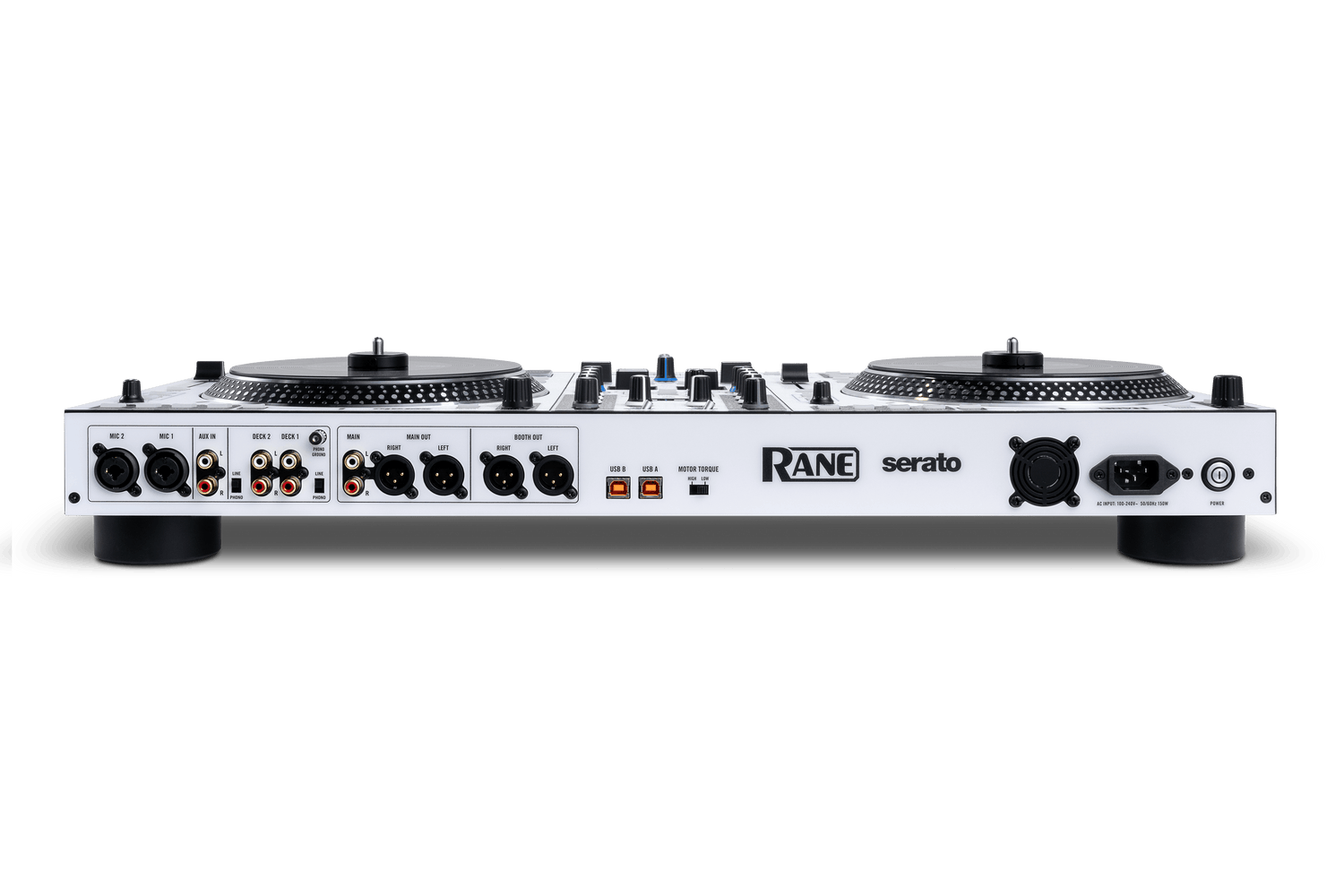

Tilslutninger
| Outputs | 2 x XLR (Main), 2 x XLR (Booth), 1 x RCA stereo (Master) |
| Inputs | 2 x XLR/1/4" combo (Mic 1–2), 2 x RCA stereo (Deck 1–2), 1 x RCA stereo (Aux) |
| USB | 2 x USB Type-B til dual-computer setup |
| Strøm | IEC strømstik |
Strøm
| Spænding | 100–240 V, 50/60 Hz |
| Effektforbrug | 50 W |
Fysiske mål
| Dimensioner (B x D x H) | 674 x 345 x 124,3 mm (26,5" x 13,6" x 4,9") |
| Vægt | 11,14 kg |
Highlights
- Motoriseret high-torque platter-setup med ægte pladespiller-feel
- Avanceret stems-integration til live remix og acapella/instro-lege
- 29 interne hardware-FX + Serato FX for maksimal kreativitet
- PRECISION FEEL faders og MAG FOUR crossfader til seriøs mixing og scratch
- Dual USB, XLR main/booth og RCA master til professionelle setups
