Tascam BD-MP1 mk2 Blu Ray og DVD afspiller

Tascam BD-MP1 Mk2 Blu Ray afspiller

Imponerende billedkvalitet, forbløffende lyd og Videoafspillernes arbejdshest

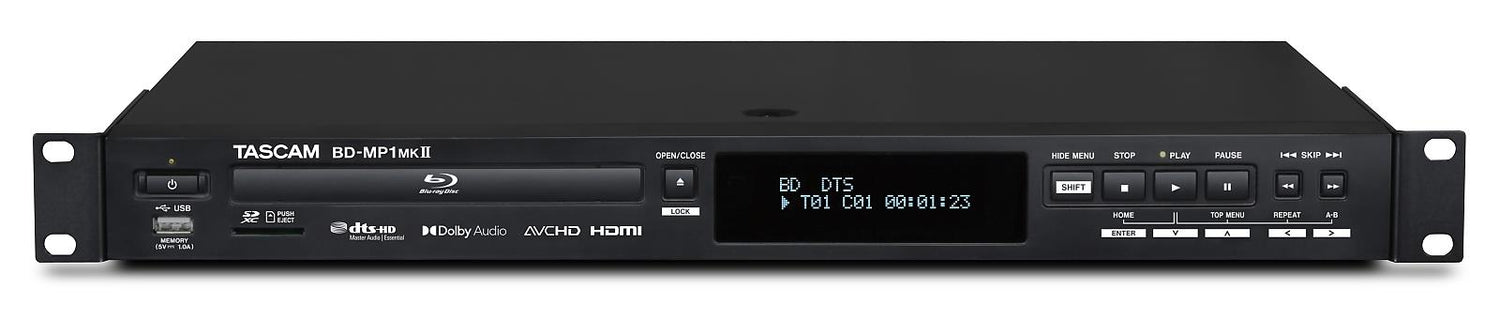

BD-MP1MKII er en robust multimedie-videoafspiller med enkelt rackplads til professionelle applikationer som permanent installation og touring.

Med udgangspunkt i succesen med Tascam BD-01U og BD-MP1 kan denne højopløselige afspilningsenhed styres via LAN, RS-232C og en trådløs fjernbetjening,

hvilket gør den til en ideel komponent i integrerede mediesystemer og en pålidelig videoafspiller til kommerciel AV, uddannelse, kirker, bestyrelseslokale eller live touring.

Afspilning fra en række medietyper

Den alsidige BD-MP1MKII kan automatisk afspille indhold i en lang række filformater via en hvilken som helst af de tre frontpanel-medieindgange, inklusive Blu-ray, DVD, CD, USB Flash-hukommelse og SD-kort.

BD-MP1MKII tilbyder enkeltkildeafspilning for en lang række medie- og filformater, og eliminerer behovet for diskrete lyd-/videoafspilningsenheder i en installation.

Dets omfattende udvalg af filformater inkluderer

videoformater som MPEG1, MPEG2, MPEG4 AVC, VC-1, AVCHD og WMV,

billedformater som JPEG, GIF og PNG samt

lydformater som LPCM, MP3, AAC og WMA.

Single-rackspace Blu-ray, DVD, CD and solid-state player

Controllable via Ethernet network (Telnet), RS-232C or wireless remote control

Plays video and audio material stored on following media:

BD25, BD50, BD-ROM, BD-R, BD-RE

DVD, DVD+R, DVD-R, DVD+RW, DVD-RW

CD, CD-R, CD-RW

SD cards (up to 512 GB)

USB flash media

Support for a wide range of file formats

NTSC/PAL conversion

BD-Live function

HDMI high-definition audio/video out, supports HDMI CEC which allows the connected display to be switched on/off in correct order

Separate 7.1 surround sound outputs

XLR balanced and RCA unbalanced stereo outputs

Up to 40 dB attenuation for analogue and digital stereo outputs

Coaxial digital audio output (SPDIF, Dolby, DTS)

Power-on play (start playback when power comes up)

Resume (continue after power cycle)

Repeat (chapter, title, A-B)

Instant replay (10 seconds)

Lock function (panel, tray, or IR remote)

On-screen information switchable on or off

Dimmable front-panel display

Firmware update via disc or USB memory

Infrared remote control included as standard

Media: Blu-ray

BD25, BD50, BD-ROM, BD-R (SL, DL), BD-RE (SL, DL) (Blu-ray 3D supported)

Disc formats: BDMV, BDAV

DVD: DVD, DVD+R (SL, DL), DVD-R (SL, DL), DVD+RW, DVD-RW

Disc formats: DVD-Video, DVD-VR, AVCHD

CD: CD-DA, CD-R, CD-RW

SD: SD card with up to 512 GB total capacity

Supported file systems: FAT16, FAT32, exFAT, NTFS

USB: USB flash drive (mass storage class) with up to 2 TB total capacity

Supported file systems: FAT16, FAT32, exFAT, NTFS

Supported file formats: Video

3GP, ASF, AVI, DAT, M2TS, MKV, MOV, MP4, MPG, OGM, RMVB, TP, TS, WMV

Audio: AAC, APE, FLAC, MP3, WAV, WMA

Still image: JPEG, GIF, PNG

Subtitles: SUB, ASS, IDX+SUB

Audio resolution: BD/DVD/USB/SD

Sampling frequency: 44.1/48/64/88.2/96/176.4/192 kHz

Bit width: 16/24 bit

CD

Sampling frequency: 44.1/48 kHz

Bit width: 16/24 bit

MP3/WMA

Sampling frequency: 32/44.1/48 kHz

Bit width: 16/24 bit

MP3 bit rate: 112-320 kbit/s

WMA bit rate: 48-192 kbit/s

Video resolutions :Auto, 480i/576i, 480p/576p, 720p, 1080p

Aspect ratios: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox

Colour systems: NTSC, PAL, Multi (if supported by TV)

HDMI colour space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)

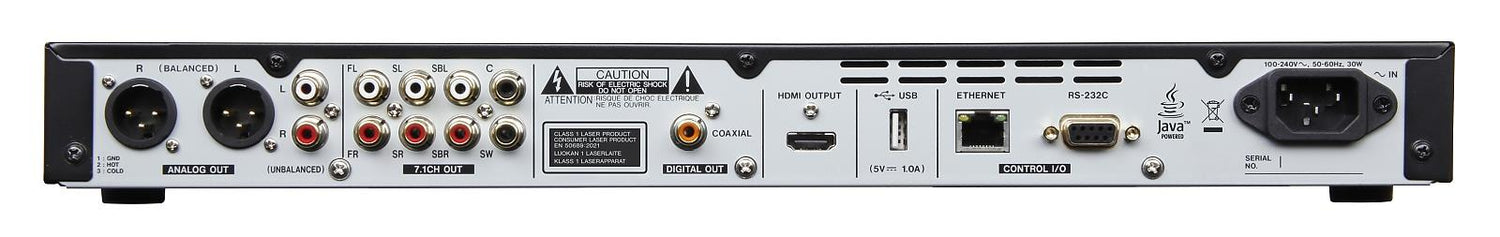

Analogue audio outputs: Balanced XLR-3-32 (1: GND, 2: HOT, 3: COLD)

Nominal output level: +4 dBu (1.23 Vrms)

Maximum output level: +20 dBu (7.75 Vrms)

Output impedance: ≤200 Ohm

Unbalanced: RCA pin jacks

Nominal output level: -10 dBV (0.316 Vrms)

Maximum output level: +6 dBV (2.0 Vrms)

Output impedance: ≤210 Ohm

7.18 × RCA pin jacks

Nominal output level: -10 dBV (0.316 Vrms)

Maximum output level: +6 dBV (2.0 Vrms)

Output impedance: ≤210 Ohm

Audio performance: 0 dBu ≙ 0.775 Vrms, 0 dBV ≙ 1 Vrms

Frequency response: 20 Hz - 20 kHz, ±0.5 dB

Signal-to-noise ratio: ≥ 96 dB (JEITA)

Total harmonic distortion: ≤ 0.03 % (1 kHZ, JEITA)

Dynamic range: ≥ 96 dB (JEITA)

Channel separation: ≥ 89 dB

JEITA: Compliant with JEITA CP-2150

Digital outputs:

HDMI output:19-pin HDMI, Type A

Coaxial audio output: RCA pin jack

Format: IEC 60958-3 (SPDIF)

Output impedance: 75 Ohm

Other inputs and outputs: RS-232 CD-sub 9-pin

Mode: Full duplex

Baud rate: 9600, 38400 bits/s (selectable)

Ethernet: RJ45

Supported standards: 10BASE-T, 100BASE-TX

Cable requirements: Category 5e or better

USB: USB A-type (1 × front, 1 × rear)

Protocol: USB 2.0 compliant

Rated supply voltage: DC 5 V, 1 A

Power supply and other specifications:

Power connector: IEC receptacle

Power requirements: AC 100-240 V, 50/60 Hz

Power consumption: 30 W (typical)< 0.5 W (standby)

Dimensions (W × H × D): 483 mm × 44 mm × 281 mm

Weight: 3 kg

Permissible operating temperature: 5-35 °C

Permissible operating humidity: 25-85 %, no condensation

Included accessories: IR remote control (RC-BDMP1), AC power cable, rack-mounting kit (4 screws, 4 washers), Owner's manual
