Tascam MZ-372 Installationsmixer

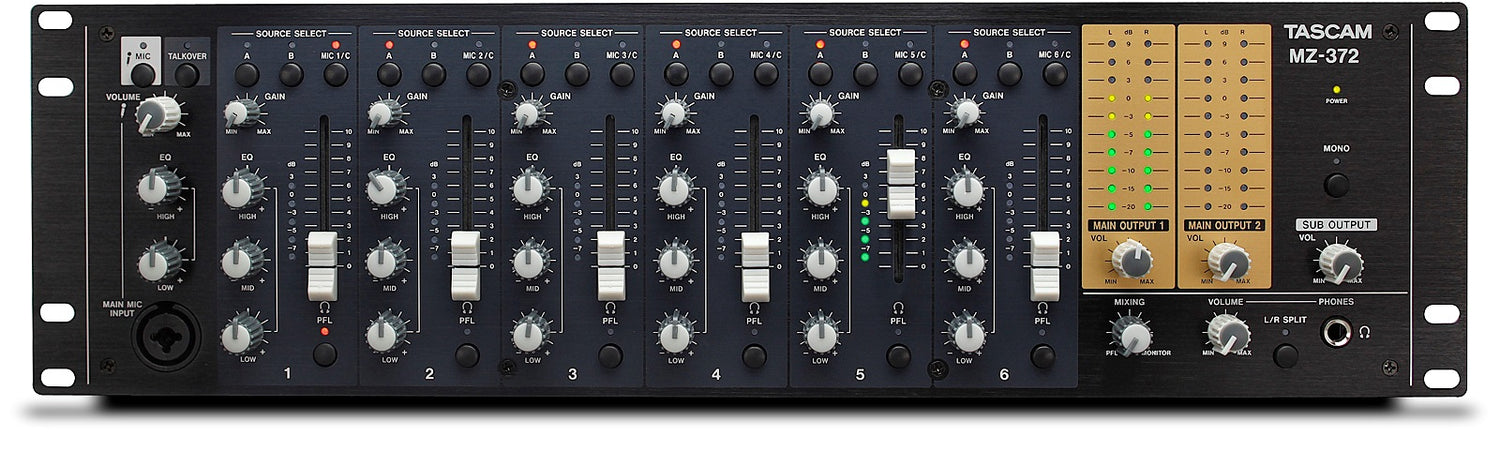

MZ-372 is a 3-unit rack-mounted mixer designed for permanent installations in hotels, conference centers, public facilities, amusement parks, or bars.

It has 7 inputs, 2 stereo outputs, and 1 sub output.

Six inputs can be used for microphones or line signals from analog playback sources like media players, tuners, etc.

Each is equipped with volume controls, LED level meters, a three-band equalizer, and 100 mm faders.

Up to three of these channels can be switched to phono for connecting record players (turntables).

An additional microphone input with level control and a two-band equalizer on the front can be used for announcements or voice alerts.

In this case, the built-in Talkover function can automatically lower the volume of the background music relative to the microphone volume.

Each of the two main output sets has its own level control and stereo LED level meters.

One independent sub output with level control and mono/stereo selection can be used to drive an external master recorder or an additional room.

There is also a headphone output with level control for pre-fader monitoring of selected input channels and the main output signal.

Audio Inputs:

Main Microphone Input

Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)

Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)

Input impedance: 33 kOhm

Nominal input level: -65 dBu (VOLUME knob at MAX)

-30 dBu (VOLUME knob at MIN)

Mic/Line Inputs (Balanced) XLR-3-31

Set to Mic

Maximum input level: -30 dBu

Minimum input level: -65 dBu

Input impedance: 33 kOhm

Set to Line

Nominal input level: -1 dBu

Maximum input level: 20 dBu

Input impedance: 22 kOhm

Line Inputs (Unbalanced)

RCA pin jacks

Nominal input level: -10 dBV

Maximum input level: 10 dBV

Input impedance: 22 kOhm

Audio Outputs:

Main Outputs (Unbalanced)

RCA pin jacks

Nominal output level: -10 dBV

Maximum output level: 6 dBV

Output impedance: 200 Ohm

Main Outputs (Balanced)

XLR-3-32 (1: GND, 2: HOT, 3: COLD)

Nominal output level: 4 dBu

Maximum output level: 24 dBu

Output impedance: 200 Ohm

Sub Outputs

RCA pin jacks

Nominal output level: -16 dBV

Maximum output level: 0 dBV

Output impedance: 200 Ohm

Monitor Outputs

RCA pin jacks

Nominal output level: -16 dBV

Maximum output level: 0 dBV

Output impedance: 200 Ohm

Headphones Output

6.3-mm stereo jack

Maximum output power: 50 mW + 50 mW (into 32 Ohm load)

Audio Performance:

Frequency response: 20 Hz - 20 kHz

Distortion: ≤0.03%

Crosstalk: 65 dB

Power Supply and Other Specifications:

Power Supply: Dedicated AC adapter (PS-M1524)

Input Voltage: AC 100-240 V, 50/60 Hz

Output Voltage: DC 15 V

Output Current: 2.4 A

Power Consumption: 35 W

Overall Dimensions (Width × Height × Depth): 482 mm × 132 mm × 93 mm

Weight: 3.2 kg

Permissible Operating Temperature: 5-35 °C
