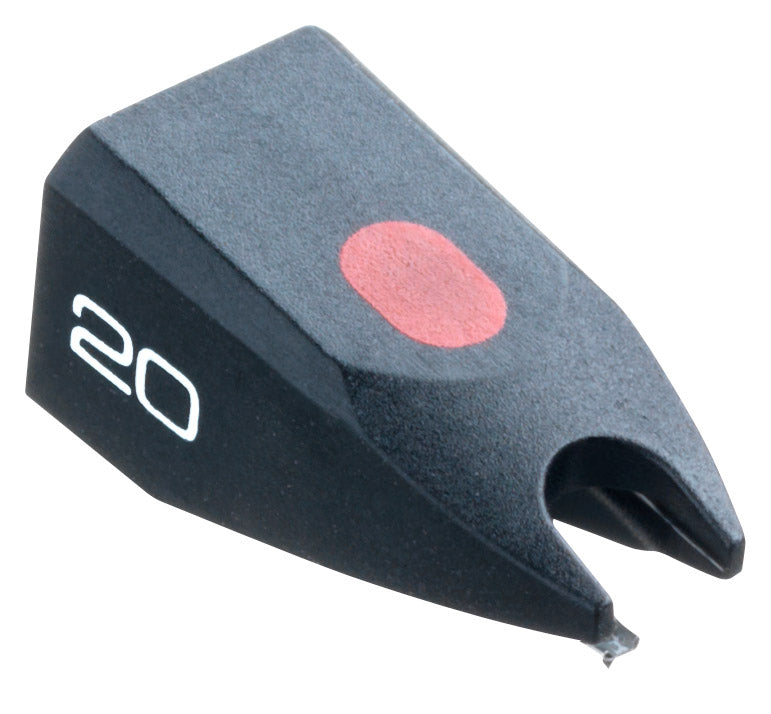

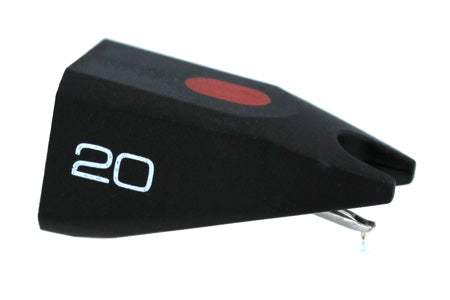

Ortofon 20 Stylus
Description
Description
- This spare Stylus from Ortofon fits Ortofon OD 2, Super OM 20, OM 20, OMP 20, TM 20 Cartridge
- Elliptical Styli like this one have a larger contact surface, which creates less pressure on the plates, which are thus not worn in the same way as with spherical Styli.
- Not suitable for scratching.
Ortofon 20 Stylus
For Ortofon OD 2, Super OM 20,OM 20, OMP 20 TM 20 Cartridge
If your pickup Stylus is wearing out, you don't need to buy a whole new pickup.
You can simply replace the Stylus tip itself by purchasing this replacement Stylus.
It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.
Technical specifications
Technical specifications
| Frequency range | 20-27.000 Hz |
| Frequency response | 20-20.000 Hz + 2 / - 3 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 80 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0,4 mg |
| Tracking force range | 1,25-1,75 g (12,5-17,5 mN) |
| Tracking force, recommended | 1,50 g (15 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H |
