- This spare Stylus fits the Ortofon series 540 MkII, 540 and 540 P
Ortofon

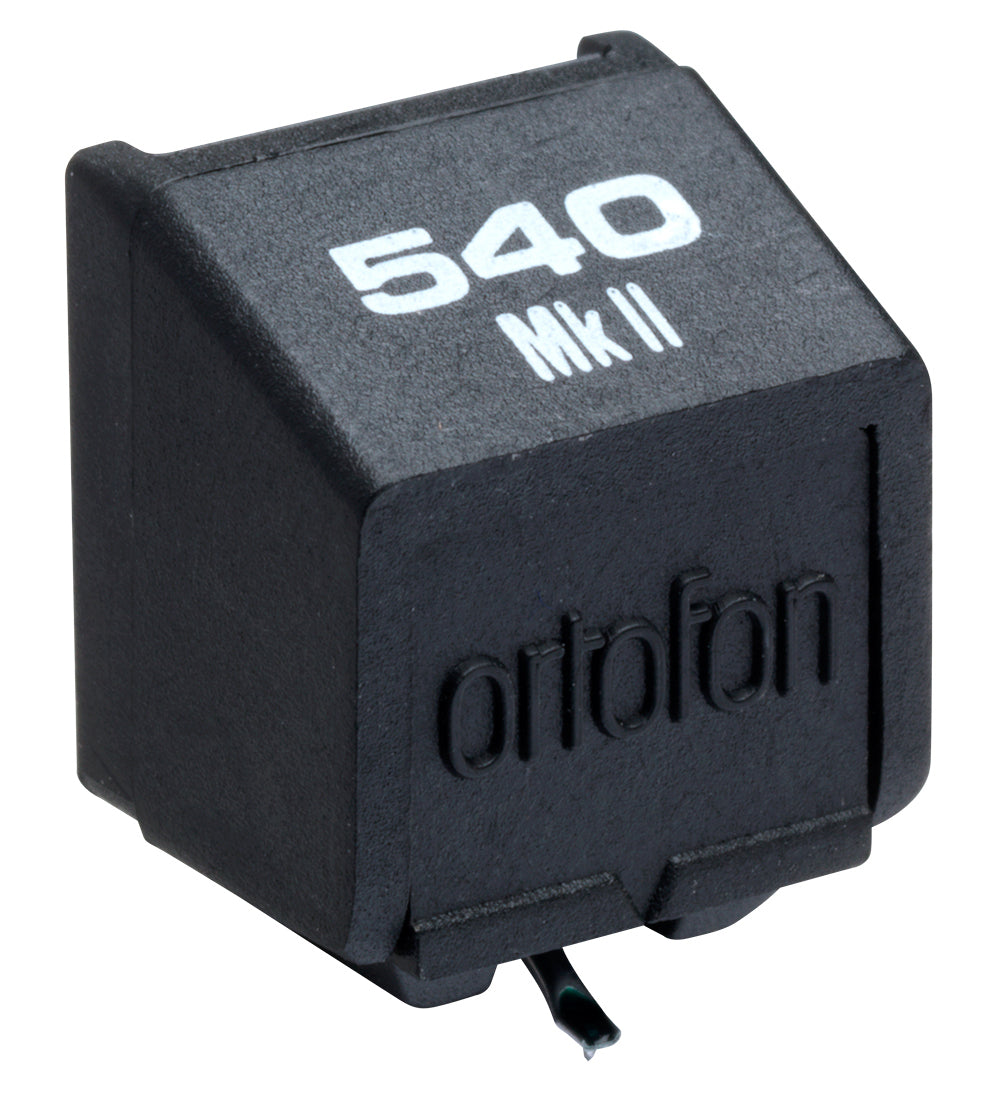

540 MkII StylusOrtofon stylus MkII for series 540 MkII, 540 and 540 P
Specifications
Specifications
-
Weight (kg)
More specifications
More specifications
Frequency response | 20-27.000 Hz |
Tracking ability at 315Hz at recommended tracking force *) | 90 µm |
Compliance, dynamic, lateral | 30 µm/mN |
Stylus type | Nude FG 70 |
Stylus tip radius | r/R 5/70 µm |
Equivalent stylus tip mass | 0,3 mg |
Tracking force range | 1.0-1.5 g (10-15 mN) |
Tracking force, recommended | 1.5 g (15 mN) |
Tracking angle | 20° |
Stylus colour | Black |
Recommended for following cartridges |
