• Active speaker with built-in 2000 Watt digital amplifier.
• Delivers 134 dB Max. SPL.
• Integrated FIR-Drive DSP system (Digital Signal Processor)
• 10" SMX bass unit and 1,25" HF titanium cpmpression driver.
• 90 x 60 degree horn.
• Built in 18mm plywood with EV Coating.

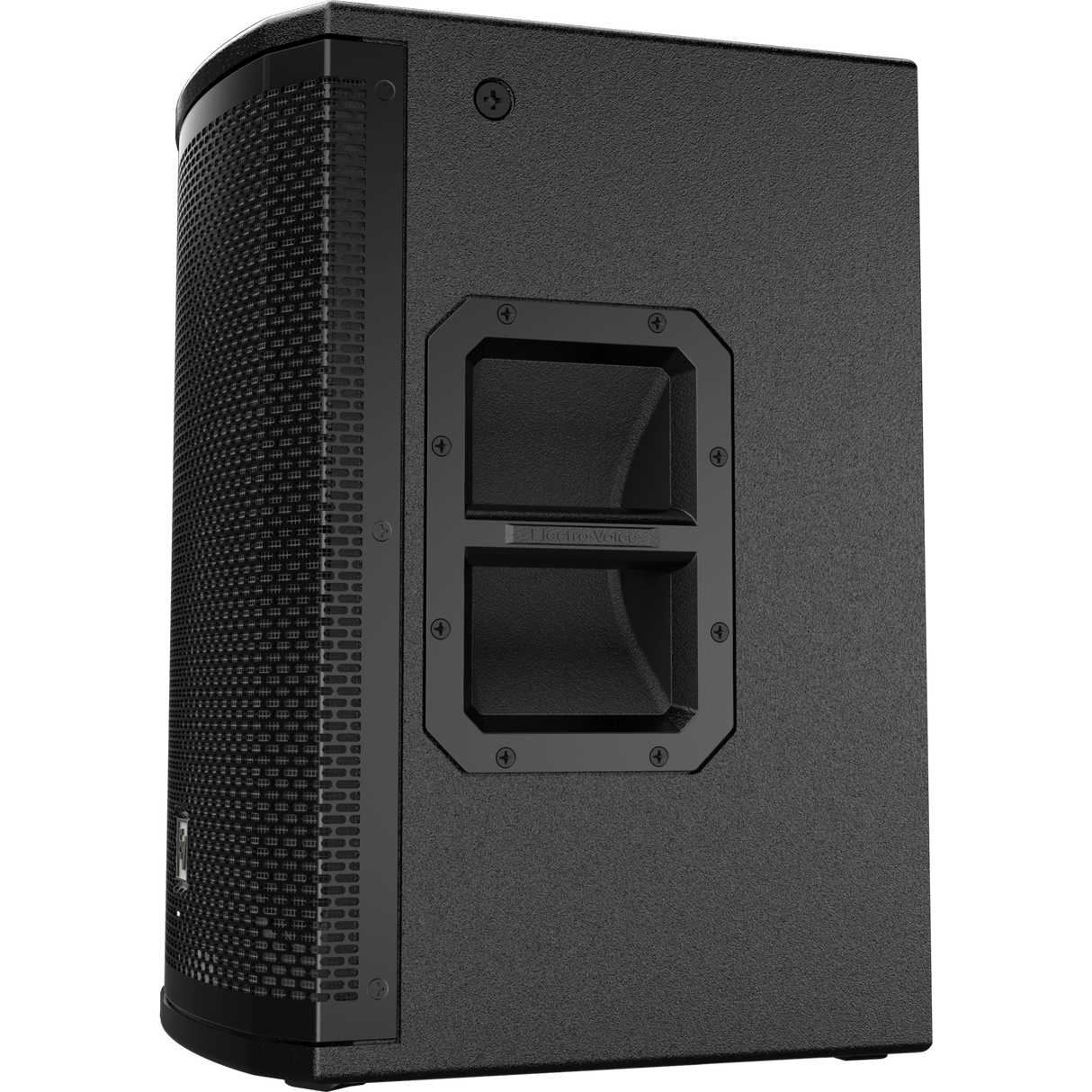

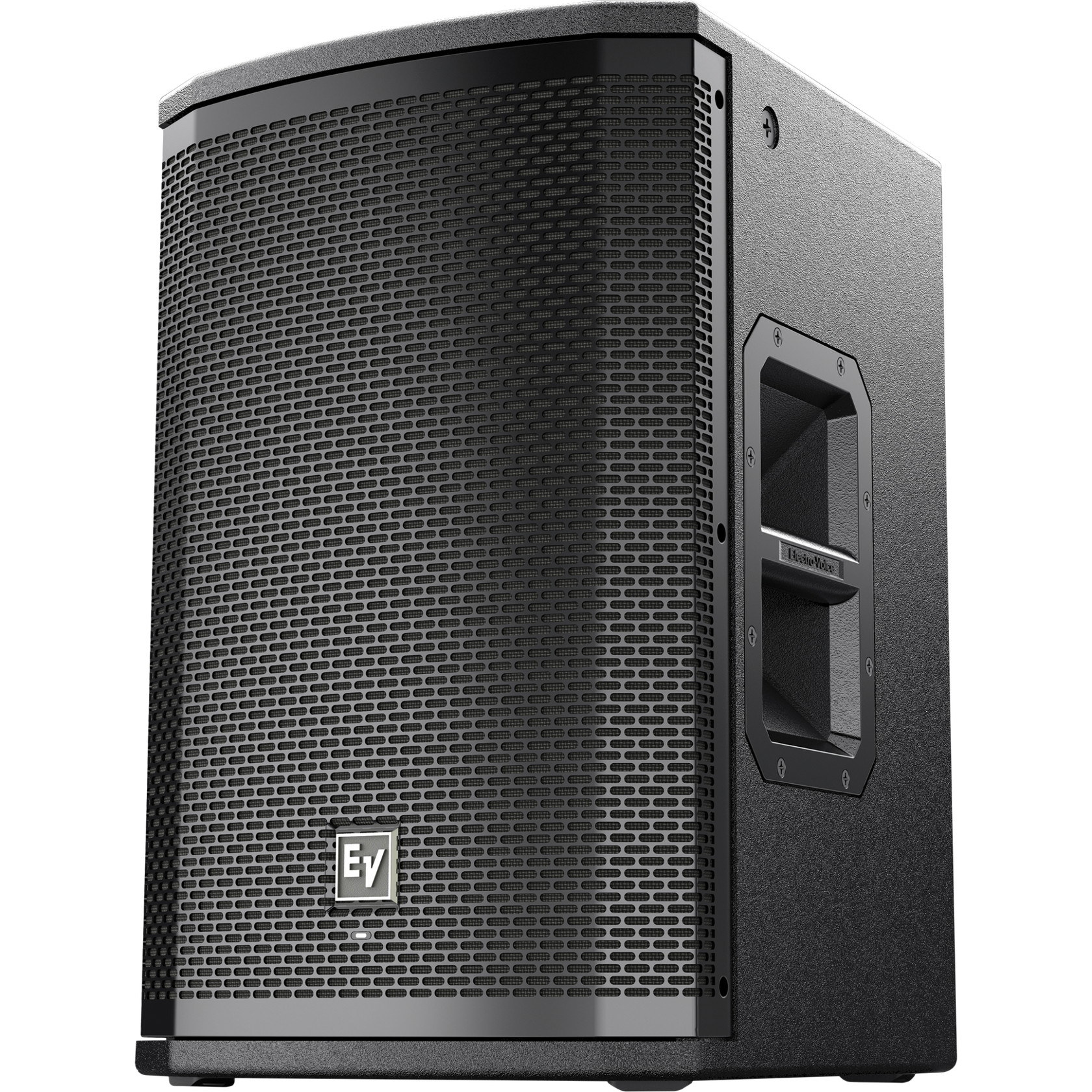

Electro Voice ETX-10P

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX Powered Loudspeakers apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

• 10-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 134 dB peak SPL

Frequency Range	65 Hz - 20 kHz full space measurement usong the music DSP preset and 150 Hz low pass
Maximum SPL	134 peak SPL is measured at 1 m using broadband pink noise at maximum output
Power Consumption	100 - 240V ~, 50 - 60 Hz, 1.6 - 0.8 A Current rating is 1/8 power
Power Rating	2000 W
Frequency Response	85 Hz - 20 kHz full space measurement using the music DSP preset and 150 Hz low pass
Coverage (Nominal -6 dB) H	90°
Coverage (Nominal -6 dB) V	60°
LF Transducer	SMX2100 254 mm (10 in)
HF Transducer	DH3-B 1.25-in titanium compression driver
Crossover Frequency	1700 Hz

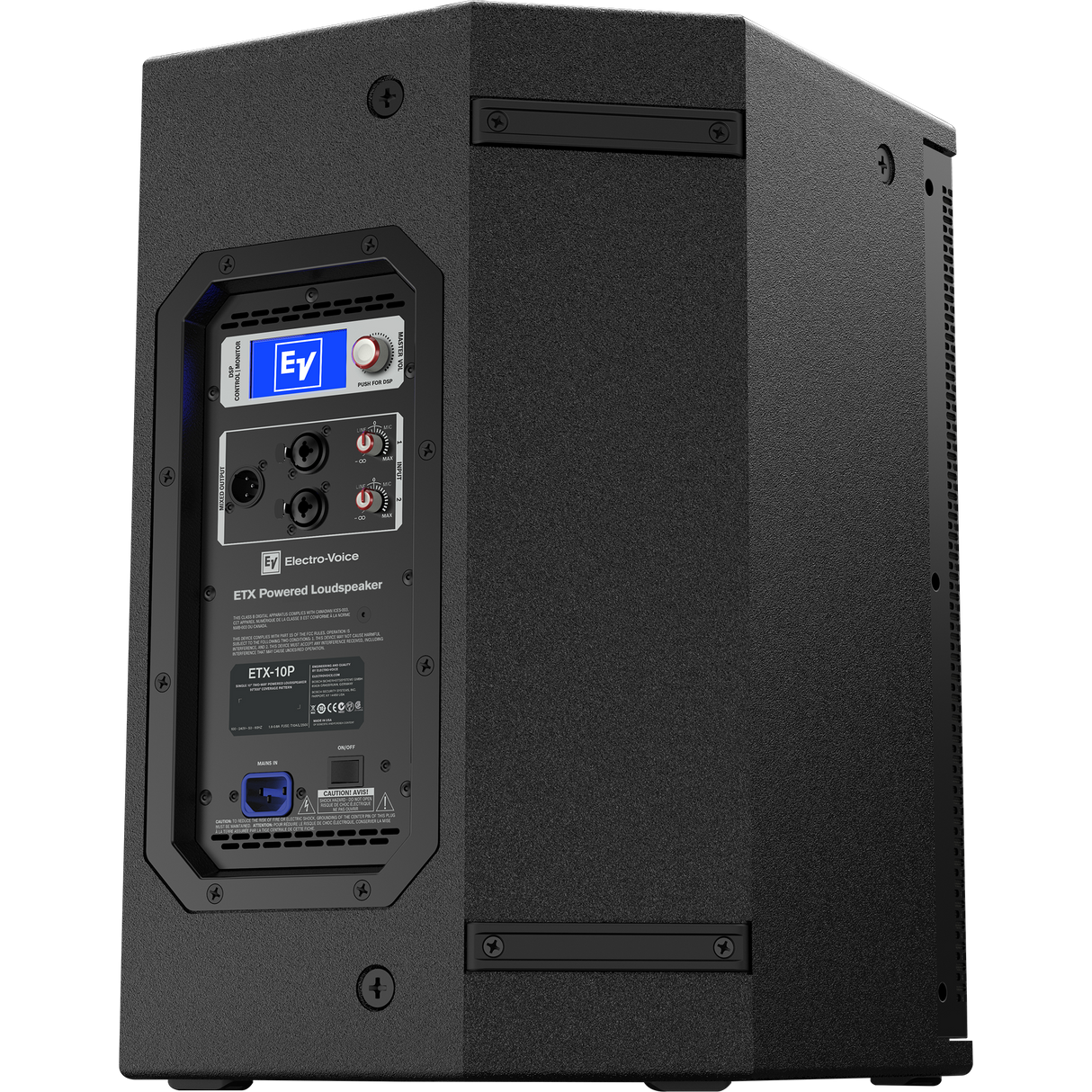

Connector Type	(2) XLR/TRS combo Jack, (1) XLR Link Output
Grill	1AWG Steel with Powdercoat
Suspension	(8) M10 suspension point
Height	526 mm (20.71")
Width	330 mm (12.99")
Depth	365 mm (14.37")
Weight Net	20.3 kg (44.75 lbs)
Shipping Weight	22.9 kg (50.49 lbs)
