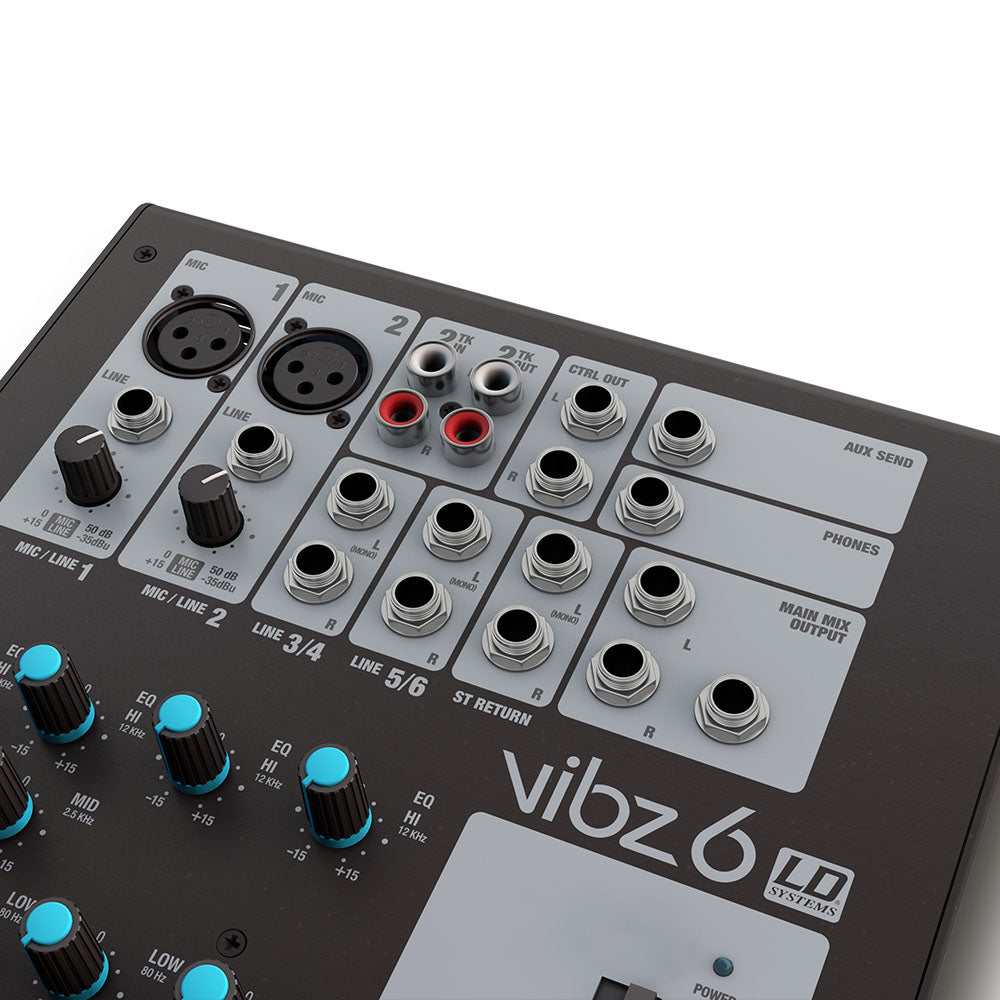

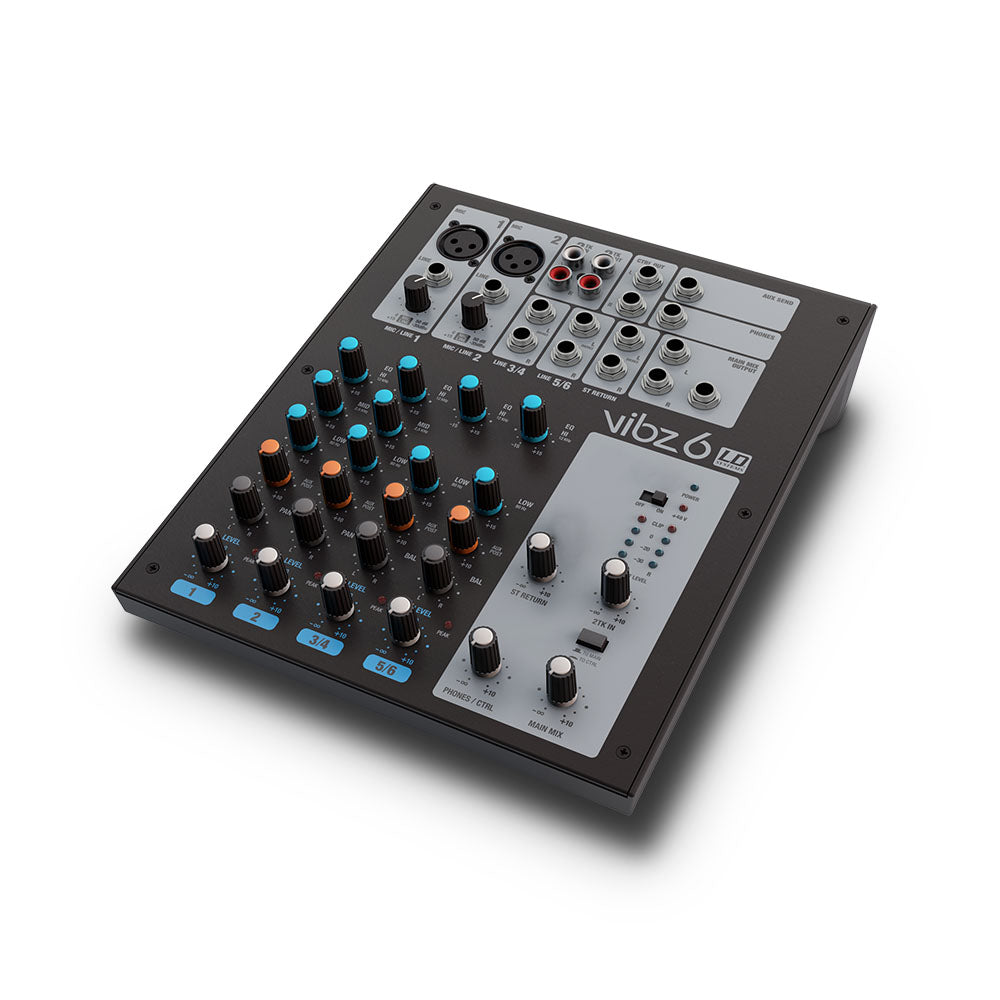

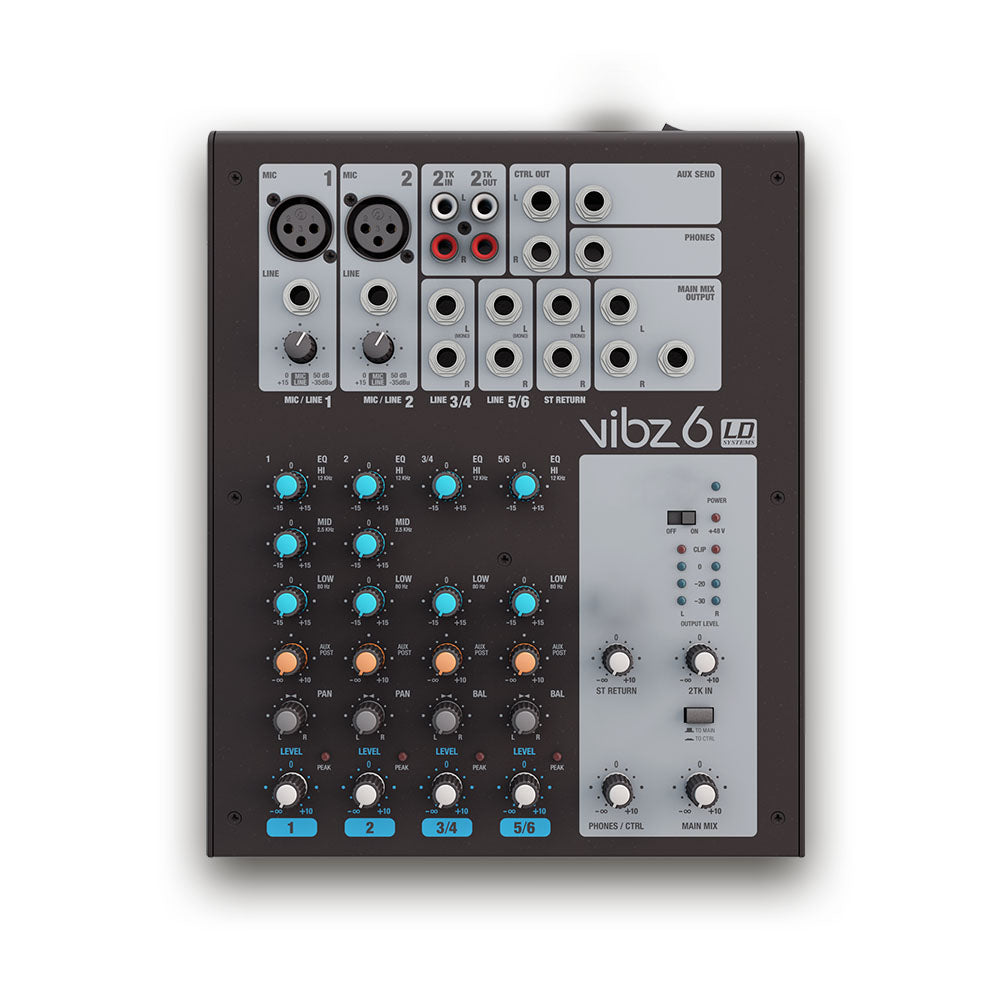

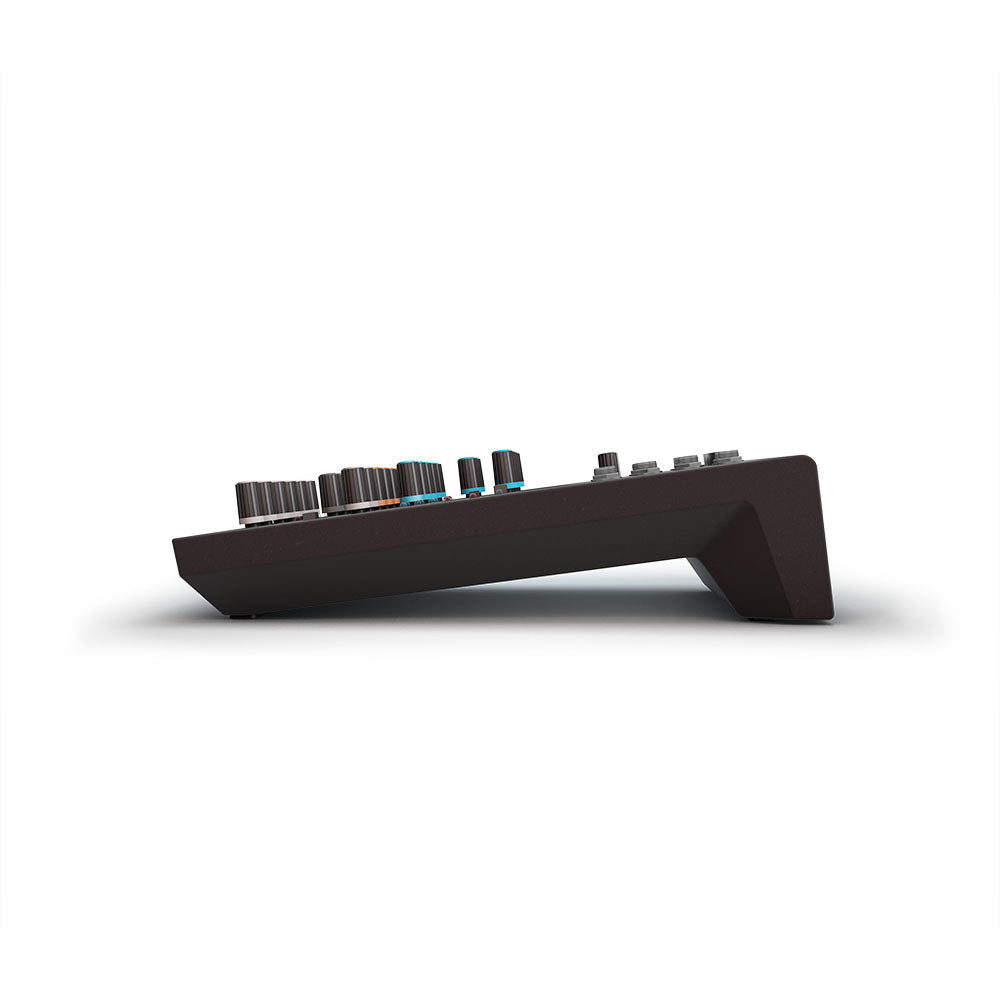

LD Systems VIBZ 6 - 6 channel mixer
- Compact mixer
- Easy to use
- 6 channels
The VIBZ 6 is a compact 6-channel mixer that is perfectly suited for entertainers, small bands, home recording and installations.
It features two balanced mic inputs with high quality prea mps, phantom power and 3-band EQ with +/- 15 dB adjustment, two stereo line inputs with 2-band EQ which are mono compatible.
VIBZ 6 is equipped with adjustable monitor outputs, a headphone jack.
The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound.
An adapter for mounting the VIBZ 6 on the microphone stand is available as an accessory.
- Item Number: LDVIBZ6
- Product Type: mixer
- Type: live
- Number of Channels: 6
- Mono Mic/Line Input Channels: 2
- Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
- Mono Mic Input Type: electronically balanced
- Frequency Response Mono Mic Input: 10 - 45,000 Hz
- Amplification Range Mono Mic Input: 0 - +50 dB
- Insert: n/a
- Channel Crosstalk: 62 dB
- THD Mono Mic Input 0.0058 %
- Impedance Mono Mic Input: 4 kOhm
- S/N Ratio Mono Mic Input: 113 dB
- Mono Line Input Type: electronically balanced
- Amplification Range Mono Line Input: 0 - +50 dB
- THD Mono Line Input: 0.0045 %
- Impedance Mono Line Input: 21 kOhm
- S/N Ratio Mono Line Input: 116 dB
- Frequency Response Mono Line Input: 10 - 45,000 Hz
- Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
- Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
- Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
- Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, AUX (Post), 3 Band-EQ (Low, Mid, High), Gain
- Phantom Power: +48 V DC switchable
- Low Cut: n/a
- Compressor: n/a
- Stereo Channels:
- Stereo Line Input Channels: 2
- Stereo Line Input Channels: 6.3 mm mono jack (Lmono, R)
- Stereo Line Input Type: unbalanced
- Frequency Response Stereo Line Input: 10 - 45,000 Hz
- Channel Crosstalk: 62 dB
- THD Stereo Line Input: 0.0045 %
- Impedance Stereo Line Input: 3.7 kOhm
- S/N Ratio Stereo Line Input: 116 dB
- Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
- Stereo Channel Equalizer Mids: n/a
- Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
- Control Elements Stereo Line Input Channels: Channel volume, Balance, AUX (Post), 2 Band-EQ (Low, High)
- Main Section:
- AUX/Effect Send Channels: 1
- AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
- Stereo AUX Return Channels: 1 x stereo
- Stereo AUX Return Connections: 2 x 6.3 mm stereo jack
- Stereo Tape Output Channel: 1 x stereo
- Stereo Tape Output Connections: 2 x RCA (Cinch)
- Stereo Tape Input Channel: 1 x stereo
- Stereo Tape Input Connections: 2 x RCA (Cinch)
- Unbalanced Stereo Main Outputs: 1
- Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
- Impedance Unbalanced Stereo Main Outputs: 120 Ohm
- Max. Level Unbalanced Stereo Main Outputs: +20 dBV
- Stereo Control Room Outputs: 1
- Stereo Control Room Output Connections: 6.3 mm stereo jack, unbalanced
- Headphone Output: 1
- Minimum Headphone Impedance: 30 Ohm
- Headphone Output Connections: 6.3 mm stereo jack
- Digital effects processor: No
- Control Elements Main Section: Headphones / Control Room Volume, Stereo Return Volume, Master-Volume, 2TR assignment (Main, CTRL Room), 2TK Volume, Phantom Power,
- Display Elements: 4-segment Level Meter, Phantom Power, Power, Channel Peak
- Power Supply: 18 V AC - 1 A, External Power Pack
- Width: 209 mm
- Height: 68 mm
- Depth: 260 mm
