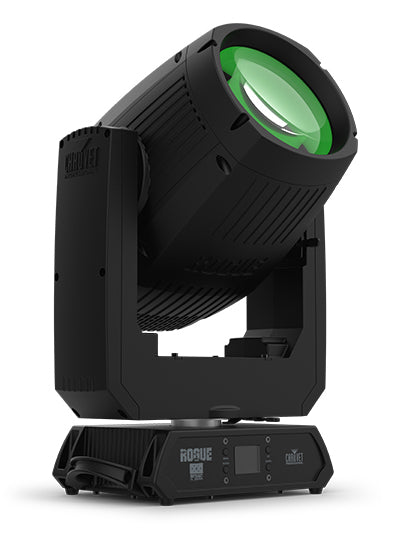

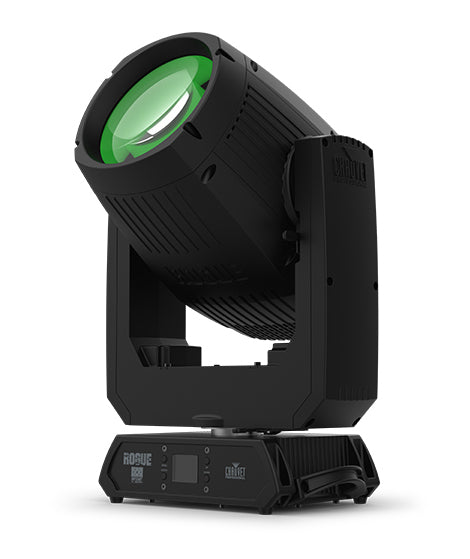

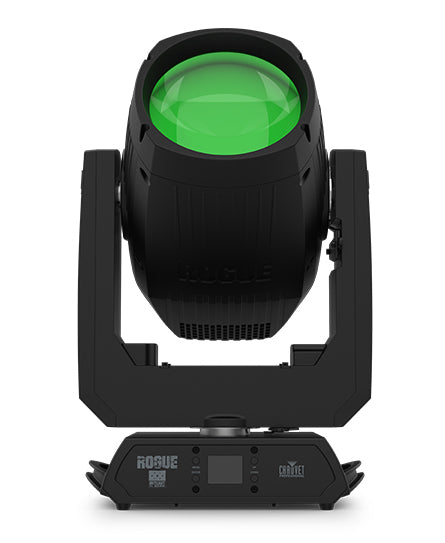

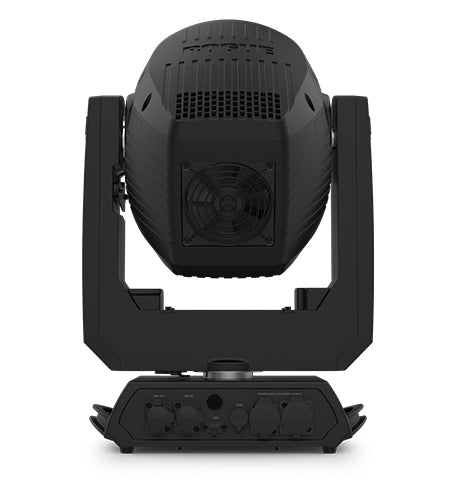

Chauvet Rogue Outcast 1L Beam

• Fully equipped, powerful IP65-rated LED beam fixture
• Lightweight and durable aluminum/magnesium alloy body
• Fast and precise movement of pan and tilt functions
• Individually controllable and layerable 5- and 8-facet prisms
• Frost to soften beam edges and effects
• 5-pin DMX input/output
• Narrow 1.4° beam for extremely focused aerial effects
• RDM enabled for remote addressing and troubleshooting
• 7 rotating and 7 static gobos on one wheel for dynamic gobo effects
• Easy-to-read OLED display with simple, efficient menu selections
• Simple and complex DMX channel profiles for programming flexibility
• USB-C port for software updates

• Rogue Outcast 1L Beam is a lightweight IP65 beam that delivers impressive speed and precision.
• Its narrow 1.4° beam projects extremely focused airborne effects.
• Create dynamic mid-air expressions with this fully equipped fixture, which includes a color wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms, and frost.
• Its durable alloy housing not only withstands outdoor elements but also brings advantages to indoor installations with a maintenance-friendly design that resists particles like fog and smoke.

OPTICAL

• Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
• Color Temperature (at full): 6928 K
• Front lens diameter: 160 mm
• CRI: 69.3
• Beam Angle: 1.4°
• Field Angle: 1.7°
• Cutoff Angle: 1.8°
• Lumens – Source: 5500
• Lumens – Output: 3218
• Illuminance (total) : 224,670 lux @ 5 m

DYNAMIC EFFECTS

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 14 + white, split colors, continuous scroll at variable speeds
• Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism: 5 Facets, motorized, linear, rotating
• Prism: 8 Facets, motorized, round, rotating
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
• Weight: 35.4 lb (16.1 kg)
• Exterior Color: Black
• Housing Material: Aluminum/Magnesium diecast

CONNECTIONS

• Power Connection: Bare ended to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 17 or 19
• Modes/Personalities: 2 personalities (17, 19)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA,
• IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta): 45° C / 113° F

WHAT'S INCLUDED

• Rogue Outcast 1L Beam
• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware
